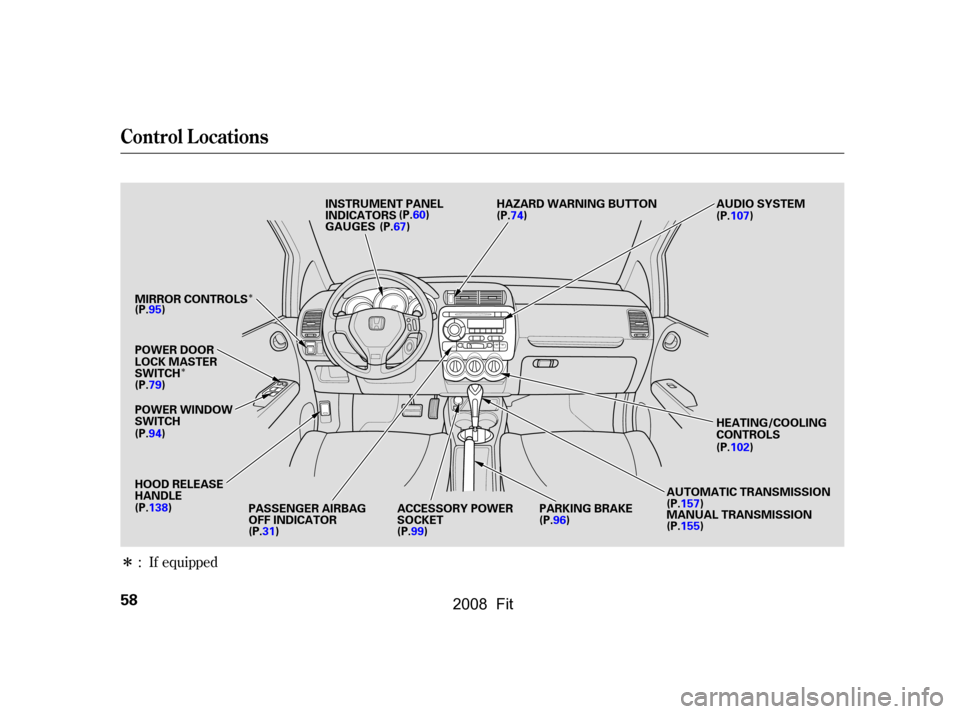

Control L ocations
58
MIRRORCONTROLS
(P.95)
POWER WINDOW
SWITCH
HOOD RELEASE
HANDLE
POWER DOOR
LOCK MASTER
SWITCH
(P.79)
(P.94)
(P.138)
ACCESSORY POWER
SOCKET
GAUGES
INSTRUMENT PANEL
INDICATORS
(P.60)
(P.67)
AUTOMATIC TRANSMISSION
MANUAL TRANSMISSION
(P.157)
(P.155)AUDIO SYSTEM
HEATING/COOLING
CONTROLS
(P.102)
HAZARD WARNING BUTTON
PASSENGER AIRBAG
OFF INDICATOR PARKING BRAKE
(P.31)(P.99) (P.96)(P.107)
(P.74)
\f—\f—y\fy
(
\fy\f\fy
2008 Fit

Î
Î
Î
Î
Î
Î Î
Î
Î
: If equipped

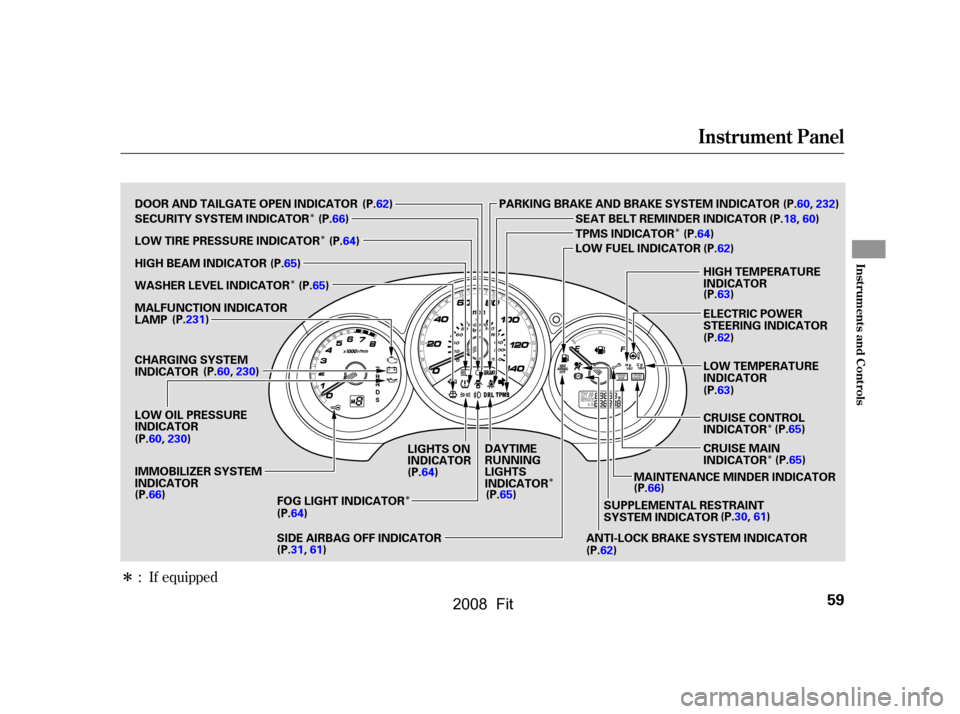

Instrument Panel
Inst rument s and Cont rols
59
HIGH BEAM INDICATOR
(P.64)
LIGHTS ON
INDICATORDAYTIME
RUNNING
LIGHTS
INDICATOR
DOOR AND TAILGATE OPEN INDICATOR
MAINTENANCE MINDER INDICATOR
(P.66)LOW TEMPERATURE
INDICATOR
(P.63)
ANTI-LOCK BRAKE SYSTEM INDICATOR
(P.62) SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
(P.30,61)
HIGH TEMPERATURE
INDICATOR
(P.63)
CHARGING SYSTEM
INDICATOR
MALFUNCTION INDICATOR
LAMP
LOW OIL PRESSURE
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
(P.66) (P.64) (P.62)
LOW FUEL INDICATOR
SECURITY SYSTEM INDICATOR
LOW TIRE PRESSURE INDICATOR (P.64) (P.62)
(P.66)
WASHER LEVEL INDICATOR (P.65)
FOG LIGHT INDICATOR (P.65)
SIDE AIRBAG OFF INDICATOR
(P.31,61) CRUISE MAIN
INDICATOR
(P.65)
CRUISE CONTROL
INDICATOR
(P.65)
ELECTRIC POWER
STEERING INDICATOR
(P.62)
TPMS INDICATOR
SEAT BELT REMINDER INDICATOR
(P.64)(P.18,60)(P.60,232)
(P.231) (P.60,230)
(P.60,230) PARKING BRAKE AND BRAKE SYSTEM INDICATOR
(P.65)
\f—\f—y\f\fy
(
\fy\f\fy
2008 Fit

The instrument panel has many
indicators that give you important
inf ormation about your vehicle.
See page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires. This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on.
If it remains on af ter you have
fully released the parking brake
while the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
2.
1.
231
230
230 232
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator
Seat Belt Reminder
Indicator
Parking Brake and
Brake System
Indicator (Red)
Instrument Panel Indicators
60
U.S. Canada
\f—\f—y\f
y
(
\fy\f\fy
2008 Fit

This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
cutof f system, side curtain airbags,
automatic seat belt tensioners,
driver’s seat position sensor, or the
f ront passenger’s weight sensors.
For more inf ormation, see page .
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
18 31
30
Instrument Panel Indicators
Supplemental Restraint
System Indicator Side A irbag Of f Indicator
Inst rument s and Cont rols
61
Canada
U.S.
\f—\f—y\fy
(
\fy\f\fy
2008 Fit

This indicator normally comes on
when you turn the ignition to the ON
(II) position and goes of f af ter the
engine starts. If it comes on at any
other time, there is a problem in the
electric power steering system. If
this happens, stop the vehicle in a
saf e place and turn of f the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes on again while driving, take
the vehicle to your dealer to have it
checked. With the indicator on, the
EPS may be turned of f , making the
vehicle harder to steer.
If the power steering system
overheats while driving, the assist is
reduced and steering may f eel
slightly harder.Driving with the power steering
system continuously overheating can
cause system damage.
This indicator comes on as a
reminder that you must ref uel soon.
When the indicator comes on, there
is about 1.7 US gal (6.3
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
This indicator comes on if any door
or the tailgate is not closed tightly.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
168
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator Electric Power Steering
(EPS) Indicator
Low Fuel Indicator
Door and Tailgate Open
Indicator
62
\f—\f—y\fy
(
\fy\f\fy
2008 Fit

This indicator monitors the
temperature of the engine coolant. It
normallycomesonwhenyouturn
the ignition switch to the ON (II)
position and goes of f af ter a f ew
seconds. In normal driving
conditions, this indicator should not
blink or stay on. In severe driving
conditions, such as very hot weather
or a long period of uphill driving, this
indicator may blink. This means the
engine coolant temperature is high.
If the indicator begins to blink while
you are driving, be sure to slow down
to prevent overheating. If the
indicator stays on, pull safely to the
side of the road and turn of f the
engine. See page f or instructions
and precautions on checking the
engine’s cooling system.This indicator monitors the
temperature of the engine coolant. If
there is no problem, this indicator
comes on when the engine is cold. If
it comes on when the engine is warm
(normal operating temperature),
have the vehicle inspected by your
dealer as soon as possible.
Do not drive the vehicle while the
indicator is on or the engine may be
damaged. The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
228 198
Instrument Panel Indicators
High T emperature
Indicator
Low Temperature
Indicator Turn Signal and
Hazard Warning
Indicators
Inst rument s and Cont rols
63
\f—\f—y\f\fy
(
\fy\f\fy
2008 Fit

This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either theor position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning of f the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
This indicator comes on when you
turn on the fog lights. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
170 73
218
238U.S. models only U.S. models only
On Sport model
Low Tire Pressure
IndicatorTire Pressure Monitoring
System (T PMS) IndicatorLights On Indicator
Fog L ight Indicator
Instrument Panel Indicators
64
\f—\f—y\fy
(
\fy\f\fy
2008 Fit

This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ).
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the circuit. Have your vehicle
checked by your dealer.This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control. This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
73
73 131
131 192
Canadian models only Canadian models only
On Sport model and Canadian LX model
On Sport model and Canadian LX model
High Beam Indicator
Daytime Running L ights
Indicator Cruise Main Indicator
Cruise Control Indicator
Washer Level Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
65
\f—\f—y\f\f\fy
(
\fy\f\f\fy
2008 Fit

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See pagef or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. This indicator comes on when the
security system is set. See pagef or more inf ormation on the
security system. 130
77
179
On Sport model
Maintenance Minder
Indicator Immobilizer System
IndicatorSecurity System Indicator
Instrument Panel Indicators
66

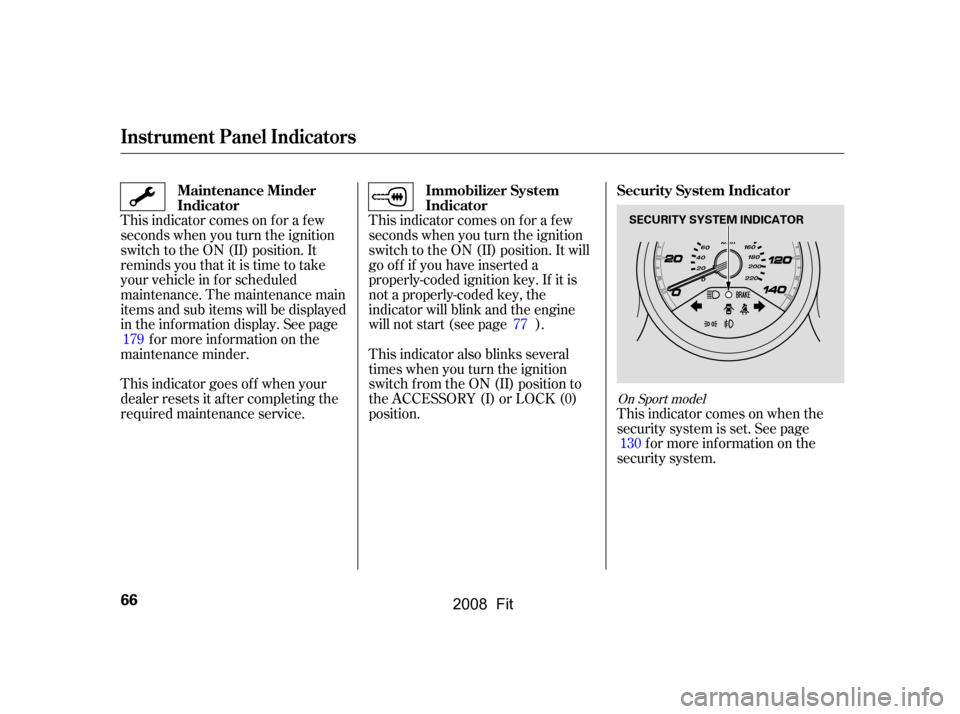

SECURITY SYSTEM INDICATOR
\f—\f—y\f\fy
(
\fy\f\f
y
2008 Fit

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
When you turn the ignition switch to
the ON (II) position, the last
selection is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
Trip Meter
Gauges
Inst rument s and Cont rols
67

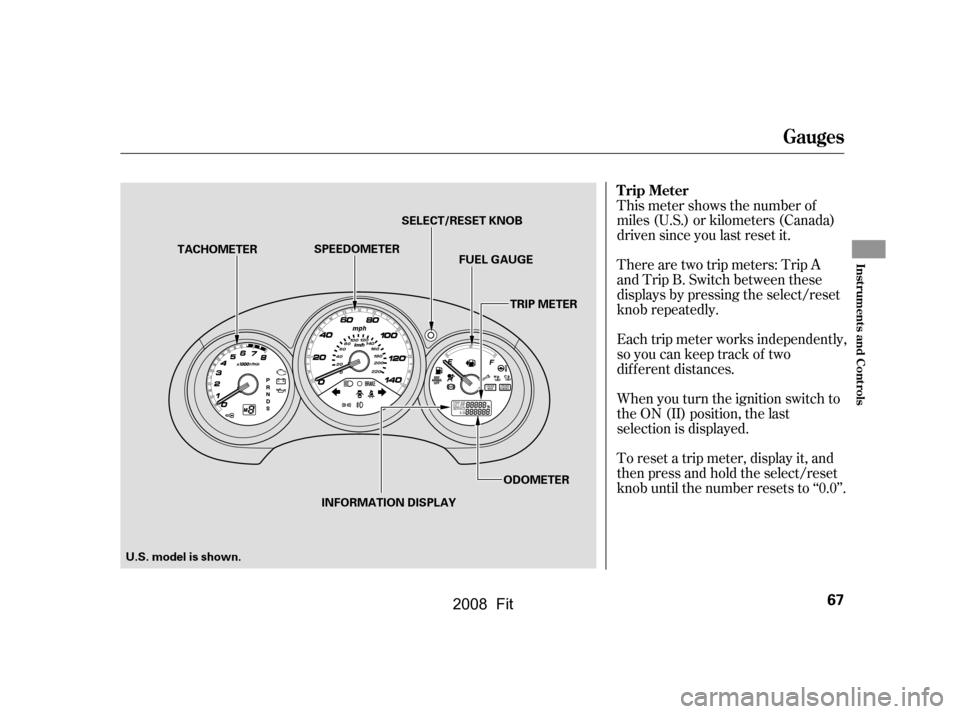

FUEL GAUGE
U.S. model is shown. TACHOMETER
SPEEDOMETER
ODOMETERTRIP METER
INFORMATION DISPLAY SELECT/RESET KNOB
\f—\f—y\f
y
(
\fy\f\fy
2008 Fit
