clock HONDA INSIGHT 2022 User Guide

507
uuMaintenance Under the Hood uCooling System
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator Cap
22 INSIGHT HMIN-31TXM6300.book 507 ページ ２０２１年２月２４日　水曜日　午後３時４５分

513
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance

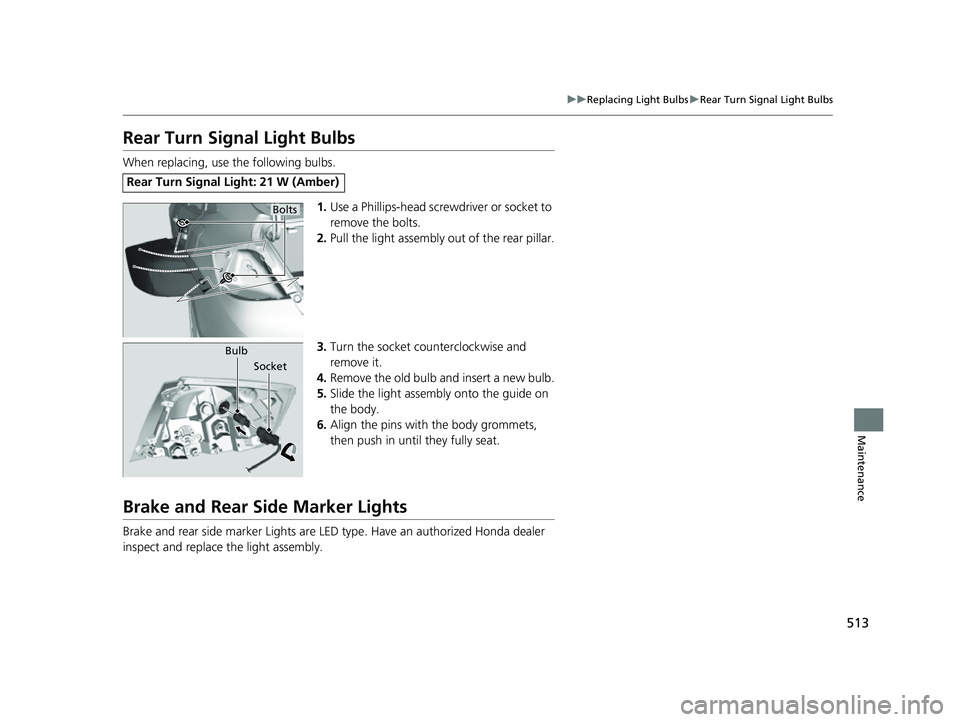

Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counterclockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake and Rear Side Marker Lights
Brake and rear side marker Lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Rear Turn Signal Light: 21 W (Amber)
Bolts
Bulb
Socket
22 INSIGHT HMIN-31TXM6300.book 513 ページ ２０２１年２月２４日　水曜日　午後３時４５分

514
uuReplacing Light Bulbs uTaillights
Maintenance

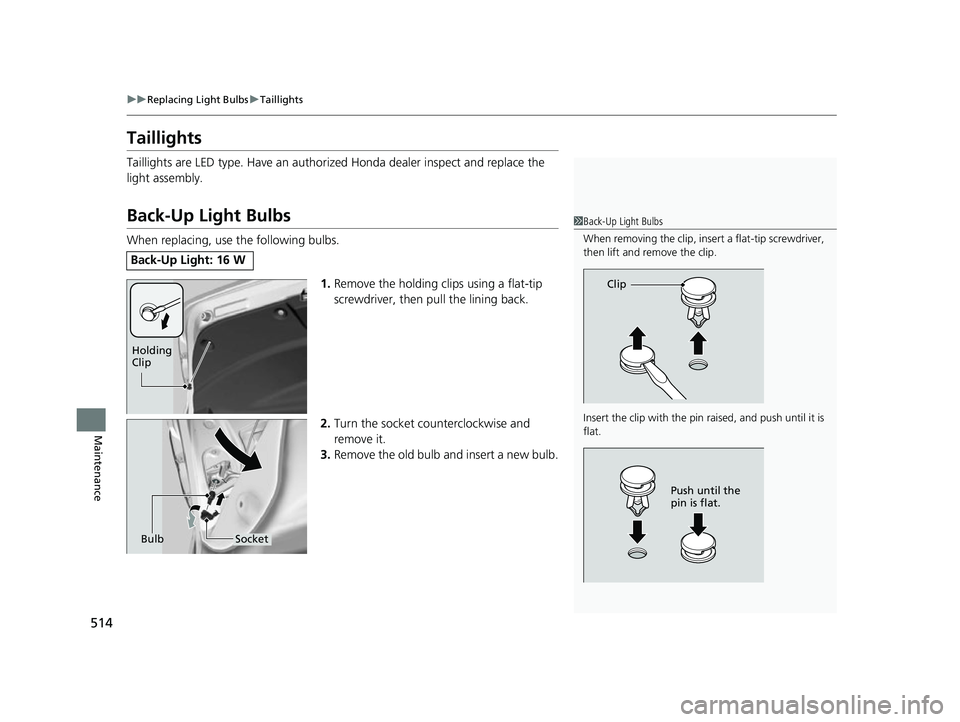

Taillights
Taillights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket counterclockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 16 W
1Back-Up Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat.
Holding
Clip
BulbSocket
22 INSIGHT HMIN-31TXM6300.book 514 ページ ２０２１年２月２４日　水曜日　午後３時４５分

528
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
The condition of the battery is monitored by a sensor located on the negative
terminal of the battery. If there is a problem with this sensor, the driver information
interface will display a warning message. If this happens, have your vehicle inspected
by a dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 226
•The clock resets.
2 Clock P. 156
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
22 INSIGHT HMIN-31TXM6300.book 528 ページ ２０２１年２月２４日　水曜日　午後３時４５分

600
Index
Automatic Intermittent Wipers............... 193
Automatic Lighting .................................. 186
Average Fuel Economy ............................. 137
Average Fuel Economy Records ............... 150
Average Speed .......................................... 139
B
Belts (Seat).................................................. 44
Beverage Holders ...................................... 211
Blind spot information System ................ 411
Bluetooth ® Audio ..................................... 279
Bluetooth ® HandsFreeLink ®................... 349
Booster Seats (For Children) ....................... 78
Brake System ............................................. 468
Anti-lock Brake System (ABS) ................... 476
Automatic Brake Hold.............................. 473
Brake Assist System ................................. 477
Fluid ........................................................ 510
Foot Brake ............................................... 472
Indicator .............................. 83, 84, 572, 573
Parking Brake .......................................... 468
Brightness Control (Instrument Panel) .... 195
Bulb Replacement ..................................... 512
Back-Up Lights......................................... 514
Brake and Rear Side Marker Lights ........... 513
Fog Lights ................................................ 512
Front Turn Signal, Parking/Daytime Running and Front Side Marker Lights.... 512
Headlights ............................................... 512
High-Mount Brake Light .......................... 515 Rear License Plate Light ........................... 515
Rear Turn Signal Lights ............................ 513
Side Turn Signal/Emergency Indicator
Lights .................................................... 512
Taillights.................................................. 514
Bulb Specifications ................................... 588C
Carbon Monoxide Gas ............................... 79
Carrying Cargo ................................. 377, 379
Certification Label .................................... 590
Changing Bulbs ........................................ 512
Charging System Indicator ................. 89, 570
Child Safety ................................................. 66
Childproof Door Locks............................. 169
Emergency Trunk Opener ........................ 173
Child Seat .................................................... 66
Booster Seats ............................................ 78
Child Seat for Infants................................. 68
Child Seat for Small Children ..................... 69
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 73
Larger Children ......................................... 77
Rear-facing Child Seat ............................... 68
Selecting a Child Seat ................................ 70
Using a Tether ........................................... 75
Childproof Door Locks ............................. 169
Cleaning the Exterior ............................... 534
Cleaning the Interior ................................ 532 Climate Control System
........................... 216
Changing the Mode................................ 216
Defrosting the Windshield and Windows .............................................. 219
Dust and Pollen Filter .............................. 531
Recirculation and Fresh Air Mode ............ 218
Sensors ................................................... 222
Synchronized Mode ................................ 221
Using Automatic Climate Control............ 216
Clock ......................................................... 156
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 418
Coat Hooks ............................................... 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 418
Compact Spare Tire .......................... 541, 589
Console Compartment ............................. 210
Controls .................................................... 155
Coolant (Engine) ...................................... 506
Adding to the Radiator ........................... 507
Adding to the Reserve Tank .................... 506
Overheating ............................................ 567
Cooling System ......................................... 506
Adding to the Radiator ........................... 507
Adding to the Reserve Tank .................... 506
Overheating ............................................ 567
Creeping ................................................... 390
Cross Traffic Monitor ............................... 480
Cup Holders .............................................. 211
Customer Service Information ................ 598
Customized Features ............................... 326
