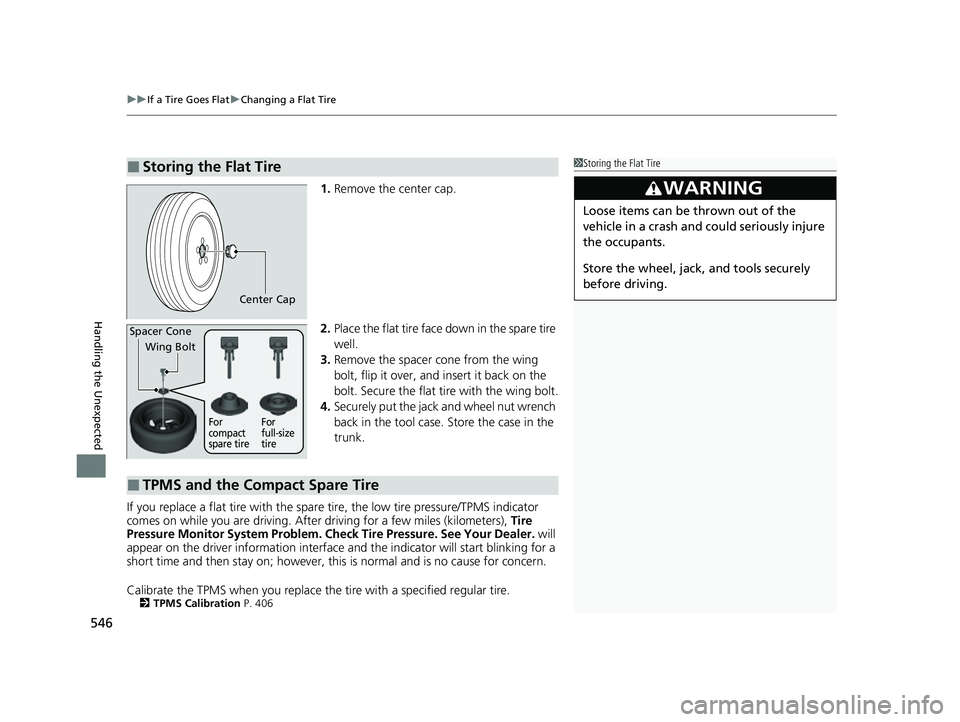

uuIf a Tire Goes Flat uChanging a Flat Tire
546
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor System Problem. Ch eck Tire Pressure. See Your Dealer. will
appear on the driver information interface and the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 406
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can be thrown out of the
vehicle in a crash and could seriously injure
the occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tire For
full-size
tire
■TPMS and the Compact Spare Tire
22 INSIGHT HMIN-31TXM6300.book 546 ページ ２０２１年２月２４日　水曜日　午後３時４５分

uuIf the 12-Volt Battery Is Dead uJump Starting Procedure
566
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist
TM (VSA ®) system, vehicles
stability assistTM (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
22 INSIGHT HMIN-31TXM6300.book 566 ページ ２０２１年２月２４日　水曜日　午後３時４５分

575

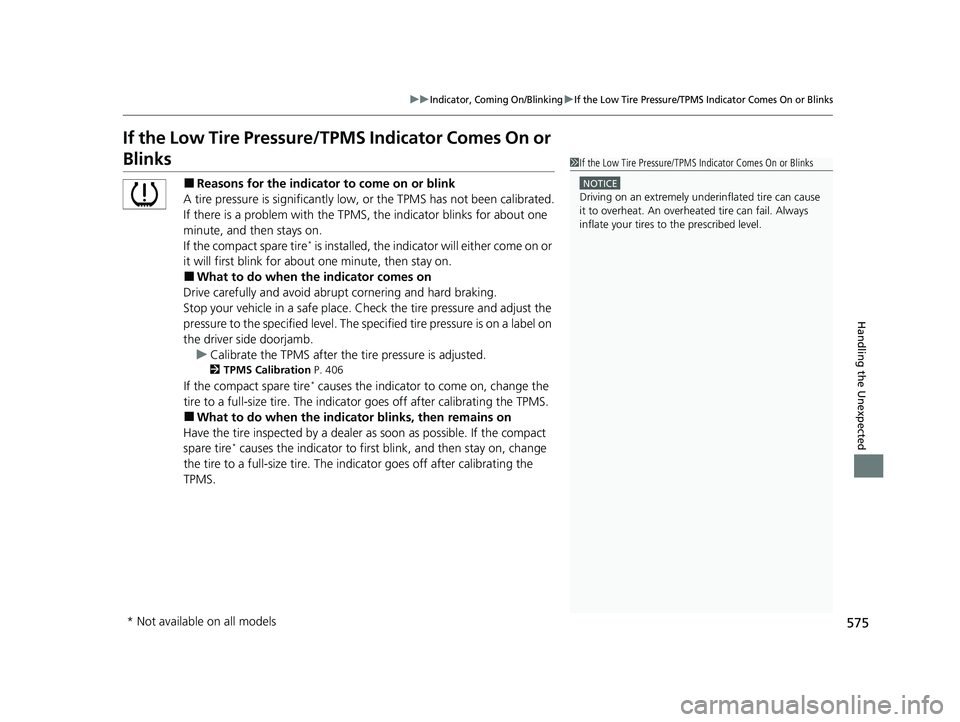

uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signif icantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 406
If the compact spare tire* causes the indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after calibrating the
TPMS.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 575 ページ ２０２１年２月２４日　水曜日　午後３時４５分

603
Index
Automatic Brake Hold System ........... 85, 473
Blind spot information System................. 412
Deceleration Paddle Selector ..................... 89
ECON Mode ..................................... 97, 401
Electric Power Steering (EPS)
System ............................................ 92, 574
EV............................................................. 87
EV Mode................................................... 87
Fog Light .................................................. 95
High Beam ................................................ 95
Immobilizer System ................................... 96
Lane Keeping Assist System (LKAS) (Amber) .................................................. 99
Lane Keeping Assist System (LKAS)
(Green) ........................................... 99, 448
Lights On .................................................. 95
Low Fuel ................................................... 91
Low Tire Pressure/TPMS ............ 94, 406, 409
Malfunction Indicator Lamp .............. 88, 571
Parking Brake and Brake System (Amber) .......................................... 84, 573
Parking Brake and Brake System
(Red) ....................................... 83, 572, 573
POWER SYSTEM ....................................... 86
READY ...................................................... 87
Safety Support (Amber)........................... 100
Safety Support (Green/Gray) ................... 103
Seat Belt Reminder.............................. 45, 91
Security System Alarm............................... 96
Shift Position............................................. 89
SPORT Mode..................................... 97, 397 Supplemental Restraint System ............ 62, 92
System Message ........................................ 97
Transmission System .................................. 90
Turn Signal and Haza
rd Warning ............... 95
Vehicle Stability Assist
TM (VSA ®) OFF ... 93, 404
Vehicle Stability AssistTM (VSA ®)
System............................................. 93, 403
Information ............................................... 587
Instant Fuel Economy ............................... 137
Instrument Panel ........................................ 81
Brightness Control ................................... 195
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 197
Inverter Coolant ....................................... 508
iPad ............................................................ 305
iPhone ....................................................... 305
iPod ................................................... 273, 305
J
Jack (Wheel Nut Wrench) ........................ 544
Jump Starting ........................................... 564
K
Key Number Tag ....................................... 158
Keyless Access System ............................... 160
Keyless Lockout Prevention ..................... 166
Keys ........................................................... 157
Lockout Prevention .................................. 166
Number Tag ............................................ 158 Rear Door Won’t Open............................ 169
Remote Transmitter ................................. 164
Types and Functions ................................ 157
L
Lane Keeping Assist System (LKAS)
......... 446
Language (HFL) ........................................ 351
LATCH (Child Seats) .................................... 71
Lights ................................................. 185, 512
Automatic ............................................... 186
Bulb Replacement ................................... 512
Daytime Running Lights........................... 188
Fog Lights ............................................... 188
High Beam Indicator .................................. 95
Interior .................................................... 207
Light Switches ......................................... 185
Lights On Indicator .................................... 95
Turn Signals ............................................ 184
Load Limits ................................................ 379
Locking/Unlocking .................................... 157
Auto Door Locking/Unlocking.................. 170
Childproof Door Locks............................. 169
From Inside ............................................. 167
From Outside .......................................... 160
Keys ........................................................ 157
Using a Key ............................................. 165
Lockout Prevention System ..................... 166
Low Battery Charge ................................. 570
Low Fuel Indicator ...................................... 91
Low Keyless Remote Signal Strength ...... 159
22 INSIGHT HMIN-31TXM6300.book 603 ページ ２０２１年２月２４日　水曜日　午後３時４５分

605
Index
Radio Data System (RDS)......................... 260
Range ........................................................ 137
RDS (Radio Data System) ......................... 260
Readiness Codes (Emissions Testing) ...... 593
Rear Defogger/Heated Door Mirror
Button ..................................................... 194
Rear Seat (Folding Down) ....................... 202
Rearview Mirror ....................................... 197
Refueling .................................................. 485
Fuel Gauge ............................................. 129
Gasoline ......................................... 485, 588
Low Fuel Indicator..................................... 91
Regulations .............................. 409, 522, 591
Remote Engine Start with Vehicle
Feedback ................................................. 384
Remote Transmitter ................................. 164
Replacement
Battery .................................................... 530
Bulbs ...................................................... 512
Fuses .............................................. 577, 581
Tires........................................................ 525
Wiper Blade Rubber ................................ 516
Reporting Safety Defects ......................... 592
Resetting a Trip Meter ..................... 135, 137
Road Departure Mitigation (RDM) ......... 454
On and Off ............................................. 456
S
Safe Driving ................................................ 39
Safety Check ............................................... 43 Safety Labels
............................................... 80
Safety Message ............................................. 3
Safety Support .......................................... 149
Seat Belts ..................................................... 44
Adjusting the Shoulder Anchor .................. 48
Automatic Seat Belt Tensioners .................. 46
Checking ................................................... 50
Fastening ................................................... 47
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 73
Pregnant Women ...................................... 49
Reminder ................................................... 45
Warning Indicator ................................ 45, 91
Seat Heaters .............................................. 215
Seats .......................................................... 199
Adjusting ................................................. 199
Front Seats .............................................. 199
Rear Seats ............................................... 202
Seat Heaters ............................................ 215
Security System ......................................... 174
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 96
Selecting a Child Seat ................................. 70
Shift Buttons ....................................... 28, 391
Operation ................................................ 393
Shift Position Indicator ............................... 89
Shifting (Transmission) ............................. 391
Shoulder Anchor ......................................... 48
Side Airbags ................................................ 59
Side Curtain Airbags ................................... 61
Siri ® Eyes Free ........................................... 293 SiriusXM
® Radio ........................................ 262
Snow Tires ................................................. 527
Spare Tire .......................................... 541, 589
Spark Plugs ............................................... 588
Specifications ............................................ 588
Specified Fuel ................................... 485, 588
Speedometer ............................................ 129
SPORT Mode ............................................. 397
Indicator.................................................... 97
SRS Airbags (Airbags) ................................. 54
Steering Wheel
Adjusting ................................................ 196
Stopping ................................................... 478
Summer Tires ............................................ 527
Supplemental Restraint System (SRS) ........ 54
Switches (Around the Steering Wheel) ............................................. 6, 7, 181
System Message Indicator .......................... 97
System Updates ........................................ 246
T
Temperature
Outside Temperature Display ................... 135
Temperature Sensor ......................... 135, 222
Temporary Tire Repair Kit ....................... 548
Time (Adjusting) ....................................... 156
Tire Pressure Monitoring System (TPMS) ..................................................... 406
Indicator............................................ 94, 575
22 INSIGHT HMIN-31TXM6300.book 605 ページ ２０２１年２月２４日　水曜日　午後３時４５分

606
Index
Tires........................................................... 519
Air Pressure ..................................... 520, 589
Checking and Maintaining ....................... 519
Inspection ................................................ 519
Labeling................................................... 520
Puncture (Flat Tire) ................................... 541
Regulations.............................................. 522
Rotation .................................................. 526
Spare Tire ........................................ 541, 589
Summer................................................... 527
Temporary Tire Repair Kit......................... 548
Tire Chains .............................................. 527
Wear Indicators ....................................... 524
Winter ..................................................... 527
Tools .......................................................... 540
Towing a Trailer ........................................ 381
Towing Your Vehicle ................................ 381
Emergency............................................... 583
TPMS (Tire Pressure Monitoring
System) .................................................... 406
Indicator ............................................ 94, 575
Traffic Sign Recognition System .............. 459
Transmission .............................................. 391
Automatic ............................................... 391
Creeping ................................................. 390
Number ................................................... 590
Shift Operation ........................................ 393
Shift Position Indicator ............................... 89
Shifting.................................................... 391
Transmission System Indicator .................................................... 90 TRIP Button
............................................... 134
Trip Computer .................................. 136, 138
Trip Meter ................................. 135, 137, 139
Troubleshooting ....................................... 539
Blown Fuse...................................... 577, 581
Brake Pedal Vibrates .................................. 35
Buzzer Sounds When Opening Door.......... 35
Emergency Towing .................................. 583
Noise When Braking ............................ 36, 37
Overheating ............................................ 567
Power System Won’t Start ....................... 561
Puncture/Flat Tire .................................... 541
Rear Door Won’t Open...................... 35, 169
Warning Indicators .................................... 82
Trunk ......................................................... 171
Lid........................................................... 171
Light Bulb................................................ 588
Unable to Open....................................... 585
Turn Signals .............................................. 184
Indicators (Instrument Panel) ..................... 95
Turning on the Power .............................. 382
If the 12-Volt Battery Is Dead................... 564
U
Unlocking the Doors ................................ 160
Unlocking the Front Doors from the
Inside ......................................................... 24
USB Flash Drives ............................... 276, 305
USB Ports ................................................... 225
Using the Keyless Access System ............. 160
V
Vanity Mirrors.............................................. 9
Vehicle Identification Number ................ 590
Vehicle Stability Assist
TM (VSA® ).............. 403
Off Button .............................................. 404
Off Indicator ............................................. 93
System Indicator ....................................... 93
Viscosity (Oil) .................................... 501, 589
Voice Control Operation ......................... 255
Voice Portal Screen ................................. 256
Voice Recognition ................................... 255
VSA ® (Vehicle Stability Assist
TM).............. 403
W
Wallpaper ................................................. 237
Warning and Information Messages ...... 104
Warning Indicator On/Blinking ............... 569
Warning Labels .......................................... 80
Warnings .................................................. 141
Warranties (Warranty Manual provided
separately) .............................................. 594
Watts ........................................................ 588
Wear Indicators (Tire) .............................. 524
Wheel Nut Wrench (Jack Handle) ........... 544
Wi-Fi Connection ..................................... 290
Window Washers ..................................... 192
Adding/Refilling Fluid .............................. 511
Switch .................................................... 192
Windows (Opening and Closing) ............ 177
22 INSIGHT HMIN-31TXM6300.book 606 ページ ２０２１年２月２４日　水曜日　午後３時４５分
