Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
To install a LATCH-compatible child
seat in a second row seat:
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors. Move the seat belt buckle or
tongue away f rom the lower
anchors.
Your vehicle is equipped with
LATCH (lower anchors and tethers
f or children) in the two second row
seats and the center seating position
of the third row.
1.
2.3.
Installing a Child Seat with
LATCH
Installing a Child Seat
48

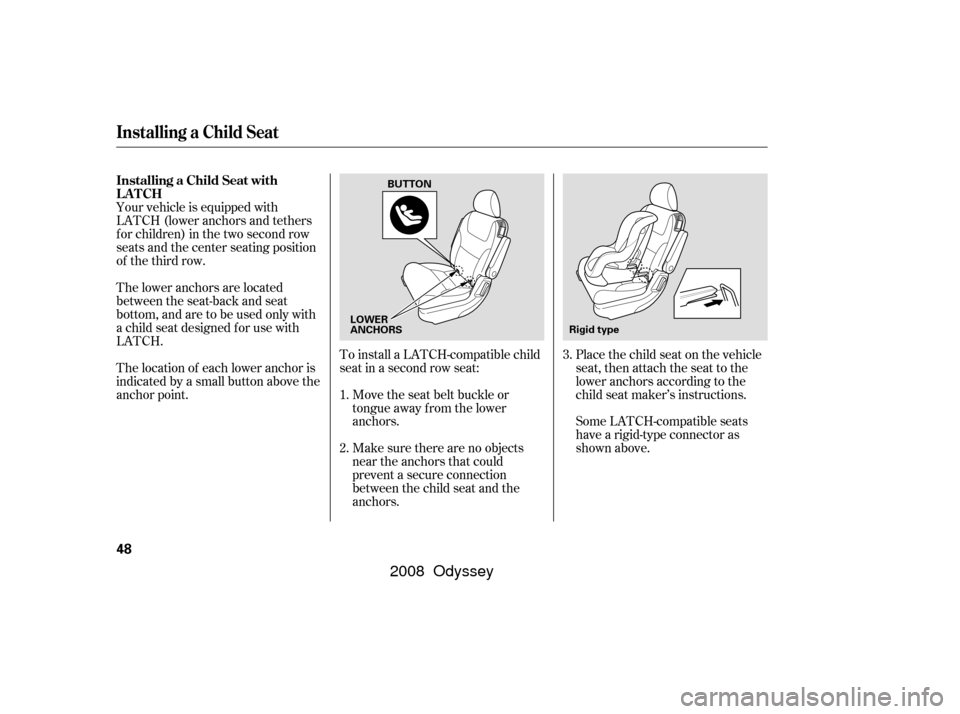

LOWER
ANCHORS BUTTON
Rigid type
— — y
y
( y y
2008 Odyssey
Page 52 of 524
Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
Other LATCH-compatible seats have
a f lexible-type connector as shown
above.
Attach the tether strap hook to the
anchor, making sure the strap is
not twisted, then tighten the strap
according to the seat maker’s
instructions.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
Lif t the head restraint (see page
), then route the tether strap
through the legs of the head
restraint, over the seat-back and
through the grab rail.
4. 5.
6.
7.
171
Installing a Child Seat
Driver and Passenger Saf ety
49
ANCHOR TETHER
STRAP HOOK
TETHER STRAP
Flexible type
— — y
y
( y y
2008 Odyssey
Page 53 of 524
To install a LATCH-compatible child
seat in the center seating position of
the third row:Unlatch the detachable seat belt
anchor latch and retract the seat
belt all the way into the ceiling.
Place the latch plate and anchor
latch in their holding slots (see
page ).
The location of each lower anchor is
indicated by a small button above the
anchor point.Followsteps1through4of the
second row installation on pages and . The center seating position of the
third row has an anchorage point on
the tailgate sill.
Slide the anchor cover to open it.
1.
2.3.
48
16
49
Installing a Child Seat
50

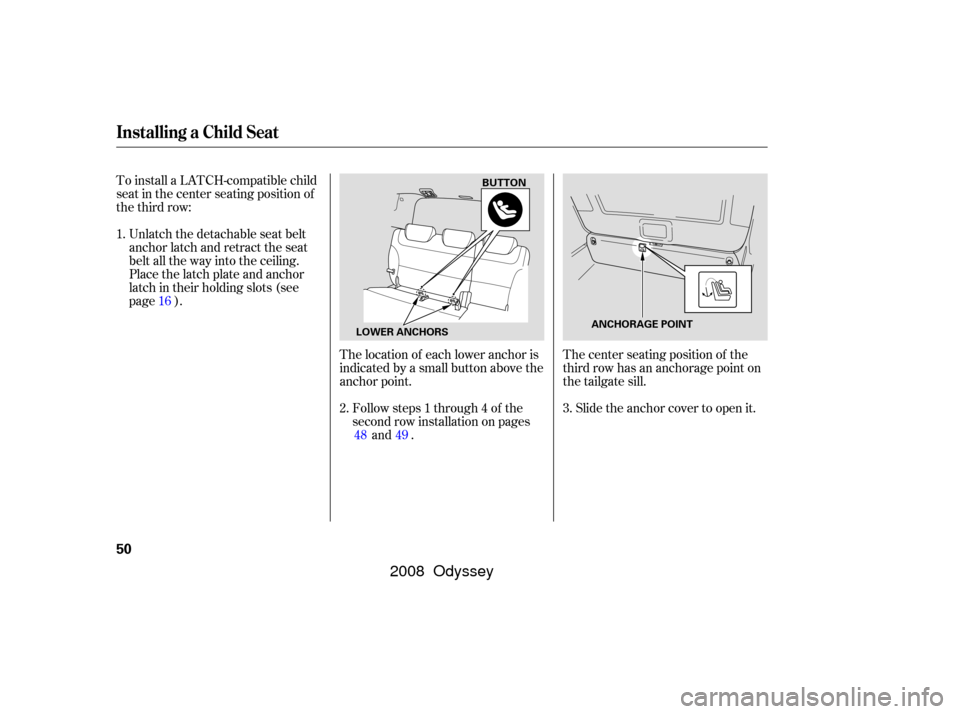

ANCHORAGE POINT
BUTTON
LOWER ANCHORS
— — y
y
( y y
2008 Odyssey
Page 54 of 524
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
If you intend to install a child seat in
the center seating position of the
thirdrow,makesurethedetachable
seat belt is properly installed (see
page ).
Remove the head restraint (see
page
). Make sure the removed
head restraint is secured in the
cargo area. Reinstall the head
restraint when the child seat is
removed.
Followsteps6and7onpage . 1.
4.
5. 4916
171
CONT INUED
Installing a Child Seat
Installing a Child Seat with a L ap/
Shoulder Belt
Driver and Passenger Saf ety
51

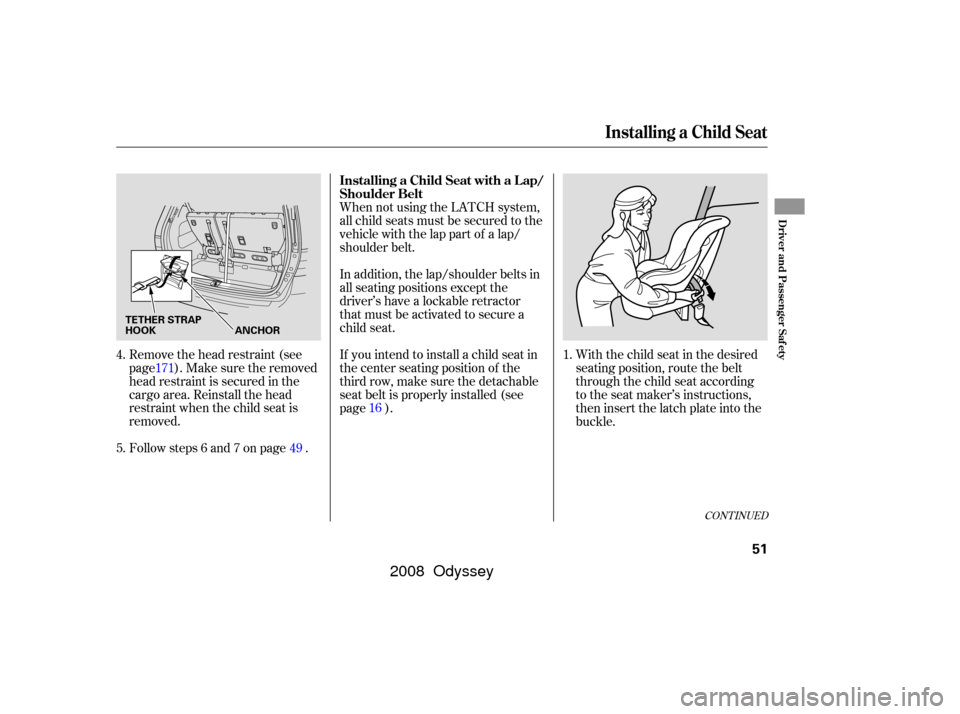

TETHER STRAP
HOOK
ANCHOR
— — y
y
( y y
2008 Odyssey
Page 55 of 524
To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract.Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.
Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt f eed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.5.
4.
2.
3.
Installing a Child Seat
52
— — y
y
( y y
2008 Odyssey
Page 56 of 524
Each second row bucket seat has a
tether anchorage point at the bottom
of the seat-back.Af ter properly securing the child
seat (see page ), lif t the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
A child seat with a tether can be
installed in any seating position in
the second or third row seats.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
1.51
CONT INUED
Installing a Child Seat with a
TetherSecond Row Inst allat ion
Installing a Child Seat
Driver and Passenger Saf ety
53

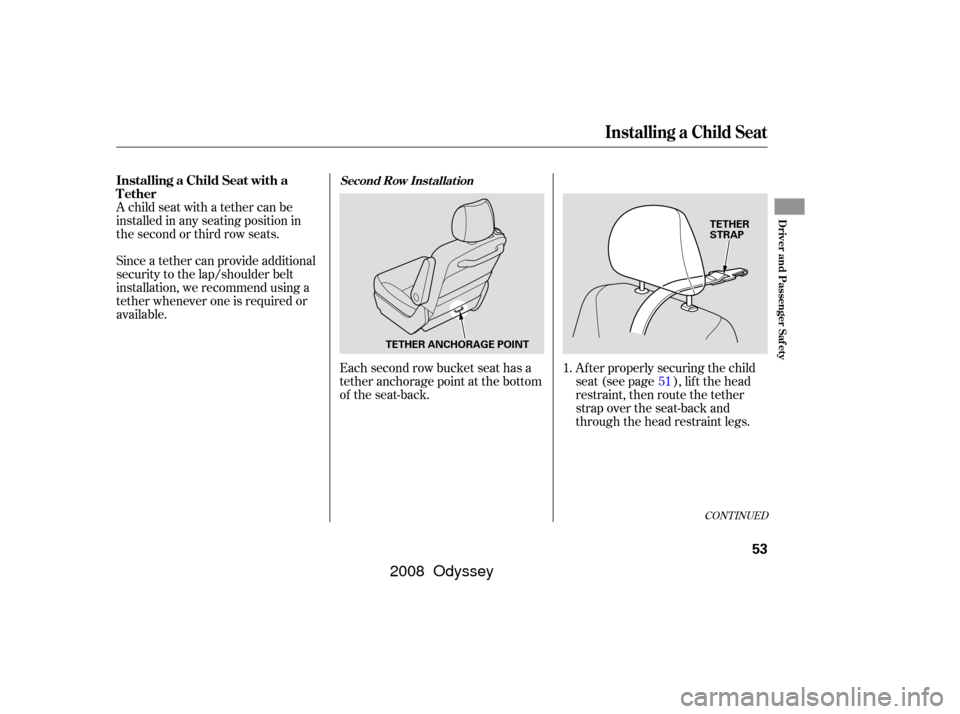

TETHER ANCHORAGE POINT TETHER
STRAP
— — y
y
( y y
2008 Odyssey
Page 57 of 524
The center seating position of the
third row has an anchorage point on
the tailgate sill.
Each outside seating position of the
third row has an anchorage point on
the seat-back.
Attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
Tighten the strap according to the
seat maker’s instructions.
2.
3.
T hird Row Inst allat ion
Installing a Child Seat
54

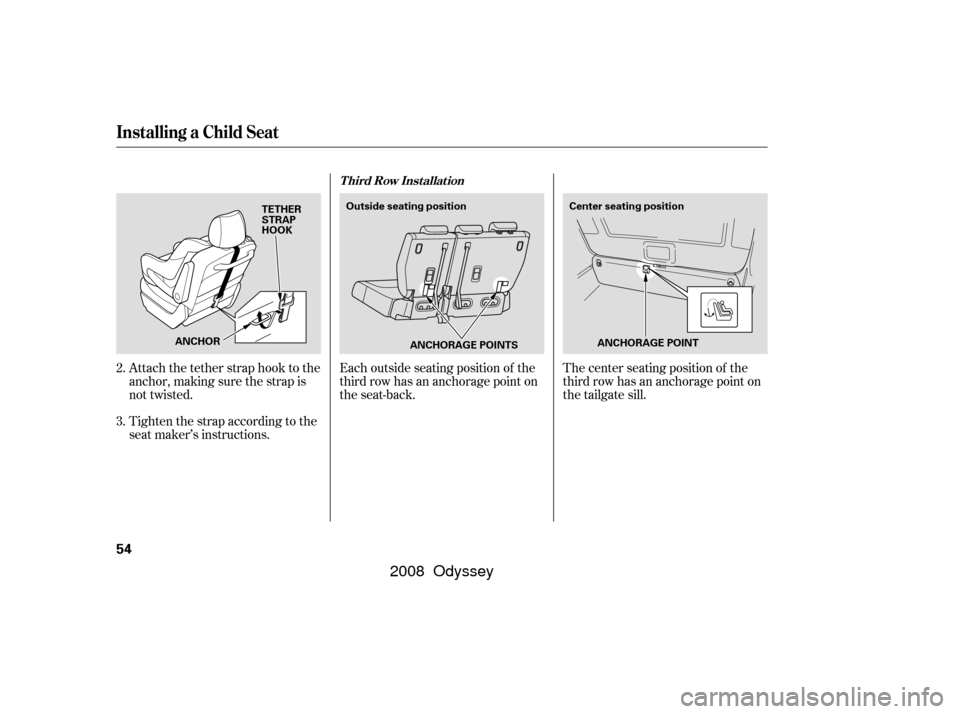

ANCHORAGE POINT
Center seating position
TETHER
STRAP
HOOK
ANCHOR ANCHORAGE POINTS
Outside seating position
— — y
y
( y y
2008 Odyssey
Page 58 of 524
Remove the head restraint (see
page). Make sure the removed
head restraint is secured in the
cargo area. Reinstall the head
restraint when the child seat is
removed.
To use the anchor, pull up the
anchor cover.
Slide the anchor cover to open it.
Af ter properly securing the child
seat (see page ), route the
tether strap over the top of the
seat-back.Attach the tether strap hook to the
anchor, making sure the tether
strap is not twisted.
Tighten the strap according to the
seat maker’s instructions.
2.
3. 1.
(Outside seating position)
(Center seating position) 4. 5.
51
171
Installing a Child Seat
Driver and Passenger Saf ety
55

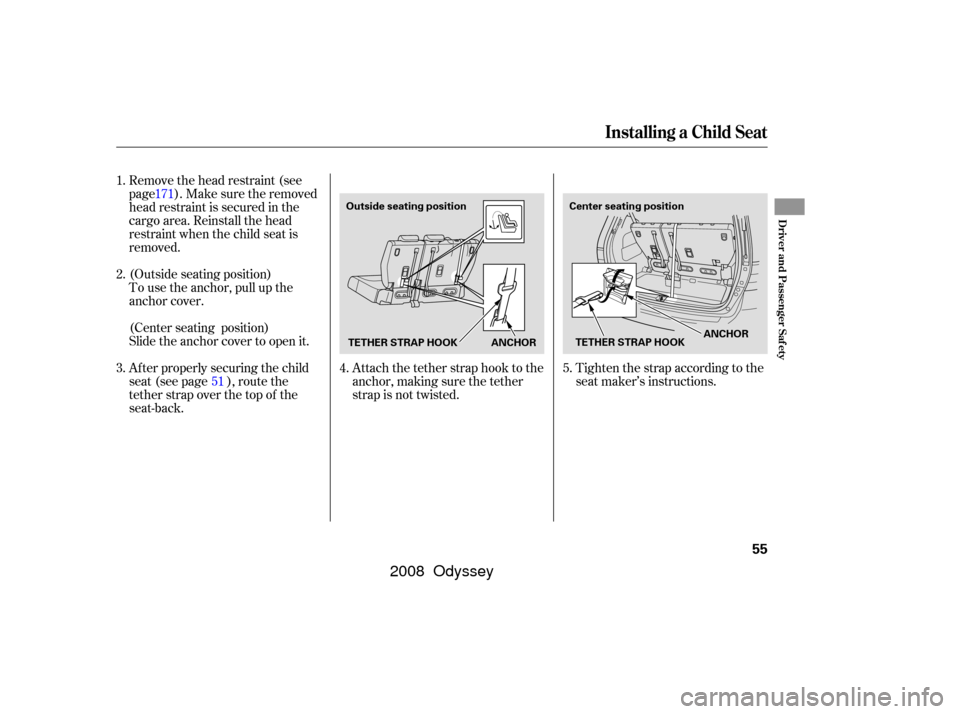

Outside seating position
TETHER STRAP HOOK Center seating position
ANCHOR
TETHER STRAP HOOK
ANCHOR
— — y
y
( y y
2008 Odyssey
Page 59 of 524
To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.
1.
2. Checking Seat Belt Fit
Protecting L arger Children
56

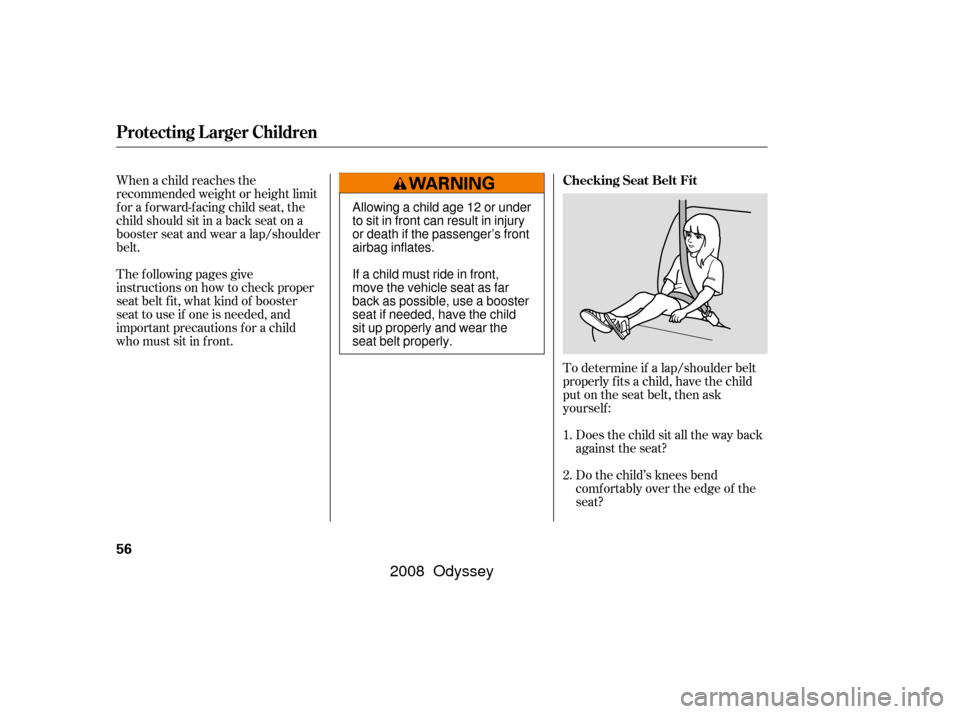

Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
— — y
y
( y
y
2008 Odyssey
Page 60 of 524
A child who has outgrown a forward-
f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.

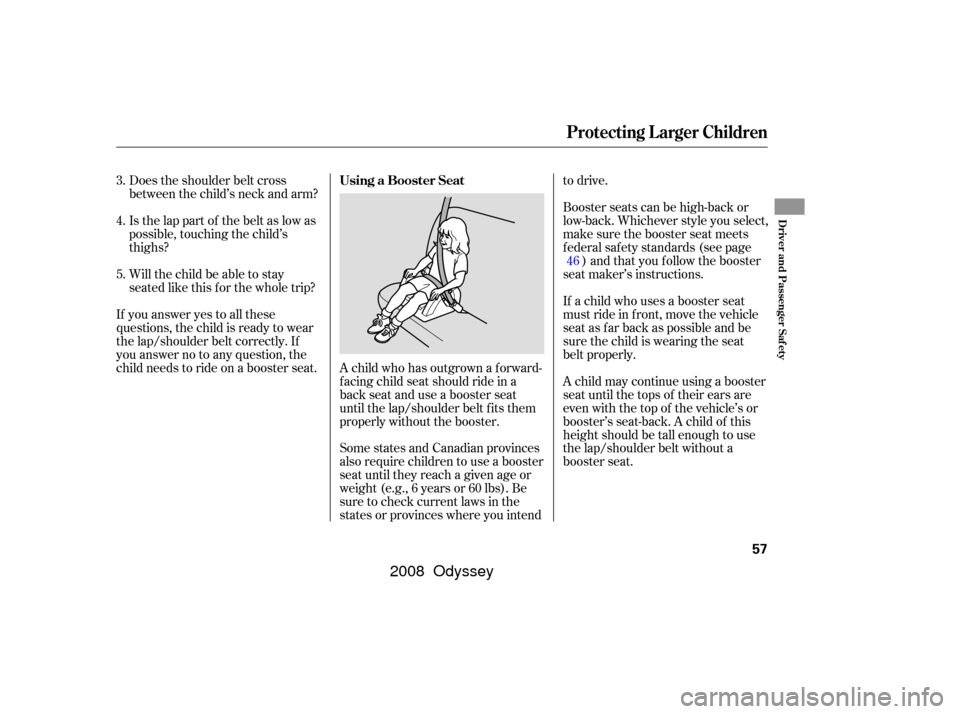

Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intendto drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
3.
4.
5.
46
Using a Booster Seat
Protecting L arger Children
Driver and Passenger Saf ety
57
— — y
y
( y y
