uuOverheating uHow to Handle Overheating
566
Handling the Unexpected

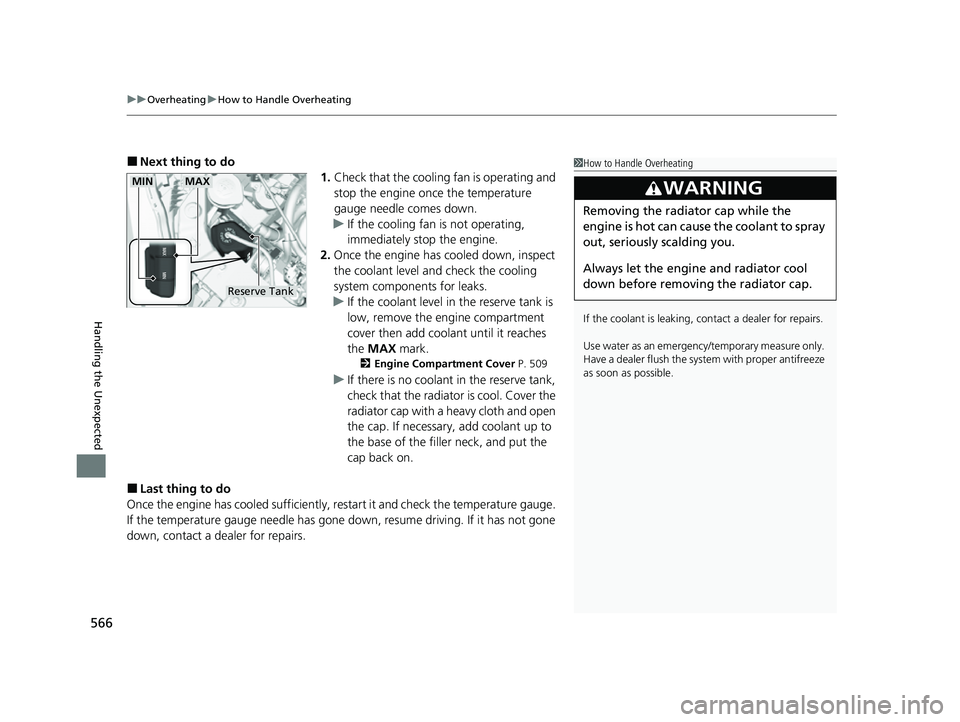

■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the MAX mark.
2Engine Compartment Cover P. 509
uIf there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAXMIN
22 PASSPORT-31TGS6300.book 566 ページ ２０２１年１０月６日　水曜日　午前１０時２分

567
Handling the Unexpected
Indicator, Coming On/Blinking

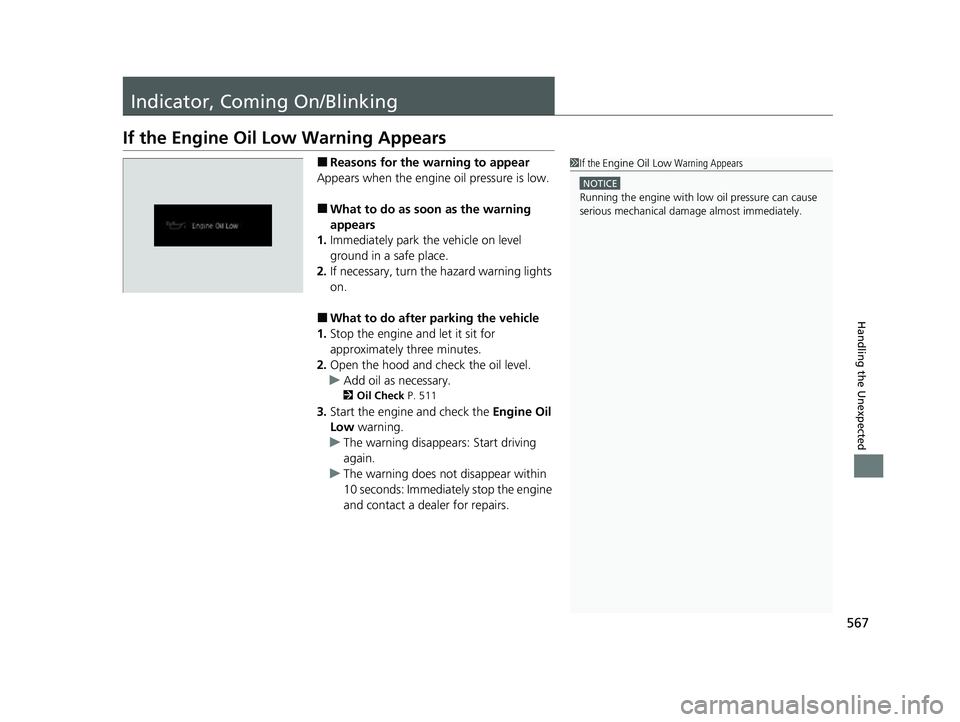

If the Engine Oil Low Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.
u Add oil as necessary.
2 Oil Check P. 511
3.Start the engine and check the Engine Oil
Low warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.
1If the Engine Oil Low Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
22 PASSPORT-31TGS6300.book 567 ページ ２０２１年１０月６日　水曜日　午前１０時２分

568
uuIndicator, Coming On/Blinking uIf the Charging System Indicator Comes On
Handling the Unexpected

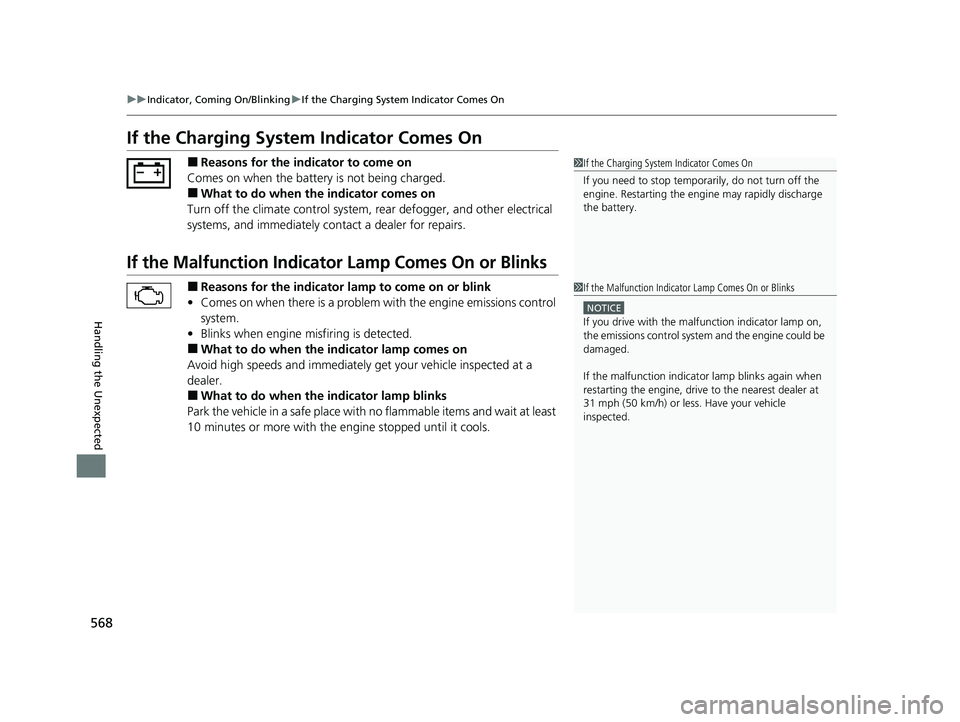

If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
If the Malfunction Indicator Lamp Comes On or Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
22 PASSPORT-31TGS6300.book 568 ページ ２０２１年１０月６日　水曜日　午前１０時２分

569
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

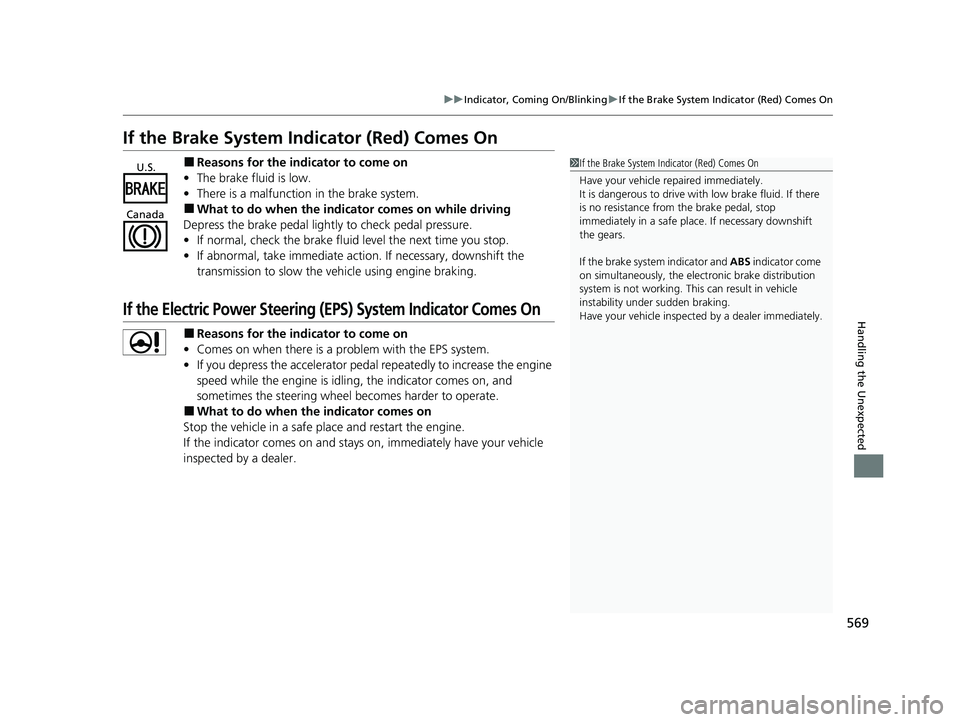

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS) System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
22 PASSPORT-31TGS6300.book 569 ページ ２０２１年１０月６日　水曜日　午前１０時２分

598
Index
Displaying Maintenance Minder
Information............................................ 502
Engine Oil Low Warning .......................... 567
Recommended Engine Oil ........................ 510
Engine Oil Low Warning .......................... 567
ENGINE START/STOP Button .................... 158
EPS (Electric Power Steering) System ....... 569
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) ........................... 544
Exterior Mirrors ......................................... 180
F
Features..................................................... 221
File Manager ............................................. 248
Filters
Dust and Pollen ....................................... 541
Oil ........................................................... 513
Flat Tire ..................................................... 551
Floor Mats ................................................. 543
Fluids
Automatic Transmission ........................... 517
Brake ....................................................... 518
Engine Coolant ........................................ 515
Windshield Washer .................................. 518
FM/AM Radio ............................................ 260
Fog Light Indicator ..................................... 87
Fog Lights .................................................. 165
Folding Down the Rear Seat .................... 186
Foot Brake ................................................. 477
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 181
Adjusting ................................................ 181
Front Sensor Camera ................................ 473
Fuel ...................................................... 24, 493
Economy ................................................. 496
Gauge ..................................................... 107
Instant Fuel Economy .............................. 113
Low Fuel Indicator ..................................... 83
Range ..................................................... 113
Recommendation .................................... 493
Refueling................................................. 493
Fuel Economy ........................................... 496
Fuel Fill Cap .............................................. 495
Fuel Fill Door ...................................... 24, 494
Unable to Unlock .................................... 578
Fuses .......................................................... 572
Inspecting and Changing......................... 576
Locations......................... 572, 573, 574, 575
G
Gasoline (Fuel) Economy ................................................. 496
Gauge ..................................................... 107
Information ............................................. 493
Instant Fuel Economy .............................. 113
Low Fuel Indicator ..................................... 83
Refueling................................................. 493
Gauges ...................................................... 107
Gear Position Indicator ...................... 81, 405 Gear Shift Positions
Automatic Transmission .......................... 403
Glass (care) ............................................... 545
Glove Box ................................................. 195
H
Handling the Unexpected ....................... 549
HandsFreeLink® (HFL).............................. 349
Automatic Import of Cellular Phonebook
and Call History..................................... 358
Automatic Transferring ........................... 357
Displaying Messages ............................... 368
Favorite Contacts .................................... 359
HFL Buttons ............................................ 349
HFL Menus.............................................. 352
HFL Status Display ................................... 351
In Case of Emergency ............................. 372
Limitations for Manual Operation ............ 351
Making a Call ......................................... 361
Options During a Call.............................. 364
Phone Setup ........................................... 354
Receiving a Call....................................... 364
Receiving a Text Message........................ 366
Ringtone ................................................. 357
Selecting a Phone ................................... 367
To Set Up a Text Message Options .......... 365
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 262
Head Restraints ................................ 188, 189
22 PASSPORT-31TGS6300.book 598 ページ ２０２１年１０月６日　水曜日　午前１０時２分

599
Index

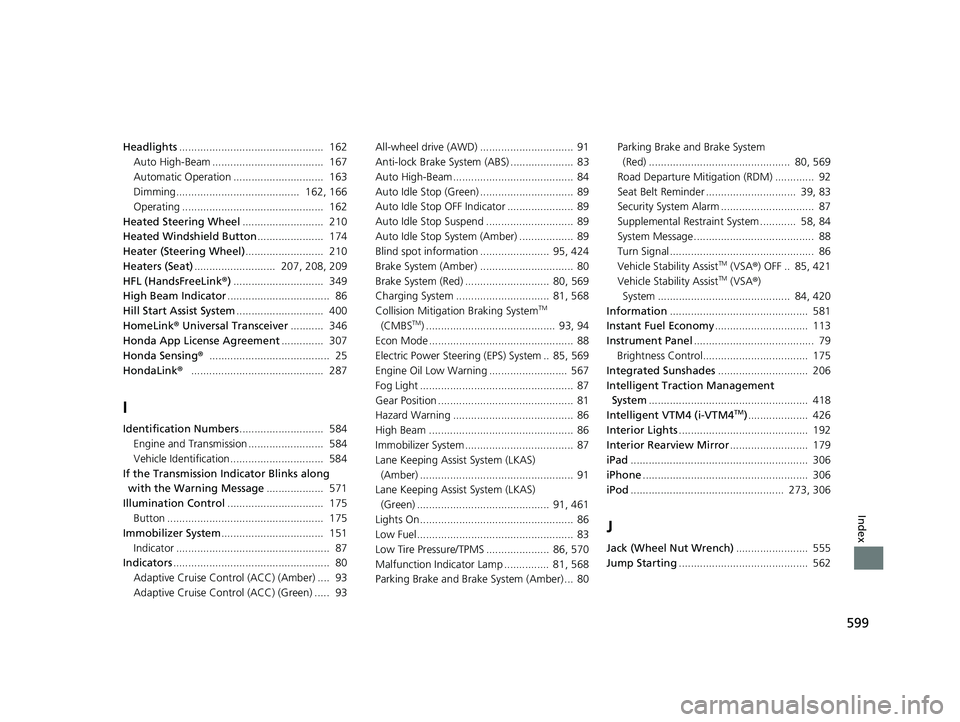

Headlights................................................ 162
Auto High-Beam ..................................... 167
Automatic Operation .............................. 163
Dimming......................................... 162, 166
Operating ............................................... 162
Heated Steering Wheel ........................... 210
Heated Windshield Button ...................... 174
Heater (Steering Wheel) .......................... 210
Heaters (Seat) ........................... 207, 208, 209
HFL (HandsFreeLink ®) .............................. 349
High Beam Indicator .................................. 86
Hill Start Assist System ............................. 400
HomeLink ® Universal Transceiver ........... 346
Honda App License Agreement .............. 307
Honda Sensing ®........................................ 25
HondaLink® ............................................ 287
I
Identification Numbers ............................ 584
Engine and Transmission ......................... 584
Vehicle Identification............................... 584
If the Transmission Indicator Blinks along with the Warning Message ................... 571
Illumination Control ................................ 175
Button .................................................... 175
Immobilizer System .................................. 151
Indicator ................................................... 87
Indicators .................................................... 80
Adaptive Cruise Control (ACC) (Amber) .... 93
Adaptive Cruise Control (ACC) (Green) ..... 93 All-wheel drive (AWD) ............................... 91
Anti-lock Brake System (ABS) ..................... 83
Auto High-Beam ........................................ 84
Auto Idle Stop (Green) ............................... 89
Auto Idle Stop OFF Indicator ...................... 89
Auto Idle Stop Suspend ............................. 89
Auto Idle Stop System (Amber) .................. 89
Blind spot information ....................... 95, 424
Brake System (Amber) ............................... 80
Brake System (Red) ............................ 80, 569
Charging System ............................... 81, 568
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 93, 94
Econ Mode ................................................ 88
Electric Power Steering (EPS) System .. 85, 569
Engine Oil Low Warning .......................... 567
Fog Light ................................................... 87
Gear Position ............................................. 81
Hazard Warning ........................................ 86
High Beam ................................................ 86
Immobilizer System .................................... 87
Lane Keeping Assist System (LKAS)
(Amber) ................................................... 91
Lane Keeping Assist System (LKAS) (Green) ............................................ 91, 461
Lights On ................................................... 86
Low Fuel .................................................... 83
Low Tire Pressure/TPMS ..................... 86, 570
Malfunction Indicator Lamp ............... 81, 568
Parking Brake and Brake System (Amber) ... 80 Parking Brake and Brake System
(Red) ............................................... 80, 569
Road Departure Mitigation (RDM) ............. 92
Seat Belt Reminder .............................. 39, 83
Security System Alarm ............................... 87
Supplemental Restraint System ............ 58, 84
System Message ........................................ 88
Turn Signal ................................................ 86
Vehicle Stability Assist
TM (VSA ®) OFF .. 85, 421
Vehicle Stability AssistTM (VSA ®)
System ............................................ 84, 420
Information .............................................. 581
Instant Fuel Economy ............................... 113
Instrument Panel ........................................ 79
Brightness Control................................... 175
Integrated Sunshades .............................. 206
Intelligent Traction Management
System ..................................................... 418
Intelligent VTM4 (i-VTM4
TM) .................... 426
Interior Lights ........................................... 192
Interior Rearview Mirror .......................... 179
iPad ........................................................... 306
iPhone ....................................................... 306
iPod ................................................... 273, 306
J
Jack (Wheel Nut Wrench) ........................ 555
Jump Starting ........................................... 562
22 PASSPORT-31TGS6300.book 599 ページ ２０２１年１０月６日　水曜日　午前１０時２分

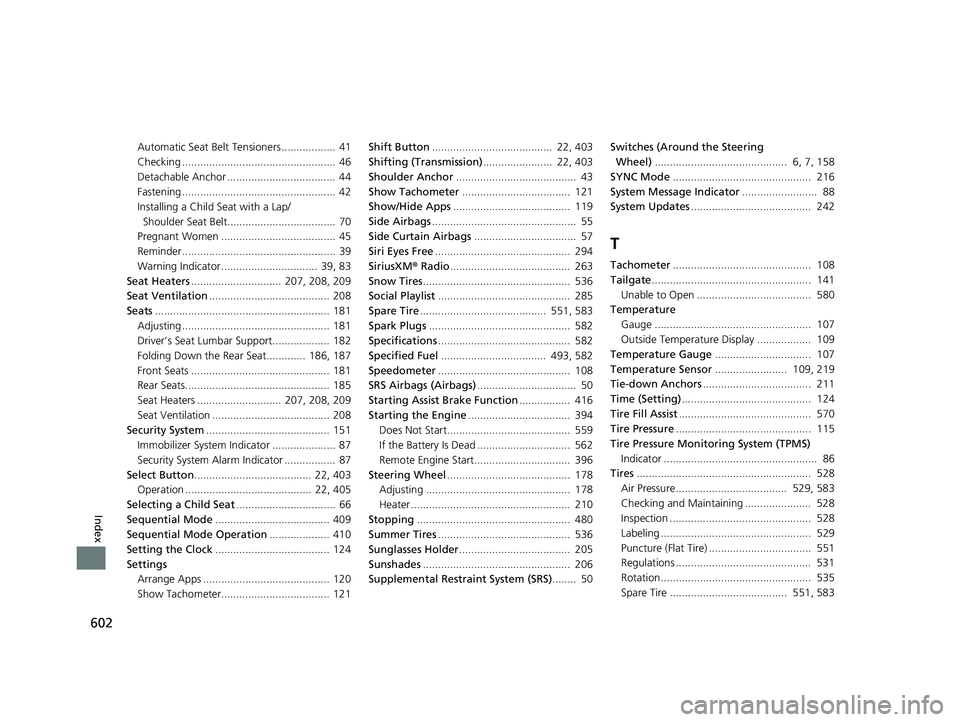

602
Index
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 46
Detachable Anchor .................................... 44
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder Seat Belt.................................... 70
Pregnant Women ...................................... 45
Reminder ................................................... 39
Warning Indicator ................................ 39, 83
Seat Heaters .............................. 207, 208, 209
Seat Ventilation ........................................ 208
Seats .......................................................... 181
Adjusting ................................................. 181
Driver’s Seat Lumbar Support................... 182
Folding Down the Rear Seat............. 186, 187
Front Seats .............................................. 181
Rear Seats................................................ 185
Seat Heaters ............................ 207, 208, 209
Seat Ventilation ....................................... 208
Security System ......................................... 151
Immobilizer System Indicator ..................... 87
Security System Alarm Indicator ................. 87
Select Button ....................................... 22, 403
Operation .......................................... 22, 405
Selecting a Child Seat ................................. 66
Sequential Mode ...................................... 409
Sequential Mode Operation .................... 410
Setting the Clock ...................................... 124
Settings Arrange Apps .......................................... 120
Show Tachometer.................................... 121 Shift Button
........................................ 22, 403
Shifting (Transmission) ....................... 22, 403
Shoulder Anchor ........................................ 43
Show Tachometer .................................... 121
Show/Hide Apps ....................................... 119
Side Airbags ................................................ 55
Side Curtain Airbags .................................. 57
Siri Eyes Free ............................................. 294
SiriusXM ® Radio ........................................ 263
Snow Tires ................................................. 536
Social Playlist ............................................ 285
Spare Tire .......................................... 551, 583
Spark Plugs ............................................... 582
Specifications ............................................ 582
Specified Fuel ................................... 493, 582
Speedometer ............................................ 108
SRS Airbags (Airbags) ................................. 50
Starting Assist Brake Function ................. 416
Starting the Engine .................................. 394
Does Not Start......................................... 559
If the Battery Is Dead ............................... 562
Remote Engine Start................................ 396
Steering Wheel ......................................... 178
Adjusting ................................................ 178
Heater ..................................................... 210
Stopping ................................................... 480
Summer Tires ............................................ 536
Sunglasses Holder ..................................... 205
Sunshades ................................................. 206
Supplemental Restraint System (SRS) ........ 50Switches (Around the Steering
Wheel) ............................................ 6, 7, 158
SYNC Mode .............................................. 216
System Message Indicator ......................... 88
System Updates ........................................ 242
T
Tachometer.............................................. 108
Tailgate ..................................................... 141
Unable to Open ...................................... 580
Temperature Gauge .................................................... 107
Outside Temperature Display .................. 109
Temperature Gauge ................................ 107
Temperature Sensor ........................ 109, 219
Tie-down Anchors .................................... 211
Time (Setting) ........................................... 124
Tire Fill Assist ............................................ 570
Tire Pressure ............................................. 115
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 86
Tires .......................................................... 528
Air Pressure..................................... 529, 583
Checking and Maintaining ...................... 528
Inspection ............................................... 528
Labeling .................................................. 529
Puncture (Flat Tire) .................................. 551
Regulations ............................................. 531
Rotation.................................................. 535
Spare Tire ....................................... 551, 583
22 PASSPORT-31TGS6300.book 602 ページ ２０２１年１０月６日　水曜日　午前１０時２分
