551

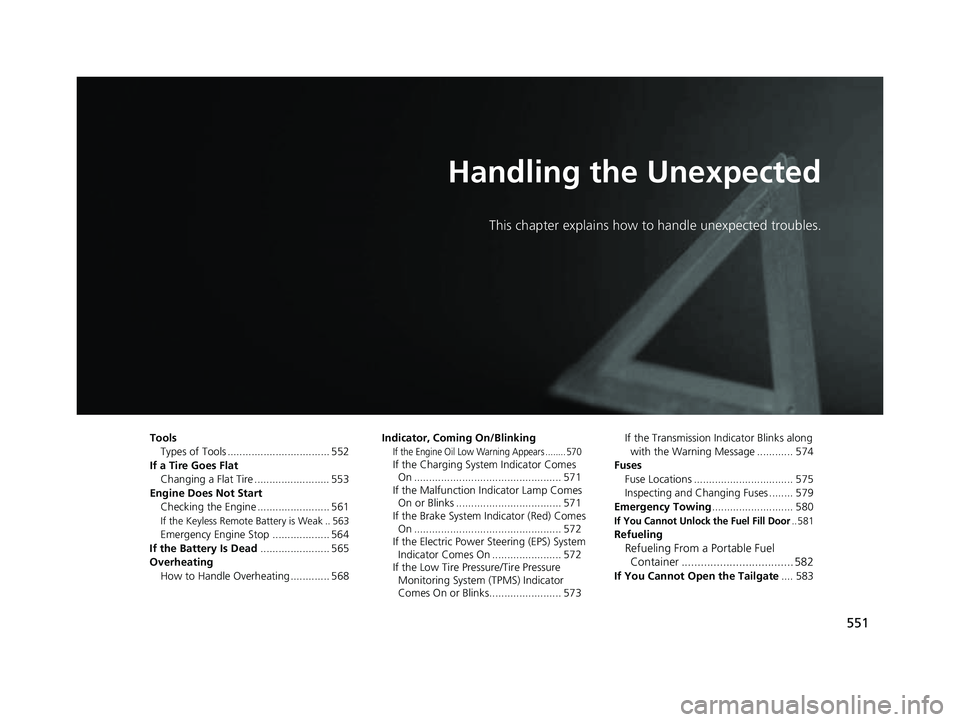

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 552
If a Tire Goes Flat Changing a Flat Tire ......................... 553
Engine Does Not Start Checking the Engine ........................ 561
If the Keyless Remote Battery is Weak .. 563
Emergency Engine Stop ................... 564
If the Battery Is Dead ....................... 565
Overheating How to Handle Overheating ............. 568 Indicator, Coming On/Blinking
If the Engine Oil Low Warning Appears ........ 570If the Charging System Indicator Comes
On ................................................. 571
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 571
If the Brake System Indicator (Red) Comes
On ................................................. 572
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 572
If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator
Comes On or Blinks........................ 573 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 574
Fuses Fuse Locations ................................. 575
Inspecting and Changing Fuses ........ 579
Emergency Towing ........................... 580
If You Cannot Unlock the Fuel Fill Door.. 581
Refueling
Refueling From a Portable Fuel
Container ................................... 582
If You Cannot Open the Tailgate .... 583
23 PASSPORT-31TGS6400.book 551 ページ ２０２２年８月５日　金曜日　午後９時２分

561Continued
Handling the Unexpected

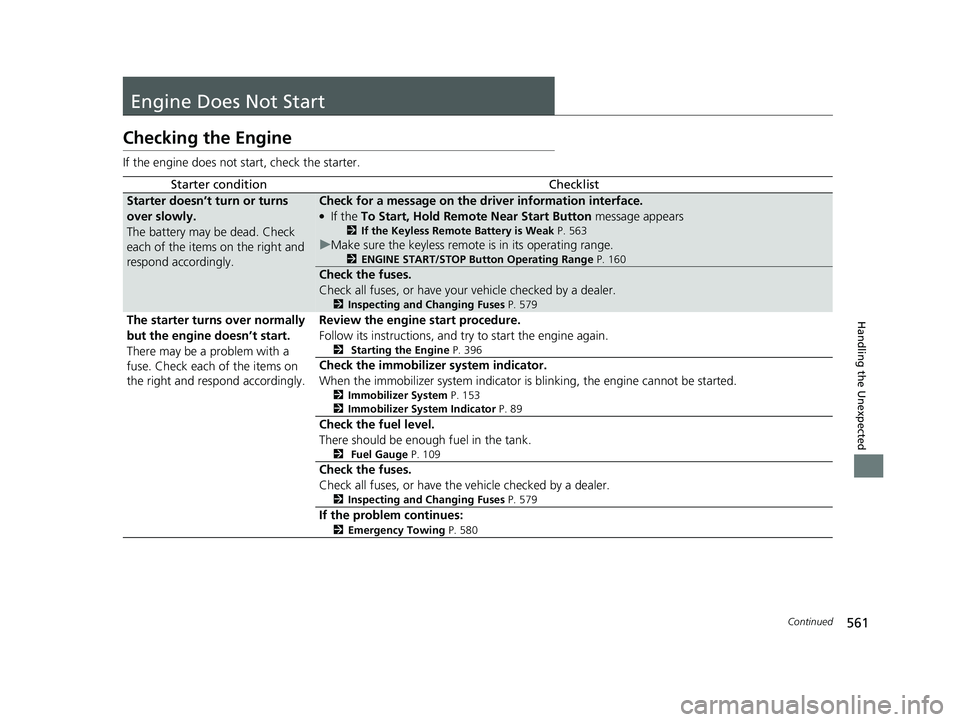

Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Remote Battery is Weak P. 563
uMake sure the keyless remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 160
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 579
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 396
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 153
2 Immobilizer System Indicator P. 89
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 109
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 579
If the problem continues:
2Emergency Towing P. 580
23 PASSPORT-31TGS6400.book 561 ページ ２０２２年８月５日　金曜日　午後９時２分

563
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected

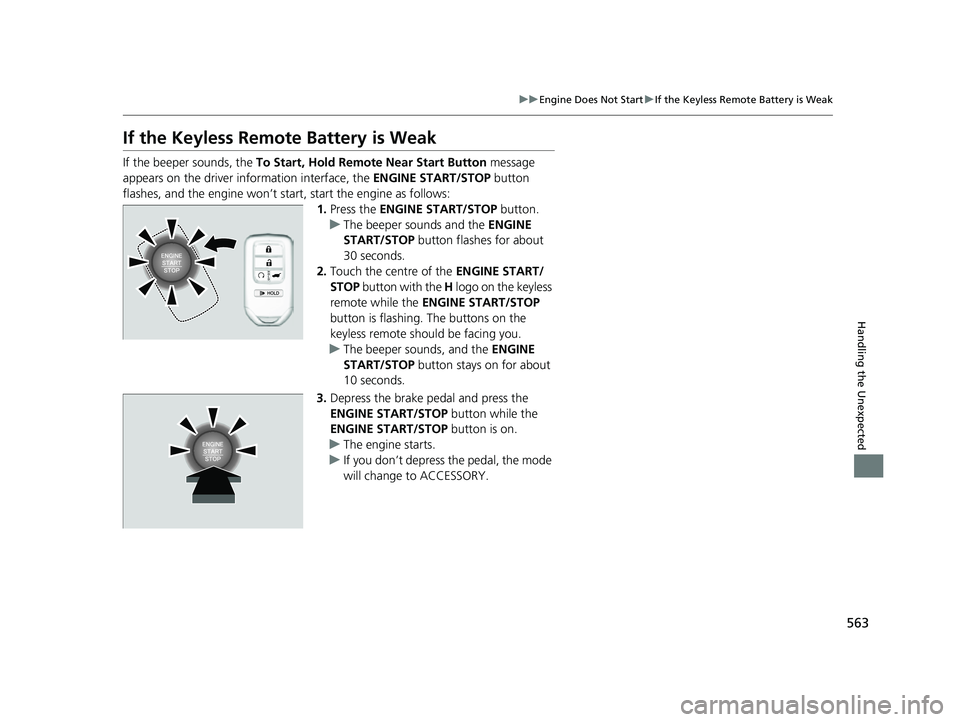

If the Keyless Remo te Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t start, start the engine as follows:
1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the centre of the ENGINE START/
STOP button with the H logo on the keyless
remote while the ENGINE START/STOP
button is flashing. The buttons on the
keyless remote should be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 PASSPORT-31TGS6400.book 563 ページ ２０２２年８月５日　金曜日　午後９時２分

573
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/T ire Pressure Monitoring
System (TPMS) Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
1 If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON and the transmission in
( P, while
you adjust tire pressure up or down, the system alerts
you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
When a certain amount of time has passed since
activation, Tire Fill Assist wi ll be canceled until you set
the power mode to OFF.
You cannot use Tire Fill Assist if the engine was
started by the remote engine start, or if there is a
malfunction in the system. If Tire Fill Assist does not
work, use a tire pressure gauge.
23 PASSPORT-31TGS6400.book 573 ページ ２０２２年８月５日　金曜日　午後９時２分

601
Index
Defrosting the Windshield and Windows .............................................. 216
Dust and Pollen Filter .............................. 543
Recirculation and Fresh Air Mode ............ 216
Sensors ................................................... 221
Synchronization Mode ............................ 218
Using Automatic Climate Control............ 215
Clock ......................................................... 126
Coat Hook ................................................ 206
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 435
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 95, 96
Compact Spare Tire .......................... 553, 587
Console Compartment ............................. 197
Controls .................................................... 125
Coolant (Engine) ...................................... 517
Adding to the Radiator ........................... 518
Adding to the Reserve Tank .................... 517
Overheating ............................................ 568
Temperature Gauge ................................ 109
Creeping (Automatic Transmission) ........ 404
Cross Traffic Monitor ............................... 488
Cup Holders .............................................. 199
Customer Service Information ................ 597
Customized Features ............................... 329
D
Daytime Running Lights .......................... 168
Dead Battery ............................................ 565 Defaulting All the Settings
...................... 347
Defrosting the Windshield and
Windows ................................................. 216
Detachable Anchor ..................................... 46
Devices that Emit Radio Waves ............... 589
Dimming Headlights ............................................... 164
Rearview Mirror ....................................... 181
Dipstick (Engine Oil) ................................. 513
Directional Signals (Turn Signal) ............. 163
Door Mirrors ............................................. 182
Doors ......................................................... 128
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142
Door Open Message .................................. 38
Keys ........................................................ 128
Locking/Unlocking the Doors from the
Inside..................................................... 139
Locking/Unlocking the Doors from the
Outside.................................................. 131
Lockout Prevention System ...................... 138
DOT Tire Quality Grading ........................ 533
Driver Information Interface ................... 110
Accessing Content ................................... 112
Warning and Information Messages .......... 98
Driving ....................................................... 377
Adaptive Cruise Control (ACC) ................ 447
Automatic Transmission ........................... 404
Braking .................................................... 477
Off-Highway Driving Guidelines ............... 394
Shifting Gear ........................................... 405 Starting the Engine.................................. 396
Driving Position Memory System ............ 178
Dust and Pollen Filter ............................... 543
E
Eco Assist® System ...................................... 14
ECON Button ............................................ 418
Econ Mode Indicator.................................................... 90
Electric Power Steering (EPS) System Indicator............................................ 87, 572
Electronic Stability Control (ESC) ............. 421
Emergency ................................................ 580
Emissions Testing (Readiness Codes) ....... 591
Engine
Coolant ................................................... 517
If the Battery Is Dead ............................... 565
Number................................................... 588
Oil ........................................................... 512
Remote Engine Start................................ 398
Starting ................................................... 396
Engine Compartment Cover .................... 511
Engine Coolant ......................................... 517
Adding to the Radiator ............................ 518
Adding to the Reserve Tank..................... 517
Overheating ............................................ 568
Temperature Gauge ................................ 109
Engine Oil ................................................. 512
Adding .................................................... 514
Checking................................................. 513
23 PASSPORT-31TGS6400.book 601 ページ ２０２２年８月５日　金曜日　午後９時２分

605
Index
Oil (Engine).............................................. 512
Adding ................................................... 514
Checking ................................................ 513
Displaying Maintenance Minder Information ........................................... 504
Engine Oil Low Warning ......................... 570
Oil Life .................................................... 117
Recommended Engine Oil ....................... 512
Viscosity.................................................. 512
Open Source Licenses .............................. 323
Opening/Closing
Hood ...................................................... 510
Moonroof ............................................... 159
Power Windows...................................... 156
Tailgate................................................... 143
Operating the Switches Around the Steering Wheel ....................................... 160
Outside Temperature .............................. 111
Overheating ............................................. 568
P
Paddle Shifters (Sequential Mode) ... 25, 412
Panic Mode ............................................... 155
Parking ..................................................... 481
Parking Brake ........................................... 477
Parking Brake and Brake System
Indicator ................................................. 572
Parking Brake and Brake System Indicator (Amber) ..................................... 82 Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 483
Passenger Airbag Off Indicator ................. 61
Passing Indicators ..................................... 164
Phone ........................................................ 118
Playing Bluetooth ® Audio ........................ 285
Power Tailgate .......................................... 145
Power Windows ........................................ 156
Precautions While Driving ....................... 403
Driving Guidelines for Your Utility
Vehicle .................................................. 403
Rain ......................................................... 403
Pregnant Women ....................................... 47
Puncture (Tire) .......................................... 553
R
Radiator.................................................... 518
Radio (FM/AM) .......................................... 262
Radio (SiriusXM ®) ..................................... 265
Radio Data System (RDS) .......................... 264
Range ........................................................ 115
RDS (Radio Data System) .......................... 264
Readiness Codes (Emissions Testing) ....... 591
Rear Climate Control System From the Rear Panel ................................ 220
Rear Defogger/Heated Door Mirror Button ..................................................... 175
Rear Outer Seats Heaters ......................... 211
Rear Seat (Folding Down) ................ 188, 189Rear Seats
................................................. 187
Rearview Mirror ....................................... 181
Refueling .................................................. 494
Fuel Gauge.............................................. 109
Gasoline .......................................... 494, 586
Low Fuel Indicator ..................................... 85
Regulations ............................... 430, 533, 589
Remote Engine Start ................................ 398
Remote Transmitter ................................. 136
Replacement Battery .................................................... 541
Bulbs ....................................................... 521
Front Wiper Blade Rubber ....................... 526
Fuses ............................... 575, 576, 577, 578
Rear Wiper Blade Rubber......................... 528
Tires ........................................................ 536
Reporting Safety Defects ......................... 590
Reverse Tilt Door Mirror .......................... 182
Road Departure Mitigation (RDM) ......... 469
On and Off.............................................. 471
Road Departure Mitigation (RDM) Indicator .................................................... 94
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 80
Safety Message ............................................. 4
Seat Belts ............................................ 39, 120
Adjusting the Shoulder Anchor.................. 45
23 PASSPORT-31TGS6400.book 605 ページ ２０２２年８月５日　金曜日　午後９時２分

606
Index
Automatic Seat Belt Tensioners .................. 43
Checking ................................................... 48
Detachable Anchor .................................... 46
Fastening ................................................... 44
Installing a Child Seat with a Lap/Shoulder Seat Belt.................................... 72
Pregnant Women ...................................... 47
Reminder ................................................... 41
Warning Indicator ................................ 41, 85
Seat Heaters .............................. 209, 210, 211
Seat Ventilation ........................................ 210
Seats .......................................................... 183
Adjusting ................................................. 183
Driver’s Seat Lumbar Support................... 184
Folding Down the Rear Seat............. 188, 189
Front Seats .............................................. 183
Rear Seats................................................ 187
Seat Heaters ............................ 209, 210, 211
Seat Ventilation ....................................... 210
Security System ......................................... 153
Immobilizer System Indicator ..................... 89
Security System Alarm Indicator ................. 89
Select Button ....................................... 24, 405
Operation .......................................... 24, 407
Selecting a Child Seat ................................. 68
Sequential Mode ...................................... 411
Sequential Mode Operation .................... 412
Setting the Clock ...................................... 126
Settings Arrange Apps .......................................... 122
Show Tachometer.................................... 123 Shift Button
........................................ 24, 405
Shifting (Transmission) ....................... 24, 405
Shoulder Anchor ........................................ 45
Show Tachometer .................................... 123
Show/Hide Apps ....................................... 121
Side Airbags ................................................ 57
Side Curtain Airbags .................................. 59
Siri Eyes Free ............................................. 296
SiriusXM ® Radio ........................................ 265
Snow Tires ................................................. 538
Social Playlist ............................................ 287
Spare Tire .......................................... 553, 587
Spark Plugs ............................................... 586
Specifications ............................................ 586
Specified Fuel ................................... 494, 586
Speedometer ............................................ 110
SRS Airbags (Airbags) ................................ 52
Starting Assist Brake Function ................. 417
Starting the Engine .................................. 396
Does Not Start......................................... 561
If the Battery Is Dead ............................... 565
Remote Engine Start................................ 398
Steering Wheel ......................................... 180
Adjusting ................................................ 180
Heater ..................................................... 212
Stopping ................................................... 481
Summer Tires ............................................ 538
Sunglasses Holder ..................................... 207
Sunshades ................................................. 208
Supplemental Restraint System (SRS) ........ 52Switches
(Around the Steering Wheel) ........ 8, 9, 160
SYNC Mode .............................................. 218
System Message Indicator ......................... 90
System Updates ........................................ 244
T
Tachometer.............................................. 110
Tailgate ..................................................... 143
Unable to Open ...................................... 583
Temperature Gauge .................................................... 109
Outside Temperature Display .................. 111
Temperature Gauge ................................ 109
Temperature Sensor ........................ 111, 221
Tie-down Anchors .................................... 213
Time (Setting) ........................................... 126
Tire Fill Assist ............................................ 573
Tire Pressure ............................................. 117
Tire Pressure Monitoring System (TPMS)
Indicator ................................................... 88
Tires .......................................................... 530
Air Pressure..................................... 531, 587
Checking and Maintaining ...................... 530
Inspection ............................................... 530
Labeling .................................................. 531
Puncture (Flat Tire) .................................. 553
Regulations ............................................. 533
Rotation.................................................. 537
Spare Tire ....................................... 553, 587
23 PASSPORT-31TGS6400.book 606 ページ ２０２２年８月５日　金曜日　午後９時２分
