Voice Command/HFL/Navigation
Using the Voice Command System
• Speak in a clear, natural voice.
• Reduce all background noise.
• Adjust the dashboard and sidevents away from the microphone in
the ceiling.
• Close the windows.
Voice Command
To reduce driver distraction, use voice commands for hands-free calling, \
navigation, audio, and climate
control functions. A full list of these commands is in the navigation system manual.
Voice Command Tips:
• Press and release the HFL or NAVI Talk button, wait for a
beep, then give a command.
• For a list of available HFL commands, press and release the HFL Talk button and say "Hands-free help."
• For a list of available navigation commands, press and release the NAVI Talk button and say "Voice command help."
HFL Talk button: Give HFL commands
or answer incoming calls.
HFL Back button: End a call, go back to
the previous command, or cancel an
operation. NAVI Talk button:
Give navigation, audio,
and climate control
commands.
NAVI Back button:
Cancel a command or
return to the previous
screen.
10 Pilot TRG_Base:Base 8/18/2009 9:30 AM Page 3 2010 Pilot
Voice Command/HFL/Navigation
Audio Commands(Accepted on most screens)

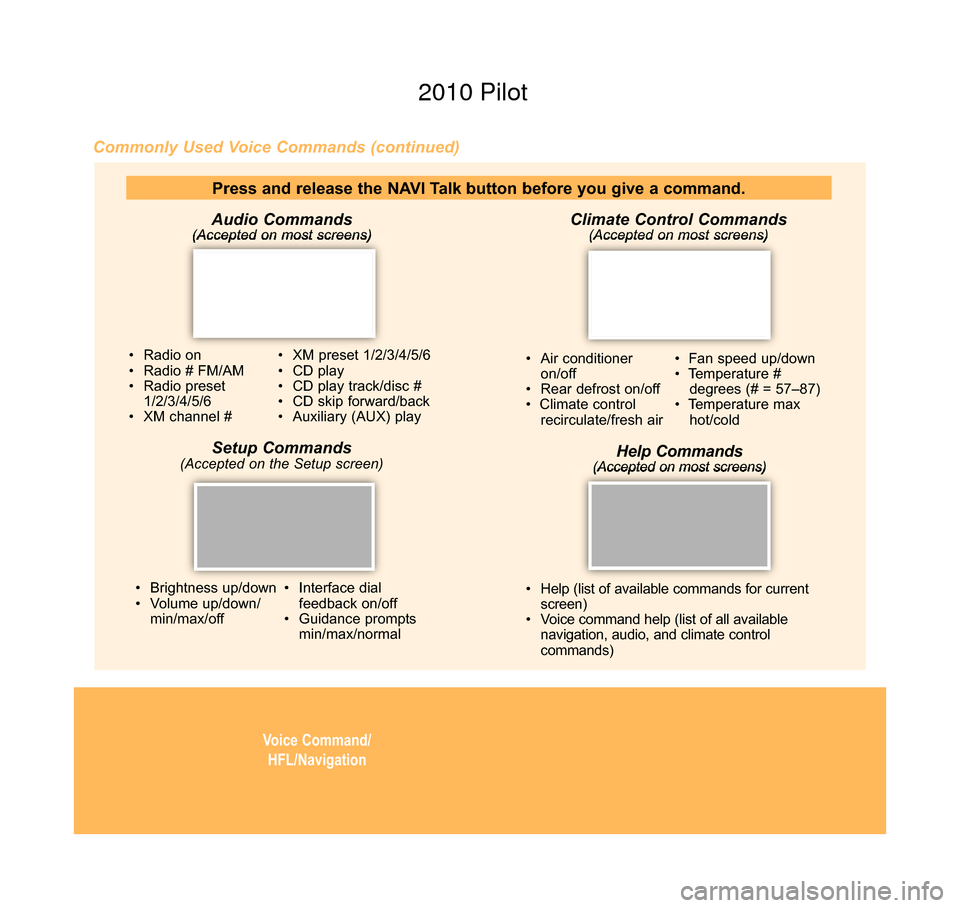

Commonly Used Voice Commands (continued)
Climate Control Commands
(Accepted on most screens)
• Brightness up/down
• Volume up/down/min/max/off • Interface dial
feedback on/off
• Guidance prompts min/max/normal
• Radio on
• Radio # FM/AM
• Radio preset
1/2/3/4/5/6
• XM channel # • XM preset 1/2/3/4/5/6
• CD play
• CD play track/disc #
• CD skip forward/back
• Auxiliary (AUX) play
Press and release the NAVI Talk button before you give a command.
Setup Commands
(Accepted on the Setup screen) • Air conditioner
on/off
• Rear defrost on/off
• Climate control recirculate/fresh air • Fan speed up/down
• Temperature #
degrees (# = 57–87)
• Temperature max hot/coldHelp Commands(Accepted on most screens)
• Help (list of available commands for currentscreen)
• Voice command help (list of all available navigation, audio, and climate control
commands)
