Page 9 of 488
8
Quick Reference Guide
Instrument Panel (P67)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Daytime Running
Lights Indicator
*
Vehicle Stability Assist
(VSA® ) System Indicator
VSA ® OFF Indicator
Low Tire Pressure
Indicator
*/Low Tire
Pressure/TPMS
Indicator
*
Lights Reminders
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
Parking Brake and
Brake System Indicator Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Door Open Indicator
CRUISE MAIN
Indicator
Tachometer
Speedometer
Fuel Gauge
Low Fuel Indicator
Shift Lever Position Indicator
System Message
Indicator
*
Gauges (P80)/Information Display * (P81)/
Multi-Information Display
* (P85)/System Indicators (P68)
Fuel Economy Indicator VTM-4 r system Indicator
*TPMS Indicator *
Maintenance
Minder Indicator *
Washer Level
Indicator *
A/T Temperature
Indicator *
Turn Signal and
Hazard Warning
Indicators
Starter System
Indicator *System Indicators
CanadaU.S.
Canada
U.S.
Anti-lock Brake System
(
ABS ) Indicator
Power Tailgate Indicator *
Security System Alarm
Indicator *
Information Display */
Multi-Information Display *
Canada U.S.
CanadaU.S.
Page 17 of 488
16
Quick Reference Guide
Maintenance (P377)
Under the Hood (P389)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P402)
● Inspect all lights regularly.
Wiper Blades (P410)
● Replace blades if they leave
streaks across the windshield.
Tires (P414)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
Page 69 of 488
68
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage *
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds
when you turn the ignition
switch to ON
(w
, then goes
off.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Comes on when the brake
fluid level is low.
●Comes on if there is a
problem with the brake
system.
●The beeper sounds and the
indicator comes on if you
drive with the parking brake
not fully released.
●Comes on while driving -
Make sure the
parking brake is
released. Check the brake fluid
level.
2 What to do when the
indicator comes on while
driving P. 452
●Comes on along with the ABS
indicator - Have the vehicle
checked by
a dealer.
2 If the Brake System
Indicator (Red) Comes On
P. 452
Low Oil Pressure
Indicator
●Comes on when you turn the
ignition switch to ON
(w
, and
goes off when the engine
starts.
●Comes on when the engine
oil pressure is low.
●Comes on while driving -
Im
mediately stop in a safe place.
2 If the Low Oil Pressure
Indicator Comes On P. 450
U.S.
Canada
U.S.Canada
* Not available on all models
Page 86 of 488
85
uu Gauges and Displays u Multi-Informat ion Display *
Continued
Instrument Panel

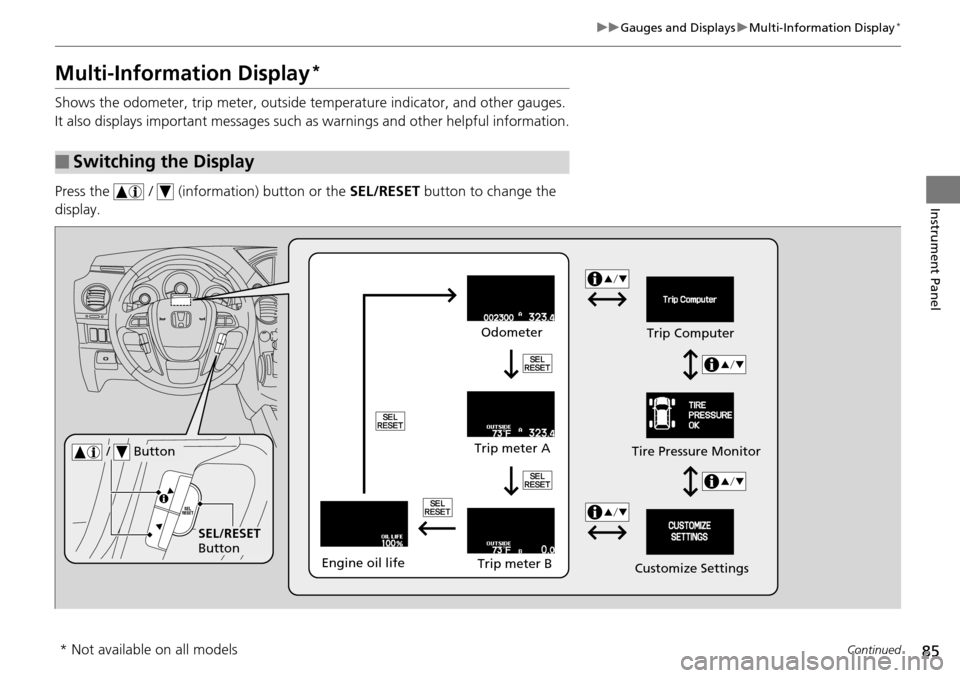

Multi-Information Display *
Shows the odometer, trip meter, outside te mperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful informat
ion.
Press the / (information) button or the SEL/
RESET button to change the
display.
■Switching the Display
SEL/RESET
Button Tire Pressure Monitor
/ Button
Engine oil life
Trip meter B
Trip meter A Odometer
Customize SettingsTrip Computer
* Not available on all models
Page 375 of 488
374
Driving
Fuel Economy
Improving Fuel Economy
Fuel economy depends on several conditions, including driving conditions, your
driving habits, the condition of your vehicle, and loading. Depending on these and
other conditions, you may or may not achieve the rated fuel economy of this vehicle.
You can optimize your fuel economy with pro
per maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
information display
*/multi-information display *.
• Use the recommended
viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire
pressure.
• Do not load
the vehicle with excess cargo.
• Keep you
r vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1 Improving Fuel Economy
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel Miles per
Gallon
100 LiterKilometers L per 100 km
* Not available on all models
Page 379 of 488
378
Maintenance
Before Performing Maintenance

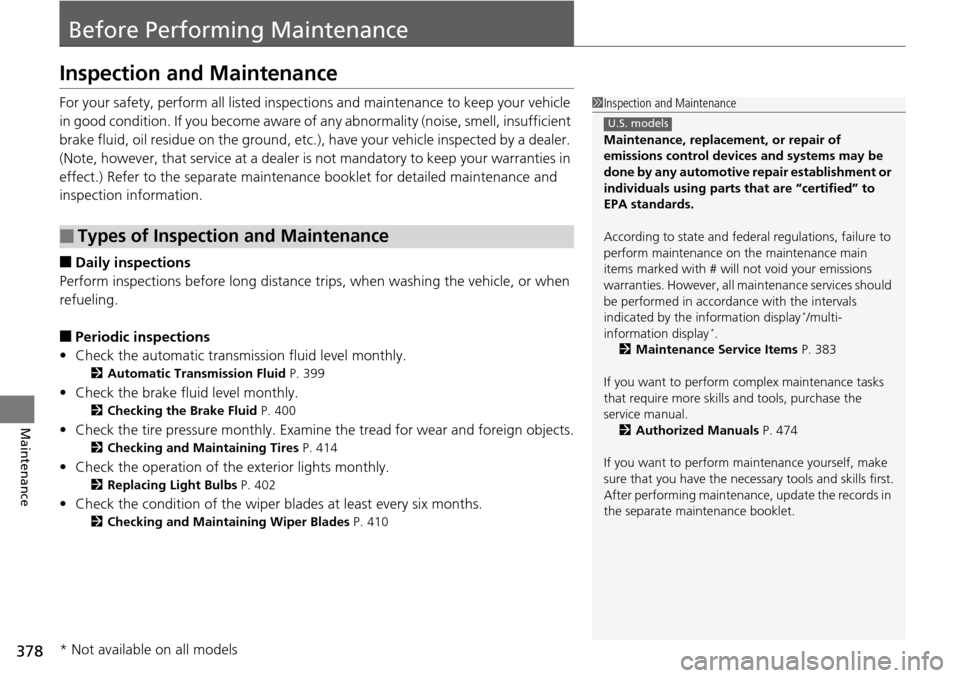

Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance tri ps
, when washing the vehicle, or when
refueling.
■Periodic inspections
• Che
ck the automatic transmi ssion fluid level monthly.
2Automatic Transmission Fluid P. 399
• Check the brake fluid level monthly.
2 Checking the Brake Fluid P. 400
• Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 414
• Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 402
• Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 410
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the information display
*/multi-
information display *.
2 Maintenance Service Items P. 383
If you want to perform complex maintenance tasks
that require more skills and tools, purchase the
service manual.
2 Authorized Manuals P. 474
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
Page 397 of 488
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
396
Maintenance
4. Remove the oil filter and dispose of the
remaining oil.
5.Check that the filter ga sket is not stuck to
the engine contact surface.
u If it
is stuck, you must detach it.
6. Wipe away
dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Appl
y a light coat of new engine oil to
the filter gasket.
7. Pu
t a new washer on the drain bolt, then
reinstall the drain bolt.
u Tighte
ning torque:
29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
8. P
our the recommended engine oil into the
engine.
u Engi
ne oil change capacity (including
filter):
4.5 US qt (4.3 L)
9. Reins
tall the engine oil fill cap securely and
start the engine.
10. Run the engin
e for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
11. S
top the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If neces
sary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
Page 434 of 488
433
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 434
If a Tire Goes Flat Changing a Flat Tire ......................... 435
Engine Does Not Start Checking the Engine ........................ 444
Jump Starting ..........
.......................... 445
Shift Lever Does Not Move .........
..... 447
Overheating How to Handle Overheating ............. 448 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 450
If the Charging System Indicator Comes
On ................................................. 450
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 451
If the Brake System Indicator (Red) Comes On ................................................. 452
If the Low Tire Pressure Indicator Comes On ................................................. 452
If the TPMS Indicator Comes On ...... 453 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 453
Fuses Fuse Locations ................................. 454
Inspecting and Changing Fuses ........ 458
Emergency Towing ..............
............. 459
When You Cannot Open the Tailgate..... 461
Page 451 of 488
450
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the
vehicle on level ground in a safe place.
2. If
necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the e
ngine and let it sit for about three minutes.
2. Open the hoo
d and check the oil level.
2Oil Check P. 393
3. Start the engine and check th e low oil pressure indicator.
u The light
goes out: Start driving again.
u The l
ight does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear
defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
Page 466 of 488
465
uu Specifications u
Information
■Brake Fluid
■Automatic Transmission Fluid
*1: 2WD models
*2: 4WD models
■Rear Differential Fluid *
■Transfer Assembly Fluid *
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.2 US qt (3.1 ℓ)
*1
3.6 US qt (3.4 ℓ)*2
SpecifiedHonda VTM-4 Differential Fluid
Capacity Change2.79 US qt (2.64 ℓ)
SpecifiedHYPOID GEAR OIL API GL4 or GL5
SAE75W-85 (SAE90 CAN BE USED)
Capacity Change0.45 US qt (0.43 ℓ)
■Engine Oil
■ En
gine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
4.2 US qt (4.0 ℓ)
Change
includi
ng
filter 4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio50/50 with distilled water
Capacity1.98 US gal (7.5 ℓ)
(change including the remaining
0.198 US gal (0.75 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX
*4: Except U.S. LX
Regular
SizeP235/65R/17 103T*3
P235/60R/18 102T*4
Pressure
psi (kPa [kgf/cm2])
Front31 (210 [2.1])*3
35 (240 [2.4])*4
Rear33 (230 [2.3])*3
35 (240 [2.4])*4
Compact
Spare Size
T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel SizeRegular17 x 7.5J*3
18 x 7.5J*4
Compact Spare17 x 4T
* Not available on all models
