Page 15 of 673
14
Quick Reference Guide
Turn Signals (P155)
Lights (P156)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P164)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
-: Low Sensitivity*1
: Lower speed, fewer sweeps*2
+: High Sensitivity*1
: Higher speed, more sweeps*2
AUTO should always be turned OFF before
the following situation:
● Cleaning the windshield
● Driving through a car wash
● Driving when it not rain
Steering Wheel (P171)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
Models with automatic intermittent wipers
17 PILOT-31TG76100.book 14 ページ 2016年9月20日 火曜日 午後4時9分
Page 27 of 673
26
Quick Reference Guide
Maintenance (P567)
Under the Hood (P575)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the food slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P587)
● Inspect all lights regularly.
Wiper Blades (P593)
● Replace blades if they leave streaks
across the windshield.
Tires (P597)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
17 PILOT-31TG76100.book 26 ページ 2016年9月20日 火曜日 午後4時9分
Page 99 of 673
98
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the washer fluid is low.*●Refill washer fluid.
2 Refilling Window Washer Fluid P. 586
●Appears when there is a problem with the sensor on the
battery.●Have your vehicle ch ecked by a dealer.
2Checking the Battery P. 606
●Appears along with the battery charging system
indicator when the battery is not charging.●Turn off the climate control sy stem and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 638
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Multi-
Information Display (MID) P. 572
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 636
* Not available on all models
17 PILOT-31TG76100.book 98 ページ 2016年9月20日 火曜日 午後4時9分
Page 165 of 673
164
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls

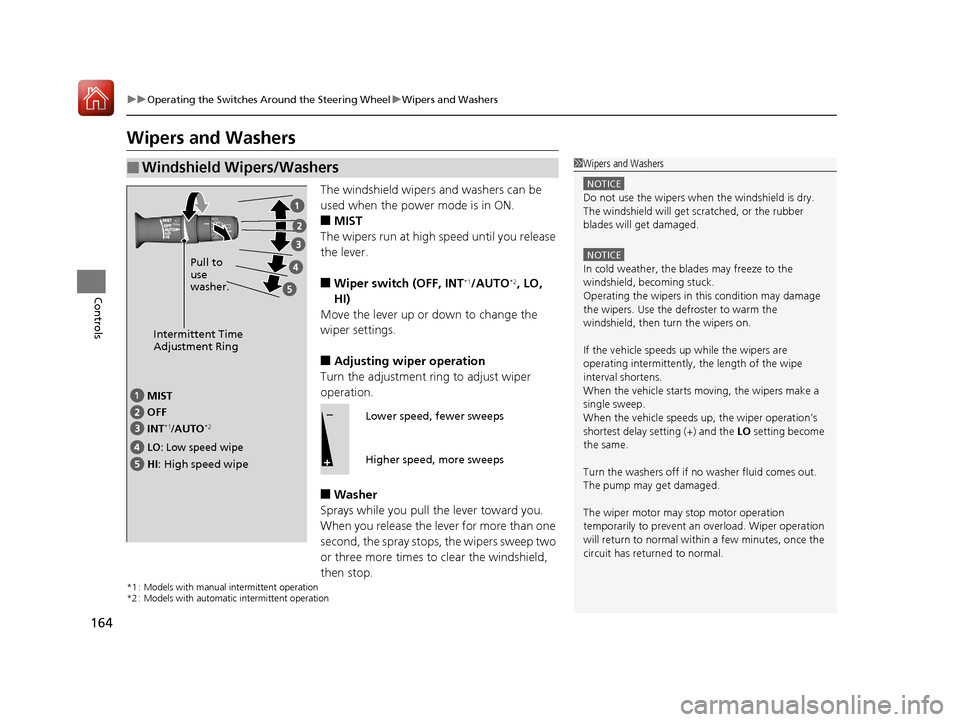

Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation
Turn the adjustment ri ng to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1 : Models with manual intermittent operation
*2 : Models with automatic intermittent operation
■Windshield Wipers/Washers1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle starts moving, the wipers make a
single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting (+) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Intermittent Time
Adjustment Ring
MIST
INT
*1/AUTO*2OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
17 PILOT-31TG76100.book 164 ページ 2016年9月20日 火曜日 午後4時9分
Page 568 of 673
567
Maintenance

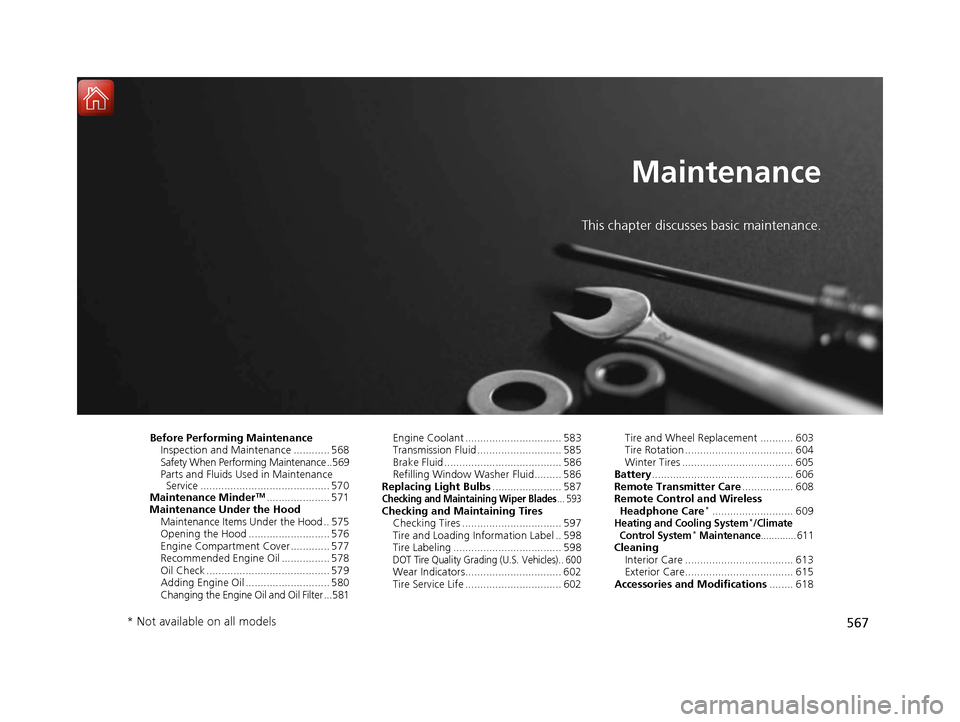

This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 568
Safety When Performing Maintenance ..569
Parts and Fluids Used in Maintenance Service ........................................... 570
Maintenance Minder
TM..................... 571
Maintenance Under the Hood Maintenance Items Under the Hood .. 575
Opening the Hood ........................... 576
Engine Compartment Cover ............. 577
Recommended Engine Oil ................ 578
Oil Check ......................................... 579
Adding Engine Oil ............................ 580
Changing the Engine Oil and Oil Filter ...581 Engine Coolant ................................ 583
Transmission Fluid ............................ 585
Brake Fluid ....................................... 586
Refilling Window Washer Fluid......... 586
Replacing Light Bulbs ....................... 587Checking and Maintaining Wiper Blades... 593Checking and Maintaining Tires
Checking Tires ................................. 597
Tire and Loading Information Label .. 598
Tire Labeling .................................... 598
DOT Tire Quality Grading (U.S. Vehicles).. 600Wear Indicators................................ 602
Tire Service Life ................................ 602 Tire and Wheel Replacement ........... 603
Tire Rotation .................................... 604
Winter Tires ..................................... 605
Battery ............................................... 606
Remote Transmitter Care ................. 608
Remote Control and Wireless Headphone Care
*........................... 609Heating and Cooling System*/Climate
Control System* Maintenance............. 611Cleaning Interior Care .................................... 613
Exterior Care.................................... 615
Accessories and Modifications ........ 618
* Not available on all models
17 PILOT-31TG76100.book 567 ページ 2016年9月20日 火曜日 午後4時9分
Page 576 of 673
575
Maintenance

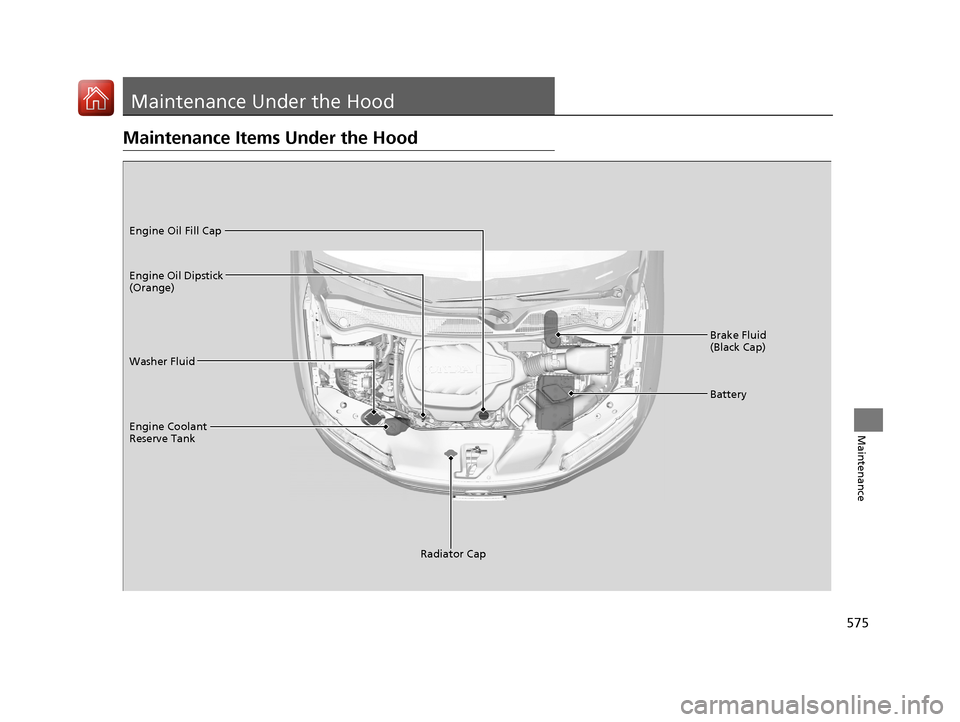

Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Washer Fluid
Radiator Cap
Engine Coolant
Reserve Tank Engine Oil Dipstick
(Orange) Engine Oil Fill Cap
Battery
17 PILOT-31TG76100.book 575 ページ 2016年9月20日 火曜日 午後4時9分
Page 587 of 673
586
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Refilling Window Washer Fluid
Check the amount of window washer fluid by
looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the MID.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for l eaks or worn brake pads as
soon as possible.
Brake Reservoir
MIN
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Models without washer level sensor
Models with washer level sensor
17 PILOT-31TG76100.book 586 ページ 2016年9月20日 火曜日 午後4時9分
Page 653 of 673
652
Information

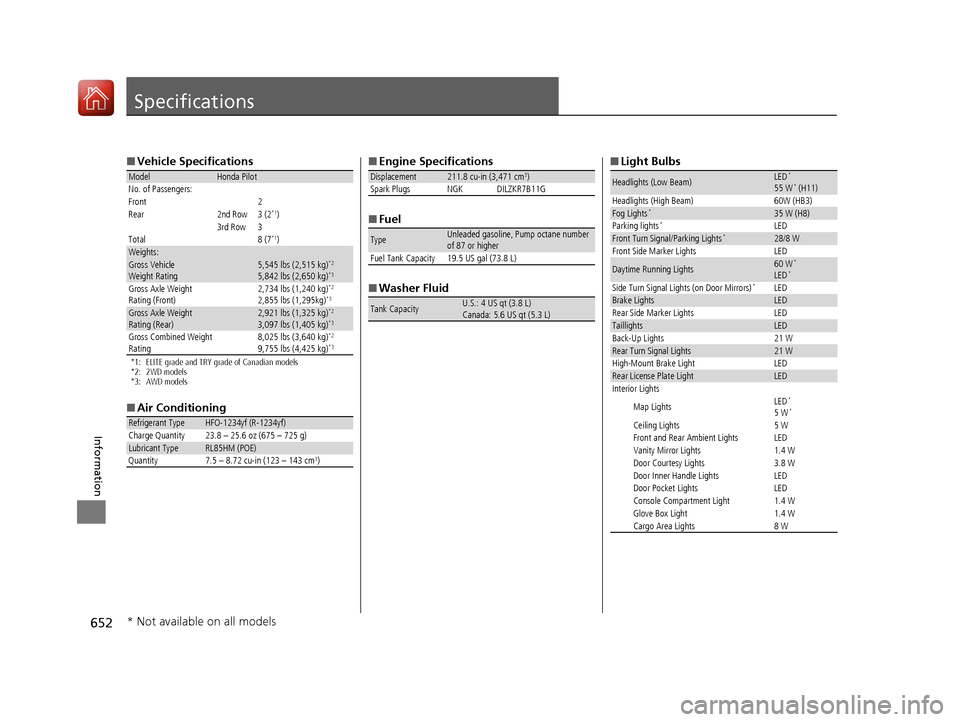

Specifications
■Vehicle Specifications
*1: ELITE grade and TRY grade of Canadian models
*2: 2WD models
*3: AWD models
■Air Conditioning
ModelHonda Pilot
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating5,545 lbs (2,515 kg)*2
5,842 lbs (2,650 kg)*3
Gross Axle Weight
Rating (Front)2,734 lbs (1,240 kg)*2
2,855 lbs (1,295kg)*3
Gross Axle Weight
Rating (Rear)2,921 lbs (1,325 kg)*2
3,097 lbs (1,405 kg)*3
Gross Combined Weight
Rating8,025 lbs (3,640 kg)*2
9,755 lbs (4,425 kg)*3
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 23.8 – 25.6 oz (675 – 725 g)
Lubricant TypeRL85HM (POE)
Quantity 7.5 – 8.72 cu-in (123 – 143 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)
Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
Headlights (Low Beam)LED*
55 W* (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*35 W (H8)
Parking lights*LEDFront Turn Signal/Parking Lights*28/8 W
Front Side Marker Lights LED
Daytime Running Lights60 W*
LED*
Side Turn Signal Lights (on Door Mirrors)*LEDBrake LightsLED
Rear Side Marker Lights LED
TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightLEDInterior Lights
Map LightsLED*
5 W*
Ceiling Lights5 WFront and Rear Ambient LightsLEDVanity Mirror Lights 1.4 WDoor Courtesy Lights3.8 WDoor Inner Handle LightsLEDDoor Pocket LightsLEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
17 PILOT-31TG76100.book 652 ページ 2016年9月20日 火曜日 午後4時9分
Page 667 of 673
666
Index
Driving....................................................... 451
Adaptive Cruise Control (ACC) ................ 502
Automatic Transmission ........................... 478
Braking .................................................... 539
Cruise Control ......................................... 497
Off-Highway Driving Guidelines ............... 469
Shifting Gear ........................................... 481
Starting the Engine .................................. 471
Driving Position Memory System ............. 169
Dust and Pollen Filter ............................... 612
E
ECON Button............................................. 494
ECON Mode Indicator ................................. 94
Electric Power Steering (EPS) System
Indicator ............................................ 86, 640
Electronic Stability Control (ESC) ............. 527
Emergency ................................................. 647
Emissions Testing (Readiness Codes) ....... 657
Engine ....................................................... 654
Coolant ................................................... 583
Jump Starting .......................................... 633
Oil ........................................................... 578
Remote Engine Start ................................ 473
Starting ................................................... 471
Engine Compartment Cover .................... 577
Engine Coolant ......................................... 583
Adding to the Radiator ............................ 584
Adding to the Reserve Tank ..................... 583
Overheating............................................. 636 Temperature Gauge ................................ 113
Engine Oil ................................................. 578
Adding .................................................... 580
Checking................................................. 579
Displaying Oil Life .................................... 571
Engine Oil Life ......................................... 117
Low Oil Pressure Indicator ................. 79, 638
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 152
EPS (Electric Power Steering) System ............................................... 86, 640
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 615
Exterior Mirrors ........................................ 173
F
Features.................................................... 217
Filters Dust and Pollen ....................................... 612
Oil ........................................................... 581
Flat Tire ..................................................... 621
Floor Mats ................................................. 614
Fluids
Automatic Transmission .......................... 585
Brake ...................................................... 586
Engine Coolant ....................................... 583
Windshield Washer ................................. 586
FM/AM Radio .................................... 231, 267
Fog Lights ................................................. 159
Indicator.................................................... 87 Folding Down the Second Row Seat
...... 184
Folding Down the Third Row Seat .......... 185
Foot Brake ................................................ 540
Front Airbags (SRS) .................................... 48
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ............................... 500
Fuel ..................................................... 24, 562
Economy................................................. 565
Gauge .................................................... 113
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 82
Range ..................................................... 117
Recommendation.................................... 562
Refueling ................................................ 562
Fuel Economy ........................................... 565
Fuel Fill Cap ........................................ 24, 564
Fuel Fill Door ...................................... 24, 563
Unable to Unlock .................................... 648
Fuses ......................................................... 642
Inspecting and Changing ........................ 646
Locations ........................ 642, 643, 644, 645
G
Gasoline (Fuel) Economy................................................. 565
Gauge .................................................... 113
Information............................................. 562
Low Fuel Indicator..................................... 82
Refueling ................................................ 562
17 PILOT-31TG76100.book 666 ページ 2016年9月20日 火曜日 午後4時9分
Page 673 of 673
672
Index
General Commands ................................. 266
Music Search Commands......................... 266
On Screen Commands ............................. 266
Phone Commands ................................... 265
Useful Commands ................................... 265
Voice Portal Screen .................................. 264
Voice Recognition .................................... 263
W
Wallpaper.......................................... 227, 248
Warning and Information Messages ......... 97
Warning Indicator On/Blinking ................ 638
Warning Labels ........................................... 75
Warranties (Warranty Manual provided separately) ............................................... 659
Watts ......................................................... 652
Wear Indicators (Tire) ............................... 602
Wheel Nut Wrench (Jack Handle) ............ 625
Wi-Fi Connection ...................................... 300
Window Washers ...................................... 164
Adding/Refilling Fluid ............................... 586
Switch ..................................................... 164
Windows (Opening and Closing) ............. 146
Windshield ................................................ 164
Cleaning .................................................. 616
Defrosting ............................................... 208
Defrosting/Defogging .............................. 211
Washer Fluid............................................ 586
Wiper Blades ........................................... 593
Wipers and Washers ................................ 164 Winter Tires
.............................................. 605
Snow Tires .............................................. 605
Tire Chains .............................................. 605
Wipers and Washers ................................. 164
Automatic Intermi ttent Wipers ................ 165
Checking and Replacing Wiper Blades ..... 593
Front ....................................................... 164
Rear ........................................................ 166
WMA ......................................... 236, 278, 290
Worn Tires ................................................ 597
17 PILOT-31TG76100.book 672 ページ 2016年9月20日 火曜日 午後4時9分
