Heatin
g an d Coolin g

Proper use of the Heating and
Cooling system can make the

interior dry and comfortable, and

keep the windows clear for best

visibility.

Wha t Eac h Contro l Doe s
Fan Control Leve r
Sliding this lever to the right
increases the fan's speed, which
increases air flow.
Temperatur e Contro l Leve r

Sliding this lever to the right

increases the temperature of the air

flow.

Ai r Conditionin g (A/C ) Butto n
This button turns the air condi- tioning ON and OFF. The indicatorin the button lights when the A/C is

on.
Rea
r Windo w Defogge r Butto n
This button turns the rear window defogger on and off (see page 65). Recirculatio
n Butto n
This button controls the source of the air going into the system. When
the indicator in this button is lit, air
from the car's interior is sentthrough the system again (Recircula-
tion mode). When the indicator is off,air is brought in from outside the car (Fresh Air mode).
Comfor t an d Convenienc e Feature s MOD
E BUTTON SREAR WINDO W
DEFOGGE R BUTTO NRECIRCULATIO
N
BUTTO N

TEMPERATUR E

CONTRO L LEVE R
FA
N CONTRO L

LEVE R
AI
R CONDITIONIN G
BUTTO N

Heating an d Coolin g
Mode Button s
Use the MODE buttons to select the
vents the air flows from. Some air will flow from the dashboard corner
vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Air flow is divided between
the vents in the dashboard and the
floor vents.
Air flows from the floor
vents.
Air flow is divided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
When you select , the system automatically switches to Fresh Air
mode and turns on the A/C.
Comfor t an d Convenienc e Feature s

Heatin
g an d Coolin g

Ven t Control s
You can adjust the direction of the
air coming from the dashboard vents

by moving the tab in the center of
each vent up-and-down and side-to-

side.
The vents in the corners of the

dashboard can be opened and closed

with the dials underneath them. Ho
w to Us e th e Syste m
This section covers how to set up the system controls for ventilation,
heating, cooling, dehumidifying, and defrosting.
The engine must be running for the heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.If the engine is cold, it will be several
minutes before you feel warm air
coming from the system.
The air conditioning does not rely on engine temperature.

Comfor t an d Convenienc e Feature s

CENTE
R VEN T

Open

SID
E VEN T

Close

Heatin
g an d Coolin g

It is best to leave the system in Fresh
Air mode under almost all conditions. Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or dusty conditions, then switch back to
Fresh Air mode when the condition

clears.

The outside air intakes for the heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other debris.
Ventilation

The flow-through ventilation system draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window. 1. Slide the temperature control lever
all the way to the left.
Make sure the A/C is off. 2. Select and Fresh Air mode.
3. Set the fan to the desired speed.
CONTINUED
Comfor t an d Convenienc e Feature s

TEMPERATUR
E

CONTRO L LEVE R
FA
N CONTRO L

LEVER
AI
R CONDITIONIN G

BUTTO N

RECIRCULATIO
N

BUTTO N

MOD
E BUTTON S

Heating an d Coolin g
To Cool with A/C
1. Turn on the A/C by pressing the
button . The light in th
e button
should come on when a fan speed
is selected.
2. Make sure the temperature control lever is set to maximum
cool.
3. Select
4. If the outside air is humid, select Recirculation mode. If the outsid
e
air is dry, select Fresh Air mode.
5. Set the fan to the desired speed.
Comfor t an d Convenienc e Feature s
RECIRCULATIO NBUTTON
AIR CONDITIONIN G
BUTTO NFAN CONTRO LLEVER
TEMPERATUR
E
CONTRO L LEVE R
MODE BUTTON S

Heatin
g an d Coolin g

If the interior is very warm from
being parked in the sun, you can cool it down more rapidly by setting up
the controls this way:
1. Start the engine.
2. Turn on the A/C by pressing the button. Make sure the tempera-
ture control lever is all the way to
the left.
3. Set the fan to maximum speed.
4. Open the windows partially. Select and Fresh Air mode.
When the interior has cooled down to a more comfortable temperature, close the windows and set the
controls as described for normal
cooling.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page 59 ) when driving in stop-and-go
traffic or climbing a long, steep hill.
If it moves near the red zone, turn off the A/C until the gauge reads
normally.

To Heat

To warm the interior:
1. Start the engine. 2. Select and Fresh Air mode.
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with the temperature control lever.
To Heat and Dehumidify with Air

Conditioning

Air conditioning, as it cools, removes moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
1. Switch the fan on.
2. Turn on the air conditioning. 3. Select and Fresh Air mode.
4. Adjust the temperature control
lever so the mixture of heated andcooled air feels comfortable.
This setting is suitable for all driving conditions whenever the outsidetemperature is above 32°F (0°C).

CONTINUED

Comfor t an d Convenienc e Feature s

Heating an d Coolin g
To Defog and Defrost
To remove fog from the inside of the
windows:
1. Switch the fan on.
2. Select
When you select thesystem automatically switches to
Fresh Air mode and turns on the
A/C.
3. Adjust the temperature control
lever so the air flow from the
defroster vents feels warm.
4. Turn on the rear window defogger to help clear the rear window.
When you switch to another mode
from the A/C stays on. Press the A/C button to turn if off.
Comfor t an d Convenienc e Feature s MOD
E BUTTON S
REAR WINDO W
DEFOGGE R BUTTO NRECIRCULATIO NBUTTON
AI R CONDITIONIN G
BUTTO N
FA
N CONTRO L
LEVERTEMPERATUR ECONTROL LEVE R

Heatin
g an d Coolin g

To remove exterior frost or ice from the windshield and side windowsafter the car has been sitting out in
cold weather:
1. Start the engine. 2. Select
When you select the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Switch the fan and temperature controls to maximum.
To rapidly remove exterior frost or ice from the windshield (on very cold
days), first select the Recirculation
mode. Once the windshield is clear, select the Fresh Air mode to avoid
fogging the windows. These settings direct all the air flow
to the defroster vents at the base of
the windshield and the side window defroster vents. The air flow will get
warmer and clear the windows faster as the engine warms up. You can
close the side vents with the dial
underneath each vent. This will send
more warm air to the windshield
defroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away.
T
o Tur n Everythin g Off

To shut off the system temporarily, slide
the fan speed an
d temperature
control levers all the way to the left.
You should shut the system completely off only for the first few
minutes of driving in cold weather,
until the engine coolant warms upenough to operate the heater. Keep
the fan on at all other times so stale air does not build up in the interior.
Comfor t an d Convenienc e Feature s

Audi
o Syste m

AM/FM/C D Audi o Syste m
Your Honda's audio system provides clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your favorite
stations.

The anti-theft feature will disable the system if it is disconnected from the
vehicle's battery. To get the system
working again, you must enter a
code number (see page 123 ).

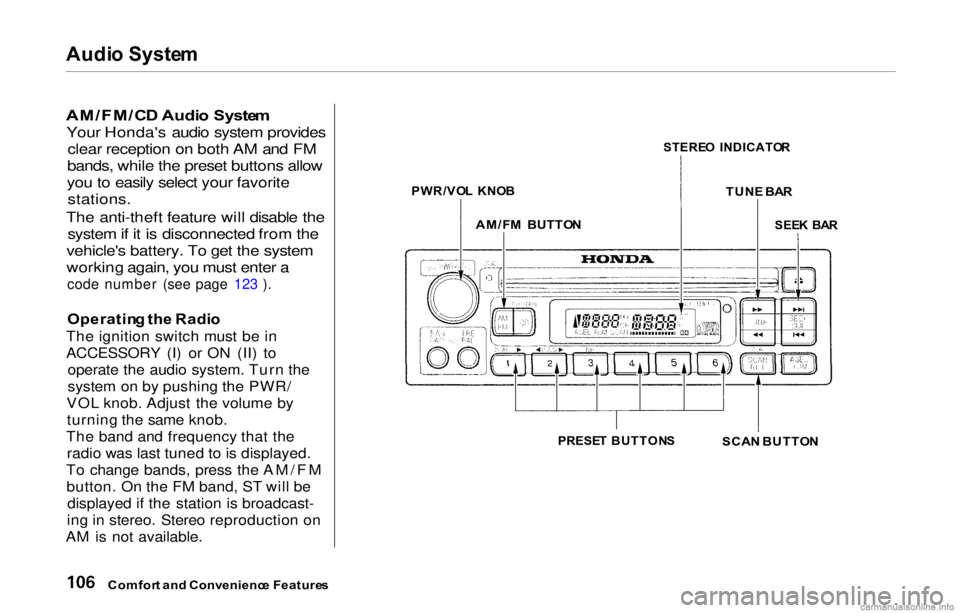

Operatin g th e Radi o
The ignition switch must be in
ACCESSORY (I) or ON (II) to operate the audio system. Turn the
system on by pushing the PWR/
VOL knob. Adjust the volume by turning the same knob.
The band and frequency that the radio was last tuned to is displayed.
To change bands, press the AM/FM button. On the FM band, ST will be displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Comfor t an d Convenienc e Feature s
PRESE
T BUTTON S

SCAN BUTTO N

SEE
K BA R

STERE
O INDICATO R

TUN E BA R
AM/F M BUTTO N

PWR/VO
L KNO B

Audi
o Syste m

You can use any of four methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN or the Preset buttons.
TUN E — Use the TUNE bar to tune
the radio to a desired frequency. Press the side of the bar to tune
to a higher frequency, and the
side to tune to a lower
frequency. The frequency numbers
will start to change rapidly. Release
the bar when the display reaches the desired frequency. To change the
frequency in small increments, press and release the TUNE bar quickly.
SEE K — The SEEK function
searches the band for a station with
a strong signal. To activate it, press the SEEK bar on either the or
side, then release it.
Depending on which side you press,
the system scans upward or down-
ward from the current frequency. It stops when it finds a station with a strong signal.
SCA N — The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. When the system is
in the SCAN mode, SCAN shows in
the display. The system will scan up
the band for a station with a strong signal. When it finds one, it will stop
and play that station for
approximately five seconds. If you do
nothing, the system will then scan
for the next strong station and play
that for five seconds. When it plays a station that you want to continue
listening to, press the SCAN button

again.

Prese t — You can store the
frequencies of your favorite radio stations in the six preset buttons.
Each button will store one frequency
on the AM band, and two
frequencies on the FM band.
To store a frequency:
1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset

button.

2. Use the TUNE or SEEK function to tune the radio to a desired
station.

3. Pick the Preset button you want for that station. Press the buttonand hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelveon FM.
Once a station's frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset frequencies will be lost if your car's battery goes dead, is
disconnected, or the radio fuse is

removed.
