Page 41 of 268
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should use a
booster seat until the lap/shoulder
belt fits them properly without the
booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intendto drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets f ederal
saf ety standards and that you f ollow
the booster seat maker’s instructions.
If a child who uses a booster seat
ridesinthisvehicle,movethe
vehicle seat as f ar to the rear as
possible, and be sure the child is
wearing the seat belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
3.
4.
5.
Using a Booster Seat
Protecting L arger Children
38
2009 S2000
Page 42 of 268
If you decide that a child can saf ely
ride in this vehicle, be sure to:Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see page ). If the seat
belt does not f it properly, with or
without the child sitting on a booster,
the child should not sit in this vehicle.
To saf ely ride in this vehicle, a child
must be able to f ollow the rules,
including sitting properly, and
wearing the seat belt properly
throughout ride.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
If the passenger’s airbag inf lates in a
moderate to severe f rontal collision,
the airbag can cause serious injuries
to a child who is unrestrained,
improperly restrained, sitting too
close to the airbag, or out of position.
Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in this
vehicle. There are other important
f actors you should consider. 37
When Can a L arger Child Ride in
This VehiclePhysical Size
Maturity
Protecting L arger Children
Driver and Passenger Saf ety
39
2009 S2000
Page 43 of 268
This could result
in serious neck injuries during a
crash.
If they do, they
could be very seriously injured in a
crash. This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
Additional Saf ety Precautions
Do not let a child wear a seat belt
across t he neck.
T wo children should never use thesame seat belt .
Do not let a child put the shoulder
part of a seat belt behind t he backor under t he arm. Do not put any accessories on a
seat belt.
Protecting L arger Children
40
2009 S2000
Page 44 of 268
Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system as f ollows:
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows,
and set the heating and cooling
system as shown below.
Select the f resh air mode.
Select the mode.
Set the f an speed to high.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
41
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
2009 S2000
Page 45 of 268
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.U.S. modelsCanadian models
U.S. models only U.S. models
Canadian models
Saf ety L abels
42
BATTERY
SUN VISOR
RADIATOR
DASHBOARD
HOOD
2009 S2000
Page 46 of 268
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .44
............................
Instrument Panel .45
..........
Instrument Panel Indicators .46
.............................................
Gauges .53
.....................................
Odometer .53
....................................
Trip meter .53
...............................
Select Button .53
..................................
Fuel Gauge .54
..........
Check Fuel Cap Message .54
...................
Temperature Gauge .55
Outside Temperature
...................................
Indicator .55
..................
Maintenance Minder .56
............................................
Clock .56
Controls Near the Steering ...........................................
Wheel .57
Windshield Wipers and .......................................
Washers .58
...........
Turn Signal and Headlights .59
........
Instrument Panel Brightness .60
.................
Hazard Warning Button .60
.................
Rear Window Def ogger .61
...............................
Keys and Locks .62
........................
Immobilizer System .63
................................
Ignition Switch .64
..........................
Power Door Locks .65................................................
Trunk .65
........
Emergency Trunk Opener .66
.......................
Remote Transmitter .67
.................................................
Seats .69
..............................
Power Windows .70
..............................
Convertible Top .72
........................
Removable Hardtop .78
.............................................
Mirrors .87
.................................
Parking Brake .88
...........
Interior Convenience Items .89
.........................
Beverage Holder .90
...........
Accessory Power Socket .90
.............
Console Compartments .91
.................................
Audio Panel .91
..........
Dashboard Lower Pocket .92
...................................
Interior Light .92
Instruments and Controls
Inst rument s and Cont rols
43
2009 S2000
Page 47 of 268
ÎÎ
Î
Î If equipped.
:

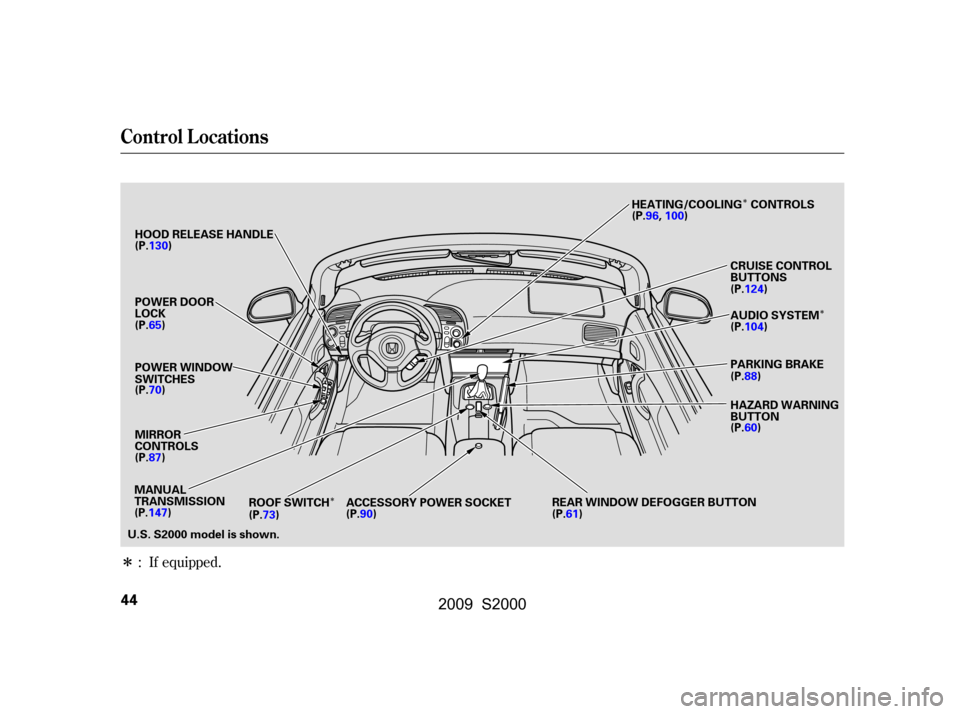

Control L ocations
44
POWER WINDOW
SWITCHES
ACCESSORY POWER SOCKETREAR WINDOW DEFOGGER BUTTONHAZARD WARNING
BUTTON
POWER DOOR
LOCK
PARKING BRAKE
MANUAL
TRANSMISSION CRUISE CONTROL
BUTTONS
HOOD RELEASE HANDLE
HEATING/COOLING CONTROLS
AUDIO SYSTEM
ROOF SWITCH
MIRROR
CONTROLS
(P.130)
(P.65)
(P.70)
(P.87)
(P.147) (P.73)
U.S. S2000 model is shown. (P.90)
(P.61)(P.60)
(P.88)
(P.104)
(P.124)
(P.96,100)
2009 S2000
Page 48 of 268
Î
Î
ÎÎ
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
1:
2 : Only on CR models. CR models are not available in Canada.

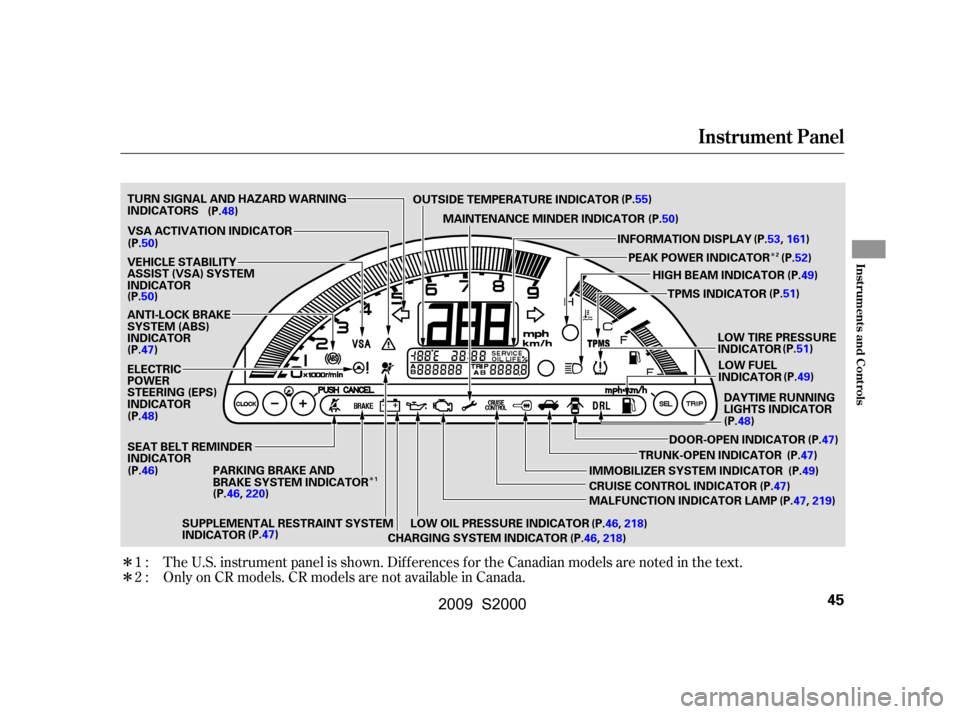

Instrument Panel
Inst rument s and Cont rols
45
TRUNK-OPEN INDICATOR
IMMOBILIZER SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
DOOR-OPEN INDICATOR
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
INDICATOR
(P.50)
(P.50)
(P.47)
(P.46) CHARGING SYSTEM INDICATORLOW OIL PRESSURE INDICATOR MALFUNCTION INDICATOR LAMP CRUISE CONTROL INDICATOR (P.47)
(P.47) (P.47)
(P.49) (P.47)
(P.48)
(P.49)
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR
VSA ACTIVATION INDICATOR
OUTSIDE TEMPERATURE INDICATOR
TURN SIGNAL AND HAZARD WARNING
INDICATORS
MAINTENANCE MINDER INDICATOR(P.50)
INFORMATION DISPLAY
HIGH BEAM INDICATORTPMS INDICATOR
(P.48) DAYTIME RUNNING
LIGHTS INDICATOR
LOW TIRE PRESSURE
INDICATOR (P.49)
LOW FUEL
INDICATOR
SEAT BELT REMINDER
INDICATOR
ELECTRIC
POWER
STEERING (EPS)
INDICATOR
(P.48)
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR (P.51)
(P.51)
(P.52)
PEAK POWER INDICATOR (P.53,161)
(P.55)
(P.46,220) (P.46,218)
(P.46,218) (P.47,219)
1 2
2009 S2000
Page 49 of 268
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
f ully released can damage the
brakes and tires.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on. If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page . The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page . If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page . If your passenger does not f asten
their seat belt, the indicator comes
on about 6 seconds af ter the ignition
switch is turned to the ON (II)
position.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passenger to f asten your seat belts.
A beeper also sounds if you and your
passenger have not f astened your
seat belts.
2. 1.
16
218
218 220
Instrument Panel Indicators
Seat Belt Reminder
Indicator Parking Brake and
Brake System
Indicator
Charging System
Indicator L ow Oil Pressure
Indicator
46
U.S. Canada
2009 S2000
Page 50 of 268
See page .
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if either
door is not closed tightly.
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when you push the
START button. If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your airbags.
This indicator will also alert you to a
potential problem with your
automatic seat belt tensioners,
driver’s seat position sensor, or the
passenger’s seat weight sensors. For
more information, see page .
25
150
124219
Instrument Panel Indicators
Supplemental Restraint
System Indicator
Malf unction Indicator
Lamp
Trunk-open Indicator
Door-open Indicator
Cruise Control Indicator
Anti-lock Brake System
(A BS) Indicator
Inst rument s and Cont rols
47
