HUMMER H2 2007 Repair Manual

Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with
top tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
i(Top Tether Anchor):
Seating positions with
top tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
i(Top Tether Anchor):
Seating positions with
top tether anchors.
For SUV models, there are exposed metal
anchors for the second row center and passenger
side seating positions.
For SUT models, there are exposed metal anchor
for the second row center seating position.
Second Row
Seats — SUV
Second Row
Seats — SUT
Third Row Seats — SUV
61

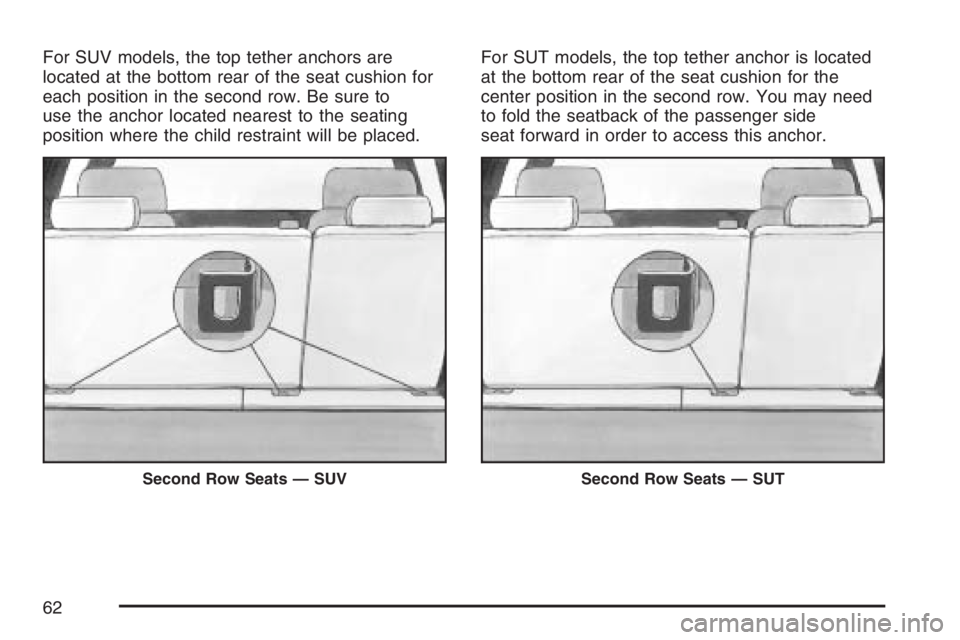

For SUV models, the top tether anchors are
located at the bottom rear of the seat cushion for
each position in the second row. Be sure to
use the anchor located nearest to the seating
position where the child restraint will be placed.For SUT models, the top tether anchor is located
at the bottom rear of the seat cushion for the
center position in the second row. You may need
to fold the seatback of the passenger side
seat forward in order to access this anchor.
Second Row Seats — SUVSecond Row Seats — SUT
62

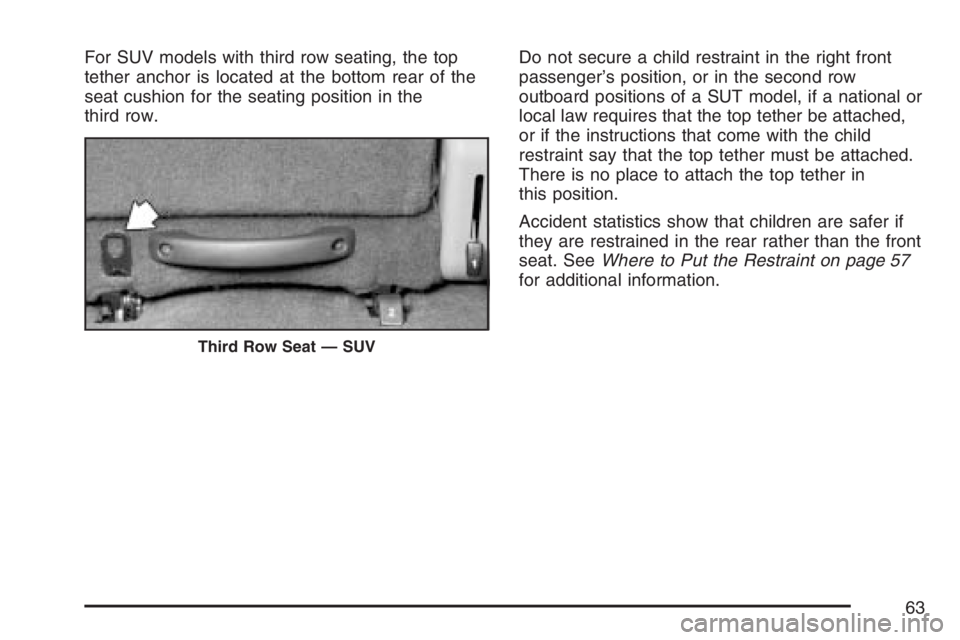

For SUV models with third row seating, the top
tether anchor is located at the bottom rear of the
seat cushion for the seating position in the
third row.Do not secure a child restraint in the right front
passenger’s position, or in the second row
outboard positions of a SUT model, if a national or
local law requires that the top tether be attached,
or if the instructions that come with the child
restraint say that the top tether must be attached.
There is no place to attach the top tether in
this position.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. SeeWhere to Put the Restraint on page 57
for additional information.
Third Row Seat — SUV
63

Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not
attached to anchors, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured
or killed. Make sure that a LATCH-type
child restraint is properly installed using
the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint,
and also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor
in the vehicle is designed to hold only
one child restraint. Attaching more than
one child restraint to a single anchor
could cause the anchor or attachment to
come loose or even break during a crash.
A child or others could be injured if this
happens. To help prevent injury to people
and damage to your vehicle, attach only
one child restraint per anchor.
64

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle has
one, after the child restraint has been
installed. Be sure to follow the instructions
of the child restraint manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
Second Row Center Position — SUT
1. If the child restraint manufacturer recommends
that the top tether be attached, attach the top
tether to the top tether anchor, if equipped.
Refer to the child restraint instructions and the
following steps:
1.1. To access the top tether anchor, raise
the passenger side seat cushion by
pulling up on the strap loop at the rear
of the seat cushion and fold the
seat cushion forward. Then fold the
seatback forward. See60/40 Split
Bench Seat on page 15for additional
information.
1.2. Place the child restraint in the center
seating position.
1.3. Find the top tether anchor at the rear
base of the center seat.
65

1.4. Route and attach, but do not tighten,
the top tether according to your child
restraint instructions and the following
instructions:
If your child restraint
has a single tether,
route the tether over
the seatback.
If your child restraint
has a dual tether, route
the tether over the
seatback.1.5. Return the rear passenger side seatback
to its upright position. You may have to
move the child restraint to a temporary
position to do this. Ensure that the
seatback locks and the safety belt is
routed properly. Then lower the seat
cushion until the seatback and the seat
cushion lock into position.
2. Attach the lower attachments to the lower
anchors. If the child restraint does not have
lower attachments or the desired seating
position does not have lower anchors, secure
the child restraint with the top tether and
the safety belts. Refer to your child restraint
manufacturer instructions and the instructions
in this manual.
2.1. Find the lower anchors for the desired
seating position.
2.2. Attach and tighten the lower
attachments on the child restraint to the
lower anchors.
3. Tighten the top tether.
66

{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
4. Push and pull the child restraint in different
directions to be sure it is secure.
Second and Third Row Positions — SUV
1. Attach and tighten the lower attachments
to the lower anchors. If the child restraint
does not have lower attachments or the
desired seating position does not have lower
anchors, secure the child restraint with the
top tether and the safety belts. Refer to your
child restraint manufacturer instructions
and the instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.1.3. Attach and tighten the lower
attachments on the child restraint to
the lower anchors.
2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if equipped. Refer to the child restraint
instructions and the following steps:
2.1. Find the top tether anchor.
2.2. Route, attach, and tighten the top tether
according to your child restraint
instructions and the following
instructions:
If the position you are
using does not have
a head restraint and you
are using a single
tether, route the tether
over the seatback.
67

If the position you are
using does not have a
head restraint and
you are using a dual
tether, route the
tether over the
seatback.
If the position you are
using has an adjustable
head restraint and
you are using a single
tether, raise the
head restraint and route
the tether under the
head restraint and
in between the head
restraint posts.If the position you are
using has an adjustable
head restraint and
you are using a dual
tether, raise the
head restraint and route
the tether under the
head restraint and
in between the head
restraint posts.
3. Push and pull the child restraint in different
directions to be sure it is secure.
68

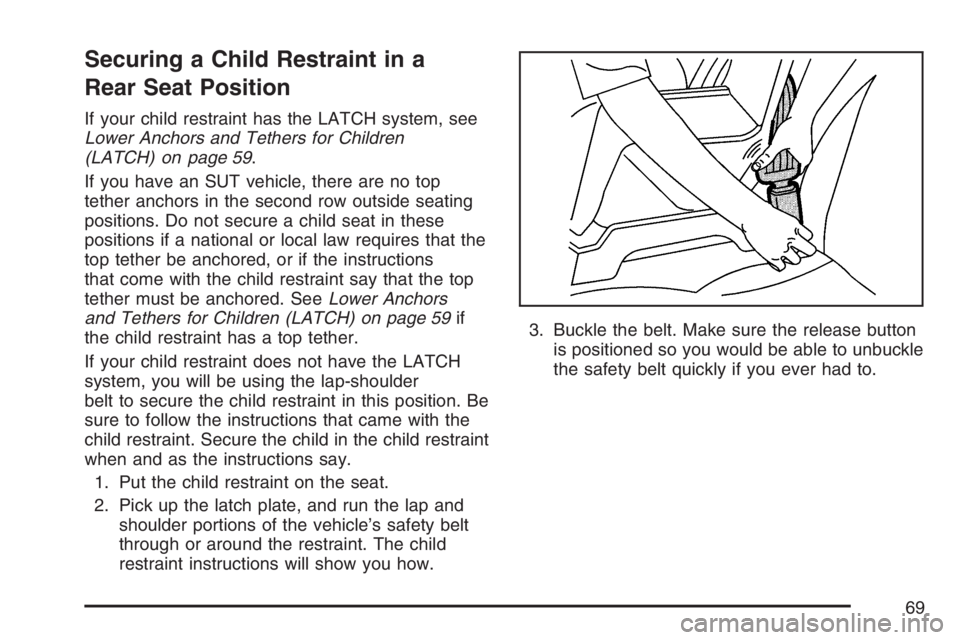

Securing a Child Restraint in a
Rear Seat Position
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 59.
If you have an SUT vehicle, there are no top
tether anchors in the second row outside seating
positions. Do not secure a child seat in these
positions if a national or local law requires that the
top tether be anchored, or if the instructions
that come with the child restraint say that the top
tether must be anchored. SeeLower Anchors
and Tethers for Children (LATCH) on page 59if
the child restraint has a top tether.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position. Be
sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
69

4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.
