HUMMER H3 2009 Owners Manual

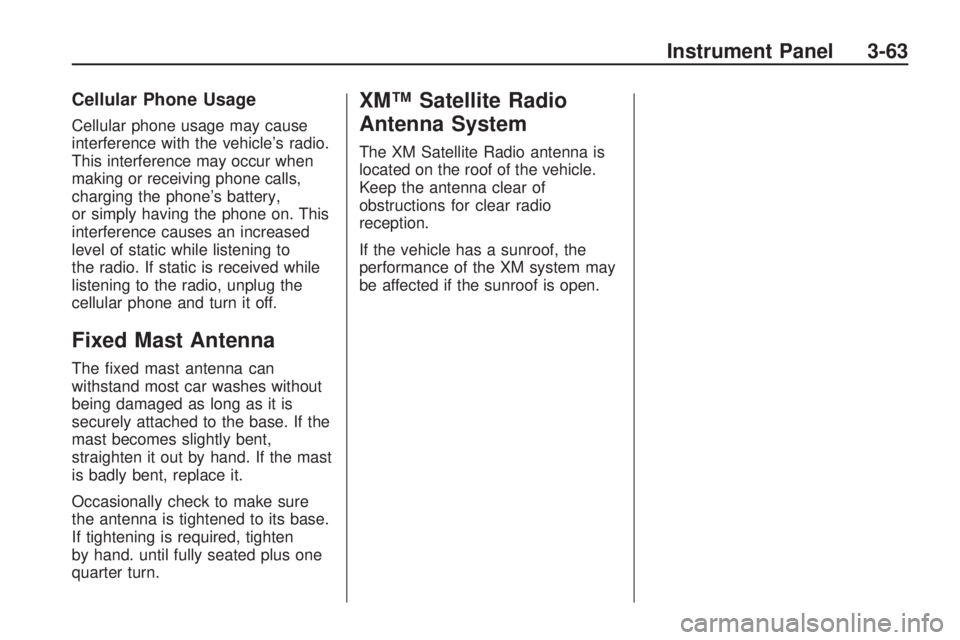

Cellular Phone Usage
Cellular phone usage may cause
interference with the vehicle’s radio.
This interference may occur when
making or receiving phone calls,
charging the phone’s battery,
or simply having the phone on. This
interference causes an increased
level of static while listening to
the radio. If static is received while
listening to the radio, unplug the
cellular phone and turn it off.
Fixed Mast Antenna
The xed mast antenna can
withstand most car washes without
being damaged as long as it is
securely attached to the base. If the
mast becomes slightly bent,
straighten it out by hand. If the mast
is badly bent, replace it.
Occasionally check to make sure
the antenna is tightened to its base.
If tightening is required, tighten
by hand. until fully seated plus one
quarter turn.
XM™ Satellite Radio
Antenna System
The XM Satellite Radio antenna is
located on the roof of the vehicle.
Keep the antenna clear of
obstructions for clear radio
reception.
If the vehicle has a sunroof, the
performance of the XM system may
be affected if the sunroof is open.
Instrument Panel 3-63

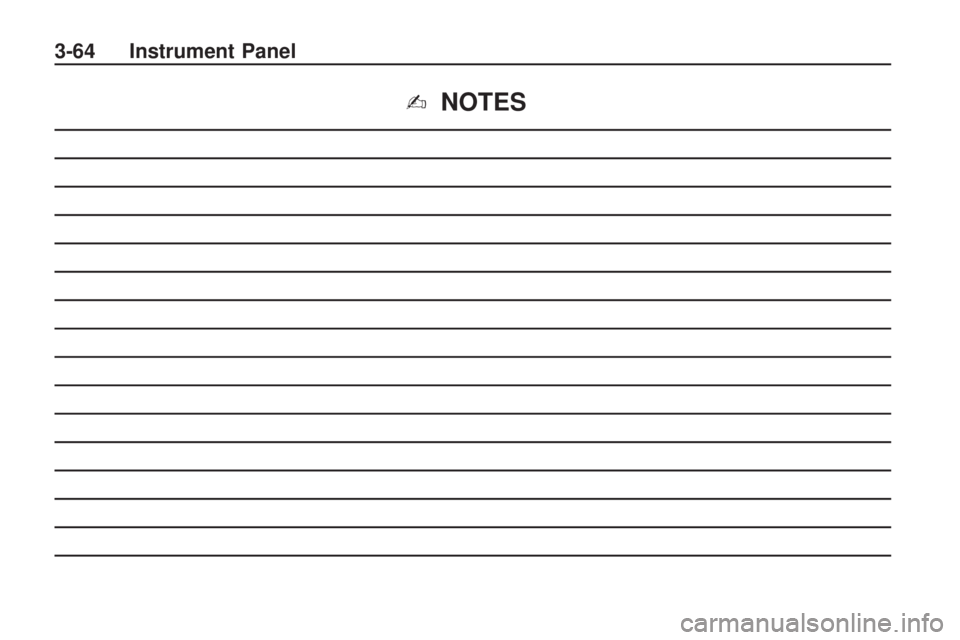

✍NOTES
3-64 Instrument Panel

Driving Your
Vehicle
Your Driving, the Road,
and the Vehicle
Driving for Better Fuel
Economy...........................4-1
Defensive Driving................4-2
Drunk Driving.....................4-2
Control of a Vehicle............4-3
Braking...............................4-3
Antilock Brake
System (ABS)...................4-5
Braking in Emergencies......4-6
StabiliTrak®System............4-6
Traction Control
System (TCS)...................4-7
Locking Rear Axle..............4-8
Locking Front Axle..............4-9
Steering............................4-10
Off-Road Recovery............4-11
Passing.............................4-12
Loss of Control.................4-12
Off-Road Driving...............4-13
Assist Steps......................4-28
Driving at Night.................4-28
Driving in Rain and on
Wet Roads......................4-29
Before Leaving on a
Long Trip........................4-30
Highway Hypnosis.............4-30
Hill and Mountain Roads. . .4-30
Winter Driving...................4-31
If Your Vehicle is
Stuck in Sand, Mud,
Ice, or Snow
...................4-33
Rocking Your Vehicle to
Get It Out.......................4-34
Recovery Loops................4-34
Loading the Vehicle..........4-35
Truck-Camper Loading
Information......................4-39
Towing
Towing Your Vehicle.........4-40
Recreational Vehicle
Towing............................4-40
Towing a Trailer................4-42
Trailer
Recommendations...........4-53
Your Driving, the
Road, and the Vehicle
Driving for Better Fuel
Economy
Driving habits can affect fuel
mileage. Here are some driving tips
to get the best fuel economy
possible.
Avoid fast starts and accelerate
smoothly.
Brake gradually and avoid abrupt
stops.
Avoid idling the engine for long
periods of time.
When road and weather
conditions are appropriate, use
cruise control, if equipped.
Always follow posted speed limits
or drive more slowly when
conditions require.
Keep vehicle tires properly
inated.
Driving Your Vehicle 4-1

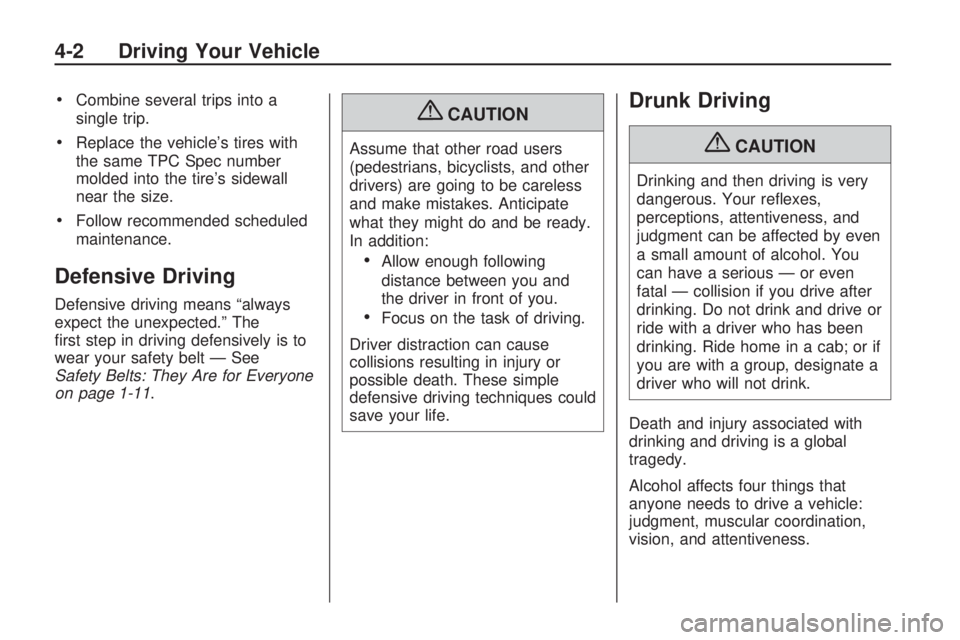

Combine several trips into a
single trip.
Replace the vehicle’s tires with
the same TPC Spec number
molded into the tire’s sidewall
near the size.
Follow recommended scheduled
maintenance.
Defensive Driving
Defensive driving means “always
expect the unexpected.” The
rst step in driving defensively is to
wear your safety belt — See
Safety Belts: They Are for Everyone
on page 1-11.
{CAUTION
Assume that other road users
(pedestrians, bicyclists, and other
drivers) are going to be careless
and make mistakes. Anticipate
what they might do and be ready.
In addition:
Allow enough following
distance between you and
the driver in front of you.
Focus on the task of driving.
Driver distraction can cause
collisions resulting in injury or
possible death. These simple
defensive driving techniques could
save your life.
Drunk Driving
{CAUTION
Drinking and then driving is very
dangerous. Your reexes,
perceptions, attentiveness, and
judgment can be affected by even
a small amount of alcohol. You
can have a serious — or even
fatal — collision if you drive after
drinking. Do not drink and drive or
ride with a driver who has been
drinking. Ride home in a cab; or if
you are with a group, designate a
driver who will not drink.
Death and injury associated with
drinking and driving is a global
tragedy.
Alcohol affects four things that
anyone needs to drive a vehicle:
judgment, muscular coordination,
vision, and attentiveness.
4-2 Driving Your Vehicle

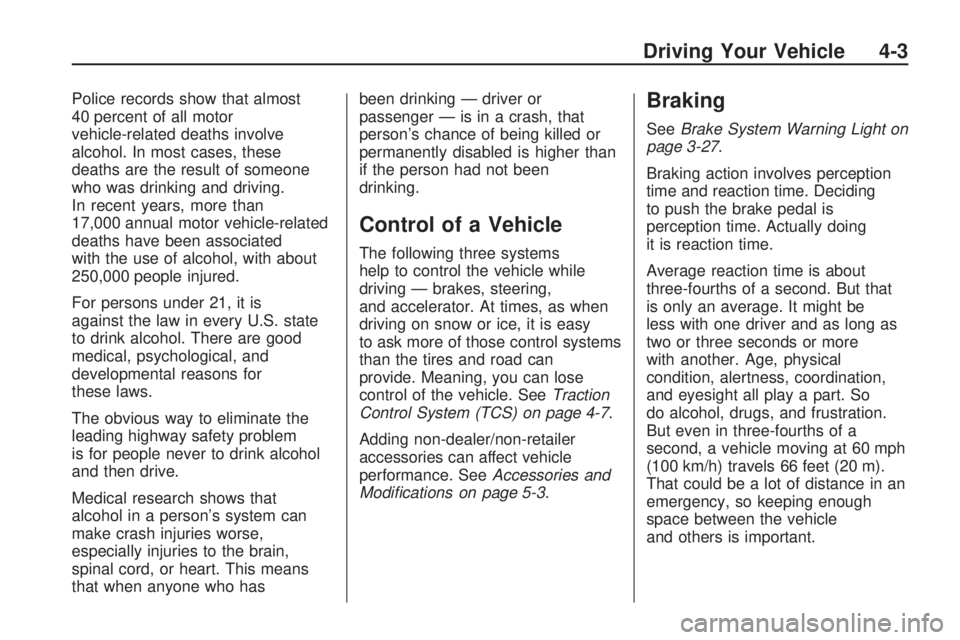

Police records show that almost
40 percent of all motor
vehicle-related deaths involve
alcohol. In most cases, these
deaths are the result of someone
who was drinking and driving.
In recent years, more than
17,000 annual motor vehicle-related
deaths have been associated
with the use of alcohol, with about
250,000 people injured.
For persons under 21, it is
against the law in every U.S. state
to drink alcohol. There are good
medical, psychological, and
developmental reasons for
these laws.
The obvious way to eliminate the
leading highway safety problem
is for people never to drink alcohol
and then drive.
Medical research shows that
alcohol in a person’s system can
make crash injuries worse,
especially injuries to the brain,
spinal cord, or heart. This means
that when anyone who hasbeen drinking — driver or
passenger — is in a crash, that
person’s chance of being killed or
permanently disabled is higher than
if the person had not been
drinking.
Control of a Vehicle
The following three systems
help to control the vehicle while
driving — brakes, steering,
and accelerator. At times, as when
driving on snow or ice, it is easy
to ask more of those control systems
than the tires and road can
provide. Meaning, you can lose
control of the vehicle. SeeTraction
Control System (TCS) on page 4-7.
Adding non-dealer/non-retailer
accessories can affect vehicle
performance. SeeAccessories and
Modifications on page 5-3.
Braking
SeeBrake System Warning Light on
page 3-27.
Braking action involves perception
time and reaction time. Deciding
to push the brake pedal is
perception time. Actually doing
it is reaction time.
Average reaction time is about
three-fourths of a second. But that
is only an average. It might be
less with one driver and as long as
two or three seconds or more
with another. Age, physical
condition, alertness, coordination,
and eyesight all play a part. So
do alcohol, drugs, and frustration.
But even in three-fourths of a
second, a vehicle moving at 60 mph
(100 km/h) travels 66 feet (20 m).
That could be a lot of distance in an
emergency, so keeping enough
space between the vehicle
and others is important.
Driving Your Vehicle 4-3

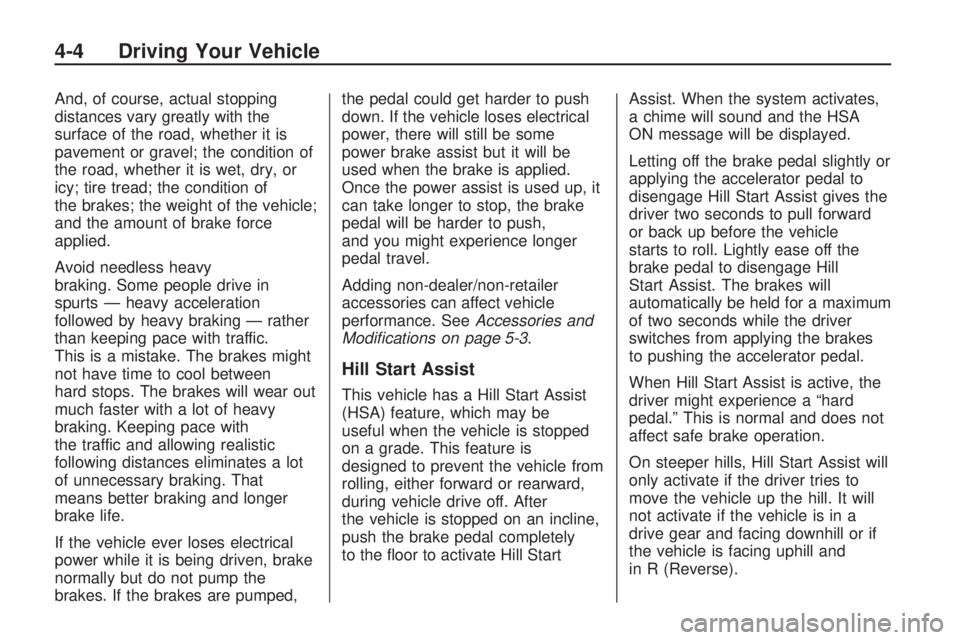

And, of course, actual stopping
distances vary greatly with the
surface of the road, whether it is
pavement or gravel; the condition of
the road, whether it is wet, dry, or
icy; tire tread; the condition of
the brakes; the weight of the vehicle;
and the amount of brake force
applied.
Avoid needless heavy
braking. Some people drive in
spurts — heavy acceleration
followed by heavy braking — rather
than keeping pace with traffic.
This is a mistake. The brakes might
not have time to cool between
hard stops. The brakes will wear out
much faster with a lot of heavy
braking. Keeping pace with
the traffic and allowing realistic
following distances eliminates a lot
of unnecessary braking. That
means better braking and longer
brake life.
If the vehicle ever loses electrical
power while it is being driven, brake
normally but do not pump the
brakes. If the brakes are pumped,the pedal could get harder to push
down. If the vehicle loses electrical
power, there will still be some
power brake assist but it will be
used when the brake is applied.
Once the power assist is used up, it
can take longer to stop, the brake
pedal will be harder to push,
and you might experience longer
pedal travel.
Adding non-dealer/non-retailer
accessories can affect vehicle
performance. SeeAccessories and
Modifications on page 5-3.
Hill Start Assist
This vehicle has a Hill Start Assist
(HSA) feature, which may be
useful when the vehicle is stopped
on a grade. This feature is
designed to prevent the vehicle from
rolling, either forward or rearward,
during vehicle drive off. After
the vehicle is stopped on an incline,
push the brake pedal completely
to the oor to activate Hill StartAssist. When the system activates,
a chime will sound and the HSA
ON message will be displayed.
Letting off the brake pedal slightly or
applying the accelerator pedal to
disengage Hill Start Assist gives the
driver two seconds to pull forward
or back up before the vehicle
starts to roll. Lightly ease off the
brake pedal to disengage Hill
Start Assist. The brakes will
automatically be held for a maximum
of two seconds while the driver
switches from applying the brakes
to pushing the accelerator pedal.
When Hill Start Assist is active, the
driver might experience a “hard
pedal.” This is normal and does not
affect safe brake operation.
On steeper hills, Hill Start Assist will
only activate if the driver tries to
move the vehicle up the hill. It will
not activate if the vehicle is in a
drive gear and facing downhill or if
the vehicle is facing uphill and
in R (Reverse).
4-4 Driving Your Vehicle

Antilock Brake
System (ABS)
This vehicle has the Antilock Brake
System (ABS), an advanced
electronic braking system that will
help prevent a braking skid.
When the engine is started and the
vehicle begins to drive away,
ABS checks itself. A momentary
motor or clicking noise might
be heard while this test is going on.
This is normal.
If there is a problem with ABS, this
warning light stays on. See
Antilock Brake System (ABS)
Warning Light on page 3-28.Let us say the road is wet and you
are driving safely. Suddenly, an
animal jumps out in front of you. You
slam on the brakes and continue
braking. Here is what happens
with ABS:
A computer senses that the wheels
are slowing down. If one of the
wheels is about to stop rolling, the
computer will separately work
the brakes at each wheel.
ABS can change the brake pressure
to each wheel, as required, faster
than any driver could. This can help
the driver steer around the
obstacle while braking hard.
As the brakes are applied, the
computer keeps receiving updates
on wheel speed and controls braking
pressure accordingly.Remember: ABS does not change
the time needed to get a foot
up to the brake pedal or always
decrease stopping distance. If you
get too close to the vehicle in
front of you, there will not be enough
time to apply the brakes if that
vehicle suddenly slows or stops.
Always leave enough room up
ahead to stop, even with ABS.
Using ABS
Do not pump the brakes. Just hold
the brake pedal down rmly and
let antilock work. The brakes might
vibrate or some noise might be
heard, but this is normal.
Driving Your Vehicle 4-5

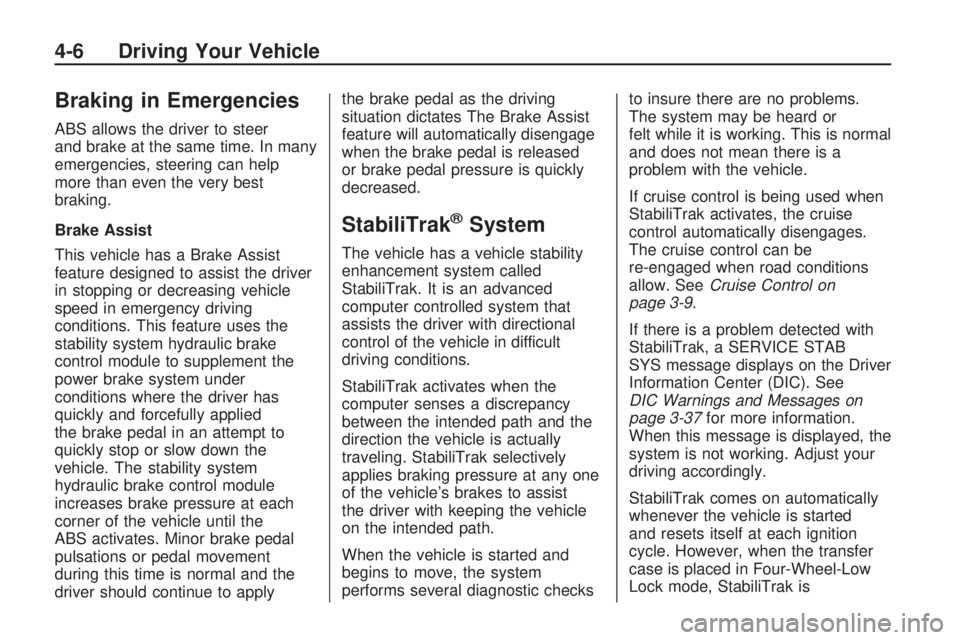

Braking in Emergencies
ABS allows the driver to steer
and brake at the same time. In many
emergencies, steering can help
more than even the very best
braking.
Brake Assist
This vehicle has a Brake Assist
feature designed to assist the driver
in stopping or decreasing vehicle
speed in emergency driving
conditions. This feature uses the
stability system hydraulic brake
control module to supplement the
power brake system under
conditions where the driver has
quickly and forcefully applied
the brake pedal in an attempt to
quickly stop or slow down the
vehicle. The stability system
hydraulic brake control module
increases brake pressure at each
corner of the vehicle until the
ABS activates. Minor brake pedal
pulsations or pedal movement
during this time is normal and the
driver should continue to applythe brake pedal as the driving
situation dictates The Brake Assist
feature will automatically disengage
when the brake pedal is released
or brake pedal pressure is quickly
decreased.
StabiliTrak®System
The vehicle has a vehicle stability
enhancement system called
StabiliTrak. It is an advanced
computer controlled system that
assists the driver with directional
control of the vehicle in difficult
driving conditions.
StabiliTrak activates when the
computer senses a discrepancy
between the intended path and the
direction the vehicle is actually
traveling. StabiliTrak selectively
applies braking pressure at any one
of the vehicle’s brakes to assist
the driver with keeping the vehicle
on the intended path.
When the vehicle is started and
begins to move, the system
performs several diagnostic checksto insure there are no problems.
The system may be heard or
felt while it is working. This is normal
and does not mean there is a
problem with the vehicle.
If cruise control is being used when
StabiliTrak activates, the cruise
control automatically disengages.
The cruise control can be
re-engaged when road conditions
allow. SeeCruise Control on
page 3-9.
If there is a problem detected with
StabiliTrak, a SERVICE STAB
SYS message displays on the Driver
Information Center (DIC). See
DIC Warnings and Messages on
page 3-37for more information.
When this message is displayed, the
system is not working. Adjust your
driving accordingly.
StabiliTrak comes on automatically
whenever the vehicle is started
and resets itself at each ignition
cycle. However, when the transfer
case is placed in Four-Wheel-Low
Lock mode, StabiliTrak is
4-6 Driving Your Vehicle

automatically disabled. See
Full-Time Four-Wheel Drive on
page 2-24for more information. It is
recommended to leave the system
on for normal driving conditions,
but it may be necessary to turn the
system off if the vehicle is stuck
in sand, mud, ice, or snow, and it is
necessary to “rock” the vehicle to
attempt to free it. SeeIf Your
Vehicle is Stuck in Sand, Mud, Ice,
or Snow on page 4-33.
To turn the system off, press and
hold the TCS/StabiliTrak button until
the traction off light comes on.
This light comes on steady when
TCS has been turned off. This light
ashes when StabiliTrak is active.To Turn off TCS and StabiliTrak,
press and hold the TCS/StabiliTrak
button until the STAB SYS OFF
message displays on the DIC. Press
and release the TCS/StabiliTrak
button again to turn StabiliTrak
back on. See “Traction Control
System (TCS)”, following, for more
information on turning TCS off
and on.
Traction Control
System (TCS)
The vehicle has a Traction Control
System (TCS) that limits wheel
spin. This is especially useful
in slippery road conditions. The
system operates only if it senses
that any of the wheels are spinning
or beginning to lose traction.
When this happens, TCS reduces
engine power. The system may
be heard or felt while it is working.
This is normal and does not
mean there is a problem with the
vehicle.TCS can operate on dry roads
under some conditions. When this
happens, the system may be
heard working or a reduction in
acceleration may be noticed. This is
normal and does not mean there
is a problem with the vehicle.
Examples of these conditions
include hard acceleration in a turn,
an abrupt upshift or downshift of
the transmission or driving on rough
roads.
If cruise control is being used when
TCS begins to limit wheel spin,
the cruise control automatically
disengages. The cruise control
can be re-engaged when road
conditions allow. SeeCruise Control
on page 3-9for more information.
TRACTION FAULT appears on
the Driver information Center (DIC)
when a TCS or antilock brake
system problem has been detected
and the vehicle needs service.
When this message is on, the
system will not limit wheel spin.
Driving Your Vehicle 4-7

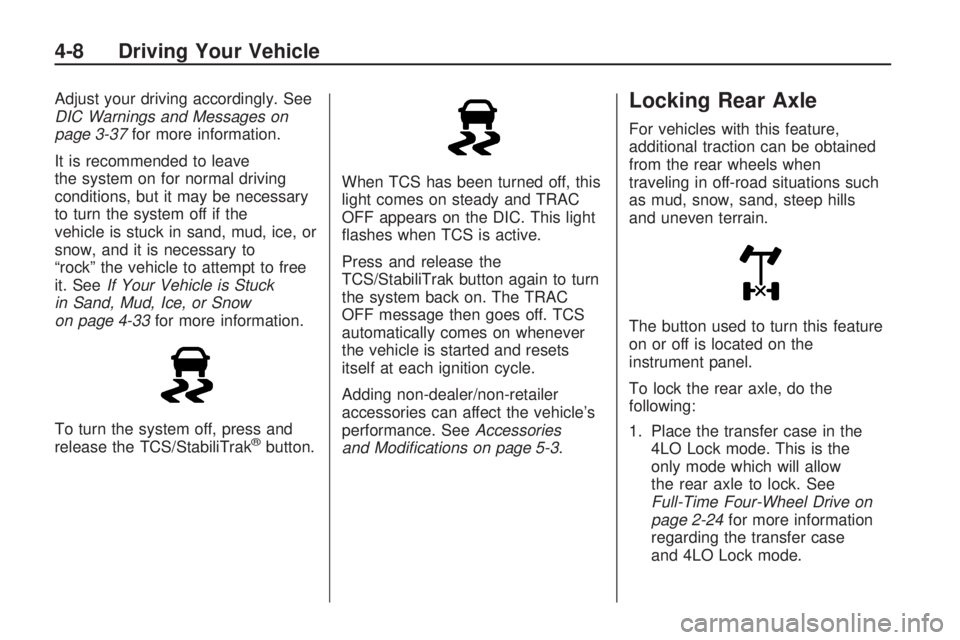

Adjust your driving accordingly. See
DIC Warnings and Messages on
page 3-37for more information.
It is recommended to leave
the system on for normal driving
conditions, but it may be necessary
to turn the system off if the
vehicle is stuck in sand, mud, ice, or
snow, and it is necessary to
“rock” the vehicle to attempt to free
it. SeeIf Your Vehicle is Stuck
in Sand, Mud, Ice, or Snow
on page 4-33for more information.
To turn the system off, press and
release the TCS/StabiliTrak
®button.When TCS has been turned off, this
light comes on steady and TRAC
OFF appears on the DIC. This light
ashes when TCS is active.
Press and release the
TCS/StabiliTrak button again to turn
the system back on. The TRAC
OFF message then goes off. TCS
automatically comes on whenever
the vehicle is started and resets
itself at each ignition cycle.
Adding non-dealer/non-retailer
accessories can affect the vehicle’s
performance. SeeAccessories
and Modifications on page 5-3.
Locking Rear Axle
For vehicles with this feature,
additional traction can be obtained
from the rear wheels when
traveling in off-road situations such
as mud, snow, sand, steep hills
and uneven terrain.
The button used to turn this feature
on or off is located on the
instrument panel.
To lock the rear axle, do the
following:
1. Place the transfer case in the
4LO Lock mode. This is the
only mode which will allow
the rear axle to lock. See
Full-Time Four-Wheel Drive on
page 2-24for more information
regarding the transfer case
and 4LO Lock mode.
4-8 Driving Your Vehicle
