Hyundai Accent 2005 Repair Manual

1
FEATURES OF YOUR HYUNDAI
49
B390A02A-AATREAR WINDOW WIPER AND WASHER
(If Installed)
B390A01A-1
The rear window wiper and washer are turned
on by depressing the button.
Washer fluid is sprayed onto the glass as long
as the " " is depressed.
1. When the " " position is depressed,
the rear window wiper starts to operate con-
tinuously.
2. When the " " position is depressed,
the rear window wiper starts to operate three
times after the washer fluid sprays onto the
rear window.
3. When the " " position is depressed,
the interval between wipes operates every
five seconds intermittently.
B350B02A-1
Mist Wiper Operation
B350C01O-GATAdjustable Intermittent Wiper Opera-
tionTo use the intermittent wiper feature, place the
wiper switch in the "INT" position. With the
switch in this position, the interval between
wipes can be varied from approximately 1 to 18
seconds by turning the interval adjuster barrel.
This is also varied automatically depending on
your road speed.
B350C01A-1
If a single wipe is desired in mist, move the
windshield wiper and washer control lever up.

1FEATURES OF YOUR HYUNDAI50
HAZARD WARNING SYSTEM
INSTRUMENT PANEL LIGHT CON-
TROL (RHEOSTAT)
B370A01A-AATThe hazard warning system should be used
whenever you find it necessary to stop the car
in a hazardous location. When you must make
such an emergency stop, always pull off the
road as far as possible.
The hazard warning lights are turned on by
pushing in the hazard switch. This causes all
turn signal lights to blink. The hazard warning
lights will operate even though the key is not in
the ignition.
To turn the hazard warning lights off, push the
switch a second time. Do not operate the washer continuously for
more than 15 seconds or when the fluid reser-
voir is empty; this could damage the system.
Do not operate the wiper when the window is
dry; this can result in scratching as well as
premature wiper blade wear.
For the reason stated above,do not operate the
washer when the washer fluid reservoir is empty.
B370B01A B410A01A-AAT
The instrument panel lights can be made
brighter or dimmer by turning the instrument
panel light control knob.
B410A01A-1

1
FEATURES OF YOUR HYUNDAI
51
FRONT FOG LIGHT SWITCHB360A04A-AAT(If Installed)To turn on the front fog lights, push the switch.
They will light when the headlight switch is in
the second position and the key is in the "ON"
position.NOTE:If you turn on the headlight high beams, the
front fog lights will be turned off.
CAUTION:
Do not clean the inner side of the rear window
glass with an abrasive type of glass cleaner or
use a scraper to remove foreign deposits from
the inner surface of the glass as this may
cause damage to the defroster elements.NOTE:The ignition must be in the "ON" position
for the rear window defroster to operate.
!
B360B01A
B380A01HP-AATREAR WINDOW DEFROSTER
SWITCH (If Installed)The rear window defroster and heated outside
rearview mirrors are turned on by pushing in
the switch. To turn the defroster off, push the
switch a second time. The rear window
defroster automatically turns itself off after
about 20 minutes. To restart the defroster
cycle, push in the switch again after it has
turned itself off.
B370A01A

1FEATURES OF YOUR HYUNDAI52
ASHTRAY
CIGARETTE LIGHTER
DIGITAL CLOCK
B420A01A-AATFor the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
B430A01S-AATFront AshtrayThe front ashtray may be opened by pulling it
out by its grip. To remove the ashtray to empty
or clean it, press down on the spring-loaded tab
inside the ashtray. The ashtray light will only
illuminate when the external lights are on.
HLC2104
HLC2107
B400A01A-AAT(If Installed)There are three control buttons for the digital
clock. Their functions are:
HOUR - Push "H" to advance the hour indicat-
ed.
MIN - Push "M" to advance the minute indicat-
ed.
RESET - Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the correct time.
When this is done:
Pressing "R" between 10 : 30 and 11 : 29
changes the readout to 11 : 00. Pressing "R"
between 11 : 30 and 12 : 29 changes the
readout to 12 : 00.
HLC2100

1
FEATURES OF YOUR HYUNDAI
53
DRINK HOLDER
!
The front drink holder is located on the center
facia panel for holding cups or cans in its holes.
The drink holder can be used by pushing it.B450A04A-AATFront Drink Holder
HLC2116
CAUTION:
Place the drink holder in its closed position
when not in use.
WARNING:
Do not place anything except drinks in the
drink holder. Such objects can be thrown
out, possibly injuring persons in the ve-
hicle during sudden braking or in the event
of an accident.
!
B440A01E-AATRear Ashtray (If Installed)The rear ashtray may be opened by pulling it
out by its top edge. To remove the ashtray to
empty or clean it, press down on the spring-
loaded tab inside the ashtray and lift the ash-
tray upward and pull it all the way out.
HLC2108

1FEATURES OF YOUR HYUNDAI54
INTERIOR LIGHT
The interior courtesy light switch has three
positions. The three positions are:o "DR" or "
"
In the "DR" or "

" position, the interior
courtesy light comes on when any door is
opened regardless of the ignition key posi-
tion. The light goes out when the door is
closed.
NOTE:If your vehicle is equipped with the delay-out
interior light, the light goes out gradually
within 6 seconds after the door is closed.B490A03A-AATInterior light
HLC2080
Type A (If Installed) Type B
B480A01E-AATMap Light (If Installed)The two map light switches are located on
both sides of the front overhead console.
Push in the map light switch to turn the light on
or off. This light produces a spot beam for
convenient use as a map light at night or as
a personal light for the driver and the passen-
ger.
HLC2081
!
B450B02A-AATRear Drink HolderThe rear drink holder is located on the rear
main console and may be used for holding
cups or cans.
HLC2117
WARNING:
o Use caution when using the drink hold-
ers. A spilled beverage that is very hot
can injure you or your passengers.
Spilled liquids can damage interior trim
and electrical components.
o Do not place anything except drinks in
the drink holder. Such objects can be
thrown out, possibly injuring persons
in the vehicle during sudden braking or
in the event of an accident.

1
FEATURES OF YOUR HYUNDAI
55

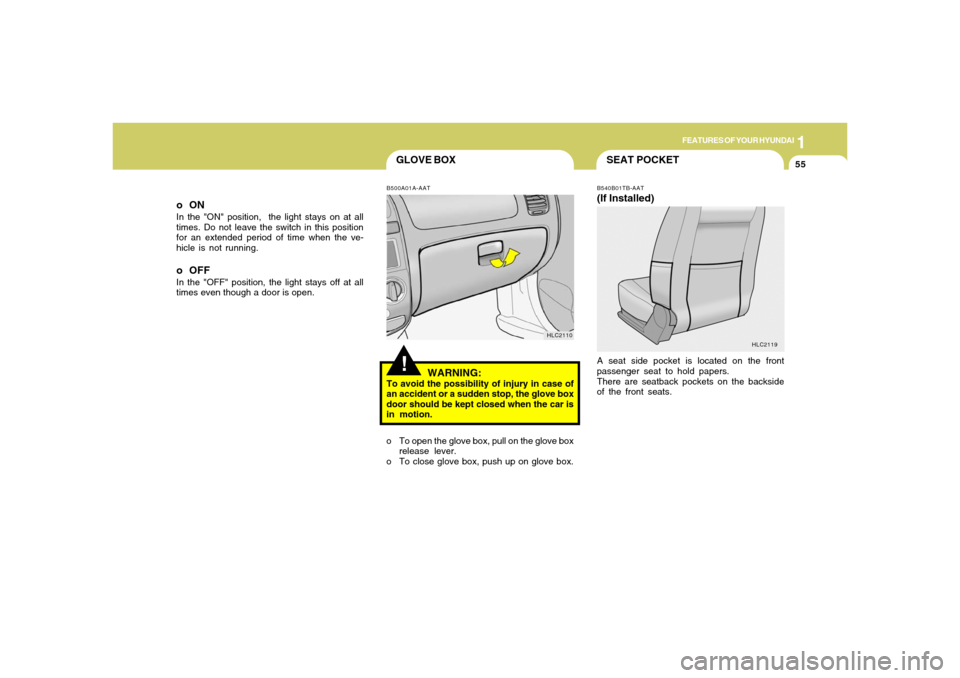

SEAT POCKET
GLOVE BOXo To open the glove box, pull on the glove box
release lever.
o To close glove box, push up on glove box.
B540B01TB-AAT(If Installed)A seat side pocket is located on the front
passenger seat to hold papers.
There are seatback pockets on the backside
of the front seats.
HLC2119
!
oONIn the "ON" position, the light stays on at all
times. Do not leave the switch in this position
for an extended period of time when the ve-
hicle is not running.oOFFIn the "OFF" position, the light stays off at all
times even though a door is open.
HLC2110 B500A01A-AAT
WARNING:
To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
in motion.

1FEATURES OF YOUR HYUNDAI56
OUTSIDE REARVIEW MIRRORB510A01A-AATManual Type (If Installed)The outside rearview mirrors are equipped
with a remote control for your convenience. It
is operated by the control lever in the bottom
front corner of the window.
Before driving away, always check that your
mirrors are positioned so you can see behind
you, both to the left and right sides, as well as
directly behind your vehicle. When using the
mirror, always exercise caution when attempt-
ing to judge the distance of vehicles behind or
along side of you.
HLC2113
CAUTION:
If the mirror control is jammed with ice, do not
attempt to break it free using the control
handle or by manipulating the face of the
mirror. Use an approved spray de-icer (not
radiator antifreeze) to release the frozen
mechanism or move the vehicle to a warm
place and allow the ice to melt.
!
B510B01Y-AATElectric Type (If Installed)
HLC2114
The outside rearview mirrors can be adjusted
to your preferred rear vision, both directly
behind the vehicle, and to the rear of the left
and right sides.
The remote control outside rearview mirror
switch controls the adjustments for both right
and left outside mirrors.To adjust the position of either mirror:1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the
corresponding door mirror.
2. Adjust mirror angle by depressing the ap-
propriate directional switch as illustrated.

1
FEATURES OF YOUR HYUNDAI
57
!
B510D01HP-GATOutside Rearview Mirror Heater
(If Installed)The outside rearview mirror heater is actuated
in connection with the rear window defroster.
To heat the outside rearview mirror glass,
push in the switch for the rear window de-
froster. The rearview mirror glass will be
heated for defrosting or defogging and will give
you improved rear vision in inclement weather
conditions. Push the switch again to turn the
heater off. The outside rearview mirror heater
automatically turns itself off after 20 minutes.
B370A01AB510C01A-AAT
Folding the Outside Rearview MirrorsTo fold the outside rearview mirrors, push
them towards the rear. To unfold the outside
rear view mirrors, push them toward the front.
The outside rearview mirrors can be folded
rearward for parking in restricted areas.
HLC2115
WARNING:
Do not adjust or fold the outside rearview
mirrors while the vehicle is moving. This
could result in loss of control, and an acci-
dent causing death, serious injury or prop-
erty damage.
!
B510B01A
CAUTION:
o Do not operate the switch continuously
for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove any
ice, use a sponge, soft cloth or ap-
proved de-icer.
WARNING:
Be careful when judging the size or distance
of any object seen in the passenger side
rearview mirror. It is a convex mirror with a
curved surface. Any objects seen in this
mirror are closer than they appear.
!

1FEATURES OF YOUR HYUNDAI58
PARKING BRAKE
DAY/NIGHT INSIDE REARVIEW
MIRRORB520A01A-AATYour Hyundai is equipped with a day/night
inside rearview mirror. The "night" position is
selected by flipping the tab at the bottom of the
mirror toward you. In the "night" position, the
glare of headlights of cars behind you is re-
duced.
HLC2112
B530A01A-AATAlways engage the parking brake before leav-
ing the car. This also turns on the parking
brake indicator light when the key is in the
"ON" or "START" position. Before driving away,
be sure that the parking brake is fully released
and the indicator light is off.
o To engage the parking brake, pull the lever
up as far as possible.
o To release the parking brake, pull up the
lever and press the thumb button. Then,
while holding the button in, lower the brake
lever.
HLC3024
HIGH-MOUNTED REAR STOP LIGHTB550A01S-GAT(If Installed)In addition to the lower-mounted rear stop
lights on either side of the car, the high mounted
rear stop light in the center of the rear window
or inserted in the rear spoiler also lights when
the brakes are applied.
HLC2124
