Hyundai Elantra 2004 Owner's Guide

1FEATURES OF YOUR HYUNDAI
10

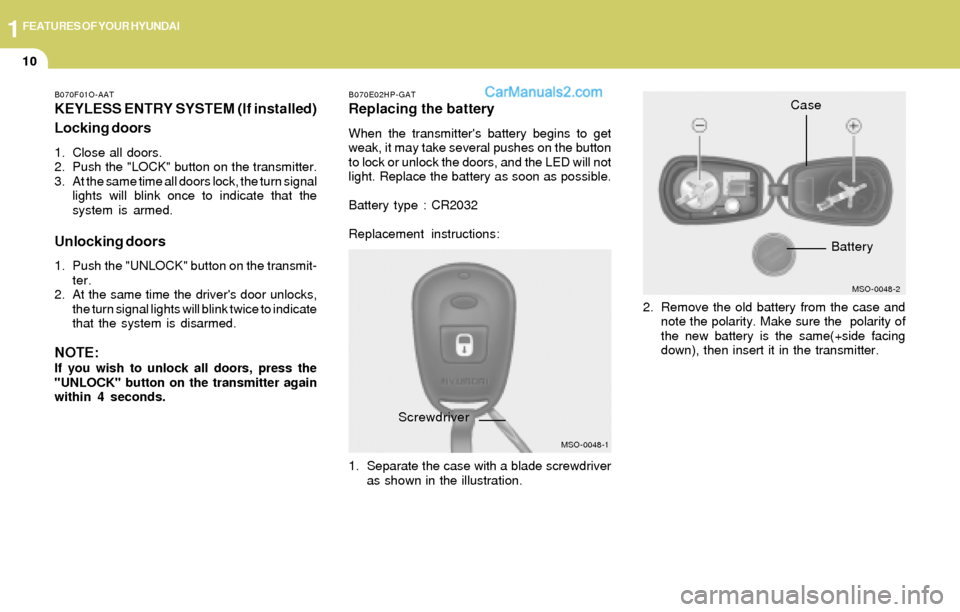

B070F01O-AAT
KEYLESS ENTRY SYSTEM (If installed)
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal
lights will blink once to indicate that the
system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2. At the same time the driver's door unlocks,
the turn signal lights will blink twice to indicate
that the system is disarmed.
NOTE:If you wish to unlock all doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.
B070E02HP-GAT
Replacing the battery
When the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Separate the case with a blade screwdriver
as shown in the illustration.
MSO-0048-1
Screwdriver2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing
down), then insert it in the transmitter.
MSO-0048-2
Battery Case

1FEATURES OF YOUR HYUNDAI
11WINDOW
B050A01A-AAT

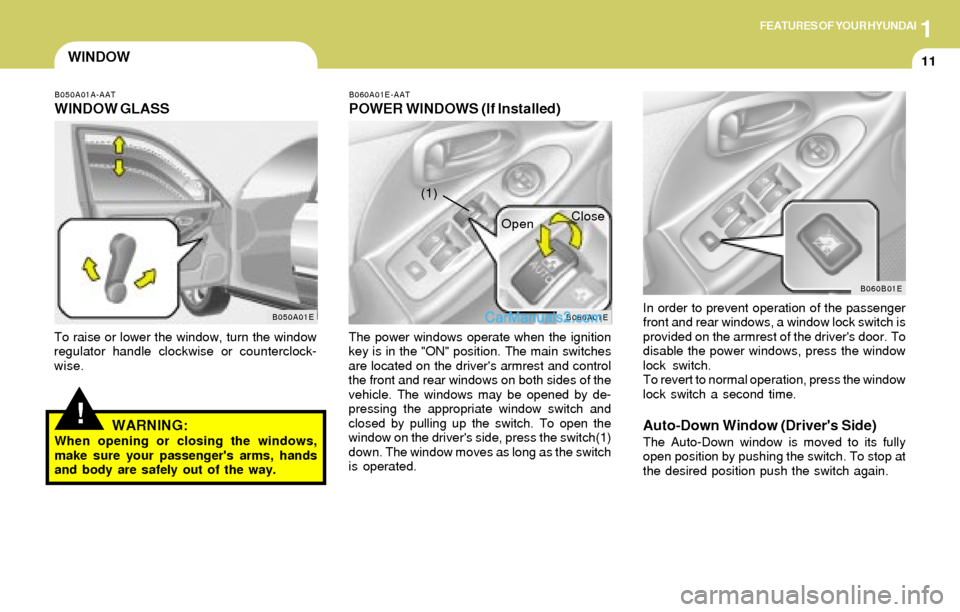

WINDOW GLASS
To raise or lower the window, turn the window
regulator handle clockwise or counterclock-
wise.
!WARNING:When opening or closing the windows,
make sure your passenger's arms, hands
and body are safely out of the way.
B060A01E-AAT
POWER WINDOWS (If Installed)
The power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the driver's armrest and control
the front and rear windows on both sides of the
vehicle. The windows may be opened by de-
pressing the appropriate window switch and
closed by pulling up the switch. To open the
window on the driver's side, press the switch(1)
down. The window moves as long as the switch
is operated.In order to prevent operation of the passenger
front and rear windows, a window lock switch is
provided on the armrest of the driver's door. To
disable the power windows, press the window
lock switch.
To revert to normal operation, press the window
lock switch a second time.
Auto-Down Window (Driver's Side)The Auto-Down window is moved to its fully
open position by pushing the switch. To stop at
the desired position push the switch again.
B050A01E
Close
B060A01E
(1)
Open
B060B01E

1FEATURES OF YOUR HYUNDAI
12
!
!WARNING:1) Be careful that someone's head, hands
and body are not trapped by a closing
window.
2) Never try to operate the main switch on
the driver's door and the individual door
window switch in opposing directions
at the same time. If this is done, the
window will stop and cannot be opened
or closed.
3) Do not leave children alone in the car.
Always remove the ignition key for their
safety.
B080A01A-AAT

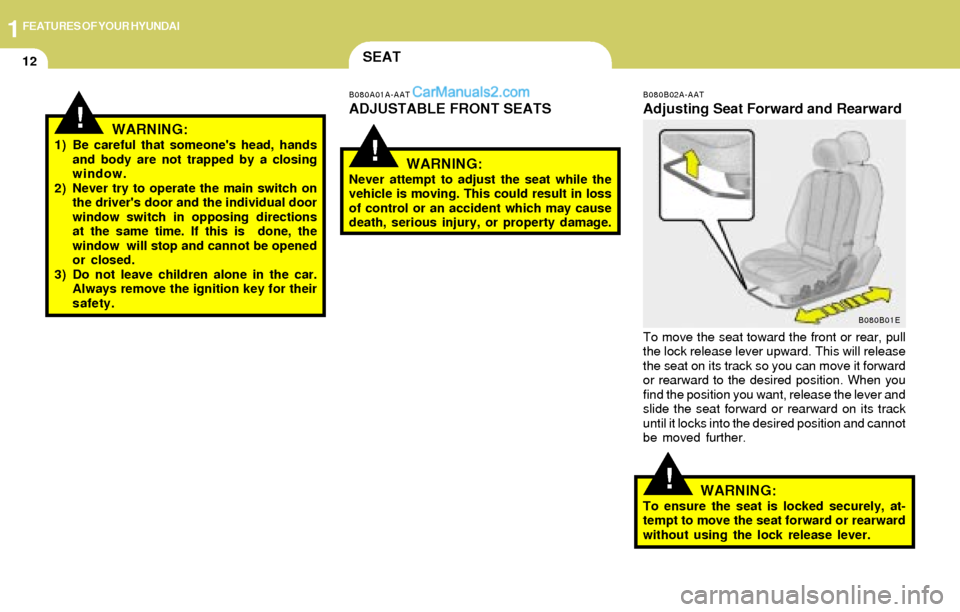

ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the
vehicle is moving. This could result in loss
of control or an accident which may cause
death, serious injury, or property damage.
SEAT
B080B02A-AAT
Adjusting Seat Forward and Rearward
To move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so you can move it forward
or rearward to the desired position. When you
find the position you want, release the lever and
slide the seat forward or rearward on its track
until it locks into the desired position and cannot
be moved further.
B080B01E
!WARNING:To ensure the seat is locked securely, at-
tempt to move the seat forward or rearward
without using the lock release lever.

1FEATURES OF YOUR HYUNDAI
13
!
B080C01A-AAT

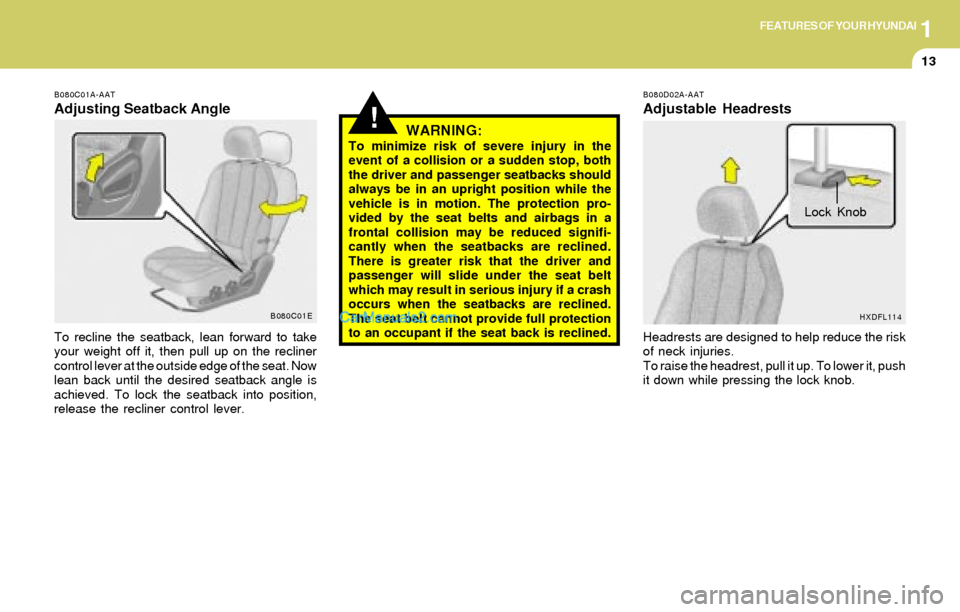

Adjusting Seatback Angle
To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
control lever at the outside edge of the seat. Now
lean back until the desired seatback angle is
achieved. To lock the seatback into position,
release the recliner control lever.
WARNING:To minimize risk of severe injury in the
event of a collision or a sudden stop, both
the driver and passenger seatbacks should
always be in an upright position while the
vehicle is in motion. The protection pro-
vided by the seat belts and airbags in a
frontal collision may be reduced signifi-
cantly when the seatbacks are reclined.
There is greater risk that the driver and
passenger will slide under the seat belt
which may result in serious injury if a crash
occurs when the seatbacks are reclined.
The seat belt cannot provide full protection
to an occupant if the seat back is reclined.
B080D02A-AAT
Adjustable Headrests
B080C01E
Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it, push
it down while pressing the lock knob.
Lock Knob
HXDFL114

1FEATURES OF YOUR HYUNDAI
14
!

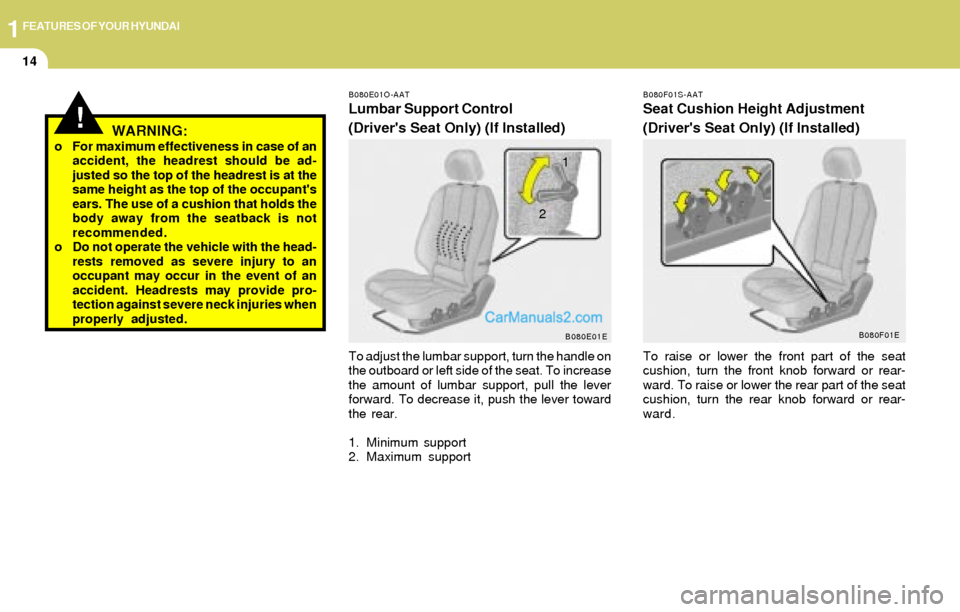

B080E01O-AAT
Lumbar Support Control
(Driver's Seat Only) (If Installed)
To adjust the lumbar support, turn the handle on
the outboard or left side of the seat. To increase
the amount of lumbar support, pull the lever
forward. To decrease it, push the lever toward
the rear.
1. Minimum support
2. Maximum support
WARNING:o For maximum effectiveness in case of an
accident, the headrest should be ad-
justed so the top of the headrest is at the
same height as the top of the occupant's
ears. The use of a cushion that holds the
body away from the seatback is not
recommended.
o Do not operate the vehicle with the head-
rests removed as severe injury to an
occupant may occur in the event of an
accident. Headrests may provide pro-
tection against severe neck injuries when
properly adjusted.
B080F01S-AAT
Seat Cushion Height Adjustment
(Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat
cushion, turn the front knob forward or rear-
ward. To raise or lower the rear part of the seat
cushion, turn the rear knob forward or rear-
ward.
B080F01EB080E01E
1
2

1FEATURES OF YOUR HYUNDAI
15
B110A02E-GAT

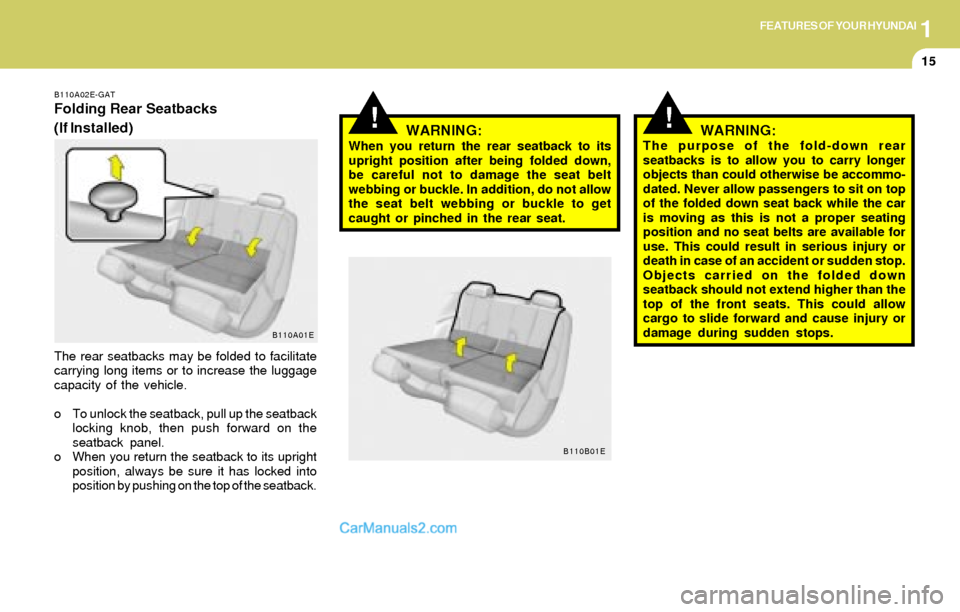

Folding Rear Seatbacks
(If Installed)
The rear seatbacks may be folded to facilitate
carrying long items or to increase the luggage
capacity of the vehicle.
o To unlock the seatback, pull up the seatback
locking knob, then push forward on the
seatback panel.
o When you return the seatback to its upright
position, always be sure it has locked into
position by pushing on the top of the seatback.
!WARNING:When you return the rear seatback to its
upright position after being folded down,
be careful not to damage the seat belt
webbing or buckle. In addition, do not allow
the seat belt webbing or buckle to get
caught or pinched in the rear seat.
!WARNING:The purpose of the fold-down rear
seatbacks is to allow you to carry longer
objects than could otherwise be accommo-
dated. Never allow passengers to sit on top
of the folded down seat back while the car
is moving as this is not a proper seating
position and no seat belts are available for
use. This could result in serious injury or
death in case of an accident or sudden stop.
Objects carried on the folded down
seatback should not extend higher than the
top of the front seats. This could allow
cargo to slide forward and cause injury or
damage during sudden stops.
B110A01E
B110B01E

1FEATURES OF YOUR HYUNDAI
16
B080G01E-AAT

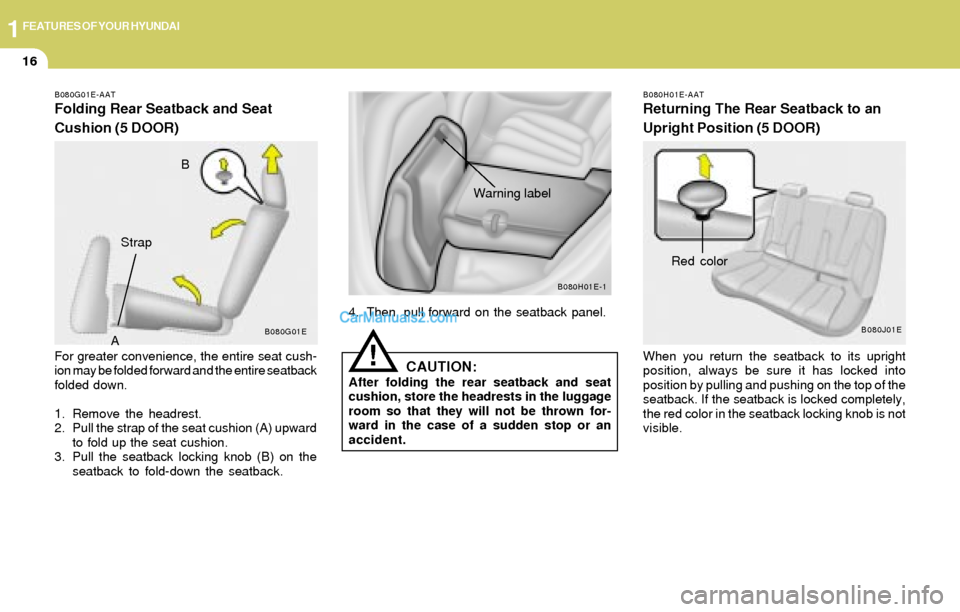

Folding Rear Seatback and Seat
Cushion (5 DOOR)
For greater convenience, the entire seat cush-
ion may be folded forward and the entire seatback
folded down.
1. Remove the headrest.
2. Pull the strap of the seat cushion (A) upward
to fold up the seat cushion.
3. Pull the seatback locking knob (B) on the
seatback to fold-down the seatback.4. Then, pull forward on the seatback panel.Warning label
B080H01E-1
B080G01E
Strap
CAUTION:After folding the rear seatback and seat
cushion, store the headrests in the luggage
room so that they will not be thrown for-
ward in the case of a sudden stop or an
accident.
!
B080H01E-AAT
Returning The Rear Seatback to an
Upright Position (5 DOOR)
When you return the seatback to its upright
position, always be sure it has locked into
position by pulling and pushing on the top of the
seatback. If the seatback is locked completely,
the red color in the seatback locking knob is not
visible.
B080J01EAB
Red color

1FEATURES OF YOUR HYUNDAI

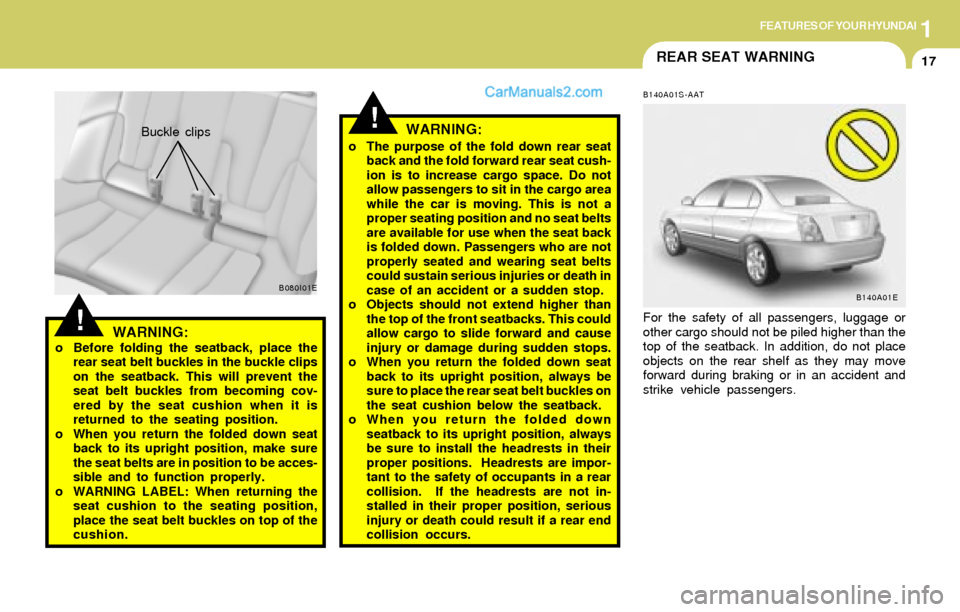

17REAR SEAT WARNING
!WARNING:o Before folding the seatback, place the
rear seat belt buckles in the buckle clips
on the seatback. This will prevent the
seat belt buckles from becoming cov-
ered by the seat cushion when it is
returned to the seating position.
o When you return the folded down seat
back to its upright position, make sure
the seat belts are in position to be acces-
sible and to function properly.
o WARNING LABEL: When returning the
seat cushion to the seating position,
place the seat belt buckles on top of the
cushion.o The purpose of the fold down rear seat
back and the fold forward rear seat cush-
ion is to increase cargo space. Do not
allow passengers to sit in the cargo area
while the car is moving. This is not a
proper seating position and no seat belts
are available for use when the seat back
is folded down. Passengers who are not
properly seated and wearing seat belts
could sustain serious injuries or death in
case of an accident or a sudden stop.
o Objects should not extend higher than
the top of the front seatbacks. This could
allow cargo to slide forward and cause
injury or damage during sudden stops.
o When you return the folded down seat
back to its upright position, always be
sure to place the rear seat belt buckles on
the seat cushion below the seatback.
o When you return the folded down
seatback to its upright position, always
be sure to install the headrests in their
proper positions. Headrests are impor-
tant to the safety of occupants in a rear
collision. If the headrests are not in-
stalled in their proper position, serious
injury or death could result if a rear end
collision occurs. Buckle clips
B140A01S-AAT
For the safety of all passengers, luggage or
other cargo should not be piled higher than the
top of the seatback. In addition, do not place
objects on the rear shelf as they may move
forward during braking or in an accident and
strike vehicle passengers.
B080I01E
B140A01E
!WARNING:

1FEATURES OF YOUR HYUNDAI

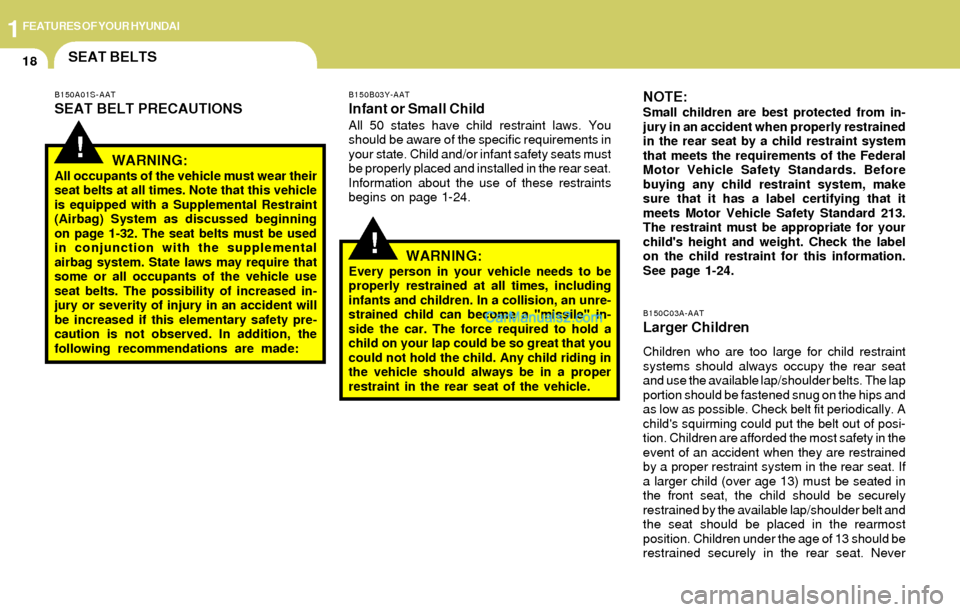

18SEAT BELTS
!
!
B150A01S-AAT
SEAT BELT PRECAUTIONS
WARNING:
All occupants of the vehicle must wear their
seat belts at all times. Note that this vehicle
is equipped with a Supplemental Restraint
(Airbag) System as discussed beginning
on page 1-32. The seat belts must be used
in conjunction with the supplemental
airbag system. State laws may require that
some or all occupants of the vehicle use
seat belts. The possibility of increased in-
jury or severity of injury in an accident will
be increased if this elementary safety pre-
caution is not observed. In addition, the
following recommendations are made:
B150B03Y-AAT
Infant or Small ChildAll 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
Information about the use of these restraints
begins on page 1-24.
WARNING:Every person in your vehicle needs to be
properly restrained at all times, including
infants and children. In a collision, an unre-
strained child can become a "missile" in-
side the car. The force required to hold a
child on your lap could be so great that you
could not hold the child. Any child riding in
the vehicle should always be in a proper
restraint in the rear seat of the vehicle.
B150C03A-AATLarger Children
Children who are too large for child restraint
systems should always occupy the rear seat
and use the available lap/shoulder belts. The lap
portion should be fastened snug on the hips and
as low as possible. Check belt fit periodically. A
child's squirming could put the belt out of posi-
tion. Children are afforded the most safety in the
event of an accident when they are restrained
by a proper restraint system in the rear seat. If
a larger child (over age 13) must be seated in
the front seat, the child should be securely
restrained by the available lap/shoulder belt and
the seat should be placed in the rearmost
position. Children under the age of 13 should be
restrained securely in the rear seat. Never
NOTE:Small children are best protected from in-
jury in an accident when properly restrained
in the rear seat by a child restraint system
that meets the requirements of the Federal
Motor Vehicle Safety Standards. Before
buying any child restraint system, make
sure that it has a label certifying that it
meets Motor Vehicle Safety Standard 213.
The restraint must be appropriate for your
child's height and weight. Check the label
on the child restraint for this information.
See page 1-24.

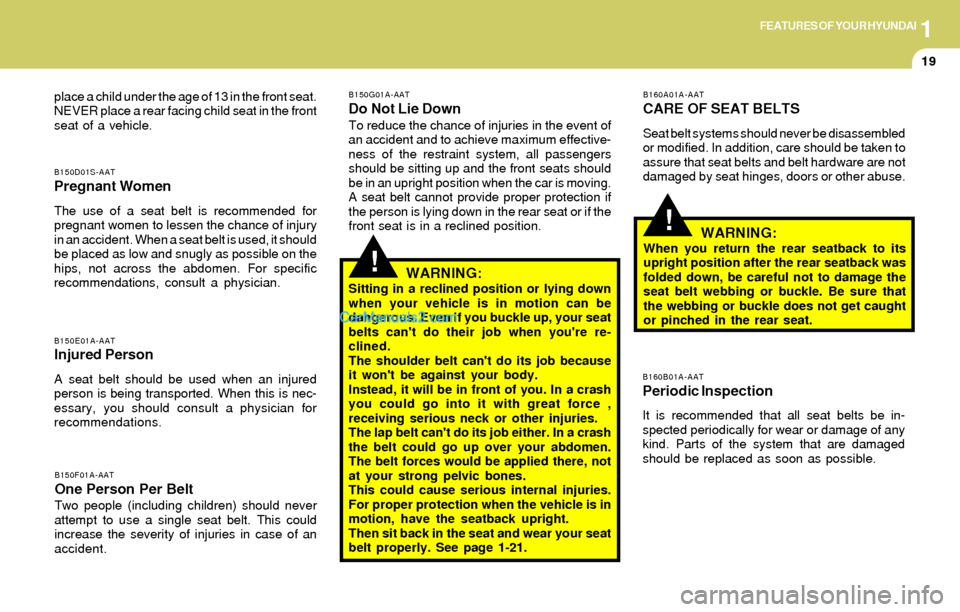

1FEATURES OF YOUR HYUNDAI
19
!
B150D01S-AAT
Pregnant Women
The use of a seat belt is recommended for
pregnant women to lessen the chance of injury
in an accident. When a seat belt is used, it should
be placed as low and snugly as possible on the
hips, not across the abdomen. For specific
recommendations, consult a physician.
B150E01A-AATInjured Person
A seat belt should be used when an injured
person is being transported. When this is nec-
essary, you should consult a physician for
recommendations.
B150F01A-AATOne Person Per BeltTwo people (including children) should never
attempt to use a single seat belt. This could
increase the severity of injuries in case of an
accident.
B150G01A-AAT
Do Not Lie DownTo reduce the chance of injuries in the event of
an accident and to achieve maximum effective-
ness of the restraint system, all passengers
should be sitting up and the front seats should
be in an upright position when the car is moving.
A seat belt cannot provide proper protection if
the person is lying down in the rear seat or if the
front seat is in a reclined position.
B160A01A-AAT
CARE OF SEAT BELTS
Seat belt systems should never be disassembled
or modified. In addition, care should be taken to
assure that seat belts and belt hardware are not
damaged by seat hinges, doors or other abuse.
B160B01A-AATPeriodic Inspection
It is recommended that all seat belts be in-
spected periodically for wear or damage of any
kind. Parts of the system that are damaged
should be replaced as soon as possible.
WARNING:Sitting in a reclined position or lying down
when your vehicle is in motion can be
dangerous. Even if you buckle up, your seat
belts can't do their job when you're re-
clined.
The shoulder belt can't do its job because
it won't be against your body.
Instead, it will be in front of you. In a crash
you could go into it with great force ,
receiving serious neck or other injuries.
The lap belt can't do its job either. In a crash
the belt could go up over your abdomen.
The belt forces would be applied there, not
at your strong pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright.
Then sit back in the seat and wear your seat
belt properly. See page 1-21.
WARNING:When you return the rear seatback to its
upright position after the rear seatback was
folded down, be careful not to damage the
seat belt webbing or buckle. Be sure that
the webbing or buckle does not get caught
or pinched in the rear seat.
!
place a child under the age of 13 in the front seat.
NEVER place a rear facing child seat in the front
seat of a vehicle.
