Introduction
4 1
Use of MTBE
HYUNDAI recommends avoiding fuels
containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content
2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapor lock or hard starting.
Do not use methanol
Fuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components of
the fuel system.
Fuel Additives
HYUNDAI recommends that you use
good quality gasoline that meets Europe
Fuel standards (EN228) or equivalents.
For customers who do not use good
quality gasoline including fuel additives
regularly, and have problems starting or
the engine does not run smoothly, one
bottle of additives added to the fuel tank
at every 15,000km (for Europe)/5,000km
(except Europe). Additives are available
from your authorized HYUNDAI dealer
along with information on how to use
them.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
• Observe all regulations regarding reg-
istration and insurance.
• Determine that acceptable fuel is avail-
able.No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
• Do not race the engine.
• While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
• Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
• Avoid hard stops, except in emergen-
cies, to allow the brakes to seat prop-
erly.
• Don't let the engine idle longer than 3
minutes at one time.
• Don't tow a trailer during the first 2,000
km (1,200 miles) of operation.

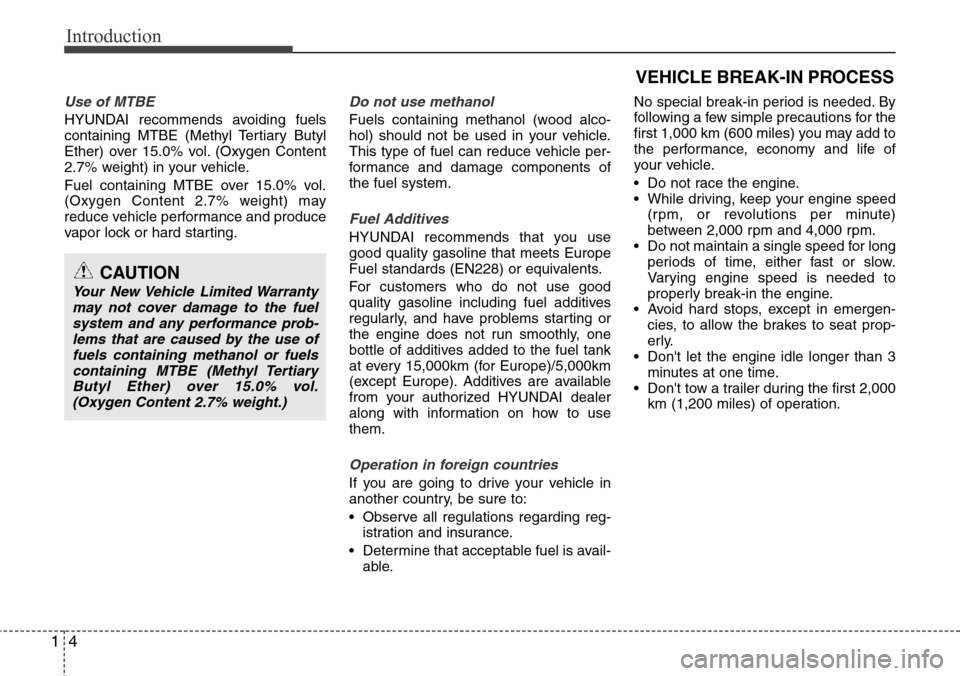

VEHICLE BREAK-IN PROCESS
CAUTION
Your New Vehicle Limited Warranty
may not cover damage to the fuel
system and any performance prob-
lems that are caused by the use of
fuels containing methanol or fuels
containing MTBE (Methyl Tertiary
Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
Page 12 of 385
15
Introduction
INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
High beam indicator
Turn signal indicator
ABS warning light
Parking brake & Brake fluid
warning light
Engine oil pressure warning
light
ESP indicator
ESP OFF indicator
Malfunction indicator light
Air bag warning light
Cruise indicator (if equipped)
Cruise SET indicator
(if equipped)
Immobilizer indicator
Low fuel level warning light
* For more detailed explanations, refer to “Instrument cluster” in section 4.
Charging system warning light
Low windshield washer fluid
level warning light
Door ajar warning light
Overspeed warning light
(if equipped)
120km/h
AFLS malfunction indicator
(if equipped)
ECS malfunction indicator
(if equipped)
Tail light indicator
Trunk ajar warning light
Front fog light indicator
AFLS
ECS
EPB malfunction indicator
AUTO HOLD indicator EPB
VSM OFF indicator (if equipped)VSM
OFF
AUTO
HOLD
TPMS (Tire Pressure
Monitoring System) malfunction
indicator (if equipped)
Low tire pressure telltale
(if equipped) ECO-P indicator (if equipped)
ECO-P
SPORT mode indicator
(if equipped)SPORT
LDWS indicator (if equipped)LDWS
LED headlamp (low beam) mal-
function indicator (if equipped)
Page 13 of 385
Introduction
6 1

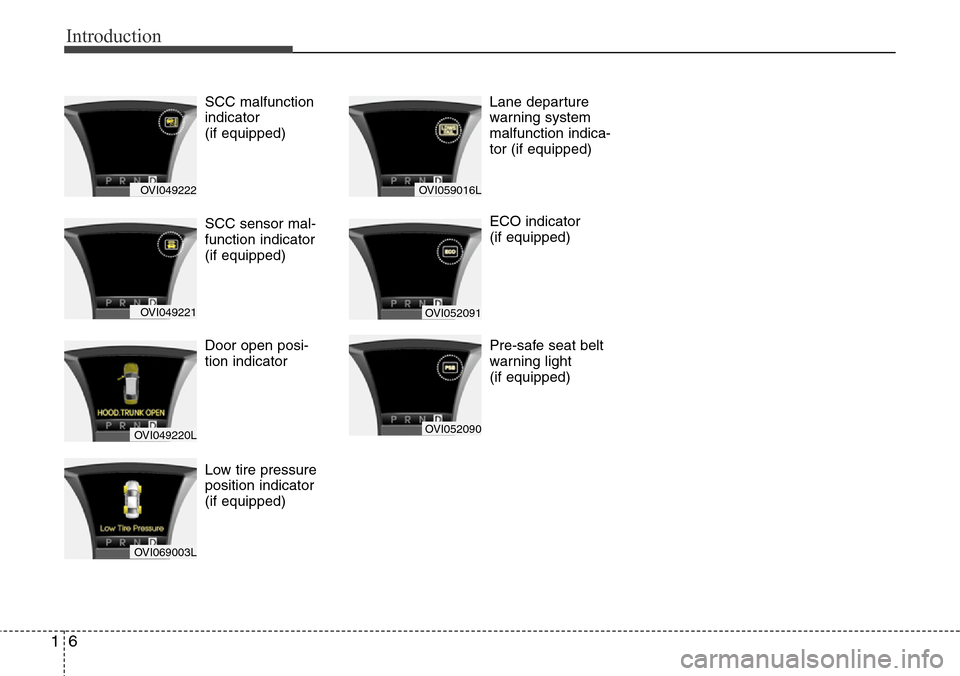

SCC malfunction
indicator
(if equipped)
SCC sensor mal-
function indicator
(if equipped)
Door open posi-
tion indicator
Low tire pressure
position indicator
(if equipped)Lane departure
warning system
malfunction indica-
tor (if equipped)
ECO indicator
(if equipped)
Pre-safe seat belt
warning light
(if equipped)
OVI049222
OVI049221
OVI049220L
OVI069003L
OVI059016L
OVI052091
OVI052090
Page 14 of 385
2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance
Page 15 of 385
Your vehicle at a glance
2 2

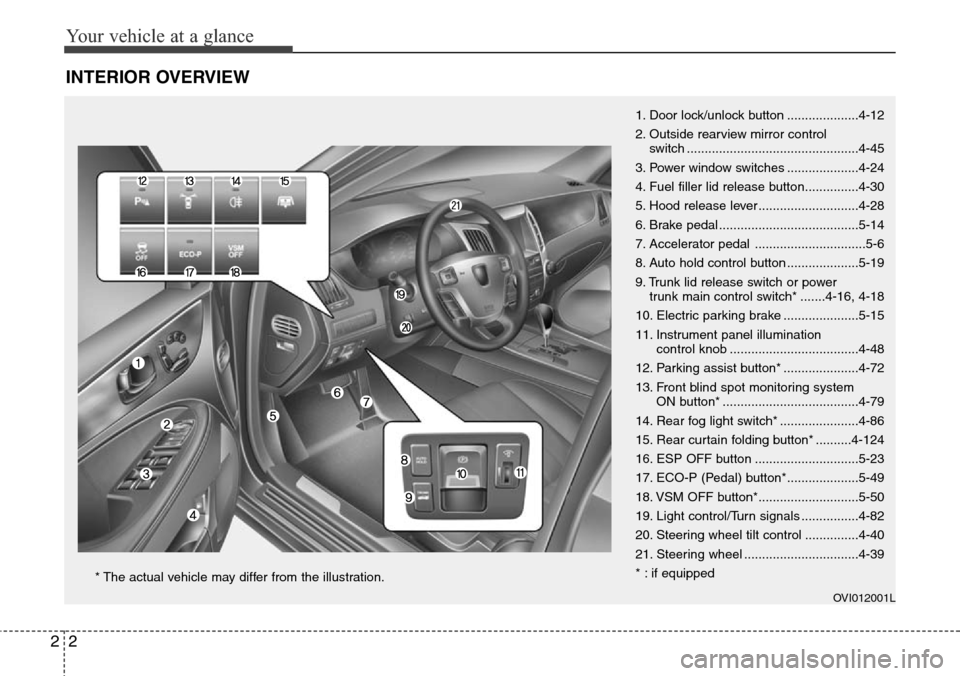

INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-12
2. Outside rearview mirror control
switch ................................................4-45
3. Power window switches ....................4-24
4. Fuel filler lid release button...............4-30
5. Hood release lever ............................4-28
6. Brake pedal .......................................5-14
7. Accelerator pedal ...............................5-6
8. Auto hold control button ....................5-19
9. Trunk lid release switch or power
trunk main control switch* .......4-16, 4-18
10. Electric parking brake .....................5-15
11. Instrument panel illumination
control knob ....................................4-48
12. Parking assist button* .....................4-72
13. Front blind spot monitoring system
ON button* ......................................4-79
14. Rear fog light switch* ......................4-86
15. Rear curtain folding button* ..........4-124
16. ESP OFF button .............................5-23
17. ECO-P (Pedal) button*....................5-49
18. VSM OFF button*............................5-50
19. Light control/Turn signals ................4-82
20. Steering wheel tilt control ...............4-40
21. Steering wheel ................................4-39
* : if equipped
OVI012001L
* The actual vehicle may differ from the illustration.
Page 16 of 385
23
Your vehicle at a glance

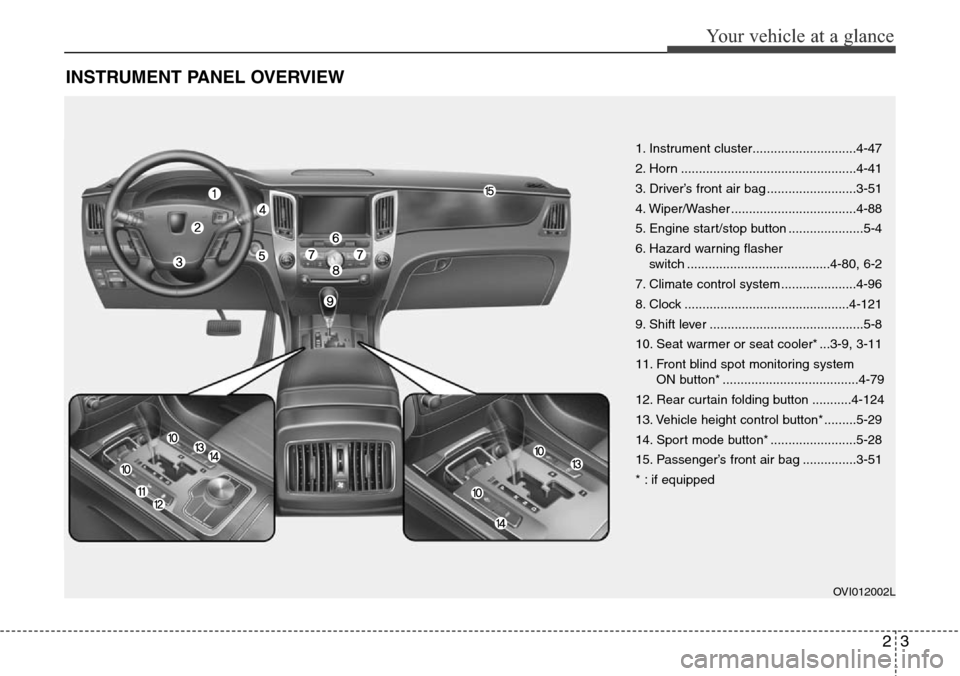

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-47
2. Horn .................................................4-41
3. Driver’s front air bag .........................3-51
4. Wiper/Washer ...................................4-88
5. Engine start/stop button .....................5-4
6. Hazard warning flasher
switch ........................................4-80, 6-2
7. Climate control system .....................4-96
8. Clock ..............................................4-121
9. Shift lever ...........................................5-8
10. Seat warmer or seat cooler* ...3-9, 3-11
11. Front blind spot monitoring system
ON button* ......................................4-79
12. Rear curtain folding button ...........4-124
13. Vehicle height control button* .........5-29
14. Sport mode button* ........................5-28
15. Passenger’s front air bag ...............3-51
* : if equipped
OVI012002L
Page 17 of 385
Your vehicle at a glance
4 2

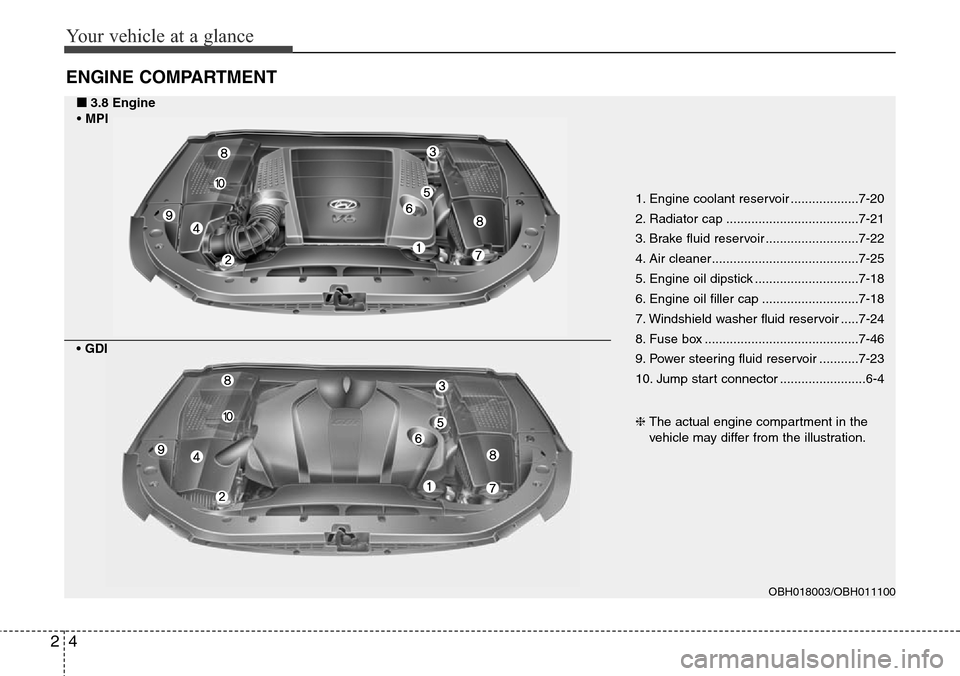

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-20
2. Radiator cap .....................................7-21
3. Brake fluid reservoir ..........................7-22
4. Air cleaner.........................................7-25
5. Engine oil dipstick .............................7-18
6. Engine oil filler cap ...........................7-18
7. Windshield washer fluid reservoir .....7-24
8. Fuse box ...........................................7-46
9. Power steering fluid reservoir ...........7-23
10. Jump start connector ........................6-4
❈The actual engine compartment in the
vehicle may differ from the illustration.
OBH018003/OBH011100
■■3.8 Engine
• MPI
• GDI
Page 18 of 385
25
Your vehicle at a glance
OVI079001
1. Engine coolant reservoir ...................7-20
2. Radiator cap .....................................7-21
3. Brake fluid reservoir ..........................7-22
4. Air cleaner.........................................7-25
5. Engine oil dipstick .............................7-18
6. Engine oil filler cap ...........................7-18
7. Windshield washer fluid reservoir .....7-24
8. Fuse box ...........................................7-46
9. Power steering fluid reservoir ...........7-23
10. Jump start connector ........................6-4
❈The actual engine compartment in the
vehicle may differ from the illustration.

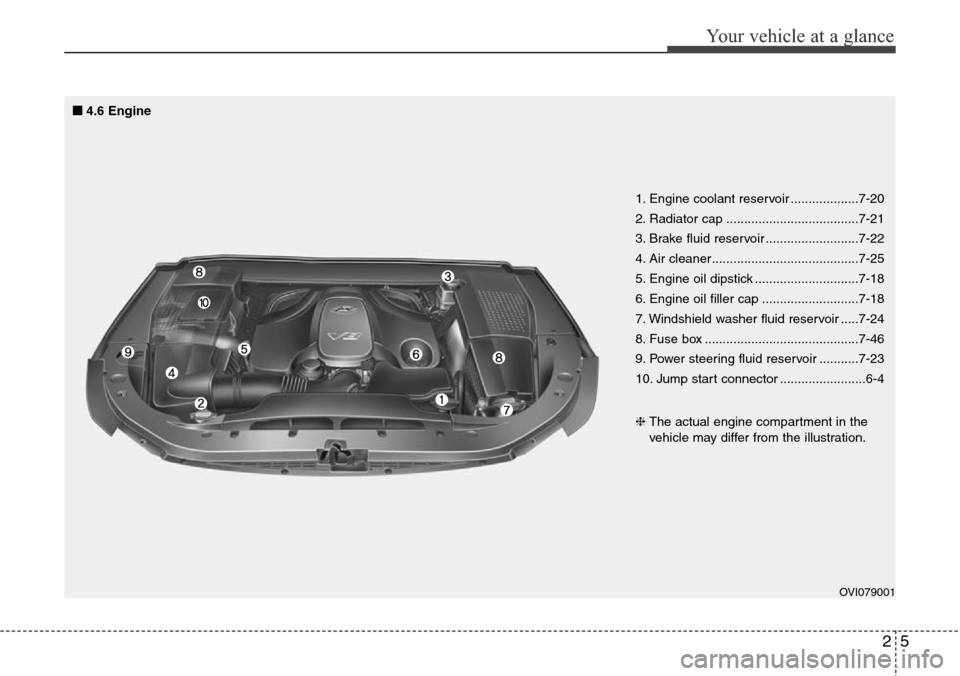

■4.6 Engine
Page 19 of 385
Your vehicle at a glance
6 2
OBH011101
1. Engine coolant reservoir ...................7-20
2. Radiator cap .....................................7-21
3. Brake fluid reservoir ..........................7-22
4. Air cleaner.........................................7-25
5. Engine oil dipstick .............................7-18
6. Engine oil filler cap ...........................7-18
7. Windshield washer fluid reservoir .....7-24
8. Fuse box ...........................................7-46
9. Power steering fluid reservoir ...........7-23
10. Jump start connector ........................6-4
❈The actual engine compartment in the
vehicle may differ from the illustration.

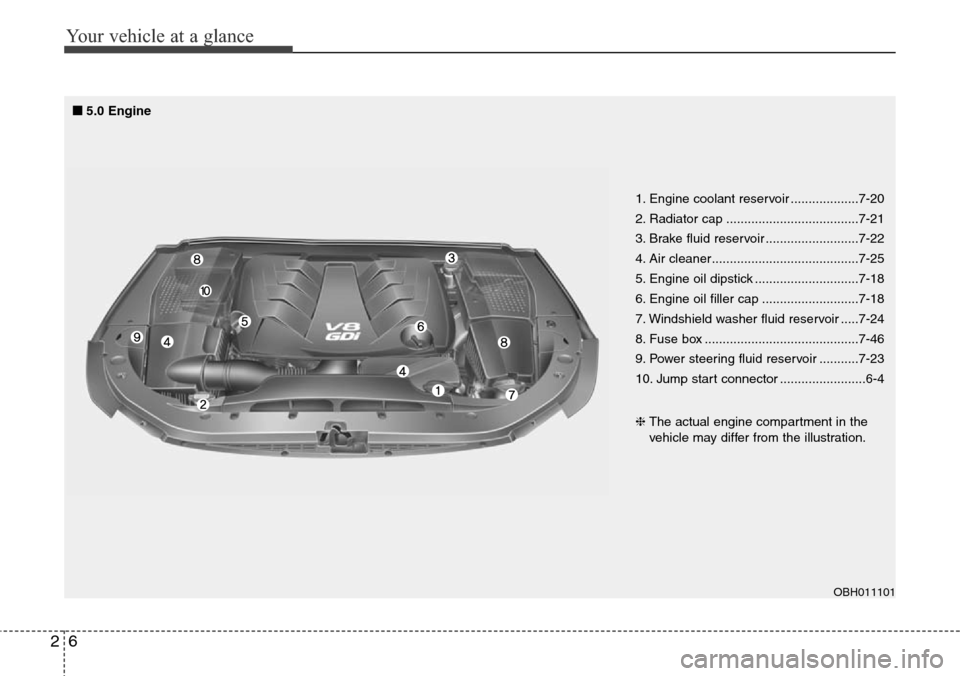

■5.0 Engine
Page 20 of 385
