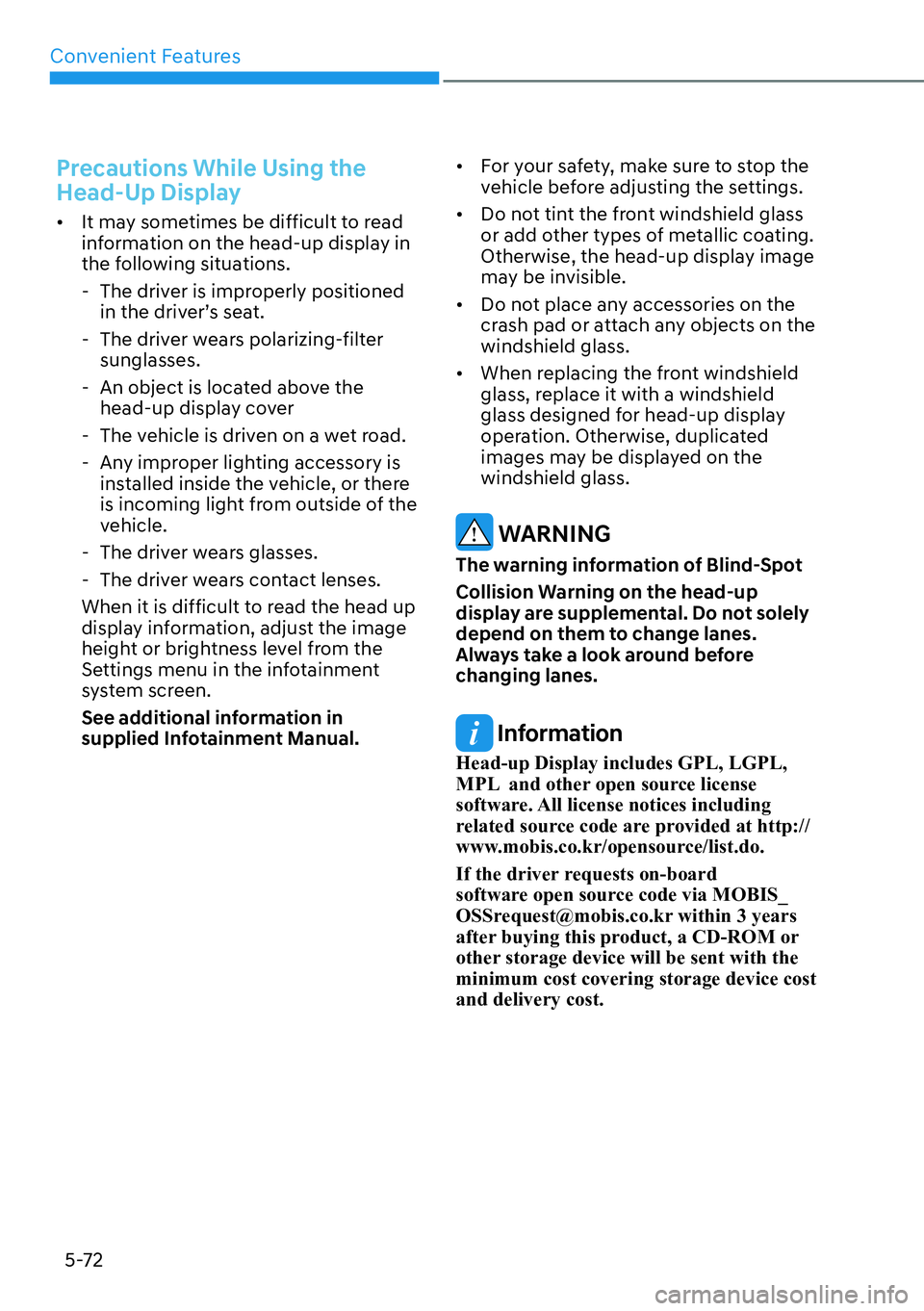

Page 201 of 530
Convenient Features
5-72
Precautions While Using the
Head-Up Display
[ It may sometimes be difficult to read
information on the head-up display in
the following situations.
- The driver is improperly positioned
in the driver’s seat.
- The driver wears polarizing-filter
sunglasses.
- An object is located above the
head-up display cover
- The vehicle is driven on a wet road.
- Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of the
vehicle.
- The driver wears glasses.
- The driver wears contact lenses.
When it is difficult to read the head up
display information, adjust the image
height or brightness level from the
Settings menu in the infotainment
system screen.
See additional information in
supplied Infotainment Manual. [ For your safety, make sure to stop the
vehicle before adjusting the settings.
[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the head-up display image
may be invisible.
[ Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.
[ When replacing the front windshield
glass, replace it with a windshield
glass designed for head-up display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING
The warning information of Blind-Spot
Collision Warning on the head-up
display are supplemental. Do not solely
depend on them to change lanes.
Always take a look around before
changing lanes.
Information
Head-up Display includes GPL, LGPL,
0 3 / D Q G R W K H U R S H Q V R X U F H O L F H Q V H
software. All license notices including
U H O D W H G V R X U F H F R G H D U H S U R Y L G H G D W K W W S
Z Z Z P R E L V F R N U R S H Q V R X U F H O L V W G R
If the driver requests on-board
V R I W Z D U H R S H Q V R X U F H F R G H Y L D 0 2 % , 6 B
[email protected] within 3 years
D I W H U E X \ L Q J W K L V S U R G X F W D & ' 5 2 0 R U
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.

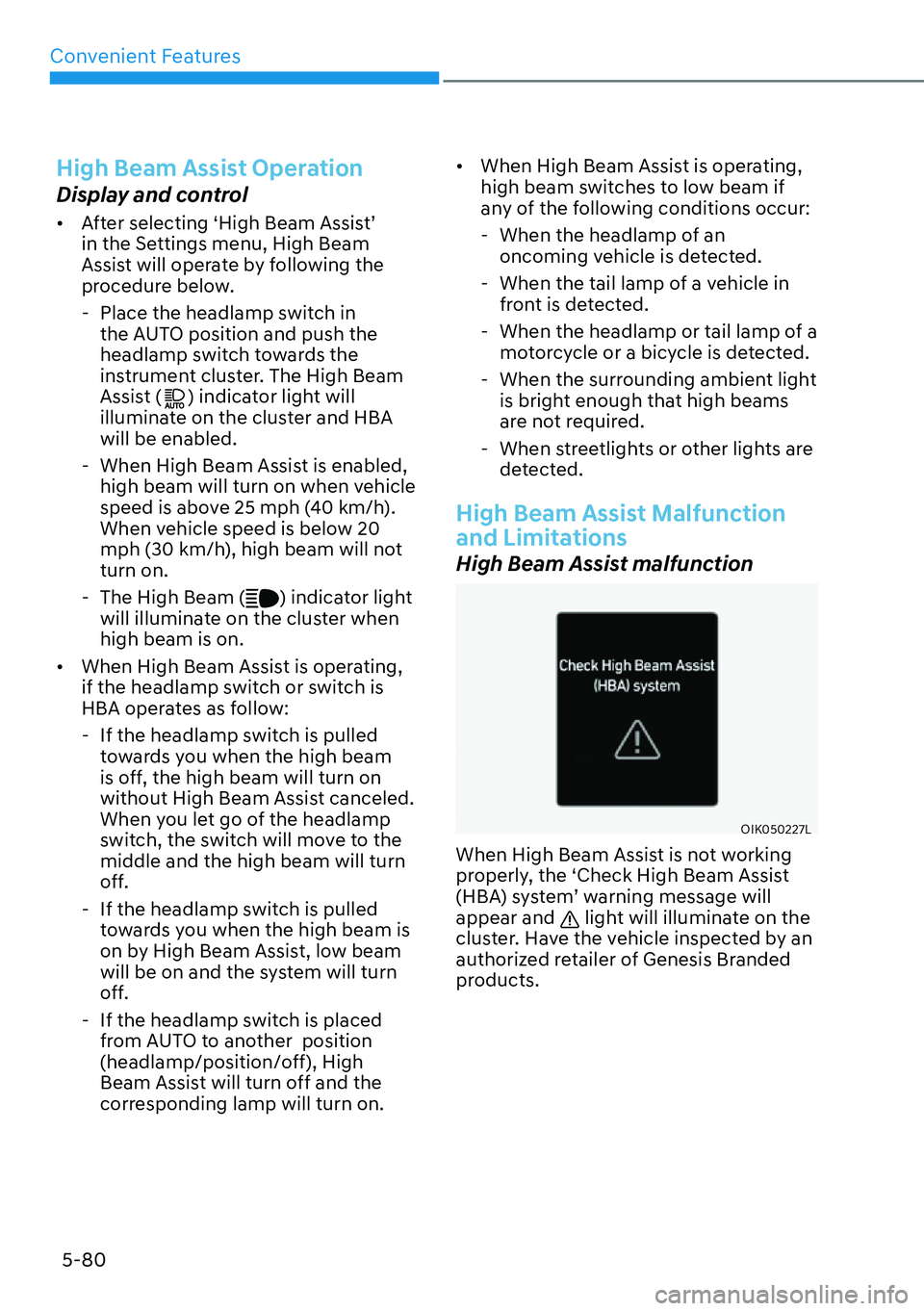

Page 209 of 530
Convenient Features
5-80
High Beam Assist Operation
Display and control
[ After selecting ‘High Beam Assist’
in the Settings menu, High Beam
Assist will operate by following the
procedure below.
- Place the headlamp switch in
the AUTO position and push the
headlamp switch towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and HBA
will be enabled.
- When High Beam Assist is enabled,
high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 20
mph (30 km/h), high beam will not
turn on.
- The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.
[ When High Beam Assist is operating,
if the headlamp switch or switch is
HBA operates as follow:
- If the headlamp switch is pulled
towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlamp
switch, the switch will move to the
middle and the high beam will turn
off.
- If the headlamp switch is pulled
towards you when the high beam is
on by High Beam Assist, low beam
will be on and the system will turn
off.
- If the headlamp switch is placed
from AUTO to another position
(headlamp/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.[ When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlamp of an
oncoming vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light
is bright enough that high beams
are not required.
- When streetlights or other lights are
detected.
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OIK050227L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message will
appear and
light will illuminate on the
cluster. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Page 219 of 530
5-90
Convenient Features
Automatic Heating and Air
Conditioning
The Automatic Climate Control System
is controlled by setting the desired
temperature.
OIK050082
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature setting
you select.
„Driver side
OIK050083
2. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO' sign
will illuminate on the information
display once again.)
- Air intake control button
- Fan speed control button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve
the effectiveness of the climate control,
use the AUTO button and set the
temperature to 72°F (22°C).
OIK050047
Information
Never place anything near the sensor to
ensure better control of the heating and
cooling system.

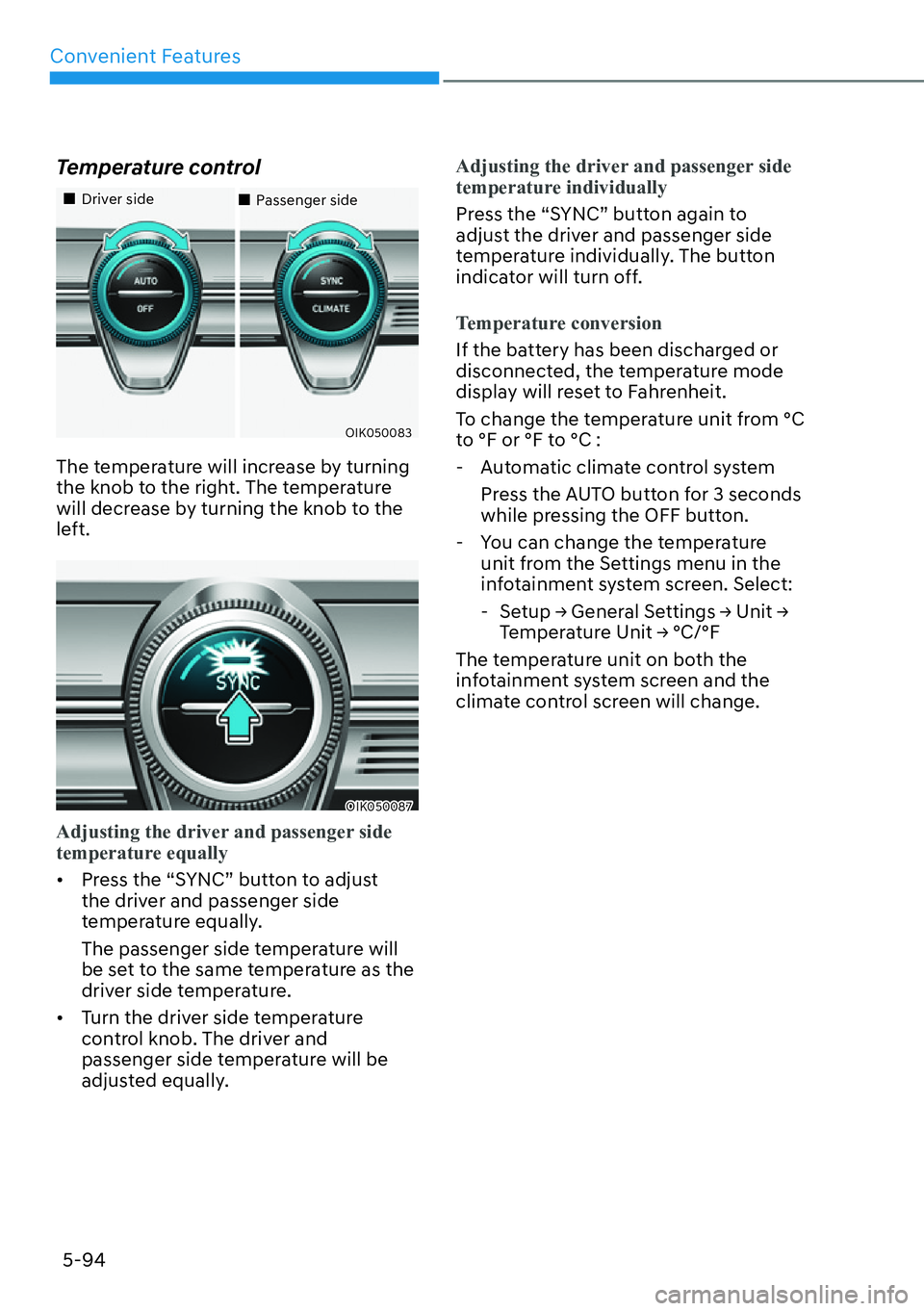

Page 223 of 530
Convenient Features
5-94
Temperature control
„Driver side
OIK050083
„Passenger side
The temperature will increase by turning
the knob to the right. The temperature
will decrease by turning the knob to the
left.
OIK050087
Adjusting the driver and passenger side
temperature equally
[ 3 U H V V W K H U 6 < 1 &V E X W W R Q W R D G M X V W
the driver and passenger side
temperature equally.
The passenger side temperature will
be set to the same temperature as the
driver side temperature.
[ Turn the driver side temperature
control knob. The driver and
passenger side temperature will be
adjusted equally.
Adjusting the driver and passenger side
temperature individually
3 U H V V W K H U 6 < 1 &V E X W W R Q D J D L Q W R
adjust the driver and passenger side
temperature individually. The button
indicator will turn off.
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
To change the temperature unit from °C
to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 seconds
while pressing the OFF button.
- You can change the temperature
unit from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S
Page 226 of 530
05
5-97
Air conditioning
„Type A or B
OIK050090
„Type C or D
OIK050221L
Push the A/C button to turn the air
conditioning system on (indicator light
will illuminate).
Push the button again to turn the air
conditioning system off.
OFF mode
OIK050091
Push the OFF button to turn the climate
control system off. However, you can still
operate the mode and air intake buttons
as long as the Engine Start/Stop button is
in the ON position.
Climate control information screen
selection button
OIK050092
Press the climate control information
screen selection button to display
climate control information on the
Infotainment system screen.

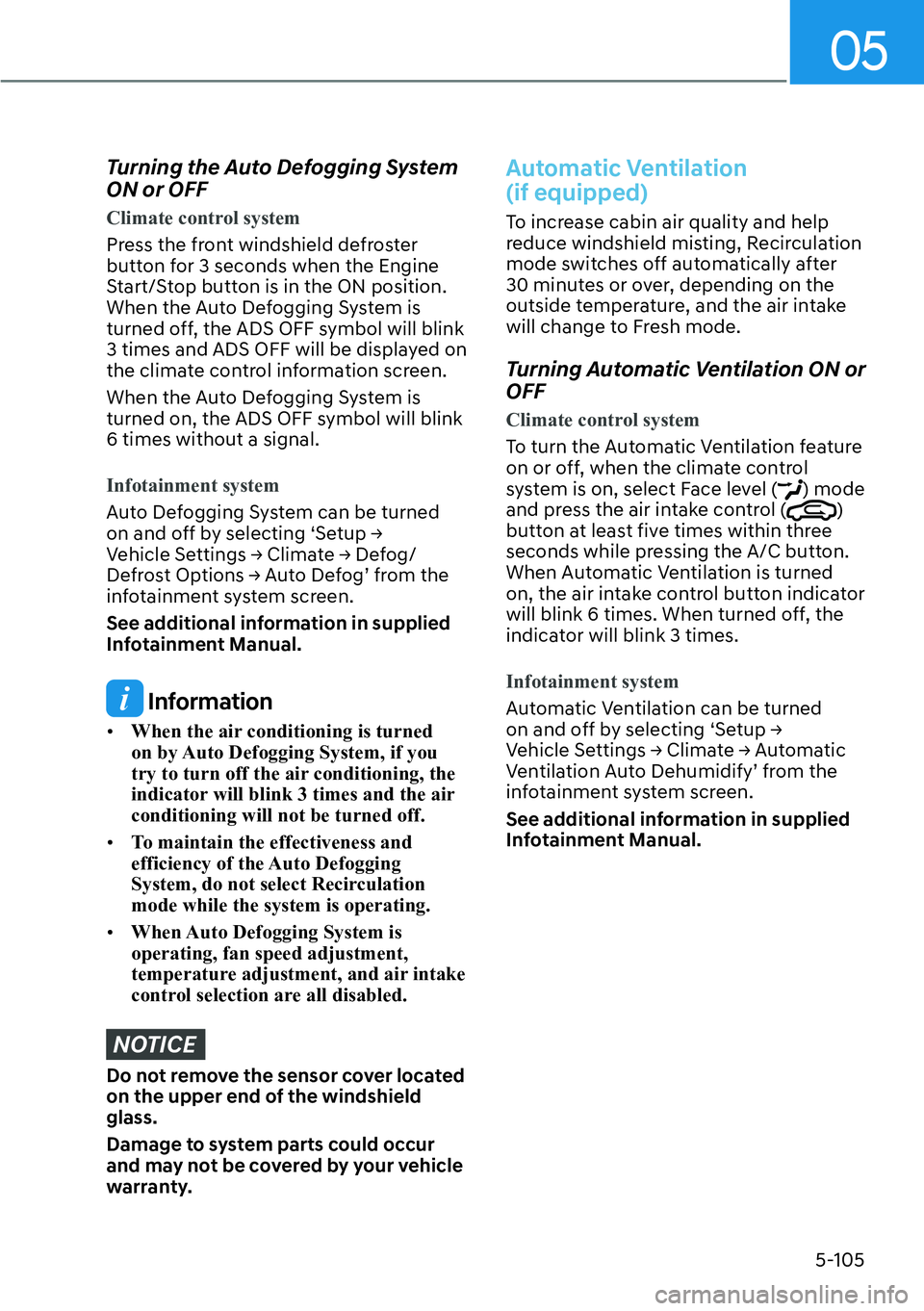

Page 234 of 530
05
5-105
Turning the Auto Defogging System
ON or OFF
Climate control system
Press the front windshield defroster
button for 3 seconds when the Engine
Start/Stop button is in the ON position.
When the Auto Defogging System is
turned off, the ADS OFF symbol will blink
3 times and ADS OFF will be displayed on
the climate control information screen.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned
R Q D Q G R I I E \ V H O H F W L Q J S 6 H W X S
Page 249 of 530
6
Before Driving ................................................................................................... 6-4Before Entering the Vehicle ........................................................................................ 6-4
Before Starting ............................................................................................................ 6-4
Engine Start/Stop Button ................................................................................. 6-5Engine Stop/Start Button Positions ........................................................................... 6-6
Starting the Engine ...................................................................................................... 6-7
Turning Off the Engine ................................................................................................ 6-8
Remote Start ................................................................................................................ 6-8
Automatic transmission ................................................................................... 6-9Automatic Transmission Operation ............................................................................ 6-9
Paddle Shifter (Manual shift mode) .......................................................................... 6-14
LCD Display Messages ............................................................................................... 6-15
Good Driving Practices .............................................................................................. 6-18
Braking System ............................................................................................... 6-20Power-Assist Brakes .................................................................................................. 6-20
High Performance Brake............................................................................................ 6-21
Disc Brakes Wear Indicator........................................................................................ 6-21
Electronic Parking Brake (EPB) .................................................................................. 6-22
Auto Hold ....................................................................................................................6-26
Anti-Lock Brake System (ABS) .................................................................................. 6-30
Electronic Stability Control (ESC) ............................................................................. 6-31
Vehicle Stability Management (VSM) .......................................................................6-34
Hill-Start Assist Control (HAC) ...................................................................................6-35
Good Braking Practices .............................................................................................6-35
All Wheel Drive (AWD) .................................................................................... 6-36For Safe AWD Operation ............................................................................................ 6-37
Emergency Precautions ............................................................................................ 6-38
Limited Slip Differential ..................................................................................6-40
Electronic Control Suspension .......................................................................6-40
System Malfunction .................................................................................................. 6-40
Launch Control .................................................................................................6-41Prerequisite for Activation ......................................................................................... 6-41
Launch Control Activation ......................................................................................... 6-41
Limited Use of Launch Control ................................................................................. 6-42
Coasting .......................................................................................................... 6-43Coasting Setting ........................................................................................................ 6-43
Coasting Operating Conditions ................................................................................ 6-43
Coasting Release Conditions ................................................................................... 6-44
6. Driving Your Vehicle

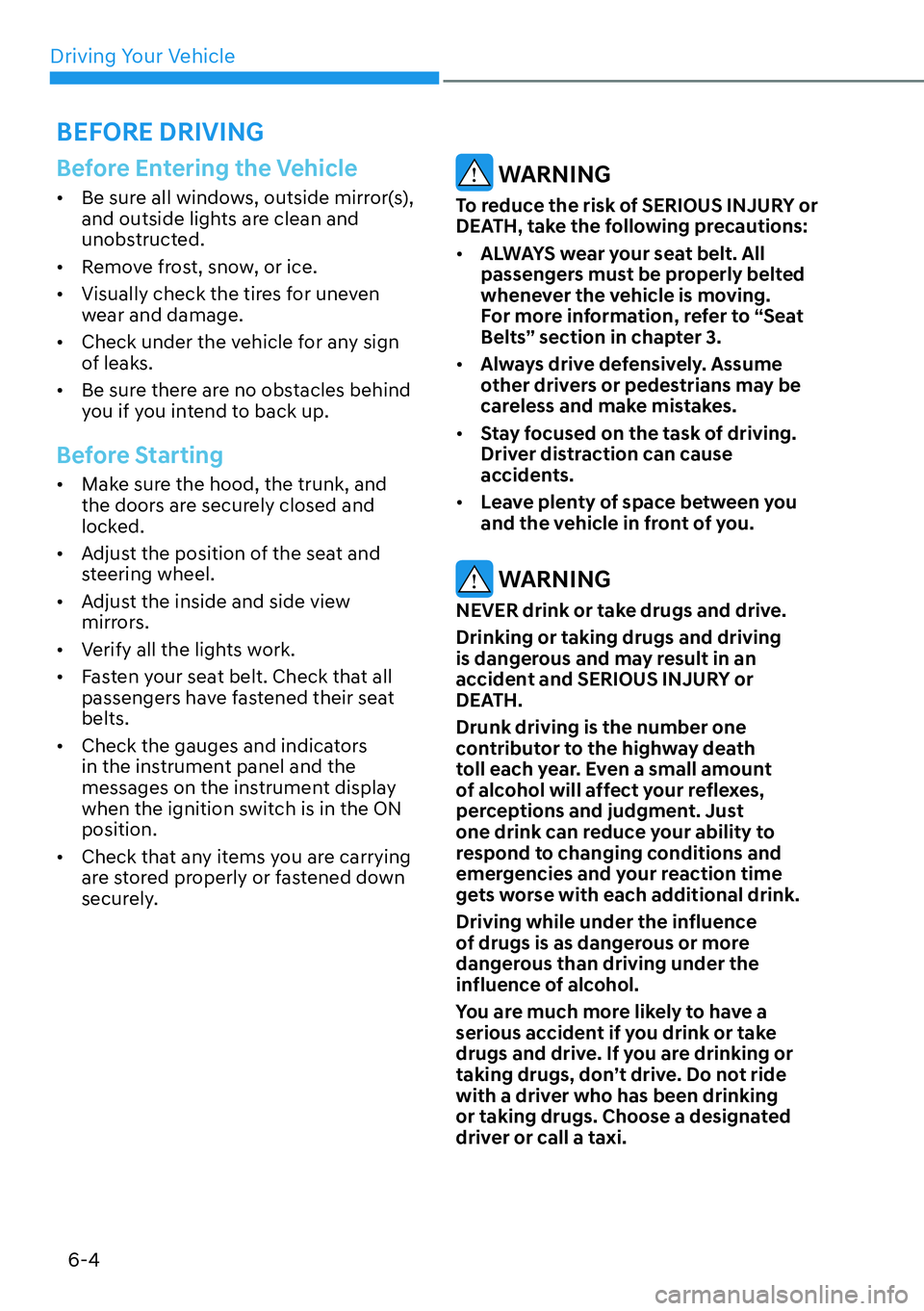

Page 252 of 530
Driving Your Vehicle
6-4
Before Entering the Vehicle
[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.
[ Remove frost, snow, or ice.
[ Visually check the tires for uneven
wear and damage.
[ Check under the vehicle for any sign
of leaks.
[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting
[ Make sure the hood, the trunk, and
the doors are securely closed and
locked.
[ Adjust the position of the seat and
steering wheel.
[ Adjust the inside and side view
mirrors.
[ Verify all the lights work.
[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.
[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the ignition switch is in the ON
position.
[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:
[ ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.
[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.
[ Stay focused on the task of driving.
Driver distraction can cause
accidents.
[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING
Page 258 of 530

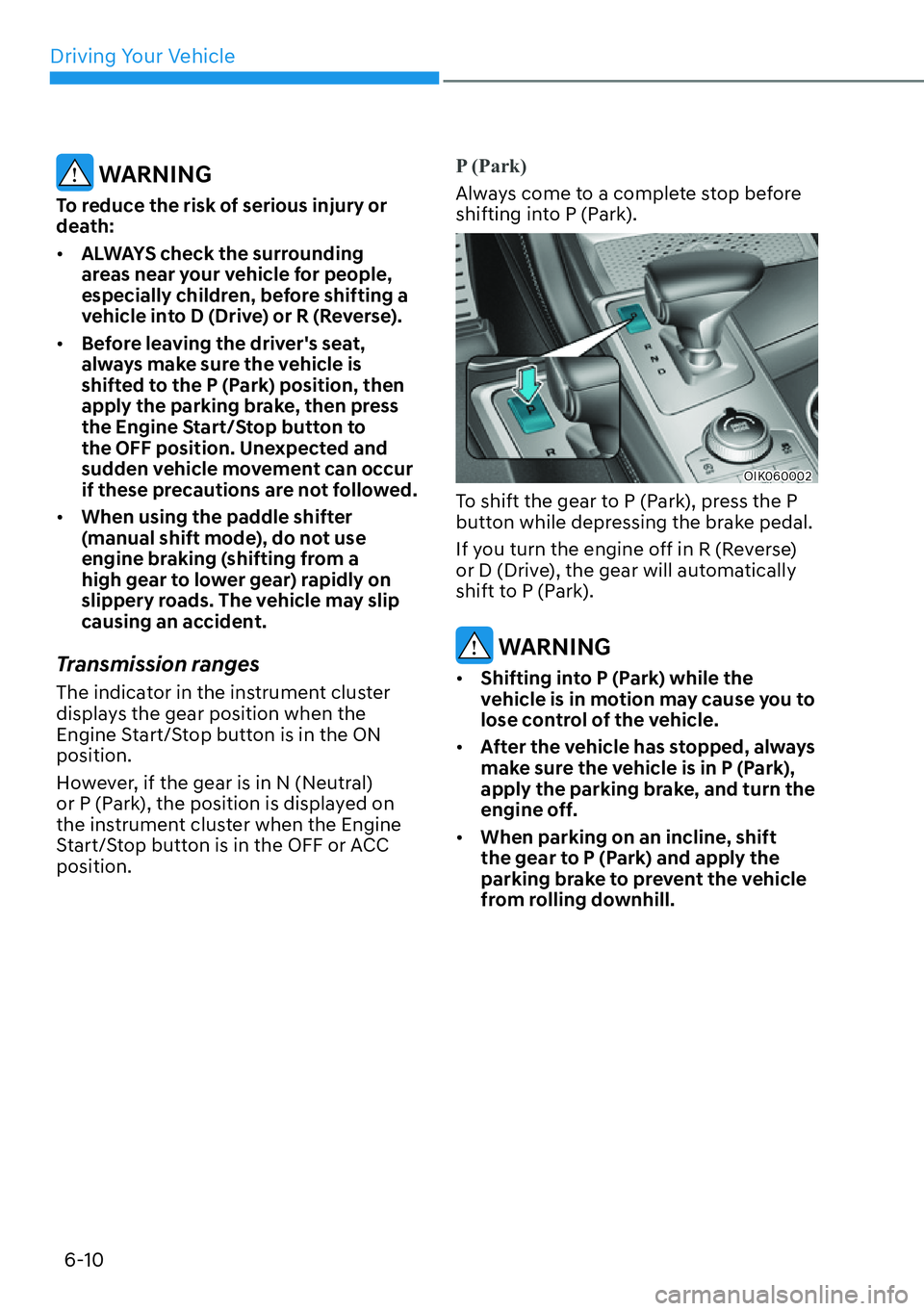

Driving Your Vehicle
6-10
WARNING
To reduce the risk of serious injury or
death:
[ ALWAYS check the surrounding
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).
[ Before leaving the driver's seat,
always make sure the vehicle is
shifted to the P (Park) position, then
apply the parking brake, then press
the Engine Start/Stop button to
the OFF position. Unexpected and
sudden vehicle movement can occur
if these precautions are not followed.
[ When using the paddle shifter
(manual shift mode), do not use
engine braking (shifting from a
high gear to lower gear) rapidly on
slippery roads. The vehicle may slip
causing an accident.
Transmission ranges
The indicator in the instrument cluster
displays the gear position when the
Engine Start/Stop button is in the ON
position.
However, if the gear is in N (Neutral)
or P (Park), the position is displayed on
the instrument cluster when the Engine
Start/Stop button is in the OFF or ACC
position.
P (Park)
Always come to a complete stop before
shifting into P (Park).
OIK060002
To shift the gear to P (Park), press the P
button while depressing the brake pedal.
If you turn the engine off in R (Reverse)
or D (Drive), the gear will automatically
shift to P (Park).
WARNING
[ Shifting into P (Park) while the
vehicle is in motion may cause you to
lose control of the vehicle.
[ After the vehicle has stopped, always
make sure the vehicle is in P (Park),
apply the parking brake, and turn the
engine off.
[ When parking on an incline, shift
the gear to P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.
Page 263 of 530
06
6-15

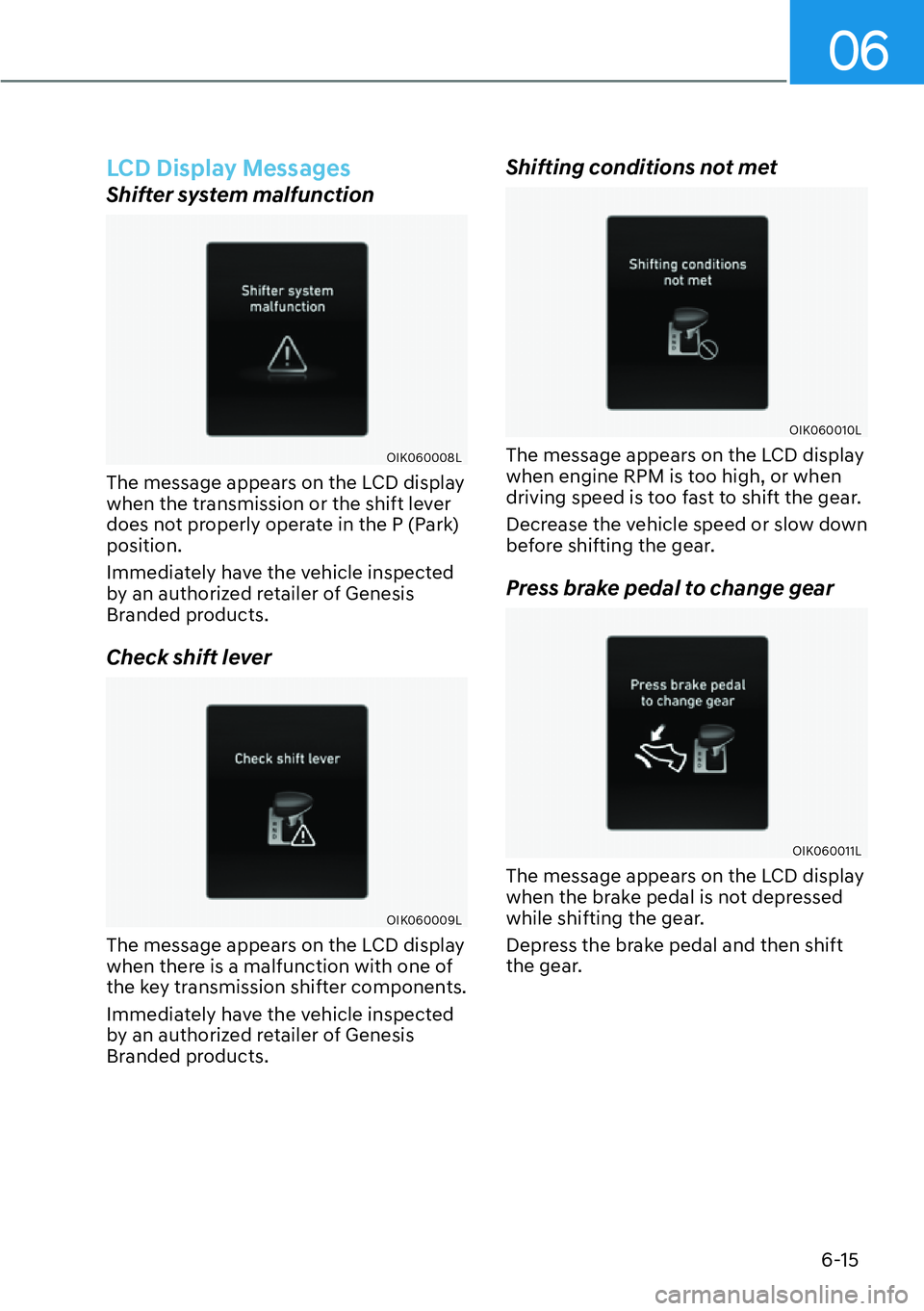

LCD Display Messages
Shifter system malfunction
OIK060008L
The message appears on the LCD display
when the transmission or the shift lever
does not properly operate in the P (Park)
position.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Check shift lever
OIK060009L
The message appears on the LCD display
when there is a malfunction with one of
the key transmission shifter components.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Shifting conditions not met
OIK060010L
The message appears on the LCD display
when engine RPM is too high, or when
driving speed is too fast to shift the gear.
Decrease the vehicle speed or slow down
before shifting the gear.
Press brake pedal to change gear
OIK060011L
The message appears on the LCD display
when the brake pedal is not depressed
while shifting the gear.
Depress the brake pedal and then shift
the gear.
