1- 34 FEATURES OF YOUR HYUNDAI
HTB203
Rear impact
Side Impact Rollover

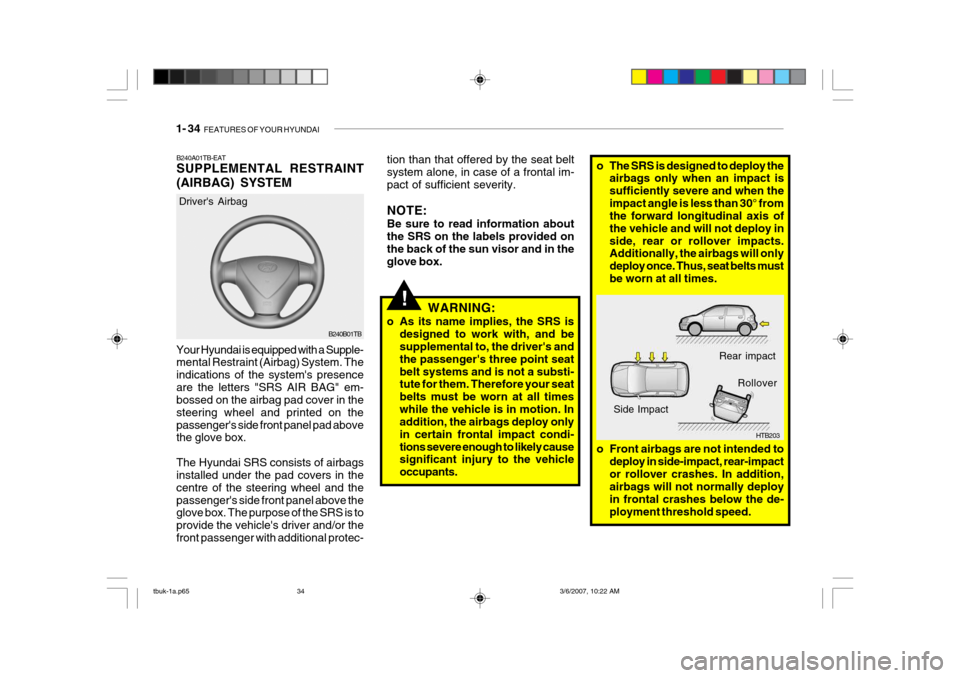

o The SRS is designed to deploy the
airbags only when an impact is sufficiently severe and when theimpact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy inside, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat belts mustbe worn at all times.
o Front airbags are not intended to deploy in side-impact, rear-impactor rollover crashes. In addition, airbags will not normally deploy in frontal crashes below the de-ployment threshold speed.
!
B240B01TB
Driver's Airbag
Your Hyundai is equipped with a Supple- mental Restraint (Airbag) System. The indications of the system's presenceare the letters "SRS AIR BAG" em- bossed on the airbag pad cover in the steering wheel and printed on thepassenger's side front panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in the centre of the steering wheel and thepassenger's side front panel above the glove box. The purpose of the SRS is to provide the vehicle's driver and/or thefront passenger with additional protec- B240A01TB-EAT SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
tion than that offered by the seat belt system alone, in case of a frontal im- pact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided onthe back of the sun visor and in the glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's and the passenger's three point seatbelt systems and is not a substi- tute for them. Therefore your seat belts must be worn at all timeswhile the vehicle is in motion. In addition, the airbags deploy only in certain frontal impact condi-tions severe enough to likely cause significant injury to the vehicle occupants.
tbuk-1a.p65 3/6/2007, 10:22 AM
34

FEATURES OF YOUR HYUNDAI 1- 35
The SRS service reminder indicator (SRI) on the instrument panel will blinkfor approimately 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out.
B240B02L-D
o For maximum safety protection in
all types of crashes, all occupants including the driver should always wear their seat belts whether ornot an airbag is also provided at their seating position to minimize the risk of severe injury or death inthe event of a crash. Do not sit or lean unnecessarily close to the airbag while the vehicle is in mo-tion.
o The SRS airbag system must de-
ploy very rapidly to provide pro-tection in a crash. If an occupant is out of position because of not wearing a seat belt, the airbag mayforcefully contact the occupant causing serious or fatal injuries.
The SRS consists of the following com- ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator(SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment.
B240B03A-DAT SRS Components and Functions
B240B01L-D
tbuk-1a.p65
3/6/2007, 10:22 AM
35

1- 36 FEATURES OF YOUR HYUNDAI
B240B05L-D
Passenger's Airbag
!
CAUTION:
Do not install or place any accesso- ries (drink holder, cassette holder, sticker, etc) on the front passenger's panel above the glove box in a ve-hicle with passenger's side air bag. Such objects may become danger- ous projectiles and cause injury ifthe passenger's side air bag inflates. After complete inflation, the airbag im- mediately starts deflating, enabling the driver to maintain forward visibility.
B240B03L-D
The airbag modules are located both in the centre of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags.
Passenger's Airbag
HTB204-D
Upon deployment, tear seams molded directly into the pad covers will sepa- rate under pressure from the expansion of the airbags. Further opening of thecovers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward mo-tion, thus reducing the risk of head or chest injury.
tbuk-1a.p65 3/6/2007, 10:22 AM
36

FEATURES OF YOUR HYUNDAI 1- 37
B990A01TB-EAT Passenger's Front Airbag Deac- tivation/Reactivation System
B990A01TB-D
WARNING:
When the Passenger Front Air Bag system is not deactivated – Do not install a child restraint system in the front passenger seat position. Theinfant or child could be severely injured or killed by the air bag de- ploying in case of an accident.
!!
! CAUTION:
When installing a container of liquid air freshener inside a vehicle, do notplace it near the instrument cluster not on the instrument panel pad surface. If there is any leakage fromthe air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damagethese parts. If the liquid from the air freshener does leak onto these ar- eas, wash them with water immedi-ately.
WARNING:

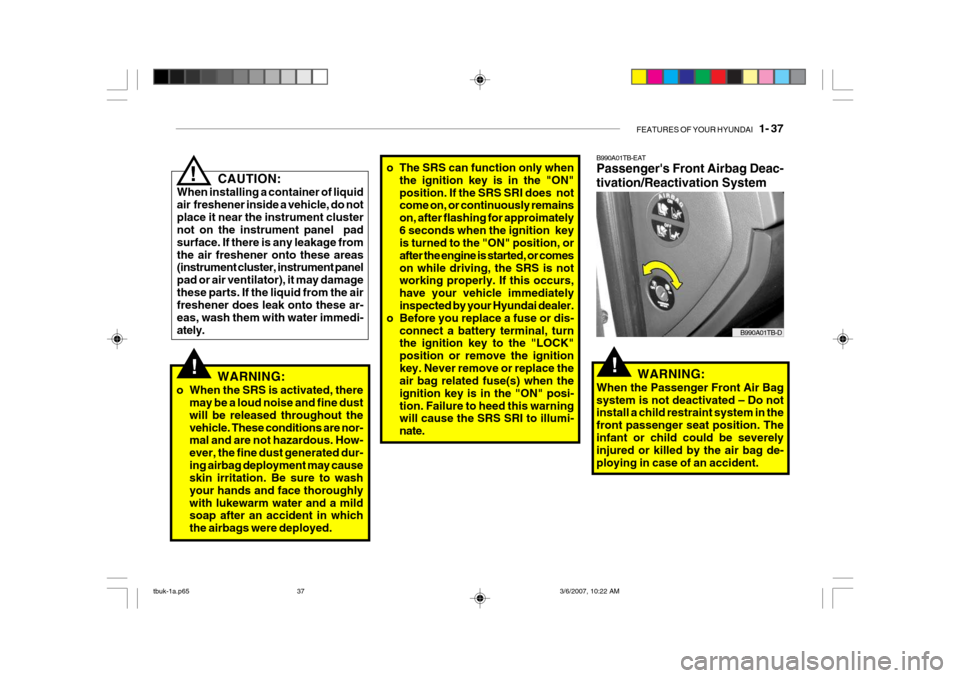

o When the SRS is activated, there may be a loud noise and fine dustwill be released throughout thevehicle. These conditions are nor- mal and are not hazardous. How- ever, the fine dust generated dur-ing airbag deployment may cause skin irritation. Be sure to wash your hands and face thoroughlywith lukewarm water and a mild soap after an accident in which the airbags were deployed. o The SRS can function only when
the ignition key is in the "ON"position. If the SRS SRI does not come on, or continuously remains on, after flashing for approimately6 seconds when the ignition key is turned to the "ON" position, or after the engine is started, or comeson while driving, the SRS is not working properly. If this occurs, have your vehicle immediatelyinspected by your Hyundai dealer.
o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignitionkey. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi- nate.
tbuk-1a.p65 3/6/2007, 10:22 AM
37

1- 38 FEATURES OF YOUR HYUNDAI
!WARNING:
o Should at any time a fault develop in the passenger air bag system whilst the front passenger air bag is deactivated, the passenger front air bag OFF indicator warning lightwill immediately go out and the SRS service reminder warning light will be displayed.
o Should this condition happen the rear facing child seat must be re-moved as soon as possible fromthe front passenger seat and the vehicle should taken to the near- est Hyundai Authorised Repairerto have the SRS air bag system checked out.
The passenger front air bag deactiva-tion system is intended to reduce un- necessary repair costs for the replace-ment of the passenger air bag system as a result of collision damage when the passengers seat is unoccupied andalso to facilitate for the fitting of a rear facing child seat in the front passenger seat position.
To Deactivate Or Reactvate the Passengers Front Air Bag. To deactivate the passengers front air bag, insert the ignition key into the ON/ OFF switch located on the left side ofthe crash pad and turn it to the "OFF" position. The passengers front air bag OFF indicator light located within theinstrument cluster will illuminate and stay on until the passenger front air bag is reactivated. To reactivate the passengers front airbag, insert the ignition key into the ON/OFF switch located on the left sideof the crash pad and turn it to the "ON" position. The passenger’s front air bag OFF indicator light located within theinstrument cluster will not now be illumi- nated.
!
CAUTION:
When a rear facing seat is fitted to the passenger front seat position the following must be adhered – the
passenger's front air bag must be deactivated, the passenger seat mustbe located in its rear most position and only a Hyundai approved rear facing child seat must be fitted.
tbuk-1a.p65 3/6/2007, 10:22 AM
38

FEATURES OF YOUR HYUNDAI 1- 39
!
B990B01TG-EAT Side Impact Airbag Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front passen-ger with additional protection than that offered by the seat belt alone. The side impact airbags are designed to deployonly during certain side impact colli- sions, depending on the crash severity, angle, speed and point of impact. Theair bags are not designed to deploy in all side impact situations.
B990B02Y-D
WARNING:
o When a fault develops in the Passenger's Front Air bag Deacti- vation/ Reactivation system the SRS Control Module puts the sys- tem into its 'safe' mode which willautomatically reactivate the pas- sengers front air bag system which is why the passenger's front airbag OFF indicator goes out, the fault in the system is then indi- cated by the SRS service reminderlight being displayed.
o SHOULD A COLLISION OCCUR
THE PASSENGER’S FRONT AIRBAG COULD THEN INFLATE, EVEN IF THE DEACTIVATION SWITCH IS SET TO THE 'OFF' POSITION.
! CAUTION:
If the SRS service reminder warning light does not illuminate when theignition key is turned on, or if it illuminates whist the vehicle is be- ing driven, then the vehicle shouldbe inspected immediately by a Hyundai Authorised Repairer to have the SRS air bag system checked out.
!WARNING:
It is the driver's responsibility for the correct usage of the passengers front
air bag switch. Deactivate the passenger's front air bag only whenthe ignition is switched off, or a malfunction may occur in the SRS Control Module. As soon as deacti-vation is no longer needed, reacti- vate the passenger's front airbag.
tbuk-1a.p65 3/6/2007, 10:22 AM
39

1- 40 FEATURES OF YOUR HYUNDAI
B240C03Y-EAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safely service by yourself. The entire SRSsystem must be inspected by an au- thorized Hyundai dealer in 10 years after the date that the vehicle wasmanufactured. Any work on the SRS system, such as removing, installing, repairering, or anywork on the steering wheel must be performed by a qualified Hyundai tech- nician. Improper handling of the SRSsystem may result in serious personal injury.
The airbags deploy only in certain side impact conditions severeenough to cause significant injury to the vehicle occupants.
o For best protection from the side
airbag system and to avoid beinginjured is by the deploying side impact airbag, both front seat oc-cupants should sit in an upright position with the seat belt prop- erly fastened. The driver's handsshould be placed on the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's armsand hands should be placed in their laps.
o Do not use any accessory seat covers.
o Use of seat covers could reduce or
prevent the effectiveness of the system.
o Do not install any accessories on
the side or near the side impactairbag.
o Do not use excessive force on the
side of the seat.
o Do not place any objects over the airbag or between the airbag andyourself.
!WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's three point seat belt systems and is not a substitute for them. Therefore your seat beltsmust be worn at all times whilst the vehicle is in motion.
Side airbag sensor
Important Safety Notes on the Side Impact Airbag system Following is a number of safety points concerning this system which should always be observed to ensure risk of injury is reduced in an accident. HTB072-D
o Do not place any objects (an um-
brella, bag, etc.) between the front door and the front seat. Such ob- jects may become dangerous pro-jectiles and cause injury if the supplemental side impact air bag inflates.
o To prevent unexpected deploy- ment of the side air impact bagthat may result in personal injury,avoid impact to the side airbag sensor when the ignition key is on.
tbuk-1a.p65 3/6/2007, 10:22 AM
40

FEATURES OF YOUR HYUNDAI 1- 41
The infant or child could be se- verely injured by an airbag de- ployment in case of an accident.
o Modification to SRS components or wiring, including the additionof any kind of badges to the padcovers or modifications to the body structure, can adversely affect SRS performance and lead to possibleinjury.
o For cleaning the airbag pad cov-
ers, use only a soft, dry cloth orone which has been moistened with plain water. Solvents or clean- ers could adversely affect theairbag covers and proper deploy- ment of the system.
o No objects should be placed over
or near the airbag modules on thesteering wheel, instrument panel, and the front passenger's panelabove the glove box, because any such object could cause harm if the vehicle is in a crash severeenough to cause the airbags to inflate.
o If the airbags inflate, they must be
replaced by a Hyundai authorisedrepairer. o Do not tamper with or disconnect
SRS wiring, or other components of the SRS system. Doing so couldresult in injury, due to accidental firing of the airbags or by render- ing the SRS inoperative.
o If components of the airbag sys- tem must be discarded, or if thevehicle must be scrapped, certainsafety precautions must be ob- served. Your Hyundai authorised repairer knows these precautionsand can give you the necessary information. Failure to follow these precautions and procedures couldincrease the risk of personal in- jury.
o If you sell your vehicle, make cer- tain that this manual is transferredto the new owner together with the vehicle.
o If your car was flooded and has soaked carpeting or water onflooring, you shouldn't try to startengine; have the car towed to Hyundai authorised repairer.
!WARNING:
o Extreme Hazard! Do not use a rear- ward facing restraint on a seat protected by an airbag in front of it! If you must use a rear facing childseat on the front seat, first deacti- vate the air bag system and ensure that the passenger's front air bag'off' indicator light in the instru- ment cluster is displayed.
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint system must
never be placed in the front seat.
B240C01HP
tbuk-1a.p65 3/6/2007, 10:22 AM
41

1- 42 FEATURES OF YOUR HYUNDAI
B260A01TB-EAT INSTRUMENT CLUSTER AND INDICATOR A Type (Without Trip Computer)
B260A01TB-E
tbuk-1a.p653/6/2007, 10:22 AM
42

FEATURES OF YOUR HYUNDAI 1- 43

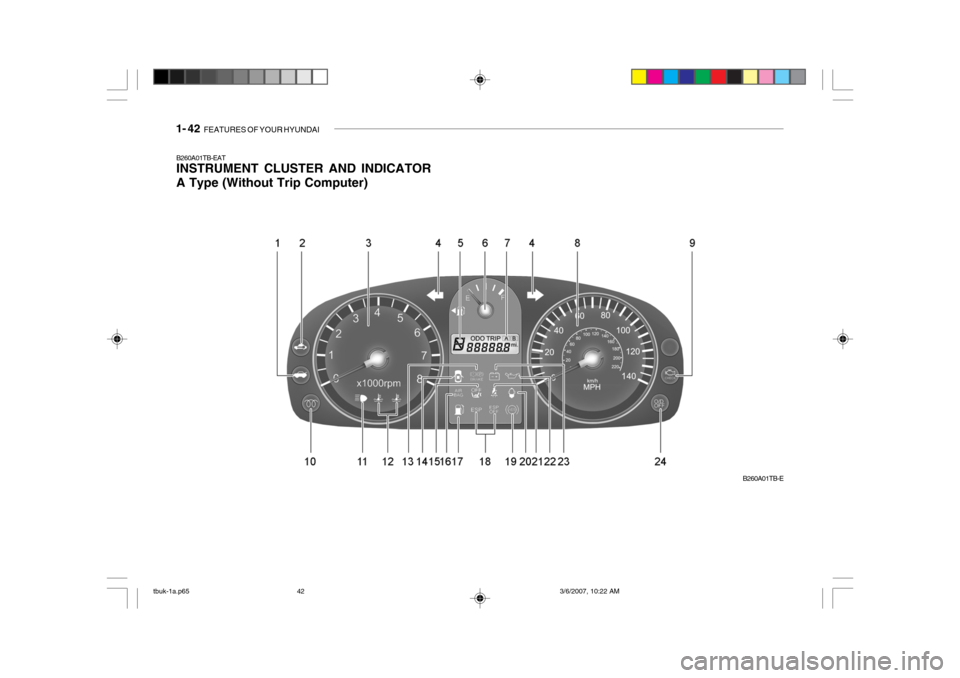

1. Tail Gate Open Warning Light
2. Immobiliser Warning Indicator Light
3. Tachometer
4. Turn Signal Indicator Light
5. Automatic Transaxle Position Indicator Light
(Not all models)
6. Fuel Gauge
7. Odometer/Trip Odometer
8. Speedometer
9. Malfunction Indicator Light (MIL)
10. Diesel Pre-heat Indicator Light (Diesel only)
11. High Beam Indicator Light
12. Engine Coolant Temperature Indicator Light
13. Parking Brake/Brake Fluid Level Warning Light 14. Door Open (Ajar) Warning Light
15. Passenger' s Front Airbag OFF Indicator Light
(Not all models)
16. SRS (Airbag) Warning Light (Not all models)
17. Low Fuel Warning Light
18. Electronic Stability Program (ESP) Indicator Light (Not all models)
19. ABS Warning Light
20. Fuel Filter Warning Light (Diesel only)
21. Seat Belt Warning Light
22. Oil Pressure Warning Light
23. Charging System Warning Light
24. Overdrive off Indicator Light (Auto T/A only)
