HYUNDAI I10 2020 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2020, Model line: I10, Model: HYUNDAI I10 2020Pages: 486, PDF Size: 6.04 MB
Page 381 of 486

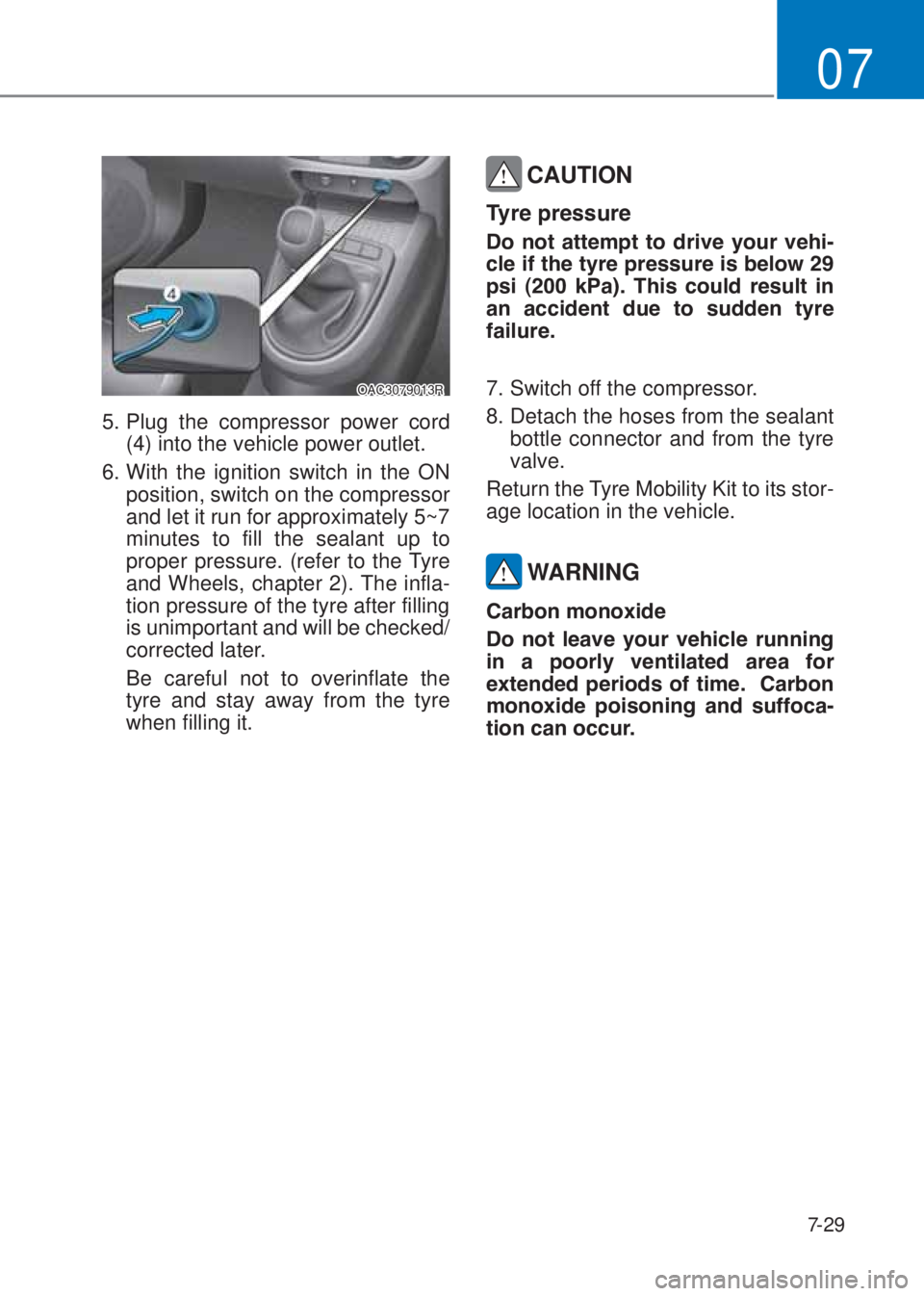

7-29
07
OAC3079013R
5. Plug the compressor power cord
(4) into the vehicle power outlet.
6. With the ignition switch in the ON
position, switch on the compressor
and let it run for approximately 5~7
minutes to fill the sealant up to
proper pressure. (refer to the Tyre
and Wheels, chapter 2). The infla-
tion pressure of the tyre after filling
is unimportant and will be checked/
corrected later.
Be careful not to overinflate the
tyre and stay away from the tyre
when filling it.
CAUTION
7 \ U H S U H V V X U H
' R Q R W D W W H P S W W R G U L Y H \ R X U Y H K L-
F O H L I W K H W \ U H S U H V V X U H L V E H O R Z
S V L N 3 D 7 K L V F R X O G U H V X O W L Q
D Q D F F L G H Q W G X H W R V X G G H Q W \ U H
I D L O X U H
7. Switch off the compressor.
8. Detach the hoses from the sealant
bottle connector and from the tyre
valve.
Return the Tyre Mobility Kit to its stor-
age location in the vehicle.
WARNING
& D U E R Q P R Q R [ L G H
' R Q R W O H D Y H \ R X U Y H K L F O H U X Q Q L Q J
L Q D S R R U O \ Y H Q W L O D W H G D U H D I R U
H [ W H Q G H G S H U L R G V R I W L P H & D U E R Q
P R Q R [ L G H S R L V R Q L Q J D Q G V X I I R F D-
W L R Q F D Q R F F X U
Page 382 of 486

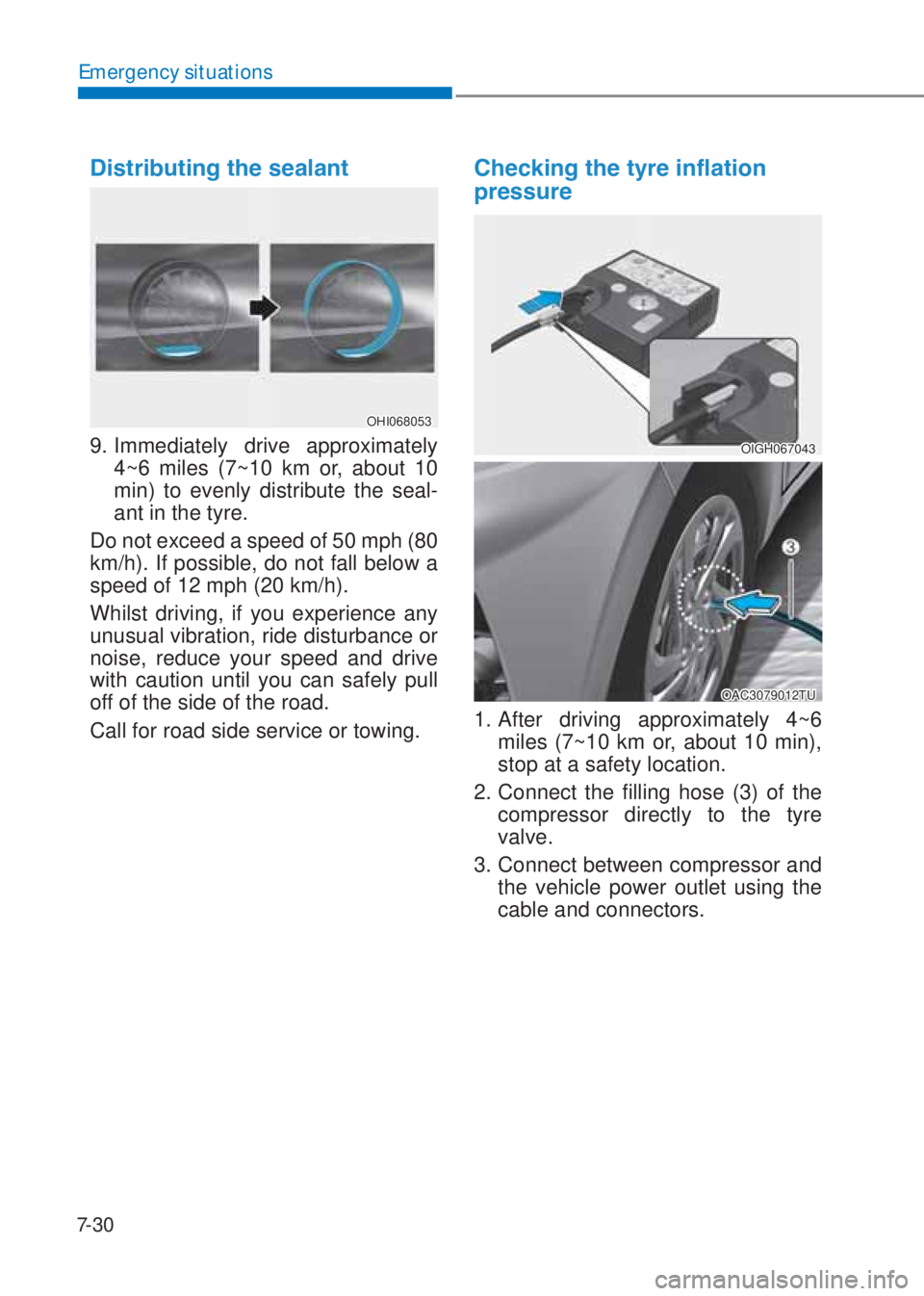

7-30
Emergency situations
' L V W U L E X W L Q J W K H V H D O D Q W
OHI068053
9. Immediately drive approximately
4~6 miles (7~10 km or, about 10
min) to evenly distribute the seal-
ant in the tyre.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
Whilst driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive
with caution until you can safely pull
off of the side of the road.
Call for road side service or towing.
& K H F N L Q J W K H W \ U H L Q I O D W L R Q
S U H V V X U H
OIGH067043
OAC3079012TU
1. After driving approximately 4~6
miles (7~10 km or, about 10 min),
stop at a safety location.
2. Connect the filling hose (3) of the
compressor directly to the tyre
valve.
3. Connect between compressor and
the vehicle power outlet using the
cable and connectors.
Page 383 of 486

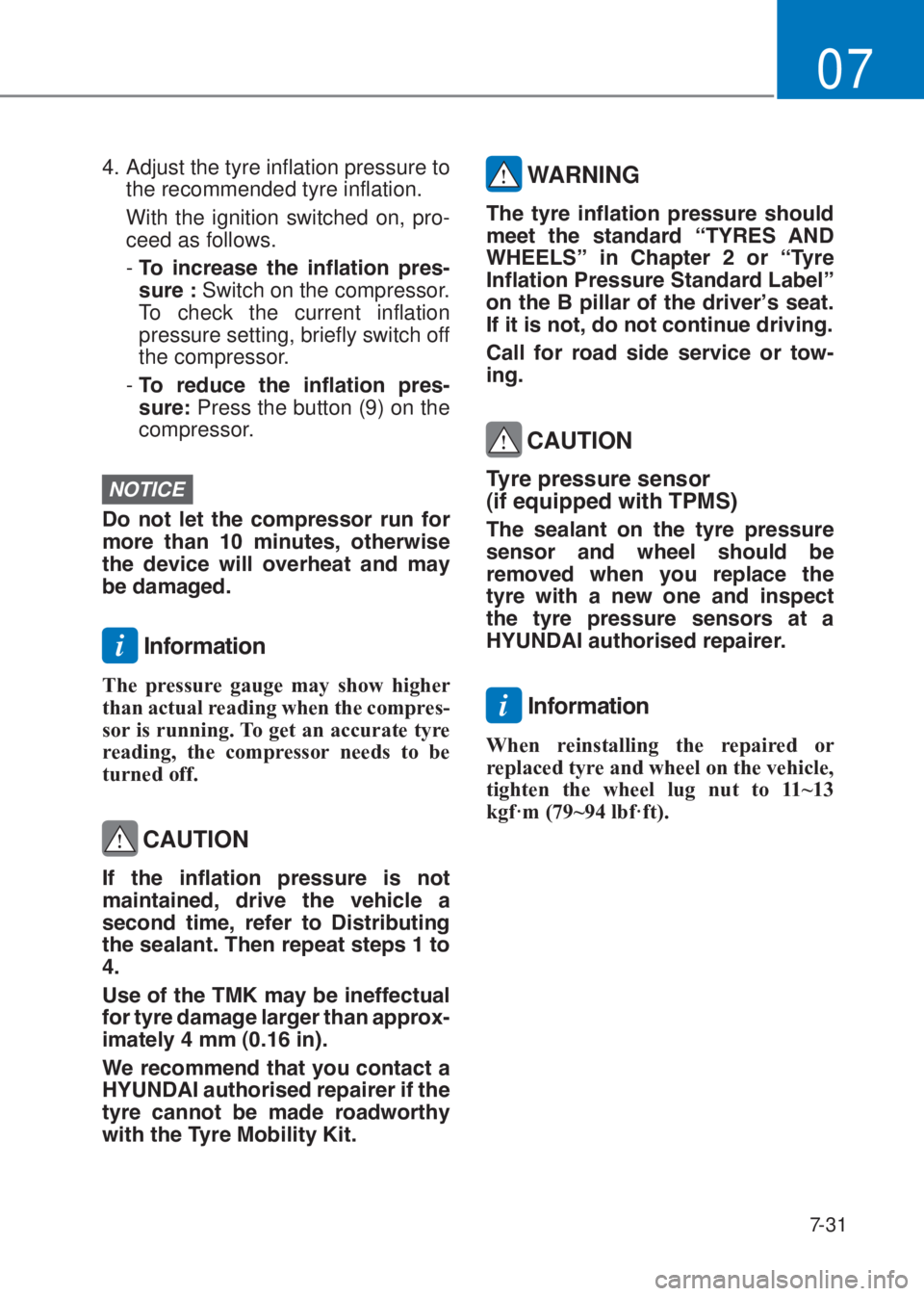

7-31
07
4. Adjust the tyre inflation pressure to
the recommended tyre inflation.
With the ignition switched on, pro-
ceed as follows.
- 7 R L Q F U H D V H W K H L Q I O D W L R Q S U H V-
V X U H Switch on the compressor.
To check the current inflation
pressure setting, briefly switch off
the compressor.
- 7 R U H G X F H W K H L Q I O D W L R Q S U H V-
V X U H Press the button (9) on the
compressor.
NOTICE
' R Q R W O H W W K H F R P S U H V V R U U X Q I R U
P R U H W K D Q P L Q X W H V R W K H U Z L V H
W K H G H Y L F H Z L O O R Y H U K H D W D Q G P D \
E H G D P D J H G
i , Q I R U P D W L R Q
The pressure gauge may show higher
than actual reading when the compres-
sor is running. To get an accurate tyre
reading, the compressor needs to be
turned off.
CAUTION
, I W K H L Q I O D W L R Q S U H V V X U H L V Q R W
P D L Q W D L Q H G G U L Y H W K H Y H K L F O H D
V H F R Q G W L P H U H I H U W R ' L V W U L E X W L Q J
W K H V H D O D Q W 7 K H Q U H S H D W V W H S V W R
8 V H R I W K H 7 0 . P D \ E H L Q H I I H F W X D O
I R U W \ U H G D P D J H O D U J H U W K D Q D S S U R [-
L P D W H O \ P P L Q
: H U H F R P P H Q G W K D W \ R X F R Q W D F W D
+ < 8 1 ' $ , D X W K R U L V H G U H S D L U H U L I W K H
W \ U H F D Q Q R W E H P D G H U R D G Z R U W K \
Z L W K W K H 7 \ U H 0 R E L O L W \ . L W
WARNING
7 K H W \ U H L Q I O D W L R Q S U H V V X U H V K R X O G
P H H W W K H V W D Q G D U G
Page 384 of 486
![HYUNDAI I10 2020 Owners Manual 7-32
Emergency situations
7 R Z L Q J V H U Y L F H
OAC3079029TU
[A] : Dolly
If emergency towing is necessary, we
recommend having it done by a
HYUNDAI authorised repairer or a
commercial tow-tr](/img/35/56230/w960_56230-383.png "HYUNDAI I10 2020 Owners Manual 7-32
Emergency situations
7 R Z L Q J V H U Y L F H
OAC3079029TU
[A] : Dolly
If emergency towing is necessary, we
recommend having it done by a
HYUNDAI authorised repairer or a
commercial tow-tr")

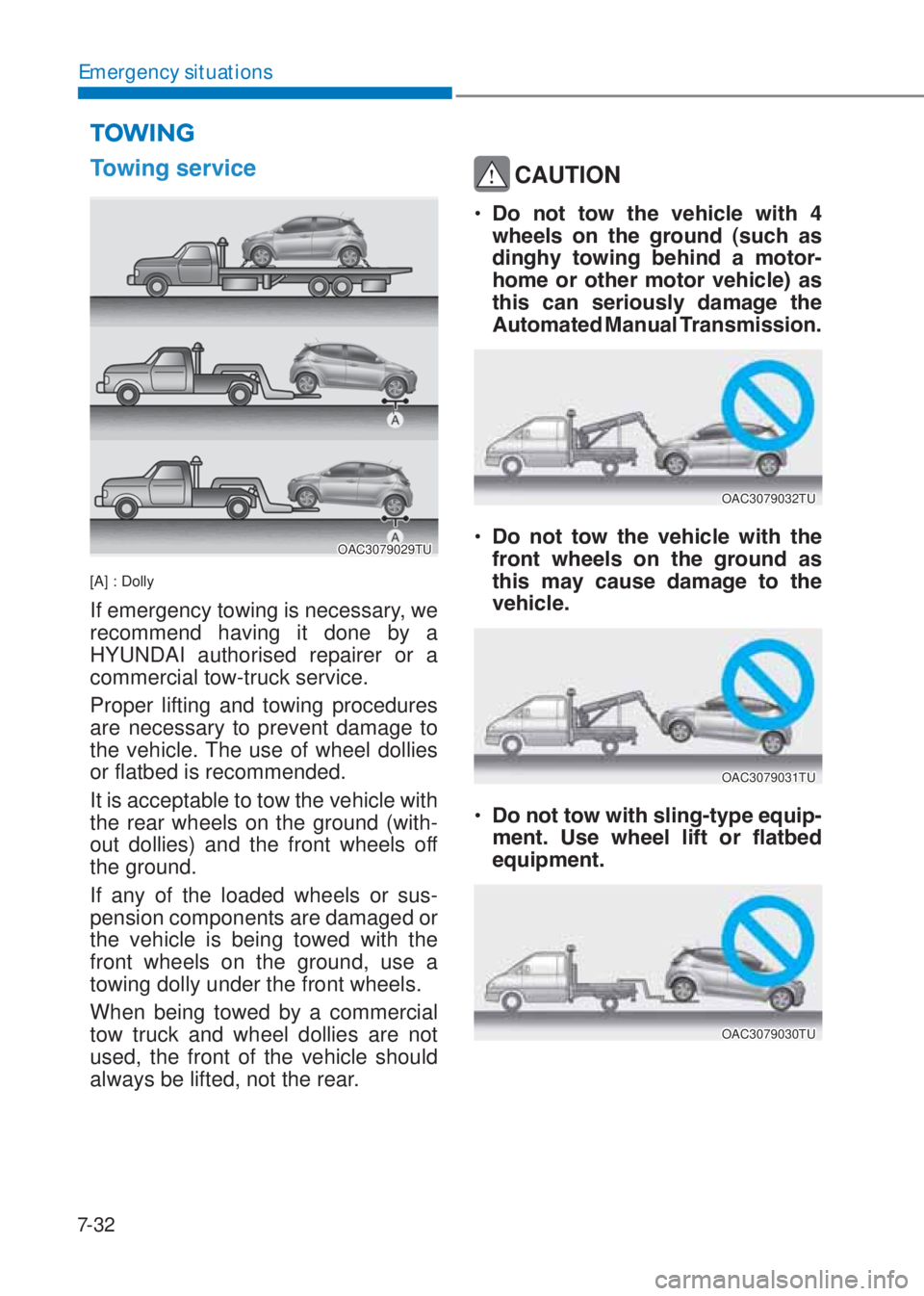

7-32
Emergency situations
7 R Z L Q J V H U Y L F H
OAC3079029TU
[A] : Dolly
If emergency towing is necessary, we
recommend having it done by a
HYUNDAI authorised repairer or a
commercial tow-truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies
or flatbed is recommended.
It is acceptable to tow the vehicle with
the rear wheels on the ground (with-
out dollies) and the front wheels off
the ground.
If any of the loaded wheels or sus-
pension components are damaged or
the vehicle is being towed with the
front wheels on the ground, use a
towing dolly under the front wheels.
When being towed by a commercial
tow truck and wheel dollies are not
used, the front of the vehicle should
always be lifted, not the rear.
CAUTION
Page 385 of 486

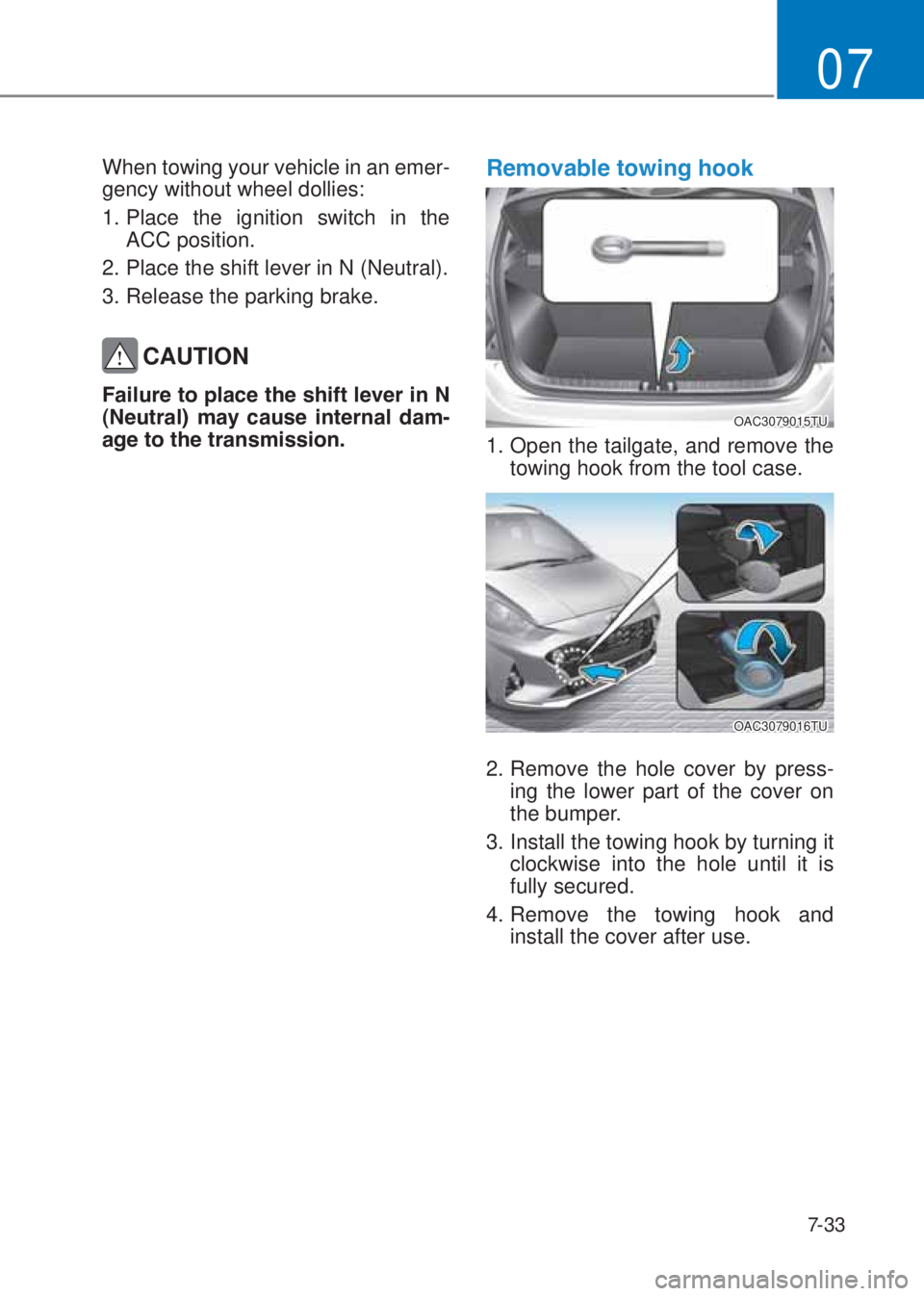

7-33
07
When towing your vehicle in an emer-
gency without wheel dollies:
1. Place the ignition switch in the
ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
) D L O X U H W R S O D F H W K H V K L I W O H Y H U L Q 1
1 H X W U D O P D \ F D X V H L Q W H U Q D O G D P-
D J H W R W K H W U D Q V P L V V L R Q
5 H P R Y D E O H W R Z L Q J K R R N
OAC3079015TU
1. Open the tailgate, and remove the
towing hook from the tool case.
OAC3079016TU
2. Remove the hole cover by press-
ing the lower part of the cover on
the bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
Page 386 of 486

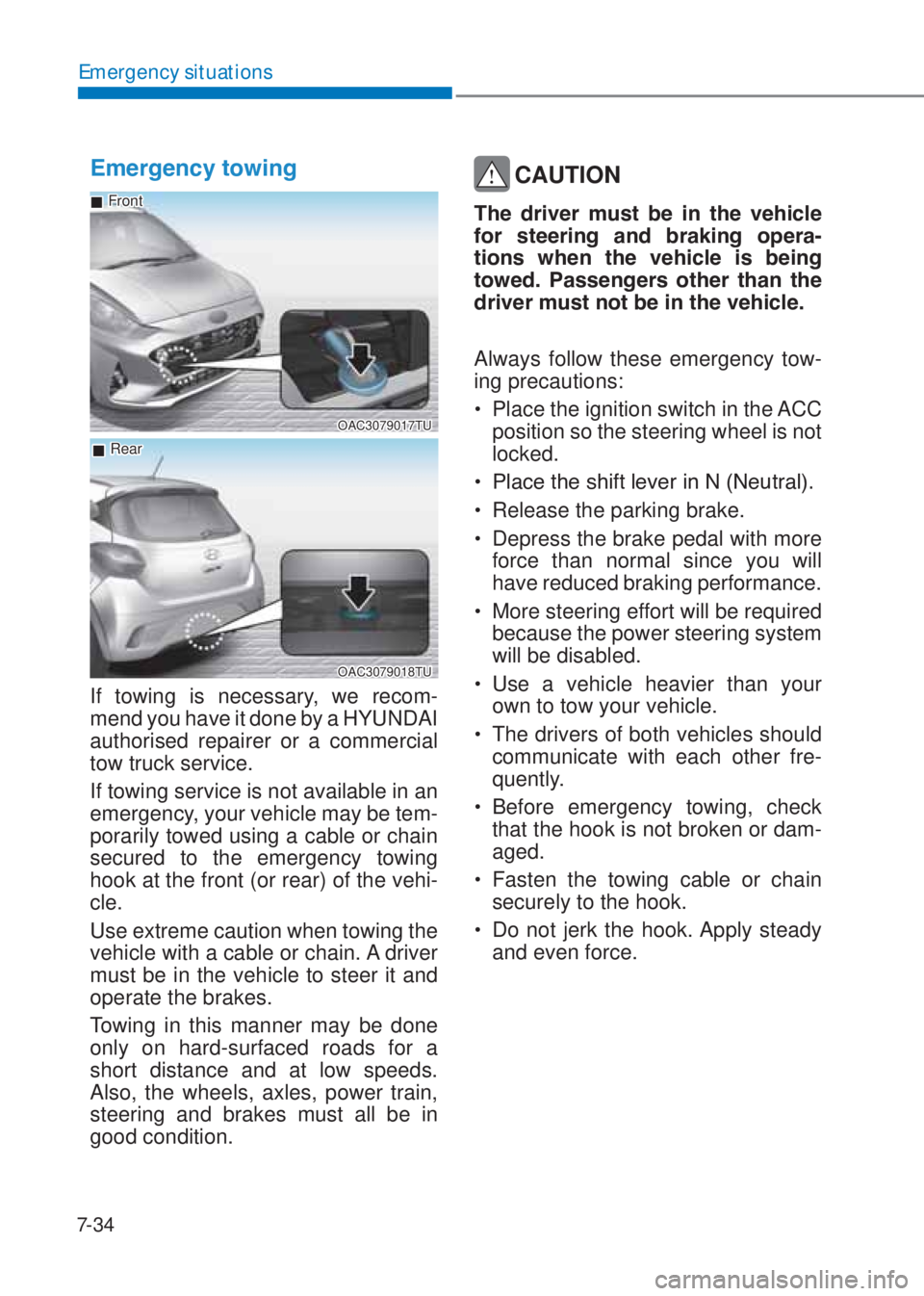

7-34
Emergency situations
( P H U J H Q F \ W R Z L Q J
OAC3079017TU
„Front
„Rear
OAC3079018TU
If towing is necessary, we recom-
mend you have it done by a HYUNDAI
authorised repairer or a commercial
tow truck service.
If towing service is not available in an
emergency, your vehicle may be tem-
porarily towed using a cable or chain
secured to the emergency towing
hook at the front (or rear) of the vehi-
cle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a
short distance and at low speeds.
Also, the wheels, axles, power train,
steering and brakes must all be in
good condition.
CAUTION
7 K H G U L Y H U P X V W E H L Q W K H Y H K L F O H
I R U V W H H U L Q J D Q G E U D N L Q J R S H U D-
W L R Q V Z K H Q W K H Y H K L F O H L V E H L Q J
W R Z H G 3 D V V H Q J H U V R W K H U W K D Q W K H
G U L Y H U P X V W Q R W E H L Q W K H Y H K L F O H
Always follow these emergency tow-
ing precautions:
‡ Place the ignition switch in the ACC
position so the steering wheel is not
locked.
Page 387 of 486

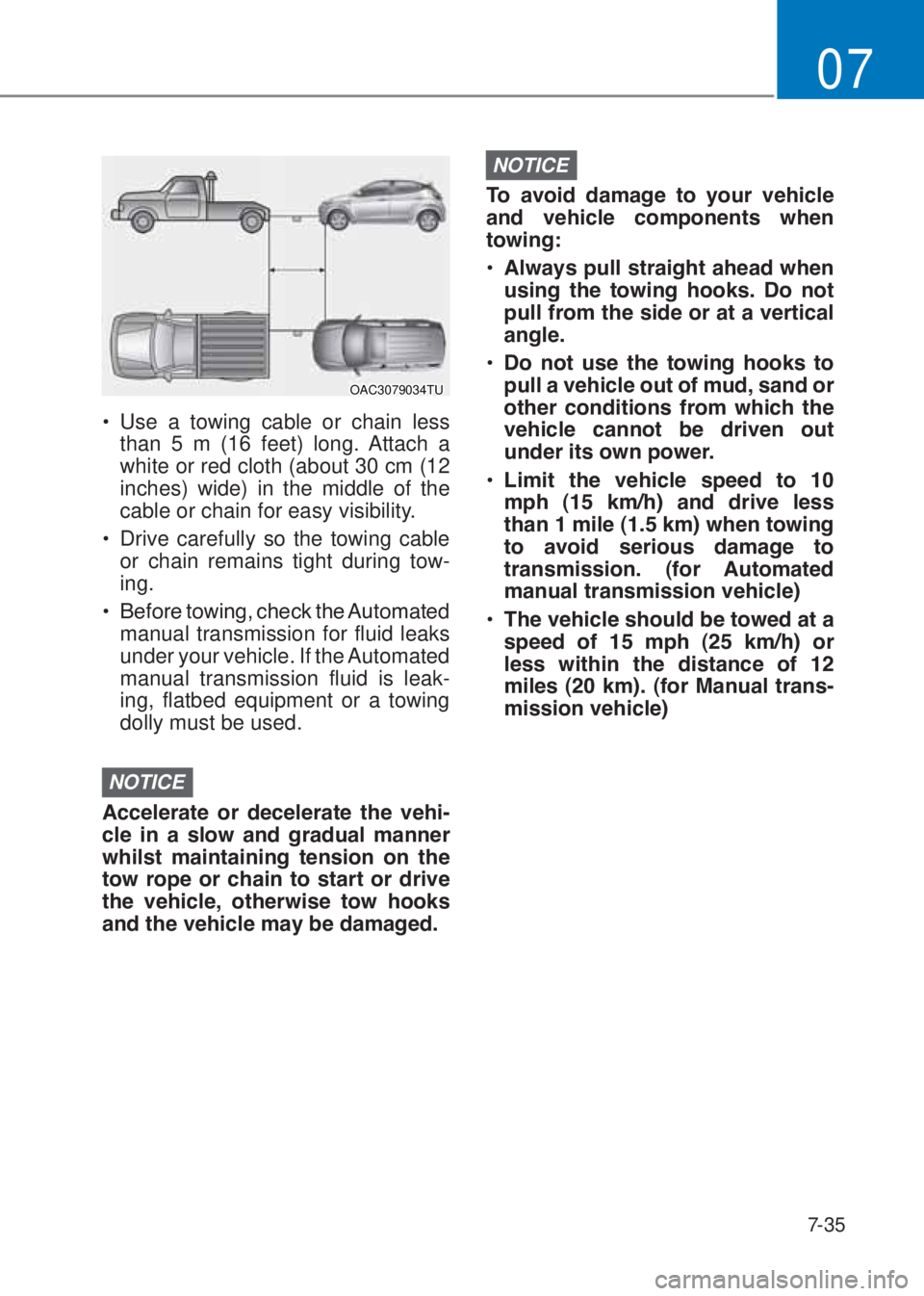

7-35
07
OAC3079034TU
‡ Use a towing cable or chain less
than 5 m (16 feet) long. Attach a
white or red cloth (about 30 cm (12
inches) wide) in the middle of the
cable or chain for easy visibility.
‡ Drive carefully so the towing cable
or chain remains tight during tow-
ing.
Page 388 of 486

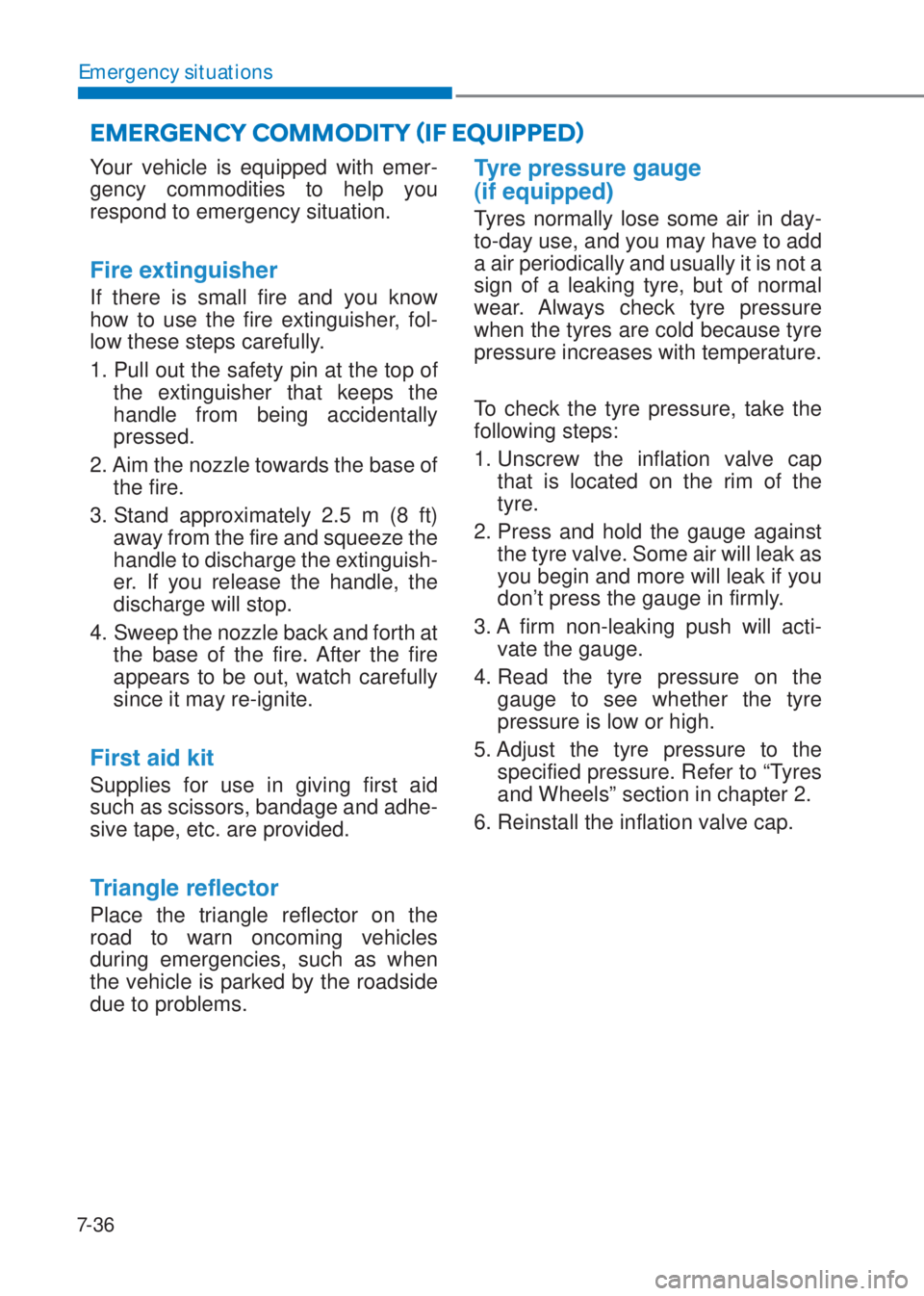

7-36
Emergency situations
Your vehicle is equipped with emer-
gency commodities to help you
respond to emergency situation.
) L U H H [ W L Q J X L V K H U
If there is small fire and you know
how to use the fire extinguisher, fol-
low these steps carefully.
1. Pull out the safety pin at the top of
the extinguisher that keeps the
handle from being accidentally
pressed.
2. Aim the nozzle towards the base of
the fire.
3. Stand approximately 2.5 m (8 ft)
away from the fire and squeeze the
handle to discharge the extinguish-
er. If you release the handle, the
discharge will stop.
4. Sweep the nozzle back and forth at
the base of the fire. After the fire
appears to be out, watch carefully
since it may re-ignite.
) L U V W D L G N L W
Supplies for use in giving first aid
such as scissors, bandage and adhe-
sive tape, etc. are provided.
7 U L D Q J O H U H I O H F W R U
Place the triangle reflector on the
road to warn oncoming vehicles
during emergencies, such as when
the vehicle is parked by the roadside
due to problems.
7 \ U H S U H V V X U H J D X J H
L I H T X L S S H G
Tyres normally lose some air in day-
to-day use, and you may have to add
a air periodically and usually it is not a
sign of a leaking tyre, but of normal
wear. Always check tyre pressure
when the tyres are cold because tyre
pressure increases with temperature.
To check the tyre pressure, take the
following steps:
1. Unscrew the inflation valve cap
that is located on the rim of the
tyre.
2. Press and hold the gauge against
the tyre valve. Some air will leak as
you begin and more will leak if you
don’t press the gauge in firmly.
3. A firm non-leaking push will acti-
vate the gauge.
4. Read the tyre pressure on the
gauge to see whether the tyre
pressure is low or high.
5. Adjust the tyre pressure to the
specified pressure. Refer to “Tyres
and Wheels” section in chapter 2.
6. Reinstall the inflation valve cap.
EMERGENCY COMMODITY ãIF EQUIPPEDä
Page 389 of 486

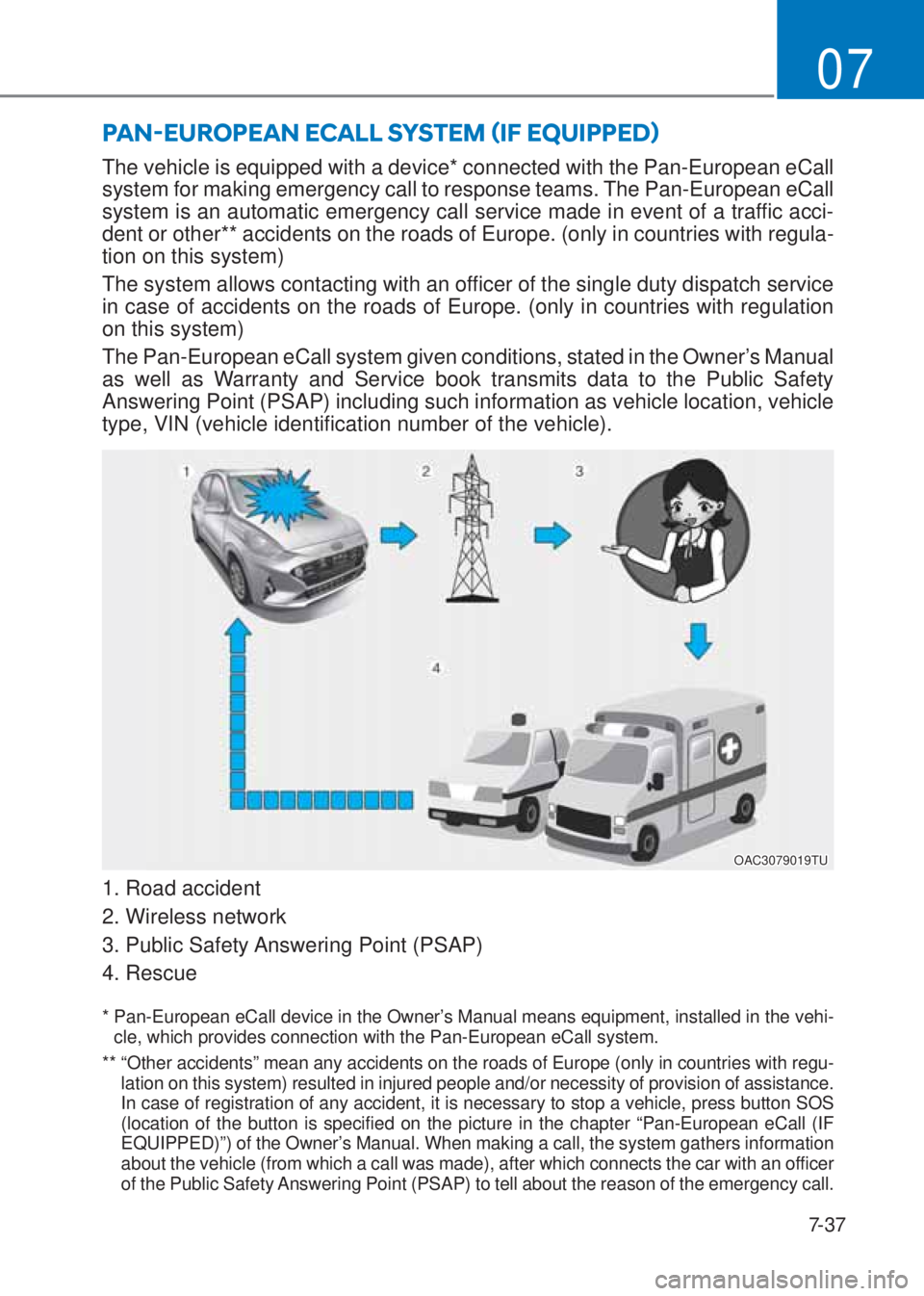

7-37
07
PA NØEUROPEAN ECALL SYSTEM ãIF EQUIPPEDä
The vehicle is equipped with a device* connected with the Pan-European eCall
system for making emergency call to response teams. The Pan-European eCall
system is an automatic emergency call service made in event of a traffic acci-
dent or other** accidents on the roads of Europe. (only in countries with regula-
tion on this system)
The system allows contacting with an officer of the single duty dispatch service
in case of accidents on the roads of Europe. (only in countries with regulation
on this system)
The Pan-European eCall system given conditions, stated in the Owner’s Manual
as well as Warranty and Service book transmits data to the Public Safety
Answering Point (PSAP) including such information as vehicle location, vehicle
type, VIN (vehicle identification number of the vehicle).
OAC3079019TU
1. Road accident
2. Wireless network
3. Public Safety Answering Point (PSAP)
4. Rescue
* Pan-European eCall device in the Owner’s Manual means equipment, installed in the vehi-
cle, which provides connection with the Pan-European eCall system.
** “Other accidents” mean any accidents on the roads of Europe (only in countries with regu-
lation on this system) resulted in injured people and/or necessity of provision of assistance.
In case of registration of any accident, it is necessary to stop a vehicle, press button SOS
(location of the button is specified on the picture in the chapter “Pan-European eCall (IF
EQUIPPED)”) of the Owner’s Manual. When making a call, the system gathers information
about the vehicle (from which a call was made), after which connects the car with an officer
of the Public Safety Answering Point (PSAP) to tell about the reason of the emergency call.
Page 390 of 486
7-38
Emergency situations
Once the data which is stored in the Pan-European eCall system is delivered to
the rescue centre to assist the driver and passengers with proper rescue oper-
ations, the data will be deleted after rescue operation is completed.
OAC3079020TU
Overview of the 112-based eCall in-vehicle system, its operation and function-
alities: refer to this section. The 112-based eCall service is a public service of
general interest and is accessible free of charge.
The 112-based eCall in-vehicle system is activated by default. It is activated
automatically by means of in- vehicle sensors in the event of a severe accident. ' H V F U L S W L R Q R I W K H H F D O O L Q Y H K L F O H V \ V W H P
