display HYUNDAI I10 2022 Owner's Manual

4-36
Instrument cluster
Accumulated Info display
OAC3069041TU
This display shows the accumulated
trip distance (1), the average fuel
economy (2), and the total driving
time (3).
The information is accumulated start-
ing from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average fuel
economy, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted whilst the
engine is still running (for example,
when the vehicle is in traffic or
stopped at a stop light).
i Information
7he vehicle must be driven for a mini-
mum of .1 miles (3 metres) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.
Drive Info display
OAC3069040R
This display shows the trip distance
(1), the average fuel economy (2),
and the total driving time (3).
The information is combined for each
ignition cycle. However, when the
engine has been OFF for 4 hours or
longer the Drive Info screen will reset.
To manually reset the information,
press and hold the OK button when
viewing the Drive Info. The trip dis-
tance, the average fuel economy,
and total driving time will reset simul-
taneously.
The driving information will continue
to be counted whilst the engine is still
running (for example, when the vehi-
cle is in traffic or stopped at a stop
light.)

4-37
04
i Information
7he vehicle must be driven for a mini-
mum of .1 miles (3 metres) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.
Digital speedometer
OPDE046145R
This message shows the speed of
the vehicle (km/h, MPH).Transmission (if equipped)
OAC3069029TU
This mode displays the temperature
of Automated manual transmission.
For more details, refer to the
"Automated manual transmission
(AMT)" in chapter 6.

5

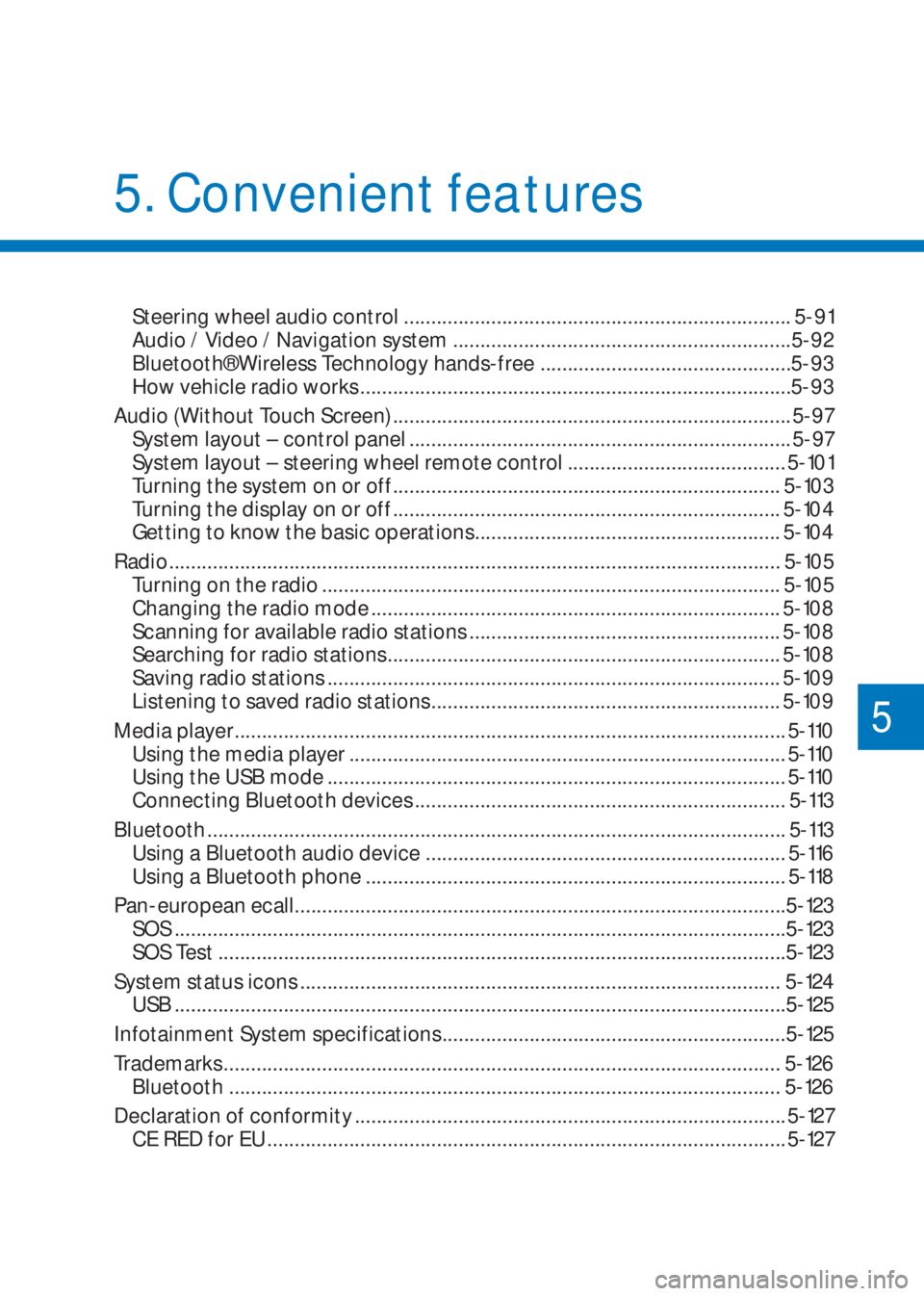

5. Convenient features
Steering wheel audio control ....................................................................... 5-91
Audio / Video / Navigation system ..............................................................5-92
Bluetooth® Wireless Technology hands-free ..............................................5-93
How vehicle radio works ...............................................................................5-93
Audio (Without Touch Screen) ......................................................................... 5-97
System layout – control panel ...................................................................... 5-97
System layout – steering wheel remote control ........................................ 5-101
Turning the system on or off ....................................................................... 5-103
Turning the display on or off ....................................................................... 5-104
Getting to know the basic operations ........................................................ 5-104
Radio ................................................................................................................ 5-105
Turning on the radio .................................................................................... 5-105
Changing the radio mode ........................................................................... 5-108
Scanning for available radio stations ......................................................... 5-108
Searching for radio stations ........................................................................ 5-108
Saving radio stations ................................................................................... 5-109
Listening to saved radio stations ................................................................ 5-109
Media player ..................................................................................................... 5-110
Using the media player ................................................................................ 5-110
Using the USB mode .................................................................................... 5-110
Connecting Bluetooth devices .................................................................... 5-113
Bluetooth .......................................................................................................... 5-113
Using a Bluetooth audio device .................................................................. 5-116
Using a Bluetooth phone ............................................................................. 5-118
Pan-european ecall..........................................................................................5-123
SOS ................................................................................................................5-123
SOS Test ........................................................................................................5-123
System status icons ........................................................................................ 5-124
USB ................................................................................................................5-125
Infotainment System specifications ...............................................................5-125
Trademarks ...................................................................................................... 5-126
Bluetooth ..................................................................................................... 5-126
Declaration of conformity ............................................................................... 5-127
CE RED for EU ............................................................................................... 5-127

5-41
05

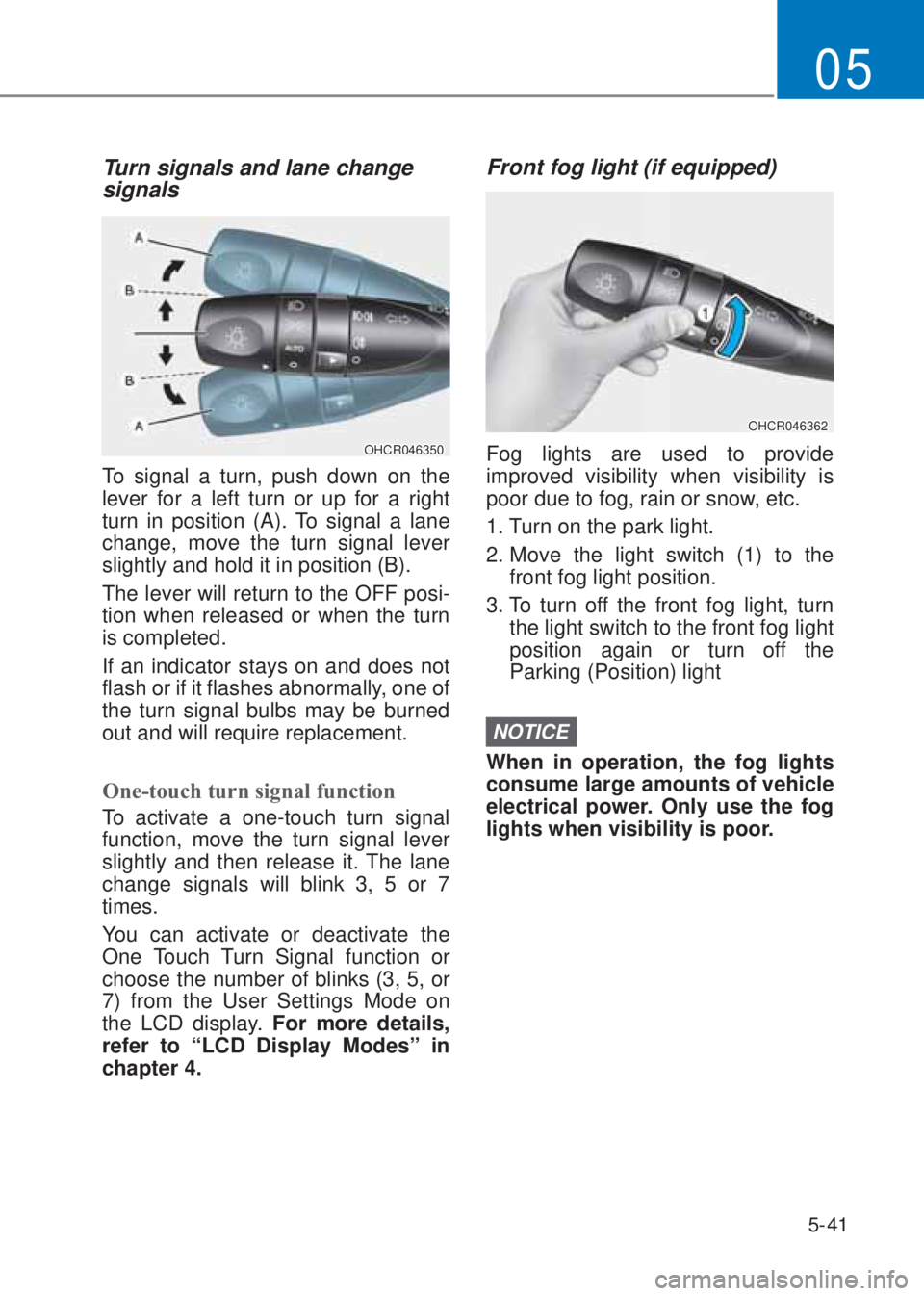

Turn signals and lane change
signals
OHCR046350
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B).
The lever will return to the OFF posi-
tion when released or when the turn
is completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
2ne-touch turn signal function
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate or deactivate the
One Touch Turn Signal function or
choose the number of blinks (3, 5, or
7) from the User Settings Mode on
the LCD display. )RU PRUH GHWDLOV
refer to “LCD Display Modes” in
chapter 4.
Front fog light (if equipped)
OHCR046362
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
1. Turn on the park light.
2. Move the light switch (1) to the
front fog light position.
3. To turn off the front fog light, turn
the light switch to the front fog light
position again or turn off the
Parking (Position) light
NOTICE
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor.

5-66
Convenient features

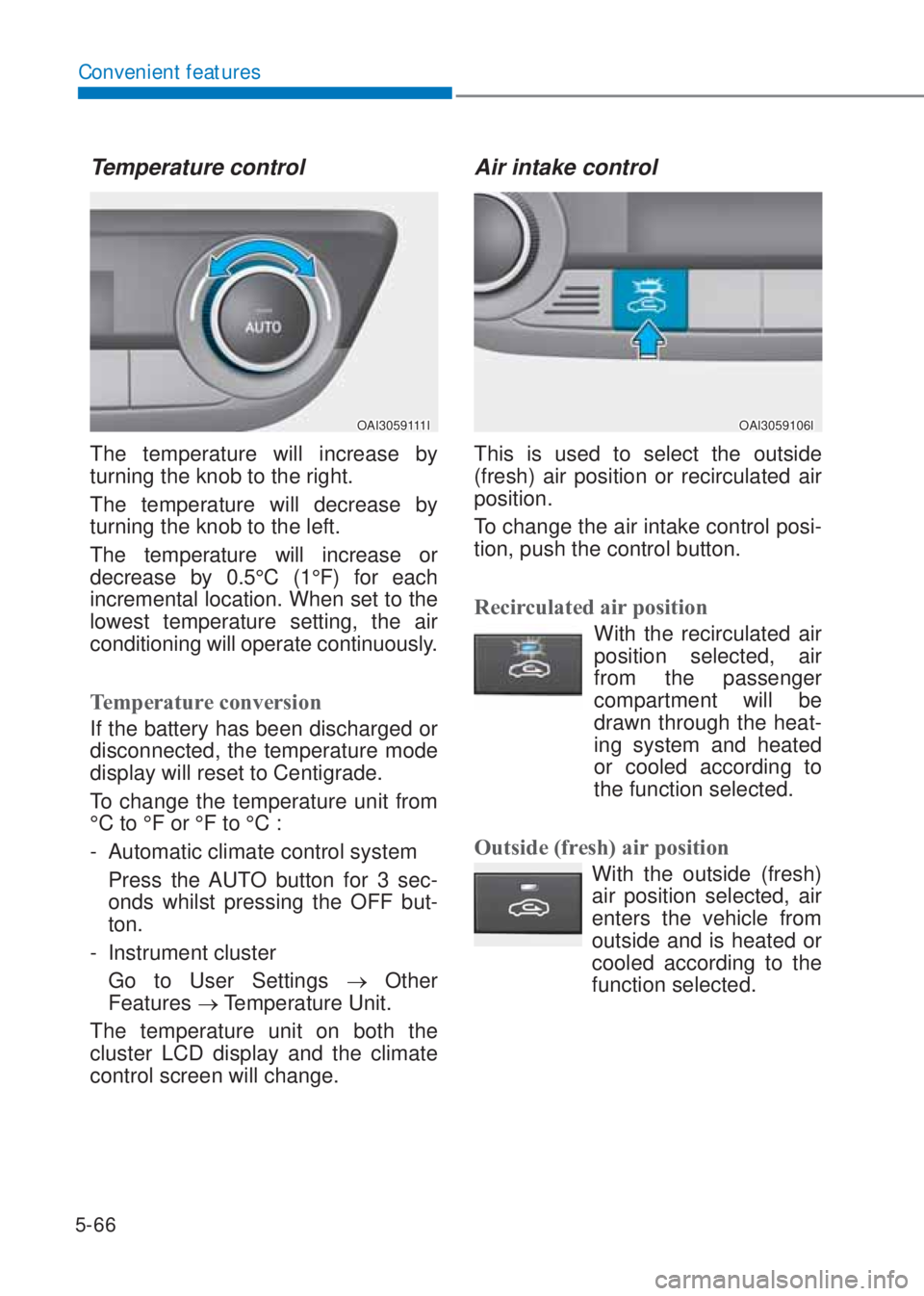

Temperature control
OAI3059111I
The temperature will increase by
turning the knob to the right.
The temperature will decrease by
turning the knob to the left.
The temperature will increase or
decrease by 0.5°C (1°F) for each
incremental location. When set to the
lowest temperature setting, the air
conditioning will operate continuously.
7emperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Centigrade.
To change the temperature unit from
°C to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 sec-
onds whilst pressing the OFF but-
ton.
- Instrument cluster
Go to User Settings o Other
Features o Temperature Unit.
The temperature unit on both the
cluster LCD display and the climate
control screen will change.
Air intake control
OAI3059106I
This is used to select the outside
(fresh) air position or recirculated air
position.
To change the air intake control posi-
tion, push the control button.
Recirculated air position
With the recirculated air
position selected, air
from the passenger
compartment will be
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
2utside (fresh) air position
With the outside (fresh)
air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.

5-104
Convenient features

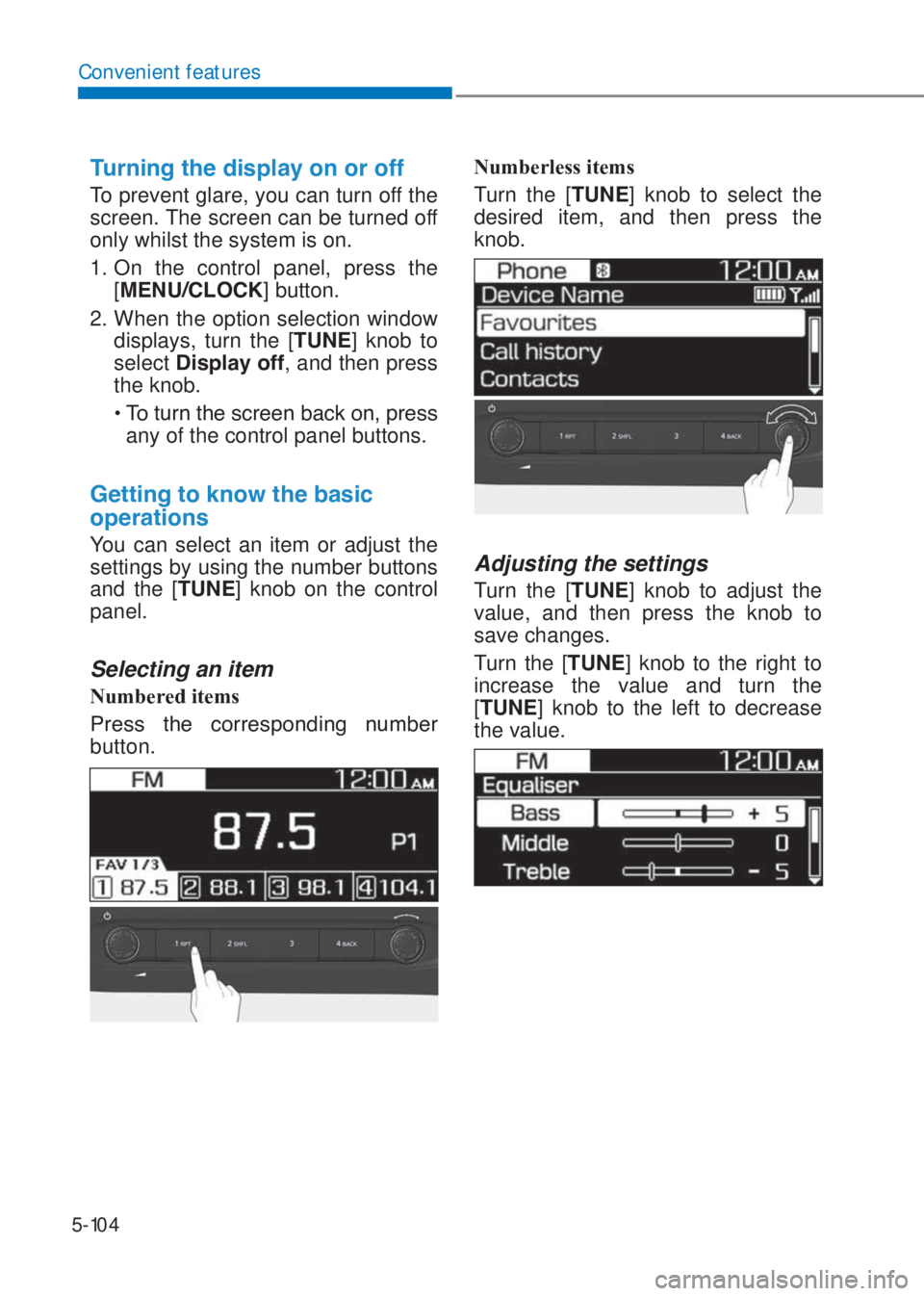

7XUQLQJWKHGLVSOD\RQRURII
To prevent glare, you can turn off the
screen. The screen can be turned off
only whilst the system is on.
1. On the control panel, press the
[0(18&/2&.] button.
2. When the option selection window
displays, turn the [TUNE] knob to
select 'LVSOD\RII, and then press
the knob.

5-105
05

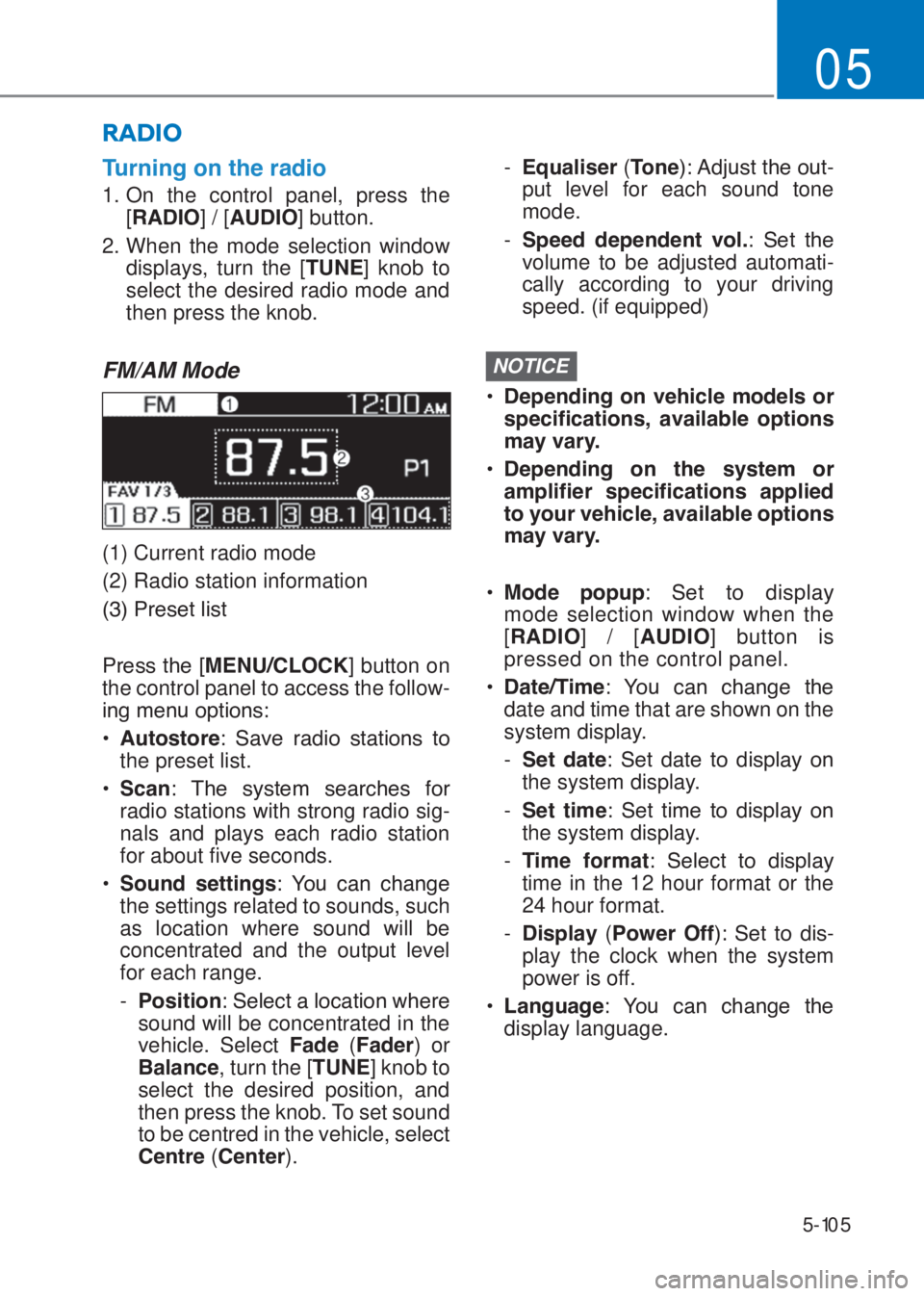

7XUQLQJRQWKHUDGLR
1. On the control panel, press the
[5$',2] / [$8',2] button.
2. When the mode selection window
displays, turn the [TUNE] knob to
select the desired radio mode and
then press the knob.
FM/AM Mode
(1) Current radio mode
(2) Radio station information
3UHVHWOLVW
3UHVVWKH>0(18&/2&.] button on
the control panel to access the follow-
LQJPHQXRSWLRQV

5-108
Convenient features

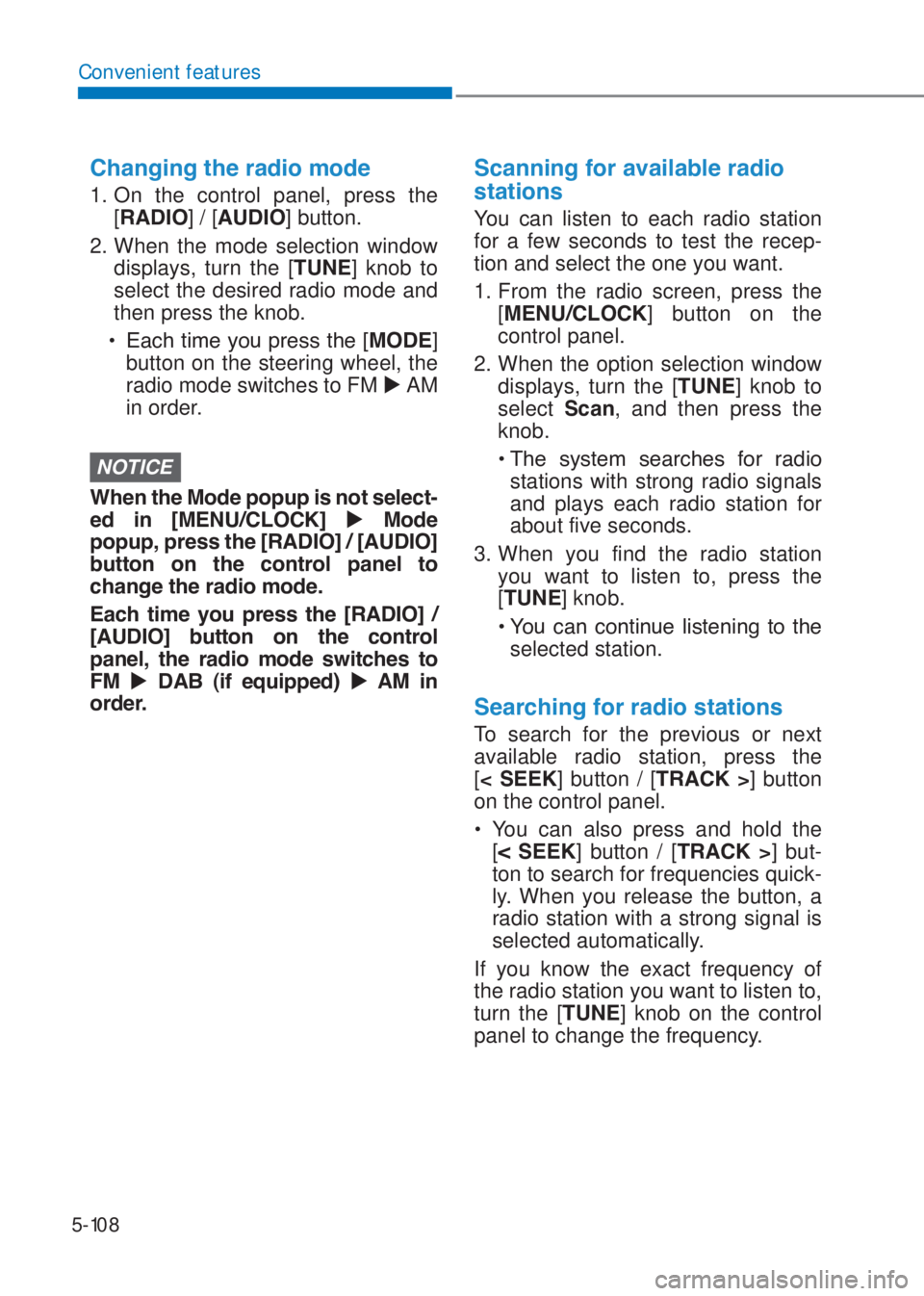

&KDQJLQJWKHUDGLRPRGH
1. On the control panel, press the
[5$',2] / [$8',2] button.
2. When the mode selection window
displays, turn the [TUNE] knob to
select the desired radio mode and
then press the knob.

5-112
Convenient features
Restarting the current playback
On the control panel after the song
has played for 2 seconds, press the
[6((.] button.
‡You can also push the Up lever on
the steering wheel.
Playing the previous or next
song
To play the previous song on the con-
trol panel within the first 2 seconds of
the current song, press the [6((.]
button. To play the next song, press
the [75$&. !] button on the control
panel.
‡If more than 2 seconds of playback
have elapsed, press the [ 6((.]
button on the control panel twice to
play the previous song.
‡You can also push the Up/down
lever on the steering wheel.
NOTICE
3UHVV WKH >0(18@ EXWWRQ RQ WKH
FRQWURO SDQHO WR GLVSOD\ WKH PRGH
VHOHFWLRQ ZLQGRZ WXUQ WKH >781(@
NQRE WR ILQG WKH GHVLUHG VRQJ DQG
SUHVVWKHNQREWRSOD\WKHILOH
Playing repeatedly
On the control panel, press the [537]
button. The repeat play mode changes
each time you press it. The corre-
sponding mode icon will be displayed
on the screen.
Playing in random order
On the control panel, press the
[6+)/] button. The shuffle play mode
is activated or deactivated each time
you press it. When you activate the
shuffle mode, the corresponding mode
icon will be displayed on the screen.
NOTICE
'HSHQGLQJ RQ WKH FRQQHFWHG
%OXHWRRWKGHYLFHRUPRELOHSKRQH
537  6+)/ IHDWXUHV PD\ QRW EH
VXSSRUWHG
Searching folders
1. On the control panel, press the
[0(18&/2&.] button.
2. When the option selection window
displays, turn the [TUNE] knob to
select the )ROGHU OLVW and then
press the knob.
3. Navigate to the desired folder in
the )ROGHUOLVW and then press the
[TUNE] knob.

5-117
05
-

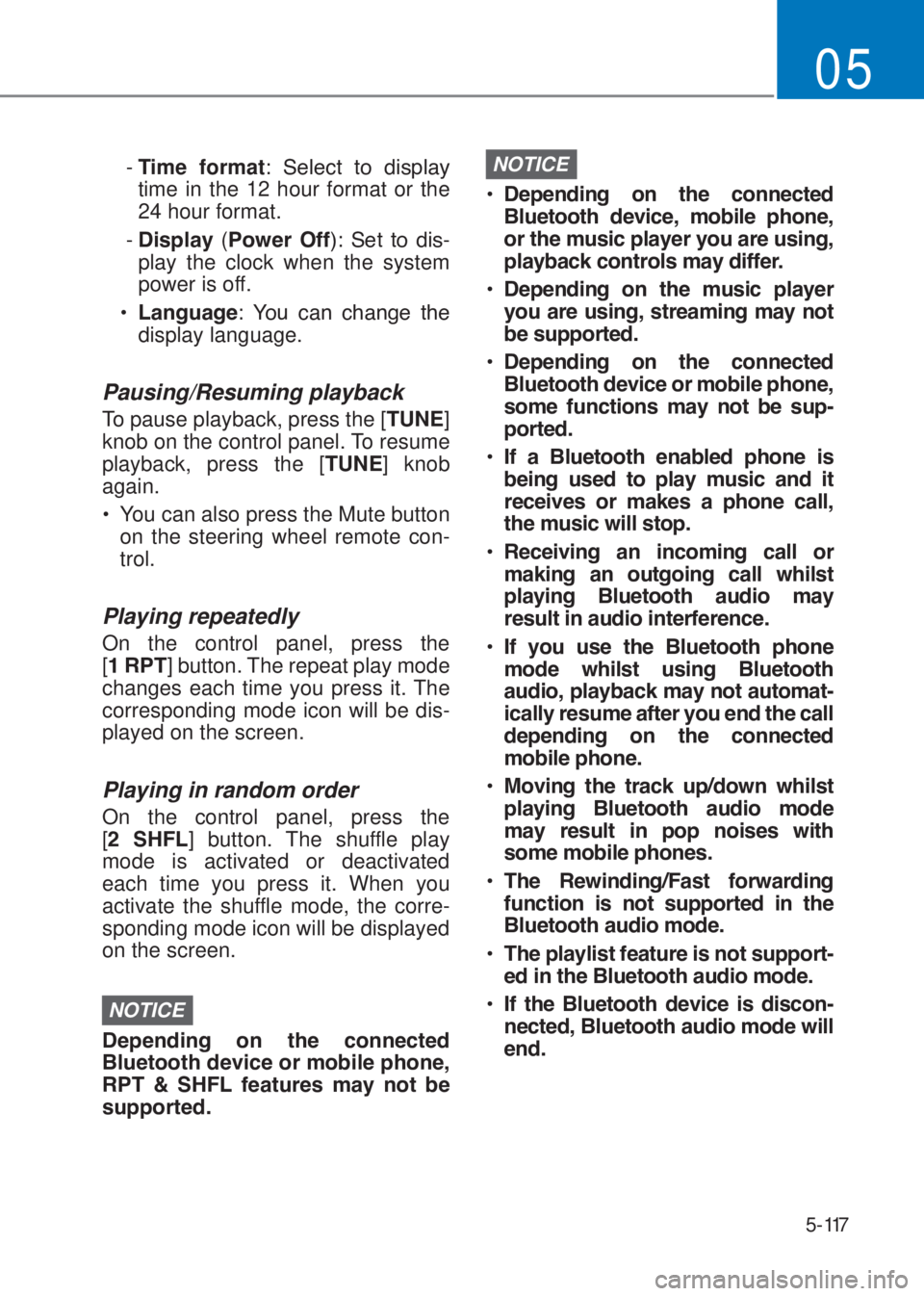

Time format 6HOHFW WR GLVSOD\
time in the 12 hour format or the
24 hour format.
- 'LVSOD\ (3RZHU 2II 6HW WR GLV-
play the clock when the system
power is off.
‡/DQJXDJH <RX FDQ FKDQJH WKH
display language.
Pausing/Resuming playback
To pause playback, press the [TUNE]
knob on the control panel. To resume
playback, press the [TUNE] knob
again.
‡You can also press the Mute button
on the steering wheel remote con-
trol.
Playing repeatedly
On the control panel, press the
[537] button. The repeat play mode
changes each time you press it. The
corresponding mode icon will be dis-
played on the screen.
Playing in random order
On the control panel, press the
[ 6+)/] button. The shuffle play
mode is activated or deactivated
each time you press it. When you
activate the shuffle mode, the corre-
sponding mode icon will be displayed
on the screen.
NOTICE
'HSHQGLQJ RQ WKH FRQQHFWHG
%OXHWRRWKGHYLFHRUPRELOHSKRQH
537  6+)/ IHDWXUHV PD\ QRW EH
VXSSRUWHG
