Downloaded from www.Manualslib.com manuals search engine Maintenance
104
7
Interior care
Interior general precautions
Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration. If they do con-
tact the dashboard, wipe them off imme-
diately. See the instructions that follow for
the proper way to clean vinyl.
Cleaning the upholstery and interior
trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl surfaces with a vinyl cleaner.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom-
mended for upholstery or carpets.
Remove fresh spots immediately with a
fabric spot cleaner. If fresh spots do not
receive immediate attention, the fabric
can be stained and its color can be
affected. Also, its fire-resistant properties
can be reduced if the material is not
properly maintained.
Cleaning the lap/shoulder belt web-bing
Clean the belt webbing with any mild
soap solution recommended for cleaning
upholstery or carpet. Follow the instruc-
tions provided with the soap. Do not
bleach or re-dye the webbing because
this may weaken it.
Cleaning the interior window glass
If the interior glass surfaces of the vehi-
cle become fogged (that is, covered with
an oily, greasy or waxy film), they should
be cleaned with glass cleaner. Follow the
directions on the glass cleaner container.CAUTION
Never allow water or other liquids to come in contact withelectrical/electronic componentsinside the vehicle as this may dam-age them.
CAUTION
Using anything but recommended cleaners and procedures may affectthe fabric’s appearance and fire-resistant properties.
CAUTION
When cleaning leather products(steering wheel, seats etc.), useneutral detergents or low alcoholcontent solutions. If you use highalcohol content solutions oracid/alkaline detergents, the color of the leather may fade or the sur-face may get stripped off.
CAUTION
Do not scrape or scratch the insideof the rear window. This may resultin damage to the rear windowdefroster grid.

Downloaded from www.Manualslib.com manuals search engine 85
Specifications & Consumer information
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
RECOMMENDED LUBRICANTS AND CAPACITIES
*1Refer to the recommended SAE viscosity numbers on 8-6 page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3Diesel Particulate Filter
Lubricant Volume Classification
Engine oil
*1 *2
(drain and refill)
Recommends Gasoline
Engine
1.6L
3.3
l(3.48 US qt.) GDI engine
API Service SL or SM, ACEA A5 or above
Use the engine oils approved by Hyundai Motor Company.
Consult an authorized HYUNDAI dealer for details.
MPI engine
API Service SM, ILSAC GF-4 or above
2.0L
4.0
l(4.22 US qt.)
Diesel
Engine 1.7Lwith DPF *
35.3
l(5.60 US qt.)
ACEA C3
without DPF *
35.3 l(5.60 US qt.)
ACEA B4
Manual
transaxle fluid Gasoline
Engine
1.6L
1.8
l ~ 1.9 l
(1.90 ~ 2.01US qt.)
API GL-4, SAE 75W/85
2.0L
1.9
l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
Diesel
Engine 1.7LHigh
1.8
l ~ 1.9 l
(1.90 ~ 2.01US qt.)
Low 1.9
l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
Automatic
transaxle fluid Gasoline Engine
7.1
l(7.50 US qt.) MICHANG ATF SP-IV
SK ATF SP-IV
NOCA ATF SP-IV
HYUNDAI genuine ATF SP-IV
Diesel Engine7.1 l(7.50 US qt.)

Downloaded from www.Manualslib.com manuals search engine Specifications & Consumer information
68
Recommends Engine oil (For Europe)
SupplierProduct
Gasoline Engine (GDI) Diesel Engine
SK ZIC LD5W-30 ZIC LS 5W-30
Chevron KIXX G1 LL KIXX D1 5W-30
Total QUARTZ HKS G-310
QUARTZ INEO MC3 5W-30
QUARTZ INEO MC3 5W-30
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
Fuchs TITAN SUPERSYN LONG LIFE 5W-30/40
Lubricant Volume Classification
Coolant
Gasoline
Engine
1.6L6.8 l(7.18 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)2.0L
MT7.1 l(7.50 US qt.)
ATGDI6.8 l(7.18 US qt.)
MPI6.9 l(7.29 US qt.)
Diesel Engine6.9 l(7.29 US qt.)
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel 70
l(18.49 US gal.)
Refer to “Fuel requirements” in section 1

Downloaded from www.Manualslib.com manuals search engine 87
Specifications & Consumer information
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil °C
(°F)
GDI
MPI *
1
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil (1.7L)
5W-30
15W-40
10W-30
0W-30
0W-40, 5W-30, 5W-40
5W-20*2, 5W-30
*1For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20*2(API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
*
2In the Middle East, do not use the engine oil viscosity grade SAE 5W-20.

Downloaded from www.Manualslib.com manuals search engine Index
4I
Defrosting (Windshield) ..............................................4-133
Dimensions ......................................................................8-\
2
Display illumination, see instrument panel illumination........................................................................\
............4-49
Displays, see instrument cluster ....................................4-48
Door locks......................................................................4-\
15 Central door lock switch .............................................4-16
Child-protector rear door lock .....................................4-19
Deadlocks ....................................................................4-18\
Drinks holders, see cup holders...................................4-141
Driver's and passenger's front air bag............................3-48
Driver's position memory system ..................................4-39
Driving at night..............................................................5-66
Driving in flooded areas ................................................5-67
Driving in the rain .........................................................5-67
Easy access function ......................................................4-40
Economical operation ....................................................5-63
Electric chromic mirror (ECM) .....................................4-44
Electric parking brake....................................................5-31
Electric power steering ..................................................4-41
Electronic stability program (ESP)................................5-41
E-mark label...................................................................8-10
Emergency commodity ..................................................6-30 Emergency starting ..........................................................6-5
Jump starting .................................................................6-5
Push starting ..................................................................6-6
Emergency Stop Signal (ESS) .......................................5-45
Emergency while driving.................................................6-3
Emission control system ..............................................7-105 Crankcase emission control system...........................7-105
Evaporative emission control System .......................7-105
Exhaust emission control system ..............................7-106
Engine ........................................................................\
......8-2
Engine compartment ................................................2-8, 7-2
Engine coolant ...............................................................7-45
Engine number .................................................................8-9
Engine oil .......................................................................7\
-44
Engine overheats..............................................................6-7
Engine start/stop button ...................................................5-8
Engine temperature gauge .............................................4-50
Engine will not start.........................................................6-4
Evaporative emission control System .........................7-105
Exhaust emission control system.................................7-106
Explanation of scheduled maintenance items ...............7-41
Exterior care...................................................................7-99
Exterior features Mounting bracket for roof carrier .............................4-151
E

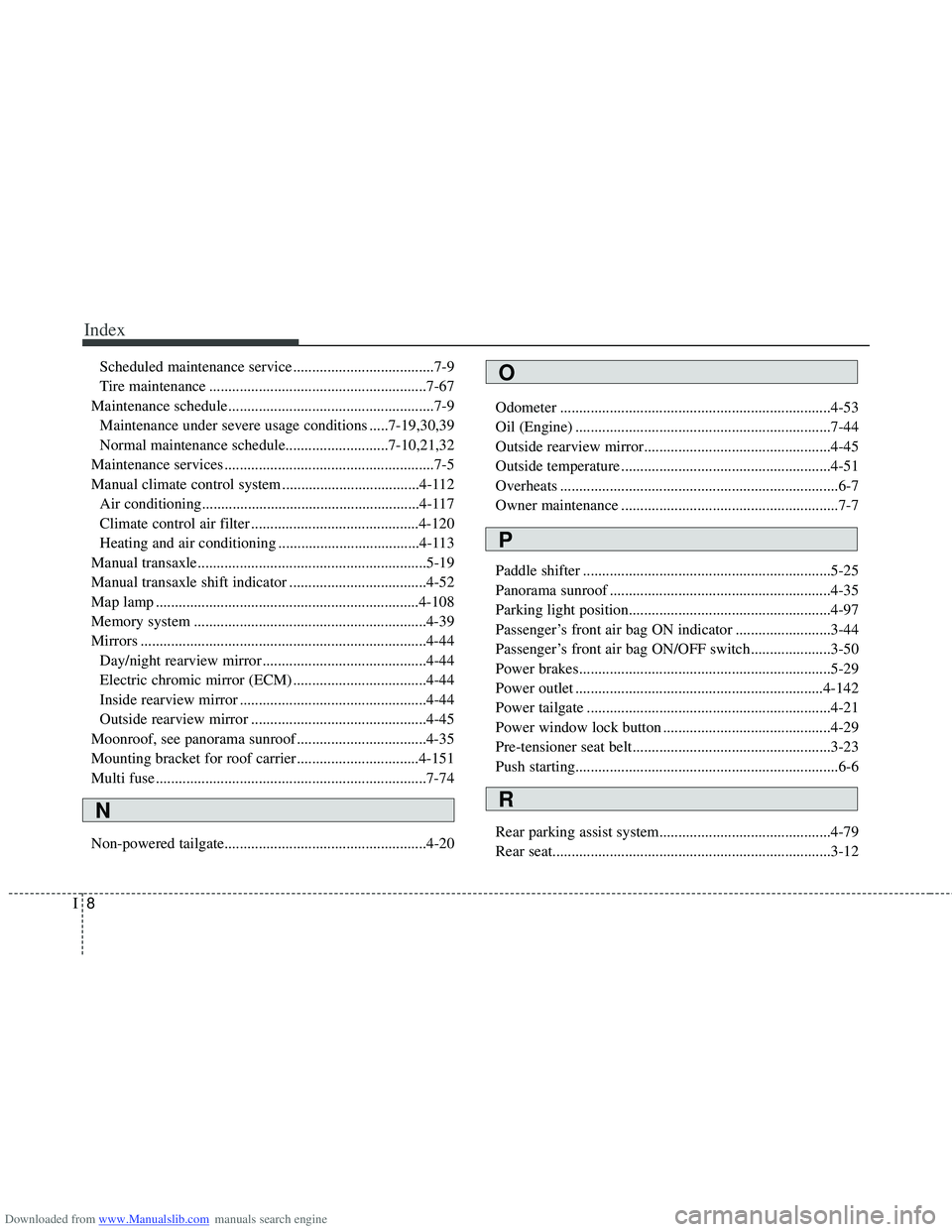

Downloaded from www.Manualslib.com manuals search engine Index
8I
Scheduled maintenance service .....................................7-9
Tire maintenance .........................................................7-67
Maintenance schedule......................................................7-9 Maintenance under severe usage conditions .....7-19,30,39
Normal maintenance schedule...........................7-10,21,32
Maintenance services .......................................................7-5
Manual climate control system ....................................4-112 Air conditioning.........................................................4-117
Climate control air filter ............................................4-120
Heating and air conditioning .....................................4-113
Manual transaxle............................................................5-19
Manual transaxle shift indicator ....................................4-52
Map lamp .....................................................................4-1\
08
Memory system .............................................................4-39
Mirrors ........................................................................\
...4-44 Day/night rearview mirror ...........................................4-44
Electric chromic mirror (ECM) ...................................4-44
Inside rearview mirror .................................................4-44
Outside rearview mirror ..............................................4-45
Moonroof, see panorama sunroof ..................................4-35
Mounting bracket for roof carrier................................4-151
Multi fuse .......................................................................7\
-74
Non-powered tailgate.....................................................4-20 Odometer .......................................................................4\
-53
Oil (Engine) ...................................................................7-44
Outside rearview mirror.................................................4-45
Outside temperature .......................................................4-51
Overheats ........................................................................\
.6-7
Owner maintenance .........................................................7-7
Paddle shifter .................................................................5-25
Panorama sunroof ..........................................................4-35
Parking light position.....................................................4-97
Passenger’s front air bag ON indicator .........................3-44
Passenger’s front air bag ON/OFF switch.....................3-50
Power brakes..................................................................5-29
Power outlet .................................................................4-142
Power tailgate ................................................................4-21
Power window lock button ............................................4-29
Pre-tensioner seat belt....................................................3-23
Push starting.....................................................................6-6\
Rear parking assist system.............................................4-79
Rear seat........................................................................\
.3-12
N
O
P
R
