Hyundai Ioniq Hybrid 2017 Multimedia Manual

My Music I 3-29
03

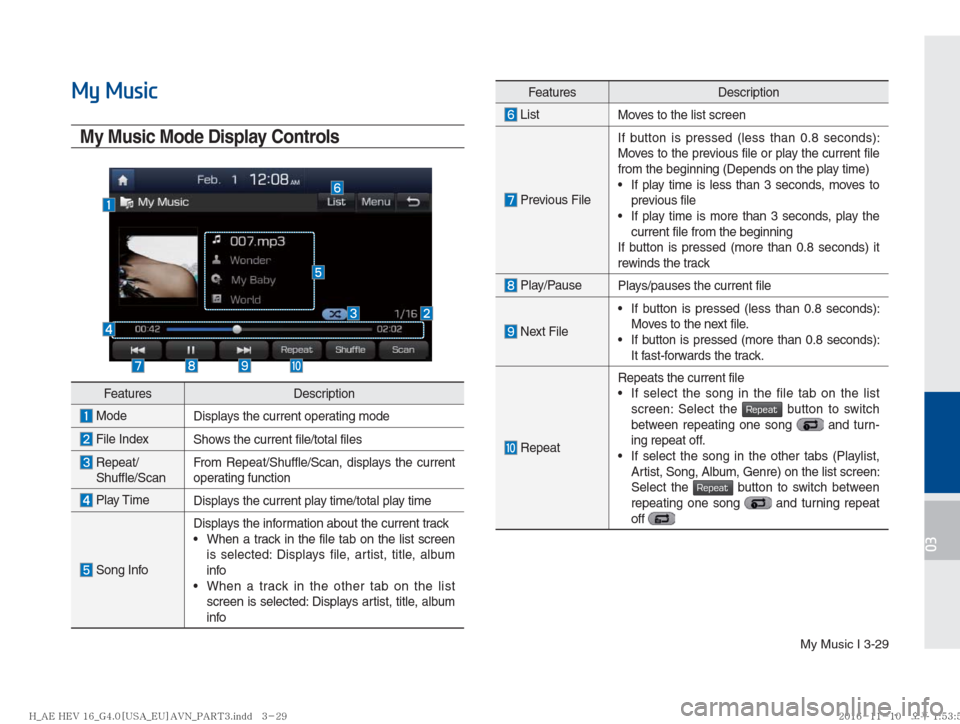

My Music
My Music Mode Display Controls
Features Description
Mode
Displays the current operating mode
File Index
Shows the current file/total files

Repeat/
Shuffle/ScanFrom Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track
When a track in the file tab on the list screen
is selected: Displays file, artist, title, album
info
When a track in the other tab on the list
screen is selected: Displays artist, title, album
info
Features Description
List
Moves to the list screen
Previous FileIf button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
If play time is less than 3 seconds, moves to
previous file
If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
rewinds the track
Play/Pause
Plays/pauses the current file
Next File If button is pressed (less than 0.8 seconds):
Moves to the next file.
If button is pressed (more than 0.8 seconds):
It fast-forwards the track.
RepeatRepeats the current file
If select the song in the file tab on the list
screen: Select the
Repeat button to switch
between repeating one song and turn-
ing repeat off.
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen:
Select the
Repeat button to switch between
repeating one song and turning repeat
off
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


3-30 I AV

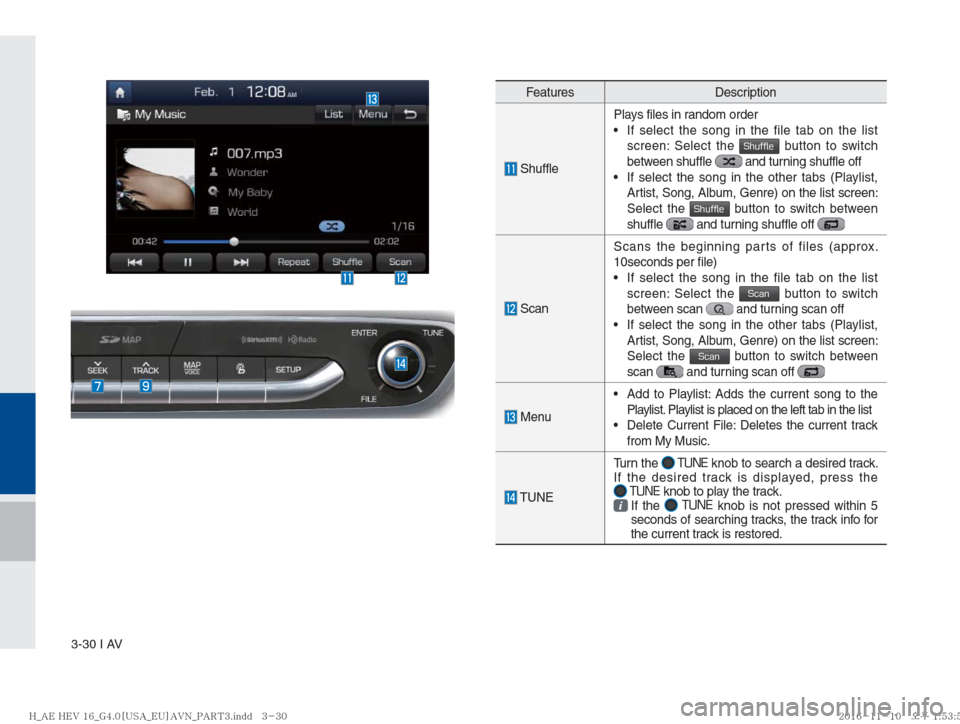

Features Description
ShufflePlays files in random order
If select the song in the file tab on the list
screen: Select the
Shuffle button to switch
between shuffle and turning shuffle off
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen:
Select the
Shuffle button to switch between
shuffle and turning shuffle off
Scan Scans the beginning parts of files (approx.
10seconds per file)
If select the song in the file tab on the list
screen: Select the
Scan button to switch
between scan and turning scan off
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen:
Select the
Scan button to switch between
scan and turning scan off
Menu Add to Playlist: Adds the current song to the
Playlist. Playlist is placed on the left tab in the list
Delete Current File: Deletes the current track
from My Music.
TUNETurn the
TUNE knob to search a desired track.
If the desired track is displayed, press the
TUNE knob to play the track. If the TUNE knob is not pressed within 5
seconds of searching tracks, the track info for
the current track is restored.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


My Music I 3-31
03

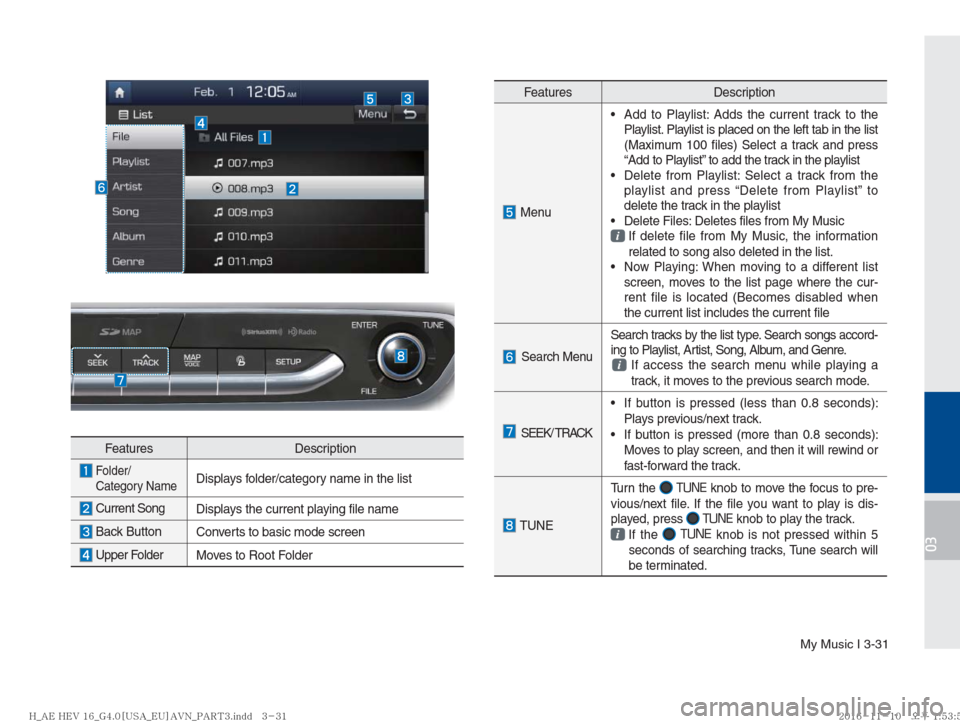

Features Description
Folder/
Category Name Displays folder/category name in the list
Current Song
Displays the current playing file name
Back Button
Converts to basic mode screen
Upper Folder
Moves to Root Folder
Features Description
Menu Add to Playlist: Adds the current track to the
Playlist. Playlist is placed on the left tab in the list
(Maximum 100 files) Select a track and press
“Add to Playlist” to add the track in the playlist
Delete from Playlist: Select a track from the
playlist and press “Delete from Playlist” to
delete the track in the playlist
Delete Files: Deletes files from My Music
If delete file from My Music, the information
related to song also deleted in the list.
Now Playing: When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file
Search MenuSearch tracks by the list type. Search songs accord-
ing to Playlist, Artist, Song, Album, and Genre. If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/ TRACK If button is pressed (less than 0.8 seconds):
Plays previous/next track.
If button is pressed (more than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track.
TUNETurn the
TUNE knob to move the focus to pre-
vious/next file. If the file you want to play is dis-
played, press
TUNE knob to play the track.

If the TUNE knob is not pressed within 5
seconds of searching tracks, Tune search will
be terminated.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


MEMO
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


Before Using the Bluetooth® Handsfree
Bluetooth Connection
Bluetooth Phone
part.4 Bluetooth
04
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


4-2 I Bluetooth

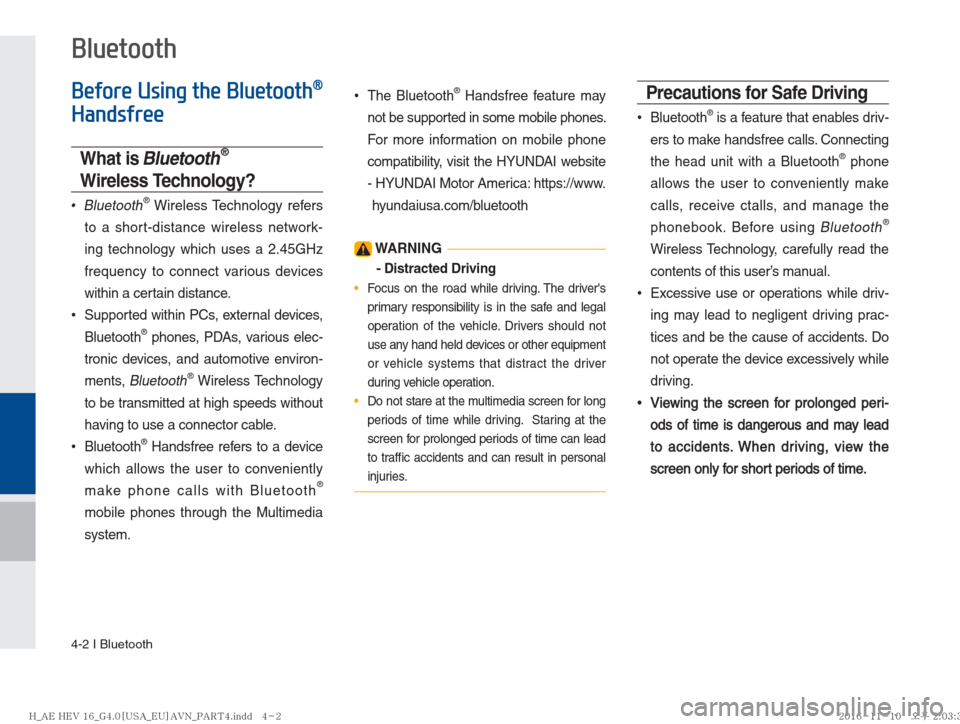

Before Using the Bluetooth®
Handsfree
What is Bluetooth®
Wireless Technology?
•
Bluetooth® Wireless Technology refers
to a short-distance wireless network-
ing technology which uses a 2.45GHz
frequency to connect various devices
within a certain distance.
•
Supported within PCs, external devices,
Bluetooth
® phones, PDAs, various elec-
tronic devices, and automotive environ-
ments,
Bluetooth® Wireless Technology
to be transmitted at high speeds without
having to use a connector cable.
•
Bluetooth
® Handsfree refers to a device
which allows the user to conveniently
make phone calls with Bluetooth
®
mobile phones through the Multimedia
system.
•
The Bluetooth® Handsfree feature may
not be supported in some mobile phones.
For more information on mobile phone
compatibility, visit the HYUNDAI website
- HYUNDAI Motor America: https://www.
hyundaiusa.com/bluetooth
WARNING
- Distracted Driving
Focus on the road while driving. The driver's
primary responsibility is in the safe and legal
operation of the vehicle. Drivers should not
use any hand held devices or other equipment
or vehicle systems that distract the driver
during vehicle operation.
Do not stare at the multimedia screen for long
periods of time while driving. Staring at the
screen for prolonged periods of time can lead
to traf c accidents and can result in personal
injuries.
Precautions for Safe Driving
•
Bluetooth® is a feature that enables driv-
ers to make handsfree calls. Connecting
the head unit with a Bluetooth
® phone
allows the user to conveniently make
calls, receive ctalls, and manage the
phonebook. Before using
Bluetooth®
Wireless Technology, carefully read the
contents of this user’s manual.
•
Excessive use or operations while driv-
ing may lead to negligent driving prac-
tices and be the cause of accidents. Do
not operate the device excessively while
driving.
•Viewing the screen for prolonged peri-Viewing the screen for prolonged peri-
ods of time is dangerous and may lead ods of time is dangerous and may lead
to accidents. When driving, view the to accidents. When driving, view the
screen only for short periods of time.screen only for short periods of time.
Bluetooth
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


Before Using the Bluetooth® Handsfree I 4-3
04

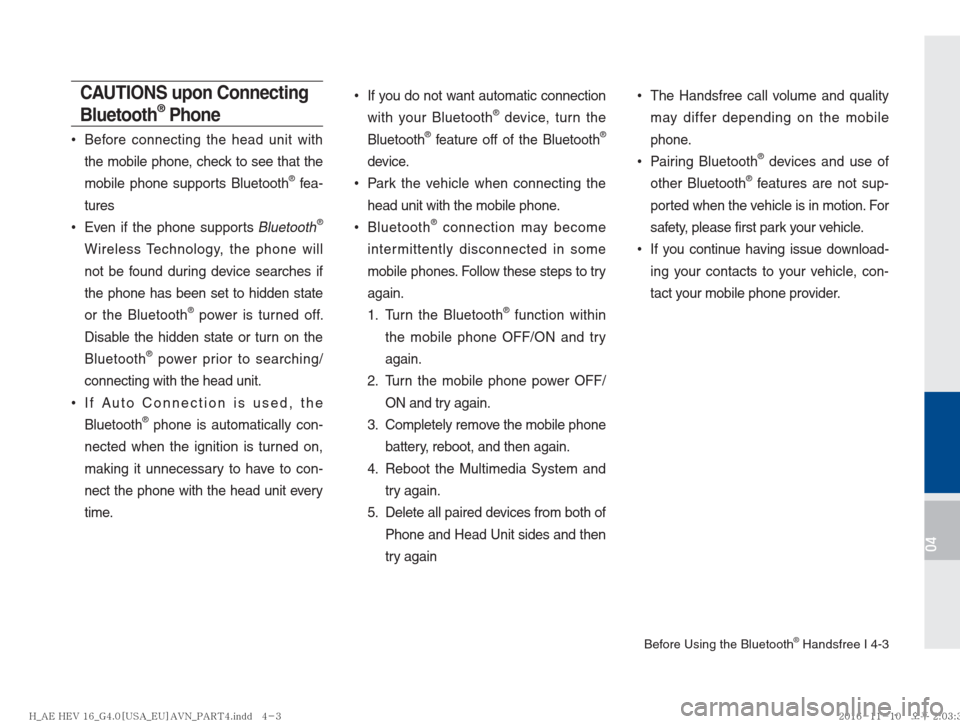

CAUTIONS upon Connecting
Bluetooth® Phone
•
Before connecting the head unit with
the mobile phone, check to see that the
mobile phone supports Bluetooth
® fea-
tures
•
Even if the phone supports
Bluetooth®
Wireless Technology, the phone will
not be found during device searches if
the phone has been set to hidden state
or the Bluetooth
® power is turned off.
Disable the hidden state or turn on the
Bluetooth
® power prior to searching/
connecting with the head unit.
•
If Auto Connection is used, the
Bluetooth
® phone is automatically con-
nected when the ignition is turned on,
making it unnecessary to have to con-
nect the phone with the head unit every
time. •
If you do not want automatic connection
with your Bluetooth
® device, turn the
Bluetooth® feature off of the Bluetooth®
device.
•
Park the vehicle when connecting the
head unit with the mobile phone.
•
Bluetooth
® connection may become
intermittently disconnected in some
mobile phones. Follow these steps to try
again.
1. Turn the Bluetooth
® function within
the mobile phone OFF/ON and try
again.
2. Turn the mobile phone power OFF/
ON and try again.
3. Completely remove the mobile phone
battery, reboot, and then again.
4. Reboot the Multimedia System and
try again.
5. Delete all paired devices from both of
Phone and Head Unit sides and then
try again •
The Handsfree call volume and quality
may differ depending on the mobile
phone.
•
Pairing Bluetooth
® devices and use of
other Bluetooth® features are not sup-
ported when the vehicle is in motion. For
safety, please first park your vehicle.
•
If you continue having issue download-
ing your contacts to your vehicle, con-
tact your mobile phone provider.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


4-4 I Bluetooth

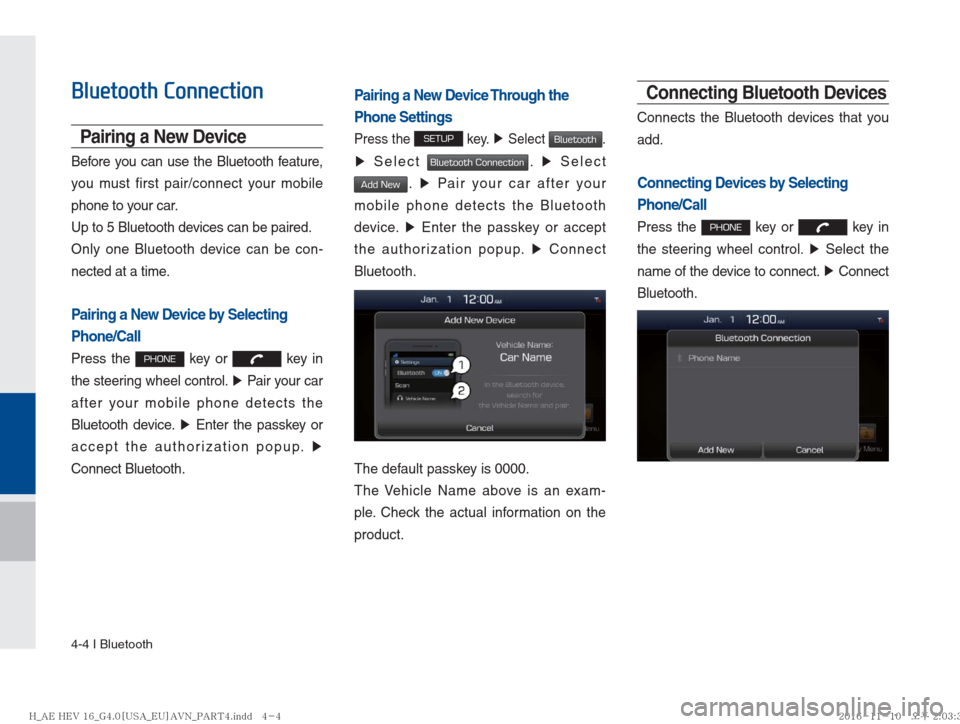

Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth feature,
you must first pair/connect your mobile
phone to your car.
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be con-
nected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the PHONE key or key in
the steering wheel control. ▶
Pair your car
after your mobile phone detects the
Bluetooth device. ▶
Enter the passkey or
accept the authorization popup. ▶

Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the SETUP key. ▶ Select Bluetooth.
▶
Select
Bluetooth Connection. ▶
Select
Add New. ▶
Pair your car after your
mobile phone detects the Bluetooth
device. ▶
Enter the passkey or accept
the authorization popup. ▶
Connect
Bluetooth.
The default passkey is 0000.
The Vehicle Name above is an exam-
ple. Check the actual information on the
product.
Connecting Bluetooth Devices
Connects the Bluetooth devices that you
add.
Connecting Devices by Selecting
Phone/Call
Press the PHONE key or key in
the steering wheel control. ▶
Select the
name of the device to connect. ▶
Connect
Bluetooth.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


Bluetooth Connection I 4-5
04

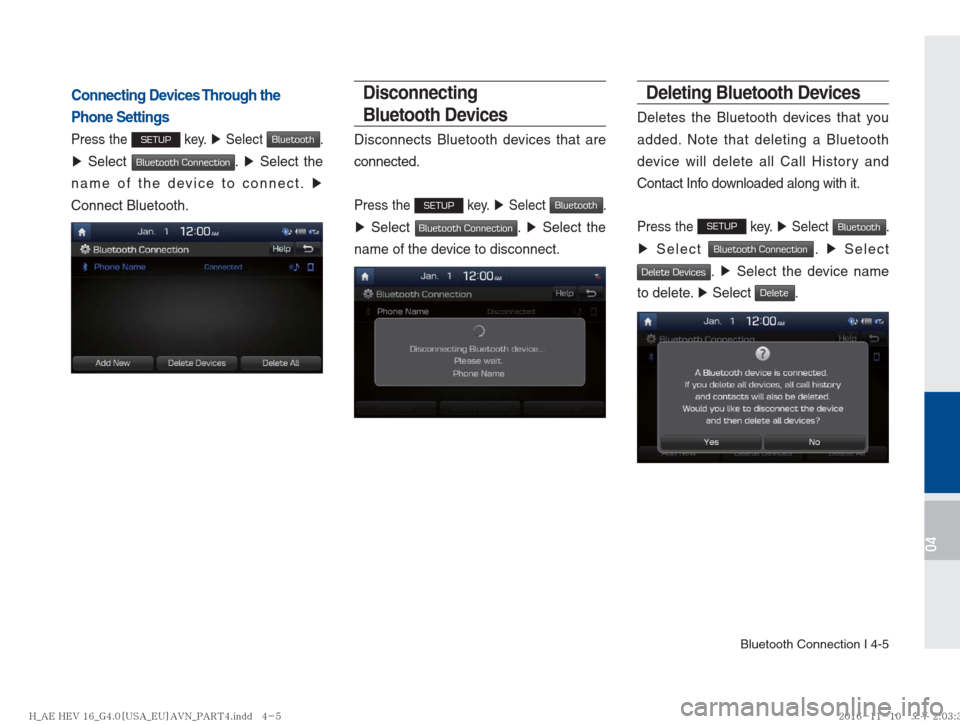

Connecting Devices Through the
Phone Settings
Press the SETUP key. ▶ Select Bluetooth.
▶
Select Bluetooth Connection. ▶
Select the
name of the device to connect. ▶

Connect Bluetooth.
Disconnecting
Bluetooth Devices
Disconnects Bluetooth devices that are
connected.
Press the SETUP key. ▶ Select Bluetooth.
▶
Select Bluetooth Connection. ▶
Select the
name of the device to disconnect.
Deleting Bluetooth Devices
Deletes the Bluetooth devices that you
added. Note that deleting a Bluetooth
device will delete all Call History and
Contact Info downloaded along with it.
Press the SETUP key. ▶ Select Bluetooth.
▶
Select
Bluetooth Connection. ▶
Select
Delete Devices. ▶
Select the device name
to delete. ▶
Select
Delete.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

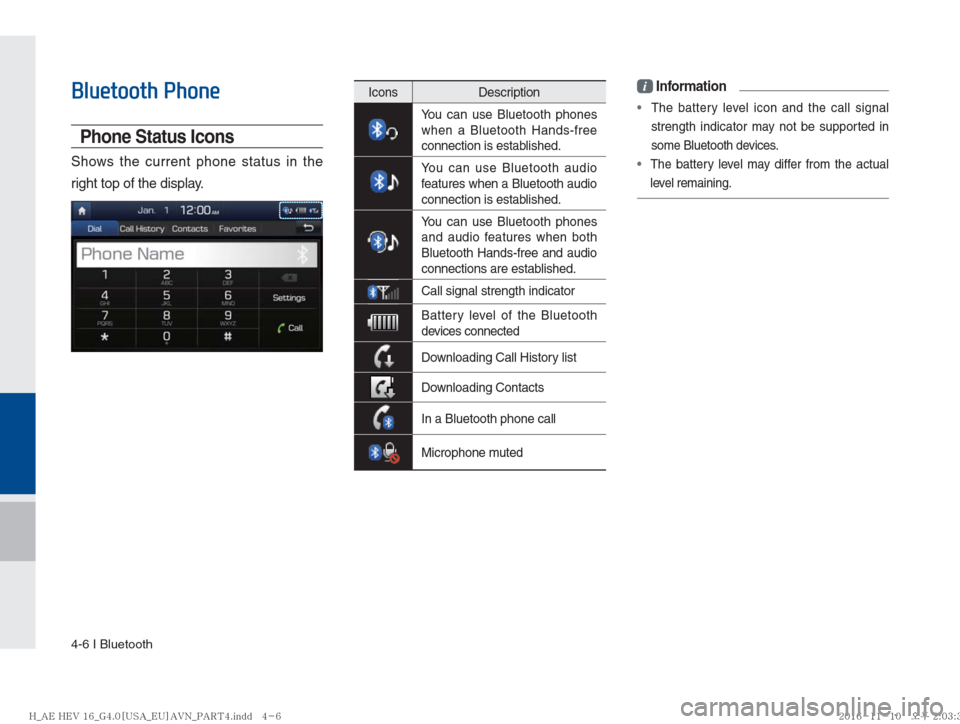

4-6 I Bluetooth
Bluetooth Phone
Phone Status Icons
Shows the current phone status in the
right top of the display.
Icons Description
You can use Bluetooth phones
when a Bluetooth Hands-free
connection is established.
You can use Bluetooth audio
features when a Bluetooth audio
connection is established.
You can use Bluetooth phones
and audio features when both
Bluetooth Hands-free and audio
connections are established.
Call signal strength indicator
Battery level of the Bluetooth
devices connected
Downloading Call History list
Downloading Contacts
In a Bluetooth phone call
Microphone muted
Information

The battery level icon and the call signal
strength indicator may not be supported in
some Bluetooth devices.
The battery level may differ from the actual
level remaining.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1
