Hyundai Matrix 2004 Owner's Manual

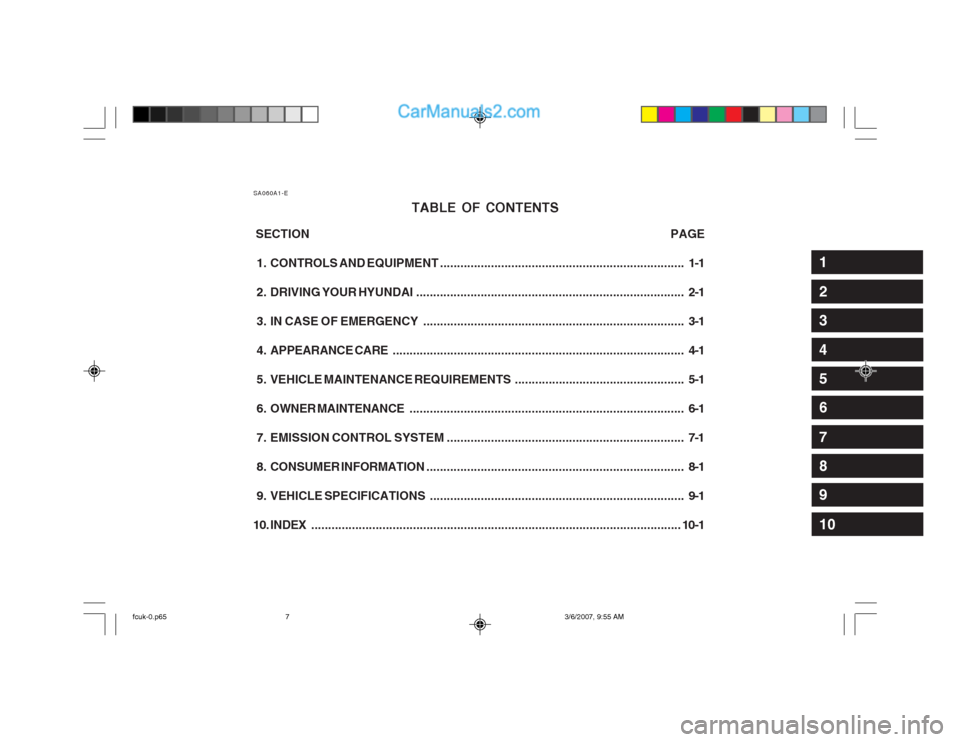

SA060A1-ETABLE OF CONTENTS
SECTION PAGE
1. CONTROLS AND EQUIPMENT........................................................................ 1-1
2. DRIVING YOUR HYUNDAI............................................................................... 2-1
3. IN CASE OF EMERGENCY ............................................................................. 3-1
4. APPEARANCE CARE ...................................................................................... 4-1
5. VEHICLE MAINTENANCE REQUIREMENTS.................................................. 5-1
6. OWNER MAINTENANCE ................................................................................. 6-1
7. EMISSION CONTROL SYSTEM ...................................................................... 7-1
8. CONSUMER INFORMATION ............................................................................ 8-1
9. VEHICLE SPECIFICATIONS ........................................................................... 9-1
10. INDEX ............................................................................................................. 10-1
1
2
3
4
5
6
7
8
9
10
fcuk-0.p65 3/6/2007, 9:55 AM
7

A100A01L-EAT Guide to Hyundai Genuine Parts
1. What are Hyundai Genuine Parts?Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to man- ufacture vehicles. They are designed and tested for the optimum safety, performance, and reliability to our customers.
2. Why should you use genuine parts? Hyundai Genuine Parts are engineeredand built to meet rigid original manufactur- ing requirements. Using imitation, counter- feit or used salvage parts is not covered under the Hyundai New Vehicle Limited Warranty or any other Hyundai warranty. In addition, any damage to or failure ofGenuine Hyundai Parts caused by the installation or failure of an imitation, coun- terfeit or used salvage part is not covered by Hyundai Motor Company.
3. How can you tell if you are purchasing Hyundai Genuine Parts? Look for the Hyundai Genuine Parts Logoon the package (see below). The export specifications are written in English only. Hyundai Genuine Parts are only sold through authorized Hyundai Dealerships.
A100A01LA100A02LA100A04L
A100A03L
fcuk-0.p65
3/6/2007, 9:55 AM
8

1- 1
CONTROLS AND EQUIPMENT
from jerry cans or by means of a funnel that the fuel being used is unleaded.The use of leaded fuel in this vehicle will result in irreversible pollution of the catalyst ele- ment. Such pollution will prevent correct op- eration of the catalyst and give rise to in- creased operating temperatures leading to the catalyst element melting and restricting the exhaust flow along with an increase in exhaust emission levels. CAUTION: The vehicle warranty will not extend to damage arising from the use of incorrect fuels. Use Diesel Diesel fuel of 52 to 54 cetane is the correct rating to use in Hyundai vehicle. If two types of diesel fuel are available, use summer or winter fuel properly according to the following temperature conditions.
o Above 23°F (-5°C) ... Summer type diesel fuel.
o Below 23°F (-5°C) ... Winter type diesel fuel. Watch the fuel level in the tank very carefully: If the engine stops through fuel failure, thecircuits must be completely purged to permit restarting.
SB000A1-E 1
. CONTROLS AND
EQUIPMENT
B010A02O-EAT FUEL RECOMMENDATIONSTHIS VEHICLE MUST ONLY BE OPERATED WITH UNLEADED FUEL.SERIOUS DAMAGE WILL RESULT FROM THE USE OF LEADED FUEL.
UNLEADED FUEL ONLY
Unleaded fuel with a Research Octane Num-ber (RON) of 91 or higher must be used in this vehicle. To prevent accidental charging of the fueltank with leaded fuel, a small diameter filler neck along with a restrictor flap are fitted to ensure that only unleaded fuel pump nozzles may enter the filler neck. However, care must be exercised when refuelling the vehicle tank SB010E1-A GASOLINES FOR CLEANER AIRTo help contribute to cleaner air, Hyundai recommends that you use gasolines treated with detergent additives, which help to pre- vent deposit formation in the engine. These gasolines will help the engines run cleaner and the Emission Control System performance.
CAUTION:Do not let any gasoline or water enter thetank. If this happens, the tank should be completely drained and the fuel lines should all be cleaned out. This will stop the fuel pump from becoming contami- nated. Overseas Operation: When the vehicle is to be operated overseas, the vehicle operator should establish that a suitable fuel for satisfactory operation of the vehicle is available.
1
B010A01FC
fcuk-1.p65
3/6/2007, 9:58 AM
1

CONTROLS AND EQUIPMENT
1- 2 6SB035A1-FE IMMOBILISER SYSTEMThe immobiliser system is an anti-theft de- vice, designed to prevent and deter automo- bile theft. B880B03A-GAT Keys All of the locks fitted to the vehicle are oper- ated by the same key. However, since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the key does not become locked inside the vehicle by mistake. NOTE: If you make your own duplicate key, youwill not be able to cancel the system or start the engine.
B020A02FC-EAT RUNNING IN (Gasoline Engine)The longevity and performance of the vehicle are greatly affected by the care exercised during the first 1,000 miles of motoring. Be- cause of modern manufacturing techniques, rigid guidelines regarding maximum road speeds have become unnecessary. However, certain precautions should be observed in order to obtain the best possible performance and useful life from the vehicle.
1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 500 miles the maximum engine speed should be restricted to 3,000 rpm and gradually increased thereafter.
3) Avoid prolonged constant speed operation. The internal components will become run in
more quickly if the operation speed is varied
during the running-in period.
4) Never allow the engine to labour. Use the gearbox freely and avoid large throttle open-ings when the engine speed is below 1,500 rpm.
5) Avoid rapid acceleration and maximum throttle openings.
6) Avoid harsh braking during the first 100 miles of urban motoring or 1,000 miles ofmotorway driving to allow the friction fac- ings of the brake pads and shoes to bed against the discs and drums properly.
7) No trailer towing should be undertaken during the running in period.
AX10020A-1
B020B02FC-EAT RUNNING IN (Diesel Engine)The longevity and performance of the vehicle are greatly affected by the care exercised during the first 1,000 miles of motoring. Be- cause of modern manufacturing techniques, rigid guidelines regarding maximum road speeds have become unnecessary. However, certain precautions should be observed in order to obtain the best possible performance and useful life from the vehicle.
1) Do not race the engine without a load
(i.e revving the engine in neutral).
2) During the first 600 miles the maximum engine speed should be restricted to 3,000 rpm and gradually increased thereafter. And while driving, keep under three quar- ters of maximum vehicle speed.
3) Avoid prolonged constant speed operation. The internal components of the engine will
become run in more quickly if the operation speed is varied during the running in period.
4) Never allow the engine to labour. Use the gearbox freely and avoid large throttle open-ings when the engine speed is below 1,500 rpm.
5) Avoid rapid acceleration and maximum throttle openings.
6) Avoid harsh braking during the first 100 miles of urban motoring or 1,000 miles ofmotorway driving to allow the friction fac- ings of the brake pads and shoes to bed against the discs and drums properly.
7) No trailer towing should be undertaken during the running in period.
fcuk-1.p65 3/6/2007, 9:58 AM
2

1- 3
CONTROLS AND EQUIPMENT
B880C02A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered to you. The key number should be recorded and keptin a safe place in case the need to order further keys arises. New keys are available from any Hyundai dealer by quoting the rel- evant key number. In the interest of security, the metal tag at-tached to the keys which bears the key num- ber should be removed from the key ring after you receive your new vehicle. In addition, key numbers cannot be provided by Hyundai for security reasons.If you need additional keys or if you should lose your keys, your authorized Hyundai dealer can make new keys. SB040B1-F Locking, unlocking front doors with key
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.
AX10030A-1
B040A02Y-AAT
DOOR LOCKS WARNING:
o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be inadvert- ently opened from the inside. This helps ensure that doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an acci- dent.
o Before opening the door, always look for and avoid oncoming traffic.
o In case of accident the door is unlocked automatically (If installed)
LOCK
UNLOCK
HFC2004-D
fcuk-1.p65
3/6/2007, 9:58 AM
3

CONTROLS AND EQUIPMENT
1- 4
SB040F1-E
CHILD-PROOF REAR DOOR LOCK
The rear doors are fitted with child proof locks
to prevent accidental opening of the doors using the inside door handle, whilst allowing access by means of the outside handle (such as is required in the event of an acccident for example) provided that the door lock button is at the unlocked position. Use of the child proof lock mechanism is recommended when chil- dren are carried in the vehicle. The child proof lock mechanism may be acti-
vated by opening the door and moving the lever located by the door latch to the " " position. Move the lever to the opposite direc- tion of " " position when normal door opera- tion is desired.
SB040D1-F
Locking from the Inside
B040D01FC-D
To lock the doors from inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, the door cannot be using either the inside or the outside door handle. NOTE: When the door is locked, the red mark onthe switch is not visible and the character "LOCK" on the switch is visible.HFC2006-D
LOCK
UNLOCK
B040C01FC-GAT Locking From the Outside The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the "LOCK" position, so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in theignition switch when the front doors are closed. This is normal. (If installed) NOTE:
o When locking the door this way, be
careful not to lock the door with theignition key left in the vehicle.
o To protect against theft, always remove the ignition key, close all windows, andlock all doors and tail gate when leaving your vehicle unattended.
HFC2009-D
fcuk-1.p65 3/6/2007, 9:58 AM
4

1- 5
CONTROLS AND EQUIPMENT
SB040G1-F CENTRAL DOOR LOCK (Not all models)
The central door locking is operated by push- ing the driver's door lock switch toward the front or rear of the vehicle. If the passenger and rear doors are open when the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward the rear, all doors and tail gate will unlock.When pushing the switch toward thefront, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visible and the character"LOCK" on the switch is visible.
o The central door locking is operated by turning the key (with theft-alarm system:driver's door and passenger's door, with- out theft-alarm system: driver's door only) toward the front or rear of the vehicle. B070A01A-EAT ANTI-THEFT ALARM SYSTEM (Not all models) This system is designed to provide protection from unauthorized entry into the car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turn signal lights.
HFC2003-D
LOCK
UNLOCK
B040G01FC-D
B070B01O-DAT Armed Stage Park the car and stop the engine. Arm the
system as described below.
1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine bonnet and tail gate are closed.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the system is armed.
NOTE:
1) If any door, tail gate or engine bonnet remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION: Do not arm the system until all passengers
have left the car. If the system is armedwhile a passenger(s) remains in the car, the alarm may be activated when the re- maining passenger(s) leaves the car.
B040H02L-EAT Speed Sensing Auto Door Locking (Not all models) When the speed of the vehicle keeps above 40KM/H for 2-3 seconds, it will automatically lock all doors for driver and passenger's safety. But, the ignition key is removed, it will auto- matically unlock all doors.
fcuk-1.p65
3/6/2007, 9:58 AM
5

CONTROLS AND EQUIPMENT
1- 6 The system will be disarmed when the driver's
or passenger's door is unlocked by depress- ing the "UNLOCK" button on the transmitter.
After completion of the step above, the turn
signal light will blink twice to indicate that the system is disarmed.
NOTE:Once the system has been disarmed, it can
not be rearmed except by repeating the arming procedures.
CAUTION: Only the transmitter can disarm the armed
stage. If the transmitter does not disarm the system, it is necessary to take the following steps;
1. Unlock the door with the key, which will
cause, the alarm to be activated.
2. Insert the key in the ignition key cylin- der and turn the ignition key to "ON" position.
3. Wait for 30 seconds.
After completion of the steps above, the
system will be disarmed. B070F01A-EAT Keyless Entry System (Not all models) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmit-
ter.
3. At the same time all doors lock, the turn signal light will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the trans- mitter.
2. At the same time all doors unlock, the turn signal light will blink twice to indicate that the system is disarmed.
B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible. Battery type : CR2032
B070C01FC-EAT Alarm StageThe alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened without using
the transmitter.
2) The tail gate is opened without using the transmitter.
3) The engine bonnet is opened. The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds. To turn off the system, unlock the door or tail gate with the transmitter.
B070D02O-AAT Disarmed Stage
3A9BA21
fcuk-1.p65 3/6/2007, 9:58 AM
6

1- 7
CONTROLS AND EQUIPMENT
SB060A1-E
DOOR WINDOWS
The front door windows may be opened or
closed by turning the window regulator handle. Ensure that when the windows are closed, nothing may become trapped between the glass and the door frame.
WARNING: When opening or closing the windows,
make sure your passenger's arms and hands are safety out of the way. B060A01E-EAT POWER WINDOWS (Not all models) The power windows operate when the ignition key is in the "ON" position. The main switchesare located on the driver's armrest and controlthe front and rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate window switch and closed by pulling up the switch. To open the window on the driver's side, press the switch(1) down. The window moves as long as the switch is operated.
MSO-0048-1
MSO-0048-2
Screwdriver
Case
Battery
B050A01FC-D
Close Open
B060A01FC-D
(1)
Replacement instructions:
1. Separate the case with a blade screw-
driver as shown in the illustration.
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.
fcuk-1.p65 3/6/2007, 9:58 AM
7

CONTROLS AND EQUIPMENT
1- 8 The front seat rake adjustment is performed by raising the lever at the front of the seat base and sliding the seat to the desired posi- tion. At this position the lever should be re- leased and the seat rocked to and fro to ensure that the mechanism has locked. WARNING: To ensure the seat is locked securely,attempt to move the seat forward or rear- ward without using the lock release lever.
B080B02FC-EAT FRONT SEATS Front Seat Rake Adjustment
HFC2024-DB080A01FC-EAT SEAT ADJUSTMENT WARNING: Front seat adjustments must not be under- taken whilst the vehicle is in motion. Loss of control of the vehicle may result if seat adjustments are made whilst the vehicle is in motion.
WARNING:
1) Be careful that someone's head, hands
and body are not trapped by a closingwindow.
2) Never try to operate the main switch on the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignition key for theirsafety.
In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normal operation, press the win-dow lock switch a second time. Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired position push the switch again.
HFC2013-D
fcuk-1.p65 3/6/2007, 9:58 AM
8
