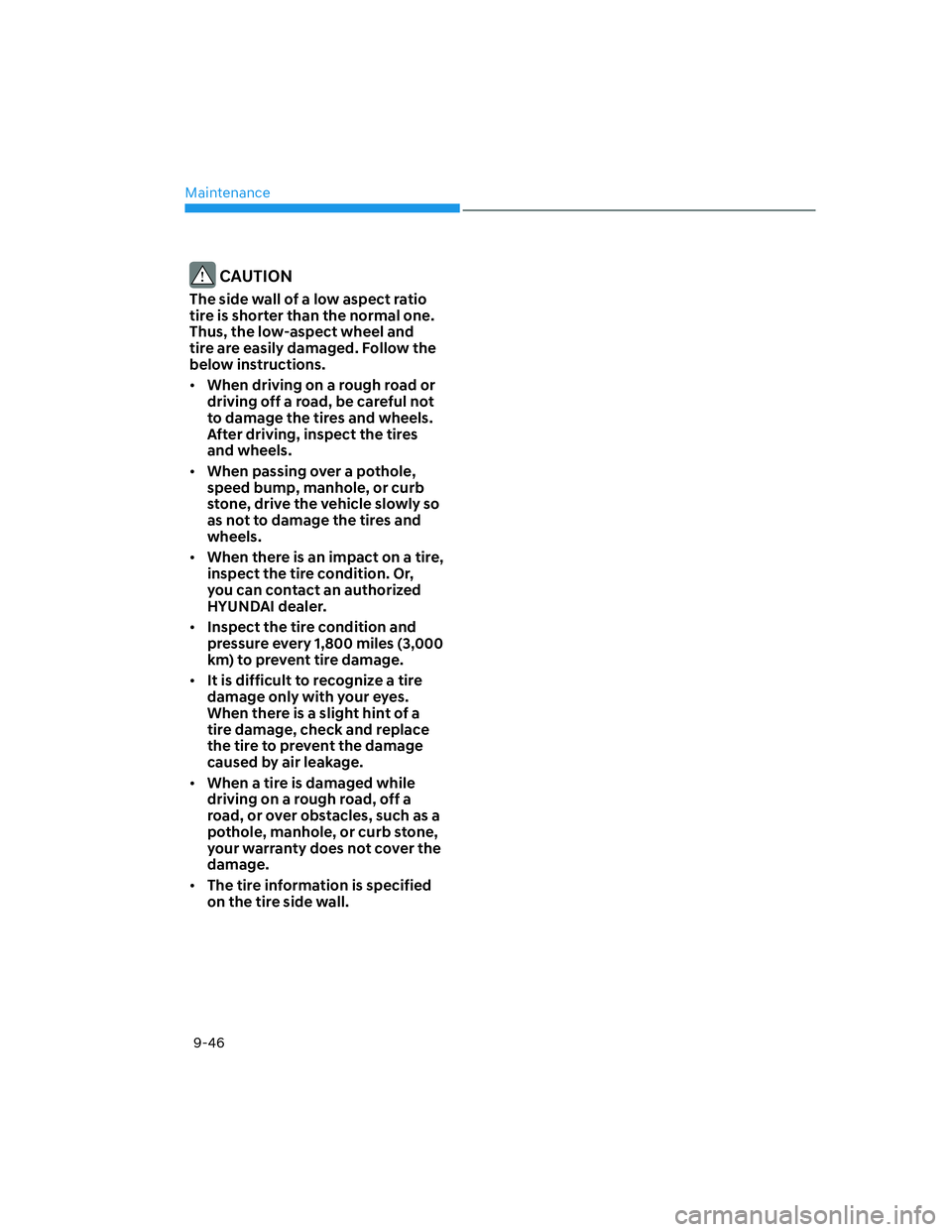

Maintenance
9-46
CAUTION
The side wall of a low aspect ratio
tire is shorter than the normal one.
Thus, the low-aspect wheel and
tire are easily damaged. Follow the
below instructions.

[When driving on a rough road or
driving off a road, be careful not
to damage the tires and wheels.
After driving, inspect the tires
and wheels.

[When passing over a pothole,
speed bump, manhole, or curb
stone, drive the vehicle slowly so
as not to damage the tires and
wheels.

[When there is an impact on a tire,
inspect the tire condition. Or,
you can contact an authorized
HYUNDAI dealer.

[Inspect the tire condition and
pressure every 1,800 miles (3,000
km) to prevent tire damage.

[It is difficult to recognize a tire
damage only with your eyes.
When there is a slight hint of a
tire damage, check and replace
the tire to prevent the damage
caused by air leakage.

[When a tire is damaged while
driving on a rough road, off a
road, or over obstacles, such as a
pothole, manhole, or curb stone,
your warranty does not cover the
damage.

[The tire information is specified
on the tire side wall.

09

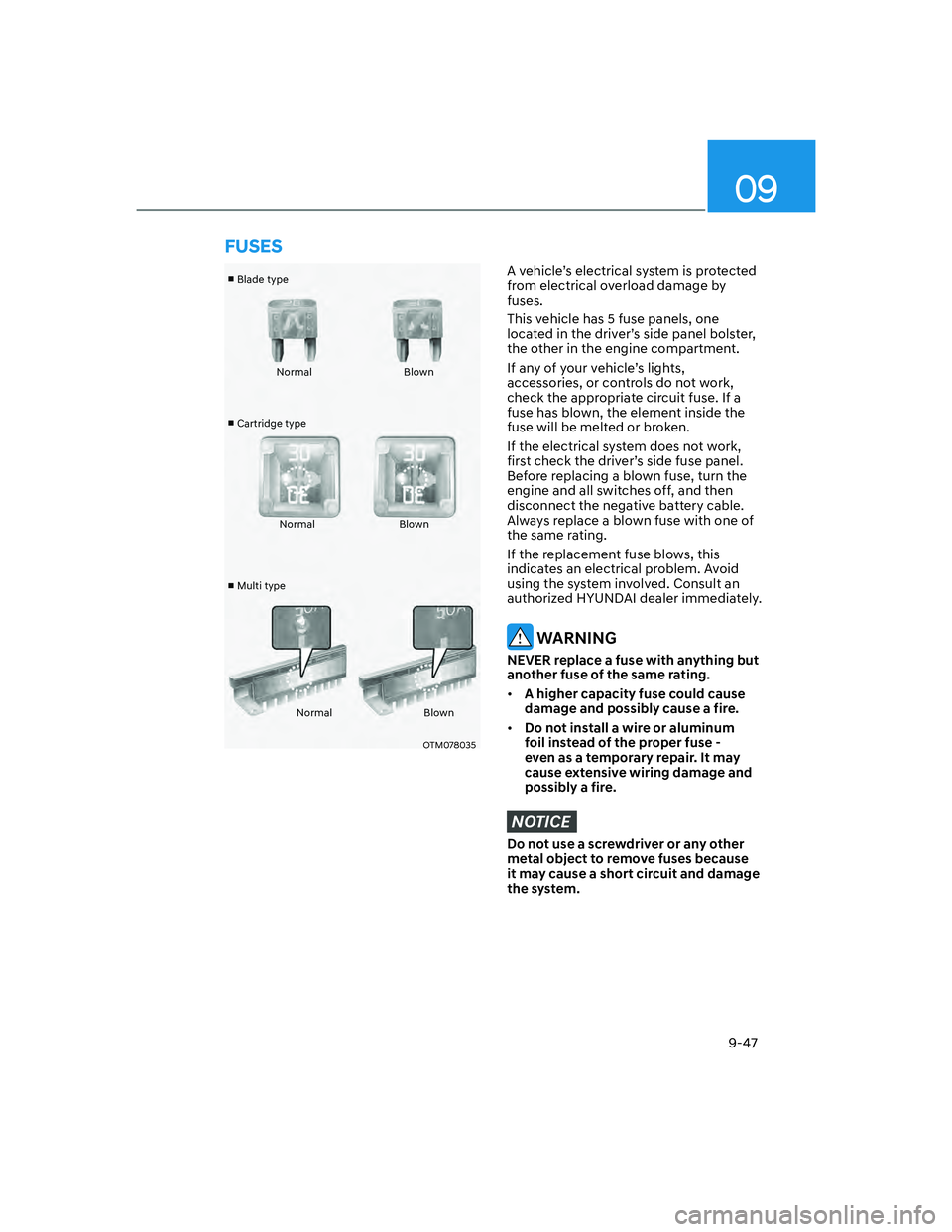

9-47

v
Blade type

v
Cartridge type

v
Multi typeNormal Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized HYUNDAI dealer immediately.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[A higher capacity fuse could cause
damage and possibly cause a fire.

[Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

Maintenance

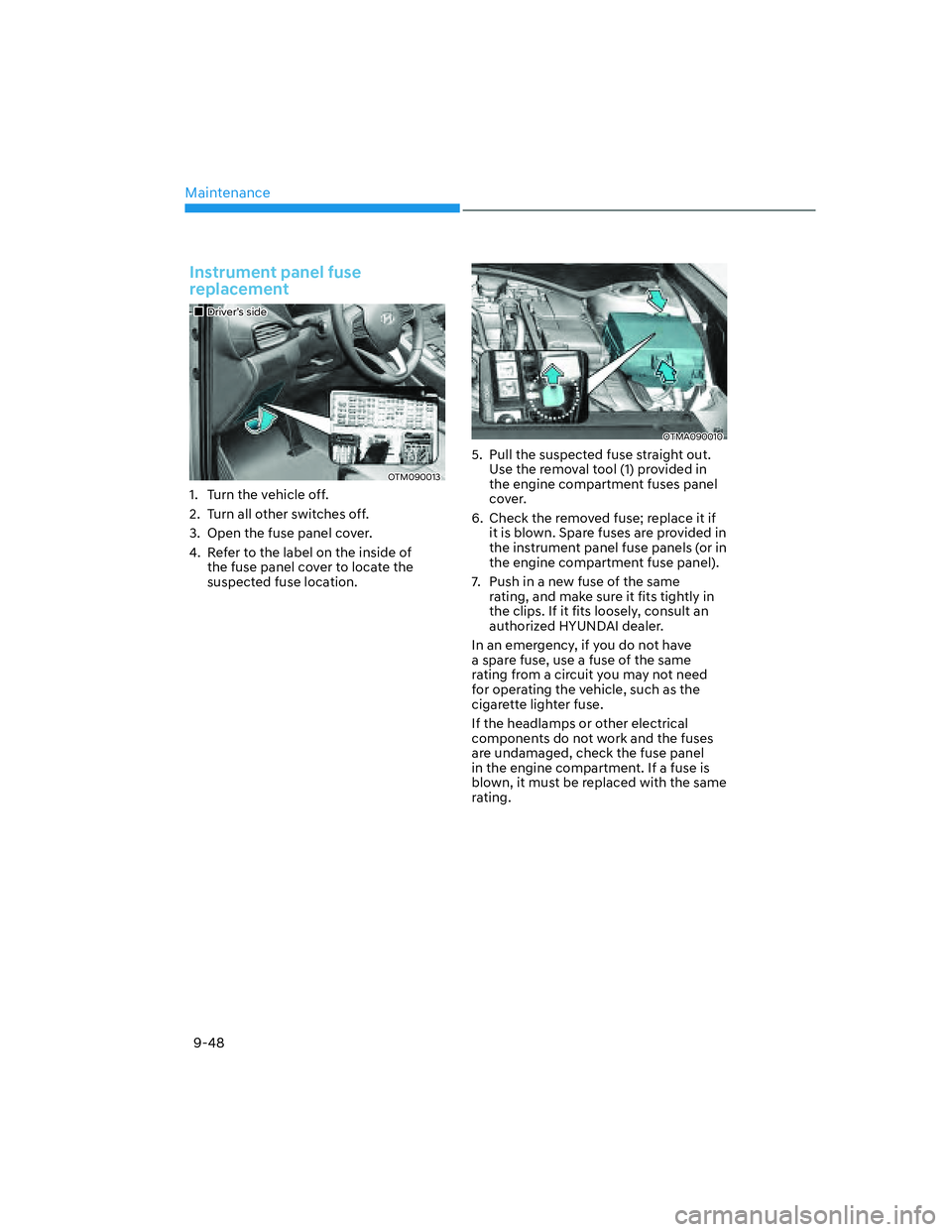

9-48
Instrument panel fuse
replacement
„Driver’s side
OTM090013
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
OTMA090010
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in
the engine compartment fuses panel
cover.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.

09

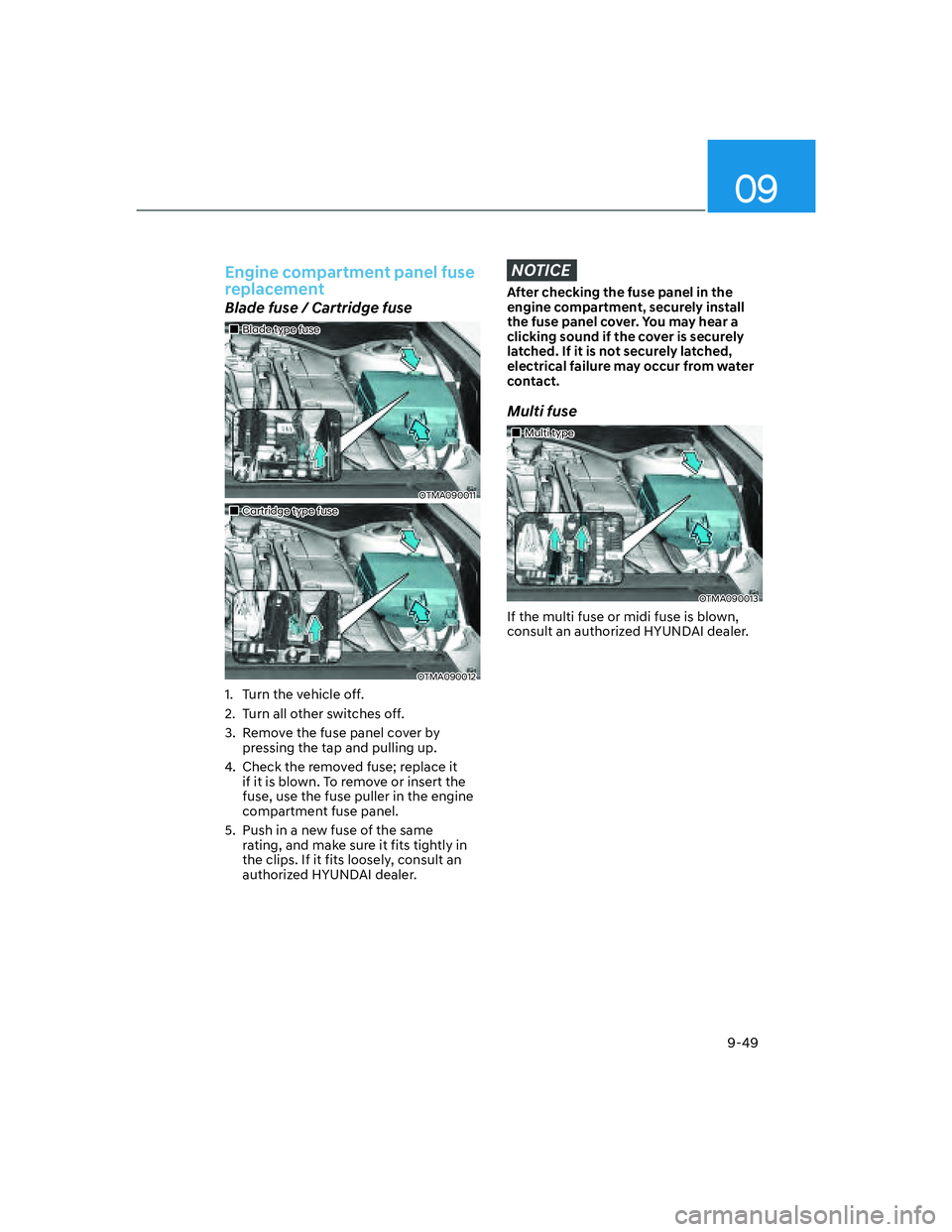

9-49
Engine compartment panel fuse
replacement
Blade fuse / Cartridge fuse
„Blade type fuse
OTMA090011
„Cartridge type fuse
OTMA090012
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
NOTICE
After checking the fuse panel in the
engine compartment, securely install
the fuse panel cover. You may hear a
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.
Multi fuse
„Multi type
OTMA090013
If the multi fuse or midi fuse is blown,
consult an authorized HYUNDAI dealer.

Maintenance
9-50

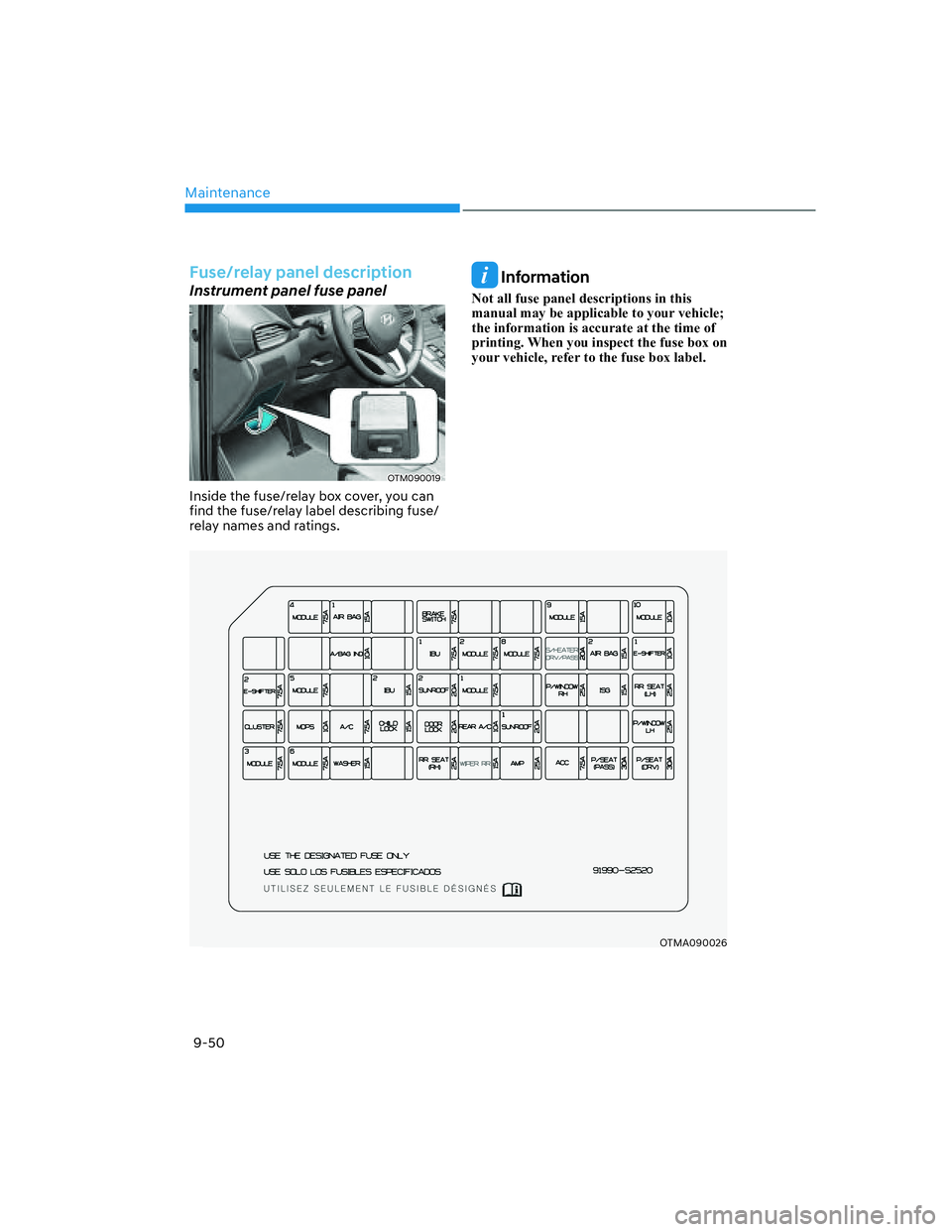

Fuse/relay panel description
Instrument panel fuse panel
OTM090019
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OTMA090026

09
9-51

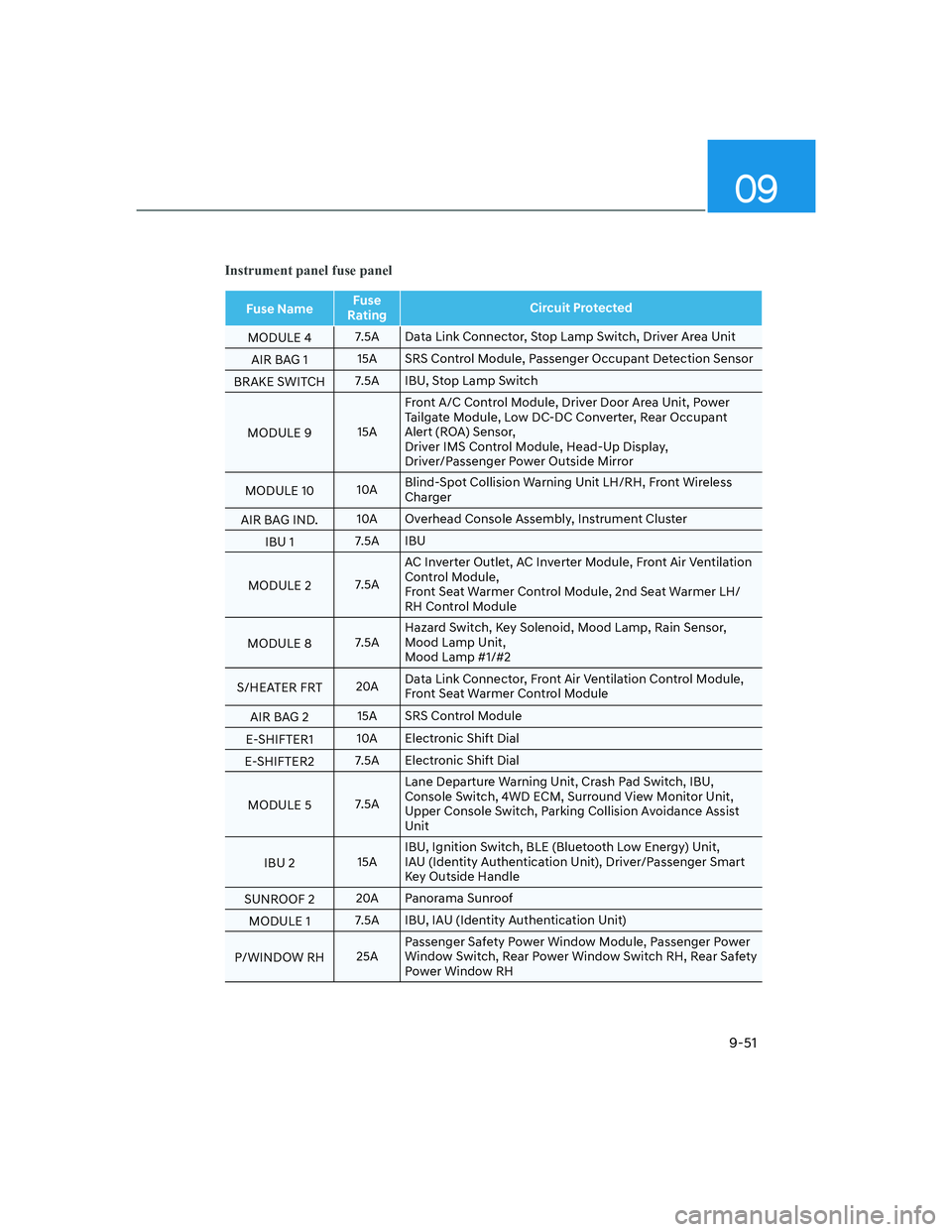

Instrument panel fuse panel
Fuse NameFuse
RatingCircuit Protected
MODULE 47.5A Data Link Connector, Stop Lamp Switch, Driver Area Unit
AIR BAG 115A SRS Control Module, Passenger Occupant Detection Sensor
BRAKE SWITCH7.5A IBU, Stop Lamp Switch
MODULE 915AFront A/C Control Module, Driver Door Area Unit, Power
Tailgate Module, Low DC-DC Converter, Rear Occupant
Alert (ROA) Sensor,
Driver IMS Control Module, Head-Up Display,
Driver/Passenger Power Outside Mirror
MODULE 1010ABlind-Spot Collision Warning Unit LH/RH, Front Wireless
Charger
AIR BAG IND.10A Overhead Console Assembly, Instrument Cluster
IBU 17.5A IBU
MODULE 27.5AAC Inverter Outlet, AC Inverter Module, Front Air Ventilation
Control Module,
Front Seat Warmer Control Module, 2nd Seat Warmer LH/
RH Control Module
MODULE 87.5AHazard Switch, Key Solenoid, Mood Lamp, Rain Sensor,
Mood Lamp Unit,
Mood Lamp #1/#2
S/HEATER FRT20AData Link Connector, Front Air Ventilation Control Module,
Front Seat Warmer Control Module
AIR BAG 215A SRS Control Module
E-SHIFTER110A Electronic Shift Dial
E-SHIFTER27.5A Electronic Shift Dial
MODULE 57.5ALane Departure Warning Unit, Crash Pad Switch, IBU,
Console Switch, 4WD ECM, Surround View Monitor Unit,
Upper Console Switch, Parking Collision Avoidance Assist
Unit
IBU 215AIBU, Ignition Switch, BLE (Bluetooth Low Energy) Unit,
IAU (Identity Authentication Unit), Driver/Passenger Smart
Key Outside Handle
SUNROOF 220A Panorama Sunroof
MODULE 17.5A IBU, IAU (Identity Authentication Unit)
P/WINDOW RH25APassenger Safety Power Window Module, Passenger Power
Window Switch, Rear Power Window Switch RH, Rear Safety
Power Window RH

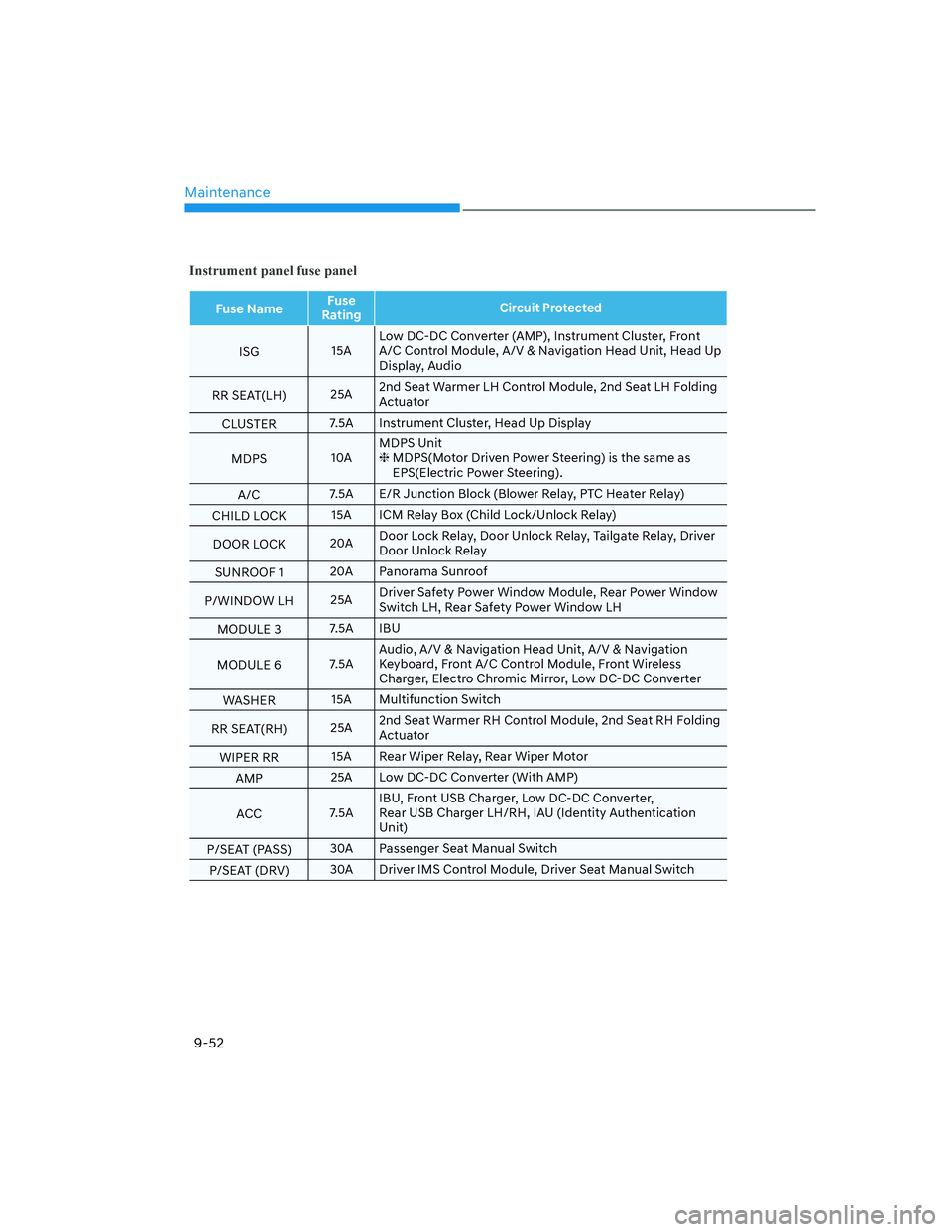

Maintenance
9-52
Instrument panel fuse panel
Fuse NameFuse
RatingCircuit Protected
ISG15ALow DC-DC Converter (AMP), Instrument Cluster, Front
A/C Control Module, A/V & Navigation Head Unit, Head Up
Display, Audio
RR SEAT(LH)25A2nd Seat Warmer LH Control Module, 2nd Seat LH Folding
Actuator
CLUSTER7.5A Instrument Cluster, Head Up Display
MDPS10AMDPS Unit
❈ MDPS(Motor Driven Power Steering) is the same as
EPS(Electric Power Steering).
A/C7.5A E/R Junction Block (Blower Relay, PTC Heater Relay)
CHILD LOCK15A ICM Relay Box (Child Lock/Unlock Relay)
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, Tailgate Relay, Driver
Door Unlock Relay
SUNROOF 120A Panorama Sunroof
P/WINDOW LH25ADriver Safety Power Window Module, Rear Power Window
Switch LH, Rear Safety Power Window LH
MODULE 37.5A IBU
MODULE 67.5AAudio, A/V & Navigation Head Unit, A/V & Navigation
Keyboard, Front A/C Control Module, Front Wireless
Charger, Electro Chromic Mirror, Low DC-DC Converter
WASHER15A Multifunction Switch
RR SEAT(RH)25A2nd Seat Warmer RH Control Module, 2nd Seat RH Folding
Actuator
WIPER RR15A Rear Wiper Relay, Rear Wiper Motor
AMP25A Low DC-DC Converter (With AMP)
ACC7.5AIBU, Front USB Charger, Low DC-DC Converter,
Rear USB Charger LH/RH, IAU (Identity Authentication
Unit)
P/SEAT (PASS)30A Passenger Seat Manual Switch
P/SEAT (DRV)30A Driver IMS Control Module, Driver Seat Manual Switch

09
9-53

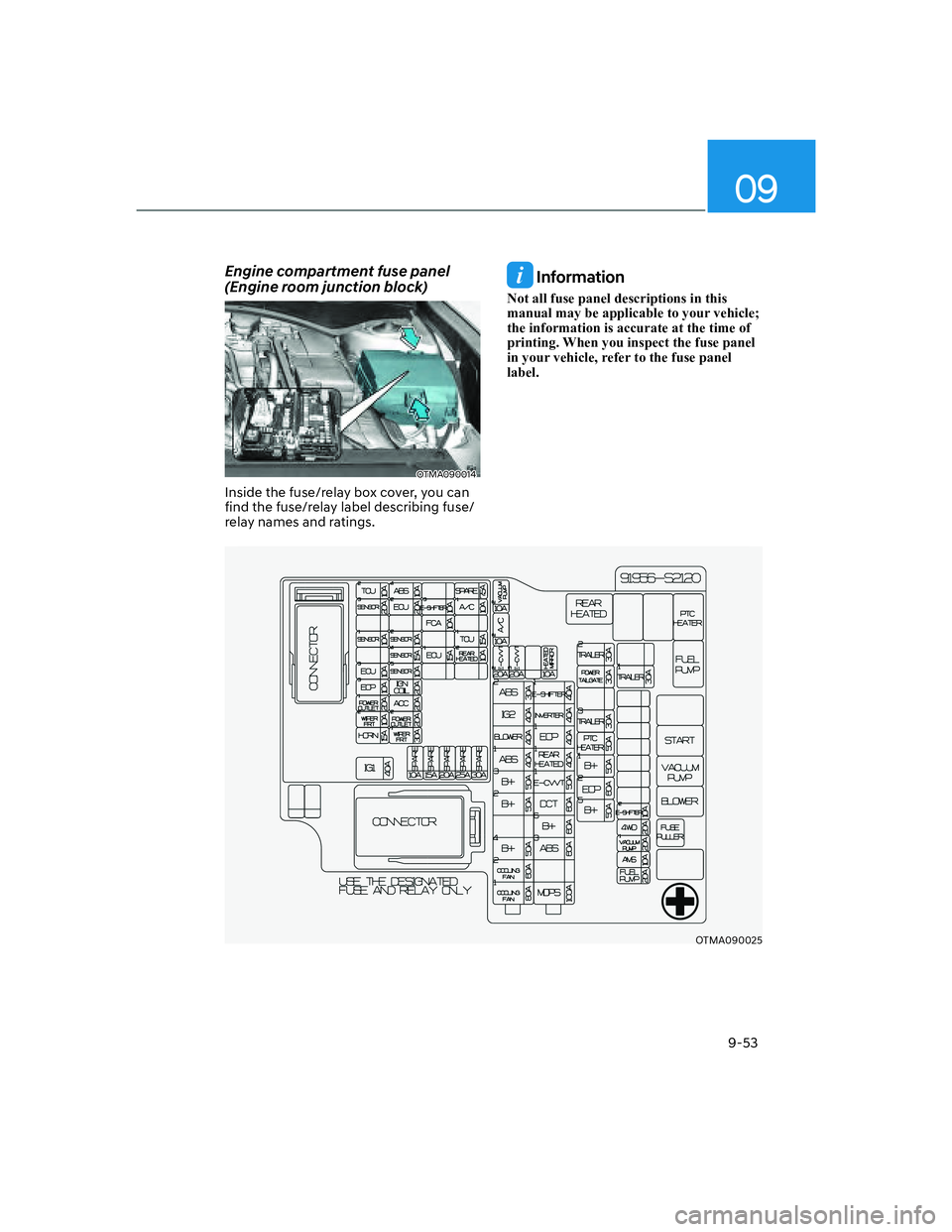

Engine compartment fuse panel
(Engine room junction block)
OTMA090014
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OTMA090025

Maintenance
9-54

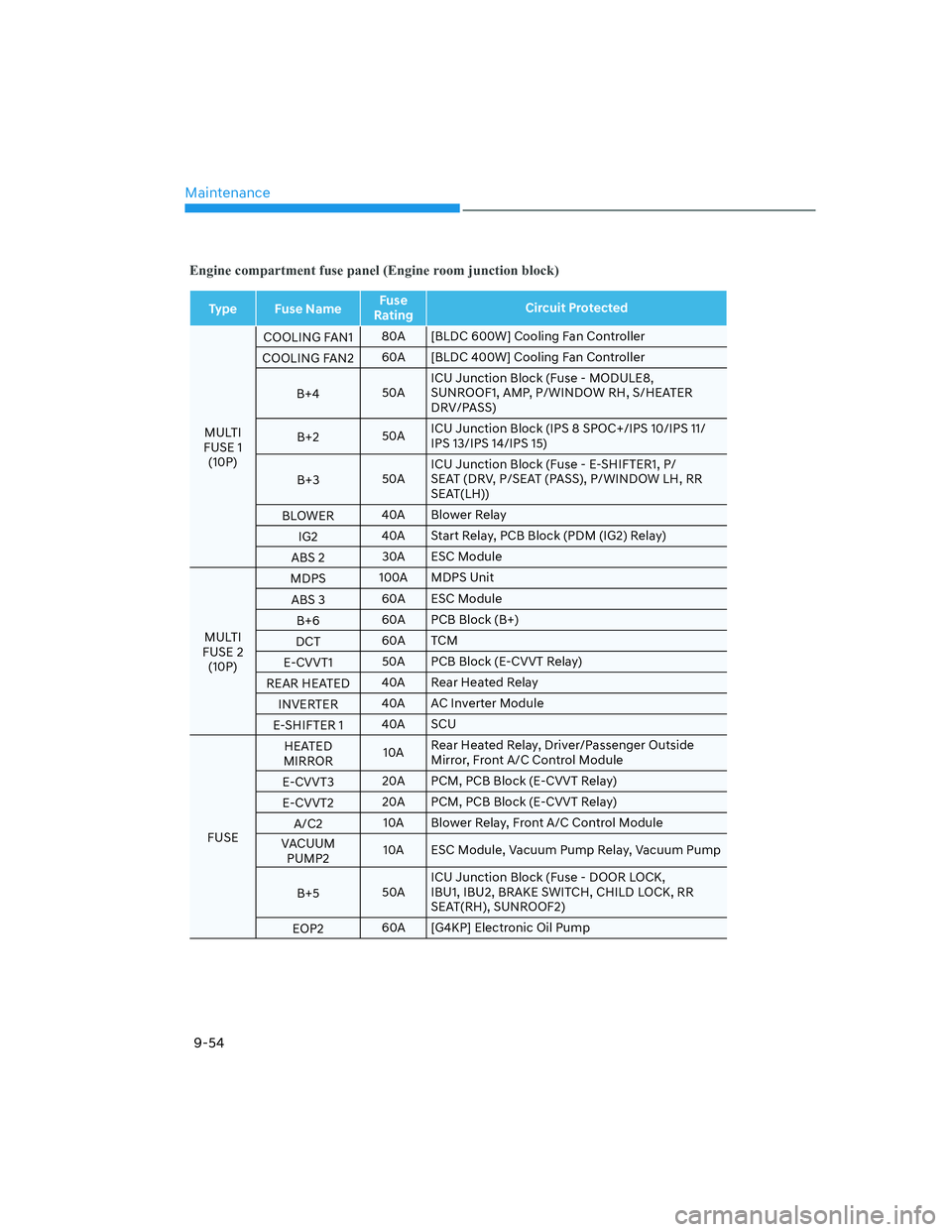

Engine compartment fuse panel (Engine room junction block)
Type Fuse NameFuse
RatingCircuit Protected
MULTI
FUSE 1
(10P)COOLING FAN180A [BLDC 600W] Cooling Fan Controller
COOLING FAN260A [BLDC 400W] Cooling Fan Controller
B+450AICU Junction Block (Fuse - MODULE8,
SUNROOF1, AMP, P/WINDOW RH, S/HEATER
DRV/PASS)
B+250AICU Junction Block (IPS 8 SPOC+/IPS 10/IPS 11/
IPS 13/IPS 14/IPS 15)
B+350AICU Junction Block (Fuse - E-SHIFTER1, P/
SEAT (DRV, P/SEAT (PASS), P/WINDOW LH, RR
SEAT(LH))
BLOWER40A Blower Relay
IG240A Start Relay, PCB Block (PDM (IG2) Relay)
ABS 230A ESC Module
MULTI
FUSE 2
(10P)MDPS100A MDPS Unit
ABS 360A ESC Module
B+660A PCB Block (B+)
DCT60A TCM
E-CVVT150A PCB Block (E-CVVT Relay)
REAR HEATED40A Rear Heated Relay
INVERTER40A AC Inverter Module
E-SHIFTER 140A SCU
FUSEHEATED
MIRROR10ARear Heated Relay, Driver/Passenger Outside
Mirror, Front A/C Control Module
E-CVVT320A PCM, PCB Block (E-CVVT Relay)
E-CVVT220A PCM, PCB Block (E-CVVT Relay)
A/C210A Blower Relay, Front A/C Control Module
VACUUM
PUMP210A ESC Module, Vacuum Pump Relay, Vacuum Pump
B+550AICU Junction Block (Fuse - DOOR LOCK,
IBU1, IBU2, BRAKE SWITCH, CHILD LOCK, RR
SEAT(RH), SUNROOF2)
EOP260A [G4KP] Electronic Oil Pump

09
9-55

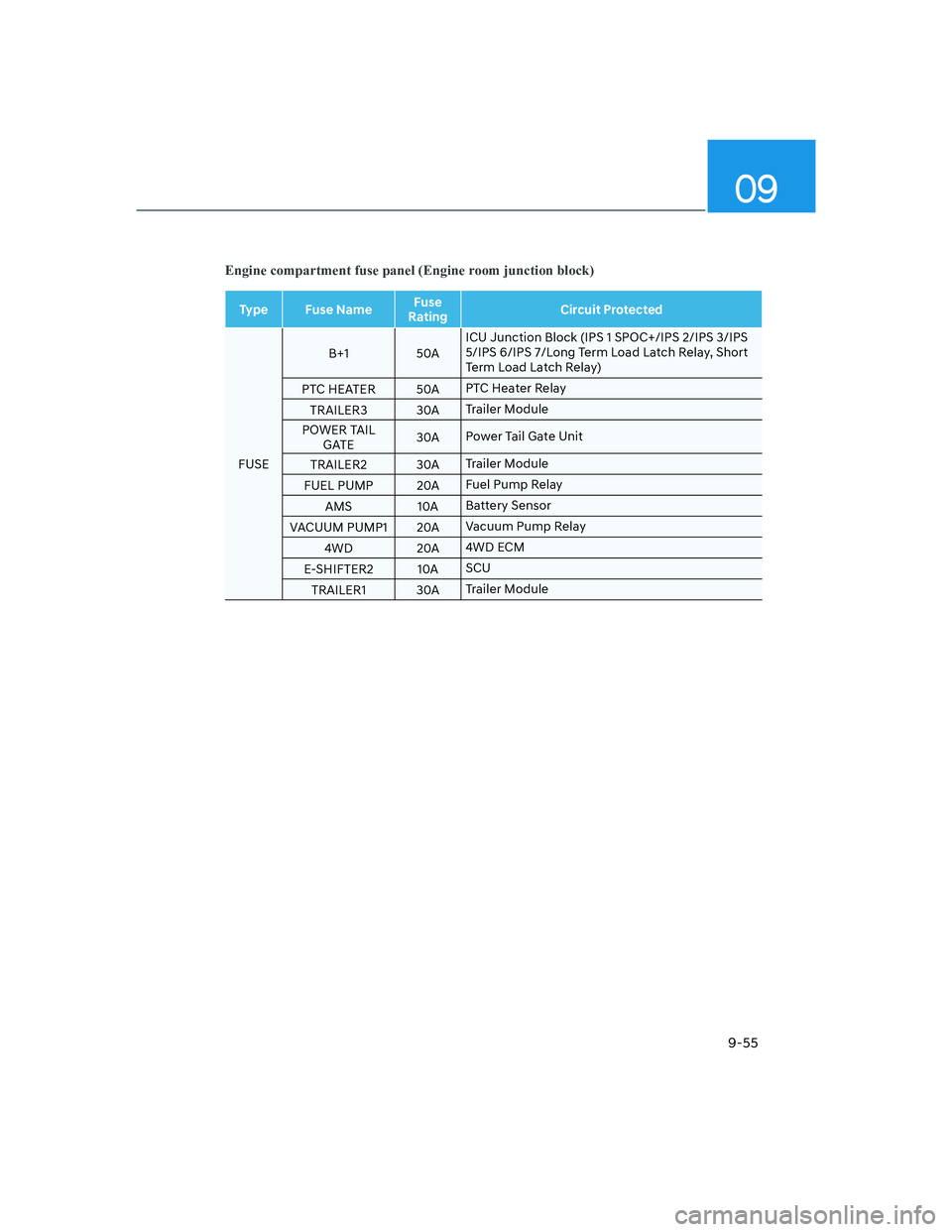

Engine compartment fuse panel (Engine room junction block)
Type Fuse NameFuse
RatingCircuit Protected
FUSEB+1 50AICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS
5/IPS 6/IPS 7/Long Term Load Latch Relay, Short
Term Load Latch Relay)
PTC HEATER 50APTC Heater Relay
TRAILER3 30ATrailer Module
POWER TAIL
GATE30APower Tail Gate Unit
TRAILER2 30ATrailer Module
FUEL PUMP 20AFuel Pump Relay
AMS 10ABattery Sensor
VACUUM PUMP1 20AVacuum Pump Relay
4WD 20A4WD ECM
E-SHIFTER2 10ASCU
TRAILER1 30ATrailer Module
