HYUNDAI VERACRUZ 2011 Owners Manual

Maintenance
84
7

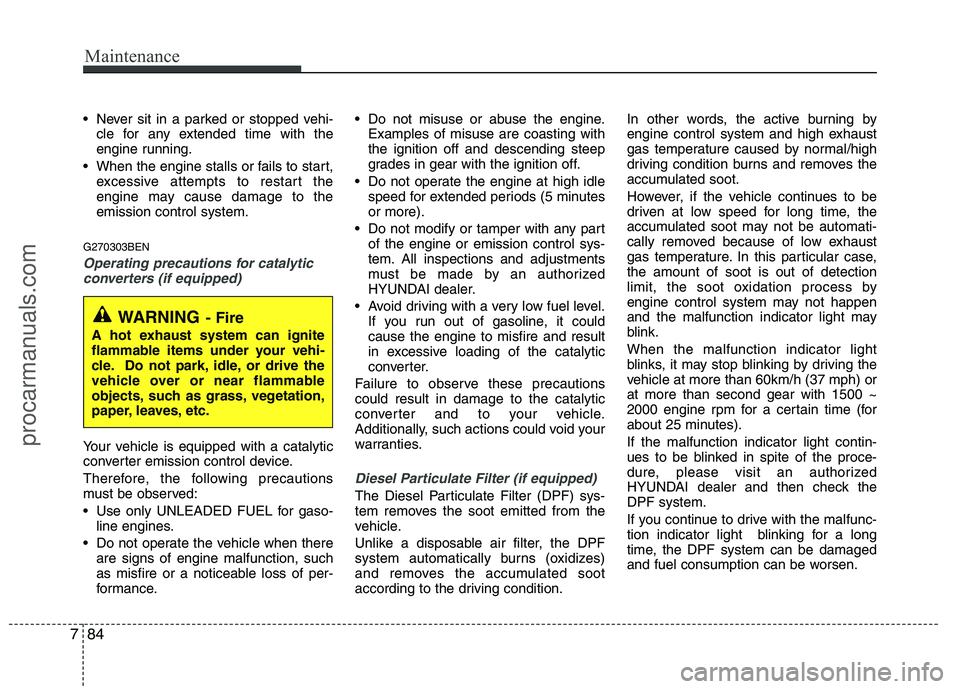

Never sit in a parked or stopped vehi-
cle for any extended time with the
engine running.
When the engine stalls or fails to start, excessive attempts to restart the
engine may cause damage to theemission control system.
G270303BEN
Operating precautions for catalytic converters (if equipped)
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for gaso- line engines.
Do not operate the vehicle when there are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance. Do not misuse or abuse the engine.
Examples of misuse are coasting withthe ignition off and descending steep
grades in gear with the ignition off.
Do not operate the engine at high idle speed for extended periods (5 minutesor more).
Do not modify or tamper with any part of the engine or emission control sys-
tem. All inspections and adjustments
must be made by an authorized
HYUNDAI dealer.
Avoid driving with a very low fuel level. If you run out of gasoline, it couldcause the engine to misfire and result
in excessive loading of the catalytic
converter.
Failure to observe these precautionscould result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranties.
Diesel Particulate Filter (if equipped)
The Diesel Particulate Filter (DPF) sys-
tem removes the soot emitted from the
vehicle.
Unlike a disposable air filter, the DPF
system automatically burns (oxidizes)
and removes the accumulated soot
according to the driving condition. In other words, the active burning by
engine control system and high exhaust
gas temperature caused by normal/high
driving condition burns and removes the
accumulated soot.
However, if the vehicle continues to be
driven at low speed for long time, the
accumulated soot may not be automati-
cally removed because of low exhaust
gas temperature. In this particular case,the amount of soot is out of detection
limit, the soot oxidation process by
engine control system may not happen
and the malfunction indicator light may
blink. When the malfunction indicator light
blinks, it may stop blinking by driving the
vehicle at more than 60km/h (37 mph) orat more than second gear with 1500 ~
2000 engine rpm for a certain time (for
about 25 minutes). If the malfunction indicator light contin-
ues to be blinked in spite of the proce-
dure, please visit an authorized
HYUNDAI dealer and then check theDPF system.
If you continue to drive with the malfunc-
tion indicator light blinking for a long
time, the DPF system can be damaged
and fuel consumption can be worsen.
WARNING
- Fire
A hot exhaust system can ignite
flammable items under your vehi-
cle. Do not park, idle, or drive the
vehicle over or near flammable
objects, such as grass, vegetation,
paper, leaves, etc.
procarmanuals.com

8

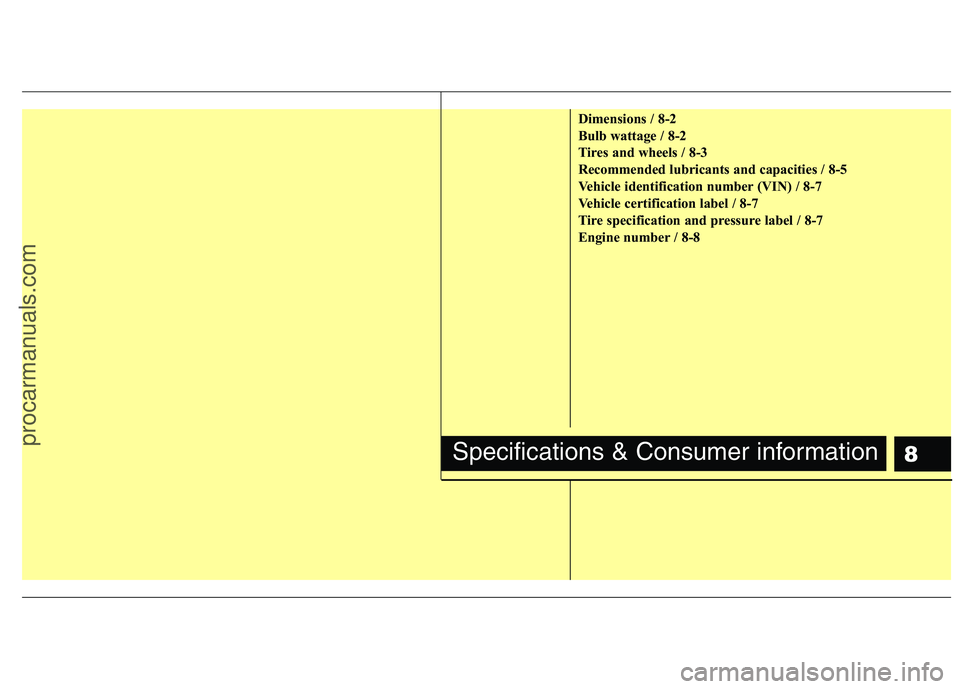

Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-7
Engine number / 8-8
Specifications & Consumer information
procarmanuals.com

Specifications & Consumer information
2
8

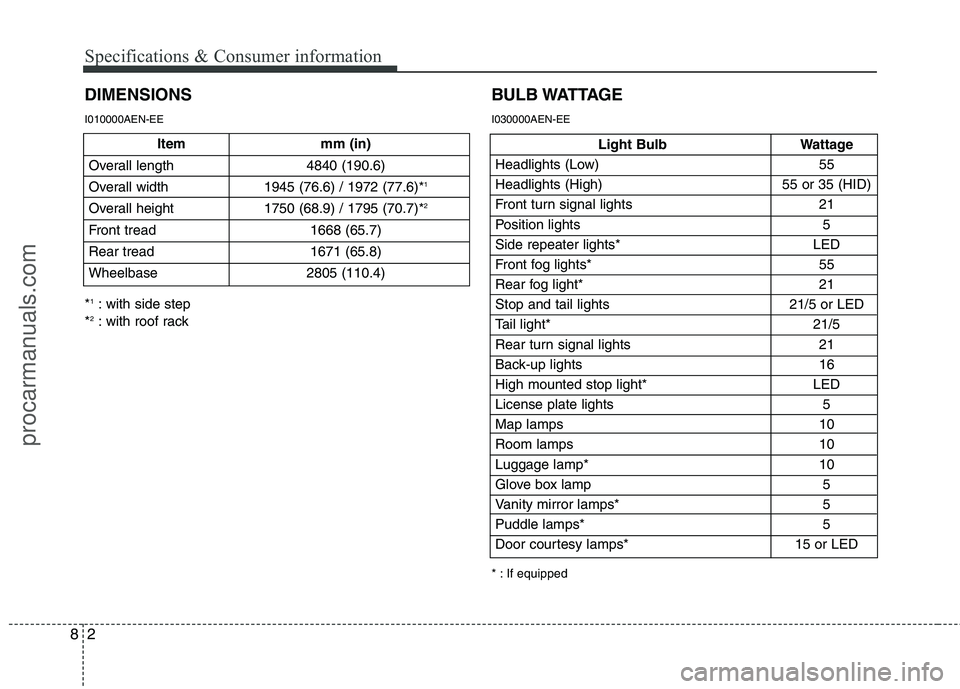

Item mm (in)
Overall length 4840 (190.6)
Overall width 1945 (76.6) / 1972 (77.6)* 1
Overall height 1750 (68.9) / 1795 (70.7)* 2
Front tread 1668 (65.7)
Rear tread 1671 (65.8)
Wheelbase 2805 (110.4)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55 or 35 (HID)
Front turn signal lights 21
Position lights 5
Side repeater lights* LED
Front fog lights* 55
Rear fog light* 21
Stop and tail lights 21/5 or LED
Tail light* 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* LED
License plate lights 5 Map lamps 10
Room lamps 10
Luggage lamp* 10
Glove box lamp 5
Vanity mirror lamps* 5Puddle lamps* 5
Door courtesy lamps* 15 or LED
BULB WATTAGE
* : If equipped
*
1
: with side step
* 2
: with roof rack
I010000AEN-EE
I030000AEN-EE
procarmanuals.com

83
Specifications & Consumer information

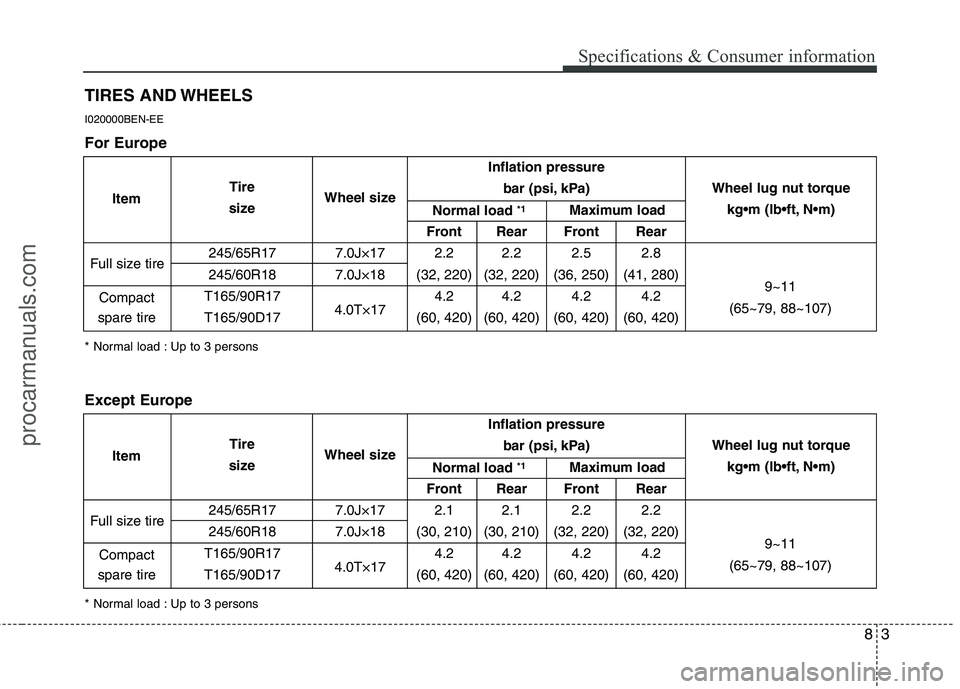

TIRES AND WHEELS
* Normal load : Up to 3 persons
I020000BEN-EE
Inflation pressure
bar (psi, kPa)
Front Rear Front Rear
245/65R17 7.0J×17 2.2 2.2 2.5 2.8
245/60R18 7.0J×18 (32, 220) (32, 220) (36, 250) (41, 280)
T165/90R17 4.2 4.2 4.2 4.2T165/90D17 4.0T×17
(60, 420) (60, 420) (60, 420) (60, 420)
Full size tire
Compact
spare tire Wheel lug nut torque

9~11
(65~79, 88~107)
Item
Tire
size Wheel size
Normal load *1
Maximum load
For Europe
* Normal load : Up to 3 persons
Inflation pressure
bar (psi, kPa)
Front Rear Front Rear
245/65R17 7.0J×17 2.1 2.1 2.2 2.2
245/60R18 7.0J×18 (30, 210) (30, 210) (32, 220) (32, 220)
T165/90R17 4.2 4.2 4.2 4.2T165/90D17 4.0T×17
(60, 420) (60, 420) (60, 420) (60, 420)
Full size tire
Compact
spare tire Wheel lug nut torque

9~11
(65~79, 88~107)
Item
Tire
size Wheel size
Normal load *1
Maximum load
Except Europe
procarmanuals.com

Specifications & Consumer information
4
8

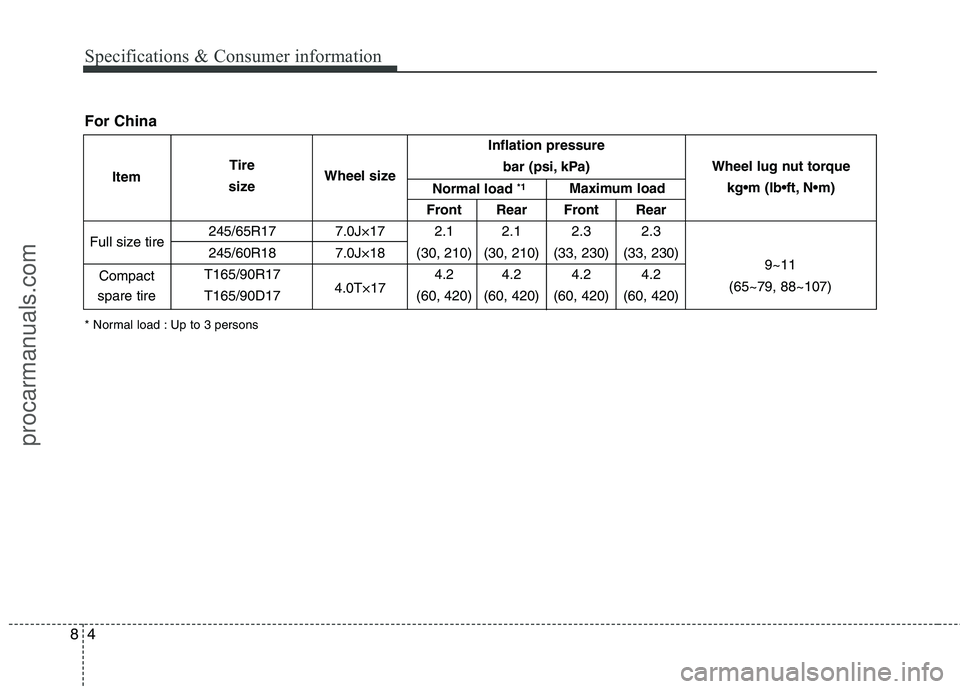

* Normal load : Up to 3 persons
Inflation pressure
bar (psi, kPa)
Front Rear Front Rear
245/65R17 7.0J×17 2.1 2.1 2.3 2.3
245/60R18 7.0J×18 (30, 210) (30, 210) (33, 230) (33, 230)
T165/90R17 4.2 4.2 4.2 4.2T165/90D17 4.0T×17
(60, 420) (60, 420) (60, 420) (60, 420)
Full size tire
Compact
spare tire Wheel lug nut torque

9~11
(65~79, 88~107)
Item
Tire
size Wheel size
Normal load *1
Maximum load
For China
procarmanuals.com

85
Specifications & Consumer information

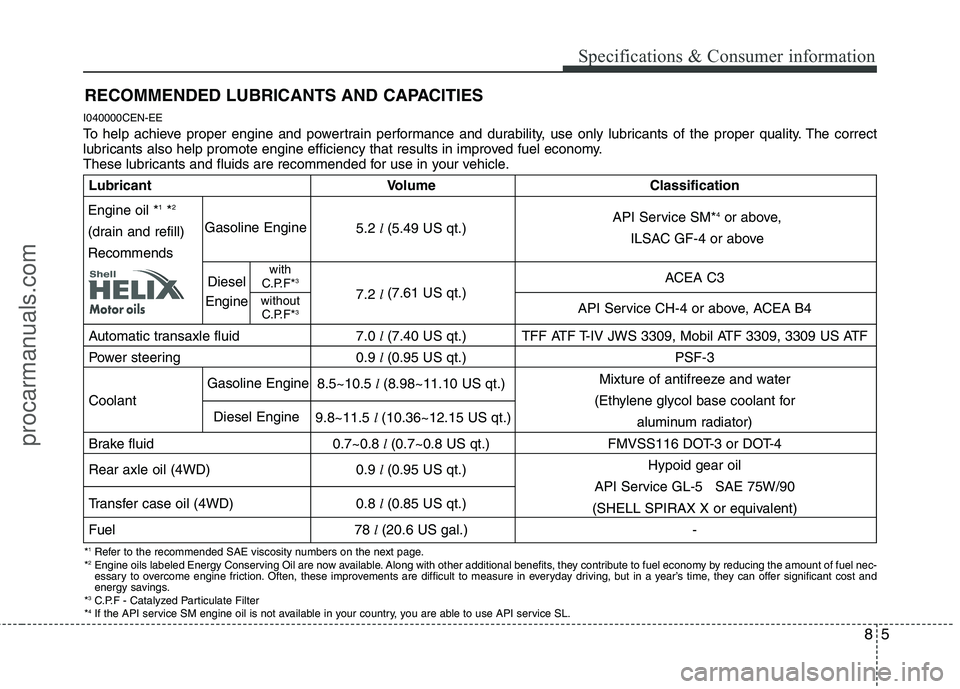

RECOMMENDED LUBRICANTS AND CAPACITIES
I040000CEN-EE
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
* 1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel nec-
essary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.
* 3
C.P.F - Catalyzed Particulate Filter
* 4
If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant Volume Classification
5.2 l (5.49 US qt.)
ACEA C3
7.2 l (7.61 US qt.)
API Service CH-4 or above, ACEA B4
Automatic transaxle fluid 7.0 l (7.40 US qt.) TFF ATF T-IV JWS 3309, Mobil ATF 3309, 3309 US ATF
Power steering 0.9 l (0.95 US qt.) PSF-3
8.5~10.5 l (8.98~11.10 US qt.) Mixture of antifreeze and water
Coolant (Ethylene glycol base coolant for
9.8~11.5 l (10.36~12.15 US qt.)
aluminum radiator)
Brake fluid 0.7~0.8 l (0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Rear axle oil (4WD) 0.9 l (0.95 US qt.) Hypoid gear oil
API Service GL-5 SAE 75W/90
Transfer case oil (4WD) 0.8 l (0.85 US qt.)
(SHELL SPIRAX X or equivalent)
Fuel 78 l (20.6 US gal.) -
Engine oil * 1
*2
(drain and refill) Recommends Gasoline Engine
Gasoline EngineDiesel
Engine with
C.P.F* 3
without C.P.F* 3
Diesel Engine API Service SM*
4
or above,
ILSAC GF-4 or above
procarmanuals.com

Specifications & Consumer information
6
8

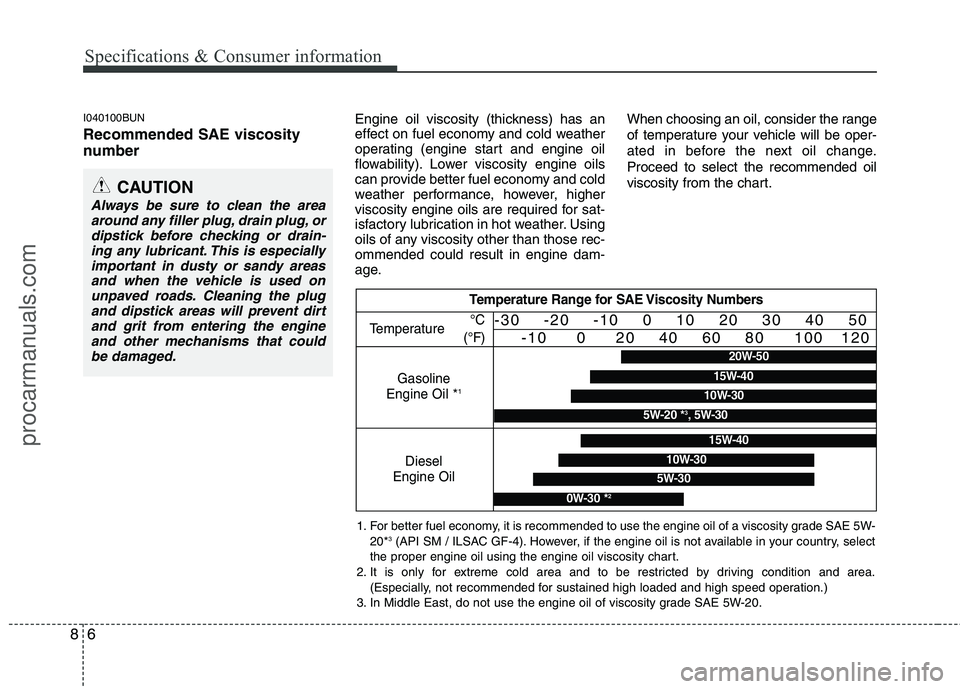

I040100BUN Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30
15W-40
10W-30
0W-30 * 2
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20* 3
(API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
2. It is only for extreme cold area and to be restricted by driving condition and area. (Especially, not recommended for sustained high loaded and high speed operation.)
3. In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
20W-50
10W-30
15W-40
5W-20 * 3
, 5W-30
procarmanuals.com

87
Specifications & Consumer information

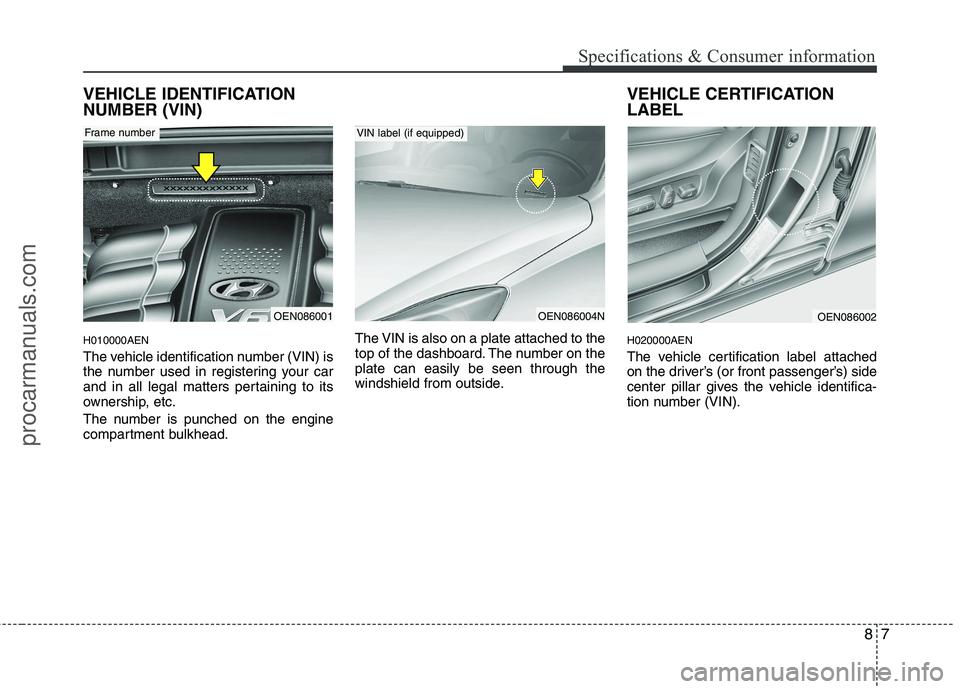

VEHICLE IDENTIFICATION NUMBER (VIN) H010000AEN
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the engine
compartment bulkhead.The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.VEHICLE CERTIFICATION LABEL H020000AEN
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
OEN086001OEN086004N
VIN label (if equipped)Frame number
OEN086002
procarmanuals.com

Specifications & Consumer information
8
8

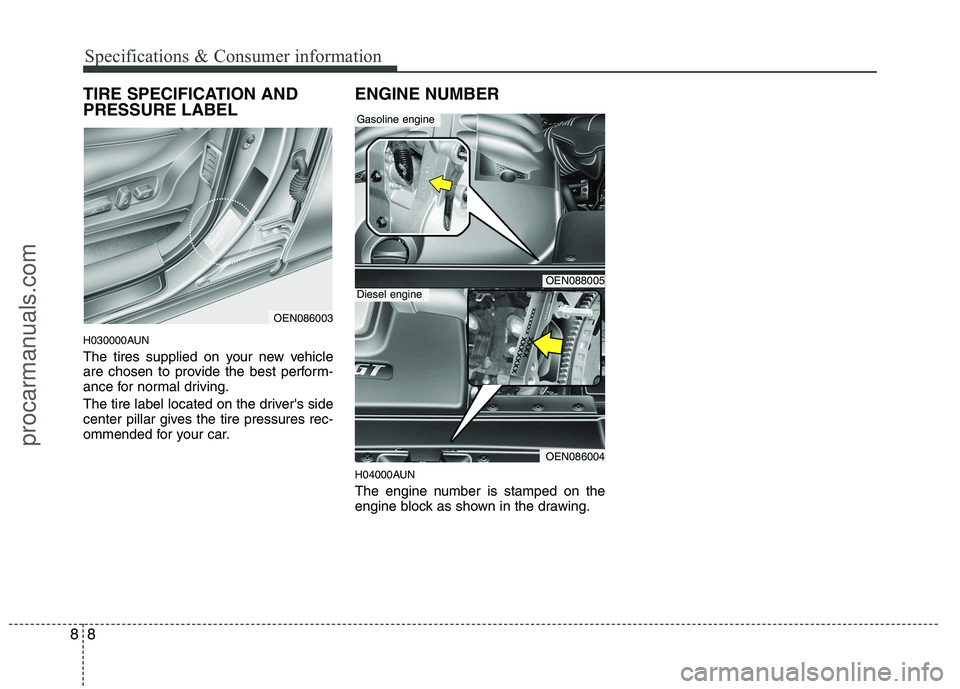

TIRE SPECIFICATION AND PRESSURE LABEL
H030000AUN
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car. ENGINE NUMBER
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
OEN088005
OEN086004
Diesel engine
Gasoline engine
OEN086003
procarmanuals.com

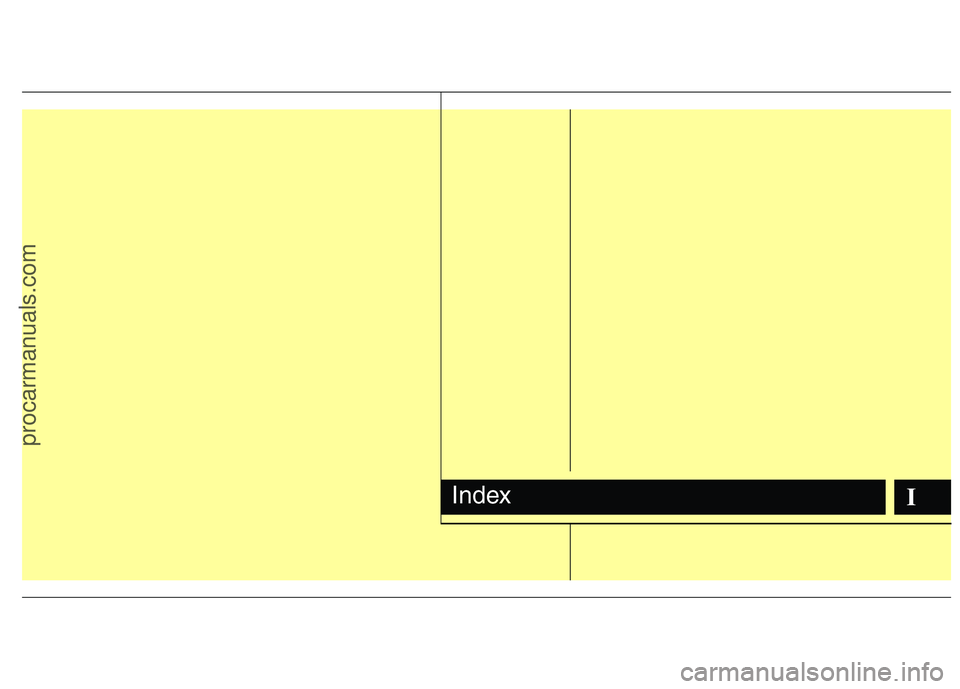

IIndex
