back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector lever to the P
(Park) position before blocking the wheels and
applying the parking brake, transmission dam-
age could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the down- hill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park).
6. Turn off the engine.
To drive away:
1. Apply and hold the brake pedal.
2. Start the engine.
3. Shift the transmission into gear.
4. Release the parking brake. 5. Drive slowly until the vehicle and trailer
are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
● When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine overload-
ing and/or overheating.
● If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
opening the windows, switching the fan
control to high and setting the temperature
control to the HOT position.
● Trailer towing requires more fuel than nor-
mal circumstances.
● Avoid towing a trailer for the first 500 miles
(800 km).
● Have your vehicle serviced more often than
at intervals specified in the recommended
maintenance schedule in the INFINITI Service
and Maintenance Guide.
● When making a turn, your trailer wheels will
be closer to the inside of the turn than your vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly
causing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling. If swaying does occur, firmly
grip the steering wheel, steer straight
ahead, and immediately (but gradually) re-
duce vehicle speed. This combination will
help stabilize the vehicle. Never increase
speed.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions
allow. This combination will help stabilize
the vehicle.
– Do not correct trailer sway by steering orapplying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road
in a safe area.
3. Try to rearrange the trailer load so it is balanced as described earlier in this sec-
tion.
9-26Technical and consumer information
—
—
08/03/09—pattie


●Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Down shift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
● Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● Do not use cruise control while towing a
trailer.
● Some states or provinces have specific regu-
lations and speed limits for vehicles that are
towing trailers. Obey the local speed limits.
● Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after 50
miles (80 km) of travel and at every break.
● When stopped in traffic for long periods of
time in hot weather, put the vehicle in the P
(Park) position. ●
When launching a boat, don’t allow the
water level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, the transmission fluid
should be changed more frequently. For addi-
tional information, see the “8. Maintenance and
do-it-yourself” section earlier in this manual.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
● Failure to follow these guidelines can result
in severe transmission damage.
● Whenever flat towing your vehicle, always
tow forward, never backward.
● DO NOT tow any automatic transmission ve-
hicle with all four wheels on the ground (flat
towing). Doing so WILL DAMAGE internal
transmission parts due to lack of transmis-
sion lubrication. ●
DO NOT tow an All-Wheel Drive (AWD) ve-
hicle with any of the wheels on the ground.
Doing so may cause serious and expensive
damage to the powertrain.
● For emergency towing procedures refer to
“TOWING RECOMMENDED BY INFINITI” in the
“6. In case of emergency” section of this
manual.
Automatic transmission
All-Wheel Drive (AWD) models :
Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models :
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly
MUST be placed under the towed vehicle’s drive
wheels. Alwaysfollow the dolly manufacturer’s
recommendations when using their product.
Technical and consumer information9-27
—
—
08/03/09—pattie


DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire
graded 100. The relative performance of tires
depends upon actual conditions of their use,
however, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specifiedgovernment test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is based
on straight-ahead braking traction tests, and
does not include acceleration, cornering, hy-
droplaning, or peak traction characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the ma-
terial of the tire to degenerate and reduce tire
life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to
a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A rep-
resent higher levels of performance on the
laboratory test wheel than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and not
overloaded. Excessive speed, under-inflation,
or excessive loading, either separately or in
combination, can cause heat build-up and pos-
sible tire failure.
UNIFORM TIRE QUALITY GRADING
9-28Technical and consumer information
—
—
08/03/09—pattie


Your INFINITI is covered by the following emis-
sion warranties.
For US:
●Emission Defects Warranty
● Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet that comes with your INFINITI. If
you did not receive a Warranty Information
Booklet, or it has become lost, you may obtain
a replacement by writing to:
● INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003 For Canada:
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty and
Roadside Assistance Information that comes
with your INFINITI. If you did not receive a
Warranty and Roadside Assistance Information,
or it has become lost, you may obtain a replace-
ment by writing to:
●
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying INFINITI.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and rem-
edy campaign. However, NHTSA cannot
become involved in individual problems
between you, your retailer, or INFINITI.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington DC 20590. You can
also obtain other information about mo-
tor vehicle safety from
http://www.safercar.gov.
EMISSION CONTROL SYSTEM WARRANTY REPORTING SAFETY DEFECTS (US only)
Technical and consumer information9-29
—
—
08/03/09—pattie


You may notify INFINITI by contacting our
Consumer Affairs Department, toll-free,
at 1-800-662-6200.A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing), or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/ areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Push the ignition switch to the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/Mtest condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
If the MIL indicates the vehicle is in a “not
ready” condition, drive the vehicle through the
following pattern to set the vehicle to the
“ready condition”. If you cannot or do not want
to perform the driving pattern, an INFINITI re-
tailer can conduct it for you.
WARNING
Always drive the vehicle in a safe and prudent
manner according to traffic conditions and
obey all traffic laws.
1. Start the engine. Allow the engine to idle
until the engine coolant temperature
gauge needle points between the C and H
(normal operating temperature).
2. Accelerate the vehicle to 55 MPH (88 km/h), then quickly release the accelera-
tor pedal completely and keep it released
for at least 10 seconds.
3. Quickly depress the accelerator pedal for a moment, then drive the vehicle at a
speed of 53 to 60 MPH (86 to 96 km/h) for
at least 9 minutes.
4. Stop the vehicle. Leave the engine run- ning.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
9-30Technical and consumer information
—
—
08/03/09—pattie


5. Accelerate the vehicle to 35 MPH (55km/h) and maintain the speed for 20
seconds.
6. Repeat steps 4 and 5 at least 10 times.
7. Accelerate the vehicle to 55 MPH (88 km/h) and maintain the speed for at least
3 minutes.
8. Stop the vehicle. Place the automatic transmission selector lever in the P (Park)
or N (Neutral) position.
9. Turn the engine off.
10. Repeat steps 1 through 8 at least one more time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed. This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
●
How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no
data are recorded by the EDR under normal
driving conditions and no personal data (e.g.
name, gender, age and crash location) are
recorded. However, other parties, such as law enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or
the EDR is needed. In addition to the vehicle
manufacturer and INFINITI retailer, other par-
ties, such as law enforcement, that have the
special equipment, can read the information if
they have access to the vehicle or the EDR. EDR
data will only be accessed with the consent of
the vehicle owner or lessee or as otherwise
required or permitted by law.
EVENT DATA RECORDERS (EDR)
Technical and consumer information9-31
—
—
08/03/09—pattie


A genuine INFINITI Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustra-
tions and step-by-step diagnostic and adjust-
ment procedures, this manual is the same one
used by the factory trained technicians working
at an INFINITI retailer. Also available are genu-
ine INFINITI Owner’s Manuals, and genuine
INFINITI Service and Owner’s Manuals for older
INFINITI models.
In the USA:
For current pricing and availability of genuine
INFINITI Service Manualsfor the 2000 model
year and later, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genuine
INFINITI Service Manuals for the 1999 model
year and prior, see an INFINITI retailer, or
contact:
1-800-247-5321
For current pricing and availability of genuine
INFINITI Owner’s Manuals for this model year
and prior, see an INFINITI retailer, or contact:
1-800-247-5321 In Canada:
To purchase a copy of a genuine INFINITI Service
Manual or Owner’s Manual please contact an
INFINITI retailer. For the phone number and
location of an INFINITI retailer in your area call
the INFINITI Satisfaction Center at 1-800-361-
4792 and a bilingual INFINITI representative will
assist you.
Also available are genuine INFINITI Service and
Owner’s Manuals for older INFINITI models.
IN THE EVENT OF A COLLISION
Unfortunately, accidents do occur. In this un-
likely event, there is some important informa-
tion you should know. Many insurance compa-
nies routinely authorize the use of non-genuine
collision parts in order to cut costs, among
other reasons.
Insist on the use of Genuine INFINITI
Collision Parts!
If you want your vehicle to be restored using
parts made to INFINITI’s original exacting speci-
fications — if you want to help it to last and hold
its resale value, the solution is simple.
Tell your
insurance agent and your repair shop to only use
Genuine INFINITI Collision Parts. INFINITI doesnot warrant non-INFINITI parts, nor does INFINI-
TI’s warranty apply to damage caused by a
non-genuine part.
Using Genuine INFINITI Parts can help protect
your personal safety, preserve your warranty
protection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine INFINITI Parts may prevent or limit
unnecessary excess wear and tear expenses at
the end of your lease.
INFINITI designs its hoods with crumple zones
to minimize the risk that the hood will penetrate
the windshield of your vehicle in an accident.
Non-genuine (imitation) parts may not provide
such built in safeguards. Also, non-genuine
parts often show premature wear, rust and
corrosion.
Why should you take a chance?
In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states have enacted
laws that restrict insurance companies from
authorizing the use of non-genuine collision
parts during the new vehicle warranty. These
laws help protect you, so you can take action to
protect yourself.
OWNER’S MANUAL/SERVICE MANUAL
ORDER INFORMATION
9-32Technical and consumer information
—
—
08/03/09—pattie

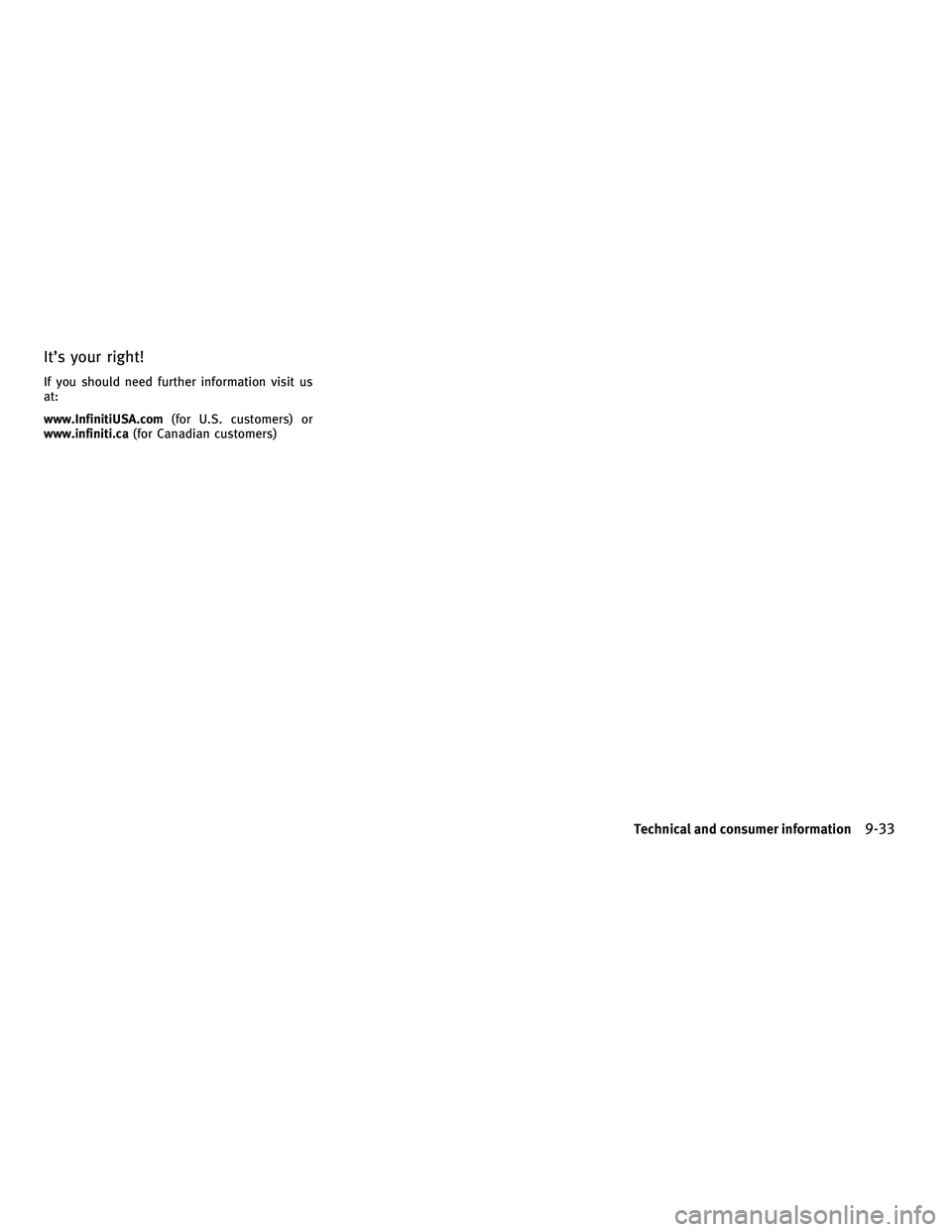

It’s your right!
If you should need further information visit us
at:
www.InfinitiUSA.com(for U.S. customers) or
www.infiniti.ca (for Canadian customers)
Technical and consumer information9-33
—
—
10/19/09—tbrooks

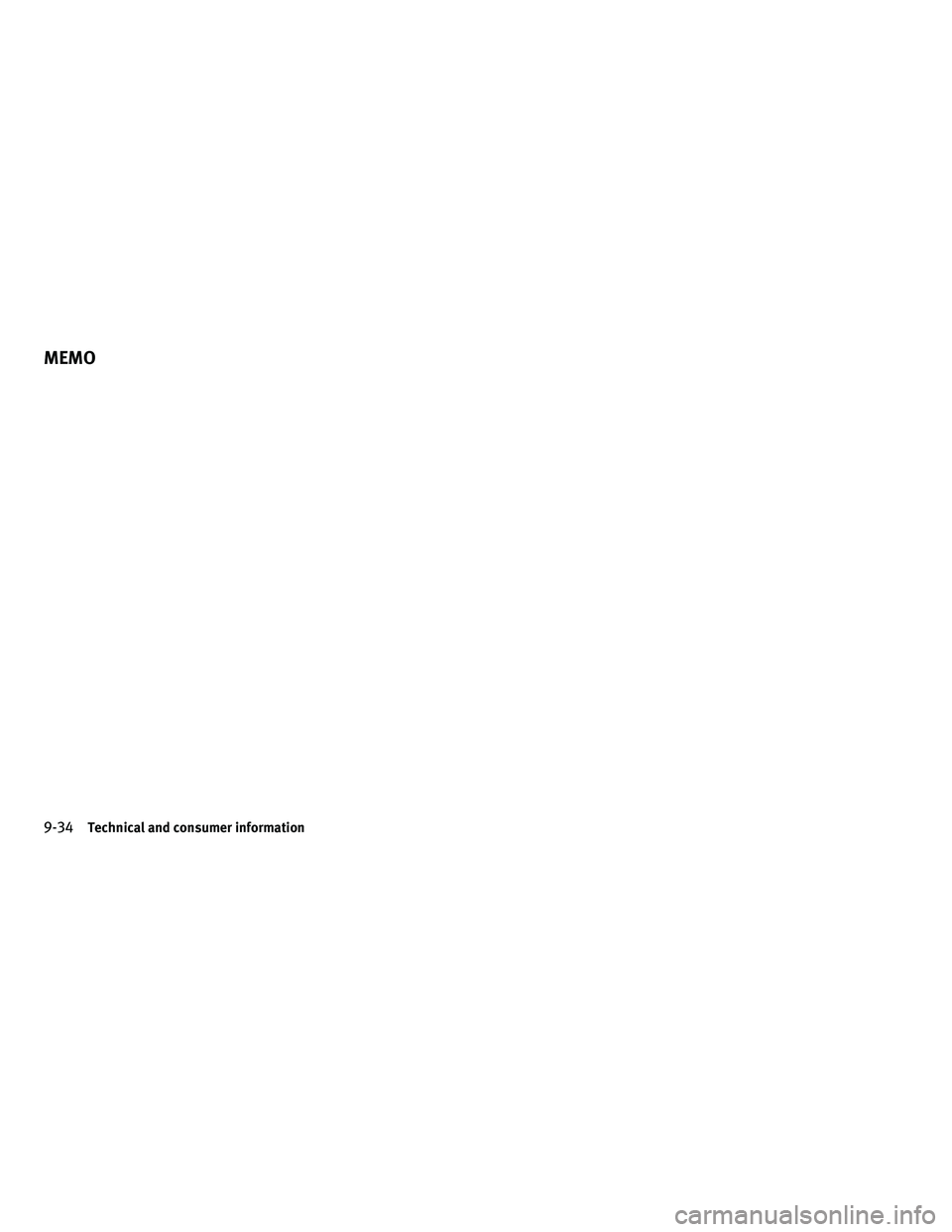

9-34Technical and consumer information
MEMO

10 Index
A
ABS (Anti-lock Braking System) ........5-76
Adaptive front lighting system (AFS) .....2-38
Advanced air bag system ...........1-45
Aiming control, Adaptive front lighting
system (AFS) ................. .2-38
Air bag system Advanced air bag system .........1-45
Front passenger air bag and status
light ..................... 1-47
Front-seat mounted side-impact
supplemental air bag system .......1-50
Roof-mounted curtain side-impact and
rollover supplemental air bag system . . 1-50
Air bag warning labels .............1-53
Air bag warning light ..........1-53 , 2-17
Air cleaner housing filter ...........8-19
Air conditioner Advanced Climate Control System
(ACCS) ................... .4-44
Air conditioner service ..........4-46
Air conditioner specification label ....9-13
Air conditioning system refrigerant and
lubricant recommendations .......4-46
Automatic climate control ........4-40
In-cabin microfilter ............4-45
Operation (See automatic climate
control) ................... 4-40
Alarm, How to stop alarm
(see vehicle security system) .........2-31Alcohol, drugs and driving
...........5-7
All-wheel drive (AWD) .............5-69
All-wheel drive (AWD) warning light .....2-13
Antenna .................... .4-90
Anti-lock Braking System (ABS) ........5-76
Anti-lock braking system (ABS) warning
light ...................... .2-13
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-12
Around view monitor .............4-28
Audible reminders .............. .2-20
Audio operation precautions .........4-46
Audio system ................. .4-46
Audio system, Steering wheel audio
controls .................... .4-89
Auto closure .................. .3-17
Autolight

system ............... .2-36
Automatic Automatic transmission fluid (ATF) . . . .8-13
Climate control .............. 4-40
Driving with automatic transmission . . . 5-13
Automatic door locks ..............3-5
Automatic drive positioner ..........3-25
Automatic seat positioner ...........3-25
Average fuel consumption and speed . . . .2-27
Avoiding collision and rollover .........5-5 B
Back door (See lift gate) ............3-16
Battery ..................... .8-15
Battery Battery saver system ............2-37
Intelligent Key ............... 8-23
Variable voltage control system . ....8-17
Before starting the engine ...........5-12
Belts (See drive belts) .............8-17
Bluetooth hands-free phone system
(models with navigation system) ......4-104
Booster seats ................. .1-35
Brake Anti-lock Braking System (ABS) ......5-76
Brake fluid ................. 8-14
Brake system ................ 5-73
Parking brake operation ..........5-17
Brake warning light ............. .2-13
Break-in schedule .............. .5-68
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-39
Bulb check/instrument panel . . . . . . . . .2-12
Bulb replacement .............. .8-25
—
—
10/19/09—tbrooks
