4-24Monitor, climate, audio, phone and voice recognition systems
WARNING
.The RearView camera is a convenience
but it is not a substitute to check behind
the vehicle when backing up.
. The driver is always responsible for
safety during parking and other maneu-
vers.
. Objects viewed in the RearView Monitor
differ from actual distance because a
wide-angle lens is used.
. Objects in the RearView Monitor will
appear visually opposite like ones
viewed in the inside and outside mirrors.
. Make sure that the lift gate is securely
closed when backing up.
. Underneath the bumper and the corner
areas of the bumper cannot be viewed on
the rearview monitor because of its
monitoring range limitation. .
Do not put anything on the rearview
camera. The rearview camera is installed
above the license plate.
. When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.
. Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunc-
tion or cause damage resulting in a fire
or an electric shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera.
REARVIEW MONITOR (models without
navigation system)

SAA1896
HOW TO READ DISPLAYED LINESGUID-BCFE75B5-C5A1-4F87-B804-CFCA48BAE298
WARNING
.Always turn and check that it is safe to
park your car before backing up. Always
back up slowly.
. If the tires are replaced with different
sized tires, the predictive course line
may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between the
predictive course line and the actual
course line. .
The displayed lines will appear slightly
off to the right because the rearview
camera is not installed in the rear center
of the vehicle.
. The distance guide line and the vehicle
width guide line should be used as a
reference only when the vehicle is on a
level paved surface. The distance viewed
on the monitor is for reference only and
may be different than the actual distance
between the vehicle and displayed ob-
jects.
. When backing up the vehicle up a hill,
objects viewed in the monitor are further
than they appear. When backing up the
vehicle down a hill, objects viewed in the
monitor are closer than they appear. Use
the inside mirror or glance over your
shoulder to properly judge distances to
other objects.
Monitor, climate, audio, phone and voice recognition systems4-25

4-26Monitor, climate, audio, phone and voice recognition systems
SAA1897
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-59AAF71A-D98A-484D-9CC4-31B90C68404B
SAA1898
3. Slowly back up the vehicle adjustingthe steering wheel so that the predic-
tive course lines
*Benter the parking
space
*C.
4. When the back of the vehicle enter the parking space
*C, maneuver the steer-
ing wheel to make the vehicle width

guide lines*Dparallel to the parking
space
*C.
5. When the vehicle is parked in the space completely, move the selector lever to
the “P” (Park) position and apply the
parking brake.
SAA1978
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-76D1C419-96D2-4FDD-950C-0DAC9B41F4D1

4-28Monitor, climate, audio, phone and voice recognition systems
SAA1979
Backing up on a steep downhillGUID-8C5A07EB-1FF9-4681-8CA9-B5329E4077F2
SAA1923
Backing up near a projecting objectGUID-D3998F42-C9F7-484E-9DFF-FBDD6CCBA589

SAA1980
Backing up behind a projecting
object
GUID-670CA3F8-9400-411F-8372-B86FED77E300
SAA2606
PREDICTIVE COURSE LINE SETTINGSGUID-A1B564F1-24FA-4947-A33F-A367488D81D9

4-30Monitor, climate, audio, phone and voice recognition systems
HOW TO ADJUST SCREENGUID-FEF721F4-FD6F-4B52-A3A2-CB66E29E880C

GUID-1C82F6B0-F35D-4D10-8883-9C4F05B7CE7C
SAA2148
There are some areas where the system
will not show objects. When in the front or
the rearview display, an object below the
bumper or on the ground may not be
viewed
*1. When in the bird-eye view, a
tall object near the seam of the camera
viewing areas will not appear in the monitor
*2.
WARNING
.
The Around View Monitor is a convenient
feature but it is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
Always look out the windows and check
mirrors to be sure that it is safe to move.
The driver is always responsible for
safety during parking and other maneu-
vers.
. Do not use the Around View Monitor with
the outside mirror in the stored position,
and make sure that the lift gate is
securely closed when operating the
vehicle using the Around View Monitor.
. The distance between objects viewed on
the Around View Monitor differs from the
actual distance.
. The cameras are installed above the
front grille, the outside mirrors and
above the rear license plate. Do not put
anything on the cameras.

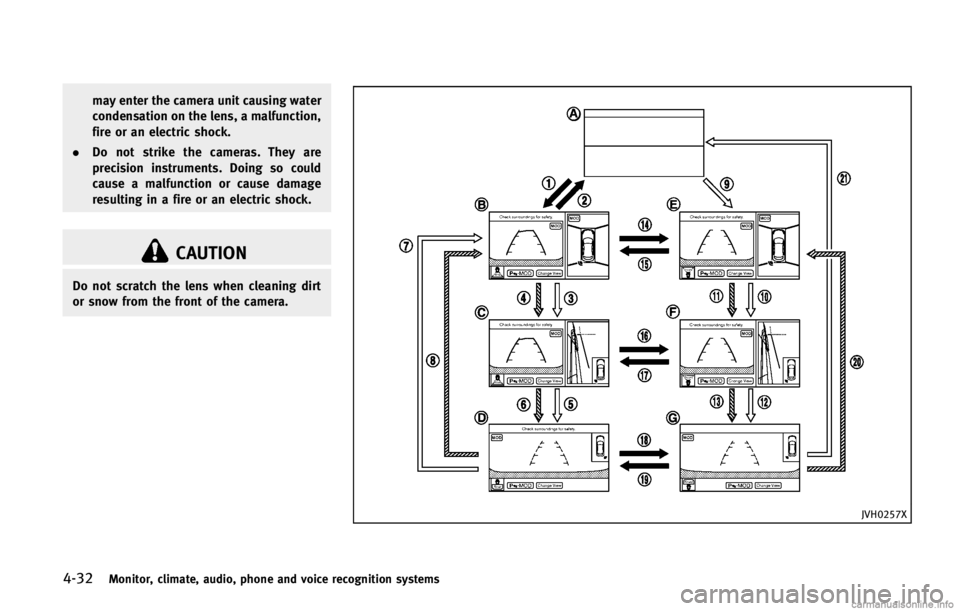

. When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water
Monitor, climate, audio, phone and voice recognition systems4-31
AROUND VIEWTMMONITOR (AVM) (models
with navigation system)

4-32Monitor, climate, audio, phone and voice recognition systems
CAUTION
Do not scratch the lens when cleaning dirt
or snow from the front of the camera.
JVH0257X

: Shift the selector lever
: Select the“Change View” key on the
screen
: Push the CAMERA button
*A: Original screen before the Around
View Monitor is operated
*B: Rear view/bird-eye view screen
*C: Rear view/front-side view screen
*D: Rear-wide view screen
*E: Front view/bird-eye view screen
*F: Front view/front-side view screen
*G: Front-wide view screen
HOW TO SWITCH THE DISPLAYGUID-F4C8E097-E6ED-4346-BF4F-F8006370ADFD
