How to Select Piston and Bearing ABS006IV
DESCRIPTION
*: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipment from the plant is described as a reference.

The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.

For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.

For details of the measurement method of each part, the reuse standards, and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When New Cylinder Block Is Used:
Check the cylinder bore grade (“0”, “1” or “2”) on the rear upper side
between cylinder block banks, and select piston of the same grade.
NOTE:
Piston is available with piston pin as a set for the service part. (Only
“0” grade piston pin is available.)
When Cylinder Block Is Reused:
1. Measure the cylinder bore inner diameter. Refer to EM-260, "Cylinder Bore Inner Diameter" .
2. Determine the bore grade by comparing the measurement with the values the “Cylinder bore inner diame-
ter” of the “Piston Selection Table”. Select piston of the same grade.
Selection points Selection parts Selection items Selection methods
Between cylinder block to
crankshaftMain bearingMain bearing grade
(bearing thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft to connect-
ing rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer
diameter determine connecting
rod bearing selection.
Between cylinder block to pis-
tonPiston and piston pin assembly
(Piston is available together
with piston pin as assembly.)Piston grade
(piston skirt diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
Between piston to connecting
rod*———
PBIC2371E
PBIC2372E

CYLINDER BLOCK
EM-251
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Piston Selection Table
Unit: mm (in)
NOTE:

Piston is available together with piston pin as assembly.

Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no
piston pin grades can be selected. (Only “0” grade is available.)

No second grade mark is available on piston.
HOW TO SELECT CONNECTING ROD BEARING
When New Connecting Rod and Crankshaft Are Used:
Check pin diameter grade (“0”, “1” or “2”) on front of crankshaft, and
select connecting rod bearing of the same grade.
NOTE:
There is no grading for connecting rod big end diameter.
When Crankshaft and Connecting Rod Are Reused:
1. Measure the connecting rod big end diameter. Refer to EM-258, "CONNECTING ROD BIG END DIAME-
TER" .
2. Make sure that the connecting rod big end diameter is within the standard value.
3. Measure the crankshaft pin journal diameter. Refer to EM-262, "
CRANKSHAFT PIN JOURNAL DIAME-
TER" .
4. Determine the grade of crankshaft pin diameter grade by corresponding to the measured dimension in
“Crankshaft pin journal diameter” column of “Connecting Rod Bearing Selection Table”.
5. Select connecting rod bearing of the same grade.
Connecting Rod Bearing Selection Table
Unit: mm (in)
Unit: mm (in)
Under Size Bearings Usage Guide

When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod
bearings, use undersize (US) bearings.

When using undersize bearing, measure the connecting rod bearing inner diameter with bearing installed,
and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
Grade 1 2 (or no mark) 3
Cylinder bore inner diameter93.000 / 93.010
(3.6614 / 3.6618)93.010 / 93.020
(3.6618 / 3.6622)93.020 / 93.030
(3.6622 / 3.6626)
Piston skirt diameter92.980 / 92.990
(3.6606 / 3.6610)92.990 / 93.000
(3.6610 / 3.6614)93.000 / 93.010
(3.6614 / 3.6618)
PBIC2374E
Connecting rod big end diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft pin journal diameter Grade (Mark) Dimension (Bearing thickness range) Bearing grade No. Color
51.968 - 51.974 (2.0460 - 2.0462) 0 1.500 - 1.503 (0.0591 - 0.0592) STD 0 No color
51.962 - 51.968 (2.0457 - 2.0460) 1 1.503 - 1.506 (0.0592 - 0.0593) STD 1 Brown
51.956 - 51.962 (2.0455 - 2.0457) 2 1.506 - 1.509 (0.0593 - 0.0594) STD 2 Green

EM-252
[VK45DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
CAUTION:
In grinding crankshaft pin to use undersize bearings, keep
the fillet R [1.5 mm (0.059 in)].
Bearing undersize table
Unit: mm (in)
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft Are Used:
1. “Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear upper side between cylinder block banks.
2. “Main Bearing Selection Table” columns correspond to main
journal diameter grade on front side of crankshaft.
3. Select main bearing grade at the point where selected row and column meat in “Main Bearing Selection
Table”.
CAUTION:

Initial clearance for No. 1, 5 journal and No. 2, 3, 4 journal is different. Use two different selection
table for each part.

No. 1, 5 journal and No. 2, 3, 4 journal have the same signs but different measures. Do not con-
fuse.
4. Apply sign at crossing in above step 3 to “Main Bearing Grade Table”.
NOTE:

“Main Bearing Grade Table” applies to all journals.

Service parts is available as a set of both upper and lower.
PBIC2373E
Size Thickness
US 0.25 (0.0098) 1.626 - 1.634 (0.0640 - 0.0643)
PBIC2371E
PBIC2374E

CYLINDER BLOCK
EM-253
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
When Cylinder Block and Crankshaft Are Reused:
1. Measure cylinder block main bearing housing inner diameter and crankshaft main journal diameter. Refer
to EM-260, "
MAIN BEARING HOUSING INNER DIAMETER" and EM-261, "CRANKSHAFT MAIN
JOURNAL DIAMETER" .
2. Correspond the measured dimension in “Cylinder block main bearing housing inner diameter” row of
“Main Bearing Selection Table”.
3. Correspond the measured dimension in “Crankshaft main journal diameter” column of “Main Bearing
Selection Table”.
4. Follow step 3 and later in “When New Cylinder Block and Crankshaft are Used:”.

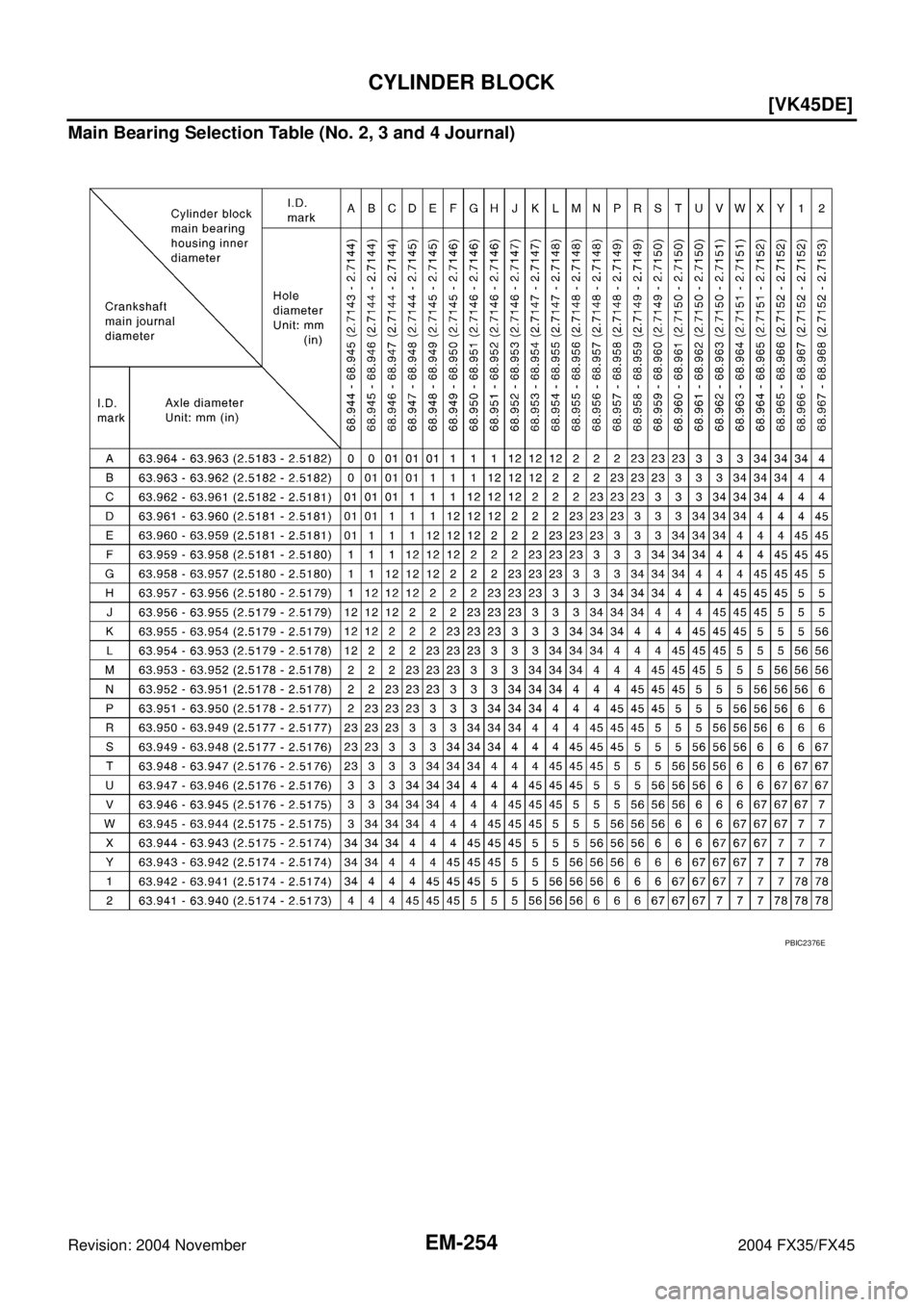

Main Bearing Selection Table (No. 1 and 5 Journal)
PBIC2375E

EM-254
[VK45DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
Main Bearing Selection Table (No. 2, 3 and 4 Journal)
PBIC2376E

CYLINDER BLOCK
EM-255
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Main Bearing Grade Table (All Journals)
Unit: mm (in)
Use Undersize Bearing Usage Guide

When the specified main bearing oil clearance is not obtained with standard size main bearings, use
underside (US) bearing.

When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and
grind main journal so that the main bearing oil clearance satisfies the standard.
CAUTION:
In grinding crankshaft main journal to use undersize bear-
ings, keep the fillet R [1.5 mm (0.059 in)].
Bearing undersize table
Unit: mm (in) Grade number Thickness Identification color Remarks
0 2.483 - 2.486 (0.0978 - 0.0979) Black
Grade and color are the same
for upper and lower bearings. 1 2.486 - 2.489 (0.0979 - 0.0980) Brown
2 2.489 - 2.492 (0.0980 - 0.0981) Green
3 2.492 - 2.495 (0.0981 - 0.0982) Yellow
4 2.495 - 2.498 (0.0982 - 0.0983) Blue
5 2.498 - 2.501 (0.0983 - 0.0985) Pink
6 2.501 - 2.504 (0.0985 - 0.0986) Purple
7 2.504 - 2.507 (0.0986 - 0.0987) White
8 2.507 - 2.510 (0.0987 - 0.0988) Red
01UPR 2.483 - 2.486 (0.0978 - 0.0979) Black
Grade and color are different
for upper and lower bearings. LWR 2.486 - 2.489 (0.0979 - 0.0980) Brown
12UPR 2.486 - 2.489 (0.0979 - 0.0980) Brown
LWR 2.489 - 2.492 (0.0980 - 0.0981) Green
23UPR 2.489 - 2.492 (0.0980 - 0.0981) Green
LWR 2.492 - 2.495 (0.0981 - 0.0982) Yellow
34UPR 2.492 - 2.495 (0.0981 - 0.0982) Yellow
LWR 2.495 - 2.498 (0.0982 - 0.0983) Blue
45UPR 2.495 - 2.498 (0.0982 - 0.0983) Blue
LWR 2.498 - 2.501 (0.0983 - 0.0985) Pink
56UPR 2.498 - 2.501 (0.0983 - 0.0985) Pink
LWR 2.501 - 2.504 (0.0985 - 0.0986) Purple
67UPR 2.501 - 2.504 (0.0985 - 0.0986) Purple
LWR 2.504 - 2.507 (0.0986 - 0.0987) White
78UPR 2.504 - 2.507 (0.0986 - 0.0987) White
LWR 2.507 - 2.510 (0.0987 - 0.0988) Red
PBIC2373E
Size Thickness
US 0.25 (0.0098) 2.618 - 2.626 (0.1031 - 0.1034)

EM-256
[VK45DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
Inspection After DisassemblyABS006IW
CRANKSHAFT END PLAY

Measure the clearance between thrust bearings and crankshaft
arm when crankshaft is moved fully forward or backward with
dial indicator.

If the measured value exceeds the limit, replace thrust bearings,
and measure again. If it still exceeds the limit, replace crank-
shaft also.
CONNECTING ROD SIDE CLEARANCE

Measure side clearance between connecting rod and crankshaft
arm with feeler gauge.

If the measured value exceeds the limit, replace connecting rod,
and measure again. If it still exceeds the limit, replace crank-
shaft also.
PISTON TO PISTON PIN OIL CLEARANCE
Piston Pin Hole Diameter
Measure the inner diameter of piston pin hole with inside microme-
ter.
Piston Pin Outer Diameter
Measure the outer diameter of piston pin with micrometer.
Piston to Piston Pin Oil Clearance
(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)

If clearance is out of the standard, replace piston and piston pin assembly.Standard : 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Limit : 0.30 mm (0.0118 in)
PBIC2377E
Standard : 0.20 - 0.35 mm (0.0079 - 0.0138 in)
Limit : 0.40 mm (0.0157 in)
PBIC0115E
Standard : 21.993 - 22.005 mm (0.8659 - 0.8663 in)
PBIC0116E
Standard : 21.989 - 22.001 mm (0.8657 - 0.8662 in)
PBIC0117E
Standard : 0.002 - 0.006 mm (0.0001 - 0.0002 in)

CYLINDER BLOCK
EM-257
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

When replacing piston and piston pin assembly, refer to EM-260, "PISTON TO CYLINDER BORE
CLEARANCE" .
NOTE:

Piston is available together with piston pin as assembly.

Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts,
no piston pin grades can be selected. (Only “0” grade is available.)
PISTON RING SIDE CLEARANCE

Measure side clearance of piston ring and piston ring groove
with feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston also.
PISTON RING END GAP

Make sure that cylinder bore inner diameter is within specifica-
tion. Refer to EM-260, "
Cylinder Bore Inner Diameter" .

Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure piston ring end gap with feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings.Standard:
Top ring : 0.045 - 0.080 mm (0.0018 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.065 - 0.135 mm (0.0026 - 0.0053 in)
Limit:

Top ring : 0.11 mm (0.0043 in)

2nd ring : 0.1 mm (0.004 in)
SEM024AA
Standard:
Top ring : 0.22 - 0.32 mm (0.0087 - 0.0126 in)
2nd ring : 0.22 - 0.32 mm (0.0087 - 0.0126 in)
Oil ring : 0.20 - 0.60 mm (0.0079 - 0.0236 in)
Limit:


Top ring : 0.56 mm (0.0220 in)


2nd ring : 0.56 mm (0.0220 in)
Oil ring : 0.96 mm (0.0378 in)
PBIC0118E

EM-258
[VK45DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
CONNECTING ROD BEND AND TORSION

Check with connecting rod aligner.

If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER

Install connecting rod cap without installing connecting rod bear-
ing, and tightening connecting rod bolts to the specified torque.
Refer to EM-244, "
ASSEMBLY" for the tightening procedure.

Measure the inner diameter of connecting rod big end with
inside micrometer.

If out of the standard, replace connecting rod assembly.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Measure the inner diameter of connecting rod bushing with inside
micrometer.Bend:
Limit : 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
Torsion:
Limit : 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
PBIC2077E
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC1641E
Standard : 22.000 - 22.012 mm (0.8661 - 0.8666 in)
PBIC0120E

CYLINDER BLOCK
EM-259
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Piston Pin Outer Diameter
Measure the outer diameter of piston pin with micrometer.
Connecting Rod Bushing Oil Clearance
(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

If the measured value exceeds the limit, replace connecting rod assembly and/or piston and piston pin
assembly.

If replacing piston and piston pin assembly, refer to EM-260, "PISTON TO CYLINDER BORE CLEAR-
ANCE" .

If replacing connecting rod assembly, refer to EM-263, "CON-
NECTING ROD BEARING OIL CLEARANCE" to select the
connecting rod bearing.
Factory installed parts grading:

Service parts apply only to grade “0”.
Unit: mm (in)
*: After installing in connecting rod
CYLINDER BLOCK DISTORTION

Using scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or
other contamination.
CAUTION:
Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.Standard : 21.989 - 22.001 mm (0.8657 - 0.8662 in)
PBIC0117E
Standard : 0.005 - 0.017 mm (0.0002 - 0.0007 in)
Limit : 0.030 mm (0.0012 in)
PBIC2164E
Grade 0 1
Connecting rod bushing
inner diameter * 22.000 - 22.006
(0.8661 - 0.8664) 22.006 - 22.012
(0.8664 - 0.8666)
Piston pin hole diameter 21.993 - 21.999
(0.8659- 0.8661) 21.999 - 22.005
(0.8661 - 0.8663)
Piston pin outer diameter 21.989 - 21.995
(0.8657 - 0.8659) 21.995 - 22. 001
(0.8659 - 0.8662)
PBIC2372E
