VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2004 November 2004 FX35/FX45
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M3, B14 terminals 12,
13, 62, 63 and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.
1 – 2 HOOD SWITCH CHECK
1. CHECK HOOD SWITCH
Check hood switch and hood fitting condition.
OK or NG
OK >> GO TO 2.
NG >> Adjust installation of hood switch.
2. CHECK HOOD SWITCH INPUT SIGNAL
With CONSULT-II
Check (“HOOD SW”) in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between IPDM E/R connector and ground.
OK or NG
OK >> Hood switch is OK, and go to BL-202, "1 – 3 BACK
DOOR SWITCH CHECK" .
NG >> GO TO 3.12 (P/B) – Ground : Battery voltage
13 (P/L) – Ground : Battery voltage
62 (W) – Ground : Battery voltage
63 (P) – Ground : Battery voltage
PIIA6223E
Monitor item Condition
HOOD SWOPEN : ON
CLOSE : OFF
PIIA7006E
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
E9 56 (LG) GroundOPEN 0
CLOSE Battery voltage
PIIA6228E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-201
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
3. CHECK HOOD SWITCH
1. Turn ignition switch OFF.
2. Disconnect hood switch connector.
3. Check continuity between hood switch terminals 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Replace hood switch.
4. CHECK IPDM E/R OUTPUT SIGNAL
Check voltage between IPDM E/R connector and ground.
OK or NG
OK >> Check the following.

Hood switch ground circuit.

Harness for open or short between hood switch and
IPDM E/R.
NG >> Replace IPDM E/R
Terminals Condition Continuity
1 2Pressed No
Released Yes
PIIA2498E
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
E9 56 (LG) GroundOPEN 0
CLOSE Battery voltage
PIIA6228E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-205
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
Diagnostic Procedure 3AIS004P6
FRONT DOOR KEY CYLINDER SWITCH CHECK
1. CHECK KEY CYLINDER SWITCH OPERATION
Check door key cylinder switch using key.
Do doors lock / unlock when using the key?
YES >> Front door key cylinder switch operation is OK.
NO >> Check door key cylinder switch circuit. Refer to GW-69, "
Front Door Key Cylinder Switch Check" .
Diagnostic Procedure 4AIS004P7
VEHICLE SECURITY HORN ALARM CHECK
1. CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
YES >> Check harness for open or short between IPDM E/R and horn relay.
NO >> Check horn circuit. Refer to WW-56, "
HORN" .
Diagnostic Procedure 5AIS004P8
VEHICLE SECURITY HEADLAMP ALARM CHECK
1. CHECK HEADLAMP OPERATION
Check if headlamp operates by lighting switch.
Does headlamp come on when turning switch
“ON”?
YES >> Headlamp alarm circuit is OK.
NO >> Check headlamp system. Refer to LT- 7 , "
HEADLAMP - XENON TYPE -" or LT- 3 8 , "DAYTIME
LIGHT SYSTEM" .
Diagnostic Procedure 6AIS004P9
DOOR LOCK AND UNLOCK SWITCH CHECK
1. CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL
Check if power door lock operated by door lock and unlock switch.
Do doors lock / unlock when using each door lock and unlock switches?
YES >> Door lock and unlock switch is OK.
NO >> Check door lock and unlock switch. Refer to BL-48, "
Check Door Lock and Unlock Switch" .

DI-48
WARNING LAMPS
Revision: 2004 November 2004 FX35/FX45
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)AKS005NF
1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
1. Start engine.
2. Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp.
Refer to DI-31, "
CONSULT-II Function" .
3. After erasing the self-diagnostic results, perform self-diagnosis again.
Self-diagnostic results content
No malfunction detected>> GO TO 2.
Malfunction detected>> GO TO DI-16, "
Symptom Chart 2" in “COMBINATION METER”.
2. CHECK IPDM E/R OUTPUT SIGNAL
Activate IPDM E/R auto active test. Refer to PG-24, "
Auto Active Test" .
Does oil pressure warning lamp is blinking?
YES >> GO TO 5.
NO >> GO TO 3.
3. CHECK BCM INPUT SIGNAL
Select “DATA MONITOR” of “SIGNAL BUFFER”. Refer to BCS-12,
"CONSULT-II" . Operate ignition switch with “OIL PRESS SW” of
“DATA MONITOR” and check operate status.
OK or NG
OK >> GO TO 4.
NG >> Replace IPDM E/R. Refer to PG-30, "
Removal and
Installation of IPDM E/R" .
4. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select “METER A/C AMP” on CONSULT-II. Operate ignition switch
with “OIL W/L” of “DATA MONITOR” and check operation status.
OK or NG
OK >> Replace combination meter.
NG >> Replace BCM. Refer to BCS-15, "
Removal and Installa-
tion of BCM" . When ignition switch is in ON
position (Engine stopped): OIL PRESS SW ON
When engine running : OIL PRESS SW OFF
SKIA8709E
When ignition switch is in ON
position (Engine stopped): OIL W/L ON
When engine running : OIL W/L OFF
PKIA2064E

WARNING LAMPS
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45

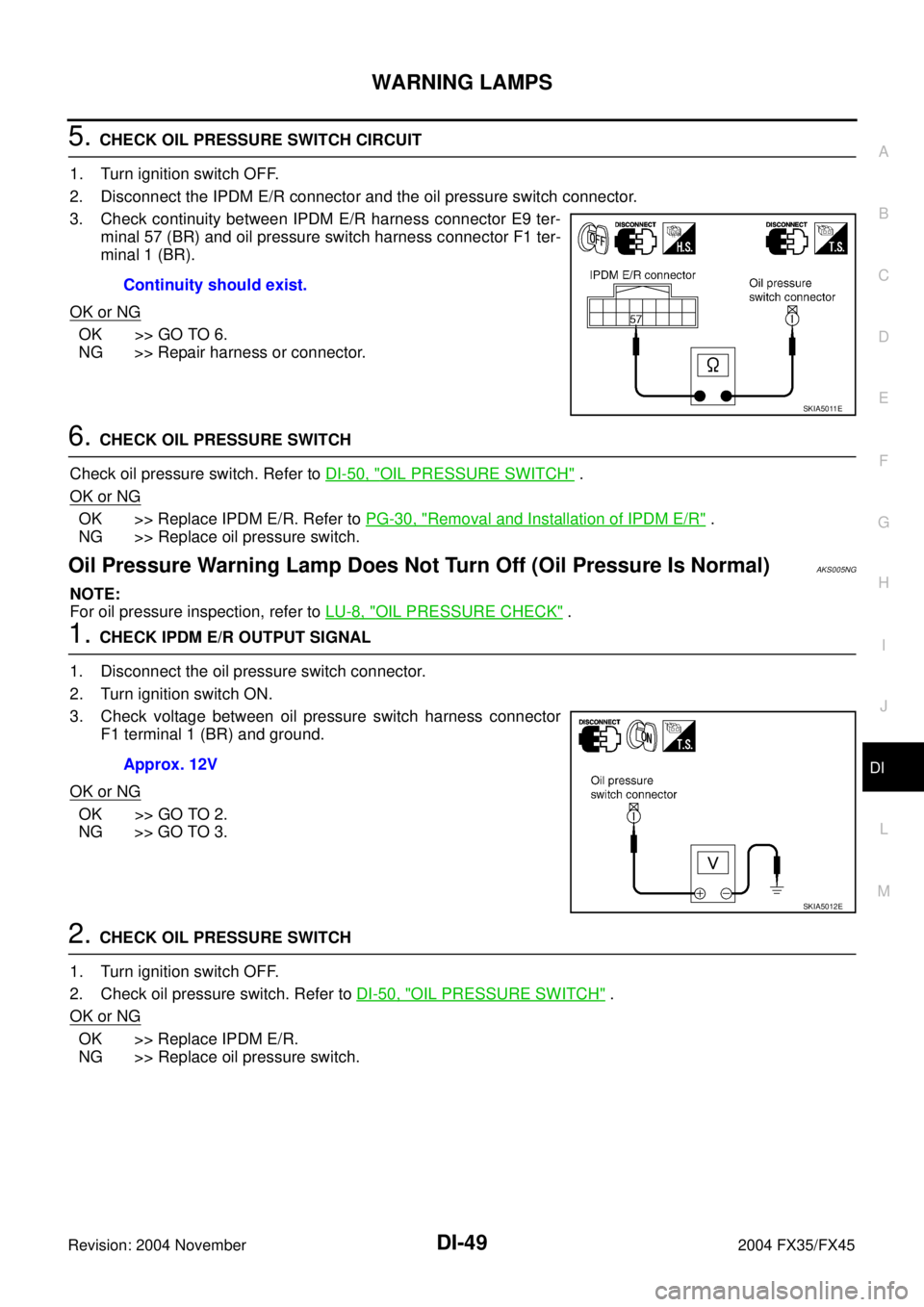

5. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the IPDM E/R connector and the oil pressure switch connector.
3. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 (BR) and oil pressure switch harness connector F1 ter-
minal 1 (BR).
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SWITCH
Check oil pressure switch. Refer to DI-50, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Replace oil pressure switch.
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)AKS005NG
NOTE:
For oil pressure inspection, refer to LU-8, "
OIL PRESSURE CHECK" .
1. CHECK IPDM E/R OUTPUT SIGNAL
1. Disconnect the oil pressure switch connector.
2. Turn ignition switch ON.
3. Check voltage between oil pressure switch harness connector
F1 terminal 1 (BR) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SWITCH
1. Turn ignition switch OFF.
2. Check oil pressure switch. Refer to DI-50, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace oil pressure switch.Continuity should exist.
SKIA5011E
Approx. 12V
SKIA5012E

DI-50
WARNING LAMPS
Revision: 2004 November 2004 FX35/FX45
3. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Disconnect the IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 (BR) and ground.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Component InspectionAKS005NH
OIL PRESSURE SWITCH
Check continuity between oil pressure switch and ground.Continuity should not exist.
SKIA5013E
Condition
Oil pressure kPa (kg/cm2 , psi)Continuity
Engine stopped Less than 29 (0.3, 4) Yes
Engine running More than 29 (0.3, 4) No
ELF0044D

REAR VIEW MONITOR
DI-81
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
REAR VIEW MONITORPFP:28260
System DescriptionAKS0068D

The rear view monitor is equipped to check the rearward of the vehicle with display when A/T selector
lever is in reverse position.

The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.
POWER SUPPLY AND GROUND
Power is supplied at all time

through 10A fuse [No. 19, located in fuse block (J/B)]

to rear view camera control unit terminal 1.
When ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to rear view camera control unit terminal 2.
When ignition switch is in ON or START position, power is supplied

through 10A fuse (No. 83, located in IPDM E/R)

to back-up lamp relay terminals 2 and 3.
Ground is supplied

to rear view camera control unit terminal 3

through grounds M35, M45 and M85.
AV COMMUNICATION LINE
Rear view camera control unit is connected to the following units with AV communication line. Each unit trans-
mits/receives data with AV communication line.

NAVI control unit

Display

Display control unit

A/C and AV switch
REAR VIEW CAMERA OPERATION
When A/T selector lever is reverse position, power is supplied

through back-up lamp relay terminal 1

to TCM terminal 7.
Then back-up lamp relay is energized,

from back-up lamp relay terminal 5

to rear view camera control unit terminal 4.
Then, rear view camera control unit is sent camera ON signal

through rear view camera control unit terminal 8

to rear view camera terminal 1.
An image taken by rear view camera is sent

through rear view camera terminals 3 and 4

to rear view camera control unit terminals 10 and 9.
Then an image is sent

through rear view camera control unit terminals 12 and 14

to the display terminals 15 and 16.
An image of rear view will be projected on the display.
Side Distance Guideline
When A/T selector lever is in reverse position, rear view camera control unit is sent rear view camera guideline

through rear view camera control unit terminals 12 and 14

EC-52
[VQ35DE]
BASIC SERVICE PROCEDURE
Revision: 2004 November 2004 FX35/FX45
2. Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT”
mode with CONSULT-II.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel
pressure.
5. Turn ignition switch OFF.
Without CONSULT-II
1. Remove fuel pump fuse located in IPDM E/R.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel
pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
FUEL PRESSURE CHECK
Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
NOTE:
Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-
sure cannot be completely released because S50 models do not have fuel return system.
Use Fuel Pressure Gauge Kit (J-44321) to check fuel pressure.
1. Release fuel pressure to zero. Refer to EC-51, "
FUEL PRESSURE RELEASE" .
2. Install the inline fuel quick disconnected fitting between fuel
damper and injector tube.
3. Connect the fuel pressure test gauge (quick connector adapter
hose) to the inline fuel quick disconnected fitting.
4. Turn ignition switch ON and check for fuel leakage.
5. Start engine and check for fuel leakage.
6. Read the indication of fuel pressure gauge.
7. If result is unsatisfactory, go to next step.
8. Check the following.

Fuel hoses and fuel tubes for clogging

Fuel filter for clogging

Fuel pump

Fuel pressure regulator for clogging
If OK, replace fuel pressure regulator.
If NG, repair or replace.
SEF214Y
PBIB1603E
At idling:
Approximately 350 kPa (3.57 kg/cm2 , 51 psi)
PBIB1571E

TROUBLE DIAGNOSIS
EC-119
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*: Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-59, "SYSTEM READINESS TEST (SRT) CODE" .
SRT Work Support Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
COOLING FAN*

Ignition switch: ON

Turn the cooling fan HI, MID,
LOW and OFF using CONSULT-
II.Cooling fan moves and stops.
Harness and connectors

Cooling fan motor

IPDM E/R
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP
RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the operat-
ing sound.
Harness and connectors

Fuel pump relay
PURG VOL
CONT/V

Engine: After warming up, run
engine at 1,500 rpm.

Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according to
the opening percent.
Harness and connectors

Solenoid valve
FUEL/T TEMP
SEN

Change the fuel tank temperature using CONSULT-II.
VENT CON-
TROL/V

Ignition switch: ON (Engine
stopped)

Turn solenoid valve ON and OFF
with the CONSULT-II and listen
to operating sound.Solenoid valve makes an operating
sound.
Harness and connectors

Solenoid valve
V/T ASSIGN
ANGLE

Engine: Return to the original
trouble condition

Change intake valve timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Intake valve timing control sole-
noid valve TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)

EC-138
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2004 November 2004 FX35/FX45
4. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-141, "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and body ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M82

Harness for open or short between ECM and body ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK ECM POWER SUPPLY CIRCUIT-II
1. Reconnect ECM harness connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R connector E7 terminal 17 and
ground with CONSULT-II or tester.
OK or NG
OK >> Go to EC-585, "IGNITION SIGNAL" .
NG >> GO TO 8.
PBIB2195E
Continuity should exist.
Voltage: Battery voltage
PBIB1610E
