INTEGRATED DISPLAY SYSTEM
Revision: 2006 July 2007 FX35/FX45
All Images Are Not DisplayedNKS003JL
Symptom: RGB image is not displayed.
1. CHECK CONDITION
When operating audio and air conditioner, make sure that they operate correctly.
Do audio and air conditioner operate normally?
YES >> GO TO 2.
NO >> GO TO 5.

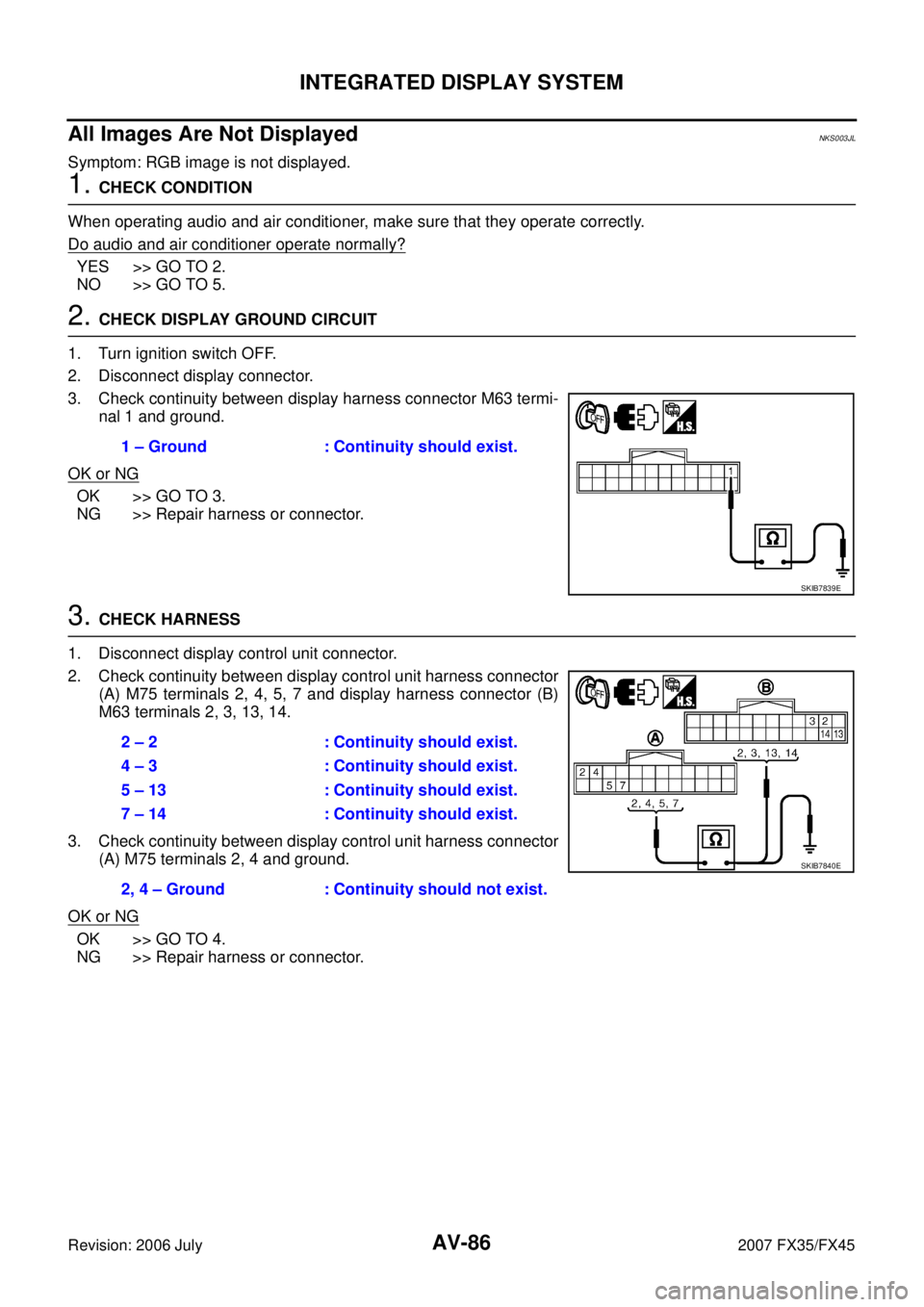

2. CHECK DISPLAY GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display connector.
3. Check continuity between display harness connector M63 termi- nal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK HARNESS
1. Disconnect display control unit connector.
2. Check continuity between display control unit harness connector (A) M75 terminals 2, 4, 5, 7 and display harness connector (B)
M63 terminals 2, 3, 13, 14.
3. Check continuity between display control unit harness connector (A) M75 terminals 2, 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector. 1 – Ground : Continuity should exist.
SKIB7839E
2 – 2 : Continuity should exist.
4 – 3 : Continuity should exist.
5 – 13 : Continuity should exist.
7 – 14 : Continuity should exist.
2, 4 – Ground : Continuity should not exist.
SKIB7840E

AV-92
INTEGRATED DISPLAY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Example of Symptoms Possible No MalfunctionNKS003JT
For system operation information, refer to Owner's Manual.
DISPLAY
Removal and Installation of DisplayNKS003LI
Refer to AV- 4 3 , "Disassembly and Assembly for Audio Unit" .
Removal and Installation of Display Control UnitNKS003LZ
REMOVAL
1. Remove instrument passenger lower panel. Refer to IP-10,
"INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (A) with power tool and remove display control unit (1).
3. Remove screws (4) with power tool and remove brackets.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of A/C and AV SwitchNKS003LJ
Refer to AV- 4 4 , "Removal and Installation for A/C and AV Switch" .
Symptom Possible cause Possible solution
No image is displayed. The brightness is at the lowest setting. Adjust the brightness of the display.
The display is turned off. Press and hold the button to turn on the
display.
The screen is too dim.
The movement is slow. The temperature in the interior of the vehicle is
low. Wait until the interior of the vehicle has
warmed up.
Some pixels in the display are
darker or brighter than others. This condition is an inherent characteristic of
liquid crystal displays. This is not a malfunction.
Some menu items cannot be
selected. Some menu items become unavailable while
the vehicle is driven. Park the vehicle in a safe location, then oper-
ate the navigation system.
The screen does not switch to the
night screen even after turning on
the headlights. The daytime screen was set the last time the
headlights were turned on. Set the screen to the night screen mode using
button when turning on the headlights.
SKIB8667E
SKIA5826E

NAVIGATION SYSTEM AV-97
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Component DescriptionNKS003K1
NAVI CONTROL UNIT

The gyro (angular speed sensor) and the DVD-ROM drive are
built-in units that control the navigation functions.

Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining this data with the data contained in the DVD-ROM map.
Locational information is shown on liquid crystal display panel.
DVD-ROM Drive
Maps, traffic control regulations, and other pertinent information can
be easily read from the DVD-ROM.
DVD-ROM

The DVD-ROM has maps, traffic control regulations, and other pertinent information.

To improve DVD-ROM map matching and route determination functions, the DVD-ROM uses an exclusive
Nissan format. Therefore, the use of a DVD-ROM provided by other manufacturers cannot be used.
Gyro (Angular Speed Sensor)

The oscillator gyro sensor is used to detect changes in vehicle steering angle.

The gyro is built into the navigation (NAVI) control unit.
GPS ANTENNA
The GPS antenna receives and amplifies the radio waves from the GPS satellites, and then transmits the GPS
signal to NAVI control unit.
DISPLAY CONTROL UNIT

Display control unit draws a status of the audio and air condi-
tioner, a TRIP screen, a FUEL ECONOMY screen, etc., and
transmits the image signals to the display screen.

It receives operation signals of audio and air conditioner from A/
C and AV switch, and transmits the operation signal of audio to
the audio unit via the communication line and transmits the
operation signal of air conditioner to the meter and A/C amp. via
CAN communication.
SKIB3892E
SKIB6982E
SKIB8638E

AV-98
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
DISPLAY

Images on the display include RGB image such as map screen.

Display control unit controls images on the display.
A/C AND AV SWITCH

A/C and AV switch, an integrated combination of audio and air
conditioner switches, are adopted.

Operation signal of audio is transmitted to the audio unit through
display control unit with the communication line. Operation sig-
nal of air conditioner is transmitted to meter and A/C amp.
through display control unit with CAN communication.
CAN Communication UnitNKS003K2
Refer to LAN-49, "CAN System Specification Chart" .
Component Parts LocationNKS003K3
SKIB8639E
SKIB8639E
SKIB8641E

AV-116
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
32 (L) Ground Communication
signal (+) Input/
Output ON —
33 — Shield — — — —
34 (P) Ground Communication
signal (–) Input/
Output ON —
36 (PU) Ground Communication signal
(DCU-DSP) Output ON —
37 — Shield — — — —
38 (LG) Ground Communication signal
(DSP-DCU) Input ON —
39 — Shield — — — —
40 (LG) Ground Communication signal
(DCU-AUD) Output ON
Operate audio volume
switch
41 — Shield — — — —
42 (PU) Ground Communication signal
(AUD-DCU) Input ON Operate audio volume
switch
Te r m i n a l
(Wire color) Item Signal
input/
output Condition
Reference value
+– Ignition
switch Operation
SKIB7378E
SKIB7379E
SKIB3607E
SKIB3606E
SKIB3607E
SKIB3606E

NAVIGATION SYSTEM AV-123
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Self-Diagnosis Mode (DCU)NKS003KF
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. Perform self-diagnosis by selecting the “Self Diagnosis (DCU)”.

Self-diagnosis screen is displayed, and then self-diagnosis
starts.

The bar graph visible below self-diagnosis screen displays
progress of the diagnosis.
6. When the self-diagnosis completes, optional part confirmation screen will be shown.

When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “End”. Then the “SELF DIAGNOSIS”
screen will be shown.

When the optional part is connected normally, the switch for
the part will not appear on the screen.
SKIB8642E
SKIB7874E
SKIA4208E
SKIB8673E

AV-124
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
7. On the diagnosis results screen, each unit name and connection
line will be colored according to the diagnosis result, as follows.
NOTE:

Satellite = Satellite radio tuner

DCU = Display control unit

Multifunction switch = A/C and AV switch

Navigation = NAVI control unit

GPS = GPS antenna

If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined
according to the following order of priority: red > yellow > gray.
8. Select a switch on the diagnosis results screen, and comments for the diagnosis results will be shown.
SELF-DIAGNOSIS RESULT
Quick Reference Table
1. Select the applicable diagnosis number in the quick reference table of diagnosis result.
2. Confirm the possible malfunction with the diagnosis table, and then perform inspection.
3. Turn ignition switch OFF and perform self-diagnosis again.

When A/C and AV switch has a malfunction, the self-diagnosis cannot be started. Refer to AV- 1 3 7 , "A/C
and AV Switch Self-Diagnosis Function" .

When display has a malfunction, the self-diagnosis cannot be started. Refer to AV-141, "All Images Are
Not Displayed" .
Green : No malfunctioning.
Gray : Cannot be judged by self-diagnosis results.
Red : Unit is malfunctioning.
SKIB7875E
SKIA4211E
Switch color Screen switch
Diagnosis
No.
DCU Display Audio Unit Navigation GPS Satellite
Red × 1
Gray ×
2
×× 3
×× 4
× 5
× 6

NAVIGATION SYSTEM AV-125
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Self-Diagnosis Codes
Diagnosis
No. Possible cause Action to take
1 Display control unit malfunction is detected. Replace display control unit.
2 Malfunction is detected on communication signal between
display control unit and display. 1. Check communication circuit between display control
unit and display.
2. Check communication signal between display control unit and display.
3. If the results from the above checkup show no malfunc- tion, replace either display control unit or display, and
then start self-diagnosis.
4. If self-diagnosis results still show any malfunction, replace the other unit.
3

Audio unit power supply circuit malfunction is detected.

Malfunction is detected on communication signal
between display control unit and audio unit. 1. Check audio unit power supply circuit.
2. Check communication circuit between display control unit and audio unit.
3. Check communication signal between display control unit and audio unit.
4. If the results from the above checkup show no malfunc- tion, replace either display control unit or audio unit, and
then start self-diagnosis.
5. If self-diagnosis results still show any malfunction, replace the other unit.
4

NAVI control unit power supply and ground circuit mal-
function is detected.

Malfunction is detected on communication signal
between display control unit and NAVI control unit. 1. Check NAVI control unit power supply and ground cir-
cuit.
2. Check communication circuit between display control unit and NAVI control unit.
3. If the results from the above checkup show no malfunc- tion, replace either display control unit or NAVI control
unit, and then start self-diagnosis.
4. If self-diagnosis results still show any malfunction, replace the other unit.
5 GPS antenna connection malfunction is detected. 1. Check if GPS antenna feeder line is snapped or
pinched.
2. If the results from the above checkup show no malfunc- tion, replace GPS antenna, and then restart self-diagno-
sis.
3. If self-diagnosis results still show any malfunction, replace NAVI control unit.
6

Satellite radio tuner power supply and ground circuit
malfunction is detected.

Malfunction is detected on communication signal
between audio unit and satellite radio tuner. 1. Check satellite radio tuner power supply and ground cir-
cuit.
2. Check communication circuit between audio unit and satellite radio tuner.
3. Check communication signal between audio unit and satellite radio tuner.
4. If the results from the above checkup show no malfunc- tion, replace either audio unit or satellite radio tuner, and
then start self-diagnosis.
5. If self-diagnosis results still show any malfunction, replace the other unit.

AV-126
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
Self-Diagnosis Mode (NAVI)NKS003KG
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
NOTE:
Select “Self Diagnosis (DCU)” when “Self Diagnosis (NAVI)” is
not available. Repair malfunctioning part.
5. Perform self-diagnosis by selecting the “Self Diagnosis (NAVI)”.

Self-diagnosis screen is displayed, and then self-diagnosis
starts.

The bar graph visible below self-diagnosis screen displays
progress of the diagnosis.
6. On the diagnosis results screen, each unit name and connection line will be colored according to the diagnosis result, as follows.
NOTE:

Control unit = NAVI control unit

Only Control unit (NAVI control unit) is displayed in red.

If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined
according to the following order of priority: red > yellow > gray.
SKIB8642E
SKIB7874E
SKIB6972E
Diagnosis results Unit Connection line
Normal Green Green
Connection malfunction Gray Yellow
DVD-ROM drive undiagnosed Gray Green
DVD-ROM and DVD-ROM drive malfunction Yellow Green
Unit returned an error Red Green
SKIB7772E

NAVIGATION SYSTEM AV-129
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Confirmation/Adjustment ModeNKS003KH
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. Select “Confirmation/Adjustment”.
6. Each diagnosis is shown by selecting each screen switch on Confirmation/Adjustment screen.
SKIB8642E
SKIB7874E
SKIA4220E
