EC-68
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EGR
SYSTEM31H EGR function P0400 80H 96H
Low Flow Faults: EGR temp
change rate (short term)
P0400 81H 96H Low Flow Faults: EGR temp
change rate (long term)
P0400 82H 96H Low Flow Faults: Difference be-
tween max EGR temp and EGR
temp under idling condition
P0400 83H 96H Low Flow Faults: Max EGR temp
P1402 84H 96H High Flow Faults: EGR temp in-
crease rate
EVAP
SYSTEM 39H
EVAP control
system leak
(Cap Off) P0455 80H 0CHDifference in pressure sensor out-
put voltage before and after pull
down
3BH EVAP control
system leak
(Small leak) P0442 80H 05H
Leak area index (for more than
0.04inch)
3CH EVAP control system
(Very small leak) P0456 80H 05H
Leak area index (for more than
0.02inch)
P0456 81H FDH Maximum internal pressure of
EVAP system during monitoring
3DH Purge flow system P0441 83H 0CH Difference in pressure sensor out-
put voltage before and after vent
control value close
O2 SEN-
SOR
HEATER 41H
A/F sensor 1 heater
(Bank 1) Low Input:P0031
High Input:P0032 81H 0BHConverted value of Heater electric
current to voltage
42H Heated oxygen sensor 2
(Bank 1) Low Input:P0037
High Input:P0038 80H 0CH
Converted value of Heater electric
current to voltage
43H Heated oxygen sensor 3
(Bank 1) P0043 80H 0CHConverted value of Heater electric
current to voltage
45H A/F sensor 1 heater
(Bank 2) Low Input:P0051
High Input:P0052 81H 0BHConverted value of Heater electric
current to voltage
46H Heated oxygen sensor 2
(Bank 2) Low Input:P0057
High Input:P0058 80H 0CHConverted value of Heater electric
current to voltage
47H Heated oxygen sensor 3
(Bank 2) P0063 80H 0CH
Converted value of Heater electric
current to voltage
SEC-
OND-
ARY AIR 71H Secondary Air system P0411 80H 01H
Secondary Air Injection System
Incorrect Flow Detected
Bank1: P0491
Bank2: P0492 81H 01HSecondary Air Injection System
Insufficient Flow
P2445 82H 01H Secondary Air Injection System
Pump Stuck Off
P2448 83H 01H Secondary Air Injection System
High Airflow
Bank1: P2440
Bank2: P2442 84H 01HSecondary Air Injection System
Switching Valve Stuck Open
P2440 85H 01H Secondary Air Injection System
Switching Valve Stuck Open
P2444 86H 01H Secondary Air Injection System
Pump Stuck On
Item
OBD-
MID Self-diagnostic test item DTC Test value and Test
limit
(GST display) Description
TID Unit and
Scaling ID
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-69
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
FUEL
SYSTEM
81H
Fuel injection system function
(Bank 1) P0171 or P0172 80H 2FH Long term fuel trim
P0171 or P0172 81H 24H
The number of lambda control
clamped
82H Fuel injection system function
(Bank 2) P0174 or P0175 80H 2FH Long term fuel trim
P0174 or P0175 81H 24H
The number of lambda control
clamped
MISFIRE A1H Multiple Cylinder Misfire P0301 80H 24H
Misfiring counter at 1000rev of the
first cylinder
P0302 81H 24H Misfiring counter at 1000rev of the
second cylinder
P0303 82H 24H Misfiring counter at 1000rev of the
third cylinder
P0304 83H 24H Misfiring counter at 1000rev of the
fourth cylinder
P0305 84H 24H Misfiring counter at 1000rev of the
fifth cylinder
P0306 85H 24H Misfiring counter at 1000rev of the
sixth cylinder
P0307 86H 24H Misfiring counter at 1000rev of the
seventh cylinder
P0308 87H 24H Misfiring counter at 1000rev of the
eighth cylinder
P0300 88H 24H Misfiring counter at 1000rev of the
multiple cylinders
P0301 89H 24H Misfiring counter at 200rev of the
first cylinder
P0302 8AH 24H Misfiring counter at 200rev of the
second cylinder
P0303 8BH 24H Misfiring counter at 200rev of the
third cylinder
P0304 8CH 24H Misfiring counter at 200rev of the
fourth cylinder
P0305 8DH 24H Misfiring counter at 200rev of the
fifth cylinder
P0306 8EH 24H Misfiring counter at 200rev of the
fifth cylinder
P0307 8FH 24H Misfiring counter at 200rev of the
fifth cylinder
P0308 90H 24H Misfiring counter at 200rev of the
fifth cylinder
P0300 91H 24H Misfiring counter at 1000rev of the
single cylinder
P0300 92H 24H Misfiring counter at 200rev of the
single cylinder
P0300 93H 24H Misfiring counter at 200rev of the
multiple cylinders
Item
OBD-
MID Self-diagnostic test item DTC Test value and Test
limit
(GST display) Description
TID Unit and
Scaling ID
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-70
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION
How to Erase DTC
With CONSULT-III
The emission related diagnostic information in the EC M can be erased by selecting “ALL Erace” in the
“Description” of “FINAL CHEK” mode with CONSULT-III.
With GST
The emission related diagnostic information in the EC M can be erased by selecting Service $04 with GST.
NOTE:
If the DTC is not for A/T related items (see EC-17
), skip step 2.
MISFIREA2H No.1 Cylinder Misfire
P0301 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0301 0CH 24H Misfire counts for last/current driv-
ing cycles
A3H No.2 Cylinder Misfire P0302 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0302 0CH 24H Misfire counts for last/current driv-
ing cycles
A4H No.3 Cylinder Misfire P0303 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0303 0CH 24H Misfire counts for last/current driv-
ing cycles
A5H No.4 Cylinder Misfire P0304 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0304 0CH 24H Misfire counts for last/current driv-
ing cycles
A6H No.5 Cylinder Misfire P0305 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0305 0CH 24H Misfire counts for last/current driv-
ing cycles
A7H No.6 Cylinder Misfire P0306 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0306 0CH 24H Misfire counts for last/current driv-
ing cycles
A8H No.7 Cylinder Misfire P0307 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0307 0CH 24H Misfire counts for last/current driv-
ing cycles
A9H No.8 Cylinder Misfire P0308 0BH 24H
EWMA (Exponential Weighted
Moving Average) misfire counts
for last 10 driving cycles
P0308 0CH 24H Misfire counts for last/current driv-
ing cycles
Item
OBD-
MID Self-diagnostic test item DTC Test value and Test
limit
(GST display) Description
TID Unit and
Scaling ID
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-73
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not release the accelerator pedal for 10 seconds if
MIL may start blinking on the halfway of this
10 seconds. This blinking is displaying SRT stat us and is continued for another 10 seconds. For
the details, refer to EC-55, "
Emission-Related Diagnostic Information".
4. Fully release the accelerator pedal. ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.

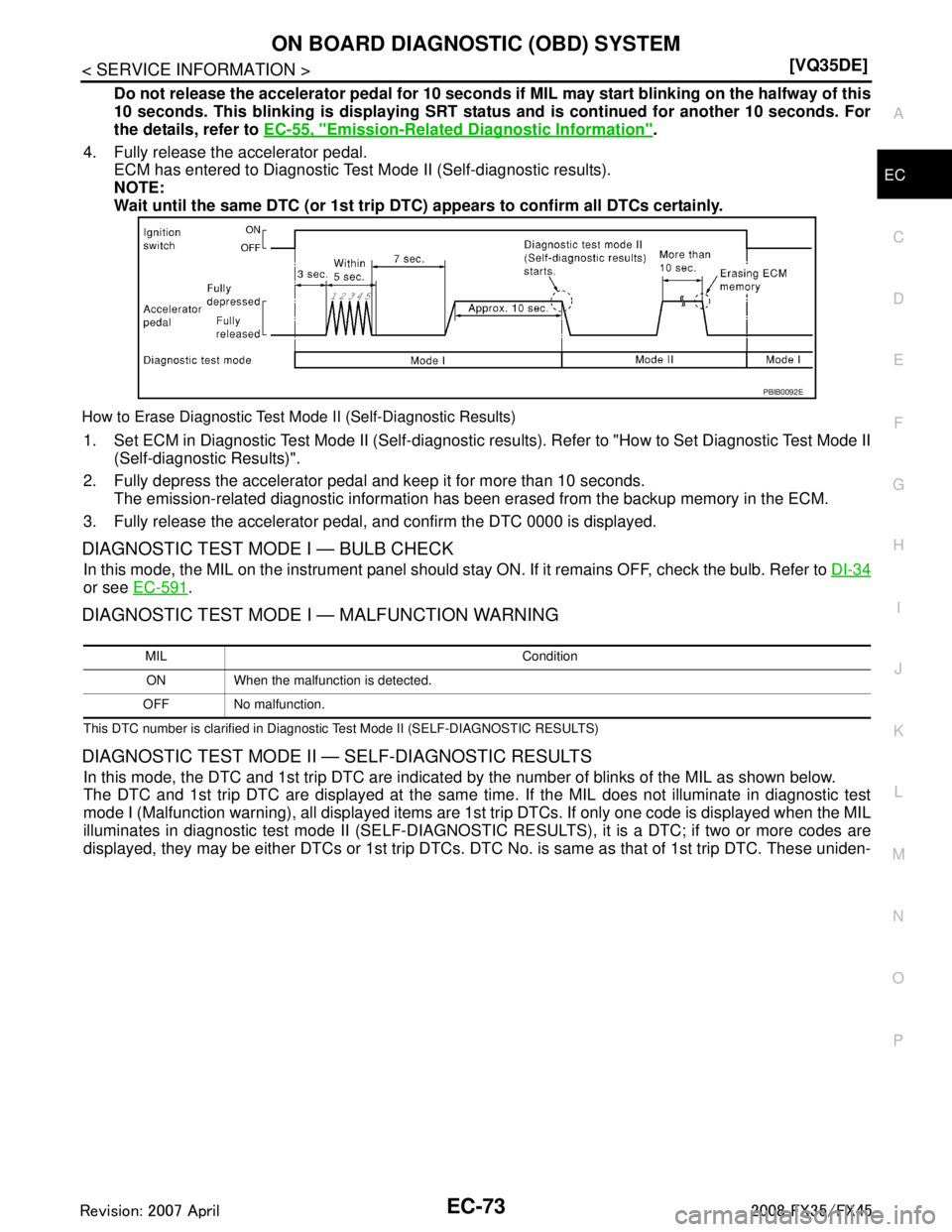

How to Erase Diagnostic Test Mode II (Self-Diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic re sults). Refer to "How to Set Diagnostic Test Mode II
(Self-diagnostic Results)".
2. Fully depress the accelerator pedal and keep it for more than 10 seconds. The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MIL on the instrument panel should st ay ON. If it remains OFF, check the bulb. Refer to DI-34
or see EC-591.
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING
This DTC number is clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
DIAGNOSTIC TEST MODE II — SELF-DIAGNOSTIC RESULTS
In this mode, the DTC and 1st trip DTC are indicated by the number of blinks of the MIL as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction warning), all displa yed items are 1st trip DTCs. If only one code is displayed when the MIL
illuminates in diagnostic test mode II (SELF-DIAGNOSTIC RESULTS), it is a DTC; if two or more codes are
displayed, they may be either DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These uniden-
PBIB0092E
MIL Condition
ON When the malfunction is detected.
OFF No malfunction.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-74
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
tified codes can be identified by using the CONSULT-II
I or GST. A DTC will be used as an example for how to
read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The “A” is indicated by the number of eleven flash. The length of time the
1,000th-digit numeral flashes on and off is 1.2 seconds consisting of an ON (0.6-second) - OFF (0.6-second)
cycle.
The 100th-digit numeral and lower digit numerals cons ist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an inte rval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occu rs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classi fied by their DTC numbers. The DTC 0000 refers to no mal-
function. (See EC-17
)
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
The DTC can be erased from the back up memory in t he ECM by depressing accelerator pedal. Refer to "How
to Set Diagnostic Test Mode II (Self-diagnostic Results)".
 If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.
 Be careful not to erase the stored memo ry before starting trouble diagnoses.
OBD System Operation ChartINFOID:0000000001325918
RELATIONSHIP BETWEEN MIL, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS
 When a malfunction is detected for the 1st time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
 When the same malfunction is detected in two consec utive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MIL will come on. For details, refer to EC-54, "
Two Trip Detection Logic".
 The MIL will go off after the vehicle is driven 3 time s (drive pattern B) with no malfunction. The drive is
counted only when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs
while counting, the counter will reset.
 The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A) with-
out the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injec-
tion System, the DTC and freez e frame data will be stored until the vehicle is driven 80 times (driving pattern
PBIB3005E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-75
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
C) without the same malfunction recurring. The “TIM
E” in “SELF-DIAGNOSTIC RESULTS” mode of CON-
SULT-III will count the number of times the vehicle is driven.
 The 1st trip DTC is not displayed when the se lf-diagnosis results in OK for the 2nd trip.
SUMMARY CHART
For details about patterns B and C under “Fuel Injection System ” and “Misfire”, see "EXPLANATION FOR DRIVING PATTERNS FOR
“MISFIRE ”, “FUEL INJECTION SYSTEM”".
For details about patterns A and B under Other, see "EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE DETERIORATION>”, “FUEL INJECTION SYSTEM”".
*1: Clear timing is at the moment OK is detected.
*2: Clear timing is when the same malfunction is detected in the 2nd trip.
RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR “MISFIRE ”
, “FUEL INJECTION SYSTEM”
Items Fuel Injection System Misfire Other
MIL (goes off) 3 (pattern B) 3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no
display) 80 (pattern C) 80 (pa
ttern C) 40 (pattern A)
1st Trip DTC (clear) 1 (pattern C), *
11 (pattern C), *11 (pattern B)
1st Trip Freeze Frame Data
(clear) *1, *2 *1, *2 1 (pattern B)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-76
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EXPLANATION FOR DRIVING PATTERNS FOR “M
ISFIRE TION>”, “FUEL INJECTION SYSTEM”

Driving pattern B means the vehicle operation as follows:
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will go off after vehicle is driven 3
times (pattern B) without any mal-
functions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.) *5: When a malfunction is detected for
the 1st time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared. *8: 1st trip DTC will
be cleared when ve-
hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.
SEF392S
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-77
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
All components and systems should be monitored at least once by the OBD system.
 The B counter will be cleared when the malfunction is
detected once regardless of the driving pattern.
 The B counter will be counted up when driving pattern B is satisfied without any malfunction.
 The MIL will go off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)

Driving pattern C means the vehicle operation as follows:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
Calculated load value: (Calculated load value in the freeze frame data) x (1 ±0.1) [%]
Engine coolant temperature (T) condition:
 When the freeze frame data shows lower than 70 °C (158 °F), T should be lower than 70 °C (158 °F).
 When the freeze frame data shows higher than or equal to 70 °C (158 °F), T should be higher than or equal to
70 °C (158 °F).
Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load val ue: 30%, Engine coolant temperature: 80°C (176 °F)
To be satisfied with driving pattern C, the v ehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C
(158 °F)
 The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.
 The C counter will be counted up when vehicle conditions above is satisfied without the same malfunction.
 The DTC will not be displayed after C counter reaches 80.
 The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is
stored in ECM.
RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE ”, “FUEL INJECTION SYSTEM”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-78
< SERVICE INFORMATION >[VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE RIORATION>”, “FUEL INJECTION SYSTEM”
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will light up. *2: MIL will go off after vehicle is driven 3
times (pattern B) without any mal-
functions. *3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.) *5: When a malfunction is detected for
the 1st time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM. *6: 1st trip DTC will
be cleared after vehi-
cle is driven once (pattern B) without
the same malfunction.
*7: When the same malfunction is de- tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
SEF393SD
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-79
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

 The A counter will be cleared when the malfunc
tion is detected regardless of (1) - (4).
 The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
 The DTC will not be displayed after the A counter reaches 40 (*2 in OBD SYSTEM OPERATION CHART).

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
 The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
 The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
 The MIL will go off when the B counter reac hes 3 (*2 in OBD SYSTEM OPERATION CHART).
AEC574
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
