COOLING FAN
COOLING FAN
Component (Crankshaft Driven type)INFOID:0000000001325877
Removal and InstallationINFOID:0000000001325878
REMOVAL
1. Remove air duct (inlet). Refer to
EM-173, "Component".
2. Remove engine front undercover with power tool.
3. Remove radiator shroud (lower). Refer to CO-40, "
Component".
4. Remove drive belts. Refer to EM-170, "
Component".
5. Remove fan coupling and cooling fan assembly. CAUTION:
Do not damage or scratch ra diator core when removing.
6. Remove cooling fan from fan coupling.
INSPECTION AFTER REMOVAL
Fan Coupling
Inspect fan coupling for oil leakage and bimetal conditions.
 If anything is found, replace fan coupling.
Cooling Fan
Inspect cooling fan for crack or unusual bend.
 If anything is found, replace cooling fan.
INSTALLATION
Note the following, install in the reverse order of removal.
 Install cooling fan with its front mark “F” facing fr ont of vehicle. Refer to "Removal and Installation".

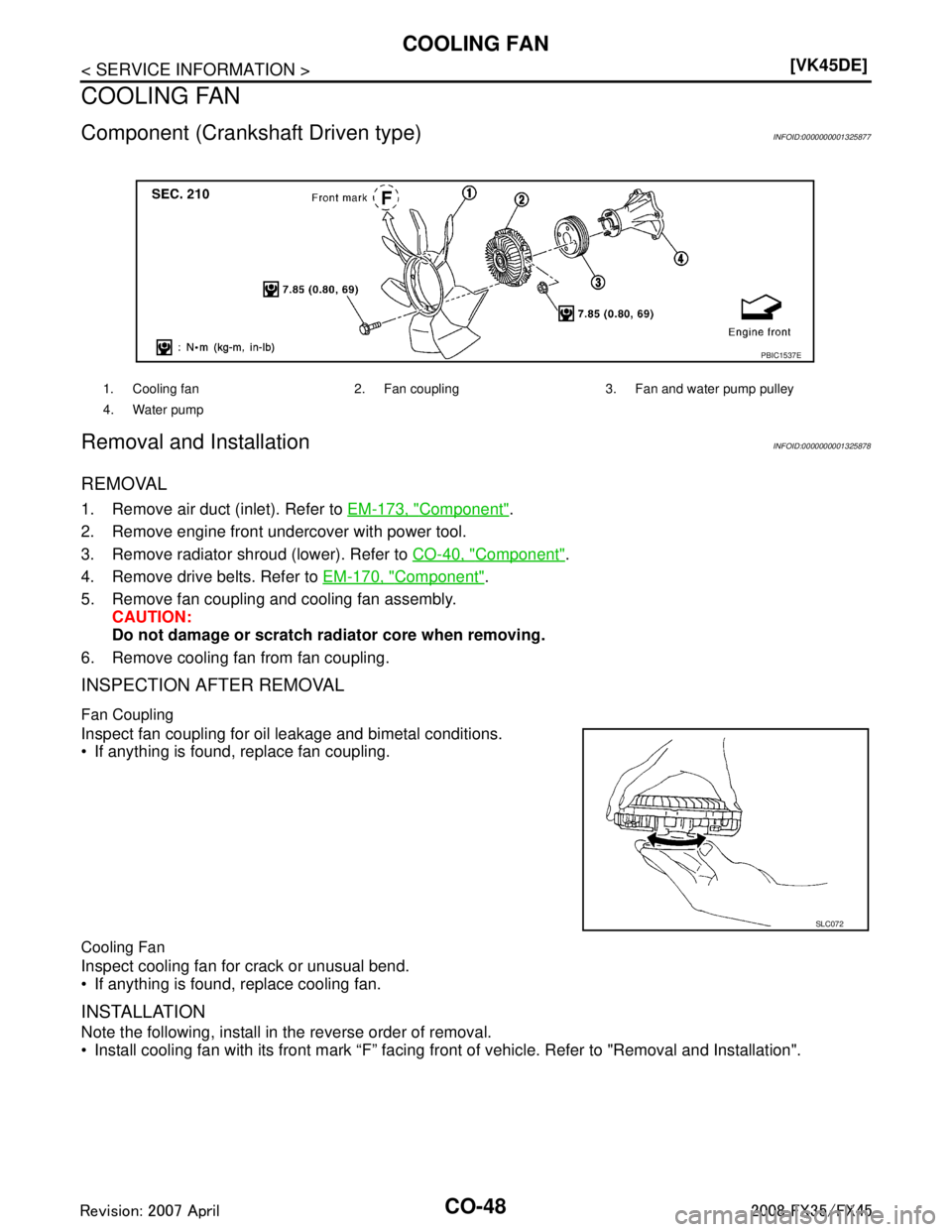

1. Cooling fan 2. Fan coupling 3. Fan and water pump pulley
4. Water pump
PBIC1537E
SLC072
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CO-50
< SERVICE INFORMATION >[VK45DE]
WATER PUMP
WATER PUMP
ComponentINFOID:0000000001325882
Removal and InstallationINFOID:0000000001325883
CAUTION:
 When removing water pump, be careful no
t to get engine coolant on drive belts.
 Water pump can not be disassembled and should be replaced as a unit.
 After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter (commercial service tool).
REMOVAL
1. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-37, "Chang-
ing Engine Coolant" and EM-242, "Disassembly and Assembly".
CAUTION:
 Perform this step when engine is cold.
 Do not spill engine coolant on drive belts.
2. Remove following parts:  Engine front undercover
 Air duct (inlet): Refer to EM-173, "
Component".
 Alternator, water pump and A/C compressor belt: Refer to EM-170, "
Component".
3. Remove fan coupling with cooling fan, and then fan and water pump pulley.
4. Remove water pump.  Engine coolant will leak from cylinder block, so have a receptacle ready under vehicle.
CAUTION:
 Handle the water pump vane so that it does not contact any other parts.
 Do not disassemble water pump.
INSPECTION AFTER REMOVAL
1. Fan and water pump pulley 2. Water pump 3. Gasket
PBIC1538E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

THERMOSTAT AND WATER CONTROL VALVECO-53
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
 Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325885
REMOVAL
1. Drain engine coolant from drain plugs on radiat or and both side of cylinder block. Refer to CO-37, "Chang-
ing Engine Coolant" and EM-242, "Disassembly and Assembly".
CAUTION:
 Perform this step when engine is cold.
 Do not spill engine coolant on drive belts.
2. Remove engine cover with power tool. Refer to EM-169, "
Component".
3. Remove air duct (inlet). Refer to EM-173, "
Component".
4. Disconnect water suction hose from water inlet.
5. Remove water inlet and thermostat. CAUTION:
Do not disassemble thermostat.
6. Remove intake manifolds (upper and lower). Refer to EM-175, "
Component".
7. Disconnect radiator hose (upper) and wa ter hoses from thermostat housing.
8. Disconnect heater hoses from water outlet and heater pipe.
9. Remove thermostat housing, water outlet pipe, water connector, water control valve, water outlet and heater pipe.
CAUTION:
Do not disassemble water control valve.
INSPECTION AFTER REMOVAL
 Make sure that valves both in thermostat and water c ontrol valve are completely closing at normal tempera-
ture.
 Place a thread so that it is caught in the valves of the thermostat
and water control valve. Immerse fully in a container filled with
water. Heat while stirring. (The example in the figure shows ther-
mostat.)
 The valve opening temperature is the temperature at which the valve opens and falls from the thread.
 Continue heating. Check the maximum valve lift. NOTE:
The maximum valve lift standard temperature for water control
valve is the reference value.
 After checking the maximum valve lift, lower the water tempera-
ture and check the valve closing temperature.
Standard values:
 If the malfunctioning condition, when closing valve at nor mal temperature, or measured values are out of the
standard, replace thermostat and/or water control valve.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Be careful not to spill engine coolant over en gine room. Use rag to absorb engine coolant.
Thermostat and Water Control Valve
D. To heater core E. To cylinder head (left bank) F. To cylinder head (right bank)
G. To intake manifold adapter
SLC252B
Thermostat Water control valve
Valve opening temperature 80 - 84 °C (176 - 183 °F) 93.5 - 96.5 °C (200 - 206 °F)
Maximum valve lift More than 10 mm/95
°C
(0.39 in/203 °F) More than 8 mm/108
°C
(0.315 in/226 °F)
Valve closing temperature 77 °C (171 °F) 90 °C (194 °F)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
