display INFINITI G 2010 Owner's Guide

Fuel Economy information
The distance to empty, average fuel economy
and current fuel economy will be displayed for
reference.
To reset the average fuel economy (Avg Fuel
Econ), select the “Reset Fuel Eco” or “Reset”
key.
If the “Fuel Eco History” or “View” key is
selected, the average fuel consumption history
will be displayed in graph form along with the
average for the previous Reset-to-Reset period.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
The fuel economy information may differ from
the information displayed on the vehicle infor-
mation display. This is due to the timing differ-
ence in updating the information and does not
indicate a malfunction.
SAA2479
Models with navigation system
SAA2480
SAA2720
Models without navigation system
SAA2721
Monitor, climate, audio, phone and voice recognition systems4-9
—
—
04/21/10—debbie


Maintenance information
The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be performed.
The following example shows how to set the
engine oil maintenance information. Use the same
steps to set the other maintenance information.
1. Set the interval (mileage) of the mainte-nance schedule. To determine the recom-
mended maintenance interval, refer to
your “INFINITI Service and Maintenance
Guide”.
2. To display the reminder automatically when the desired distance is reached,
select the “Reminder” key.
3. Reset the driving distance to the new maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
SAA2481
Models with navigation system
SAA2482
SAA2830
Models without navigation system
SAA2722
4-10Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the “OK” key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
●Select the “Reset Distance”.
● Deactivate the “Reminder”.
● Increase the “Interval” distance to be more
than the current distance being tracked.
Others information (models with
navigation system)
The Others information display will appear
when pushing the INFO button and selecting the
“Others” key.
GPS Position :
For the details of this item, see the separate
Navigation System Owner’s Manual.
Voice Recognition :
For the details of this item, see “INFINITI VOICE
RECOGNITION SYSTEM (models with navigation
system)” later in this section.
Models with navigation system
SAA3003
Models without navigation system
SAA1611
SAA2483
Monitor, climate, audio, phone and voice recognition systems4-11
—
—
04/21/10—debbie


HOW TO USE SETTING BUTTON
The display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Models with navigation system
SAA2484
Models without navigation system
SAA2604
Models with navigation system
SAA2485
Models without navigation system
SAA2740
4-12Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Audio settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade :
To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the INFINITI
controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol. :
The audio system’s volume is increased with
the vehicle speed. Select the “Speed Sensitive
Vol.” and adjust the effect level with the INFINITI
controller. The Speed Sensitive Volume function
is turned off when the level is set to OFF.
Increasing the value will cause the volume to
increase faster with vehicle speed.
Precision Phased Audio (if so equipped) :
When this item is turned to ON, super high pitch
sound and super low pitch sound are empha-
sized and midrange sound is played naturally.Driver’s Audio Stage (if so equipped) :
When this feature is turned to ON, better sound
will be provided to the driver’s position. The
driver can enjoy a more crisp and clear sound
that is specialized for the driver’s position. The
effect of this feature depends on the type of
music that is played. For some music, it may be
difficult to realize the effect of this feature.
DivX
Registration Code (models with naviga-
tion system) :
The registration code for a device that is used to
download DivX files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function
will not be activated.
Display Album Cover Art (models with naviga-
tion system) :
When this item is turned to ON, the album cover
image is displayed when playing iPod or MP3
music files through a CD, DVD or USB memory.
When the image is not properly embedded in
the file or device, the image will not be dis-
played.
Phone settings (models with
navigation system)
For details of the “Phone” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Bluetooth settings (for models with
navigation system)
For details of the “Bluetooth” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Monitor, climate, audio, phone and voice recognition systems4-13
—
—
04/21/10—debbie


Volume and Beeps settings (models
with navigation system)
The display as illustrated will appear when
pushing the SETTING button, selecting the “Vol-
ume & Beeps” key.
Audio Volume :
To increase or decrease the audio volume,
select the “Audio Volume” and adjust it with the
INFINITI controller. You can also adjust the
audio volume by turning the VOLUME control
knob.Guidance Volume :
To adjust the guidance voice volume louder or
softer, select the “Guidance Volume” and ad-
just it with the INFINITI controller.
You can also adjust the guidance voice volume
by turning the VOLUME control knob while voice
guidance is being announced.
Ringtone/Incoming Call/Outgoing Call :
For the details of these items, see “BLUETOOTH
HANDS-FREE PHONE SYSTEM (models with navi-
gation system)” later in this section.
Switch Beeps :
When this item is turned to ON, you will hear a
beep sound when you use a button.
Guidance Voice :
When this item is turned to ON, you will hear
voice guidance in the navigation operation or in
other operations.
NOTE:
When the voice guidance is being announced
during audio playback, turning the volume knob
does not adjust the music level; it adjusts the
guidance volume level. If voice guidance is not
being heard, please check the Guidance Volume
level.Button Beeps settings (models
without navigation system)
The “Button Beeps” screen will appear when
pushing the
SETTINGbutton, selecting the “But-
ton Beeps” key with the INFINITI controller and
pushing the ENTERbutton.
Button Beeps :
When this item is turned to ON, you will hear a
beep sound when you use a button.
SAA2554SAA2605
4-14Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Display settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment :
To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings
are available.
●Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
Color Theme :
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
Display settings (models without
navigation system)
The “Display” screen will appear when pushing
the SETTING button, selecting “Display” key
with the INFINITI controller and pushing the
ENTER button.
Display :
To turn off the screen, push the ENTERbutton
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
SAA2486SAA2115
Monitor, climate, audio, phone and voice recognition systems4-15
—
—
04/21/10—debbie


To turn on the screen, set this item to the “ON”
position or push the “
” button.
Brightness/Contrast/Background Colour :
To adjust the brightness, contrast and back-
ground colour of the screen, select the appro-
priate “Brightness”, “Contrast” or “Background
Colour” key and push the ENTERbutton.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller. Switch
the background colour to the daytime mode or
the nighttime mode by pushing the ENTER
button.
Clock settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem. Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) :
Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following
●
Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
SAA2487
4-16Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie

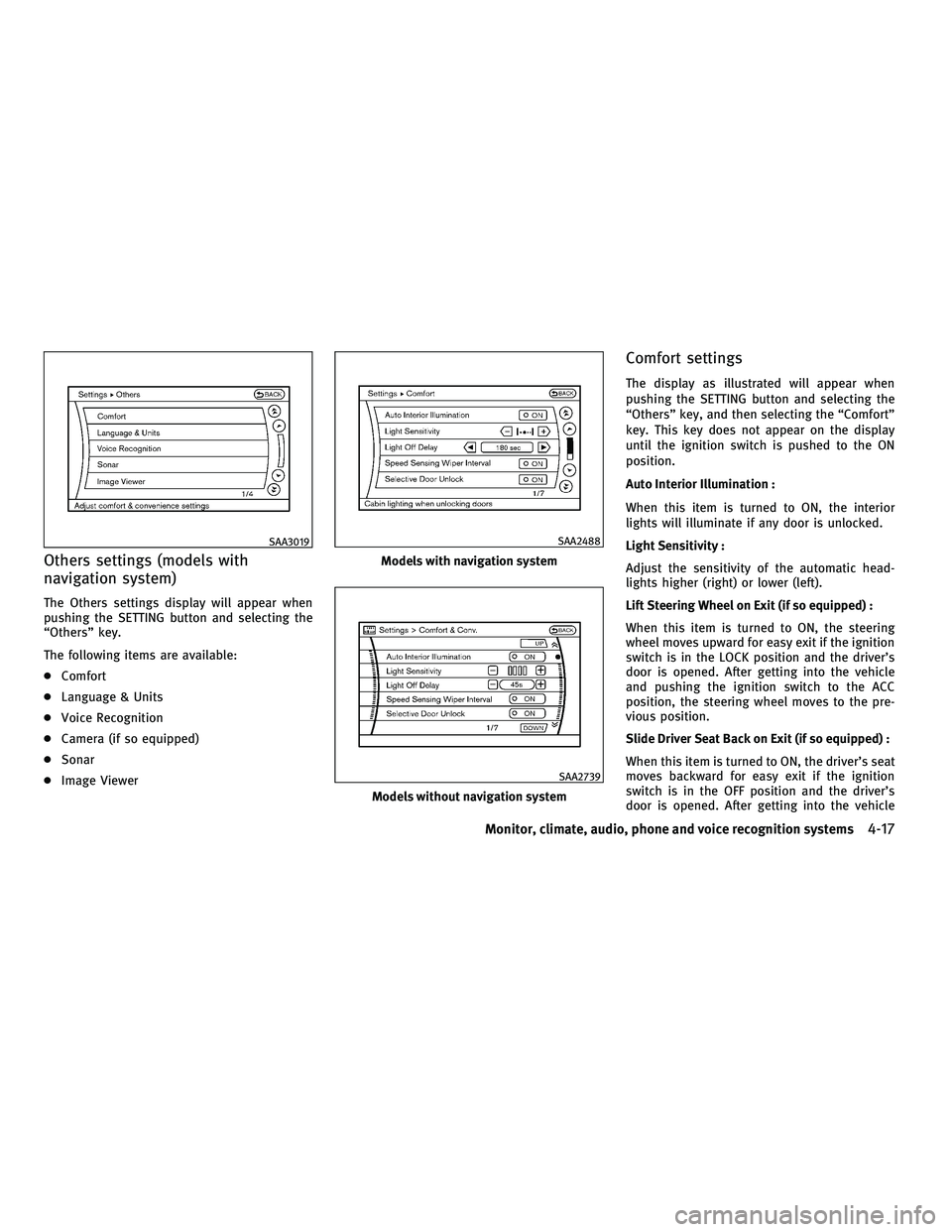

Others settings (models with
navigation system)
The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
●Comfort
● Language & Units
● Voice Recognition
● Camera (if so equipped)
● Sonar
● Image Viewer
Comfort settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display
until the ignition switch is pushed to the ON
position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
SAA3019
Models with navigation system
SAA2488
Models without navigation system
SAA2739
Monitor, climate, audio, phone and voice recognition systems4-17
—
—
04/21/10—debbie


and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “En-
glish”, “Français” or “Español” for your favorite
display appearance.
SAA2490
4-18Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
