WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
(if so equipped)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again. – blinks slowly (about once every 2 sec-
onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
Automatic transmission check
warning light (if so equipped)
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. If brake fluid is
necessary, add fluid and have the system
checked by your INFINITI retailer. (See
“BRAKE AND CLUTCH FLUID” in the “8.
Maintenance and do-it-yourself” section.)
Instruments and controls2-11

SHIFT “P” warning→(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
Instruments and controls2-21

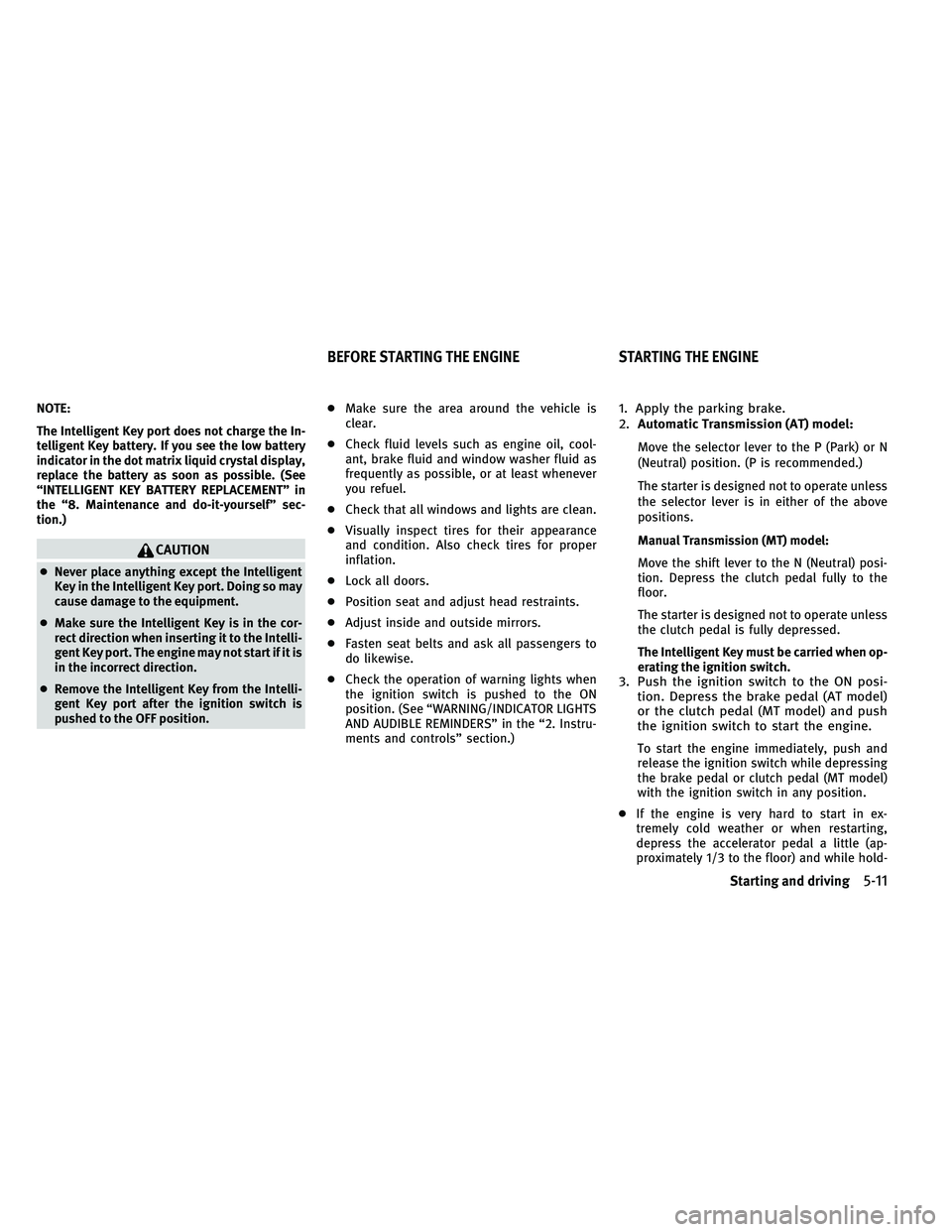

NOTE:
The Intelligent Key port does not charge the In-
telligent Key battery. If you see the low battery
indicator in the dot matrix liquid crystal display,
replace the battery as soon as possible. (See
“INTELLIGENT KEY BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
●Never place anything except the Intelligent
Key in the Intelligent Key port. Doing so may
cause damage to the equipment.
● Make sure the Intelligent Key is in the cor-
rect direction when inserting it to the Intelli-
gent Key port. The engine may not start if it is
in the incorrect direction.
● Remove the Intelligent Key from the Intelli-
gent Key port after the ignition switch is
pushed to the OFF position. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)
1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
3. Push the ignition switch to the ON posi-
tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or clutch pedal (MT model)
with the ignition switch in any position.
● If the engine is very hard to start in ex-
tremely cold weather or when restarting,
depress the accelerator pedal a little (ap-
proximately 1/3 to the floor) and while hold-
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-11

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-7
VQ25HR/VQ37VHR engine ....................... 8-7
Engine cooling system ............................. 8-8
Checking engine coolant level ................... 8-9
Changing engine coolant ........................ 8-9
Engine oil ........................................ 8-9
Checking engine oil level ......................8-10
Changing engine oil and filter ..................8-10
Automatic transmission fluid ......................8-12
Power steering fluid .............................. 8-12
Brake and clutch fluid ............................ 8-13
Brake fluid ................................... 8-13
Clutch fluid (if so equipped) ....................8-13
Window washer fluid ............................. 8-14Battery
.......................................... 8-14
Coupe ........................................ 8-14
Sedan and coupe ............................. 8-15
Jump starting ................................. 8-16
Variable voltage control system ...................8-16
Drive belts ....................................... 8-17
Spark plugs ..................................... 8-18
Replacing spark plugs ......................... 8-18
Air cleaner ....................................... 8-18
Windshield wiper blades .......................... 8-19
Cleaning ...................................... 8-19
Replacing ..................................... 8-20
Brakes .......................................... 8-21
Self-adjusting brakes .......................... 8-21
Brake pad wear warning ....................... 8-21
Fuses ........................................... 8-21
Engine compartment ........................... 8-21
Passenger compartment ....................... 8-23
Intelligent Key

battery replacement ................8-24

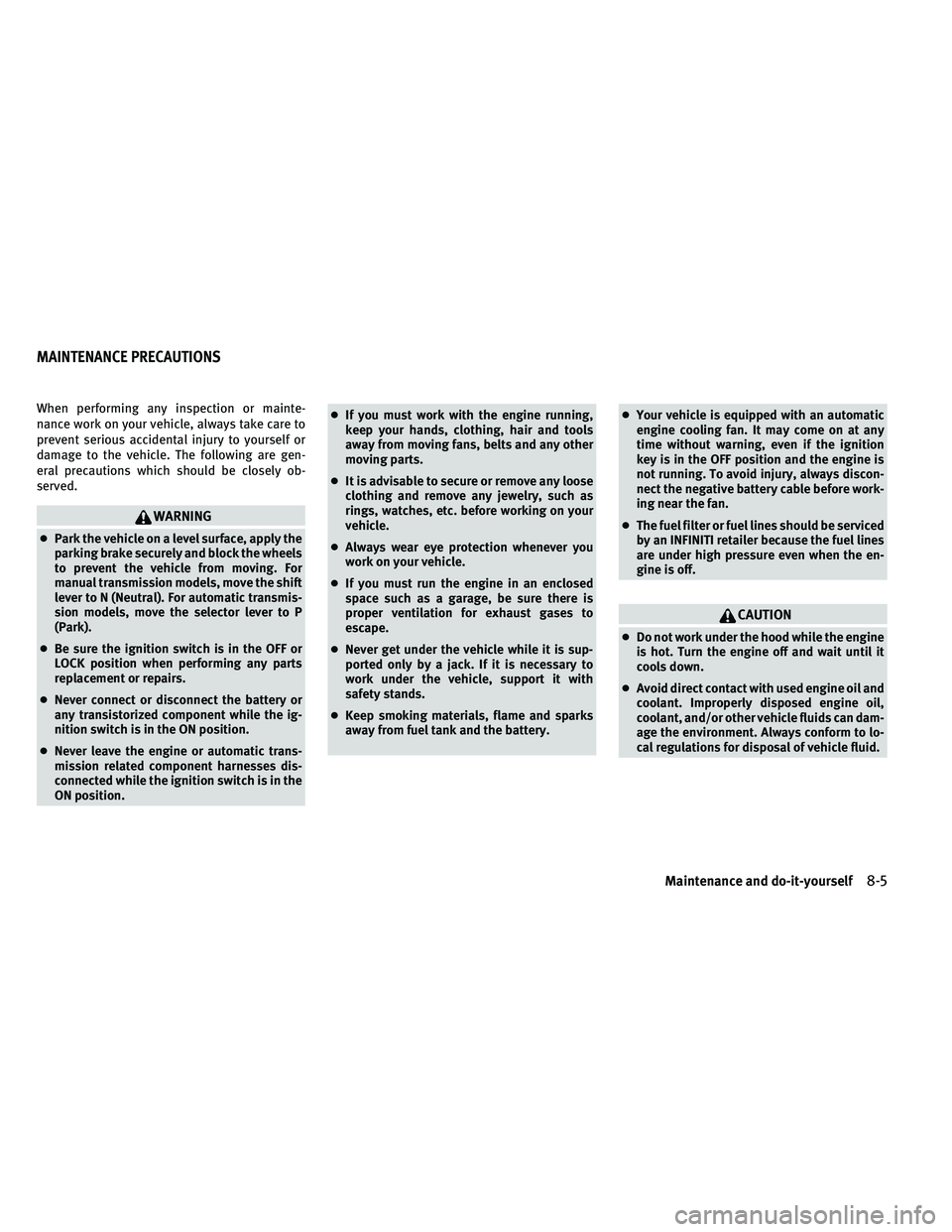

When performing any inspection or mainte-
nance work on your vehicle, always take care to
prevent serious accidental injury to yourself or
damage to the vehicle. The following are gen-
eral precautions which should be closely ob-
served.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. For
manual transmission models, move the shift
lever to N (Neutral). For automatic transmis-
sion models, move the selector lever to P
(Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position. ●
If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts.
● It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery. ●
Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
●Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5

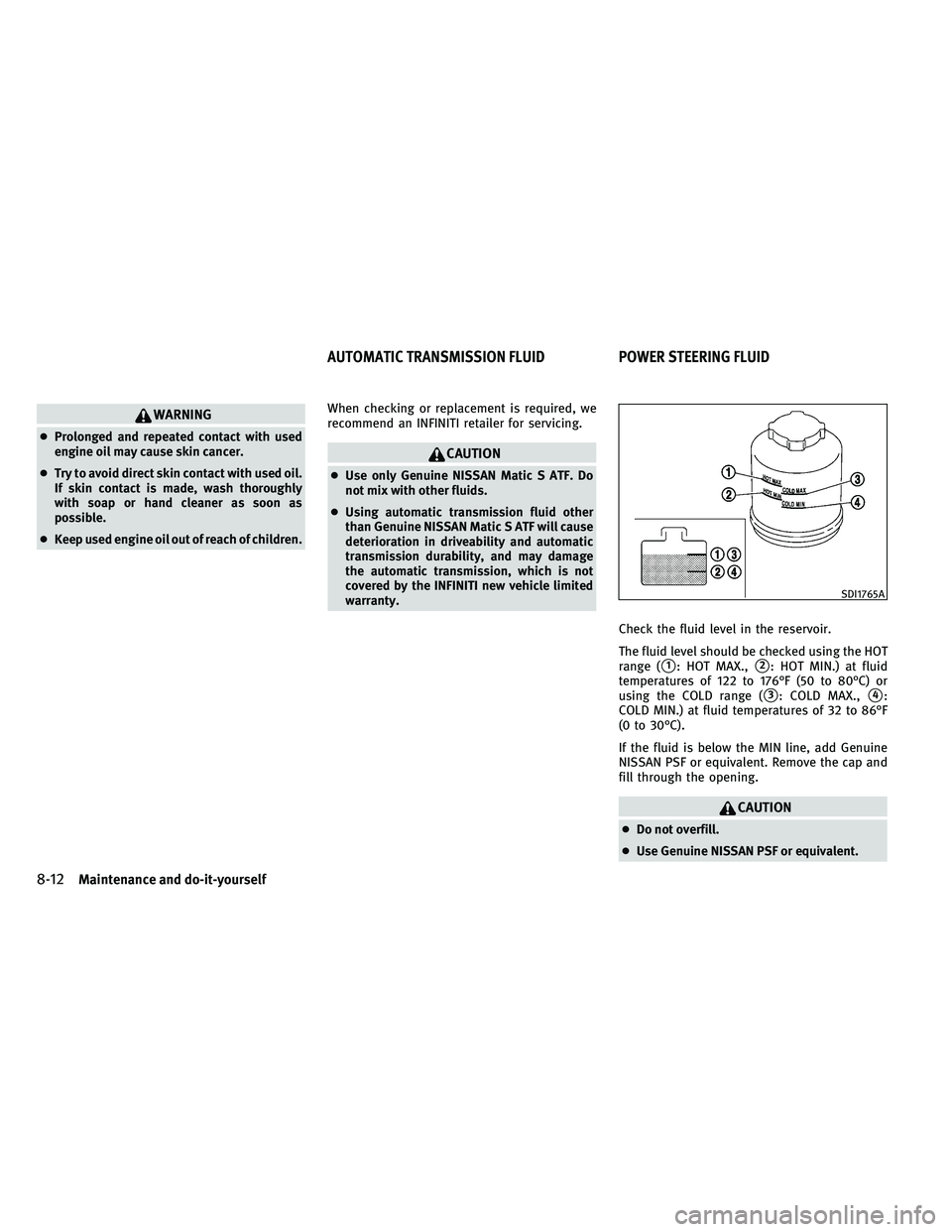

WARNING
●Prolonged and repeated contact with used
engine oil may cause skin cancer.
● Try to avoid direct skin contact with used oil.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep used engine oil out of reach of children. When checking or replacement is required, we
recommend an INFINITI retailer for servicing.
CAUTION
●
Use only Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
● Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will cause
deterioration in driveability and automatic
transmission durability, and may damage
the automatic transmission, which is not
covered by the INFINITI new vehicle limited
warranty.
Check the fluid level in the reservoir.
The fluid level should be checked using the HOT
range (
1: HOT MAX.,2: HOT MIN.) at fluid
temperatures of 122 to 176°F (50 to 80°C) or
using the COLD range (
3: COLD MAX.,4:
COLD MIN.) at fluid temperatures of 32 to 86°F
(0 to 30°C).
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap and
fill through the opening.
CAUTION
● Do not overfill.
● Use Genuine NISSAN PSF or equivalent.
SDI1765A
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID
8-12Maintenance and do-it-yourself

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 20 gal16-5/8 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*2
Drain and refill With oil filter change 5-1/8 qt4-3/8 qt 4.9 •Engine oil with API Certification Mark*1*3
•Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt4 qt 4.6
Cooling system (VQ37VHR) Automatic transmission
model With reservoir
9 qt7-1/2 qt 8.5 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equiva-
lent
Reservoir 7/8 qt3/4 qt 0.8
Manual transmission
model With reservoir
9-1/8 qt7-5/8 qt 8.6
Reservoir 7/8 qt3/4 qt 0.8
Cooling system (VQ25HR) AWD With reservoir9-1/4 qt7-3/4 qt 8.8
Reservoir 7/8 qt3/4 qt 0.8
2WD With reservoir8-3/4 qt7-1/4 qt 8.3
Reservoir 7/8 qt3/4 qt 0.8
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*4
Manual transmission gear oil ——— Genuine NISSAN Manual Transmission Fluid (MTF)
HQ Multi 75W-85*5
Differential gear oil ——— For 7A/T 2WD models:
API GL-5 Synthetic Gear Oil Viscosity SAE 75W-90*7All other models:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5,
Viscosity SAE 80W-90*6
Transfer fluid ——— Genuine NISSAN Matic J ATF*8
Power steering fluid (PSF) Refill to the proper oil level according to the in-
structions in the “8. Maintenance and do-it-
yourself” section. Genuine NISSAN PSF or equivalent*9
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*10 or equivalent DOT 3
Multi-purpose grease Without limited slip differential ———
NLGI No. 2 (Lithium soap base)
With limited slip differential ———
Air conditioning system refrigerant ——— HFC-134a (R-134a)*11
Air conditioning system lubricants ——— NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid ——— Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

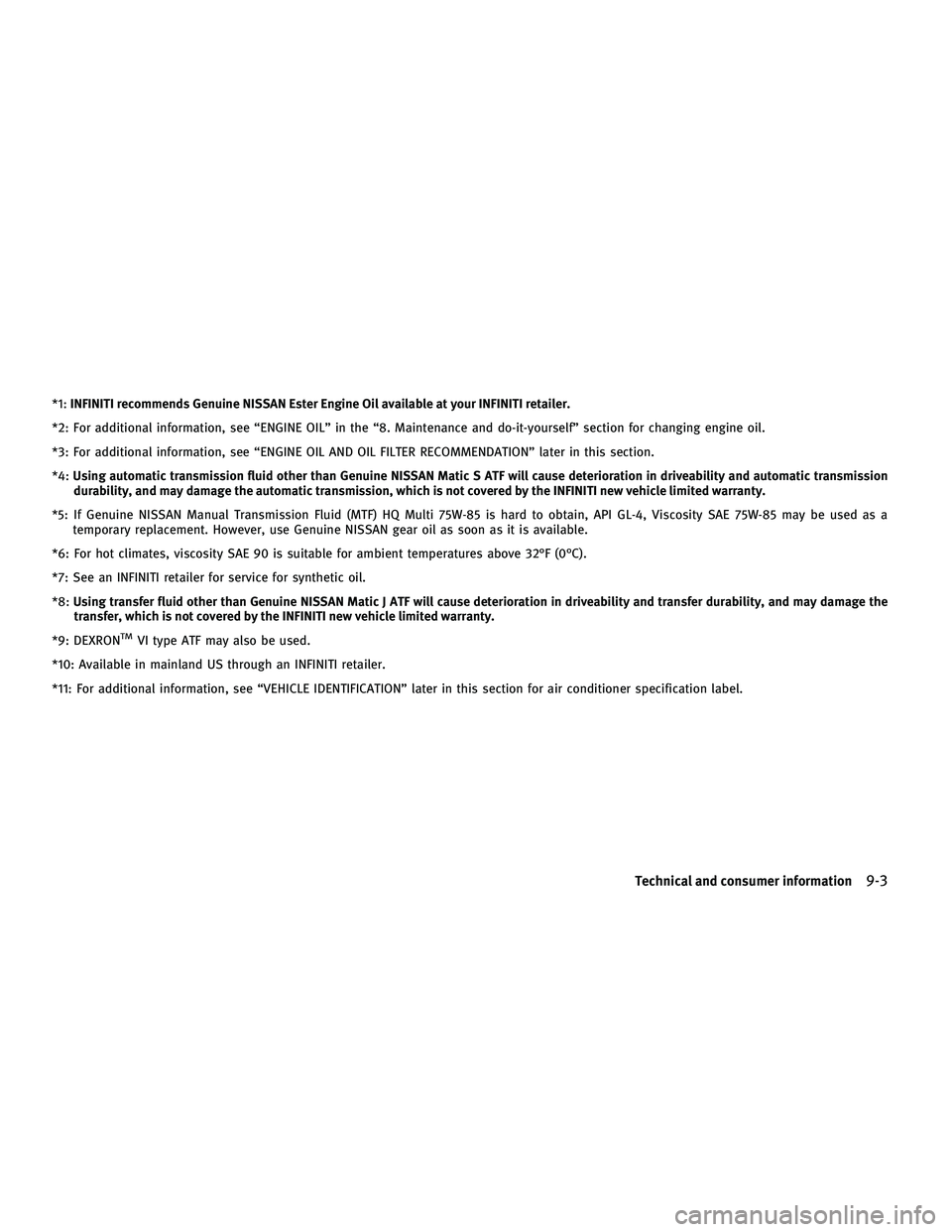

*1:INFINITI recommends Genuine NISSAN Ester Engine Oil available at your INFINITI retailer.
*2: For additional information, see “ENGINE OIL” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*3: For additional information, see “ENGINE OIL AND OIL FILTER RECOMMENDATION” later in this section.
*4: Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission
durability, and may damage the automatic transmission, which is not covered by the INFINITI new vehicle limited warranty.
*5: If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 is hard to obtain, API GL-4, Viscosity SAE 75W-85 may be used as a temporary replacement. However, use Genuine NISSAN gear oil as soon as it is available.
*6: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*7: See an INFINITI retailer for service for synthetic oil.
*8: Using transfer fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and transfer durability, and may damage the
transfer, which is not covered by the INFINITI new vehicle limited warranty.
*9: DEXRON
TMVI type ATF may also be used.
*10: Available in mainland US through an INFINITI retailer.
*11: For additional information, see “VEHICLE IDENTIFICATION” later in this section for air conditioner specification label.
Technical and consumer information9-3

10 Index
A
ABS (Anti-lock Braking System) ........5-53
Advanced air bag system ............1-46
Air bag system Advanced air bag system ..........1-46
Front passenger air bag and status
light ..................... .1-47
Front-seat mounted side-impact
supplemental air bag system .......1-50
Roof-mounted curtain side-impact
supplemental air bag system .......1-50
Air bag warning labels .............1-53
Air bag warning light ...........1-53, 2-15
Air cleaner housing filter ............8-18
Air conditioner Air conditioner service ...........4-37
Air conditioner specification label .....9-14
Air conditioning system refrigerant and
lubricant recommendations ......4-37, 9-7
Automatic climate control .........4-28
In-cabin microfilter .............4-37
Alarm, How to stop alarm (see vehicle
security system) ............... .2-28
Alcohol, drugs and driving ...........5-7
All-wheel drive (AWD) driving safety
precautions ................... .5-7
All-wheel drive (AWD) ............. .5-44
All-wheel drive (AWD) warning light ......2-11
Antenna .................... .4-83
Anti-lock Braking System (ABS) ........5-53Anti-lock braking system (ABS) warning
light
....................... .2-11
Appearance care Exterior appearance care ..........7-2
Interior appearance care ...........7-4
Armrest ..................... .1-12
Ashtrays (See cigarette lighter and
ashtrays) .................... .2-41
Audible reminders ............... .2-17
Audio operation precautions .........4-38
Audio system ................. .4-38
Steering wheel audio controls .......4-82
Autolight system ............... .2-33
Automatic Automatic adjusting function (front
windows) .................. .2-51
Automatic climate

control ......4-29, 4-31
Automatic transmission fluid (ATF) . . . .8-12
Climate control .............. .4-28
Door locks .................. .3-5
Drive positioner .............. .3-29
Driving with automatic transmission . . .5-12
Moonroof .................. .2-51
Seat positioner .............. .3-29
Average fuel consumption and speed . . . .2-24
Avoiding collision and rollover .........5-5
B
Battery ..................... .8-14
Battery saver system ............2-34
Intelligent Key ............... .8-24Variable voltage control system
......8-16
Before starting the engine ...........5-11
Belts (See drive belts) .............8-17
Bluetooth hands-free phone system
(models with navigation system) . . . . . . .4-84
Bluetooth hands-free phone system
(models without navigation system) .....4-95
Bluetooth streaming audio ..........4-66
Booster seats ................. .1-36
Brake Anti-lock Braking System (ABS) . . . . . .5-53
Brake and clutch fluid ...........8-13
Brake fluid ................. .8-13
Brake system ............... .5-49
Parking brake operation ..........5-18
Warning light ................ .2-11
Break-in schedule ............... .5-43
Brightness control Display ON/OFF button ...........4-7
Instrument panel ............. .2-35
Bulb check/instrument panel .........2-10
Bulb replacement ............... .8-26
C
Cabin air filter ................. .4-37
Capacities and recommended
fuel/lubricants ................. .9-2
Car phone or CB radio .............4-84
Card holder .................. .2-46
Cargo

net retainers .............. .2-48
Catalytic converter, Three way catalyst . . . .5-2

CD/CF/USB memory care and cleaning . . . .4-81
Center multi-function control panel.......4-2
Child restraints ................. .1-21
Booster seats ................ .1-36
Installation using LATCH ...........1-26
Installation using the seat belts ......1-30
LATCH system ................ .1-23
Precautions on child restraints .......1-21
Top tether strap .............. .1-25
Child safety ................... .1-15
Child safety rear door lock ............3-6
Chimes Audible reminders ............. .2-17
Seat belt warning light and chime .....2-14
Cigarette lighter and ashtrays .........2-41
Circuit breaker, Fusible link ...........8-22
Cleaning exterior and interior ........7-2, 7-4
Climate control, Automatic climate control . .4-28
Clock ...................... .2-39
Clutch fluid ................... .8-13
Coat hooks ................... .2-47
Cockpit ...................... .2-2
Cold weather driving .............. .5-56
Compact Disc (CD) player
(See audio system) .............. .4-57
Compact spare tire .............. .8-42
Compass ..................... .2-7
Console box .................. .2-44
Controller, Center multi-function control
panel ....................... .4-4
Controls Control panel button .............4-2
INFINITI Controller .............. .4-4
Coolant Capacities and recommended fuel/
lubricants .................. .9-2Changing engine coolant
...........8-9
Checking engine coolant level ........8-9
Corrosion protection .............. .7-6
Cruise control .................. .5-19
Fixed speed cruise control
(on ICC

system) .............. .5-40
Intelligent cruise control (ICC) system . . .5-22
Cup holders .................. .2-42
Current fuel consumption ............2-24
D
Daytime running light system .........2-34
Defroster switch, Rear window and
outside mirror defroster switch .........2-31
Dimensions ................... .9-11
Distance to empty ............... .2-25
Door/trunk open warning ............2-21
Dot matrix liquid crystal display ........2-18
Drive belts ................... .8-17
Drive positioner ................ .3-29
Driving All-wheel drive (AWD) ............5-44
Cold weather driving .............5-56
Driving with automatic transmission . . . .5-12
Driving with manual transmission .....5-16
Precautions when starting and driving . . .5-2
DS (Drive Sport) mode ..............5-14
DVD player operation ............. .4-59
E
Economy, Fuel ................. .5-44
Elapsed time .................. .2-24
Elapsed time and trip odometer ........2-24Emission control information label . .
.....9-14
Emission control system warranty .......9-24
Engine Before starting the engine ..........5-11
Break-in schedule ............. .5-43
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-9
Changing engine oil and filter .......8-10
Checking engine coolant level ........8-9
Checking engine oil level ..........8-10
Coolant temperature gauge .........2-6
Emergency engine shut off .........5-10
Engine compartment check locations . . . .8-7
Engine cooling system ............8-8
Engine oil.................. .8-9
Engine

oil and oil filter recommendation . .9-6
Engine oil replacement indicator ......2-22
Engine oil viscosity ............. .9-6
Engine serial number ............9-13
Engine specifications .............9-8
Engine start operation indicator
(Automatic Transmission models) .....2-20
Engine start operation indicator (Manual
Transmission models) ............2-21
If your vehicle overheats ..........6-10
Starting the engine ............. .5-11
Entry/exit function ............... .3-29
Event Data Recorders (EDR) ...........9-26
Exhaust gas (carbon monoxide) .........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . . .9-13
10-2
