INFINITI G35 2003 Owners Manual

O Keep the battery surface clean and dry. Any
corrosion should be washed off with a
solution of baking soda and water.
O Make certain the terminal connections are
clean and securely tightened.
O If the vehicle is not to be used for 30 days or
longer, disconnect the (Ð) negative battery
terminal cable to prevent discharging it.
Coupe
CAUTIONWhen the battery cable is removed from
the battery terminal, do not close either
of front doors. The automatic window
adjusting function will not work, and the
side roof panel may be damaged.
To disconnect the negative (þ) battery ter-
minal, perform the procedure in the follow-
ing order. Otherwise, the window and the
side roof panel may contact and be dam-
aged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors. 4. Disconnect the negative (þ) battery ter-
minal.
5. Securely close the hood.
To connect the negative (þ) battery termi-
nal, perform the procedure in the following
order. Otherwise, the window and the side
roof panel may contact and be damaged.
1. Unlock and open the driver side door.
Do not close the door.
2. Open the hood.
3. Connect the negative (þ) battery termi-
nal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the win-
dow.
Sedan and coupe
WARNING O Do not expose the battery to flames
or electrical sparks. Hydrogen gas
generated by battery action is explo-
sive. Do not allow battery fluid to
contact your skin, eyes, fabrics, or painted surfaces. After touching a
battery or battery cap, do not touch or
rub your eyes. Thoroughly wash your
hands. If you get acid on your eyes,
skin or clothing, immediately flush
with water for at least 15 minutes and
seek medical attention.
O Do not operate the vehicle if the bat-
tery fluid is low. Low battery fluid can
cause a higher load on the battery
which can generate heat, reduce bat-
tery life, and in some cases lead to an
explosion.
O When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.
O Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after han-
dling.
O Keep the battery out of the reach of
children.BATTERY
Do-it-yourself
8-13
Z 02.7.29/V35-D/V5.0
X

Check the fluid level in each cell. It should be
between the MAX and MIN lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.
Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.
1. Remove the cell plugs.
2. Add distilled water up to the MAX level.
3. Tighten cell plugs. JUMP STARTING If jump starting is necessary, see ªJump start-
ingº in the ª6. In case of emergencyº section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact your
INFINITI retailer. 1. Power steering fluid pump
2. Fan
3. Alternator
4. Crankshaft pulley
5. Air conditioner compressor
. : Tension checking points
WARNING Be sure the ignition key is in the OFF or
LOCK position. The engine could rotateDI0137M SDI1480 SDI1389
DRIVE BELTS
8-14 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

unexpectedly.
1. Visually inspect each belt for signs of un-
usual wear, cuts, fraying, oil adhesion or
looseness. If the belt is in poor condition or
loose, have it replaced or adjusted by your
INFINITI retailer.
2. Have the belts checked regularly for condi-
tion and tension in accordance with the
maintenance schedule in this manual.
WARNING Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
REPLACING SPARK PLUGS If replacement is required, see your INFINITI
retailer for servicing.
Platinum-tipped spark plugs It is not necessary to replace the platinum-
tipped spark plugs as frequently as the con-
ventional type spark plugs since they will last
much longer. Follow the maintenance sched-
ule but, do not reuse them by cleaning or
regapping.
Always replace with recommended
platinum-tipped spark plugs. SDI0145
SPARK PLUGS
Do-it-yourself
8-15
Z 02.7.29/V35-D/V5.0
X

If maintenance is required, see your INFINITI
retailer for servicing.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
nance intervals. See ªPeriodic maintenance
schedulesº in the ª9. Maintenanceº section for
maintenance intervals. When replacing the
filter, wipe the inside of the air cleaner housing
and the cover with a damp cloth.
WARNINGO Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine backfires. If it is not
there, and the engine backfires, you
could be burned. Do not drive with
the air cleaner removed and be care-
ful when working on the engine with
the air cleaner removed.
O Never pour fuel into the throttle body
or attempt to start the engine with the
air cleaner removed. Doing so could
result in serious injury. CAUTION O After wiper blade replacement, return
the wiper arm to its original position.
Otherwise it may be damaged when
the engine hood is opened.
O Make sure the wiper blade contacts
the glass, otherwise the arm may be
damaged from wind pressure.
O Worn windshield wiper blades can
damage the windshield and impair
driver vision.
CLEANING If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.
Clean the blade by wiping it with a cloth
soaked in a washer solution or a mild deter- gent. Then rinse the blade with clear water. If
your windshield is still not clear after cleaning
the blades and using the wiper, replace the
blades.
AIR CLEANER WINDSHIELD WIPER BLADES
8-16 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

REPLACING Replace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the lock pin, then remove the wiper
blade.
3. Insert the new wiper blade to the wiper arm
until a click sounds.
If necessary, clean the windshield washer
nozzle with a needle or small pin. DI1018M
SDI1390
Do-it-yourself
8-17
Z 02.7.29/V35-D/V5.0
X

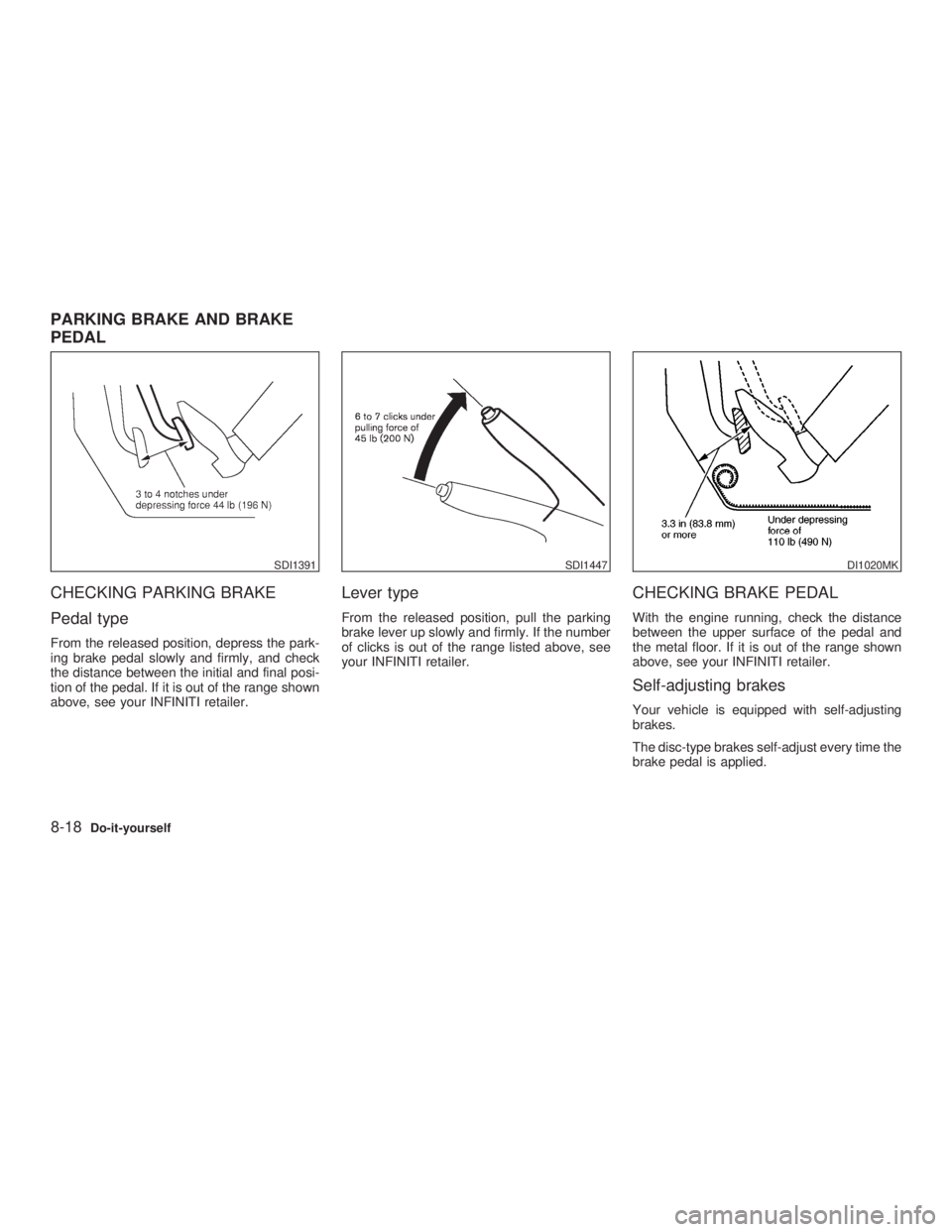

CHECKING PARKING BRAKE
Pedal type From the released position, depress the park-
ing brake pedal slowly and firmly, and check
the distance between the initial and final posi-
tion of the pedal. If it is out of the range shown
above, see your INFINITI retailer.
Lever type From the released position, pull the parking
brake lever up slowly and firmly. If the number
of clicks is out of the range listed above, see
your INFINITI retailer.
CHECKING BRAKE PEDAL With the engine running, check the distance
between the upper surface of the pedal and
the metal floor. If it is out of the range shown
above, see your INFINITI retailer.
Self-adjusting brakes Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.SDI1391 SDI1447 DI1020MK
PARKING BRAKE AND BRAKE
PEDAL
8-18 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

WARNINGSee your INFINITI retailer and have it
checked if the brake pedal height does
not return to normal.
Brake pad wear indicators The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires replacement, it will make a high
pitched scraping or screeching sound when
the vehicle is in motion whether or not the
brake pedal is depressed. Have the brakes
checked as soon as possible if the wear indi-
cator sound is heard.
Under some driving or climate conditions, oc-
casional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed. For additional information, see
ªPeriodic maintenance schedulesº in the ª9.
Maintenanceº section for maintenance inter-
vals. High performance sports brake pad occasion-
ally makes squeak, squeal or other braking
noise because of its very high friction coeffi-
cient.
These occasional brake noise is normal, but if
it continues, see your INFINITI retailer.
BRAKE BOOSTER Check the brake booster function as follows:
1. With the engine off, press and release the
brake pedal several times. When brake
pedal movement (distance of travel) re-
mains the same from one pedal application
to the next, continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a
little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without
depressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradu-
ally with each depression as the vacuum is
released from the booster. If the brakes do not operate properly, see your
INFINITI retailer.
Do-it-yourself
8-19
Z 02.7.29/V35-D/V5.0
X

CAUTIONNever use a fuse of higher amperage
rating than that specified on the fuse
box cover. This could damage the elec-
trical system or cause a fire.
ENGINE COMPARTMENT If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition key and headlight
switch are OFF.
2. Open the engine hood and remove the
cover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open, replace it with a new
fuse. 6. If a new fuse also opens, have the electrical
system checked and repaired by your
INFINITI retailer.
Fusible links If any electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine NISSAN
parts. SDI1392
FUSES
8-20 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

PASSENGER COMPARTMENT If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition key and the headlight
switch are OFF.
2. Open the fuse box lid.
3. Remove the fuse with the fuse puller.
4. If the fuse is open, replace it with a new
fuse.
5. If a new fuse also opens, have the electrical
system checked and repaired by your
INFINITI retailer. Replace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
Recommended battery: CR2025 or equiva-
lent SDI1393
SPA1374KEYFOB BATTERY
REPLACEMENT
Do-it-yourself
8-21
Z 02.7.29/V35-D/V5.0
X

Make sure that the ! side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfob button two or three times
to check its operation.
See your INFINITI retailer if you need any
assistance for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.
O Be careful not to touch the circuit board
and the battery terminal.
O An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
O The keyfob is water-resistant; however,
if it gets wet, immediately wipe it com-
pletely dry.
O When changing batteries, do not let dust
or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user's authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
8-22 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X
