EXPLANATION OF GENERAL
MAINTENANCE ITEMS Additional information on the following
items with ª*º is found later in this sec-
tion.
Outside the vehicle The maintenance items listed here should
be performed from time to time, unless
otherwise specified.
Doors and engine hood: Check that all
doors and the engine hood operate prop-
erly. Also ensure that all latches lock se-
curely. Lubricate hinges and latches if
necessary. Make sure that the secondary
latch keeps the hood from opening when
the primary latch is released.
When driving in areas using road salt or
other corrosive materials, check lubrica-
tion frequently.
Lights*: Clean the headlights on a regular
basis. Make sure that the headlights,
stop lights, tail lights, turn signal lights,
and other lights are all operating properly
and installed securely. Also check head-
light aim.
Road wheel nuts (lug nuts): When
checking the tires, make sure no wheel nuts are missing, and check for any loose
wheel nuts. Tighten if necessary.
Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in
all tires, including the spare, to the speci-
fied pressure. Check carefully for damage,
cuts or excessive wear.
Tire rotation*:
Sedan: The tires should be rotated every
7,500 miles (12,000 km) to minimize tire
wear variation.
Coupe: The tires cannot be rotated.
Tire, wheel alignment and balance: If the
vehicle should pull to either side while
driving on a straight and level road, or if
you detect uneven or abnormal tire wear,
there may be a need for wheel alignment.
If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
O For additional information regarding
tires, refer to ªImportant Tire Safety
Informationº (US) or ªTire Safety Infor-
mationº (Canada) in the Warranty In-
formation Booklet. Windshield: Clean the windshield on a
regular basis. Check the windshield at
least every six months for cracks or other
damage. Have a damaged windshield re-
paired by a qualified repair facility.
Windshield wiper blades*: Check for
cracks or wear if they do not wipe prop-
erly.
Maintenance and do-it-yourself
8-3
w 06.1.4/V35-D/V5.0
X

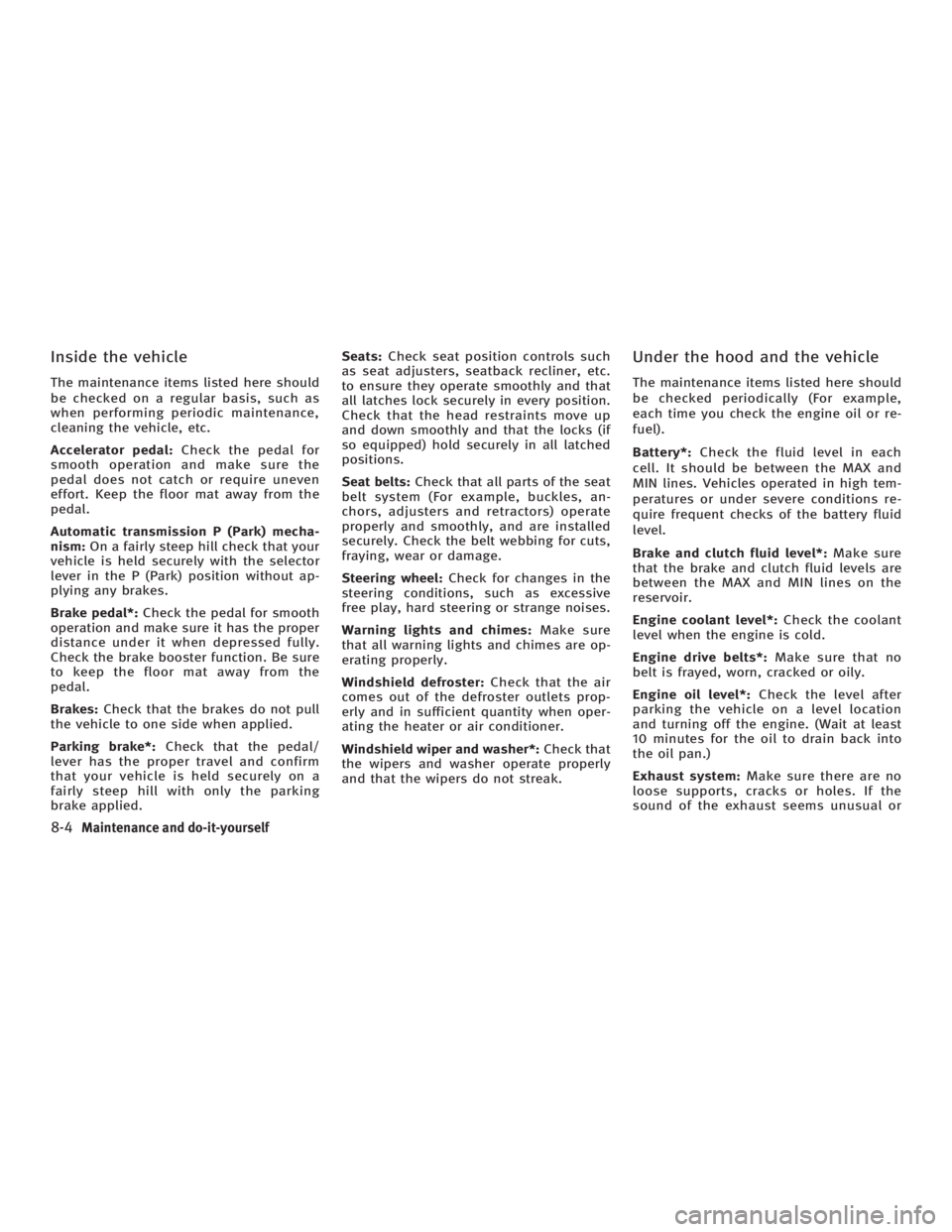

Inside the vehicle The maintenance items listed here should
be checked on a regular basis, such as
when performing periodic maintenance,
cleaning the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the
pedal does not catch or require uneven
effort. Keep the floor mat away from the
pedal.
Automatic transmission P (Park) mecha-
nism: On a fairly steep hill check that your
vehicle is held securely with the selector
lever in the P (Park) position without ap-
plying any brakes.
Brake pedal*: Check the pedal for smooth
operation and make sure it has the proper
distance under it when depressed fully.
Check the brake booster function. Be sure
to keep the floor mat away from the
pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake*: Check that the pedal/
lever has the proper travel and confirm
that your vehicle is held securely on a
fairly steep hill with only the parking
brake applied. Seats: Check seat position controls such
as seat adjusters, seatback recliner, etc.
to ensure they operate smoothly and that
all latches lock securely in every position.
Check that the head restraints move up
and down smoothly and that the locks (if
so equipped) hold securely in all latched
positions.
Seat belts: Check that all parts of the seat
belt system (For example, buckles, an-
chors, adjusters and retractors) operate
properly and smoothly, and are installed
securely. Check the belt webbing for cuts,
fraying, wear or damage.
Steering wheel: Check for changes in the
steering conditions, such as excessive
free play, hard steering or strange noises.
Warning lights and chimes: Make sure
that all warning lights and chimes are op-
erating properly.
Windshield defroster: Check that the air
comes out of the defroster outlets prop-
erly and in sufficient quantity when oper-
ating the heater or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly
and that the wipers do not streak. Under the hood and the vehicle The maintenance items listed here should
be checked periodically (For example,
each time you check the engine oil or re-
fuel).
Battery*: Check the fluid level in each
cell. It should be between the MAX and
MIN lines. Vehicles operated in high tem-
peratures or under severe conditions re-
quire frequent checks of the battery fluid
level.
Brake and clutch fluid level*: Make sure
that the brake and clutch fluid levels are
between the MAX and MIN lines on the
reservoir.
Engine coolant level*: Check the coolant
level when the engine is cold.
Engine drive belts*: Make sure that no
belt is frayed, worn, cracked or oily.
Engine oil level*: Check the level after
parking the vehicle on a level location
and turning off the engine. (Wait at least
10 minutes for the oil to drain back into
the oil pan.)
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
8-4 Maintenance and do-it-yourself
w 06.1.4/V35-D/V5.0
X

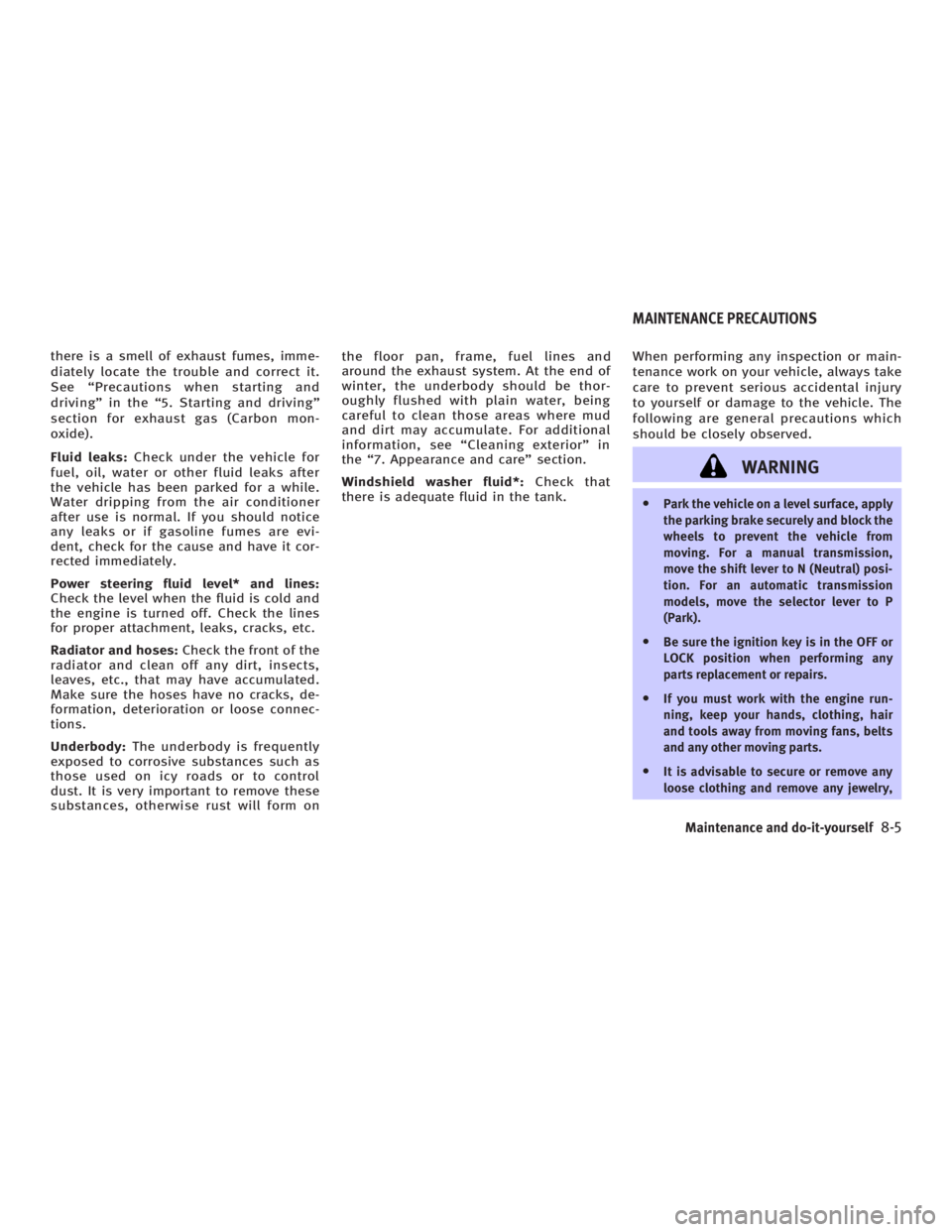

there is a smell of exhaust fumes, imme-
diately locate the trouble and correct it.
See ªPrecautions when starting and
drivingº in the ª5. Starting and drivingº
section for exhaust gas (Carbon mon-
oxide).
Fluid leaks: Check under the vehicle for
fuel, oil, water or other fluid leaks after
the vehicle has been parked for a while.
Water dripping from the air conditioner
after use is normal. If you should notice
any leaks or if gasoline fumes are evi-
dent, check for the cause and have it cor-
rected immediately.
Power steering fluid level* and lines:
Check the level when the fluid is cold and
the engine is turned off. Check the lines
for proper attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, de-
formation, deterioration or loose connec-
tions.
Underbody: The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control
dust. It is very important to remove these
substances, otherwise rust will form on the floor pan, frame, fuel lines and
around the exhaust system. At the end of
winter, the underbody should be thor-
oughly flushed with plain water, being
careful to clean those areas where mud
and dirt may accumulate. For additional
information, see ªCleaning exteriorº in
the ª7. Appearance and careº section.
Windshield washer fluid*: Check that
there is adequate fluid in the tank. When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury
to yourself or damage to the vehicle. The
following are general precautions which
should be closely observed.
WARNING O Park the vehicle on a level surface, apply
the parking brake securely and block the
wheels to prevent the vehicle from
moving. For a manual transmission,
move the shift lever to N (Neutral) posi-
tion. For an automatic transmission
models, move the selector lever to P
(Park).
O Be sure the ignition key is in the OFF or
LOCK position when performing any
parts replacement or repairs.
O If you must work with the engine run-
ning, keep your hands, clothing, hair
and tools away from moving fans, belts
and any other moving parts.
O It is advisable to secure or remove any
loose clothing and remove any jewelry,MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself
8-5
w 06.1.4/V35-D/V5.0
X

1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir
5. Clutch fluid reservoir (MT models)
6. Power steering fluid reservoir
7. Engine coolant reservoir
8. Window washer fluid reservoir
9. Radiator filler cap
10. Drive belts
11. Engine oil dipstick
12. Air cleaner
SSI0160ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself
8-7
w 06.1.4/V35-D/V5.0
X

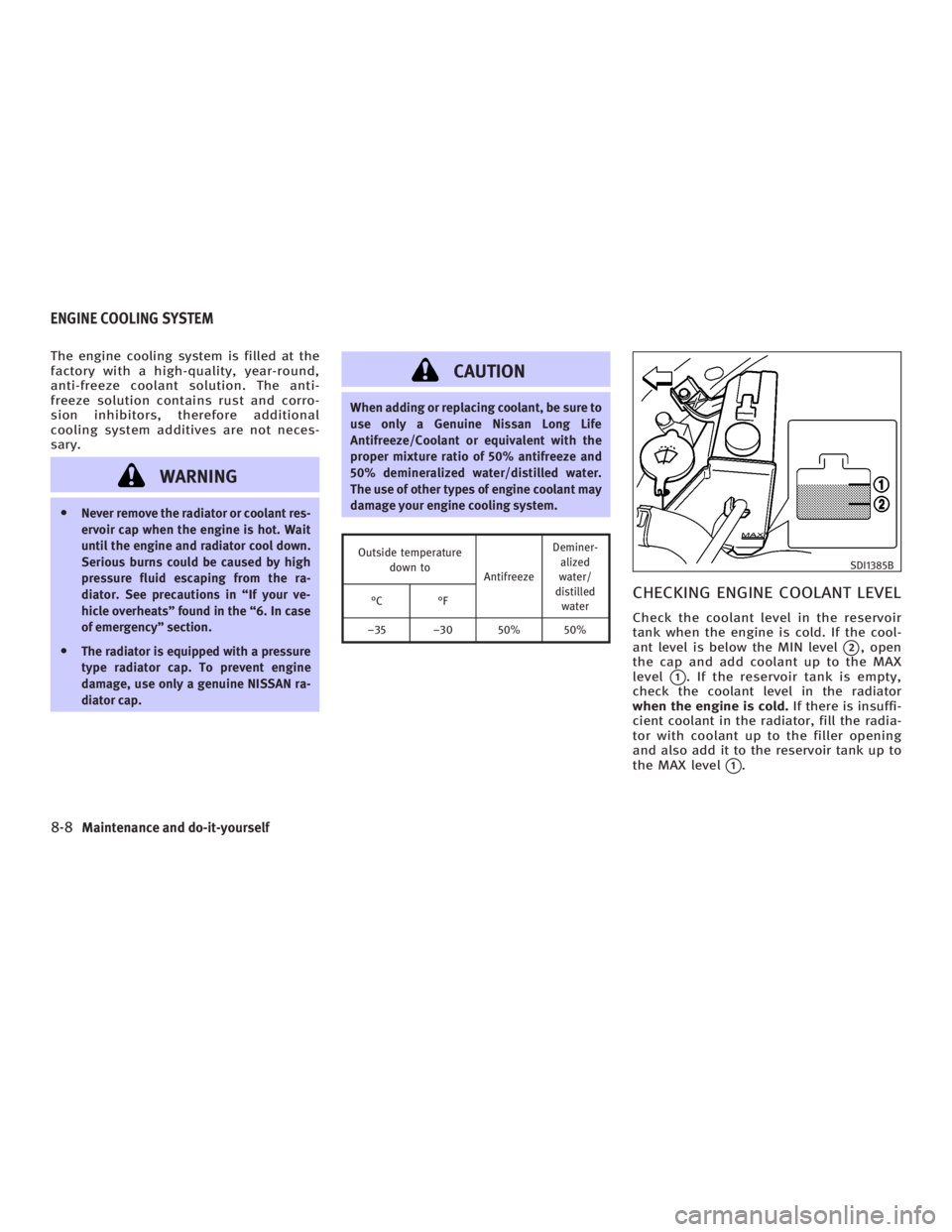

The engine cooling system is filled at the
factory with a high-quality, year-round,
anti-freeze coolant solution. The anti-
freeze solution contains rust and corro-
sion inhibitors, therefore additional
cooling system additives are not neces-
sary.
WARNINGO Never remove the radiator or coolant res-
ervoir cap when the engine is hot. Wait
until the engine and radiator cool down.
Serious burns could be caused by high
pressure fluid escaping from the ra-
diator. See precautions in ªIf your ve-
hicle overheatsº found in the ª6. In case
of emergencyº section.
O The radiator is equipped with a pressure
type radiator cap. To prevent engine
damage, use only a genuine NISSAN ra-
diator cap. CAUTION When adding or replacing coolant, be sure to
use only a Genuine Nissan Long Life
Antifreeze/Coolant or equivalent with the
proper mixture ratio of 50% antifreeze and
50% demineralized water/distilled water.
The use of other types of engine coolant may
damage your engine cooling system. Outside temperature
down to
Antifreeze Deminer-
alized
water/
distilled
waterÉC ÉF
þ35 þ30 50% 50%
CHECKING ENGINE COOLANT LEVEL Check the coolant level in the reservoir
tank when the engine is cold. If the cool-
ant level is below the MIN level
q 2
, open
the cap and add coolant up to the MAX
level
q 1
. If the reservoir tank is empty,
check the coolant level in the radiator
when the engine is cold. If there is insuffi-
cient coolant in the radiator, fill the radia-
tor with coolant up to the filler opening
and also add it to the reservoir tank up to
the MAX level
q 1
. SDI1385B
ENGINE COOLING SYSTEM
8-8 Maintenance and do-it-yourself
w 06.1.4/V35-D/V5.0
X

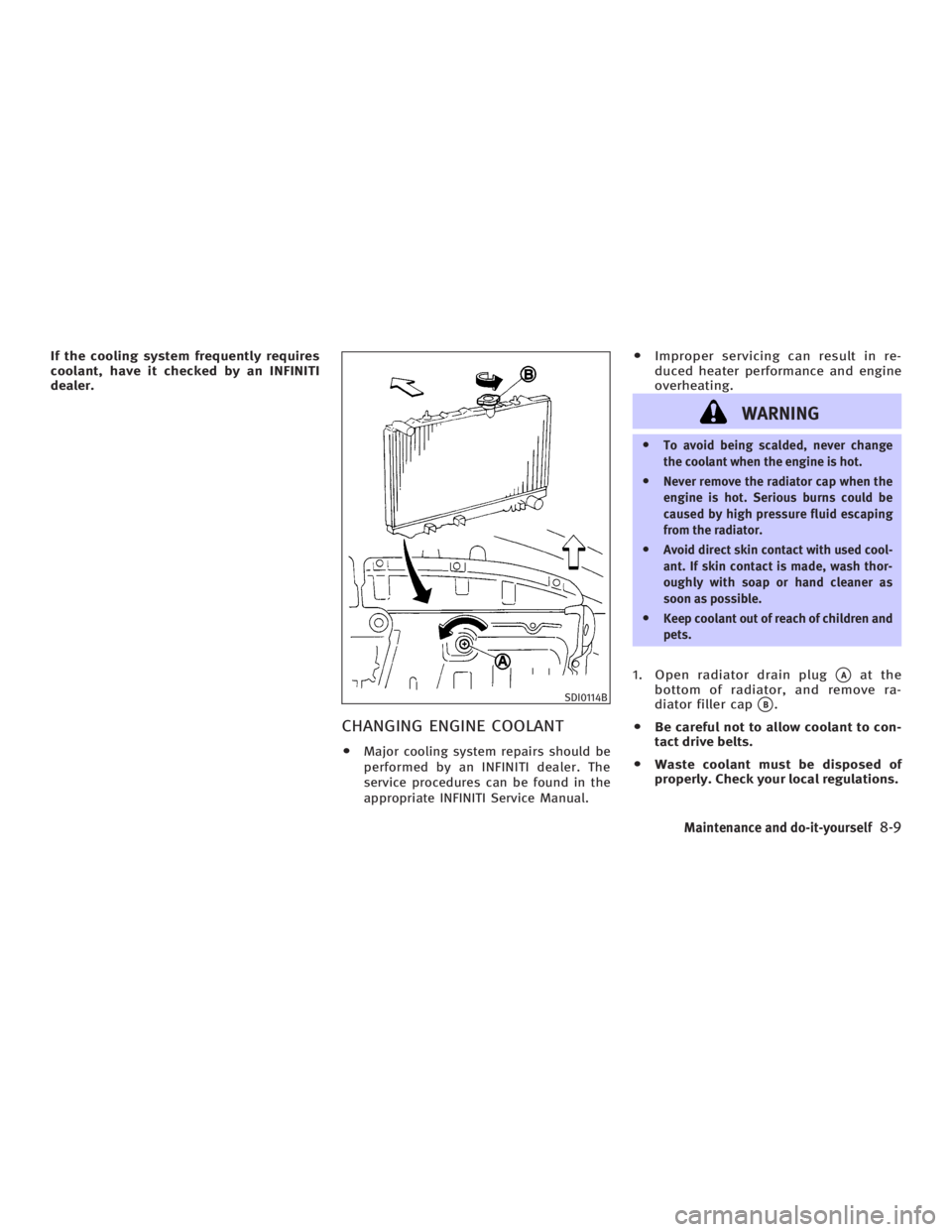

If the cooling system frequently requires
coolant, have it checked by an INFINITI
dealer.
CHANGING ENGINE COOLANT O Major cooling system repairs should be
performed by an INFINITI dealer. The
service procedures can be found in the
appropriate INFINITI Service Manual. O Improper servicing can result in re-
duced heater performance and engine
overheating.
WARNING O To avoid being scalded, never change
the coolant when the engine is hot.
O Never remove the radiator cap when the
engine is hot. Serious burns could be
caused by high pressure fluid escaping
from the radiator.
O Avoid direct skin contact with used cool-
ant. If skin contact is made, wash thor-
oughly with soap or hand cleaner as
soon as possible.
O Keep coolant out of reach of children and
pets.
1. Open radiator drain plug
q A
at the
bottom of radiator, and remove ra-
diator filler cap
q B
.
O Be careful not to allow coolant to con-
tact drive belts.
O Waste coolant must be disposed of
properly. Check your local regulations. SDI0114B
Maintenance and do-it-yourself
8-9
w 06.1.4/V35-D/V5.0
X

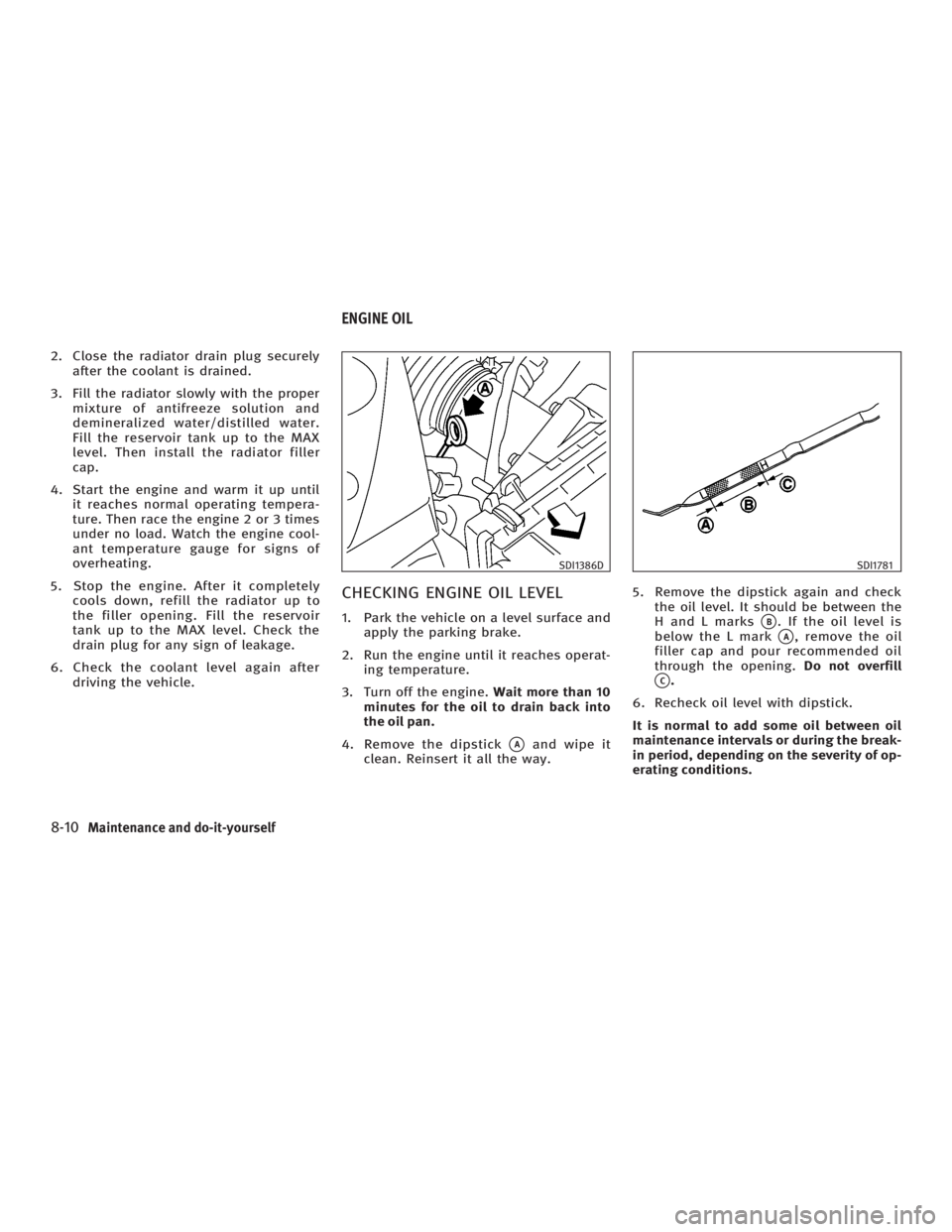

2. Close the radiator drain plug securely
after the coolant is drained.
3. Fill the radiator slowly with the proper
mixture of antifreeze solution and
demineralized water/distilled water.
Fill the reservoir tank up to the MAX
level. Then install the radiator filler
cap.
4. Start the engine and warm it up until
it reaches normal operating tempera-
ture. Then race the engine 2 or 3 times
under no load. Watch the engine cool-
ant temperature gauge for signs of
overheating.
5. Stop the engine. After it completely
cools down, refill the radiator up to
the filler opening. Fill the reservoir
tank up to the MAX level. Check the
drain plug for any sign of leakage.
6. Check the coolant level again after
driving the vehicle.
CHECKING ENGINE OIL LEVEL 1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operat-
ing temperature.
3. Turn off the engine. Wait more than 10
minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick
q A
and wipe it
clean. Reinsert it all the way. 5. Remove the dipstick again and check
the oil level. It should be between the
H and L marks
q B
. If the oil level is
below the L mark
q A
, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
q C
.
6. Recheck oil level with dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of op-
erating conditions. SDI1386D SDI1781
ENGINE OIL
8-10 Maintenance and do-it-yourself
w 06.1.4/V35-D/V5.0
X

CAUTIONOil level should be checked regularly. Oper-
ating the engine with an insufficient amount
of oil can damage the engine, and such dam-
age is not covered by warranty.
CHANGING ENGINE OIL AND FILTER Change the engine oil and filter according
to the maintenance intervals shown in the
INFINITI Service and Maintenance Guide.
Vehicle set-up 1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operat-
ing temperature.
3. Turn the engine off and wait more
than 10 minutes.
4. Raise and support the vehicle using a
suitable floor jack and safety jack
stands.
O Place the safety jack stands under
the vehicle jack-up points.
O A suitable adapter should be at-
tached to the jack stand saddle. 5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the
center point of the undercover.
b. Then remove the other bolts that
hold the undercover in place.
CAUTION Make sure the correct lifting and support
points are used to avoid vehicle damage.
Engine oil and filter 1. Place a large drain pan under the
drain plug.
2. Remove the oil filler cap.
3. Remove the drain plug
q A
with a
wrench and completely drain the oil.
CAUTION Be careful not to burn yourself, as the engine
oil is hot. SDI1520B
Maintenance and do-it-yourself
8-11
w 06.1.4/V35-D/V5.0
X

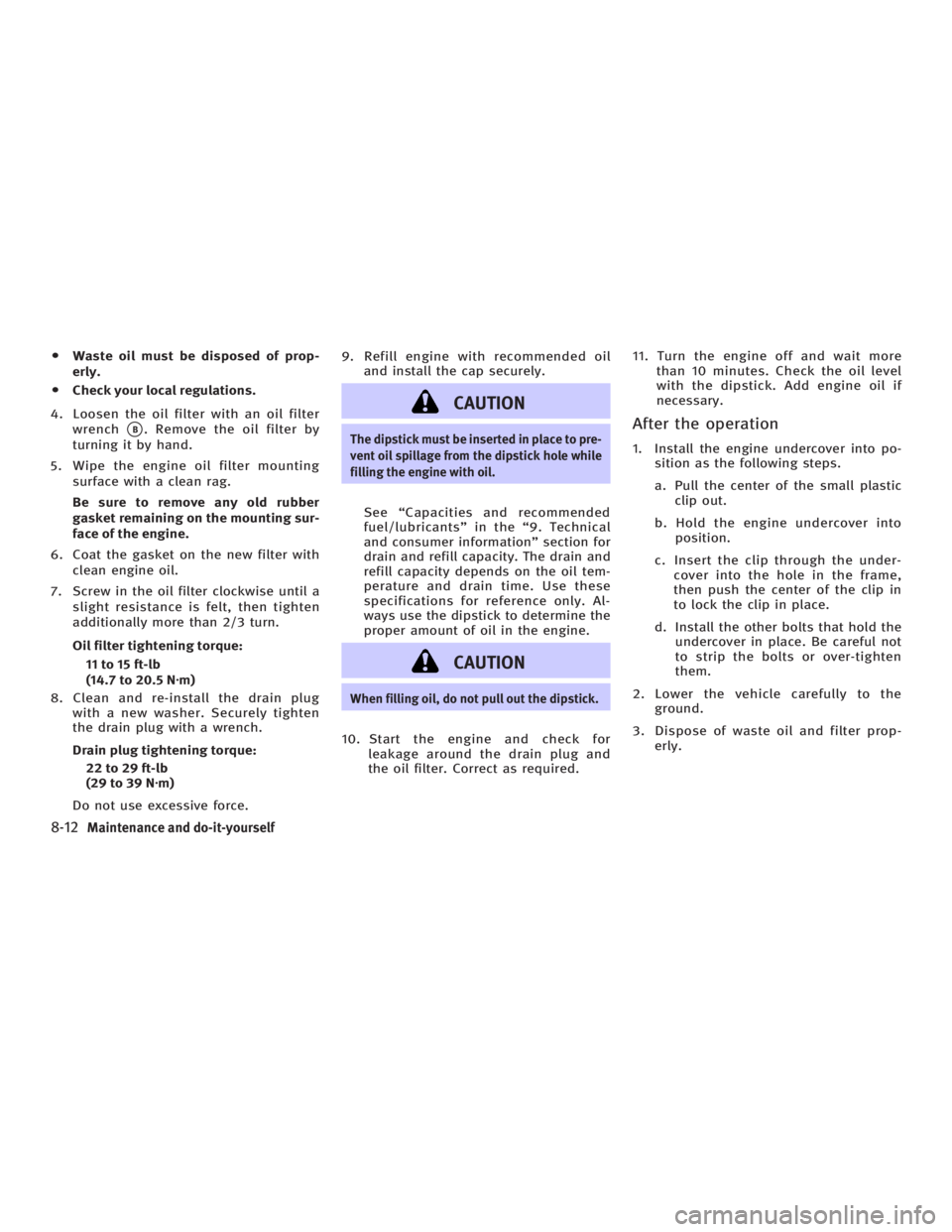

O Waste oil must be disposed of prop-
erly.
O Check your local regulations.
4. Loosen the oil filter with an oil filter
wrench
q B
. Remove the oil filter by
turning it by hand.
5. Wipe the engine oil filter mounting
surface with a clean rag.
Be sure to remove any old rubber
gasket remaining on the mounting sur-
face of the engine.
6. Coat the gasket on the new filter with
clean engine oil.
7. Screw in the oil filter clockwise until a
slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:
11 to 15 ft-lb
(14.7 to 20.5 N z m)
8. Clean and re-install the drain plug
with a new washer. Securely tighten
the drain plug with a wrench.
Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N z m)
Do not use excessive force. 9. Refill engine with recommended oil
and install the cap securely.
CAUTION The dipstick must be inserted in place to pre-
vent oil spillage from the dipstick hole while
filling the engine with oil.
See ªCapacities and recommended
fuel/lubricantsº in the ª9. Technical
and consumer informationº section for
drain and refill capacity. The drain and
refill capacity depends on the oil tem-
perature and drain time. Use these
specifications for reference only. Al-
ways use the dipstick to determine the
proper amount of oil in the engine.
CAUTION When filling oil, do not pull out the dipstick.
10. Start the engine and check for
leakage around the drain plug and
the oil filter. Correct as required. 11. Turn the engine off and wait more
than 10 minutes. Check the oil level
with the dipstick. Add engine oil if
necessary.
After the operation 1. Install the engine undercover into po-
sition as the following steps.
a. Pull the center of the small plastic
clip out.
b. Hold the engine undercover into
position.
c. Insert the clip through the under-
cover into the hole in the frame,
then push the center of the clip in
to lock the clip in place.
d. Install the other bolts that hold the
undercover in place. Be careful not
to strip the bolts or over-tighten
them.
2. Lower the vehicle carefully to the
ground.
3. Dispose of waste oil and filter prop-
erly.
8-12 Maintenance and do-it-yourself
w 06.1.4/V35-D/V5.0
X

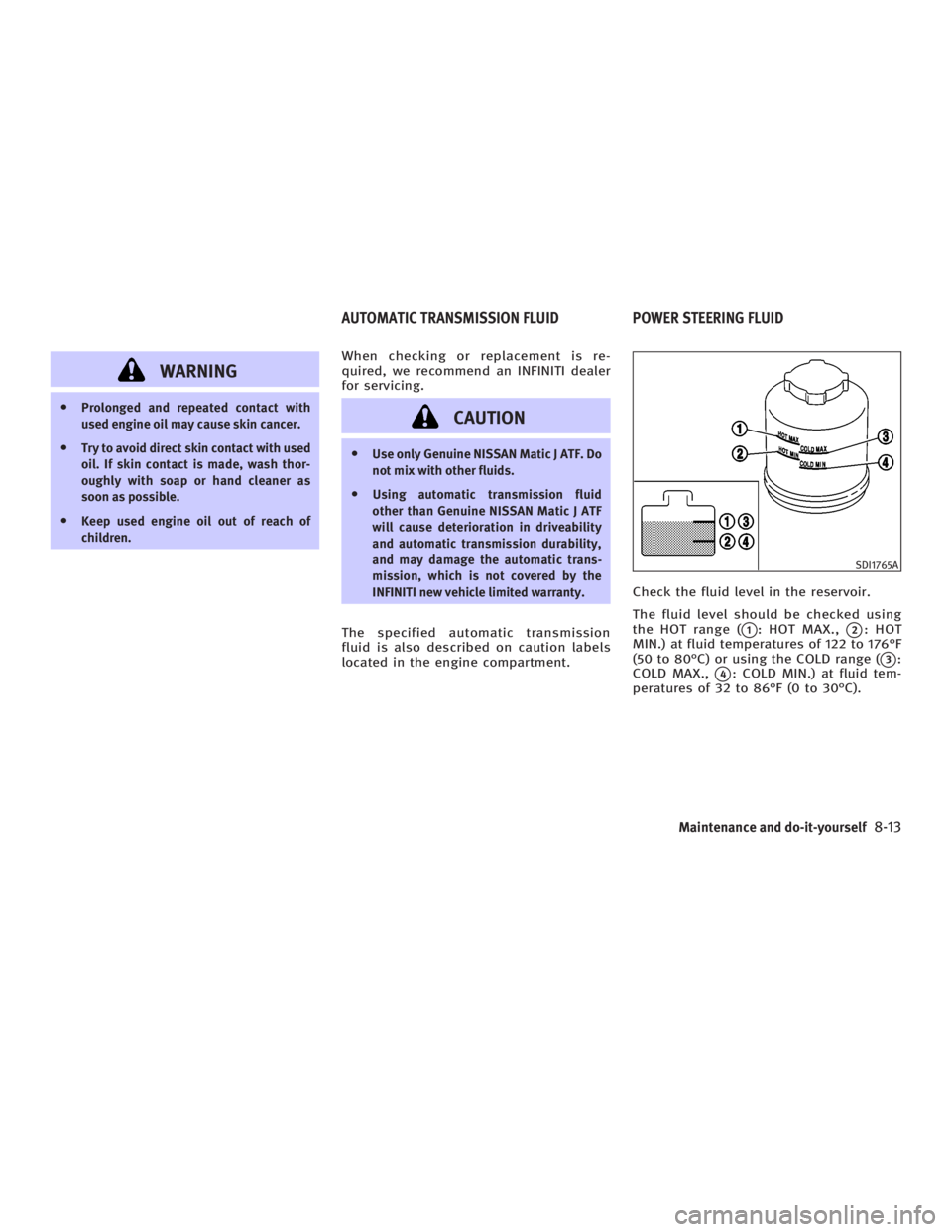

WARNINGO Prolonged and repeated contact with
used engine oil may cause skin cancer.
O Try to avoid direct skin contact with used
oil. If skin contact is made, wash thor-
oughly with soap or hand cleaner as
soon as possible.
O Keep used engine oil out of reach of
children. When checking or replacement is re-
quired, we recommend an INFINITI dealer
for servicing.
CAUTION O Use only Genuine NISSAN Matic J ATF. Do
not mix with other fluids.
O Using automatic transmission fluid
other than Genuine NISSAN Matic J ATF
will cause deterioration in driveability
and automatic transmission durability,
and may damage the automatic trans-
mission, which is not covered by the
INFINITI new vehicle limited warranty.
The specified automatic transmission
fluid is also described on caution labels
located in the engine compartment. Check the fluid level in the reservoir.
The fluid level should be checked using
the HOT range (
q 1
: HOT MAX.,
q 2
: HOT
MIN.) at fluid temperatures of 122 to 176ÉF
(50 to 80ÉC) or using the COLD range (
q 3
:
COLD MAX.,
q 4
: COLD MIN.) at fluid tem-
peratures of 32 to 86ÉF (0 to 30ÉC). SDI1765A
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID
Maintenance and do-it-yourself
8-13
w 06.1.4/V35-D/V5.0
X
