0-8Illustrated table of contents
JVC0427X
1. Paddle shifter (if so equipped) (P.5-17)
2. Meters and gauges (P.2-6)—Clock (P.2-30)
3. Push-button ignition switch (P.5-10)
4. Center ventilator (P.4-2)
5. Automatic climate control system* 6. Upper touch screen display (upper
display)* and Navigation system (if so
equipped)*
7. Lower touch screen display (lower display)*
8. Rear window and outside mirror defroster switch (P.2-36)
9. Front passenger supplemental air bag (P.1-42)
10. Hood release handle (P.3-18)
11. Fuse box cover (P.8-22)
12. Parking brake (P.5-20)
13. Seat heater switch (if so equipped)*
14. Audio system*
15. Trunk release power cancel switch (P.3-20)
16. Glove box (P.2-47)
*: Refer to the Infiniti InTouch Owner’s Manual.
INSTRUMENT PANEL

JVC0427X
1. Paddle shifter (if so equipped) (P.5-17)
2. Meters and gauges (P.2-6)—Clock (P.2-30)
3. Push-button ignition switch (P.5-10)
4. Center ventilator (P.4-2)
5. Automatic climate control system* 6. Upper touch screen display (upper
display)* and Navigation system* (if
so equipped)
7. Lower touch screen display (lower display)*
8. Rear window and outside mirror defroster switch (P.2-36)
9. Front passenger supplemental air bag (P.1-42)
10. Hood release handle (P.3-18)
11. Fuse box cover (P.8-22)
12. Parking brake (P.5-20)
13. Seat heater switch* (if so equipped)
14. Audio system*
15. Trunk release power cancel switch (P.3-20)
16. Glove box (P.2-47)
*: Refer to the Infiniti InTouch Owner’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

8-22Maintenance and do-it-yourself
JVM0255X
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed tothe OFF or LOCK position and the
headlight switch is turned to OFF. 2. Open the engine hood.
3. Remove the fuse/fusible link holder
cover.
4. Remove the fuse with the fuse puller.
SDI1754
5. If the fuse is open*A, replace it with a
new fuse
*B. Spare fuses are stored in
the passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer.
Fusible links
If any electrical equipment does not
operate and fuses are in good condition,
check the fusible links. If any of these
fusible links are melted, replace only with
genuine INFINITI parts.
FUSES

JVM0256X
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed tothe OFF or LOCK position and the
headlight switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer. Spare fuses are
stored in the fuse box.
JVM0257X
Extended storage fuse switch (if so
equipped)
To reduce battery drain, the extended
storage fuse switch comes from the factory
switched off. Prior to delivery of your
vehicle, the switch is pushed in (switched
on) and should always remain on.
If the extended storage fuse switch is not
pushed in (switched on), the “Shipping
Mode On, Push Storage Fuse” warning may
appear in the vehicle information display.
See “18. Extended storage fuse warning”
(P.2-23).
If any electrical equipment does not
Maintenance and do-it-yourself8-23

8-24Maintenance and do-it-yourself
operate, remove the extended storage fuse
switch and check for an open fuse.
NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of
the same rating.
How to remove the extended storage fuse
switch:
1. To remove the extended storage fuseswitch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on
each side of the storage fuse switch.
5. Pull the storage fuse switch straight out from the fuse box
*2.
CAUTION
Be careful not to allow children to swallow
the battery and removed parts.
JVM0317X
To replace the battery:
1. Release the lock knob at the back of theIntelligent Key and remove the mechan-
ical key.
2. Insert a flat-blade screwdriver wrapped with a cloth into the slit of the corner
and twist it to separate the upper part
INTELLIGENT KEY BATTERY REPLACEMENT

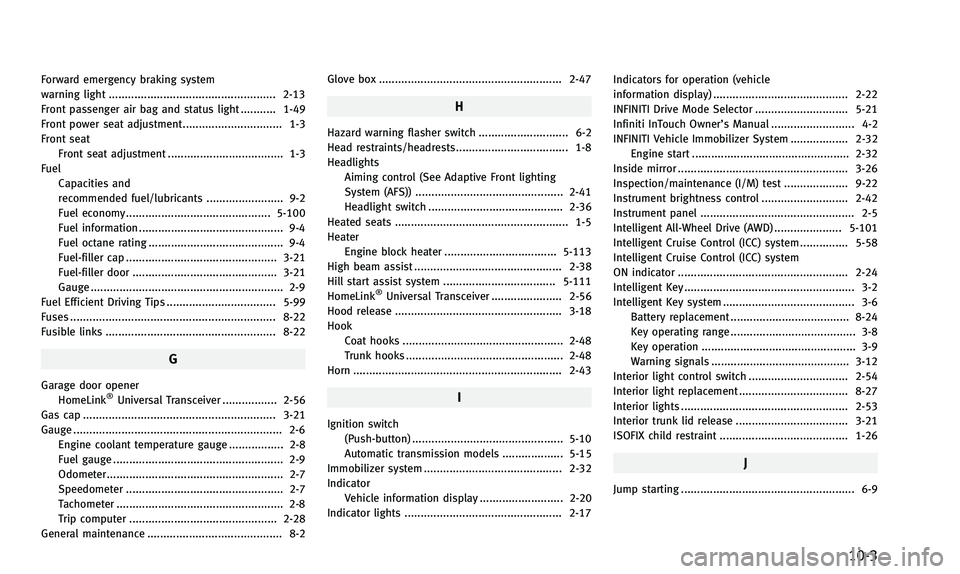

Forward emergency braking system
warning light .................................................... 2-13
Front passenger air bag and status light ........... 1-49
Front power seat adjustment ............................... 1-3
Front seatFront seat adjustment .................................... 1-3
Fuel
Capacities and
recommended fuel/lubricants ........................ 9-2
Fuel economy............................................. 5-100
Fuel information ............................................. 9-4
Fuel octane rating .......................................... 9-4
Fuel-filler cap ............................................... 3-21
Fuel-filler door ............................................. 3-21
Gauge ............................................................ 2-9
Fuel Efficient Driving Tips .................................. 5-99
Fuses ................................................................ 8-22
Fusible links ..................................................... 8-22
G
Garage door opener
HomeLink®Universal Transceiver ................. 2-56
Gas cap ............................................................ 3-21
Gauge ................................................................. 2-6
Engine coolant temperature gauge ................. 2-8
Fuel gauge ..................................................... 2-9
Odometer....................................................... 2-7
Speedometer ................................................. 2-7
Tachometer .................................................... 2-8
Trip computer .............................................. 2-28
General maintenance .......................................... 8-2 Glove box ......................................................... 2-47
H
Hazard warning flasher switch ............................ 6-2
Head restraints/headrests ................................... 1-8
Headlights
Aiming control (See Adaptive Front lighting
System (AFS)) .............................................. 2-41
Headlight switch .......................................... 2-36
Heated seats ...................................................... 1-5
Heater Engine block heater ................................... 5-113
High beam assist .............................................. 2-38
Hill start assist system ................................... 5-111
HomeLink
®Universal Transceiver ...................... 2-56
Hood release .................................................... 3-18
Hook Coat hooks .................................................. 2-48
Trunk hooks ................................................. 2-48
Horn ................................................................. 2-43
I
Ignition switch
(Push-button) ............................................... 5-10
Automatic transmission models ................... 5-15
Immobilizer system ........................................... 2-32
Indicator Vehicle information display .......................... 2-20
Indicator lights ................................................. 2-17 Indicators for operation (vehicle
information display) .......................................... 2-22
INFINITI Drive Mode Selector ............................. 5-21
Infiniti InTouch Owner’s Manual .......................... 4-2
INFINITI Vehicle Immobilizer System .................. 2-32
Engine start ................................................. 2-32
Inside mirror ..................................................... 3-26
Inspection/maintenance (I/M) test .................... 9-22
Instrument brightness control ........................... 2-42
Instrument panel ................................................ 2-5
Intelligent All-Wheel Drive (AWD) ..................... 5-101
Intelligent Cruise Control (ICC) system ............... 5-58
Intelligent Cruise Control (ICC) system
ON indicator ..................................................... 2-24
Intelligent Key ..................................................... 3-2
Intelligent Key system ......................................... 3-6
Battery replacement ..................................... 8-24
Key operating range ....................................... 3-8
Key operation ................................................ 3-9
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-54
Interior light replacement .................................. 8-27
Interior lights .................................................... 2-53
Interior trunk lid release ................................... 3-21
ISOFIX child restraint ........................................ 1-26
J
Jump starting ...................................................... 6-9
