5-108Starting and driving
but without anti-lock assistance.
If the ABS warning light illuminates during
the self-test or while driving, have the
vehicle checked by an INFINITI retailer.
Normal operation
The ABS operates at speeds above 3 to 6
MPH (5 to 10 km/h).
When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic
pressure. This action is similar to pumping
the brakes very quickly. You may feel a
pulsation in the brake pedal and hear a
noise from under the hood or feel a
vibration from the actuator when it is
operating. This is normal and indicates
that the ABS is operating properly. How-
ever, the pulsation may indicate that road
conditions are hazardous and extra care is
required while driving.The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver
inputs and vehicle motion. Under certain
driving conditions, the VDC system helps
to perform the following functions.
.
Controls brake pressure to reduce
wheel slip on one slipping drive wheel
so power is transferred to a non
slipping drive wheel on the same axle.
. Controls brake pressure and engine or
motor output to reduce drive wheel slip
based on vehicle speed (traction con-
trol function).
. Controls brake pressure at individual
wheels and engine or motor output to
help the driver maintain control of the
vehicle in the following conditions:
— understeer (vehicle tends to not
follow the steered path despite
increased steering input)
— oversteer (vehicle tends to spin due
to certain road or driving condi-
tions).
The VDC system can help the driver to
maintain control of the vehicle, but it
cannot prevent loss of vehicle control in
all driving situations.
When the VDC system operates, the VDC
warning light
in the instrument panel flashes so note the following:
.
The road may be slippery or the system
may determine some action is required
to help keep the vehicle on the steered
path.
. You may feel a pulsation in the brake
pedal and hear a noise or vibration
from under the hood. This is normal
and indicates that the VDC system is
working properly.
. Adjust your speed and driving to the
road conditions.
See “Vehicle Dynamic Control (VDC) warn-
ing light” (P.2-18).
If a malfunction occurs in the system, the
VDC warning light
illuminates in the
instrument panel. The VDC system auto-
matically turns off.
The VDC OFF switch is used to turn off the
VDC system. The VDC off indicator light
illuminates to indicate the VDC system is
off. When the VDC switch is used to turn off
the system, the VDC system still operates
to prevent one drive wheel from slipping by
transferring power to a non slipping drive
wheel. The VDC warning light
flashes if
this occurs. All other VDC functions are off,
except for rise-up and build-up, and brake
force distribution, and the VDC warning
VEHICLE DYNAMIC CONTROL (VDC) SYSTEM

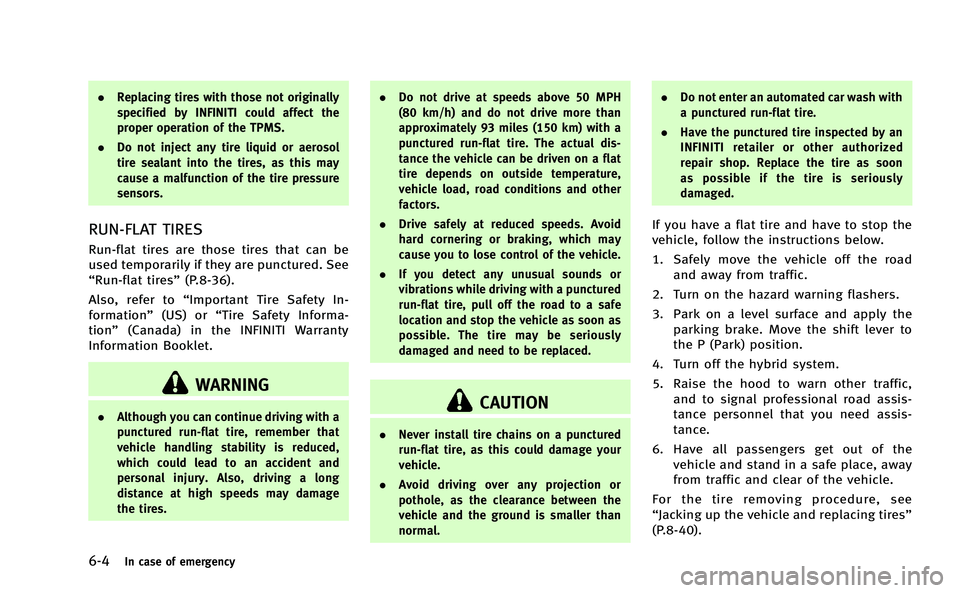

6-4In case of emergency
.Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
RUN-FLAT TIRES
Run-flat tires are those tires that can be
used temporarily if they are punctured. See
“Run-flat tires” (P.8-36).
Also, refer to “Important Tire Safety In-
formation” (US) or“Tire Safety Informa-
tion” (Canada) in the INFINITI Warranty
Information Booklet.
WARNING
. Although you can continue driving with a
punctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and
personal injury. Also, driving a long
distance at high speeds may damage
the tires. .
Do not drive at speeds above 50 MPH
(80 km/h) and do not drive more than
approximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature,
vehicle load, road conditions and other
factors.
. Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the vehicle.
. If you detect any unusual sounds or
vibrations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously
damaged and need to be replaced.CAUTION
.Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.
. Avoid driving over any projection or
pothole, as the clearance between the
vehicle and the ground is smaller than
normal. .
Do not enter an automated car wash with
a punctured run-flat tire.
. Have the punctured tire inspected by an
INFINITI retailer or other authorized
repair shop. Replace the tire as soon
as possible if the tire is seriously
damaged.
If you have a flat tire and have to stop the
vehicle, follow the instructions below.
1. Safely move the vehicle off the road
and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to
the P (Park) position.
4. Turn off the hybrid system.
5. Raise the hood to warn other traffic, and to signal professional road assis-
tance personnel that you need assis-
tance.
6. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
For the tire removing procedure, see
“Jacking up the vehicle and replacing tires”
(P.8-40).

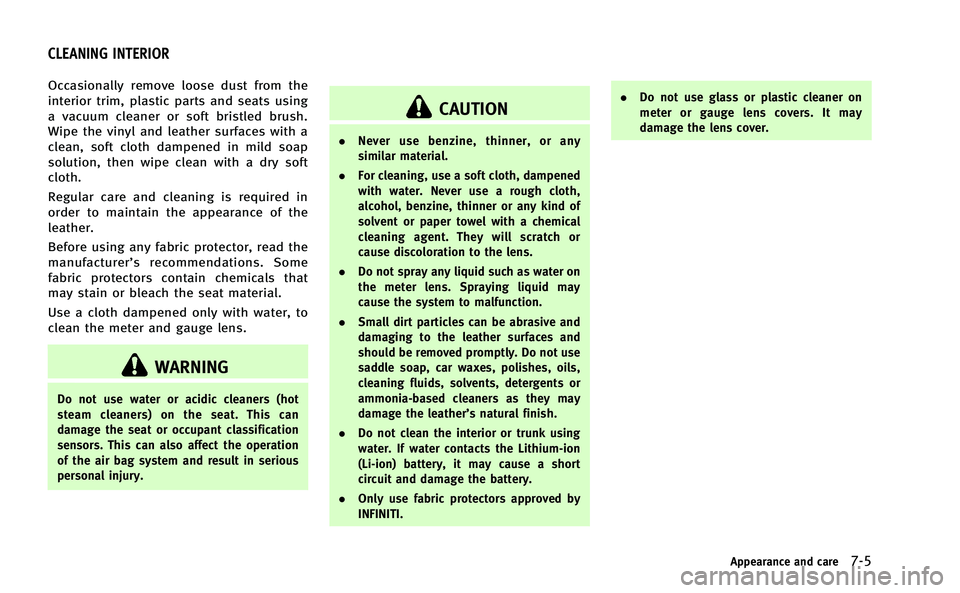

Occasionally remove loose dust from the
interior trim, plastic parts and seats using
a vacuum cleaner or soft bristled brush.
Wipe the vinyl and leather surfaces with a
clean, soft cloth dampened in mild soap
solution, then wipe clean with a dry soft
cloth.
Regular care and cleaning is required in
order to maintain the appearance of the
leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some
fabric protectors contain chemicals that
may stain or bleach the seat material.
Use a cloth dampened only with water, to
clean the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classification
sensors. This can also affect the operation
of the air bag system and result in serious
personal injury.
CAUTION
. Never use benzine, thinner, or any
similar material.
. For cleaning, use a soft cloth, dampened
with water. Never use a rough cloth,
alcohol, benzine, thinner or any kind of
solvent or paper towel with a chemical
cleaning agent. They will scratch or
cause discoloration to the lens.
. Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the system to malfunction.
. Small dirt particles can be abrasive and
damaging to the leather surfaces and
should be removed promptly. Do not use
saddle soap, car waxes, polishes, oils,
cleaning fluids, solvents, detergents or
ammonia-based cleaners as they may
damage the leather’s natural finish.
. Do not clean the interior or trunk using
water. If water contacts the Lithium-ion
(Li-ion) battery, it may cause a short
circuit and damage the battery.
. Only use fabric protectors approved by
INFINITI. .
Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
Appearance and care7-5
CLEANING INTERIOR

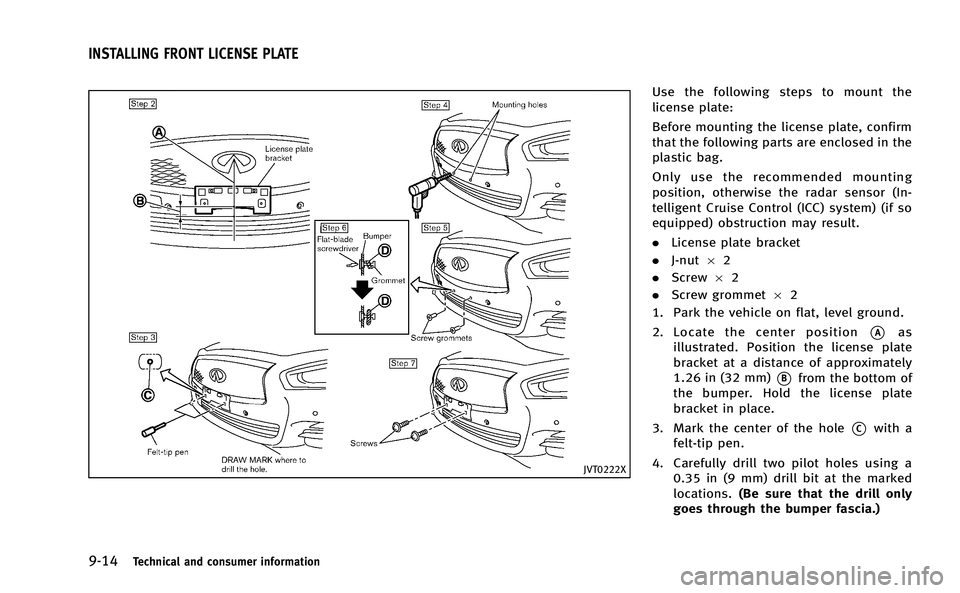

9-14Technical and consumer information
JVT0222X
Use the following steps to mount the
license plate:
Before mounting the license plate, confirm
that the following parts are enclosed in the
plastic bag.
Only use the recommended mounting
position, otherwise the radar sensor (In-
telligent Cruise Control (ICC) system) (if so
equipped) obstruction may result.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Park the vehicle on flat, level ground.
2. Locate the center position
*Aas
illustrated. Position the license plate
bracket at a distance of approximately
1.26 in (32 mm)
*Bfrom the bottom of
the bumper. Hold the license plate
bracket in place.
3. Mark the center of the hole
*Cwith a
felt-tip pen.
4. Carefully drill two pilot holes using a 0.35 in (9 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
INSTALLING FRONT LICENSE PLATE

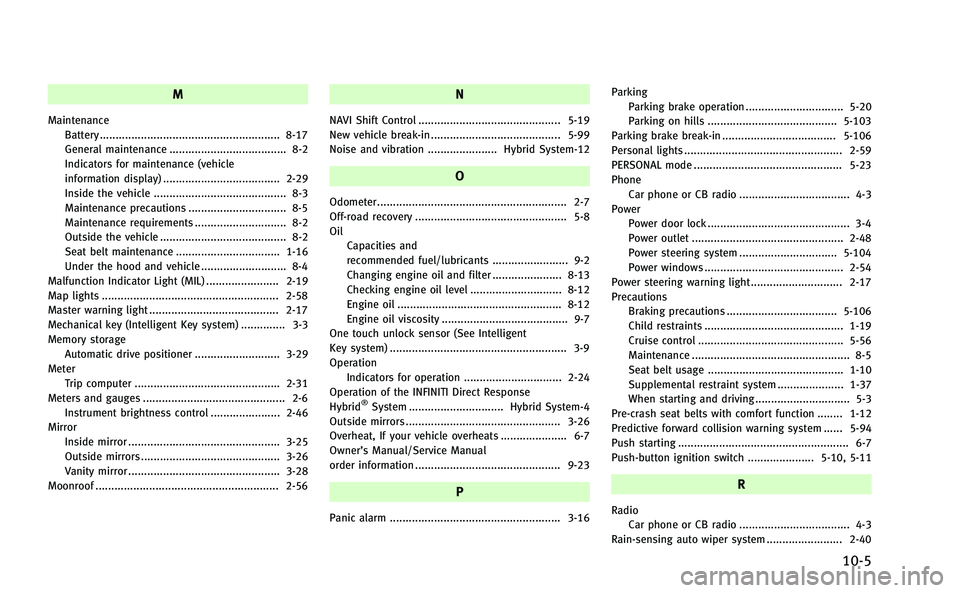

M
MaintenanceBattery ......................................................... 8-17
General maintenance ..................................... 8-2
Indicators for maintenance (vehicle
information display) ..................................... 2-29
Inside the vehicle .......................................... 8-3
Maintenance precautions ............................... 8-5
Maintenance requirements ............................. 8-2
Outside the vehicle ........................................ 8-2
Seat belt maintenance ................................. 1-16
Under the hood and vehicle ........................... 8-4
Malfunction Indicator Light (MIL) ....................... 2-19
Map lights ........................................................ 2-58
Master warning light ......................................... 2-17
Mechanical key (Intelligent Key system) .............. 3-3
Memory storage Automatic drive positioner ........................... 3-29
Meter Trip computer .............................................. 2-31
Meters and gauges ............................................. 2-6
Instrument brightness control ...................... 2-46
Mirror
Inside mirror ................................................ 3-25
Outside mirrors ............................................ 3-26
Vanity mirror ................................................ 3-28
Moonroof .......................................................... 2-56
N
NAVI Shift Control ............................................. 5-19
New vehicle break-in ......................................... 5-99
Noise and vibration ...................... Hybrid System-12
O
Odometer............................................................ 2-7
Off-road recovery ................................................ 5-8
Oil Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine oil and filter ...................... 8-13
Checking engine oil level ............................. 8-12
Engine oil .................................................... 8-12
Engine oil viscosity ........................................ 9-7
One touch unlock sensor (See Intelligent
Key system) ........................................................ 3-9
Operation Indicators for operation ............................... 2-24
Operation of the INFINITI Direct Response
Hybrid
®System .............................. Hybrid System-4
Outside mirrors ................................................. 3-26
Overheat, If your vehicle overheats ..................... 6-7
Owner’s Manual/Service Manual
order information .............................................. 9-23
P
Panic alarm ...................................................... 3-16 Parking
Parking brake operation ............................... 5-20
Parking on hills ......................................... 5-103
Parking brake break-in .................................... 5-106
Personal lights .................................................. 2-59
PERSONAL mode ............................................... 5-23
Phone
Car phone or CB radio ................................... 4-3
Power Power door lock ............................................. 3-4
Power outlet ................................................ 2-48
Power steering system ............................... 5-104
Power windows ............................................ 2-54
Power steering warning light ............................. 2-17
Precautions Braking precautions ................................... 5-106
Child restraints ............................................ 1-19
Cruise control .............................................. 5-56
Maintenance .................................................. 8-5
Seat belt usage ........................................... 1-10Supplemental restraint system ..................... 1-37
When starting and driving .............................. 5-3
Pre-crash seat belts with comfort function ........ 1-12
Predictive forward collision warning system ...... 5-94
Push starting ...................................................... 6-7
Push-button ignition switch ..................... 5-10, 5-11
R
Radio Car phone or CB radio ................................... 4-3
Rain-sensing auto wiper system ........................ 2-40
10-5
