How to switch the display
The Around View®Monitor can display two
split views as well as a single view of the
front-wide view or rear-wide view. Push the
CAMERA button, change the shift lever
position, or select the “Change View” key
to switch between the available views.
For models with the Back-up Collision
Intervention (BCI) system, “
” key may
be displayed on the Around View®Monitor
screen when the shift lever is in the R
position. For details of the BCI system, see
“Back-up Collision Intervention (BCI)” (P.5-
54).
JVH1690X
HOW TO ADJUST THE SCREEN
VIEW
The display settings such as Brightness,
Contrast, Black Level, Tint and Color of the
Around View
®Monitor can be adjusted.
1. Push the SETTING button with the Around View
®Monitor turned on.
2. The Display settings menu is displayed. Select an item you wish to adjust.
3. Adjust the selected item using the “+” or “-” key.
Select the “Reset Settings” key to return all
settings to default. NOTE:
Do not adjust any of the display settings of
the Around View
®Monitor while the vehicle
is moving. Make sure the parking brake is
firmly applied.
Display settings menu can also be accessed
while the Around View
®Monitor screen is
not displayed. See “Around View®Monitor
settings” (P.4-19).
AROUND VIEW®MONITOR SET-
TINGS
To set up the Around View®Monitor to your
preferred settings, push the SETTING but-
ton while the Around View
®Monitor screen
is not displayed, select the “Camera/Sonar”
key.
Items displayed on the screen may vary
depending on the specification and model.
Monitor, climate, audio, phone and voice recognition systems4-19

JVH1698X
Rear and front-side views
JVH1699X
Front-wide view / rear-wide viewWhen the MOD system detects moving
objects near the vehicle, the yellow frame
will be displayed on the view where the
objects are detected and a chime will sound
once. While the MOD system continues to
detect moving objects, the yellow frame
continues to be displayed.
In the bird’s-eye view, the yellow frame
is
displayed on each camera image (front, rear,
right, left) depending on where moving
objects are detected.
The yellow frame
is displayed on each
view in the front view, front-wide view, rear
view and rear-wide view modes.
While the sonar is beeping, the MOD system
does not chime.
A blue MOD icon
is displayed in the view
where the MOD system is operative. A gray
MOD icon
is displayed in the view where
the MOD system is not operative.
If the MOD system is turned off, the MOD
icon
is not displayed.
The MOD system operates in the following
conditions when the camera view is dis-
played:
. When the shift lever is in the P (Park) or N
(Neutral) position and the vehicle is
stopped, the MOD system detects the
moving objects in the bird’s-eye view.
The MOD system will not operate if the outside mirror is moving in or out or if
either door is opened.
. When the shift lever is in the D (Drive)
position and the vehicle speed is below
approximately 5 MPH (8 km/h), the
MOD system detects moving objects in
the front view or front-wide view.
. When the shift lever is in the R (Reverse)
position and the vehicle speed is below
approximately 5 MPH (8 km/h), the
MOD system detects moving objects in
the rear view or rear-wide view. The
MOD system will not operate if the trunk
is open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in front-
side view.
Monitor, climate, audio, phone and voice recognition systems4-29

4-32Monitor, climate, audio, phone and voice recognition systems
SAA3142
Front
SAA3012
RearOpen or close, and adjust the air flow
direction of ventilators.
: This symbol indicates that the ventilators
are closed.
: This symbol indicates that the ventilatorsare open.
WARNING
. The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the automatic
climate control system.
VENTILATORS HEATER AND AIR CONDITIONER

4-34Monitor, climate, audio, phone and voice recognition systems
SAA2952
1. “” front defroster button
2. “
” rear window defroster button
(See “Rear window and outside mirror
defroster switch” (P.2-34).)
3. “OFF” button for climate control sys- tem
4. “
” fan speed decrease button 5. “
” fan speed increase button
6. “AUTO” automatic climate control ON button
7. “
” air intake control button
8. “
” air recirculation button
9. “CLIMATE” button 10, 11.
Temperature control button (driver
side)
12. “
” manual air flow control button
(driver side)
13. “
” manual air flow control button
(passenger side)
14, 15. Temperature control button (passenger
side)
AUTOMATIC CLIMATE CON-
TROL
Automatic operation
Cooling and/or dehumidified heating
(AUTO):
This mode may be used all year round. The
system works automatically to control the
inside temperature, air flow distribution and
fan speed after the preferred temperature is
set manually.
1. Push the “AUTO” button on. (The in-dicator on the button will illuminate and
AUTO will be displayed.)
2. Push the temperature control button (driver side) to set the desired tempera-
ture.
The temperature of the passenger com-
partment will be maintained automati-

cally. Air flow distribution and fan speed
will also be controlled automatically.
3. To turn off the climate control system, push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified defrosting or defogging:
1. Push the front defroster “
” button.
(The indicator light on the button will
come on.)
2. Push the temperature control button (driver side) to set the desired tempera-
ture.
The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. To turn off the climate control system, push the “OFF” button.
. To quickly remove ice from the outside of
the windows, push the fan speed in-
crease “
” button and set it to the
maximum position.
. As soon as possible after the windshield
is clean, push the “AUTO” button to
return to the auto mode.
. When the front defroster “
” button is
pushed, the air conditioner will automa- tically be turned on at outside tempera-
tures above 23°F (−5°C) to defog the
windshield, and the air recirculate mode
will automatically be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
Manual operation
Fan speed control:
Push the fan speed increase “
”or
decrease “” button to manually control
the fan speed.
Push the “AUTO” button to return to auto-
matic control of the fan speed.
Temperature control:
Push the temperature control button to set
the desired temperature.
Air intake control:
. Push the air recirculation “
” button to
change the air circulation mode. When
the indicator light illuminates, the flow-
ing air is recirculated inside the vehicle.
The air recirculation mode cannot be
activated when the air conditioner is in
the front defrosting mode “
”.
. Push the outside air circulation “
”
button to change the air circulation
mode. When the indicator light illumi-
nates, the flowing air is drawn from outside the vehicle.
. To control the air intake automatically,
push and hold either the “
” air
recirculation button or the “” outside
air circulation button (whichever indica-
tor light is illuminated). The indicator
lights (both air recirculation and outside
air circulation buttons) will flash twice,
and then the air intake will switch to
automatic control.
Air flow control:
Pushing the “
” button selects the air
outlet to:
: Air flows from center and side ventilators.
: Air flows from center and side ventilators and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
Monitor, climate, audio, phone and voice recognition systems4-35

4-36Monitor, climate, audio, phone and voice recognition systems
JVH1747X
Operations on touch panel screen
Climate control settings can be operated on
the touch panel screen.
Push the “CLIMATE” button and turn the
display to the Climate screen.
For details of the touch panel operation on
the center display, see the separate Infiniti
InTouch Owner’s Manual.
The following operations are available with
the touch panel screen.
Available items:
.
Touch to change the air flow mode.
When the DUAL mode (passenger sidetemperature control) is on, the “
”
icons for both driver’s and passenger’s
seat are displayed and can change the air
flow mode independently.
. -
/+
Touch to change the fan speed of the air
from the ventilators.
. A/C
Touch to turn the air conditioner on/off.
. DUAL
Touch to turn the DUAL mode (passen-
ger side temperature control) on/off.
. Upper Vent
Touch to turn the upper vent system on/
off.
Automatic upper ventilator system:
In this mode, air from the center ventilators
flows both straight and upward in order to
control the cabin temperature without blow-
ing air directly on the occupants.
1. Push the “CLIMATE” button with the climate control system turned on to
display the Climate screen.
2. Select the “Upper Vent” key, and the indicator on the screen will illuminate.
The air flow against the driver’s or
passenger’s upper body becomes gentle.
. Distribution between straight and up-
ward flows is determined automatically
by the climate control system. If you prefer strong air flow against your upper
body, select the “Upper Vent” key to turn
the indicator light off.
. When the outside temperature decreases
to approximately 14°F (−10°C), the
“Upper Vent” function does not activate.
The “Upper Vent” function reactivates
automatically when ambient tempera-
ture is 14°F (−10°C) or more.
OPERATING TIPS
When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate. This
is not a malfunction. After the coolant
temperature warms up, air will flow normally
from the foot outlets.

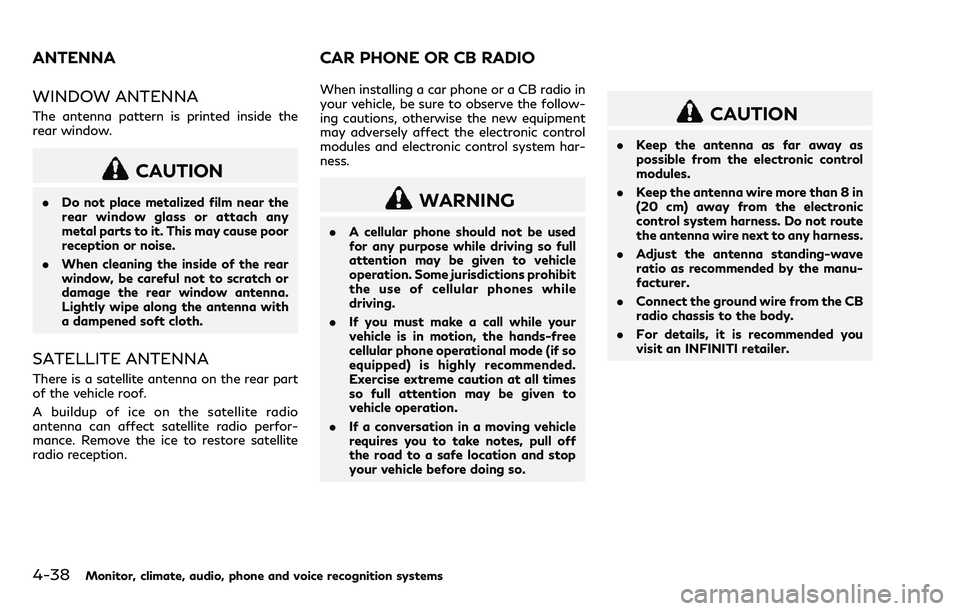

4-38Monitor, climate, audio, phone and voice recognition systems
WINDOW ANTENNA
The antenna pattern is printed inside the
rear window.
CAUTION
.Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause poor
reception or noise.
. When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with
a dampened soft cloth.
SATELLITE ANTENNA
There is a satellite antenna on the rear part
of the vehicle roof.
A buildup of ice on the satellite radio
antenna can affect satellite radio perfor-
mance. Remove the ice to restore satellite
radio reception. When installing a car phone or a CB radio in
your vehicle, be sure to observe the follow-
ing cautions, otherwise the new equipment
may adversely affect the electronic control
modules and electronic control system har-
ness.
WARNING
.
A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohibit
the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if so
equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8 in
(20 cm) away from the electronic
control system harness. Do not route
the antenna wire next to any harness.
. Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.
. Connect the ground wire from the CB
radio chassis to the body.
. For details, it is recommended you
visit an INFINITI retailer.
ANTENNA CAR PHONE OR CB RADIO

5 Starting and driving
Precautions when starting and driving........................ 5-4Exhaust gas (carbon monoxide)............................... 5-4
Three-way catalyst...................................................... 5-5
Tire Pressure Monitoring System (TPMS) ............ 5-5
Avoiding collision and rollover................................... 5-7
Off-road recovery ........................................................ 5-8
Rapid air pressure loss................................................ 5-8
Drinking alcohol/drugs and driving......................... 5-9
Intelligent All-Wheel Drive (AWD) driving safety
precautions (AWD models)........................................ 5-9
Push-button ignition switch ......................................... 5-10 Operating range for engine start function.......... 5-10
Push-button ignition switch operation................ 5-11
Steering lock (if so equipped).................................. 5-11
Push-button ignition switch positions ................. 5-12
Emergency engine shut off...................................... 5-12
Intelligent Key battery discharge........................... 5-13
Before starting the engine ............................................ 5-13
Starting the engine.......................................................... 5-14
Driving the vehicle ........................................................... 5-15
Automatic transmission............................................ 5-15
Parking brake.................................................................... 5-19
INFINITI Drive Mode Selector .................................... 5-20
Standard mode........................................................... 5-20
Sport mode.................................................................. 5-20 Snow mode ............................................................... 5-20
Eco mode.................................................................... 5-21
Lane Departure Warning (LDW)/Lane Departure
Prevention (LDP) (if so equipped) .............................. 5-22 LDW system operation........................................... 5-24
Turning the LDW system ON/OFF.................... 5-25
How to enable/disable the LDW system.......... 5-26
LDP system operation ............................................ 5-26
Turning the LDP system ON/OFF ..................... 5-27
How to enable/disable the LDP system ........... 5-28
LDW/LDP system limitations .............................. 5-28
System temporarily unavailable .......................... 5-30
System malfunction................................................. 5-31
System maintenance ............................................... 5-31
Blind Spot Warning (BSW) (if so equipped) ............ 5-32 BSW system operation........................................... 5-33
Turning the BSW system ON/OFF.................... 5-34
How to enable/disable the BSW system.......... 5-35
BSW system limitations.......................................... 5-35
BSW driving situations ........................................... 5-36
System temporarily unavailable .......................... 5-40
System malfunction................................................. 5-41
System maintenance ............................................... 5-41
Blind Spot Intervention
®(BSI) (if so equipped) ...... 5-42
BSI system operation .............................................. 5-43

Turning the BSI system ON/OFF ......................... 5-45
How to enable/disable the BSI system ............... 5-45
BSI system limitations............................................... 5-45
BSI driving situations................................................. 5-47
System temporarily unavailable ............................. 5-52
System malfunction ................................................... 5-53
System maintenance.................................................. 5-53
Back-up Collision Intervention (BCI) (if
so equipped) ...................................................................... 5-54 BCI system operation................................................ 5-56
Turning the BCI system ON/OFF......................... 5-61
How to enable/disable the BCI system............... 5-61
BCI system limitations .............................................. 5-62
System temporarily unavailable ............................. 5-63
System malfunction ................................................... 5-64
System maintenance.................................................. 5-64
Cruise control (if so equipped) ..................................... 5-65 Precautions on cruise control ................................. 5-65
Cruise control operations......................................... 5-65
Intelligent Cruise Control (ICC) (if so equipped) ..... 5-67 How to select the cruise control mode................ 5-69
Vehicle-to-vehicle distance control mode........... 5-69
Conventional (fixed speed) cruise
control mode................................................................ 5-85
Distance Control Assist (DCA) (if so equipped) ..... 5-88 DCA system operation............................................. 5-90
Turning the DCA system ON/OFF....................... 5-93
How to enable/disable the DCA system............. 5-94
DCA system display and indicators....................... 5-94 DCA system limitations .......................................... 5-95
System temporarily unavailable ........................... 5-98
System malfunction.............................................. 5-100
System maintenance ............................................ 5-100
Forward Emergency Braking (FEB) (if
so equipped)................................................................... 5-101 FEB system operation ......................................... 5-103
Turning the FEB system ON/OFF................... 5-104
FEB system limitations........................................ 5-105
System temporarily unavailable ........................ 5-106
System malfunction.............................................. 5-107
System maintenance ............................................ 5-108
Predictive Forward Collision Warning (PFCW)
(if so equipped).............................................................. 5-108
PFCW system operation..................................... 5-110
Turning the PFCW system ON/OFF............... 5-111
PFCW system limitations..................................... 5-113
System temporarily unavailable ......................... 5-114
System malfunction............................................... 5-115
System maintenance ............................................. 5-115
Break-in schedule.......................................................... 5-116
Fuel efficient driving tips ............................................ 5-116
Increasing fuel economy.............................................. 5-117
Intelligent All-Wheel Drive (AWD) (if
so equipped).................................................................... 5-118
Parking/parking on hills .............................................. 5-119
Power steering.............................................................. 5-120
Brake system .................................................................. 5-121 Braking precautions............................................... 5-121

5-14Starting and driving
1. Apply the parking brake.
2. Move the shift lever to the P (Park) or N(Neutral) position. (P is recommended.)
The starter is designed not to operate
unless the shift lever is in either of the
above positions.
3. Push the ignition switch to the ON position. Depress the brake pedal and
push the ignition switch to start the
engine.
To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal with the
ignition switch in any position.
.If the engine is very hard to start inextremely cold weather or when re-
starting, depress the accelerator ped-
al a little (approximately 1/3 to the
floor) and while holding, crank the
engine. Release the accelerator pedal
when the engine starts.
.If the engine is very hard to start
because it is flooded, depress the
accelerator pedal all the way to the
floor and hold it. Push the ignition
switch to the ON position to start
cranking the engine. After 5 or 6
seconds, stop cranking by pushing
the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine withyour foot off the accelerator pedal
by
depressing the brake pedal and push-
ing the push-button ignition switch to
start the engine. If the engine starts,
but fails to run, repeat the above
procedure.
CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does
not start, push the ignition switch to
OFF and wait 10 seconds before crank-
ing again, otherwise the starter could be
damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 - 3 minutes before shut-
ting it off. Starting and stopping the
engine over a short period of time may
make the vehicle more difficult to start.
When racing the engine up to 4,000 rpm
(VK56VD engine) or 4,500 rpm
(VQ37VHR engine) or more under no
load condition, the engine will enter the fuel cut mode.
5. To stop the engine, shift the shift lever to the P (Park) position and push the
ignition switch to the OFF position.
In preparation for the next engine start,
the engine may have a slightly delayed
shutoff after pushing the ignition switch
to the OFF position, depending on the
driving conditions (VK56VD engine mod-
els).
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
STARTING THE ENGINE
