2 Instruments and controls
Cockpit........................................................................\
.......... 2-3
Instrument panel ................................................................ 2-5
Meters and gauges............................................................ 2-6Speedometer and odometer....................................... 2-7
Tachometer .................................................................... 2-8
Engine coolant temperature gauge......................... 2-8
Fuel gauge...................................................................... 2-9
Warning lights, indicator lights and
audible reminders............................................................. 2-10 Checking lights............................................................ 2-11
Warning lights ............................................................. 2-11
Indicator lights............................................................. 2-16
Audible reminders....................................................... 2-19
Vehicle information display........................................... 2-20 Indicators for operation............................................ 2-22
Indicators for maintenance...................................... 2-25
Trip computer.............................................................. 2-27
Security systems............................................................... 2-29 Vehicle Security System ........................................... 2-29
INFINITI Vehicle Immobilizer System................... 2-31
Wiper and washer switch.............................................. 2-32 Rain-sensing auto wiper system............................ 2-33
Rear window and outside mirror
defroster switch ............................................................... 2-34 Headlight and turn signal switch................................ 2-34
Headlight switch....................................................... 2-34
Turn signal switch .................................................... 2-39
Fog light switch ........................................................ 2-39
Heated steering wheel (if so equipped) ................... 2-40
Horn ........................................................................\
........... 2-40
Heated seats (if so equipped)...................................... 2-41 Front seats (if so equipped)................................... 2-41
Rear outboard seats (if so equipped) ................. 2-42
Climate controlled seats (if so equipped)................. 2-43
Warning systems switch (if so equipped)................ 2-44
Vehicle Dynamic Control (VDC) OFF switch ......... 2-44
Clock ........................................................................\
........... 2-45
Adjusting the time.................................................... 2-45
Ashtrays........................................................................\
..... 2-45 Rear........................................................................\
...... 2-45
Power outlet..................................................................... 2-46
Storage........................................................................\
....... 2-47 Cup holders ................................................................ 2-47
Sunglasses holder.................................................... 2-48
Glove box................................................................... 2-48
Console box................................................................ 2-49
Card holder................................................................. 2-49
Storage box............................................................... 2-50

JVO0130X
1. Side ventilator (P.4-32)
2. Paddle shifter (if so equipped) (P.5-17)
3. Meters and gauges (P.2-6)
4. Hazard warning flasher switch (P.6-2)
5. Rear window and outside mirrordefroster switch (P.2-34) 6. Center display*
— Navigation system* (if so equipped)
— Around View
®Monitor (if so
equipped) (P.4-10)
— RearView Monitor (if so equipped)
(P.4-3) 7. Clock (P.2-45)
8. Center multi-function control panel*
9. Automatic climate control system
(P.4-32)
10. Center ventilator (P.4-32)
11. Audio system*
12. Front passenger supplemental air bag (P.1-38)
13. Hood release handle (P.3-17)
14. Fuse box cover (P.8-23)
15. Parking brake — Parking (P.5-19)
16. Push-button ignition switch (P.5-10)
17. Front passenger air bag status light (P.1-46)
18. Climate controlled seat switch (if so equipped) (P.2-43) or Seat heater
switch (if so equipped) (P.2-41)
19. INFINITI Drive Mode Selector (P.5-20)
20. Storage box (P.2-50) — Power outlet (P.2-46)
21. Glove box lid release handle (P.2-48)
22. Trunk release power cancel switch (P.3-20)
*: Refer to the Infiniti InTouch Owner’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

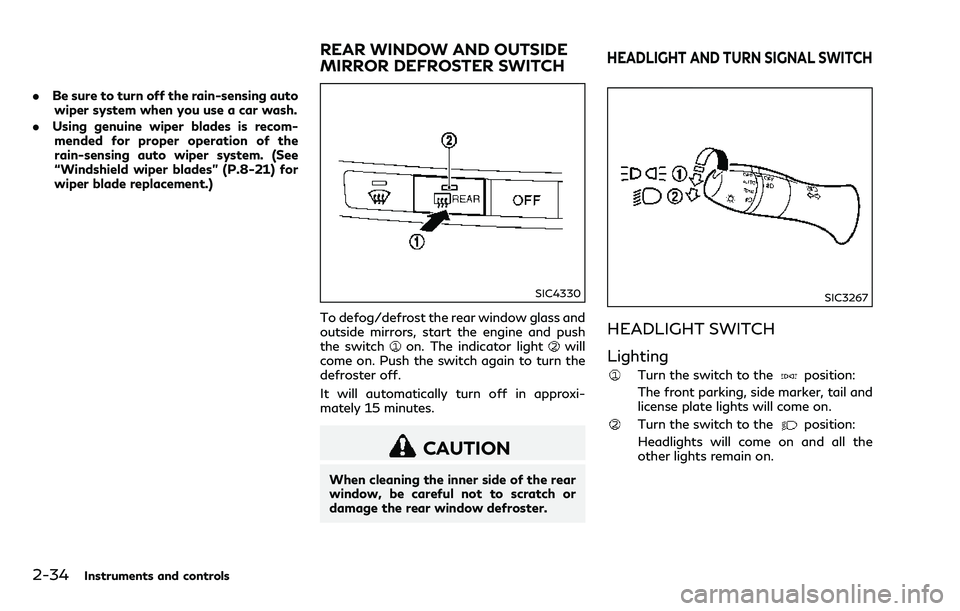

2-34Instruments and controls
.Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
. Using genuine wiper blades is recom-
mended for proper operation of the
rain-sensing auto wiper system. (See
“Windshield wiper blades” (P.8-21) for
wiper blade replacement.)
SIC4330
To defog/defrost the rear window glass and
outside mirrors, start the engine and push
the switch
on. The indicator lightwill
come on. Push the switch again to turn the
defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
SIC3267
HEADLIGHT SWITCH
Lighting
Turn the switch to theposition:
The front parking, side marker, tail and
license plate lights will come on.
Turn the switch to theposition:
Headlights will come on and all the
other lights remain on.
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHHEADLIGHT AND TURN SIGNAL SWITCH

2-44Instruments and controls
SIC4335
The warning systems switch is used to turn
on and off the warning systems (Lane
Departure Warning (LDW) and Blind Spot
Warning (BSW) systems) that are activated
using the settings menu on the center
display.
When the warning systems switch is turned
off, the indicator
on the switch is off. The
indicator will also be off if all of the warning
systems are deactivated using the settings
menu.
The LDW system will sound a warning chime
and blink the LDW indicator light (orange) to
alert the driver if the vehicle is traveling close
to either the left or the right of a traveling
lane with detectable lane markers. (See “Lane Departure Warning (LDW)/Lane De-
parture Prevention (LDP)” (P.5-22).)
The BSW system will turn on the side
indicator lights, located by the outside
mirrors, if the radar sensors detect a vehicle
in the detection zone. If the turn signal is
activated in the direction of the detected
vehicle, a chime sounds twice and the side
indicator light will flash. (See “Blind Spot
Warning (BSW)” (P.5-32).)
SIC4336
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will be
reduced even if the accelerator is depressed
to the floor. If maximum engine power is
needed to free a stuck vehicle, turn the VDC
system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator light will
illuminate.
Push the VDC OFF switch again or restart
the engine to turn on the system. (See
“Vehicle Dynamic Control (VDC) system”
WARNING SYSTEMS SWITCH (if
so equipped) VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH

set to the OFF position (see the Infiniti
InTouch Owner’s Manual), the lights will
illuminate under the following condition:
.any door is opened with the ignition
switch in any position
— remain on while the door is opened. When the door is closed, the lights go
off.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
SIC3869
The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged. The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Instruments and controls2-59
VANITY MIRROR LIGHTS
TRUNK LIGHT
