tire type INFINITI QX30 2017 User Guide

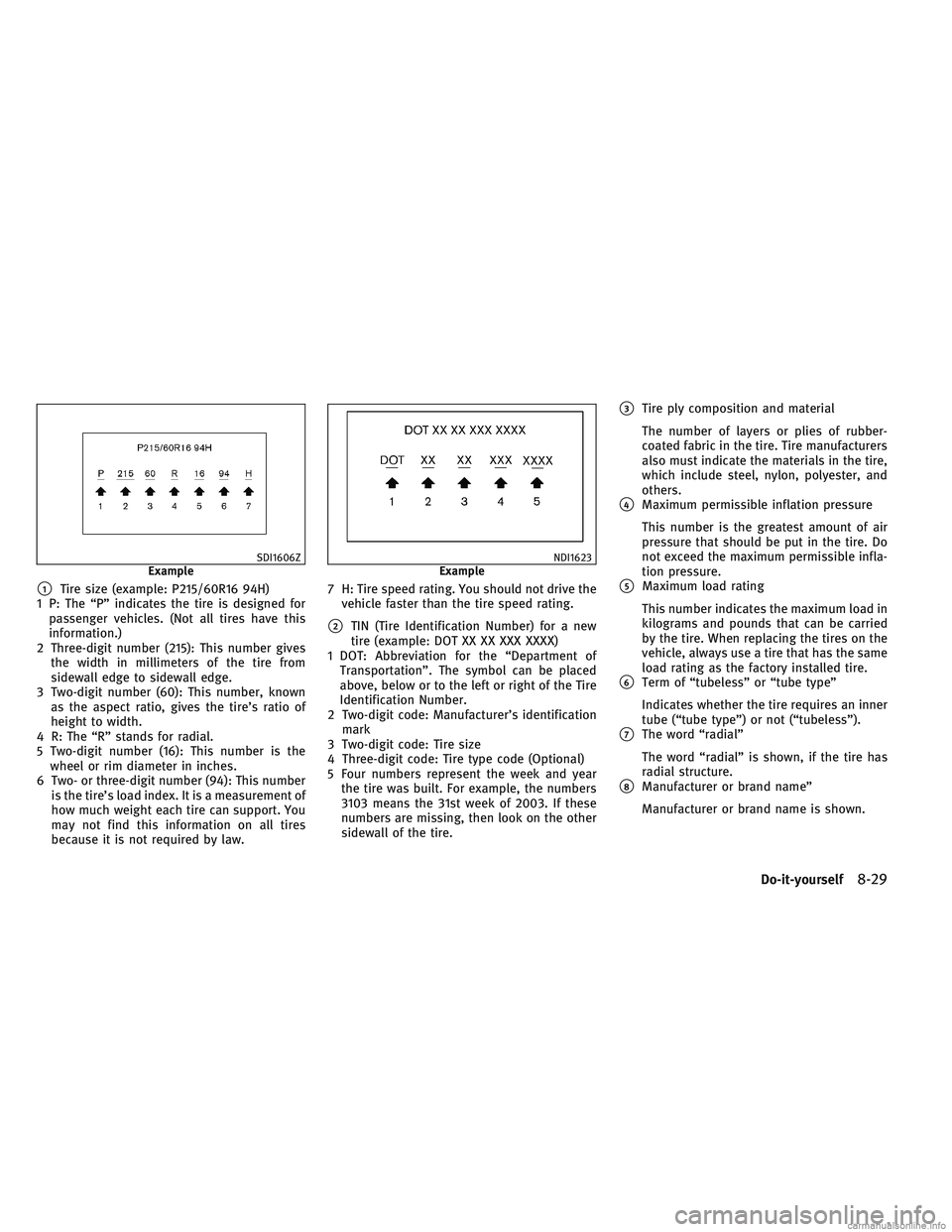

1Tire size (example: P215/60R16 94H)
1 P: The “P” indicates the tire is designed for passenger vehicles. (Not all tires have this
information.)
2 Three-digit number (215): This number gives the width in millimeters of the tire from
sidewall edge to sidewall edge.
3 Two-digit number (60): This number, known as the aspect ratio, gives the tire’s ratio of
height to width.
4 R: The “R” stands for radial.
5 Two-digit number (16): This number is the wheel or rim diameter in inches.
6 Two- or three-digit number (94): This number is the tire’s load index. It is a measurement of
how much weight each tire can support. You
may not find this information on all tires
because it is not required by law. 7 H: Tire speed rating. You should not drive the
vehicle faster than the tire speed rating.
2TIN (Tire Identification Number) for a new
tire (example: DOT XX XX XXX XXXX)
1 DOT: Abbreviation for the “Department of Transportation”. The symbol can be placed
above, below or to the left or right of the Tire
Identification Number.
2 Two-digit code: Manufacturer’s identification mark
3 Two-digit code: Tire size
4 Three-digit code: Tire type code (Optional)
5 Four numbers represent the week and year the tire was built. For example, the numbers
3103 means the 31st week of 2003. If these
numbers are missing, then look on the other
sidewall of the tire.
3Tire ply composition and material
The number of layers or plies of rubber-
coated fabric in the tire. Tire manufacturers
also must indicate the materials in the tire,
which include steel, nylon, polyester, and
others.
4Maximum permissible inflation pressure
This number is the greatest amount of air
pressure that should be put in the tire. Do
not exceed the maximum permissible infla-
tion pressure.
5Maximum load rating
This number indicates the maximum load in
kilograms and pounds that can be carried
by the tire. When replacing the tires on the
vehicle, always use a tire that has the same
load rating as the factory installed tire.
6Term of “tubeless” or “tube type”
Indicates whether the tire requires an inner
tube (“tube type”) or not (“tubeless”).
7The word “radial”
The word “radial” is shown, if the tire has
radial structure.
8Manufacturer or brand name”
Manufacturer or brand name is shown.
SDI1606ZExampleNDI1623Example
Do-it-yourself8-29

Other tire-related terminology:
In addition to the many terms that are defined
throughout this section, Intended Outboard
Sidewall is (1) the sidewall that contains a
whitewall, bears white lettering or bears manu-
facturer, brand and/or model name molding
that is higher or deeper than the same molding
on the other sidewall of the tire, or (2) the
outward facing sidewall of an asymmetrical tire
that has a particular side that must always face
outward when mounted on a vehicle.
TYPES OF TIRES
WARNING
•When changing or replacing tires, be sure
all four tires are of the same type (i.e, sum-
mer, all season or snow) and construction.
An INFINITI retailer may be able to help you
with information about tire type, size, speed
rating and availability.
•Replacement tires may have a lower speed
rating than the factory equipped tires, and
they may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
•Always use tires of the same type, size,
brand, construction and tread pattern on allfour wheels. Failure to do so may result in a
circumference difference between tires on
the front and rear axles which can cause the
Vehicle Dynamic Control (VDC) system to
malfunction resulting in personal injury or
death, excessive tire wear and may damage
the transmission, transfer case and differ-
ential gears.
•For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information“ (Canada)
in the Warranty Information Booklet.
CAUTION
ONLY use spare tires specified for the model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. It is recommended that you visit an
INFINITI retailer for this service.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All season tires are identified by ALL SEASON
and/or M&S on the tire sidewall. Snow tires
have better snow traction than all season tires
and may be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use of
snow or all season tires on all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating to
the original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires have lower speed ratings
than factory equipped tires and may not match
the potential maximum vehicle speed. Never
exceed the maximum speed rating of the tire. If
you install snow tires, they must be the same
size, brand, construction and tread pattern on
all four wheels.
8-30Do-it-yourself

For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires on wet or dry
surfaces may be poorer than that of non-
studded snow tires.
Four-Wheel Drive (4WD) models
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. It is recommended that you visit an
INFINITI retailer.
TIRE CHAINS
CAUTION
Tire chains/cables should not be installed on
235/45 R19 or 235/50 R18 size tires. Installa-
tion of the tire chains/cables on 235/45 R19 or
235/50 R18 size tires will cause damage to the
vehicle. If you plan to use tire chains/cables,
you should install 215/60 R17 size tires on your
vehicle.Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure that they are of proper size for the
tires on your vehicle and are installed according
to the chain manufacturer’s instructions.
Use chain tensioners when recommended by
the tire chain manufacturer to ensure a tight fit.
Loose end links of the tire chains must be
secured or removed to prevent the possibility of
whipping action damage to the fenders or un-
derbody. If possible, avoid fully loading your
vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your ve-
hicle may be damaged and/or vehicle handling
and performance may be adversely affected.
Tire chains must be installed only on the front
wheels and not on the rear wheels.
Never install tire chains on a T-type spare tire
(TEMPORARY USE ONLY).
Do not drive with tire chains on paved roads
which are clear of snow. Driving with chains in
such conditions can cause damage to the vari-
ous mechanisms of the vehicle due to some
overstress.
1: Wear indicator
2: Location mark
TIRE WEAR AND DAMAGE
WARNING
•Tires should be periodically inspected for
wear, cracking, bulging or objects caught in
the tread. If excessive wear, cracks, bulging
or deep cuts are found, the tire should be
replaced immediately.
•The original tires have a built-in tread wear
indicator. When the wear indicator is vis-
ible, the tire should be replaced.
•Tires degrade with age and use. Have tires,
including the spare, over 6 years old
checked by a qualified technician because
SDI1663Z
Do-it-yourself8-31

some tire damage may not be obvious. Re-
place the tires as necessary to prevent tire
failure and possible personal injury.
•Improper service of the spare tire may result
in serious personal injury. If it is necessary
to repair the spare tire, it is recommended
that you visit an INFINITI retailer for this
service.
•For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the Warranty Information Booklet.
Tires should be periodically inspected for wear,
cracking, bulging or objects caught in the tread.
If excessive wear, cracks, bulging or deep cuts
are found, the tire should be replaced immedi-
ately.
The original tires have a built-in tread wear
indicator. When the wear indicator is visible,
the tire should be replaced.
Improper servicing of a tire may result in seri-
ous personal injury. If it is necessary to repair a
tire, it is recommended you contact an INFINITI
retailer.
TIRE ROTATION
INFINITI recommends rotating the tires every
5,000 miles (8,000 km).
For additional information on tire replacing
procedures, refer to Flat tirein the6. In case
of emergency section.As soon as possible,
tighten the wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque: 96 ft-lb (130 N·m)
The wheel nuts must be kept tightened to speci-
fications at all times. It is recommended that
wheel nuts be tightened to specification at each
tire rotation interval.
WARNING
•After rotating the tires, check and adjust the
tire pressure.
•Do not include the spare tire in the tire rota-
tion.
•For additional information regarding tires,
refer to Important Tire Safety Information
(US) or Tire Safety Information in the War-
ranty Information Booklet.
REPLACING WHEELS AND TIRES
WARNING
Do not install a deformed wheel or tire even if it
has been repaired. Such wheels or tires could
have structural damage and could fail without
warning.
When replacing a tire, use the same size, speed
rating and load carrying capacity as originally
equipped. (See Wheels and Tires in the
9. Maintenance and Schedules section for
recommended types and sizes of tires and
wheels.)
If the wheels are changed for any reason,
always replace with wheels which have the
same offset dimension. Wheels of a different
offset could cause early tire wear, possibly
degraded vehicle handling characteristics
and/or interference with the brake discs/
drums. Such interference can lead to decreased
braking efficiency and/or early brake pad/shoe
wear.
8-32Do-it-yourself
