•For frequent operation in mountainous ter-
rain or on poor road surfaces
•If the engine is often left idling for long
periods
In these or similar operating conditions, have,
for example, the air filter, engine oil and oil
filter changed more frequently. The tires must
be checked more frequently if the vehicle is
operated under increased loads. Further infor-
mation can be obtained at an INFINITI retailer.
Maintenance and Schedules9-9

The following tables show the standard maintenance schedule. Depending upon weather and atmospheric conditions, varying road surfaces, individual
driving habits and vehicle usage, additional or more frequent maintenance may be required. After 120,000 miles (192,000 km)/144 months, continue
maintenance at the same mileage/time intervals.
EMISSION CONTROL SYSTEM MAINTENANCE (FOR 2.0L TURBO GASOLINE ENGINE)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles,
kilometers or months, whichever
comes first.51015202530354045505560
(km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
months 6 12 18 24 30 36 42 48 54 60 66 72
Engine compartment See NOTE (1)
V-belt See NOTE (2) I* I* I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil R R R R R R
Engine oil filter R R R R R R
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
STANDARD MAINTENANCE
9-10Maintenance and Schedules

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000MAINTENANCE INTERVAL
Perform at number of miles, kilome-
ters or months, whichever comes
first.65 70 75 80 85 90 95 100 105 110 115 120
(km x 1,000) (104) (112) (120) (128) (136) (144) (152) (160) (168) (176) (184) (192)
months 78 84 90 96 102 108 114 120 126 132 138 144
Engine compartment See NOTE (1)
V-belt See NOTE (2) I* I* I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I* I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil R R R R R R
Engine oil filter R R R R R R
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
Maintenance and Schedules9-11

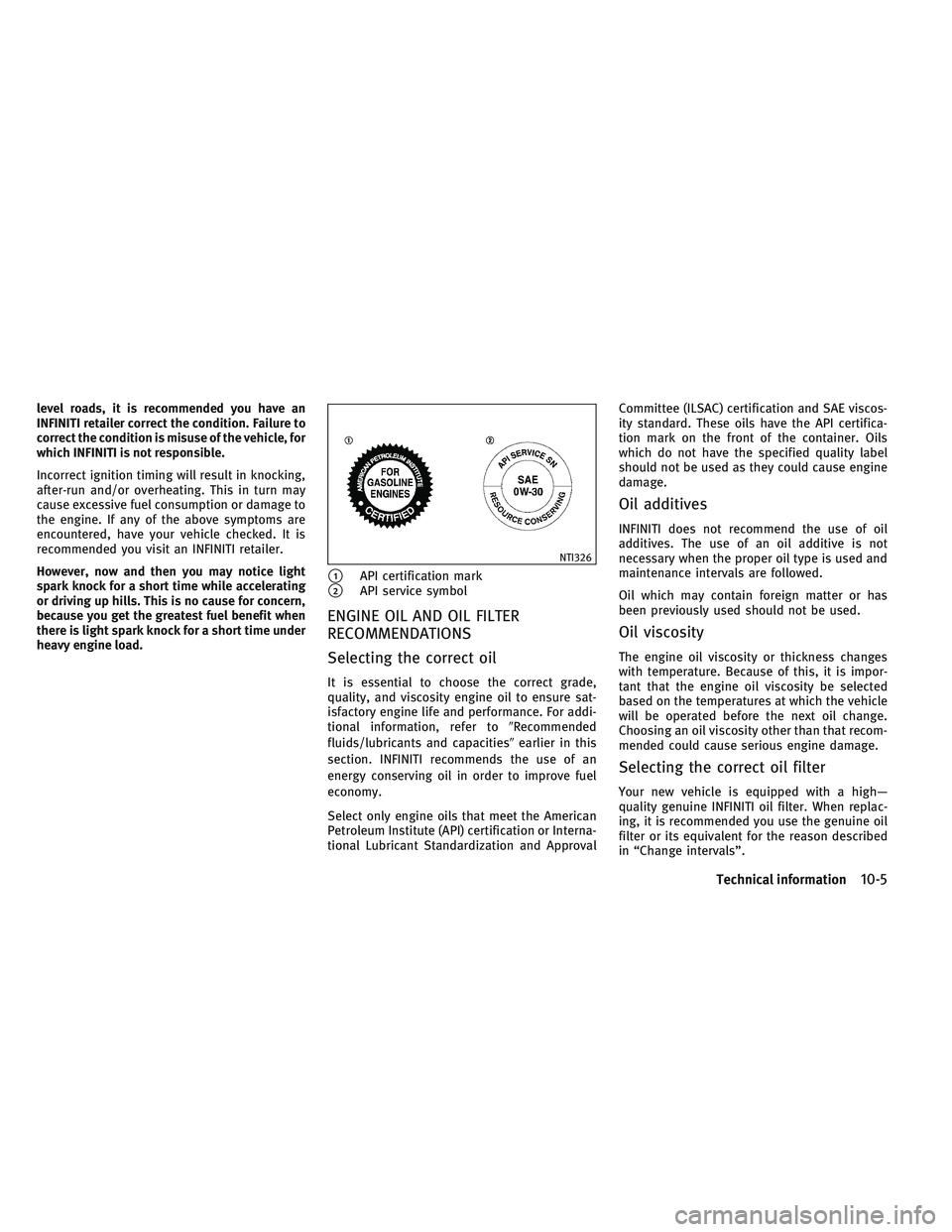

level roads, it is recommended you have an
INFINITI retailer correct the condition. Failure to
correct the condition is misuse of the vehicle, for
which INFINITI is not responsible.
Incorrect ignition timing will result in knocking,
after-run and/or overheating. This in turn may
cause excessive fuel consumption or damage to
the engine. If any of the above symptoms are
encountered, have your vehicle checked. It is
recommended you visit an INFINITI retailer.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
1API certification mark
2API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance. For addi-
tional information, refer toRecommended
fluids/lubricants and capacitiesearlier in this
section. INFINITI recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and ApprovalCommittee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
based on the temperatures at which the vehicle
will be operated before the next oil change.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high—
quality genuine INFINITI oil filter. When replac-
ing, it is recommended you use the genuine oil
filter or its equivalent for the reason described
in “Change intervals”.
NTI326
Technical information10-5

For Canada:
If you believe that your vehicle has a defect
which could cause a crash or could cause injury
or death, you should immediately inform Trans-
port Canada in addition to notifying INFINITI.
If Transport Canada receives complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may request that INFINITI conduct a recall cam-
paign. However, Transport Canada cannot be-
come involved in individual problems between
you, your retailer, or INFINITI.
You may contact Transport Canada’s Defect
Investigations and Recalls Division toll free at
1-800-333- 0510. You may also report safety
defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec- Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor ve-
hicle safety may be obtained from Transport
Canada’s Road Safety Information Center at
1-800-333- 0371 or online at www.tc.gc.ca/
roadsafety (English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers).
To notify INFINITI of any safety concerns please
contact our Consumer Information Center toll
free at 1-800- 361-4792.WARNING
A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel dy-
namometer (such as the dynamometers used
by some states for emissions testing), or simi-
lar equipment. Make sure you inform test facil-
ity personnel that your vehicle is equipped
with AWD before it is placed on a dynamom-
eter. Using the wrong test equipment may re-
sult in transmission damage or unexpected ve-
hicle movement which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready
condition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without start-ing the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds, the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”.
It is recommended you contact an INFINITI re-
tailer to set the “ready condition” or to prepare
the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical information10-19
