the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.
LATCH lower anchor location
The LATCH lower anchors are located at the
rear of the seat cushion near the seatback, as
shown. A label is attached to the seatback to
help you locate the LATCH lower anchors.
Installing child restraint LATCH
lower anchor attachments
LATCH compatible child restraints include
two rigid or webbing-mounted attachments
NIC2612
LATCH lower anchor locations
SSS0643Z
LATCH webbing-mounted attachment
SSS0644Z
LATCH rigid-mounted attachment
1-22Safety — seats, seat belts and supplemental restraint system

that can be connected to two anchors lo-
cated at certain seating positions in your ve-
hicle. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint. Check your child restraint for a label
stating that it is compatible with LATCH. This
information may also be in the instructions
provided by the child restraint manufacturer.
When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child re-
straints.
Top tether anchor
WARNING
•Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Un-
der no circumstances are they to be used
to attach adult seat belts, or other items
or equipment to the vehicle. Doing so
could damage the child restraint an-
chorages. The child restraint will not be
properly installed using the damaged
anchorage, and a child could be seriously
injured or killed in a collision.
•If the cargo cover (if so equipped) con-
tacts the top tether strap when it is at- tached to the top tether anchor, remove
the cargo cover from the vehicle or se-
cure it on the cargo floor below its at-
tachment location. If the cargo cover is
not removed, it may damage the top
tether strap during a collision. A child
could be seriously injured or killed in a
collision if the top tether strap is dam-
aged.
•Do not allow cargo to contact the top
tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or cargo that contacts the top
tether strap may damage it during a col-
lision. A child could be seriously injured
or killed in a collision if the top tether
strap is damaged. Top tether anchor point locations for
LATCH:
1Top tether straps
2Anchor points
The LATCH anchor points are provided to
install child restraints in the rear outboard
seating positions only, as shown. Do not at-
tempt to install a child restraint in the center
position using the LATCH anchors.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
NIC2849
Safety — seats, seat belts and supplemental restraint system1-23

REAR-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH
For additional information, refer to all Warn-
ings and Cautions in the "Child safety" in the
"1. Safety — seats, seat belts and supplemen-
tal restraint system" section and "Child re-
straints" in the "1. Safety — seats, seat belts
and supplemental restraint system" section
before installing a child restraint. Do not use
the lower anchors if the combined weight of
the child and the child restraint exceeds 65 lb
(29.5 kg). If the combined weight of the child
and the child restraint is greater than 65 lb
(29.5 kg), use the vehicle seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufactur-
er's instructions for installation. Follow these
steps to install a rear-facing child restraint in
the 2nd row seats using the LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manu-
facturer's instructions. 2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors. 3. For child restraints that are equipped with
webbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your hand to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor at-
tachments.
WRS0801Z
Rear-facing web-mounted — step 2
WRS0802Z
Rear-facing rigid-mounted — step 2
LRS0673Z
Rear-facing — step 3
1-24Safety — seats, seat belts and supplemental restraint system

4. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint or try installing
by using the vehicle seat belt (if appli-
cable). Not all child restraints fit in all types
of vehicles. 5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.
REAR-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision.
Rear-facing child restraints must not be
used on the front seats.
For additional information, refer to all Warn-
ings and Cautions in the "Child safety" in the
"1. Safety — seats, seat belts and supplemen-
tal restraint system" section and "Child re-
straints" in the "1. Safety — seats, seat belts
and supplemental restraint system" section
before installing a child restraint. Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lb (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lb (29.5 kg), use the vehicle
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child
restraint manufacturer's instructions for in-
stallation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:
1.
Child restraints for infants must be used
in the rear-facing direction and therefore
must not be used in the front seat. Posi-
tion the child restraint on the seat. Always
follow the child restraint manufacturer's
instructions.LRS0674Z
Rear-facing — step 4
WRS0256Z
Rear-facing — step 1
Safety — seats, seat belts and supplemental restraint system1-25

2. Route the seat belt tongue through thechild restraint and insert it into the buckle
until you hear and feel the tongue engage.
Be sure to follow the child restraint manu-
facturer's instructions for belt routing. 3. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to the ELR mode when
the seat belt is fully retracted. 4. Allow the seat belt to retract. Pull up on
the shoulder belt to remove any slack in
the belt.

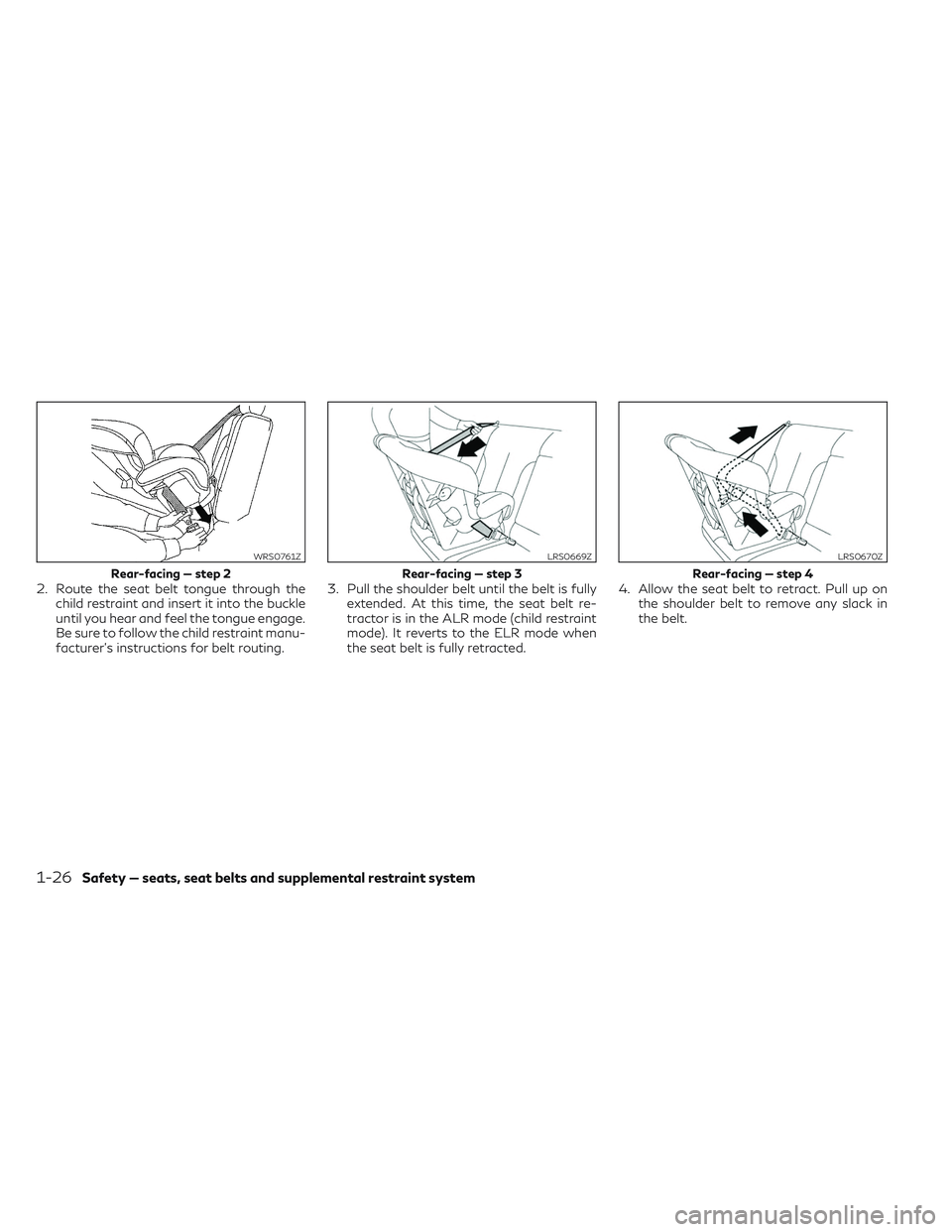

WRS0761Z
Rear-facing — step 2
LRS0669Z
Rear-facing — step 3
LRS0670Z
Rear-facing — step 4
1-26Safety — seats, seat belts and supplemental restraint system

5. Remove any additional slack from the seatbelt; press downward and rearward firmly
in the center of the child restraint to com-
press the vehicle seat cushion and seat-
back while pulling up on the seat belt. 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.
7. Check to make sure that the child restraint is properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6. After the child restraint is removed and
the seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH
For additional information, refer to all Warn-
ings and Cautions in the "Child safety" in the
"1. Safety — seats, seat belts and supplemen-
tal restraint system" section and "Child re-
straints" in the "1. Safety — seats, seat belts
and supplemental restraint system" section
before installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lb (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lb (29.5 kg), use the vehicle
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child
restraint manufacturer's instructions for in-
stallation.

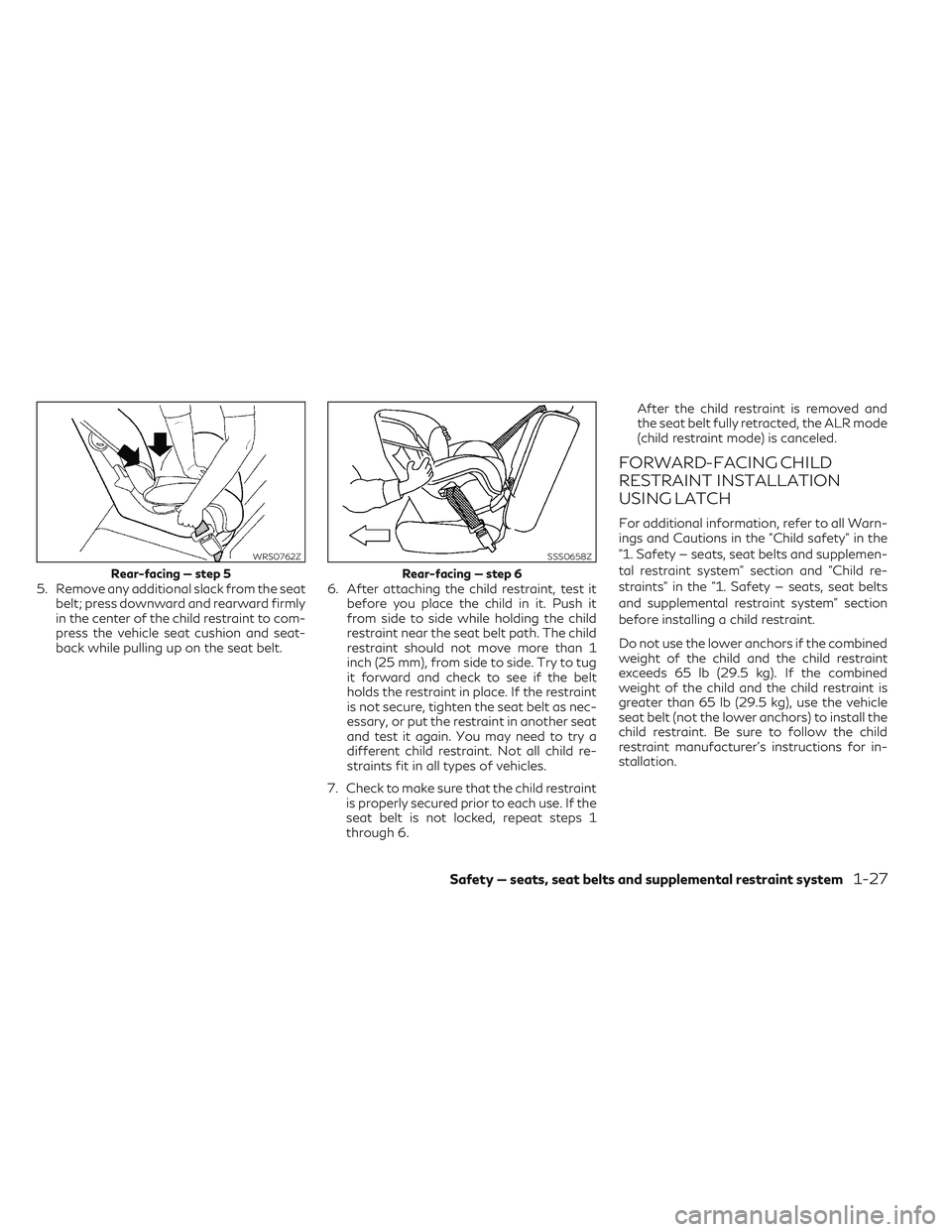

WRS0762Z
Rear-facing — step 5
SSS0658Z
Rear-facing — step 6
Safety — seats, seat belts and supplemental restraint system1-27

Follow these steps to install a forward-
facing child restraint in the rear seats using
the LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manu-
facturer's instructions.
2. Secure the child restraint anchor attach- ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors. If the child restraint is equipped with a top
tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point. For additional information,
refer to "Installing top tether strap" in the
"1. Safety — seats, seat belts and supple-
mental restraint system" section.
Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.3. The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint/headrest when the child re-
straint is removed. For additional infor-
mation about head restraint/headrest ad-
justment, refer to "Head restraints/
Headrests" in the "1. Safety — seats, seat
belts and supplemental restraint system"
section. If the seating position does not
have an adjustable head restraint/
headrest and it is interfering with the
proper child restraint fit, try another seat-
ing position or a different child restraint.
SSS0645Z
Forward-facing web-mounted — step 2
SSS0646Z
Forward-rigid web-mounted — step 2
1-28Safety — seats, seat belts and supplemental restraint system

4. For child restraints that are equipped withwebbing-mounted attachments, remove
any additional slack from the webbing of
the anchor attachments. Press down-
ward and rearward firmly in the center of
the child restraint with your knee to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of the
anchor attachments.
5. Tighten the tether strap according to the manufacturer's instructions to remove
any slack. 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint. Not all child re-
straints fit in all types of vehicles. 7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.
Installing top tether strap
The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments. First,
secure the child restraint with the LATCH
lower anchors (rear outboard seating posi-
tions only).
SSS0647Z
Forward-facing — step 4
SSS0638Z
Forward-facing — step 6
Safety — seats, seat belts and supplemental restraint system1-29

The LATCH anchor points are provided to
install child restraints in the rear outboard
seating positions only, as shown. Do not at-
tempt to install a child restraint in the center
position using the LATCH anchors.
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.Outboard seating positions with removable
head restraints/headrests:
1. If necessary, raise or remove the head
restraint/headrest and store it in a secure
place. Be sure to reinstall the head
restraint/headrest when the child re-
straint is removed. For additional informa-
tion about head restraint/headrest ad-
justment, removal and installation, refer to
"Head restraints/Headrests" in the "1.
Safety — seats, seat belts and supplemen-
tal restraint system" section.
2. Position the top tether strap
1over the
seatback as shown.
3. Secure the tether strap to the tether an- chor point
2on the seatback behind the
child restraint as shown.
4. Tighten the tether strap according to the manufacturer's instructions to remove
any slack.
Outboard seating positions with fixed head
restraints/headrests:
1. If the child restraint has a single tether strap, route the strap
1over the top of
the outer head restraint/headrest. If the
child restraint has two tether straps, route
them round each side of the outer head
restraint/headrest. 2. Secure the tether strap to the tether an-
chor point
2on the seatback behind the
child restraint as shown.
3. Tighten the tether strap according to the manufacturer's instructions to remove
any slack.
If you have any questions when installing
a top tether strap, it is recommended
that you visit an INFINITI retailer for this
service.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the operation
of the front passenger air bag. For addi-
tional information, refer to "Front passen-
ger air bag and status light" in the "1.
Safety — seats, seat belts and supplemen-
tal restraint system" section.
NIC2849
1-30Safety — seats, seat belts and supplemental restraint system

For additional information, refer to all Warn-
ings and Cautions in the "Child safety" in the
"1. Safety — seats, seat belts and supplemen-
tal restraint system" section and "Child re-
straints" in the "1. Safety — seats, seat belts
and supplemental restraint system" section
before installing a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lb (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lb (29.5 kg), use the vehicle
seat belt (not the lower anchors) to install the
child restraint. Be sure to follow the child
restraint manufacturer's instructions for in-
stallation.
Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front passenger
seat:1.
If you must install a child restraint in the
front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child re-
straints for infants must be used in the
rear-facing direction and, therefore,
must not be used in the front seat. 2. Position the child restraint on the seat.
Always follow the child restraint manu-
facturer's instructions. The back of the
child restraint should be secured against
the vehicle seatback. If necessary, adjust
or remove the head restraint/headrest to
obtain the correct child restraint fit. If the
head restraint/headrest is removed, store
it in a secure place. Be sure to reinstall the
head restraint/headrest when the child
restraint is removed. For additional infor-
mation about head restraint/headrest ad-
justment, removal and installation, refer
to "Head restraints/Headrests" in the "1.
Safety — seats, seat belts and supplemen-
tal restraint system" section.
If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper child re-
straint fit, try another seating position or a
different child restraint.
WRS0699Z
Forward-facing
(front passenger seat) — step 1
Safety — seats, seat belts and supplemental restraint system1-31
