driver seat adjustment INFINITI QX30 2018 Owners Manual

WARNING
•The seatback should not be reclined any
more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and be-
ing injured is increased.
•For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat properly. (See
"Seat belts" later in this section.)
•After adjustment, gently rock in the seat
to make sure it is securely locked.
•To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others, or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or death
to people and pets.
•Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or move the
vehicle. Unattended children could be-
come involved in serious accidents.
•Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of control
of the vehicle.
CAUTION
•When moving the seats forward or
backward, or returning a reclined seat-
back to its upright position, make sure
you hold onto the seatback while oper-
ating. If the seatback is not held, the
seat or seatback may move suddenly
and could cause injury.
•When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SSS0133AZ
SEATS
1-2Safety — seats, seat belts and supplemental restraint system

FRONT SEATS
Manual seat adjustment
Forward and backward:
Pull the lever
1up and hold it while sliding
the seat forward or backward to the pre-
ferred position. Release the lever to lock the
seat in position.
Seat cushion angle (if equipped):
Adjust the angles so that your thighs are
lightly supported. Turn handwheel
2for-
wards or backwards.
Seat lifter (if equipped):
Repeatedly pull up or push down the adjust-
ing lever
3, to adjust the seat height to the
desired position. Seatback angle:
Relieve the pressure on the seatback and turn
handwheel
4forwards or backwards.
The reclining feature allows the adjustment
of the seatback for occupants of different
sizes to help obtain the proper seat belt fit.
(See "Seat belts" later in this section.)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked.
Lumbar support:
The lumbar support feature provides lower
back support to the driver.
Push each side of the adjusting switch to
adjust the seat lumbar area until the desired
position is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
Power seat adjustment
Operating tips:
•The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during the seat adjustment, wait 30
seconds, then reactivate the switch.
NIC2605NIC2607
Safety — seats, seat belts and supplemental restraint system1-3

Shoulder belt height adjustment (if
equipped)
The shoulder belt anchor height should be
adjusted to the position that is best for you.
(See "Fastening the seat belts " earlier in this
section).
•To adjust, push the buttonAas shown
and then move the shoulder belt anchor to
the desired position so that the belt passes
over the center of the shoulder. The belt
should be away from your face and neck,
but not falling off of your shoulder. Re-
lease the adjustment button to lock the
shoulder belt anchor into position.
WARNING
•After adjustment, release the adjust-
ment button and then try to move the
shoulder belt down to make sure that it
is securely fixed in position.
•The shoulder belt anchor height should
be adjusted to the position that is best
for you. Failure to do so may reduce the
effectiveness of the entire restraint sys-
tem and increase the chance or severity
of injury in an accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it
is not possible to properly fit the lap/shoulder
belt and fasten it, an extender that is compat-
ible with the installed seat belts is available
that can be purchased. The extender adds
approximately 8 in (200 mm) of length and
may be used for either the driver or front
passenger seating position. It is recom-
mended you visit an INFINITI retailer for as-
sistance with purchasing an extender if an
extender is required.
WARNING
•Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with the INFINITI seat belts.
•Adults and children who can use the
standard seat belt should not use an ex-
tender. Such unnecessary use could re-
sult in serious personal injury in the
event of an accident.
•Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured in a collision or a sud-
den stop.
SEAT BELT MAINTENANCE
•To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are com-
pletely dry.
SSS0896Z
1-16Safety — seats, seat belts and supplemental restraint system

The emission limit values may be exceeded
and the engine may be running in emergency
mode.
CAUTION
Continued vehicle operation without hav-
ing the engine control system checked and
repaired as necessary could lead to poor
driveability, reduced fuel economy and
possible damage to the engine control
system.
Incorrect setting of the engine control system
may lead to non-compliance of local and na-
tional emission laws and regulations.
Have the vehicle checked as soon as possible.
It is recommended you visit an INFINITI re-
tailer for this service.
Distance warning light (if
equipped)
This light illuminates if the distance to the
vehicle in front is too small for the speed
selected.
If a warning tone also sounds, you are ap-
proaching a vehicle or stationary obstacle in
your line of travel at too high a speed. For
additional information see " Forward emer-
gency braking (FEB) system (if equipped)" in
the "5. Starting and driving" section.
Electric parking brake
warning light
The red indicator illuminates when the elec-
tric parking brake is engaged.
If the red indicator light for the electric park-
ing brake flashes or is lit and/or the yellow
warning light for the electric parking brake is
lit, observe the additional messages dis-
played in the vehicle information display.
For further parking brake operation informa-
tion see "Parking brake" in the "3. Pre-driving
checks and adjustments" section.
Seat belt (driver and front
passenger) warning light
The seat belt warning light reminds you to
fasten your seat belts. The light illuminates if
the engine is started, all doors are closed and
the driver’s and/or front passenger’s seat
belt is unfastened. It will remain illuminated
until the driver and/or front passenger fas-
tens their seat belt. A chime will sound once
the vehicle is in motion, see "Seat belt re-
minder chime" later in this section. See "Seat
belts" in the "1. Safety — seats, seat belts and
supplemental restraint system" section for
precautions on seat belt usage.
The seat belt warning light may also illumi-
nate if there are objects on the front passen-
ger seat. Remove the objects and stow them
in a safe place.
If the seat belt warning light flashes, together
with an intermittent warning tone, this means
that the driver or passenger has not fastened
their seat belt, and the speed of the vehicle is
exceeding 15 MPH (25 km/h).
Instruments and controls2-11

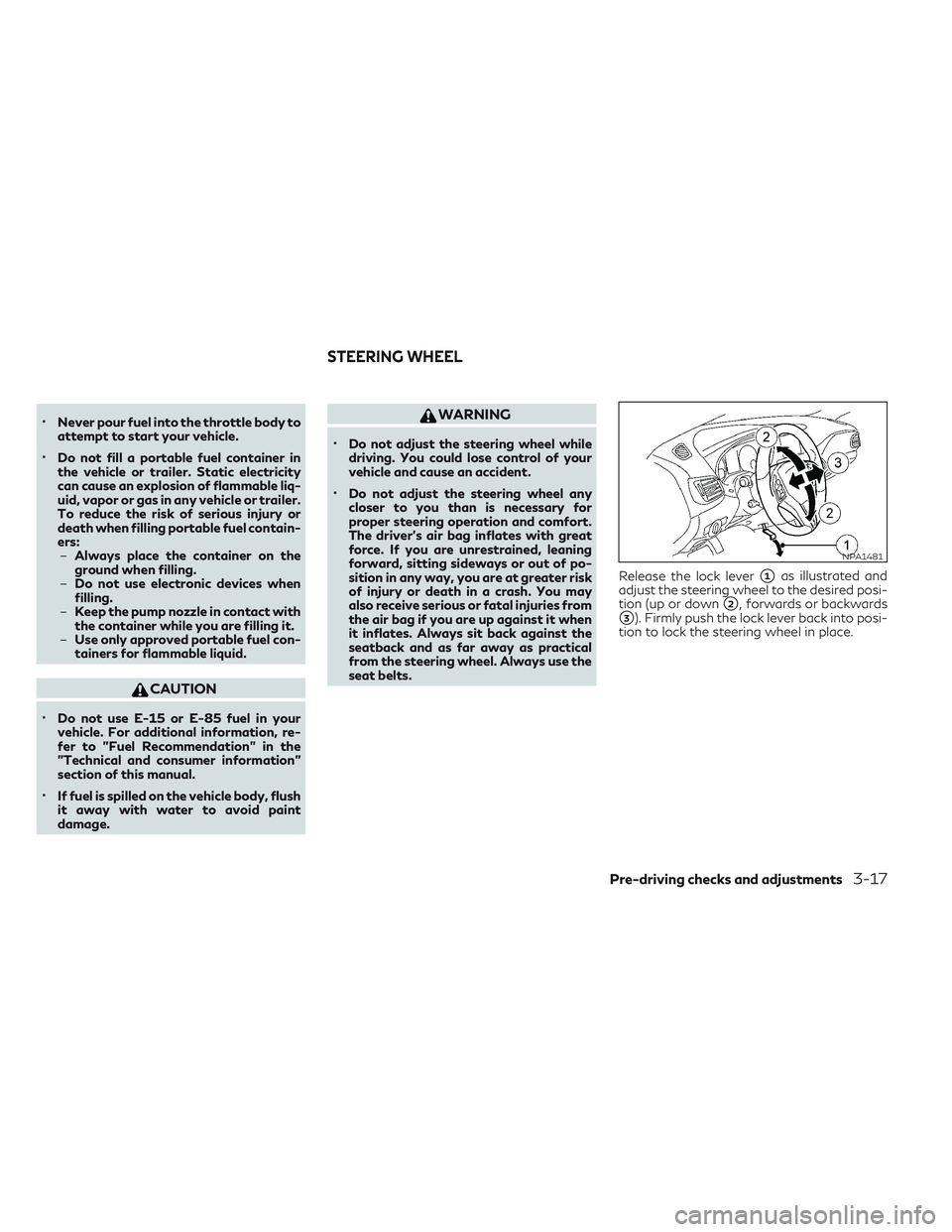

•Never pour fuel into the throttle body to
attempt to start your vehicle.
•Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable liq-
uid, vapor or gas in any vehicle or trailer.
To reduce the risk of serious injury or
death when filling portable fuel contain-
ers: – Always place the container on the
ground when filling.
– Do not use electronic devices when
filling.
– Keep the pump nozzle in contact with
the container while you are filling it.
– Use only approved portable fuel con-
tainers for flammable liquid.
CAUTION
•Do not use E-15 or E-85 fuel in your
vehicle. For additional information, re-
fer to "Fuel Recommendation" in the
"Technical and consumer information"
section of this manual.
•If fuel is spilled on the vehicle body, flush
it away with water to avoid paint
damage.
WARNING
•Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
•Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and comfort.
The driver’s air bag inflates with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of po-
sition in any way, you are at greater risk
of injury or death in a crash. You may
also receive serious or fatal injuries from
the air bag if you are up against it when
it inflates. Always sit back against the
seatback and as far away as practical
from the steering wheel. Always use the
seat belts. Release the lock lever
1as illustrated and
adjust the steering wheel to the desired posi-
tion (up or down
2, forwards or backwards
3). Firmly push the lock lever back into posi-
tion to lock the steering wheel in place.
NPA1481
STEERING WHEEL
Pre-driving checks and adjustments3-17

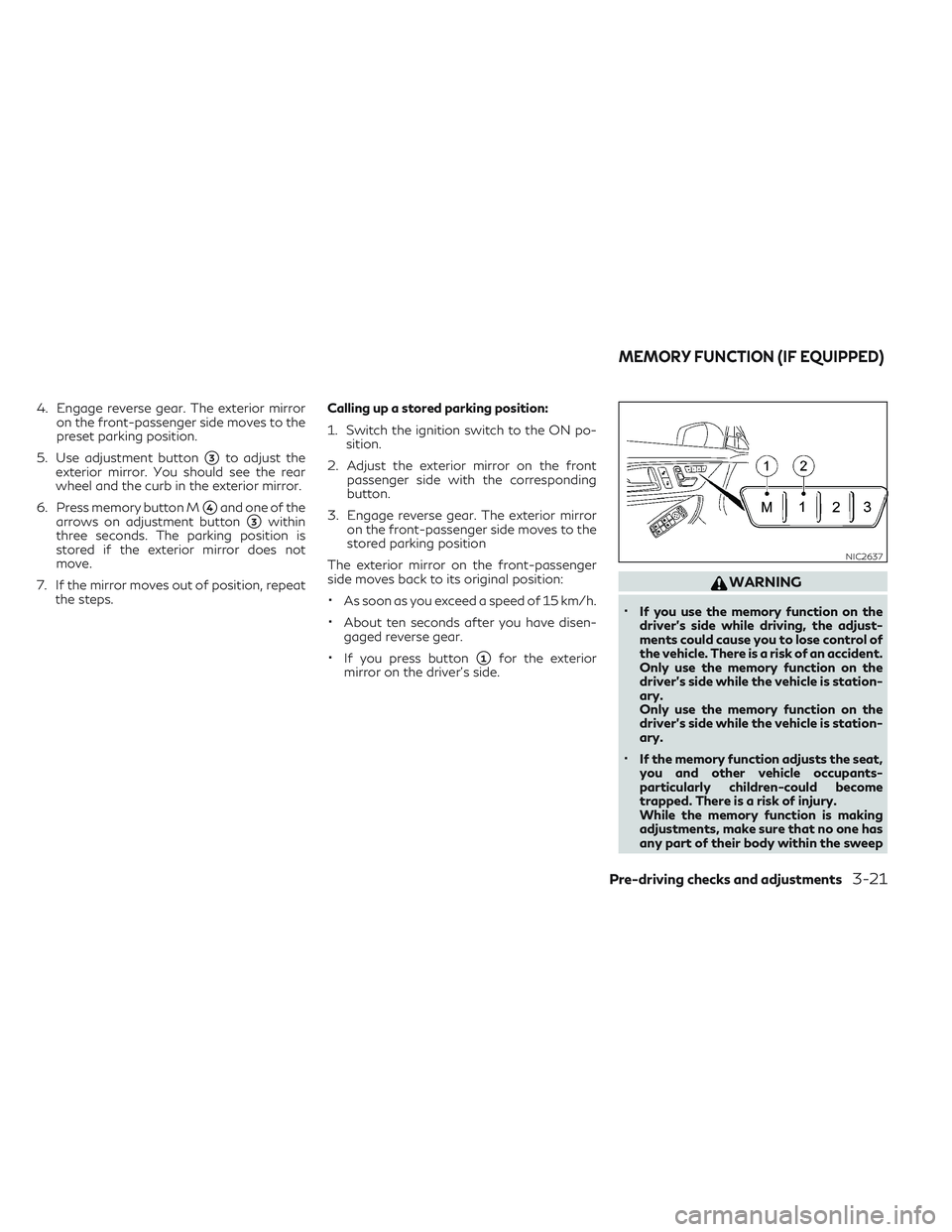

4. Engage reverse gear. The exterior mirroron the front-passenger side moves to the
preset parking position.
5. Use adjustment button
3to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.
6. Press memory button M
4and one of the
arrows on adjustment button
3within
three seconds. The parking position is
stored if the exterior mirror does not
move.
7. If the mirror moves out of position, repeat the steps. Calling up a stored parking position:
1. Switch the ignition switch to the ON po-
sition.
2. Adjust the exterior mirror on the front passenger side with the corresponding
button.
3. Engage reverse gear. The exterior mirror on the front-passenger side moves to the
stored parking position
The exterior mirror on the front-passenger
side moves back to its original position:
•As soon as you exceed a speed of 15 km/h.
•About ten seconds after you have disen-
gaged reverse gear.
•If you press button1for the exterior
mirror on the driver's side.
WARNING
•If you use the memory function on the
driver's side while driving, the adjust-
ments could cause you to lose control of
the vehicle. There is a risk of an accident.
Only use the memory function on the
driver's side while the vehicle is station-
ary.
Only use the memory function on the
driver's side while the vehicle is station-
ary.
•If the memory function adjusts the seat,
you and other vehicle occupants-
particularly children-could become
trapped. There is a risk of injury.
While the memory function is making
adjustments, make sure that no one has
any part of their body within the sweep
NIC2637
MEMORY FUNCTION (IF EQUIPPED)
Pre-driving checks and adjustments3-21

of the seat. If someone becomes
trapped, immediately release the
memory function position button The
adjustment is stopped.
•If children activate the memory func-
tion, they could become trapped, espe-
cially if they are unattended. There is a
risk of injury.
When leaving the vehicle, always take
the key with you and lock the vehicle.
Never leave children unattended in the
vehicle.
The memory function can be used at any
time, e.g. even when the key isn't in the igni-
tion lock.
STORING SETTINGS
With the memory function, you can store up
to three different settings.
•Seat and seatback position
•Driver's side: position of the exterior mir-
rors on the driver's and front-passenger
sides.
To store settings:
1.
Adjust the seat (see "Power seat adjustment"
in the "1. Safety — seats, seat belts and
supplemental restraint system" section).
2. Adjust the exterior mirror on the driver's side (see "Adjusting" in the "3. Pre-driving
checks and adjustments" section).
3. Briefly press the M memory button
1,
and then press preset position button 1, 2
or 3
2within three seconds.
The settings are stored in the selected
preset position. A tone sounds when the
settings have been completed.
CALLING UP A STORED SETTING
Press and hold the relevant preset position
button 1, 2 or 3 until the seat and exterior
mirrors are in the stored position.
NOTE
The setting procedure is interrupted as soon
as you release the storage position button.
3-22Pre-driving checks and adjustments
