However, if the occupant is not a small adult,
then this may be due to the following condi-
tions that may be interfering with the weight
sensors:∙ Occupant is not sitting upright, leaning against the seatback, and centered on
the seat cushion with his/her feet com-
fortably extended to the floor.
∙ A child restraint or other object pressing against the rear of the seatback.
∙ A rear passenger pushing or pulling on the back of the front passenger seat.
∙ Forcing the front seat or seatback against an object on the seat or floor
behind it.
∙ An object placed under the front passen- ger seat.
∙ An object placed between the seat cush- ion and center console or between the
seat cushion and the door.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute. NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds ini-
tially.
If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.
2. If the light is OFF with a small adult, child or child restraint occupying the front
passenger seat.
This may be due to the following condi-
tions that may be interfering with the
weight sensors:
∙ Small adult or child is not sitting upright, leaning against the seatback, and cen-
tered on the seat cushion with his/her
feet comfortably extended to the floor.
∙ The child restraint is not properly in- stalled, as outlined in the “Child re-
straints” section of this manual.
∙ An object weighing over 9.1 lbs. (4 kg) hanging on the seat or placed in the seat-
back pocket. ∙ A child restraint or other object pressing
against the rear of the seatback.
∙ A rear passenger pushing or pulling on the back of the front passenger seat.
∙ Forcing the front seat or seatback against an object on the seat or floor
behind it.
∙ An object placed under the front passen- ger seat.
∙ An object placed between the seat cush- ion and center console.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute.
NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds ini-
tially.
If the light is still OFF after this, the small
adult, child or child restraint should be repo-
sitioned in the rear seat and the vehicle
should be checked as soon as possible. It is
recommended that you visit an INFINITI re-
tailer for this service.
1-56Safety—Seats, seat belts and supplemental restraint system

3. If the light is OFF with no front passen-ger and no objects on the front passen-
ger seat the vehicle should be checked as
soon as possible. It is recommended that
you visit an INFINITI retailer for this ser-
vice.
Other supplemental front-impact air bag
precautions
WARNING
∙ Do not place any objects on the steering wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may be-
come dangerous projectiles and cause in-
jury if the front air bags inflate.
∙ Immediately after inflation, several front air bag system components will be hot.
Do not touch them; you may severely
burn yourself.
∙ No unauthorized changes should be made to any components or wiring of the
supplemental air bag system. This is to
prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system. ∙ Do not make unauthorized changes to
your vehicle’s electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the
front air bag system.
∙ Tampering with the front air bag system may result in serious personal injury.
Tampering includes changes to the steer-
ing wheel and the instrument panel as-
sembly by placing material over the
steering wheel pad and above the instru-
ment panel or by installing additional
trim material around the air bag system.
∙ Removing or modifying the front passen- ger seat may affect the function of the air
bag system and result in serious personal
injury. ∙ Modifying or tampering with the front
passenger seat may result in serious per-
sonal injury. For example, do not change
the front seats by placing material on the
seat cushion or by installing additional
trim material, such as seat covers, on the
seat that are not specifically designed to
assure proper air bag operation. Addi-
tionally, do not stow any objects under
the front passenger seat or the seat cush-
ion and seatback. Such objects may inter-
fere with the proper operation of the oc-
cupant classification sensor (weight
sensor).
∙ No unauthorized changes should be made to any components or wiring of the seat
belt system. This may affect the front air
bag system. Tampering with the seat belt
system may result in serious personal
injury.
Safety—Seats, seat belts and supplemental restraint system1-57

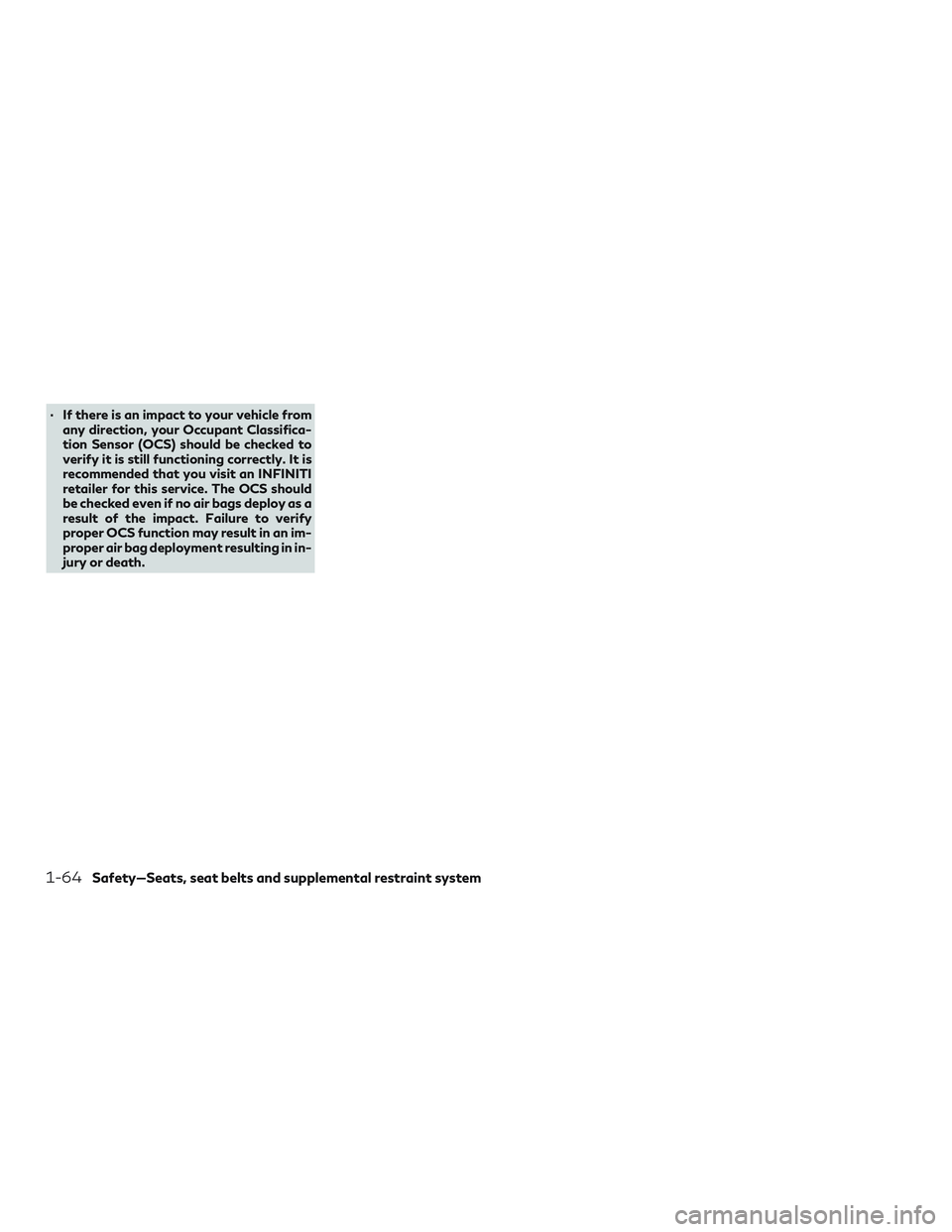

∙ If there is an impact to your vehicle fromany direction, your Occupant Classifica-
tion Sensor (OCS) should be checked to
verify it is still functioning correctly. It is
recommended that you visit an INFINITI
retailer for this service. The OCS should
be checked even if no air bags deploy as a
result of the impact. Failure to verify
proper OCS function may result in an im-
proper air bag deployment resulting in in-
jury or death.
1-64Safety—Seats, seat belts and supplemental restraint system

Push the lever down to operate the wiper at
the following speed:
1Intermittent (INT) — intermittent opera-
tion can be adjusted by turning the knob
toward
A(Slower) orB(Faster). Also,
the intermittent operation speed varies in
accordance with the vehicle speed. (For
example, when the vehicle speed is high,
the intermittent operation speed will be
faster.) Further, if so equipped, the rain-
sensing feature will adjust the speed of
the intermittent operation. For additional
information, refer to “Rain-sensing auto
wiper system” in this section.
2Low (LO) — continuous low speed op-
eration
3High (HI) — continuous high speed opera-
tion
Push the lever up
4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times. NOTE:
The Wiper with Speed feature may be dis-
abled. For additional information, refer to
the separate INFINITI InTouch™ Owner’s
Manual.
RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
CAUTION
∙ Do not touch the rain sensor and around
it when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate un-
expectedly and cause an injury or may
damage a wiper.
LIC3817
2-36Instruments and controls

∙ The rain-sensing auto wipers are in-tended for use during rain. If the switch is
left in the AUTO position, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also
operate when exhaust gas or moisture
affect the rain sensor.
∙ When the windshield glass is coated with water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
∙ Be sure to turn off the rain-sensing auto wiper system when you use a car wash.
∙ The rain-sensing auto wipers may not operate if rain does not hit the rain sensor
even if it is raining.
∙ Using Genuine NISSAN wiper blades is recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, refer to “Wind-
shield wiper blades” in the “Do-it-
yourself” section of this manual.
The rain-sensing auto wiper system can au-
tomatically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield. To set the rain-sensing auto wiper system,
place the lever in the AUTO position1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
2(High) or toward the rear3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the LO or HI position.
The rain-sensing feature may be disabled.
For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
LIC2662
Instruments and controls2-37

Autolight system
The autolight system allows the headlights to
turn on and off automatically. The autolight
system can:∙ Turn on the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
∙ Turn off all the lights (except daylight running lights) when it is light.
∙ Keep all the lights on for a period of time after you place the ignition switch in the
OFF position and all doors are closed. NOTE:
Autolight activation sensitivity and the time
delay for autolight shutoff can be adjusted.
For additional information, refer to the
separate INFINITI InTouch™ Owner’s
Manual.
To turn on the autolight system:
1. Turn the headlight switch to the AUTO position
1.
2. Place the ignition switch in the ON posi- tion.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, turn the
switch to the OFF,
,orposition. Be sure you do not put anything on top of the
autolight sensor located in the top side
1of
the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle’s battery could become discharged.
LIC3819LIC2237
2-40Instruments and controls

Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
The battery saver system automatically turns
off the ignition after a period of time when
the ignition switch is left in the Auto ACC or
ON position.
The battery saver system automatically turns
off the following lights after a period of time
when the ignition switch is placed in the OFF
position and the doors are closed:
∙ Headlights, when the headlight switch is in the
orposition
∙ Interior lights, when left in the ON posi- tion
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is ON and the driver operates the
steering wheel in a turn, the AFS system will
be activated.
The AFS will operate:
∙ when the headlight switch is ON.
∙ when the shift lever is in any position other than P (Park) or R (Reverse).
LSD2712
Instruments and controls2-43

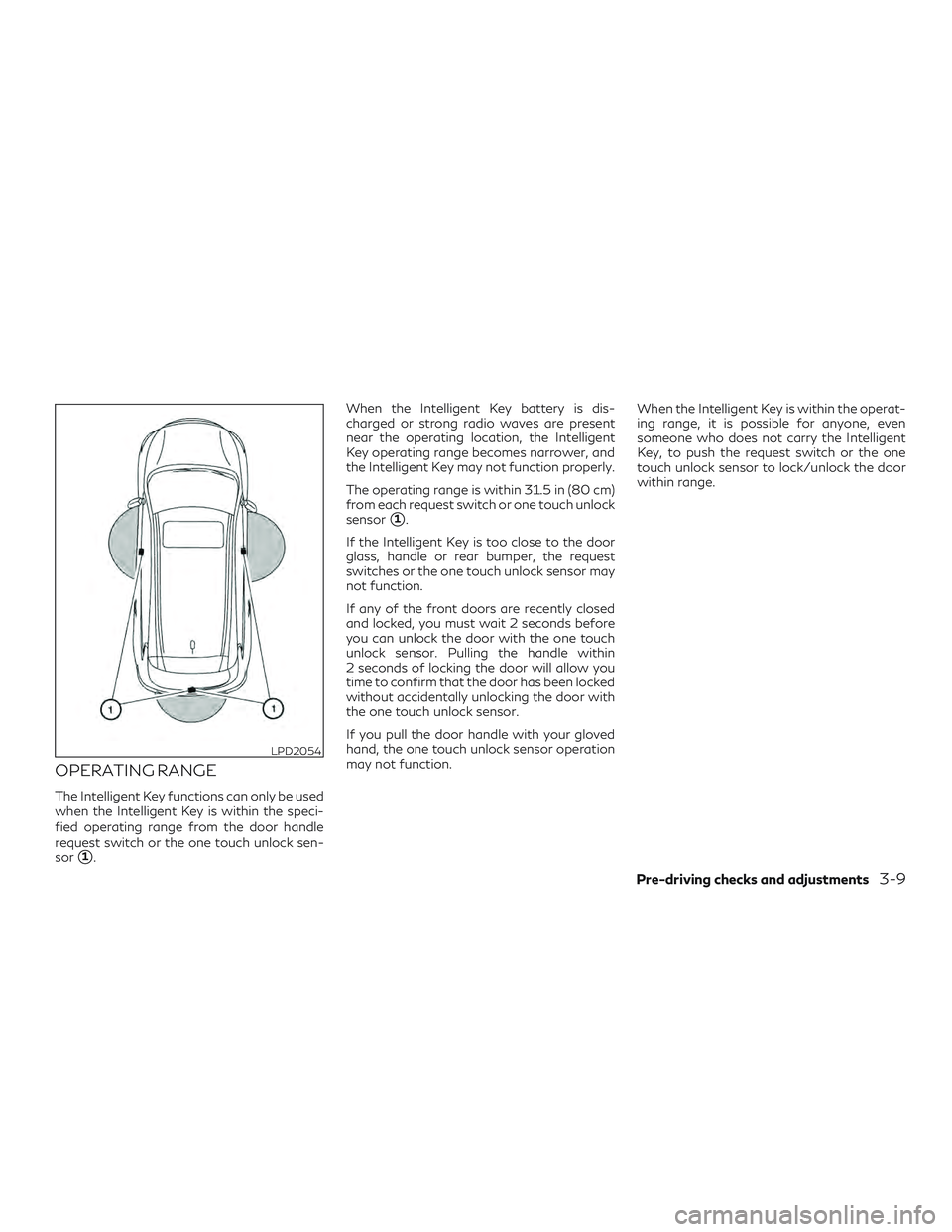

OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range from the door handle
request switch or the one touch unlock sen-
sor
1.When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower, and
the Intelligent Key may not function properly.
The operating range is within 31.5 in (80 cm)
from each request switch or one touch unlock
sensor
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches or the one touch unlock sensor may
not function.
If any of the front doors are recently closed
and locked, you must wait 2 seconds before
you can unlock the door with the one touch
unlock sensor. Pulling the handle within
2 seconds of locking the door will allow you
time to confirm that the door has been locked
without accidentally unlocking the door with
the one touch unlock sensor.
If you pull the door handle with your gloved
hand, the one touch unlock sensor operation
may not function. When the Intelligent Key is within the operat-
ing range, it is possible for anyone, even
someone who does not carry the Intelligent
Key, to push the request switch or the one
touch unlock sensor to lock/unlock the door
within range.
LPD2054
Pre-driving checks and adjustments3-9

DOOR LOCKS/UNLOCKS
PRECAUTION
∙ Do not push the door handle requestswitch with the Intelligent Key held in
your hand as illustrated. The close dis-
tance to the door handle will cause the
Intelligent Key system to have difficulty
recognizing that the Intelligent Key is
outside the vehicle. ∙ Within 2 seconds after the doors are
locked using the door handle request
switch, make sure that the doors have
been securely locked by operating the
door handles. If you keep holding the
door handle for more than 2 seconds af-
ter locking the doors using the door
handle request switch, the door will be
unlocked.
∙ To prevent the Intelligent Key from being left inside the vehicle, make sure you
carry the key with you before locking the
doors and liftgate.
∙ The Intelligent Key system (opening/closing doors with the door
handle request switch or the one touch
unlock sensor) can be set to remain inac-
tive. For additional information, refer to
the separate INFINITI InTouch™ Own-
er’s Manual.
∙ The door cannot be unlocked using the one touch unlock operation after locking
the door within 2 seconds. To unlock the
door, release the one touch unlock sensor
once and touch it again. ∙ If a large amount of water runs down on
the door handle (for example, when
washing the vehicle or in heavy rain), the
door may unlock if the Intelligent Key is in
range of operation. To prevent the door
from being unlocked, the Intelligent Key
should be more than 7 ft (2 m) away from
the vehicle.
∙ Do not hold and pull the door handle quickly. The door will be unlocked but will
not open. Release the door handle once
and pull it again to open the door.
∙ If you pull the door handle with a gloved hand, the one touch unlock operation
may not function.
LPD2716
3-10Pre-driving checks and adjustments

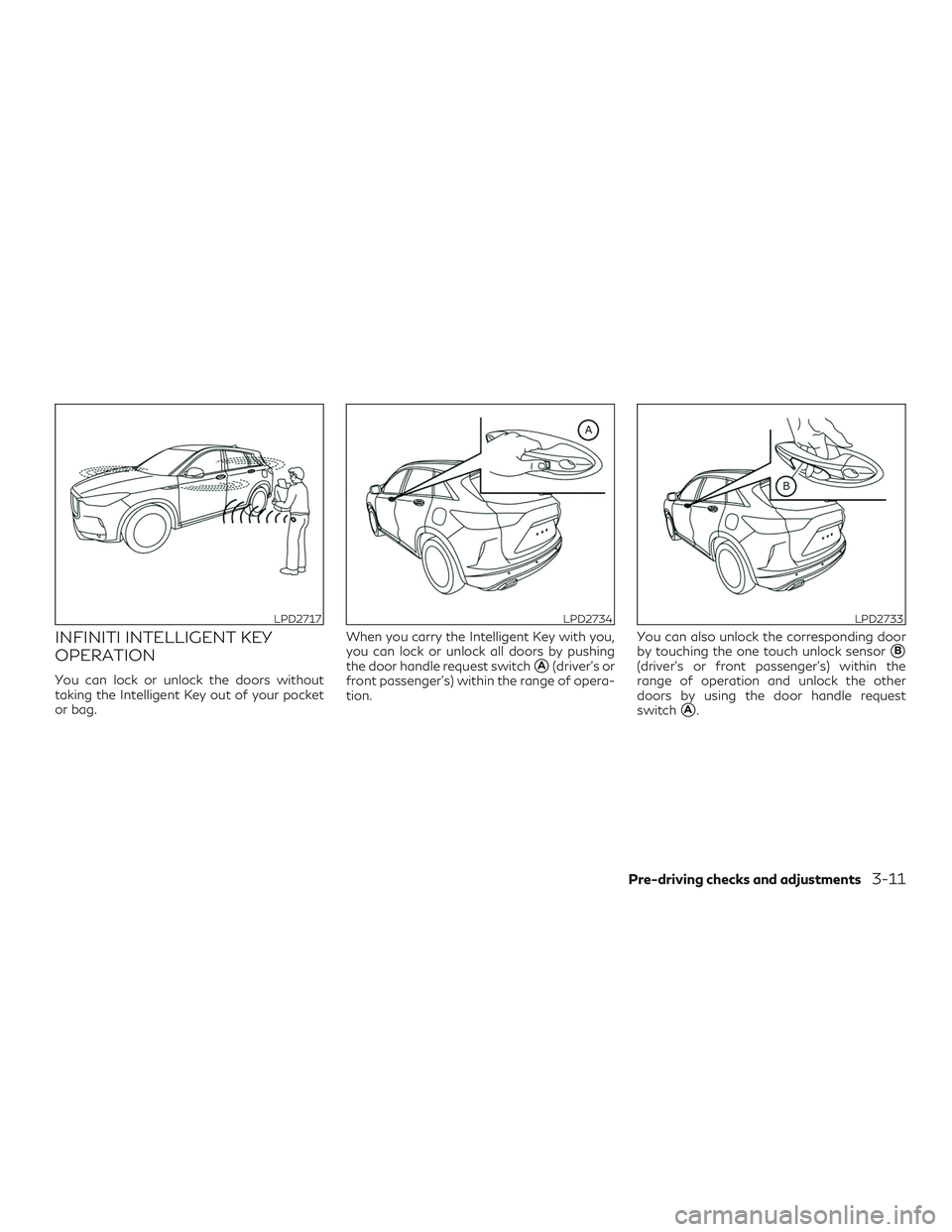

INFINITI INTELLIGENT KEY
OPERATION
You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag.When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switchA(driver’s or
front passenger’s) within the range of opera-
tion. You can also unlock the corresponding door
by touching the one touch unlock sensorB
(driver’s or front passenger’s) within the
range of operation and unlock the other
doors by using the door handle request
switch
A.
LPD2717LPD2734LPD2733
Pre-driving checks and adjustments3-11
