1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Forward” system on or off.
When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.
NOTE:
• The FEB with Pedestrian Detection sys- tem will be automatically turned on when
the engine is restarted.
• The Predictive Forward Collision Warning (PFCW) system (if so equipped) is inte-
grated into the FEB with Pedestrian De-
tection system. There is not a separate se-
lection in the lower display for the PFCW
system. When the FEB with Pedestrian
Detection is turned off, the PFCW system
is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
• The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
• The FEB with Pedestrian Detection sys-
tem does not detect the following:
– Pedestrians that are small (for ex- ample, children), in a sitting position,
operating toys/skateboards, on
scooters or in wheelchairs, or not in
an upright standing or walking
position.
– Animals of any size.
– Obstacles (for examples, cargo or de- bris) on the roadway or roadside.
– Oncoming or crossing vehicles.
– Vehicles where the tires are difficult to see or the shape of the rear of the
vehicle is unclear or obstructed.
– Parked vehicles. •
The FEB with Pedestrian Detection sys-
tem has some performance limitations.
– If a stationary vehicle is in the vehi- cle’s path, the FEB with Pedestrian
Detection system will not function
when the vehicle approaches the sta-
tionary vehicle at speeds over ap-
proximately 50 mph (80 km/h).
– Pedestrian detection will not func- tion when the vehicle is driven at
speeds over approximately 37 mph
(60 km/h) or below approximately 6
mph (10km/h).
• For pedestrians, the FEB with Pedes-
trian Detection system will not issue the
first warning.
• The FEB with Pedestrian Detection sys-
tem may not function properly or detect
a vehicle or pedestrian ahead in the fol-
lowing conditions:
– In poor visibility conditions (such as rain, snow, fog, dust storms, sand
storms, smoke, and road spray from
other vehicles).
– If dirt, ice, snow, fog or other material is covering the radar sensor area or
camera area of windshield.
Starting and driving5-111

– If strong light (for example, sunlightor high beams) enters the front cam-
era or a sudden change in brightness
occurs (for example, entering a tun-
nel or driving in lightning).
– In dark or dimly lit conditions, such as at night or in tunnels, including cases
where your vehicle’s headlights are
off or dim, or the tail lights of the
vehicle ahead are off.
– When the direction of the camera is misaligned.
– When driving on a steep downhill slope, on roads with sharp curves,
and/or bumpy or dirt roads.
– If there is interference by other radar sources.
– When your vehicle’s position or movement is changed quickly or sig-
nificantly (for example, lane change,
turning vehicle, abrupt steering, sud-
den acceleration or deceleration).
– When your vehicle or the vehicle or pedestrian ahead moves quickly or
significantly such that the system
cannot detect and react in time (for
example, pedestrian moving quickly
toward the vehicle at close range, ve-
hicle cutting in, changing lanes, mak-
ing a turn, steering abruptly, sudden
acceleration or deceleration). – When the vehicle or pedestrian is off-
set from the vehicle’s forward path.
– If the speed difference between the two vehicles is small.
– The pedestrian’s profile is partially obscured or unidentifiable; for ex-
ample, due to transporting luggage,
pushing a stroller, wearing bulky or
very loose-fitting clothing or acces-
sories, or being in a unique posture
(such as raising hands).
– There is poor contrast of a person to the background, such as having
clothing color or pattern which is
similar to the background.
– For approximately 15 seconds after starting the engine.
– If the vehicle ahead has a unique or unusual shape, extremely low or high
clearance heights, or unusual cargo
loading or is narrow (for example, a
motorcycle).
– When the vehicle or pedestrian is lo- cated near a traffic sign, a reflective
area (for example, water on road), or
is in a shadow.
– When multiple pedestrians are grouped together.
– When the view of the pedestrian is obscured by a vehicle or other object. – While towing a trailer or other
vehicle.
• The system performance may be de-
graded in the following conditions:
– The vehicle is driven on a slippery road.
– The vehicle is driven on a slope.
– Excessively heavy baggage is loaded in the rear seat or the cargo area of
your vehicle.
• The system is designed to automatically
check the sensor’s (radar and camera)
functionality, within certain limitations.
The system may not detect some forms
of obstruction of the sensor area such as
ice, snow or stickers, for example. In
these cases, the system may not be able
to warn the driver properly. Be sure that
you check, clean and clear sensor areas
regularly.
• In some road and traffic conditions, the
FEB with Pedestrian Detection system
may unexpectedly apply partial braking.
When acceleration is necessary, depress
the accelerator pedal to override the
system.
5-112Starting and driving

Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Forward Driving Aids
temporarily disabled Front Sensor blocked
See Owner’s Manual” warning message will
appear in the vehicle information display.
• The sensor area of the front bumper iscovered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift
position in the P (Park) position and turn the
engine off. Clean the radar sensor area of the
front bumper or the camera area of the wind-
shield with a soft cloth, and restart the en-
gine. If the warning light continues to illumi-
nate, have the FEB with Pedestrian
Detection system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
Condition C:
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls). Action to take
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
5-116Starting and driving

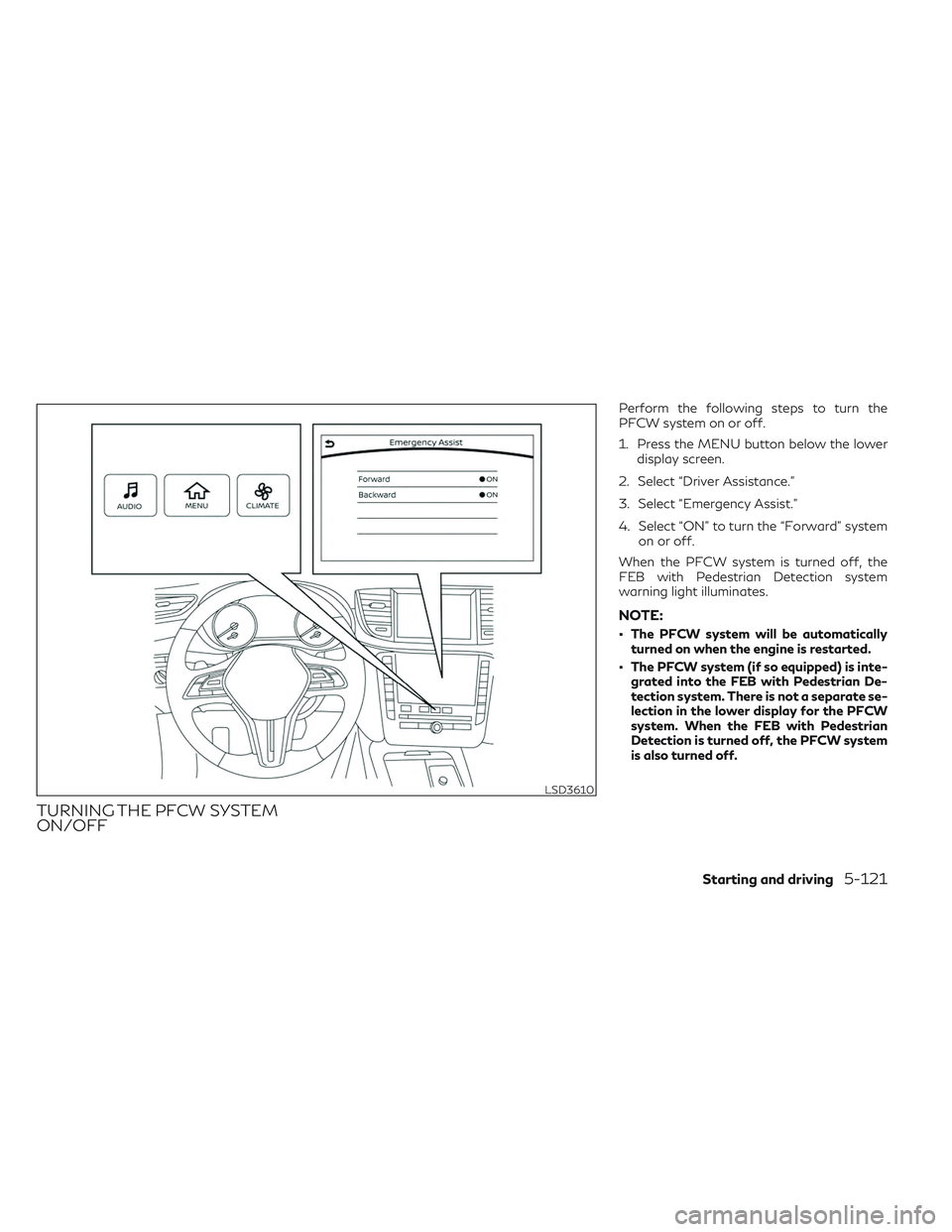

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the
PFCW system on or off.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Emergency Assist.”
4. Select “ON” to turn the “Forward” system on or off.
When the PFCW system is turned off, the
FEB with Pedestrian Detection system
warning light illuminates.
NOTE:
• The PFCW system will be automatically turned on when the engine is restarted.
• The PFCW system (if so equipped) is inte- grated into the FEB with Pedestrian De-
tection system. There is not a separate se-
lection in the lower display for the PFCW
system. When the FEB with Pedestrian
Detection is turned off, the PFCW system
is also turned off.
LSD3610
Starting and driving5-121

Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, press the Park
button to place the vehicle in the P (Park)
position and turn the engine off. Clean the
radar cover on the lower grille with a soft
cloth, and restart the engine. If the warning
light continues to illuminate, have the PFCW
system checked. It is recommended that you
visit an INFINITI retailer for this service.
• When driving on roads with limited roadstructures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls).
Action to take:
When the above conditions no longer exist
the PFCW system will resume automatically
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The sensorOAis located on the front of the
vehicle.
To keep the system operating properly, be
sure to observe the following:
• Always keep the sensor area of the front bumper clean.
• Do not strike or damage the areas around the sensor.
• Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or
malfunction.
LSD2952
5-128Starting and driving

CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle. Failure to follow these recom-
mendations may result in shortened engine
life and reduced engine performance.
• Avoid driving for long periods at constant speed, either fast or slow, and do not run
the engine over 4,000 rpm.
• Do not accelerate at full throttle in any gear.
• Avoid quick starts.
• Avoid hard braking as much as possible.
• Do not tow a trailer for the first 500 miles (805 kilometers). Your engine, axle or other
parts could be damaged. Follow these easy-to-use Fuel Efficient Driv-
ing Tips to help you achieve the most fuel
economy from your vehicle.
1.
Use Smooth Accelerator and Brake Pedal
Application
• Avoid rapid starts and stops.
• Use smooth, gentle accelerator and brake application whenever possible.
• Maintain constant speed while com- muting and coast whenever possible.
2. Maintain Constant Speed
• Look ahead to try and anticipate and minimize stops.
• Synchronizing your speed with traffic lights allows you to reduce your number
of stops.
• Maintaining a steady speed can mini- mize red light stops and improve fuel
efficiency.
3. Use Air Conditioning (A/C) at Higher Ve-
hicle Speeds
• Below 40 mph (64 km/h), it is more efficient to open windows to cool the
vehicle due to reduced engine load.
• Above 40 mph (64 km/h), it is more efficient to use A/C to cool the vehicle
due to increased aerodynamic drag. • Recirculating the cool air in the cabin
when the A/C is on reduces cooling
load.
4. Drive at Economical Speeds and
Distances
• Observing the speed limit and not ex- ceeding 60 mph (97 km/h) (where le-
gally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
• Maintaining a safe following distance behind other vehicles reduces unneces-
sary braking.
• Safely monitoring traffic to anticipate changes in speed permits reduced brak-
ing and smooth acceleration changes.
• Select a gear range suitable to road conditions.
5. Use Cruise Control
• Using cruise control during highway driving helps maintain a steady speed.
• Cruise control is particularly effective in providing fuel savings when driving on
flat terrains.
6. Plan for the Shortest Route
• Utilize a map or navigation system to determine the best route to save time.
BREAK-IN SCHEDULE FUEL EFFICIENT DRIVING TIPS
5-130Starting and driving

7.Avoid Idling
• Shutting off your engine when safe for stops exceeding 30–60 seconds saves
fuel and reduces emissions.
8. Buy an Automated Pass for Toll Roads
• Automated passes permit drivers to use special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
9. Winter Warm Up
• Limit idling time to minimize impact to fuel economy.
• Vehicles typically need no more than 30 seconds of idling at start-up to effec-
tively circulate the engine oil before
driving.
• Your vehicle will reach its ideal operat- ing temperature more quickly while driv-
ing versus idling.
10. Keeping your Vehicle Cool
• Park your vehicle in a covered parking area or in the shade whenever possible.
• When entering a hot vehicle, opening the windows will help to reduce the in-
side temperature faster, resulting in re-
duced demand on your A/C system. • Keep your engine tuned up.
• Follow the recommended scheduled
maintenance.
• Keep the tires inflated to the correct pres- sure. Low tire pressure increases tire wear
and lowers fuel economy.
• Keep all the wheels in correct alignment. Improper alignment increases tire wear and
lowers fuel economy.
• Use the recommended viscosity engine oil. For additional information, see “Engine oil
and oil filter recommendations” (P. 10-6).
If any malfunction occurs in the Intelligent
AWD system while the engine is running,
messages are displayed in the meter.
If the AWD error warning message is dis-
played, there may be a malfunction in the
Intelligent AWD system. Reduce vehicle
speed and have your vehicle checked as soon
as possible. It is recommended that you visit
an INFINITI retailer for this service.
LSD4617
INCREASING FUEL ECONOMY INTELLIGENT ALL-WHEEL DRIVE(AWD) (if so equipped)
Starting and driving5-131

The AWD high temperature message may be
displayed while trying to free a stuck vehicle
due to increased oil temperature. The driving
mode may change to 2-Wheel Drive (2WD).
If this message is displayed, stop the vehicle
with the engine idling, as soon as it is safe to
do so. Then if the message turns off, you can
continue driving.The tire size message may be displayed if
there is a large difference between the diam-
eters of front and rear wheels. Pull off the
road in a safe area, with the engine idling.
Check that all tire sizes are the same, that the
tire pressure is correct and that the tires are
not excessively worn.
If any warning messages continue to be dis-
played, have your vehicle checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
• Do not drive beyond the performance ca-
pability of the tires. Accelerating quickly,
sharp steering maneuvers or sudden
braking may cause loss of control, even
with Intelligent AWD engaged.
• For AWD equipped vehicles, do not at-
tempt to raise two wheels off the ground
and shift the transmission to any drive or
reverse position with the engine running.
Doing so may result in drivetrain damage
or unexpected vehicle movement which
could result in serious personal injury or
vehicle damage.
• Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing) or similar equipment even if the
other two wheels are raised off the
ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in drivetrain dam-
age or unexpected vehicle movement
which could result in serious personal in-
jury or vehicle damage.
LSD4618LSD4619
5-132Starting and driving

CAUTION
• Do not operate the engine on a free roller
when any of the wheels are raised.
• If you use the free roller, rotate four
wheels with the same speed without
raising any wheels.
• If an AWD warning message is displayed
while driving there may be a malfunction
in the AWD system. Reduce the vehicle
speed immediately and have your vehicle
checked as soon as possible. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
• The powertrain may be damaged if you
continue driving when the AWD tem-
perature or tire size incorrect messages
are displayed.
• If the AWD high temperature message is
displayed while you are driving, pull off
the road in a safe area, and idle the en-
gine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning message
turns off, you can drive again. •
If the tire size incorrect message is dis-
played while you are driving, pull off the
road in a safe area with the engine idling.
Check that all tire sizes are the same,
that the tire pressure is correct and that
the tires are not excessively worn.
• If a warning message continues to be dis-
played after the above operations, have
your vehicle checked as soon as possible.
It is recommended that you visit an
INFINITI retailer for this service.
Starting and driving5-133

WARNING
• Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.
• Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park). Fail-
ure to do so could cause the vehicle to
move unexpectedly or roll away and re-
sult in an accident. Make sure the shift
lever has been pushed as far forward as it
can go and cannot be moved without de-
pressing the foot brake pedal. •
Never leave the engine running while the
vehicle is unattended.
• Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents. •
To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
1. Apply the electronic parking brake.
2. Press the Park button to place the vehicle in the P (Park) position.
3. To help prevent the vehicle from rolling into traffic when parked on an incline, it is
a good practice to turn the wheels as
illustrated.
• HEADED DOWNHILL WITH CURB
OA:
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.
• HEADED UPHILL WITH CURB
OB:
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
WSD0050
PARKING/PARKING ON HILLS
5-134Starting and driving
