2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ...............................2-4
Speedometer and odometer ...................2-4
Tachometer ...................................2-6
Engine coolant temperature gauge .............2-6
Fuel gauge ....................................2-7
Warning lights, indicator lights and audible
reminders ........................................2-8
Checking lights ................................2-8
Warning lights ................................2-9
Indicator lights .............................. 2-13
Audible reminders ............................ 2-15
Vehicle information display .....................2-16
How to use the vehicle information
display ....................................... 2-17
Startup display ............................... 2-17
Resetting the trip computer ...................2-17
Settings ...................................... 2-17
Vehicle information display warnings and
indicators ................................... 2-26
Security systems ............................... 2-32
Vehicle security system ......................2-32
INFINITI Vehicle Immobilizer System .........2-34
Wiper and washer switch .......................2-35Switch operation
............................ 2-35
Rain-sensing auto wiper system
(if so equipped) .............................. 2-36
Rear switch operation ....................... 2-38
Rear window and outside mirror defroster
switch ......................................... 2-39
Headlight and turn signal switch ................2-39
Xenon headlights (if so equipped) ............2-39
Headlight control switch .....................2-40
LED Daytime Running Lights (DRL)
system ...................................... 2-44
Instrument brightness control ................2-44
Turn signal switch ........................... 2-45
Fog light switch ............................. 2-45
Horn ........................................... 2-46
Climate controlled seat switches
(if so equipped) ................................. 2-46
Heated seat switches (if so equipped) ...........2-47
Heated 2nd

row seat switches (if so equipped) . . 2-48
Heated steering wheel switch (if so equipped) . . . 2-49
Warning systems switch (if so equipped) ........2-50
Vehicle Dynamic Control (VDC) OFF switch ......2-51
Rear Door Alert ................................. 2-51
Power inverter switch (if so equipped) ...........2-52

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key. 3. Place the ignition switch in the ON posi-
tion. The settings linked to the Intelligent
Key will start. .
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual or the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 4 mph (7 km/h).
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while the au-
tomatic drive positioner is operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

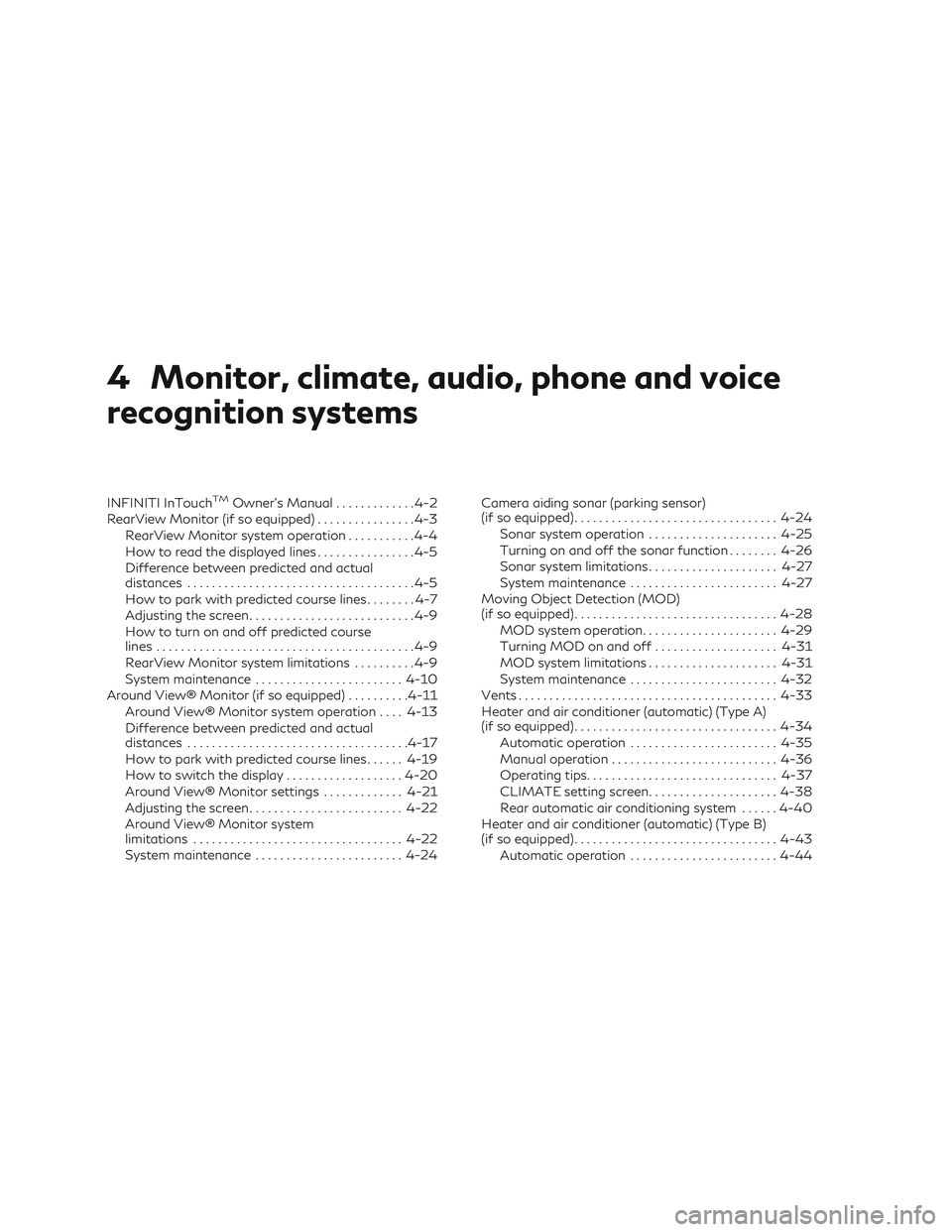

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-13
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-19
How to switch the display ...................4-20
Around View® Monitor settings .............4-21
Adjusting the screen ......................... 4-22
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera aiding sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar system operation .....................4-25
Turning on and off the sonar function ........4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-27
Moving Object Detection (MOD)
(if so equipped) ................................. 4-28
MOD system operation ......................4-29
Turning MOD on and off ....................4-31
MOD system limitations .....................4-31
System maintenance ........................ 4-32
Vents .......................................... 4-33
Heater and air conditioner (automatic) (Type A)
(if so equipped) ................................. 4-34
Automatic operation ........................ 4-35
Manual operation ........................... 4-36
Operating tips ............................... 4-37

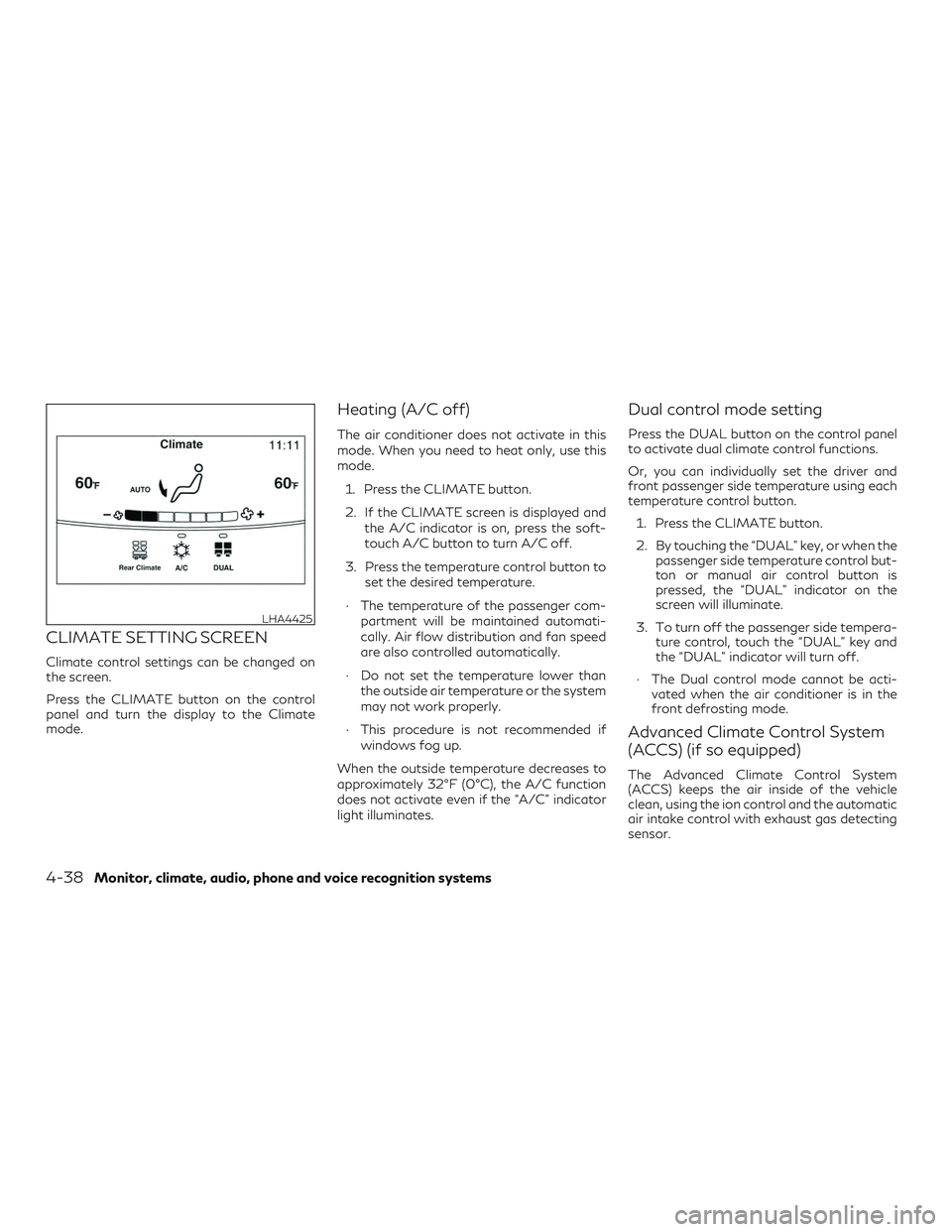

CLIMATE setting screen .....................4-38
Rear automatic

air conditioning system ......4-40
Heater and air conditioner (automatic) (Type B)
(if so equipped) ................................. 4-43

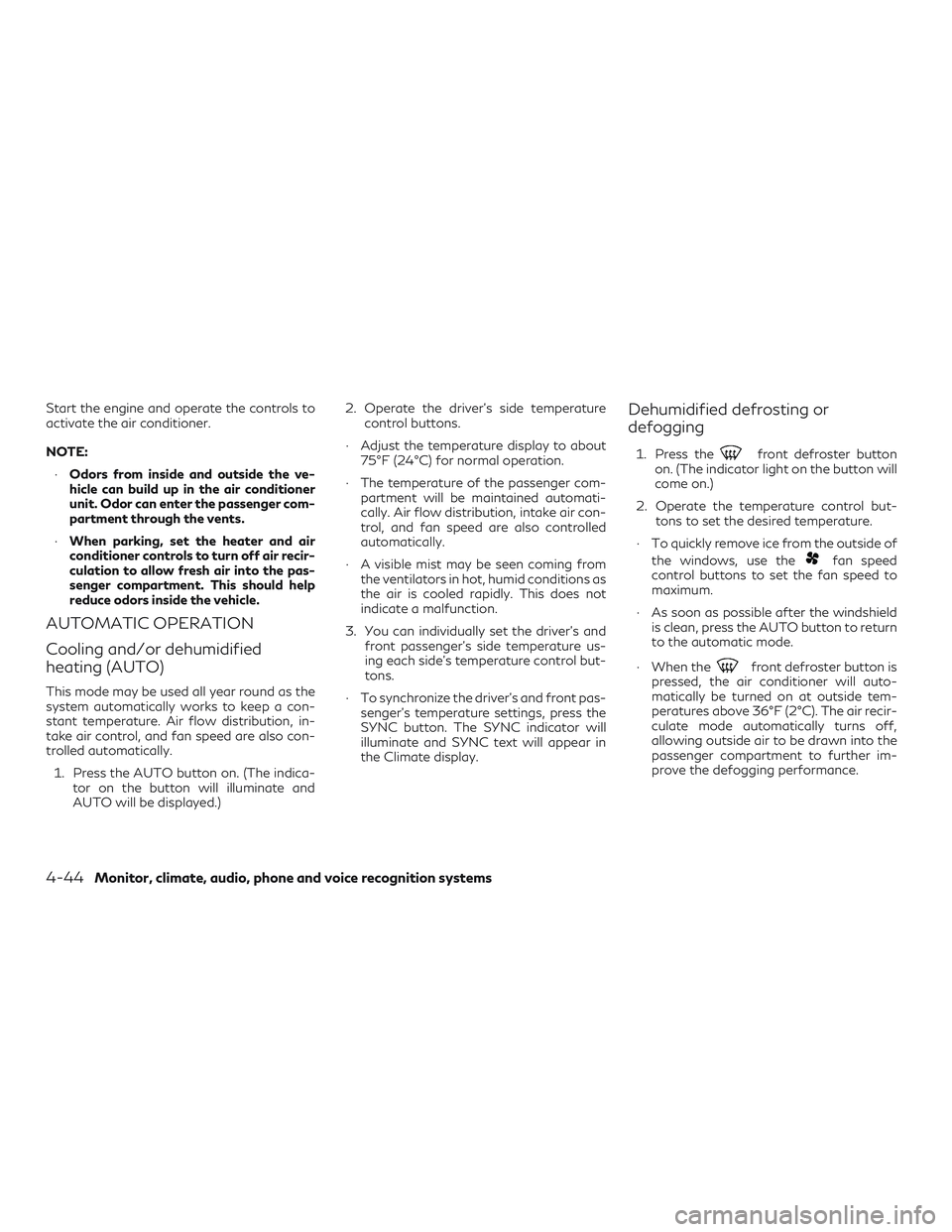

Automatic operation ........................ 4-44

Refer to the INFINITI InTouchTMOwner’s
Manual that includes the following informa-
tion.
∙ INFINITI InTouch
TMServices
(if so equipped)
∙ Navigation system (if so equipped)
∙ Audio system
∙ Bluetooth® Hands-Free Phone system
∙ Viewing information
∙ Other settings
∙ Voice recognition
∙ General system information
INFINITI INTOUCHTM
OWNER’S MANUAL
4-2Monitor, climate, audio, phone and voice recognition systems

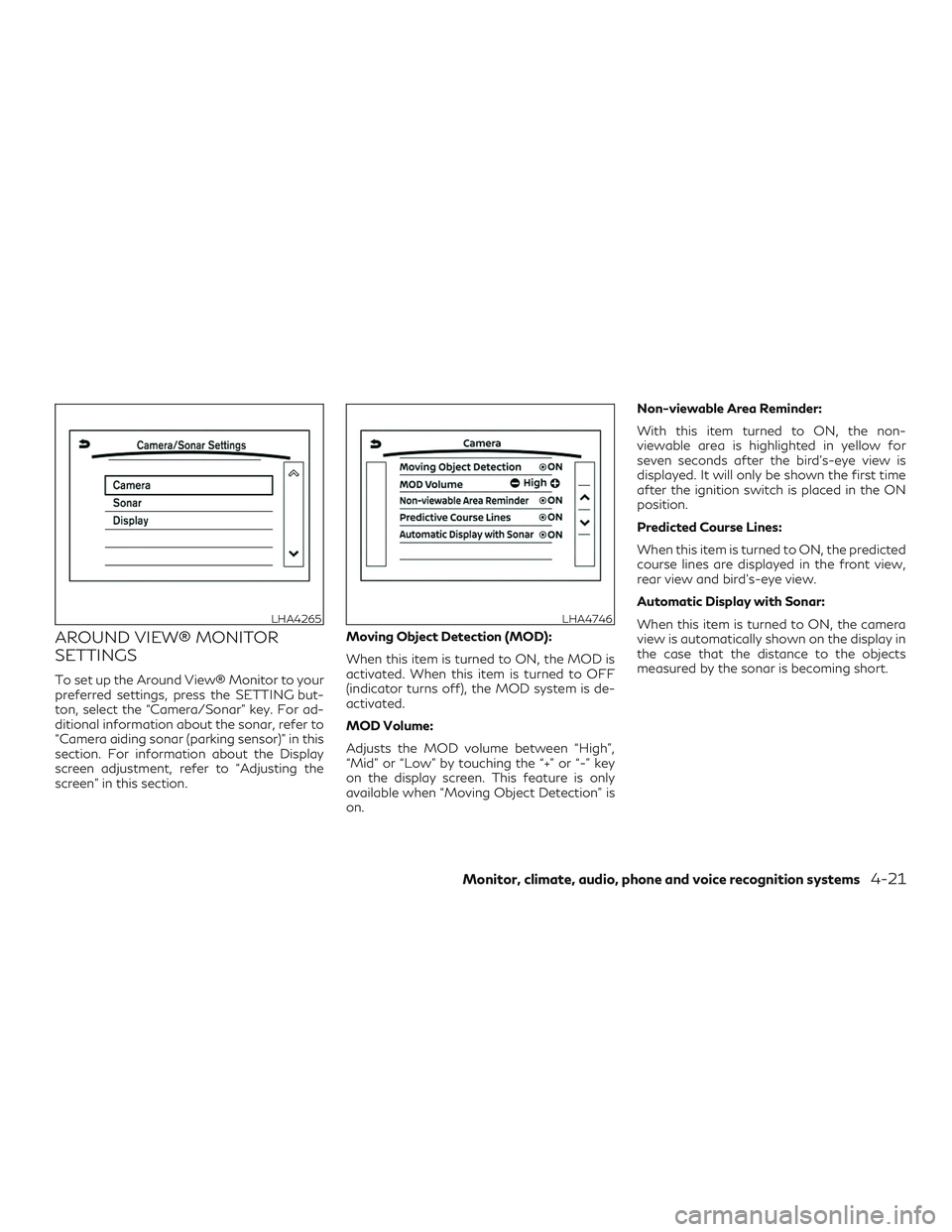

AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the SETTING but-
ton, select the “Camera/Sonar” key. For ad-
ditional information about the sonar, refer to
“Camera aiding sonar (parking sensor)” in this
section. For information about the Display
screen adjustment, refer to “Adjusting the
screen” in this section.Moving Object Detection (MOD):
When this item is turned to ON, the MOD is
activated. When this item is turned to OFF
(indicator turns off), the MOD system is de-
activated.
MOD Volume:
Adjusts the MOD volume between “High”,
“Mid” or “Low” by touching the “+” or “-” key
on the display screen. This feature is only
available when “Moving Object Detection” is
on.Non-viewable Area Reminder:
With this item turned to ON, the non-
viewable area is highlighted in yellow for
seven seconds after the bird’s-eye view is
displayed. It will only be shown the first time
after the ignition switch is placed in the ON
position.
Predicted Course Lines:
When this item is turned to ON, the predicted
course lines are displayed in the front view,
rear view and bird’s-eye view.
Automatic Display with Sonar:
When this item is turned to ON, the camera
view is automatically shown on the display in
the case that the distance to the objects
measured by the sonar is becoming short.
LHA4265LHA4746
Monitor, climate, audio, phone and voice recognition systems4-21

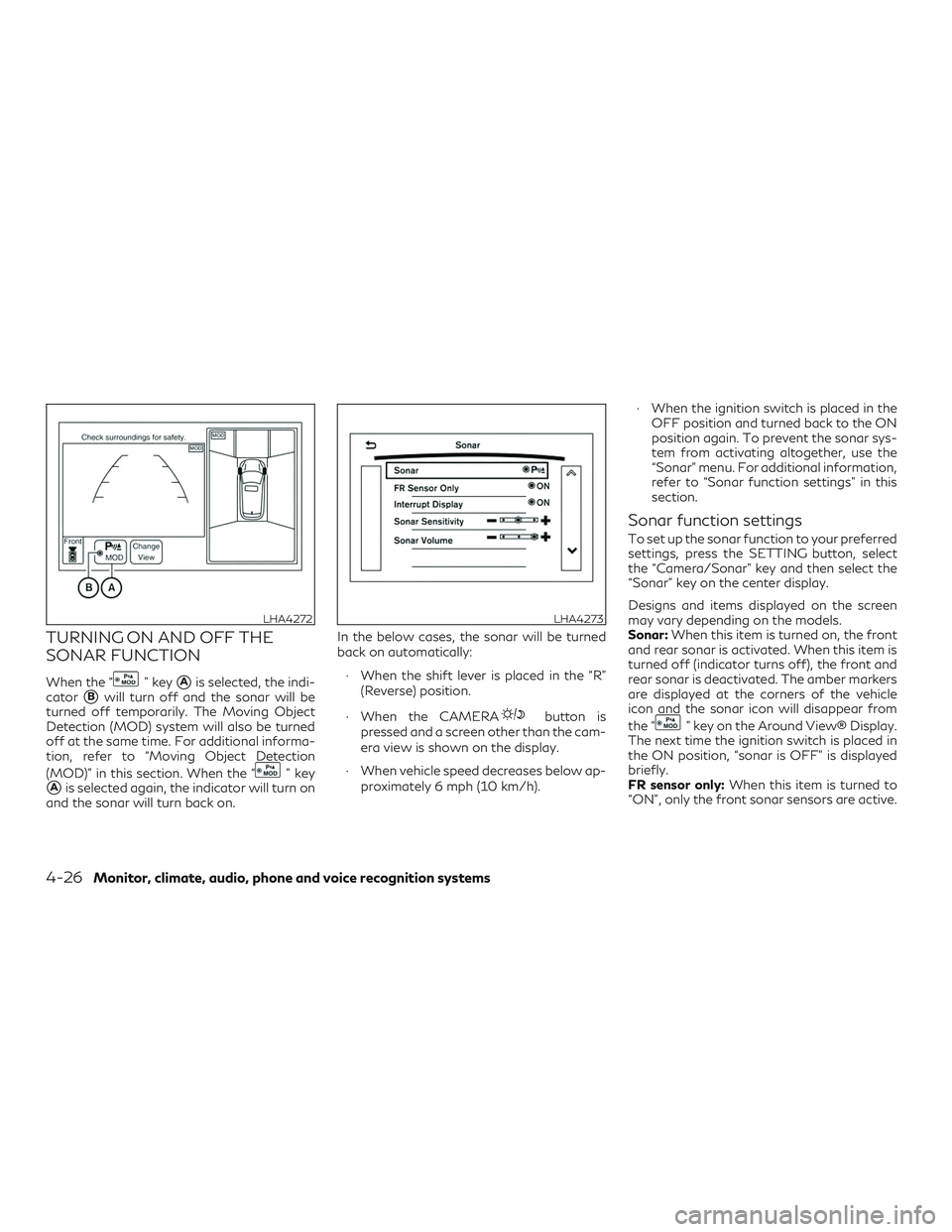

TURNING ON AND OFF THE
SONAR FUNCTION
When the “” keyAis selected, the indi-
cator
Bwill turn off and the sonar will be
turned off temporarily. The Moving Object
Detection (MOD) system will also be turned
off at the same time. For additional informa-
tion, refer to “Moving Object Detection
(MOD)” in this section. When the “
” key
Ais selected again, the indicator will turn on
and the sonar will turn back on. In the below cases, the sonar will be turned
back on automatically:
∙ When the shift lever is placed in the “R” (Reverse) position.
∙ When the CAMERA
button is
pressed and a screen other than the cam-
era view is shown on the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h). ∙ When the ignition switch is placed in the
OFF position and turned back to the ON
position again. To prevent the sonar sys-
tem from activating altogether, use the
“Sonar” menu. For additional information,
refer to “Sonar function settings” in this
section.
Sonar function settings
To set up the sonar function to your preferred
settings, press the SETTING button, select
the “Camera/Sonar” key and then select the
“Sonar” key on the center display.
Designs and items displayed on the screen
may vary depending on the models.
Sonar: When this item is turned on, the front
and rear sonar is activated. When this item is
turned off (indicator turns off), the front and
rear sonar is deactivated. The amber markers
are displayed at the corners of the vehicle
icon and the sonar icon will disappear from
the “
” key on the Around View® Display.
The next time the ignition switch is placed in
the ON position, “sonar is OFF” is displayed
briefly.
FR sensor only: When this item is turned to
“ON”, only the front sonar sensors are active.
LHA4272LHA4273
4-26Monitor, climate, audio, phone and voice recognition systems

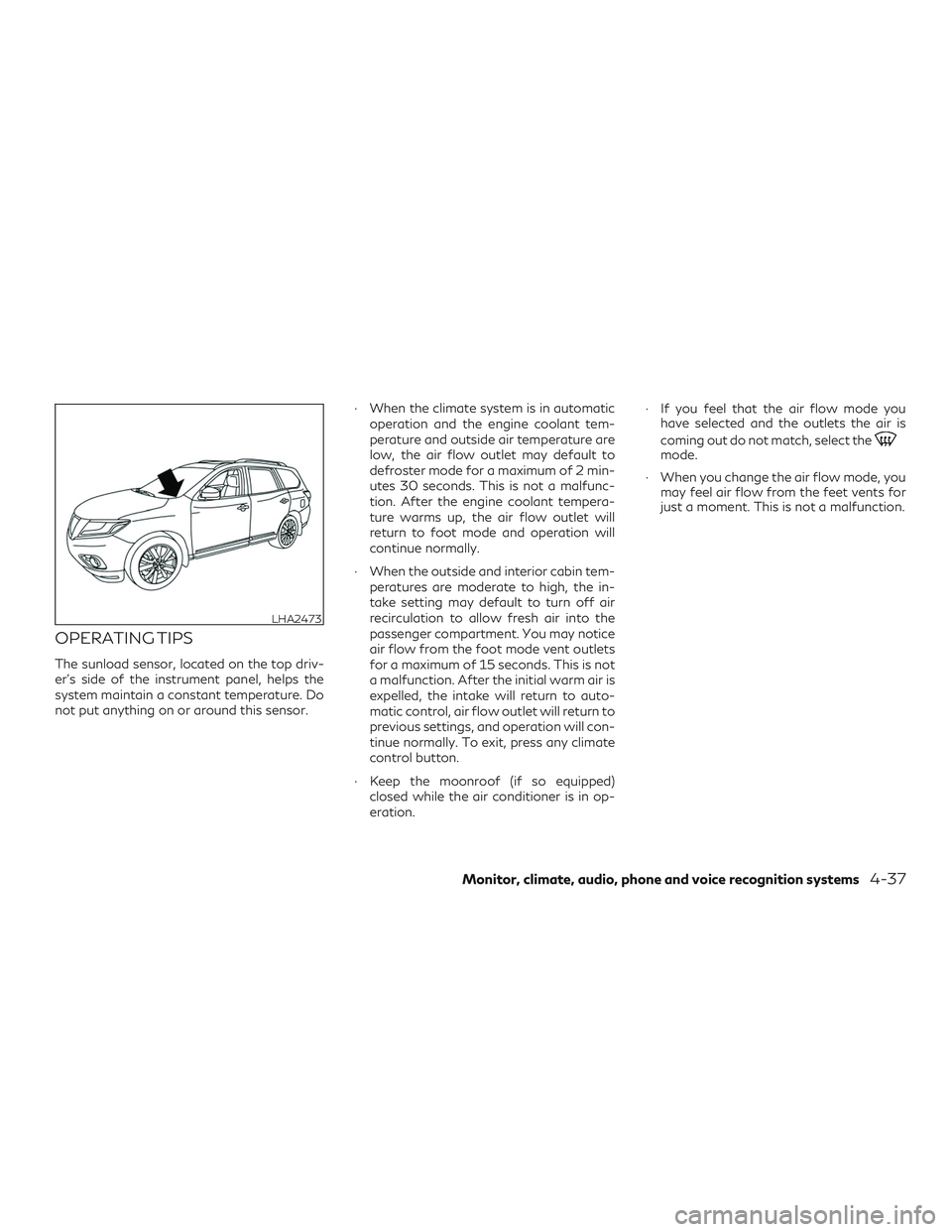

OPERATING TIPS
The sunload sensor, located on the top driv-
er’s side of the instrument panel, helps the
system maintain a constant temperature. Do
not put anything on or around this sensor.∙ When the climate system is in automatic
operation and the engine coolant tem-
perature and outside air temperature are
low, the air flow outlet may default to
defroster mode for a maximum of 2 min-
utes 30 seconds. This is not a malfunc-
tion. After the engine coolant tempera-
ture warms up, the air flow outlet will
return to foot mode and operation will
continue normally.
∙ When the outside and interior cabin tem- peratures are moderate to high, the in-
take setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may notice
air flow from the foot mode vent outlets
for a maximum of 15 seconds. This is not
a malfunction. After the initial warm air is
expelled, the intake will return to auto-
matic control, air flow outlet will return to
previous settings, and operation will con-
tinue normally. To exit, press any climate
control button.
∙ Keep the moonroof (if so equipped) closed while the air conditioner is in op-
eration. ∙ If you feel that the air flow mode you
have selected and the outlets the air is
coming out do not match, select the
mode.
∙ When you change the air flow mode, you may feel air flow from the feet vents for
just a moment. This is not a malfunction.
LHA2473
Monitor, climate, audio, phone and voice recognition systems4-37

CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Press the CLIMATE button on the control
panel and turn the display to the Climate
mode.
Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Press the CLIMATE button.
2. If the CLIMATE screen is displayed and the A/C indicator is on, press the soft-
touch A/C button to turn A/C off.
3. Press the temperature control button to set the desired temperature.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 32°F (0°C), the A/C function
does not activate even if the “A/C” indicator
light illuminates.
Dual control mode setting
Press the DUAL button on the control panel
to activate dual climate control functions.
Or, you can individually set the driver and
front passenger side temperature using each
temperature control button. 1. Press the CLIMATE button.
2. By touching the “DUAL” key, or when the passenger side temperature control but-
ton or manual air control button is
pressed, the “DUAL” indicator on the
screen will illuminate.
3. To turn off the passenger side tempera- ture control, touch the “DUAL” key and
the “DUAL” indicator will turn off.
∙ The Dual control mode cannot be acti- vated when the air conditioner is in the
front defrosting mode.
Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System
(ACCS) keeps the air inside of the vehicle
clean, using the ion control and the automatic
air intake control with exhaust gas detecting
sensor.
LHA4425
4-38Monitor, climate, audio, phone and voice recognition systems

Start the engine and operate the controls to
activate the air conditioner.
NOTE:∙ Odors from inside and outside the ve-
hicle can build up in the air conditioner
unit. Odor can enter the passenger com-
partment through the vents.
∙ When parking, set the heater and air
conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified
heating (AUTO)
This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, in-
take air control, and fan speed are also con-
trolled automatically.
1. Press the AUTO button on. (The indica- tor on the button will illuminate and
AUTO will be displayed.) 2. Operate the driver’s side temperature
control buttons.
∙ Adjust the temperature display to about 75°F (24°C) for normal operation.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution, intake air con-
trol, and fan speed are also controlled
automatically.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
3. You can individually set the driver’s and front passenger’s side temperature us-
ing each side’s temperature control but-
tons.
∙ To synchronize the driver’s and front pas- senger’s temperature settings, press the
SYNC button. The SYNC indicator will
illuminate and SYNC text will appear in
the Climate display.
Dehumidified defrosting or
defogging
1. Press thefront defroster button
on. (The indicator light on the button will
come on.)
2. Operate the temperature control but- tons to set the desired temperature.
∙ To quickly remove ice from the outside of the windows, use the
fan speed
control buttons to set the fan speed to
maximum.
∙ As soon as possible after the windshield is clean, press the AUTO button to return
to the automatic mode.
∙ When the
front defroster button is
pressed, the air conditioner will auto-
matically be turned on at outside tem-
peratures above 36°F (2°C). The air recir-
culate mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.
4-44Monitor, climate, audio, phone and voice recognition systems

Remote Engine Start with
Intelligent Climate Control
(if so equipped)
Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is turned on. In Remote
Engine Start defrosting mode, the rear win-
dow defroster and heated steering wheel (if
so equipped) may be activated automatically.
Voice Recognition logic
(if so equipped)
When the climate control system is on, the
front and rear fan speeds may be automati-
cally lowered so that commands are more
easily recognized. Fan speed can be adjusted
using the fan speed
decrease
and
increase buttons, if desired.
MANUAL OPERATION
Fan speed control buttons
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to auto-
matic control of the fan speed.
Temperature control
Press thetemperature control buttons
up or down to set the desired temperature.
The temperature can be set within the fol-
lowing range:
∙ For U.S.: 60 to 90ºF (16 to 32ºC)
∙ For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to re-
circulate interior air inside the vehicle.
The
indicator light on the button will
come on.
The air recirculation cannot be activated
when the air conditioner is in the
front
defrosting mode.
When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit air recirculation mode, deselect the air recir-
culation button (indicator will turn off) to en-
ter fresh air mode.
Automatic intake air control
In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, press the
air recirculation
button.
Air flow control
Press thebutton to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the center
display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from footoutlets.
— Air flows from defroster andfoot outlets.
Synchronize climate settings
Press the SYNC button to synchronize cli-
mate settings. The sync indicator will turn on
and SYNC text will appear in the Climate
display.
Monitor, climate, audio, phone and voice recognition systems4-45
