Seat belt extenders are available for the:
• Driver and front passenger seating position
• 2nd and 3rd row seating position
It is recommended that you visit an INFINITI
retailer for assistance with purchasing an ex-
tender if an extender is required.
WARNING
• Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with INFINITI seat belts.
• Adults and children who can use the
standard seat belt should not use an ex-
tender. Such unnecessary use could re-
sult in serious personal injury in the event
of an accident.
• Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured or killed in a collision or
a sudden stop.
SEAT BELT MAINTENANCE
• To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpet.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are com-
pletely dry.
• If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
• Periodically check to see that the seat belt
and the metal components, such as buck-
les, tongues, retractors, flexible wires and
anchors, work properly. If loose parts, de-
terioration, cuts or other damage on the
webbing is found, the entire seat belt as-
sembly should be replaced.WARNING
Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the
ALR mode activated, the child can be seri-
ously injured or killed if the seat belt re-
tracts and becomes tight. This can occur
even if the vehicle is parked. Unbuckle the
seat belt to release the child. If the seat belt
cannot be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife or
scissors) to release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices,
and community organizations. Every child is
different, so be sure to learn the best way to
transport your child.
CHILD SAFETY
Safety-Seats, seat belts and supplemental restraint system1-25
Page 52 of 636

There are three basic types of child restraint
systems:
• Rear-facing child restraint
• Forward-facing child restraint
• Booster seat
The proper restraint depends on the child's
size. Generally, infants up to about 1 year and
less than 20 lbs. (9 kg) should be placed in
rear-facing child restraints. Forward-facing
child restraints are available for children who
outgrow rear-facing child restraints and are
at least 1 year old. Booster seats are used to
help position a vehicle lap/shoulder belt on a
child who can no longer use a forward-facing
child restraint.
WARNING
Infants and children need special protec-
tion. The vehicle's seat belts may not fit
them properly. The shoulder belt may come
too close to the face or neck. The lap belt
may not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints. All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. For
additional information, see “Child restraints”
(P. 1-28).
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor
and Tethers for CHildren) system or with the
vehicle seat belt. For additional information,
see “Child restraints” (P. 1-28).
INFINITI recommends that all pre-teens and
children be restrained in the rear seats.
Studies show that children are safer when
properly restrained in a rear seat than in the
front seat.
This is especially important because your
vehicle has a supplemental restraint system
(air bag system) for the front passenger.
For additional information, see “Child re-
straints” (P. 1-28) and “Supplemental Re-
straint System (SRS)” (P. 1-54).
INFANTS
Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
INFINITI recommends that infants be placed
in child restraints that comply with Federal
Motor Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards. You should
choose a child restraint that fits your vehicle
and always follow the manufacturer's in-
structions for installation and use.
SMALL CHILDREN
Children that are over 1 year old and weigh at
least 20 lbs. (9 kg) should remain in a rear-
facing child restraint as long as possible up to
the height or weight limit of the child re-
straint. Children who outgrow the height or
weight limit of the rear-facing child restraint
and are at least 1 year old should be secured
in a forward-facing child restraint with a har-
ness. Refer to the manufacturer’s instructions
for minimum and maximum weight and
height recommendations. INFINITI recom-
mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose
a child restraint that fits your vehicle and
always follow the manufacturer’s instruc-
tions for installation and use.
1-26Safety-Seats, seat belts and supplemental restraint system
Page 53 of 636

LARGER CHILDREN
Children should remain in a forward-facing
child restraint with a harness until they reach
the maximum height or weight limit allowed
by the child restraint manufacturer.
Once a child outgrows the height or weight
limit of the harness-equipped forward-facing
child restraint, INFINITI recommends that
the child be placed in a commercially available
booster seat to obtain proper seat belt fit. For
a seat belt to fit properly, the booster seat
should raise the child so that the shoulder belt
is properly positioned across the chest and
the top, middle portion of the shoulder. The
shoulder belt should not cross the neck or
face and should not fall off the shoulder. The
lap belt should lie snugly across the lower hips
or upper thighs, not the abdomen. A booster
seat can only be used in seating positions that
have a three-point type seat belt. The
booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has grown so the shoulder belt
is no longer on or near the face and neck and
the lap belt can be positioned properly across
the lower hips or upper thighs, use the seat
belt without the booster seat.A booster seat should be used until the child
can pass the seat belt fit test below:
• Are the child’s back and hips against the
vehicle seatback?
• Is the child able to sit without slouching?
• Do the child’s knees bend easily over the front edge of the seat with feet flat on the
floor?
• Can the child safely wear the seat belt (lap belt low and snug across the hips and
shoulder belt across mid-chest and
shoulder)?
• Is the child able to use the properly adjusted head restraint/headrest?
• Will the child be able to stay in position for the entire ride? If you answered no to any of these questions,
the child should remain in a booster seat us-
ing a three-point type seat belt.
NOTE:
Laws in some communities may follow dif-
ferent guidelines. Check local and state
regulations to confirm your child is using the
correct restraint system before traveling.
LRS2690
Safety-Seats, seat belts and supplemental restraint system1-27
Page 54 of 636

WARNING
Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or killed
in a sudden stop or collision.
PRECAUTIONS ON CHILD
RESTRAINTS
WARNING
• Failure to follow the warnings and in-
structions for proper use and installation
of child restraints could result in serious
injury or death of a child or other passen-
gers in a sudden stop or collision:
– The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer's
instructions for installation and use. –
Infants and children should never be
held on anyone's lap. Even the stron-
gest adult cannot resist the forces of
a collision.
– Do not put a seat belt around both a
child and another passenger.
–
INFINITI recommends that all child re-
straints be installed in the rear seat.
Studies show that children are safer
when properly restrained in the rear
seat than in the front seat. If you must
install a forward-facing child restraint
in the front seat, see “Forward-facing
child restraint installation using the
seat belts” (P. 1-45).
ARS1098ARS1098
CHILD RESTRAINTS
1-28Safety-Seats, seat belts and supplemental restraint system
Page 55 of 636

–Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front seat.
An inflating air bag could seriously in-
jure or kill a child. A rear-facing child
restraint must only be used in the rear
seat.
– Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle. –
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.
– Never use the anchor points for adult
seat belts, or other items.
– A child restraint with a top tether
strap should not be used in the front
passenger seat.
– Keep seatbacks as upright as possible
after fitting the child restraint.
– Infants and children should always be
placed in an appropriate child re-
straint while in the vehicle.
• When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occupants
or damage the vehicle.
CAUTION
• A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
• 2nd row one touch function should not
be used when a child restraint is
occupied.
• The 2nd row one touch button is enabled
when the vehicle is stopped. If the button
is pressed the seat will unlatch and may
move.
• To prevent personal injury supervise
children occupying the 2nd and 3rd rows
and prevent them from operating child
seat access mode.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attachments
that can be connected to these anchors. For
additional information, see “LATCH (Lower
Anchors and Tethers for CHildren) system”
(P. 1-30).
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
WRS0256
Safety-Seats, seat belts and supplemental restraint system1-29
Page 56 of 636

Several manufacturers offer child restraints
for infants and children of various sizes.
When selecting any child restraint, keep the
following points in mind:
• Choose only a restraint with a label certify-ing that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
• Check the child restraint in your vehicle to be sure it is compatible with the vehicle's
seat and seat belt system.
•
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be sure
the child restraint is compatible with your
child. Choose a child restraint that is de-
signed for your child's height and weight.
Always follow all recommended procedures.
• If the combined weight of the child and child restraint is less than 65 lbs. (29.5 kg),
you may use either the LATCH anchors or
the seat belt to install the child restraint (not
both at the same time).
• If the combined weight of the child and child restraint is greater than 65 lbs. (29.5
kg), use the vehicle’s seat belt (not the lower
anchors) to install the child restraint.
• Be sure to follow the child restraint manu- facturer’s instructions for installation. All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated. Canadian law requires the top
tether strap on forward-facing child re-
straints be secured to the designated anchor
point on the vehicle.
LATCH (Lower Anchors and
Tethers for CHildren) SYSTEM
Your vehicle is equipped with special anchor
points that are used with LATCH system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do
not have to use a vehicle seat belt to secure
the child restraint unless the combined
weight of the child and child restraint exceeds
65 lbs. (29.5 kg). If the combined weight of
the child and child restraint is greater than
65 lbs. (29.5 kg), use the vehicle's seat belt
LRS3363

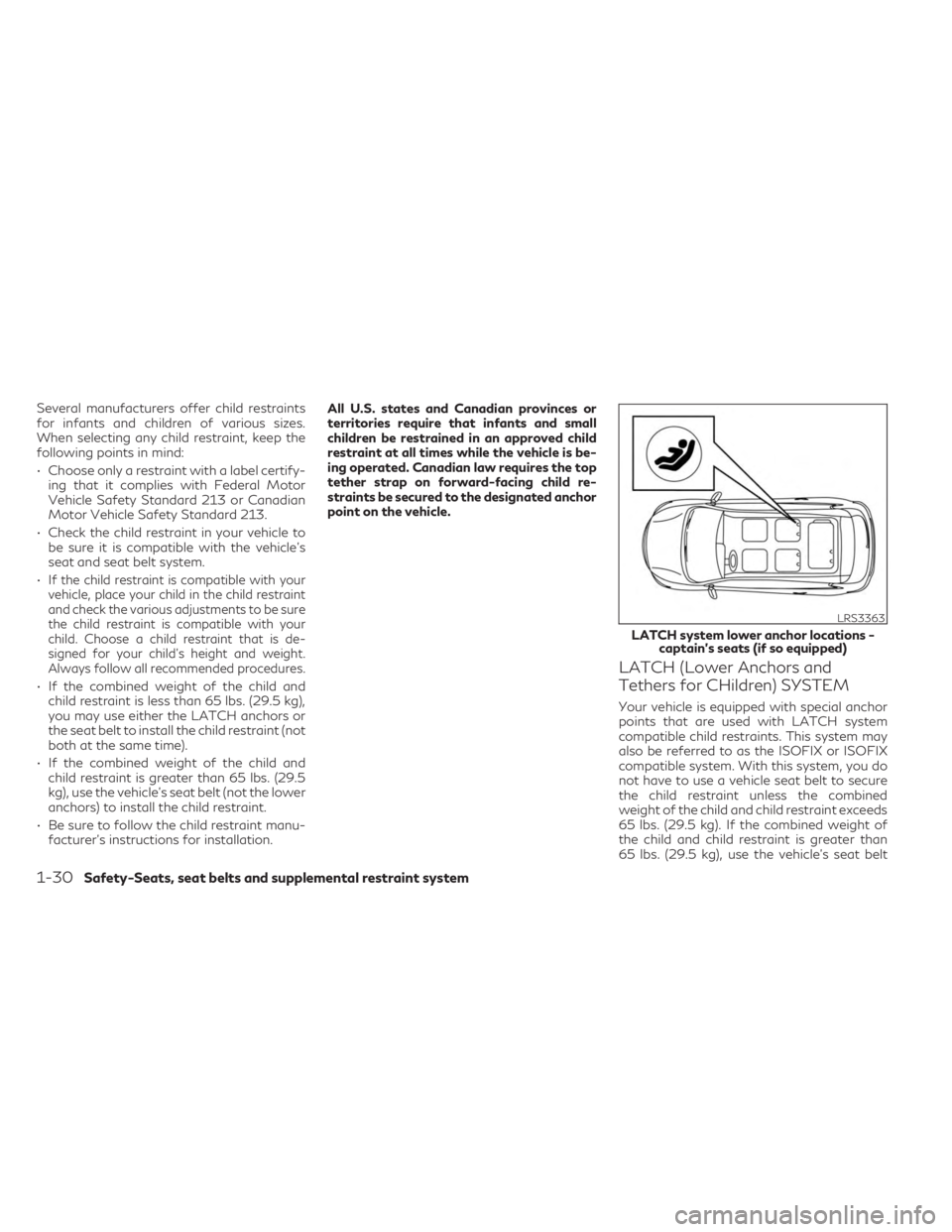

LATCH system lower anchor locations -
captain’s seats (if so equipped)
1-30Safety-Seats, seat belts and supplemental restraint system
Page 57 of 636

(not the lower anchors) to install the child
restraint. Be sure to follow the child restraint
manufacturer's instructions for installation.
The LATCH lower anchor points are provided
to install child restraints in the following po-
sitions only:
• 2nd row bench seats (if so equipped)
• 2nd row captain’s seats (if so equipped)
• 3rd row driver’s side seating position
LATCH lower anchor
WARNING
Failure to follow the warnings and instruc-
tions for proper use and installation of child
restraints could result in serious injury or
death of a child or other passengers in a
sudden stop or collision:
• Attach LATCH system compatible child
restraints only at the locations shown in
the illustration.
• Do not secure a child restraint in the 2nd
row center position and 2nd row driver’s
side seating position at the same time.
• Inspect the lower anchors by inserting
your fingers into the lower anchor area.
Feel to make sure there are no obstruc-
tions over the anchors such as seat belt
webbing or seat cushion material. The
child restraint will not be secured prop-
erly if the lower anchors are obstructed. •
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorages,
and a child could be seriously injured or
killed in a collision.
LRS3378

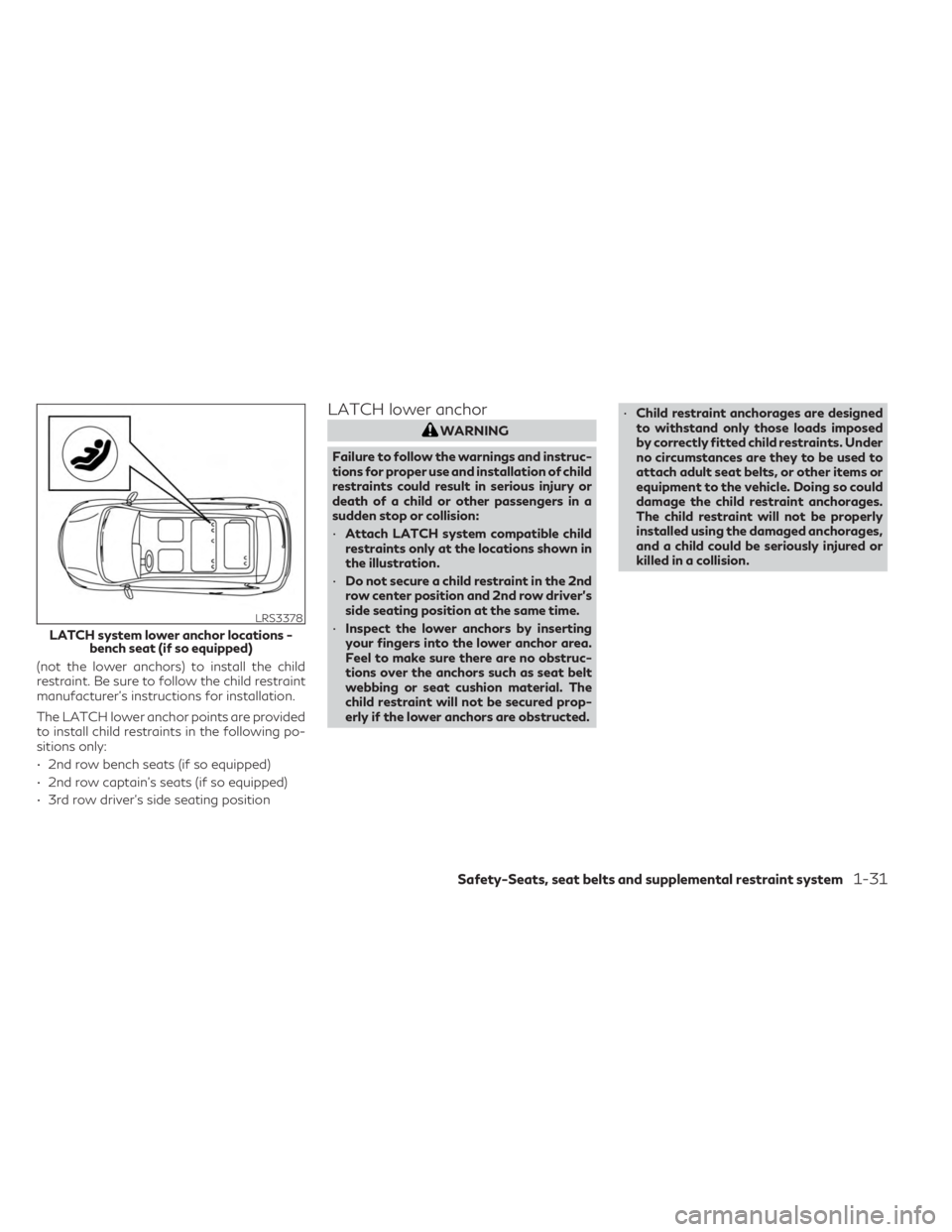

LATCH system lower anchor locations - bench seat (if so equipped)
Safety-Seats, seat belts and supplemental restraint system1-31
Page 58 of 636

LATCH lower anchor location
The LATCH lower anchors are located as
shown. A label is attached to the seatback to
help you locate the LATCH lower anchors.
LRS3036
LATCH lower anchor location
LRS3375
LATCH label locations 2nd row captain’sseats (if so equipped)
LRS3376
LATCH label locations 2nd row bench seat (if so equipped)
1-32Safety-Seats, seat belts and supplemental restraint system
Page 59 of 636

LATCH in the center 2nd row
seating position (if so equipped)
A 5th LATCH anchor can be found between
the outboard LATCH anchor pairs. It is spe-
cifically designed to be used together with
the inboard LATCH anchor on the driver’s
side, in order to install a Child Restraint Sys-
tem (CRS) in the 2nd row center seating po-
sition. Do not use the 5th LATCH anchor in
combination with an anchor other than the
driver’s side inboard LATCH anchor.
These anchors utilize standard LATCH an-
chor spacing,
OAof 11.02 in (280 mm).
WARNING
• Never attach two CRS attachments to
the same LATCH anchor. This may over-
load the anchor in a collision, which could
increase the risk of the occupant’s seri-
ous injury or death.
• When installing the CRS in the center
2nd row seating position with the in-
board LATCH anchors, be careful to en-
sure any occupant or CRS in the out-
board seating positions is properly
restrained using the vehicle seat belt and
there is no interference with the center
CRS installation. If the outboard occu-
pants cannot be properly restrained,
consider using the vehicle seat belt to
restrain the CRS in the center seating
position, or moving the CRS to another
position instead.
LRS3513
LATCH label locations 3rd row driver’s seating position
LRS3372
Safety-Seats, seat belts and supplemental restraint system1-33
Page 60 of 636

•When installing the CRS in the 2nd row
seating position, use the seat back re-
cline feature to align the left and right
sides of the seat back, creating one
evenly reclined surface. Never install a
CRS in the center seating position when
one part of the seat back is further re-
clined than the other. This may create an
unstable surface on which to install the
CRS. Failure to evenly recline the seat
backs before CRS installation could in-
crease the risk of the occupant’s serious
injury or death. Remember to re-check
that the CRS is properly installed any
time the seats are reclined or adjusted.
LRS3373
OK
LRS3374
NG (the seat back recline is not aligned)
1-34Safety-Seats, seat belts and supplemental restraint system
