headrest INFINITI QX60 2023 Owners Manual

1. Folding 3rd row bench (P. 1-7)
2. Folding 2nd row bench (if so equipped)(P. 1-5) 3. Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-70)
4. Head restraints/headrests (P. 1-16) 5. Seat belts with pretensioner(s) and
shoulder height adjuster (P. 1-17, 1-24)
6. Supplemental front air bags (P. 1-54)
7. Driver supplemental knee air bag
(P. 1-72)
Front passenger supplemental knee air
bag (P. 1-72)
8. Occupant classification sensor
(weight sensor) (P. 1-75)
9. Front central seat-mounted side-impact
supplemental air bag (if so equipped)
(P. 1-70)
10. Seats (P. 1-2)
11. Front seat-mounted side-impact
supplemental air bag (P. 1-70)
12. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-30)
13. 2nd row outboard seat-mounted
side-impact supplemental air bag
(P. 1-70)
14. 2nd row seat top tether strap anchor
(located on bottom of seatback) (P. 1-35)
15. 2nd row outboard seat belts with preten-
sioner(s) (P. 1-73)
Refer to the page number indicated in paren-
theses for operating details.
LII2708
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1 Safety-Seats, seat belts and supplemental
restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
2nd row seat adjustment ......................1-5
3rd row bench seat adjustment ................1-7
Armrests .....................................1-8
Flexible seating ...............................1-8
Head restraints/headrests ......................1-12
Adjustable head restraint/headrest
components ................................. 1-13
Non-adjustable head restraint/headrest
components ................................. 1-13
Remove ..................................... 1-14
Install ....................................... 1-15
Adjust ....................................... 1-15
Folding head restraint/headrest ..............1-16
Seat belts ....................................... 1-17
Precautions on seat belt usage ...............1-17
Seat belt warning light and chime ............1-20
Pregnant women ........................... 1-20
Injured persons ............................. 1-20
Pre-crash seat belts with comfort
function (front seats) (if so equipped) ........1-20
Three-point type seat belt with retractor ......1-21 Seat belt extenders
......................... 1-24
Seat belt maintenance .......................1-25
Child safety ..................................... 1-25
Infants ..................................... 1-26
Larger children ............................... 1-27
Child restraints ................................. 1-28
Precautions on child restraints ...............1-28
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-30
Rear-facing child restraint installation
using LATCH ................................ 1-37
Rear-facing child restraint installation
using the seat belts ......................... 1-39
Forward-facing child restraint installation
using LATCH ................................ 1-41
Forward-facing child restraint installation
using the seat belts ......................... 1-45
Booster seats ................................ 1-51
Supplemental Restraint System (SRS) ...........1-54
Precautions on SRS ......................... 1-54
Supplemental air bag warning labels ..........
1-74
Supplemental

air bag warning light ...........1-75

•When folding the bench seat seatback
down for maximum storage, make sure
the seat base is in the latched position by
rocking the seat base. If the seat base is
not properly secured, cargo stored on
top of a folded seatback may become a
projectile causing personal injury or ve-
hicle damage.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
• Do not allow more than one person to use
the same seat belt.
• Do not fold down the rear seats when
occupants are in the rear seat area or any
luggage is on the rear seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet
to get caught or pinched in the seat.
• Head restraints/headrests should be ad-
justed properly as they may provide sig-
nificant protection against injury in an
accident. Always replace and adjust
them properly if they have been removed
for any reason. •
If the head restraints/headrests are re-
moved for any reason, they should be se-
curely stored to prevent them from caus-
ing injury to passengers or damage to the
vehicle in case of sudden braking or an
accident.
• When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
• Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured cargo
could cause personal injury.CAUTION
• When folding the 2nd row seat for maxi-
mum cargo holding, be sure that the
cargo does not contact the center con-
sole of the captain’s seat (if so equipped)
to avoid possible damage to the console.
• When folding or returning the seat(s) to
the upright position, to avoid injury to
yourself and others:
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet
to get caught or pinched in the seat.
Safety-Seats, seat belts and supplemental restraint system1-9

Folding the 2nd row seats
To fold the 2nd row seats flat for maximum
cargo hauling:
1. Make sure that the head restraints/headrests are lowered or removed. To re-
move the head restraint/headrest, push
and hold the lock knob while moving the
head restraint/headrest in an upward di-
rection. Store the head restraint/headrest
properly so it is not loose in the vehicle.
2.
Stow the 2nd row seat belts in the seat belt
hooks found on the sides of the vehicle.
3. Lift up on the recline lever on the side of the outboard seats to fold the seatbacks
flat. The seatback will lock into place
when in cargo mode to optimize the load
floor.
4. To return the 2nd row seats to a seating position, lift up on the recline lever on the
side of the outboard seats and push up on
the seatback until it latches in place.3rd row manual folding seats
To fold the 3rd row seats flat for maximum
cargo capacity:
1. Pull the strap
OAto release the head
restraint/headrest forward.
2. Pull up on the latch
OBlocated in the
upper corner of each seatback and lower
the seatback forward over the seat base.
LRS3520
2nd row captain’s seats (if so equipped)
LRS3452
2nd row bench seats (if so equipped)
LRS3543
1-10Safety-Seats, seat belts and supplemental restraint system

Manual operation to return the 3rd row seats
to a seating position (if so equipped):
1. Use the pull straps
OCto raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly raise
each seatback to an upright and secured
position.
2. Do not use the pull strap to return the head restraint/headrest to the upright
position. Pull back on the head restraint/
headrest until it latches in the upright
position.
Power operation to return the 3rd row seats
to a seating position (if so equipped):
1. Push and hold the corresponding switch
ODlocated on the left side in the cargo
area.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is
fully returned to the seating position. If the control unit detects any obstacle or
malfunctions while in the power operation, a
beep sounds for 4 seconds and the seatback
will return to the folded position automati-
cally. Check if there are any obstacles caught
that prevent seats from returning to the
folded position. It is recommended that you
visit an INFINITI retailer if the beep still
sounds.
CAUTION
When operating the 3rd row power seat-
back return, make sure that the vehicle is
stopped and the transmission is in the P
(Park) position.
WARNING
• When the seat is returned to the normal
seating position, the head restraints/
headrests must be returned to the up-
right position to properly protect vehicle
occupants.
• Never allow anyone to ride in the cargo
area or on the 3rd row seats when they
are in the fold-down position. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
LRS3420
Safety-Seats, seat belts and supplemental restraint system1-11

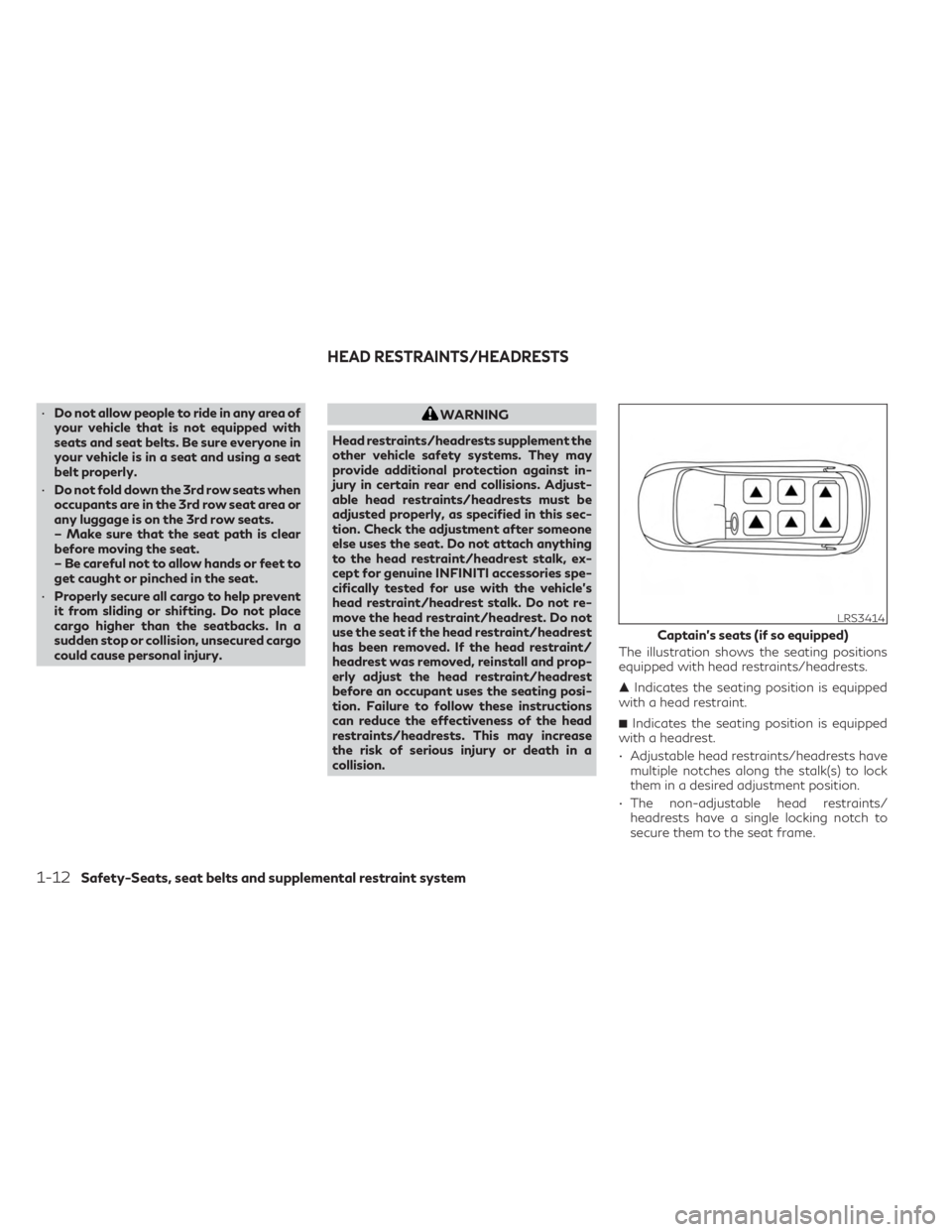

•Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
• Do not fold down the 3rd row seats when
occupants are in the 3rd row seat area or
any luggage is on the 3rd row seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
• Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured cargo
could cause personal injury.WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalk, ex-
cept for genuine INFINITI accessories spe-
cifically tested for use with the vehicle’s
head restraint/headrest stalk. Do not re-
move the head restraint/headrest. Do not
use the seat if the head restraint/headrest
has been removed. If the head restraint/
headrest was removed, reinstall and prop-
erly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision. The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped
with a head restraint.
 Indicates the seating position is equipped
with a headrest.
• Adjustable head restraints/headrests have multiple notches along the stalk(s) to lock
them in a desired adjustment position.
• The non-adjustable head restraints/ headrests have a single locking notch to
secure them to the seat frame.
LRS3414
Captain’s seats (if so equipped)
HEAD RESTRAINTS/HEADRESTS
1-12Safety-Seats, seat belts and supplemental restraint system

• Proper Adjustment:– For the adjustable type, align the headrestraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
–
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
• If the head restraint/headrest has been re- moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
LRS3415
Bench seats (if so equipped)
LRS2300LRS2299
Type A (if so equipped)
Safety-Seats, seat belts and supplemental restraint system1-13

REMOVE
Use the following procedure to remove the
head restraint/headrest:
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle. 5. Reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position.
LRS3391
Type B (if so equipped)
LRS2302
1-14Safety-Seats, seat belts and supplemental restraint system

INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the notch
(notches)
O1must be installed in the hole
with the lock knob
O2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position. For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
LRS2303WRS0134LRS2351
Safety-Seats, seat belts and supplemental restraint system1-15

Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is po-
sitioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
FOLDING HEAD
RESTRAINT/HEADREST
To fold the head restraint/headrest, pull the
strap located on the rear of the head
restraint/headrest.
If the head restraint/headrest has been
folded, make sure that it is returned to the
upright position.
Make sure the head restraint/headrest is po-
sitioned so the lock knobs are engaged in the
notches before riding in that designated
seating position.
LRS2305LRS2306LRS2307
1-16Safety-Seats, seat belts and supplemental restraint system
