INFINITI QX60 HYBRID 2015 Roadside Assistance Guide
Manufacturer: INFINITI, Model Year: 2015, Model line: QX60 HYBRID, Model: INFINITI QX60 HYBRID 2015Pages: 39, PDF Size: 2.95 MB
Page 21 of 39
4-1.1 Jump Starting Procedures
NOTE:Jumper cable connections under the hood of the QX60 HYBRID are not connected directly
to a battery. They are connected to chassis ground and a fuse box terminal. Refer to the
following instructions and the above illustration.
1. Locate the fuse box behind the engine air cleaner.
2. Push the tab in and lift up (A) to remove the fuse box cover and expose the remote positivebattery terminal (B) .
3. If the booster battery is in another vehicle, position the two vehicles to bring their batteries near each other.
DO NOT allow the two vehicles to touch.
4. Apply the parking brake. Move the selector lever the P (Park) . Switch off all unnecessary electrical systems (lights, heater, air conditioner, etc.) .
5. Remove vent caps on the battery (if so equipped) of the vehicle with battery for booster. Cover the battery with an old cloth (F) to reduce explosion hazard.
6. Connect jumper cables in the sequence as illustrated (B C D E) .
• Always connect positive (+) to positive (+) and negative (-) to body ground (for example,
as illustrated) , not to the 12-volt battery.
• Make sure the jumper cables do not touch moving parts in the engine compartment and that the cable clamps do not contact any other metal.
7. Start the engine of the booster vehicle and let it run for a few minutes.
8. Hold down the brake pedal and press the START button. The vehicle instruments and gauges will light up, and the green READY light
will come ON.
F
A
E
D
B
B
+
C
+
Cloth
Vehicle being jump started
Vehicle with battery for booster
AAYIA0072GB
RAG–21
Page 22 of 39
If the green READYlight does not come on, press the START button to turn the
Hybrid System OFF. Carefully disconnect the negative cable then the positive cable.
Have the vehicle taken to an INFINITI retailer for repair.
9. After the green READY
light in the meter display comes ON, carefully disconnect the
negative cable and then the positive cable.
10. Replace the vent caps (if so equipped) . Be sure to dispose of the cloth used to cover the vent holes as it may be contaminated with corrosive acid.
11. Reinstall the fuse box cover.
NOTE:
If it is not possible to turn the hybrid system ON by following this procedure, contact
an INFINITI retailer immediately.
4-1.2 Shift Selector Lever Lock Release
If the 12-volt battery is low or discharged, the selector lever cannot be moved from the Park (P) position. If a
booster battery is not available, the selector lever lock can be manually released. To manually release the
selector lever lock, perform the following procedure: 1. Push the ignition switch to the LOCK or OFF position.
2. Apply the parking brake.
3. Remove the shift lock cover (A) using a suitable tool.
4. Push down the shift lock (B) using a suitable tool asshown in the illustration.
5. Push the selector lever button (C) and move the selector lever to the Neutral (N) position (D) while holding down
the shift lock.
A
B
D
C
AAYIA0312ZZ
RAG–22
Page 23 of 39
4-2 Tools Installed in the Vehicle
The recovery hook and tool kit are housed inside the tool bag along with the jack located inside the cargo
area under the luggage board.
4-3 Towing
4-3.1 Vehicle Specifications
Length196.4 in. (4,989 mm)
Width 77.2 in. (1,960 mm)
Overall Height 68.6 in. (1,742 mm)
Wheel Base 114.2 in. (2,900 mm)
Minimum ground clearance 6.5 in. (165 mm)
Overall vehicle weight 4,598.6 - 4,737.9 lbs. (2,085.9 - 2,149.1 kg) (Weight varies by equipment and trim level.)
Front approach angle 14°
Rear departure angle 20.6°
AAYIA0379ZZ
RAG–23
Page 24 of 39
4-3.2 Towing Guidelines
Infiniti strongly recommends that QX60 HYBRID be towed with the driving wheels off the ground or that the
vehicle be placed on a flatbed truck.
• AWD Models: Never tow with any of the wheels on the ground, as this may causeserious and expensive damage to the powertrain.
• FWD Models: Never tow with the front wheels on the ground, as this may cause serious and expensive damage to the powertrain.
• Transport the vehicle only after turning the ignition switch OFF.
• Safety chains or cables must be attached only to the vehicle recovery hook or main structural members of the vehicle. Otherwise, the vehicle body will be damaged.
• Do not use the vehicle tie down hook to free a vehicle stuck in sand, snow, mud, etc.
• Never tow a vehicle using the vehicle tie down hook or recovery hook.
• Always pull the cable straight out from the front of the vehicle. Never pull on the vehicle at an angle.
• Pulling devices should be routed so they do not touch any part of the suspension, steering, brake, high voltage or cooling systems.
• Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or recovery.
Perform vehicle towing by holding up drive wheels (front or all, depending on model) or on flatbed in order
to prevent secondary damage from voltage generated by the motor. In addition, turn the ignition switch OFF
when towing the vehicle. Refer to the following illustration:
AWD Models
AAYIA0384ZZ
RAG–24
Page 25 of 39
FWD Models
4-3.3 Use of Vehicle Equipped Hooks for Recovery Operations
Front:1. Using a suitable tool wrapped with a protective cloth,remove the recovery hook cover from the bumper.
2. Securely install the recovery hook as illustrated. The recovery hook is located inside the cargo area under
the luggage board in the jack and tool kit.
Failure to securely install the recovery hook may result
in serious personal injury or death and/or vehicledamage.
AAYIA0355ZZ
AAYIA0356ZZ
AAYIA0099ZZ
RAG–25
Page 26 of 39

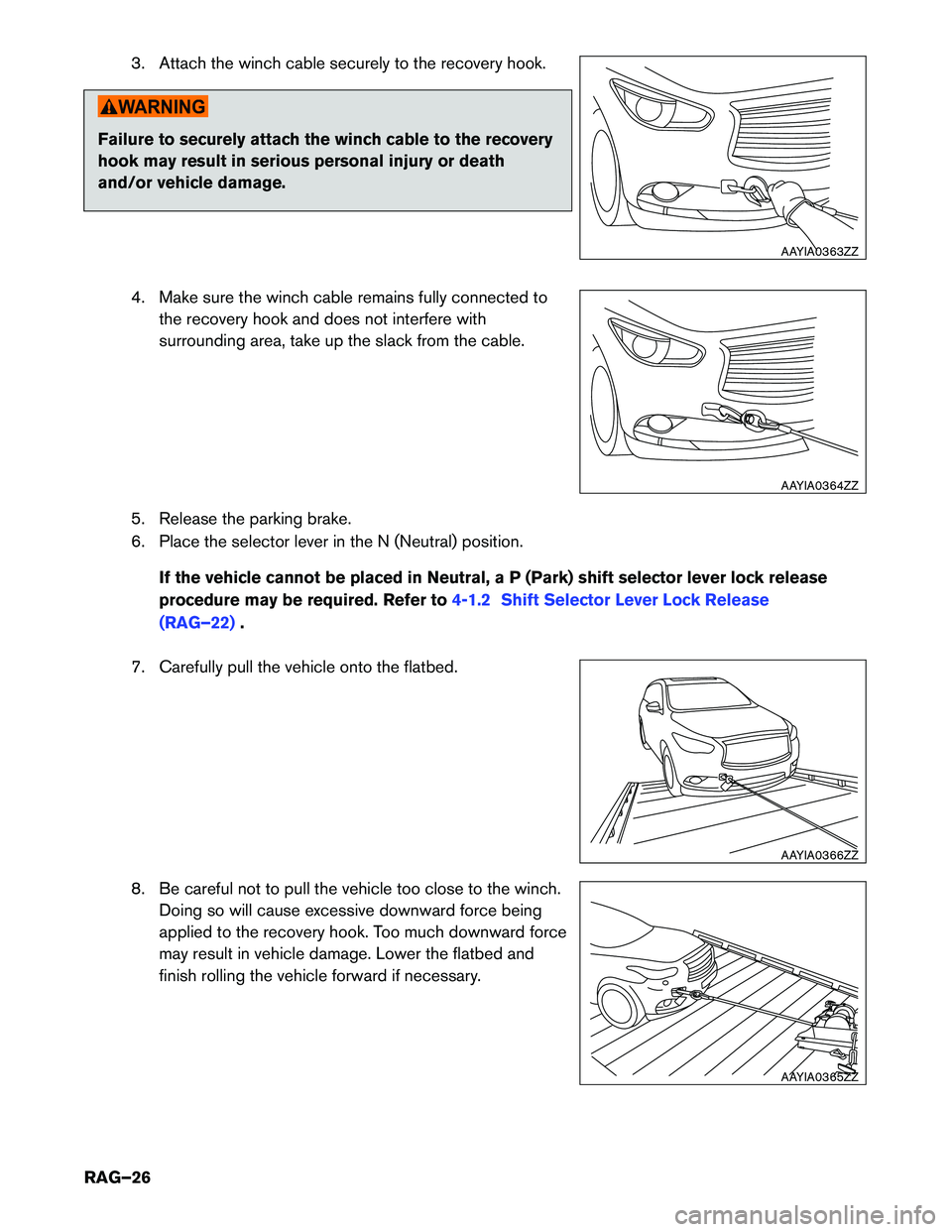

3. Attach the winch cable securely to the recovery hook.
Failure to securely attach the winch cable to the recovery
hook may result in serious personal injury or death
and/or vehicle damage.
4. Make sure the winch cable remains fully connected tothe recovery hook and does not interfere with
surrounding area, take up the slack from the cable.
5. Release the parking brake.
6. Place the selector lever in the N (Neutral) position.
If the vehicle cannot be placed in Neutral, a P (Park) shift selector lever lock release
procedure may be required. Refer to
4-1.2 Shift Selector Lever Lock Release
(RAG–22)
.
7. Carefully pull the vehicle onto the flatbed.
8. Be careful not to pull the vehicle too close to the winch. Doing so will cause excessive downward force being
applied to the recovery hook. Too much downward force
may result in vehicle damage. Lower the flatbed and
finish rolling the vehicle forward if necessary.
AAYIA0363ZZ
AAYIA0364ZZ
AAYIA0366ZZ
AAYIA0365ZZ
RAG–26
Page 27 of 39

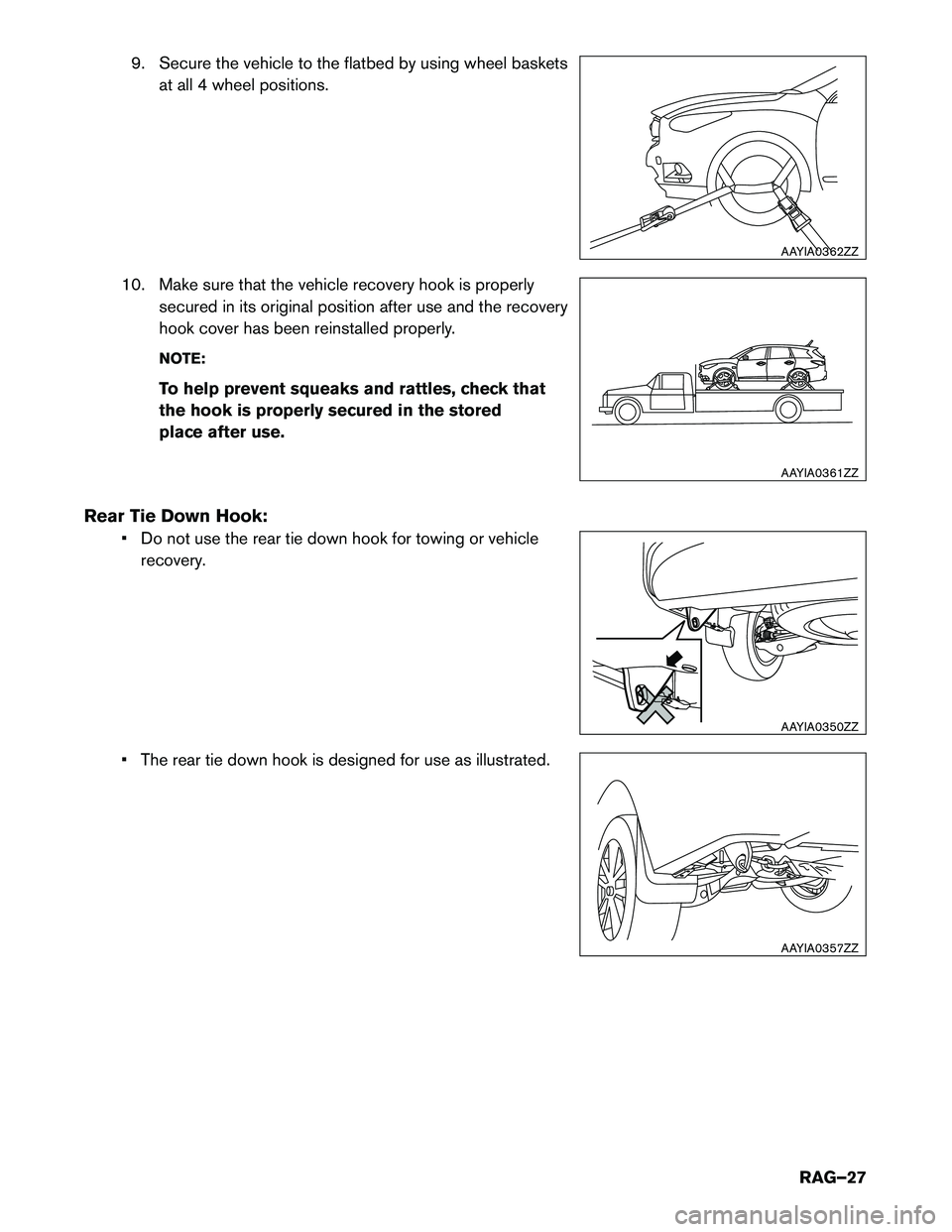

9. Secure the vehicle to the flatbed by using wheel basketsat all 4 wheel positions.
10. Make sure that the vehicle recovery hook is properly secured in its original position after use and the recovery
hook cover has been reinstalled properly.
NOTE:
To help prevent squeaks and rattles, check that
the hook is properly secured in the stored
place after use.
Rear Tie Down Hook: • Do not use the rear tie down hook for towing or vehiclerecovery.
• The rear tie down hook is designed for use as illustrated.
AAYIA0362ZZ
AAYIA0361ZZ
AAYIA0350ZZ
AAYIA0357ZZ
RAG–27
Page 28 of 39
4-4 Jacking Up the Vehicle and Changing a Tire
Always follow these instructions when jacking up the vehicle and changing a tire:
• Never change a tire when the vehicle is on a slope, ice or slippery areas. Jack must be onlevel ground.
• Make sure the parking brake is securely applied and shift selector is in P (Park) position.
• Never get under the vehicle while it is supported only by the jack. If it is necessary to work under the vehicle, support it with safety stands.
• Use the correct jack-up points. Never use any other part of the vehicle for jack support.
• Never jack up the vehicle more than necessary.
• Never use blocks on or under the jack.
• Do not start or run the engine while vehicle is on the jack. It may cause the vehicle to move. This is especially true for vehicles with limited slip differentials.
• Do not allow passengers to stay in the vehicle while it is on the jack.
• Never run the engine with a wheel(s) off the ground. It may cause the vehicle to move.
• Be sure to block the wheel diagonally opposite the wheel being removed as the vehicle may move and result in personal injury.
Failure to follow these instructions can result in serious personal injury or death and/or
vehicle damage.
1. Open the liftgate and lift the luggage board in the cargoarea using the handle (A) .
2. Remove the jack and tool kit cover by lifting up using the handles.
A
AAYIA0267ZZ
AAYIA0368ZZ
RAG–28
Page 29 of 39
3. Remove the tool kit.a. To release the tool kit, release the straps (A) .
4. Remove the jack (B) , winch socket (C) , extension (D) and wheel nut wrench (E) .
5. The lowering mechanism for the spare tire is located on the passenger side of the cargo area. Remove the cover
to access the spare tire winch.
6. Place the spare tire winch socket onto the lowering mechanism nut.
7. To lower the spare tire, insert the wheel nut wrench (E) to the extension (D) and insert the T-shaped end to the
winch socket (C) and rotate counterclockwise.
8. After removing the spare tire from under the vehicle, be sure to crank the cable up to stow it.
9. Loosen each wheel nut one or two turns by turning it counterclockwise with the wheel nut wrench. Do not remove the wheel nuts until the tire is off the ground.
A
AAYIA0369ZZ
BCDE
AAYIA0370ZZ
AAYIA0371ZZ
D
C
E
AAYIA0372ZZ
RAG–29
Page 30 of 39
10. Place the jack directly under the jack-up point as illustrated so the top of the jack contacts thevehicle at the jack-up point. Align the jack head between the two notches in the front or the rear
as shown. Also fit the groove of the jack head between the notches as shown. The jack
should be used on level firm ground.
11. To lift the vehicle, securely hold the jack lever and rod with both hands as shown. Carefully raise the vehicle until the tire clears the ground. Remove the wheel nuts, and then remove the tire.
12. Install new or repaired tire and hand-tighten the wheel nuts with the wheel nut wrench in an alternating pattern.
Always follow these instructions when changing a tire:
• Incorrect wheel nuts or improperly tightened wheel
nuts can cause the wheel to become loose or come
off. This could cause an accident.
• Do not use oil or grease on the wheel studs or nuts. This could cause the nuts to become loose.
Failure to follow these instructions can result in serious
personal injury or death and/or vehicle damage.
13. Securely torque the wheel nuts in an alternating pattern to 83 ft-lb (113 Nm) .
AAYIA0373ZZ
AAYIA0136ZZ
BE
CD
A
AAYIA0137ZZ
RAG–30
